Description

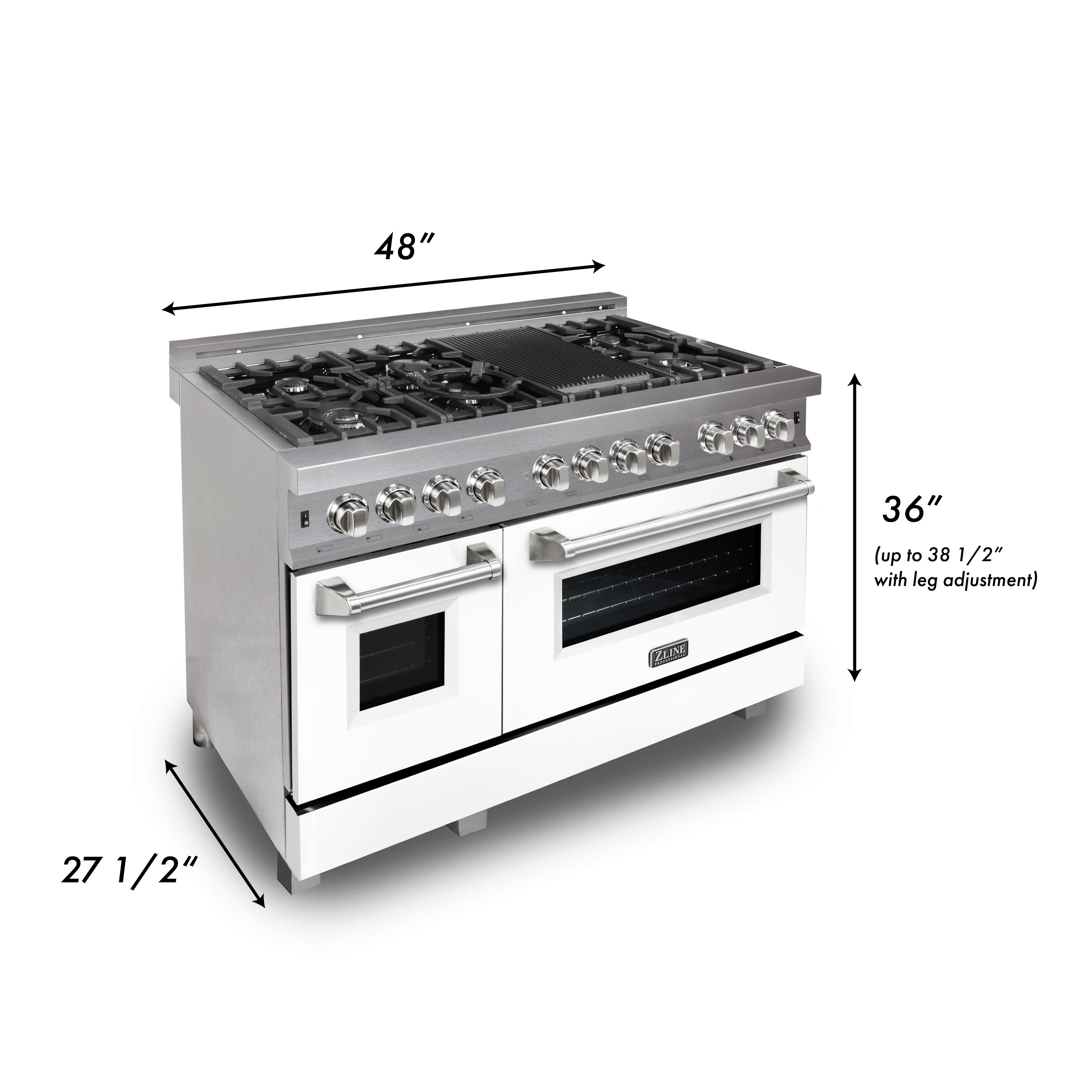

DIMENSIONS
- Product Dimensions (W x D x H)
- 47.75" W x 27.50" D x 36.13" H
- Cutout Dimensions (W x D x H)
- 48" W x 24" D x 36" H
- Adjustable Height
- 36.13" - 38.63" H
- Product Depth with Handle
- 29.63" D
- Open Door Depth
- 41.8" D
- Weight
- 256 lbs
GENERAL INFORMATION
- Product Type
- Dual Fuel Range
- Size
- 48"
- Burner Fuel
- Natural Gas and Liquid Propane Convertible
- Oven Fuel
- Electric
- Number of Burners
- 7
- Number of Ovens
- 2
- Oven Capacity
- Larger Oven: 4 cu. ft.
- Smaller Oven: 2 cu. ft.
DESIGN & FINISH
- Material
- Satin Stainless Steel with White Matte Doors
- Control Type
- Manual Front Control
- Lighting
- Halogen Lights
TECHNICAL DETAILS
- Electrical Requirements
- 30A / 240 VAC / NEMA 14-50P (50 AMP Plug)
COOKTOP FEATURES
- Number of Burners
- 7

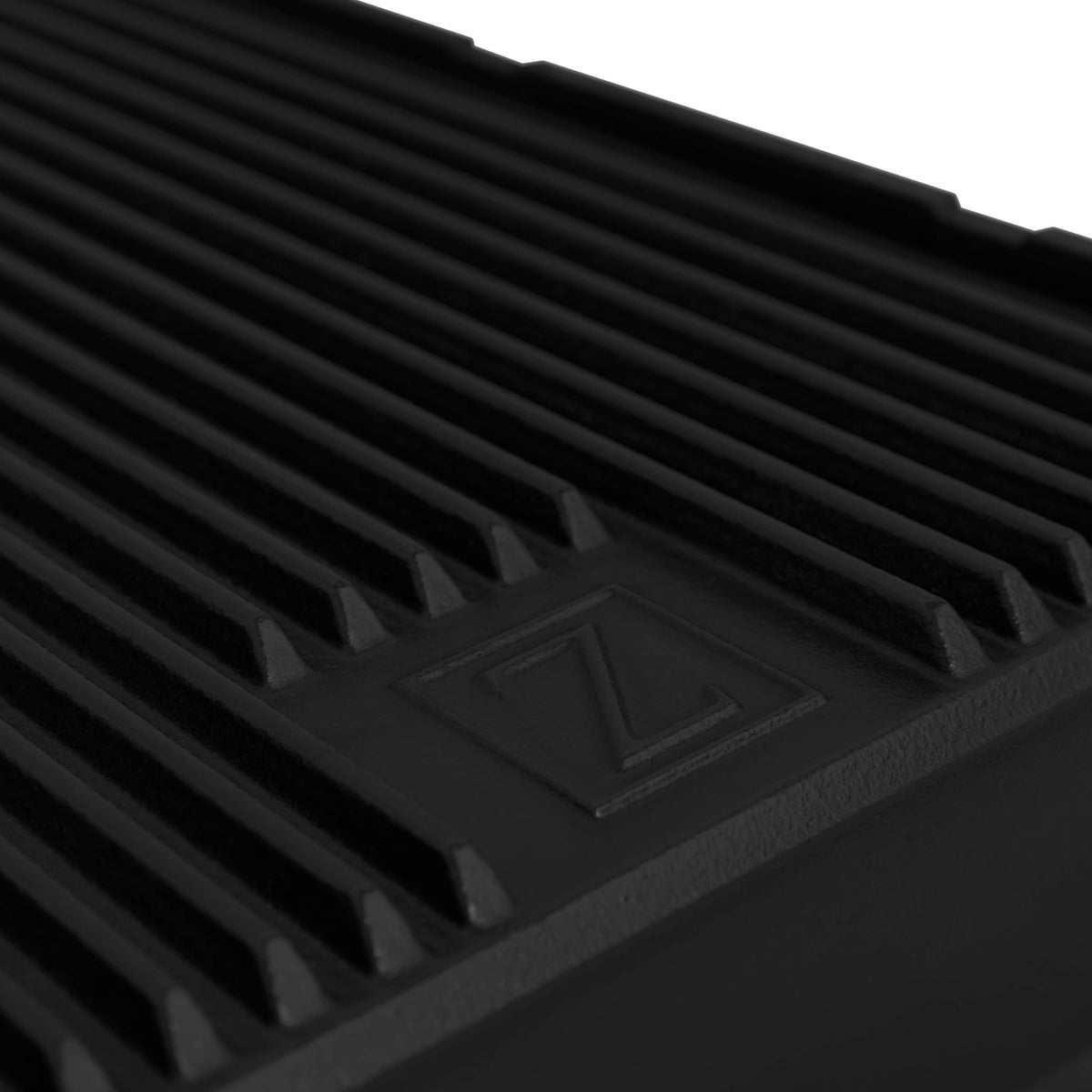

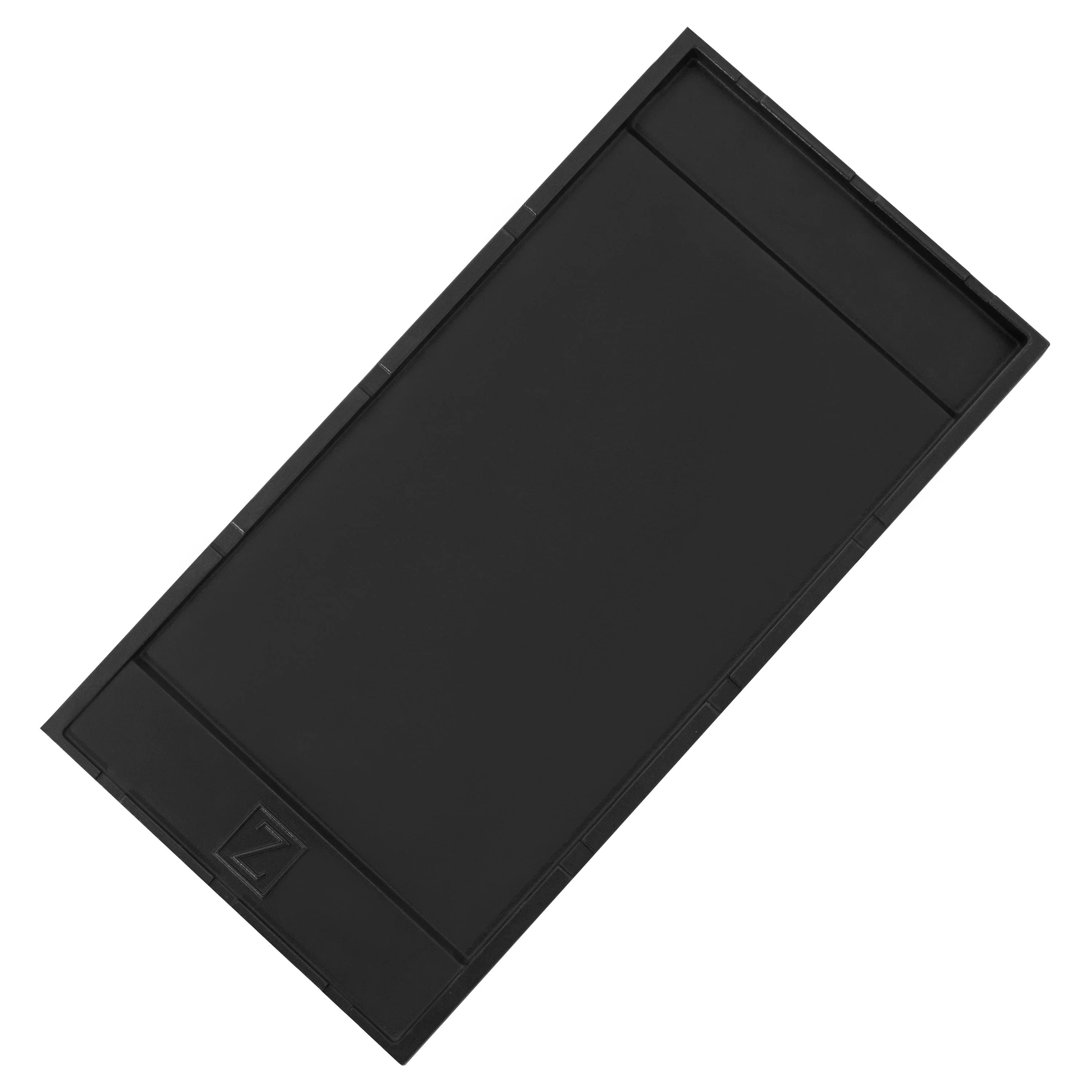

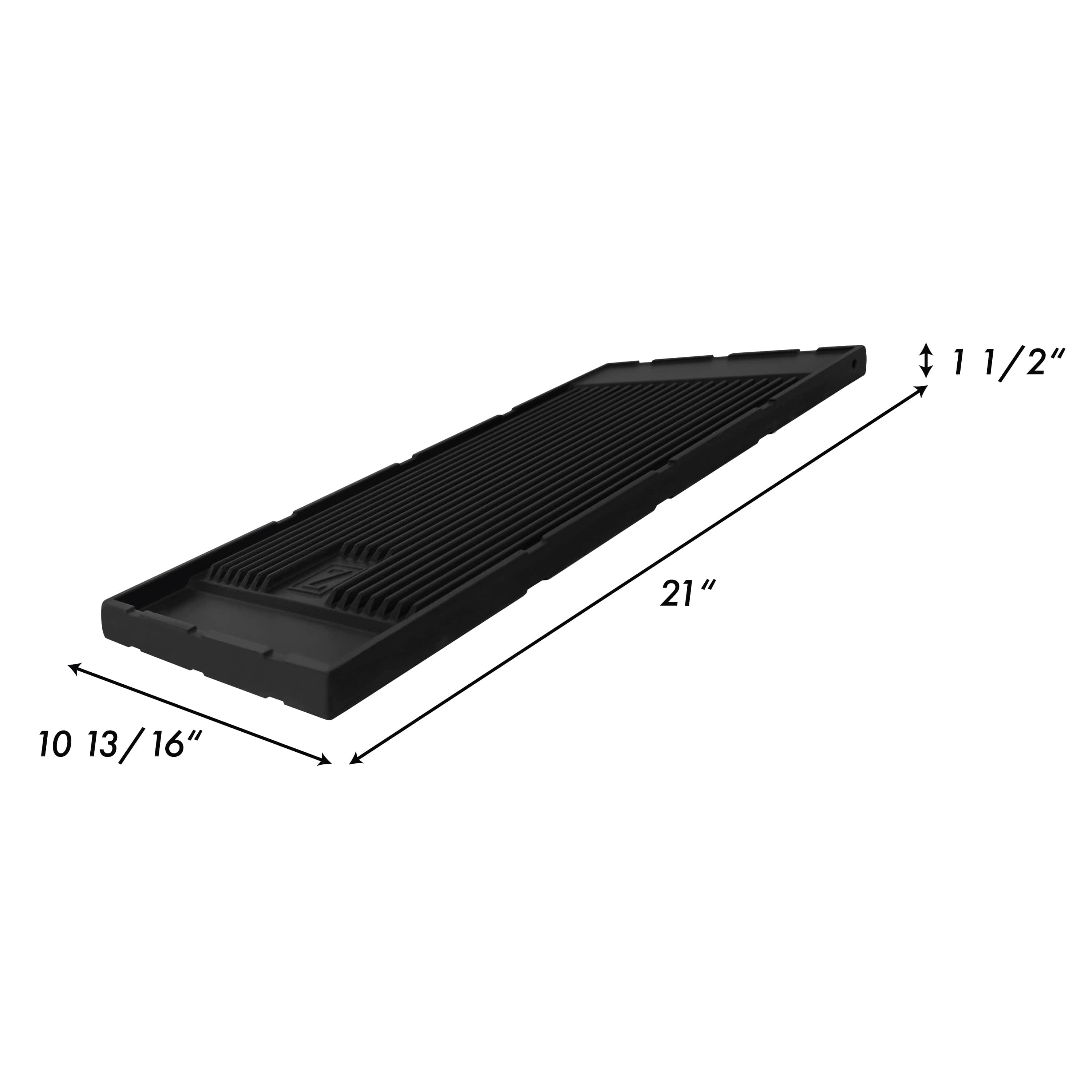

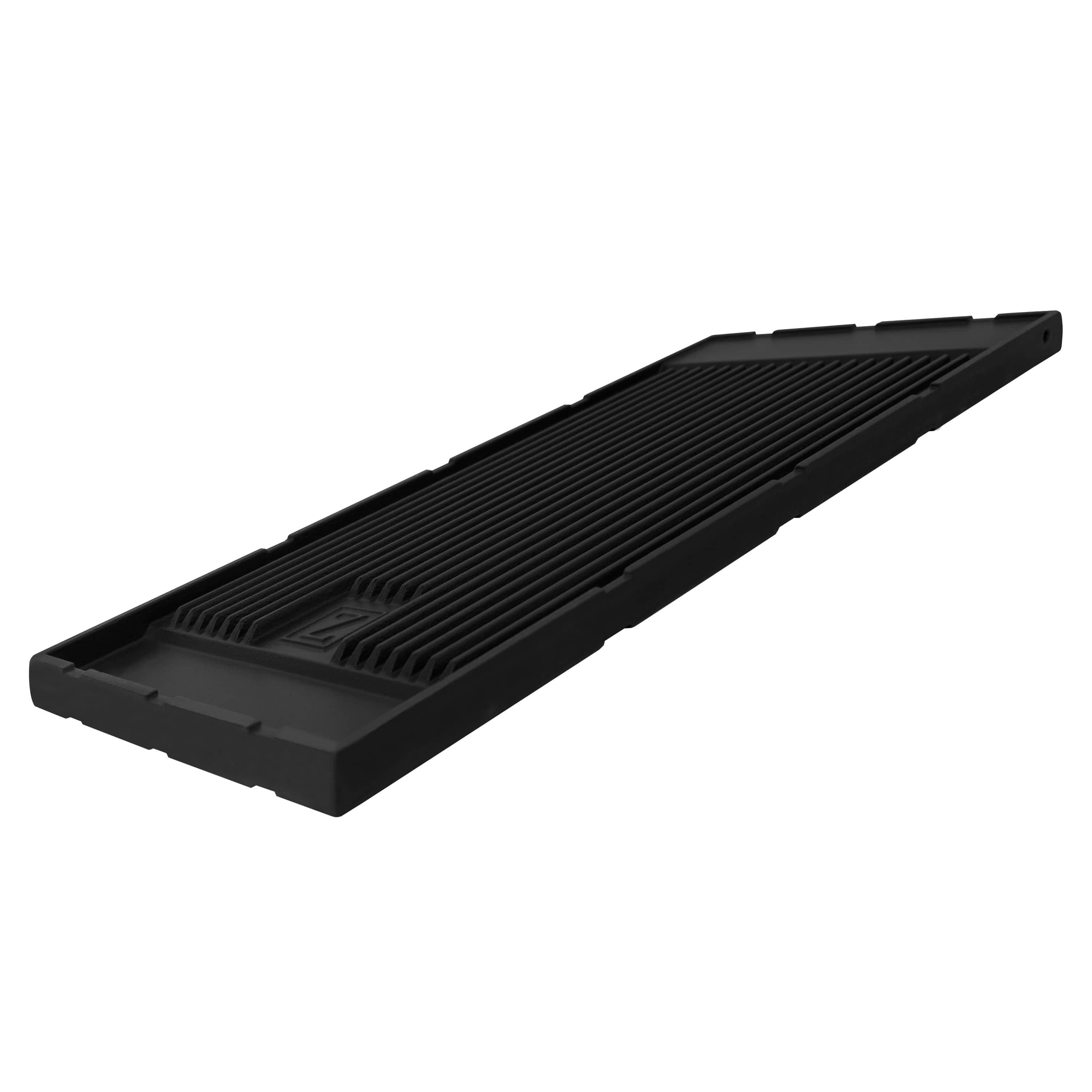

- Griddle
- Yes
- Cooktop BTUs
- Back Left Burner: 10,000 BTU
- Front Left Burner: 18,000 BTU
- Back Right Burner: 10,000 BTU
- Front Right Burner: 18,000 BTU
- Back Middle Burner: 12,500 BTU
- Front Middle Burner: 4,500 BTU
- Griddle Burner: 12,500 BTU
- Total BTUs
- 85,500 BTU
OVEN FEATURES
- Interior Oven Dimensions (W x D x H)
- 24.88" W x 17.75" D x 16" H
- Oven Features
- Bake, Broil, Convection Bake
- Convection Fan
- Yes
- Number of Racks
- 4
- Self Clean
- No
- Timer
- No
- Additional Features
- Italian Burners: Lifetime Burner Warranty
- Stay-Put Hinges
- Full Extension Telescoping Glide Racks
- LED Accent Lighting
- 3-Layered Glass on Oven Door
WARRANTY & CERTIFICATIONS
- Warranty
- 1-Year Parts and Service
- Lifetime Burner Warranty
- Certifications
- CSA Listed
