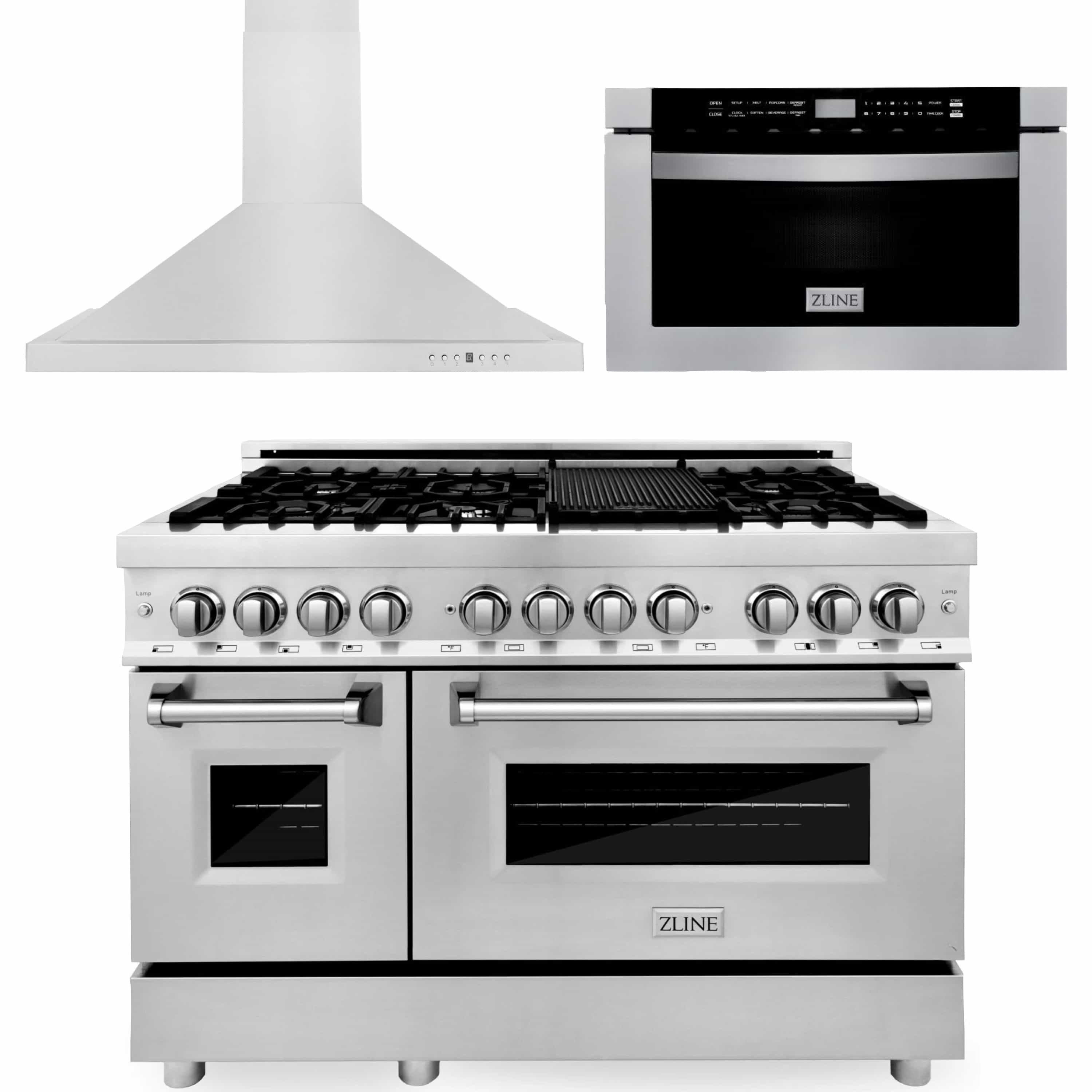

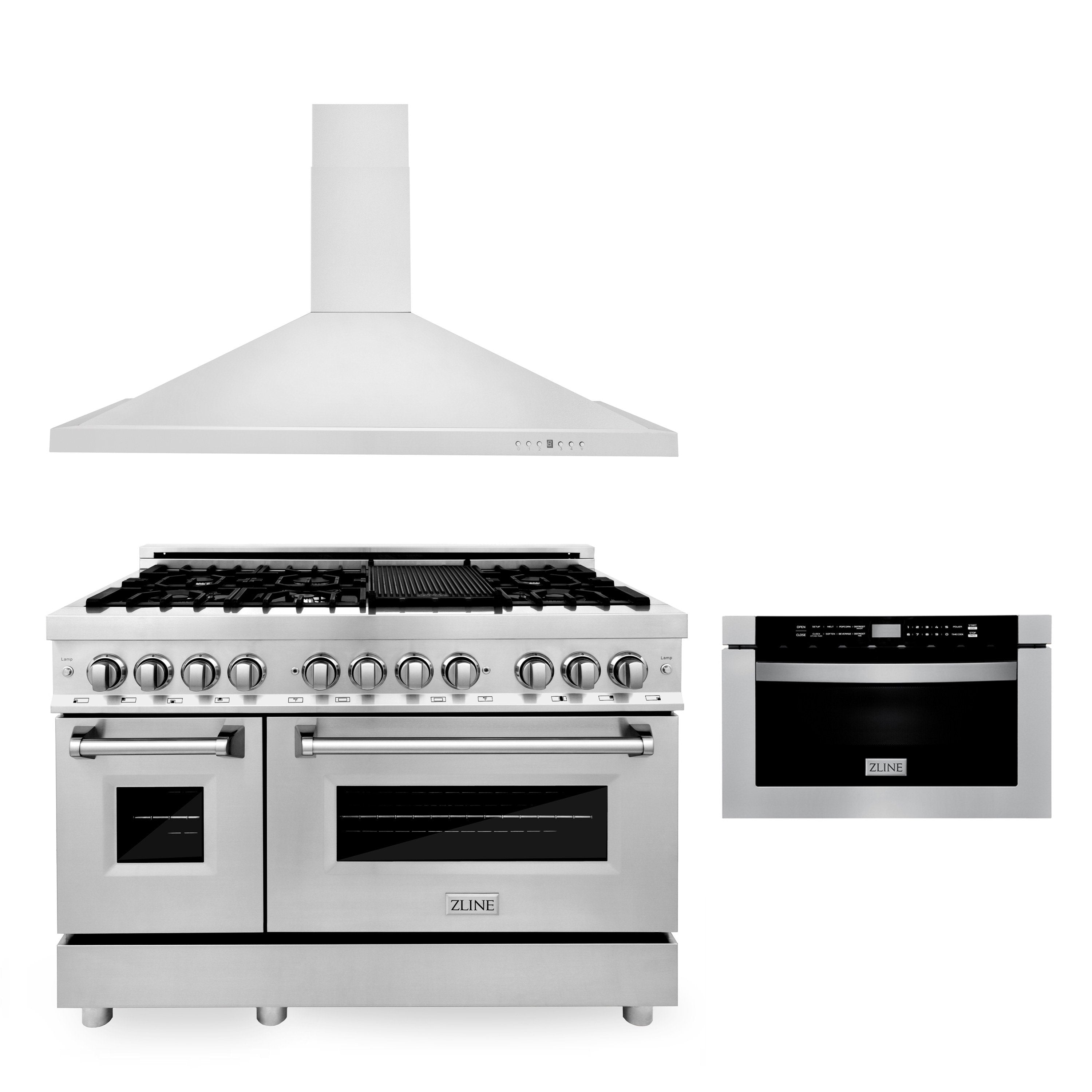

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

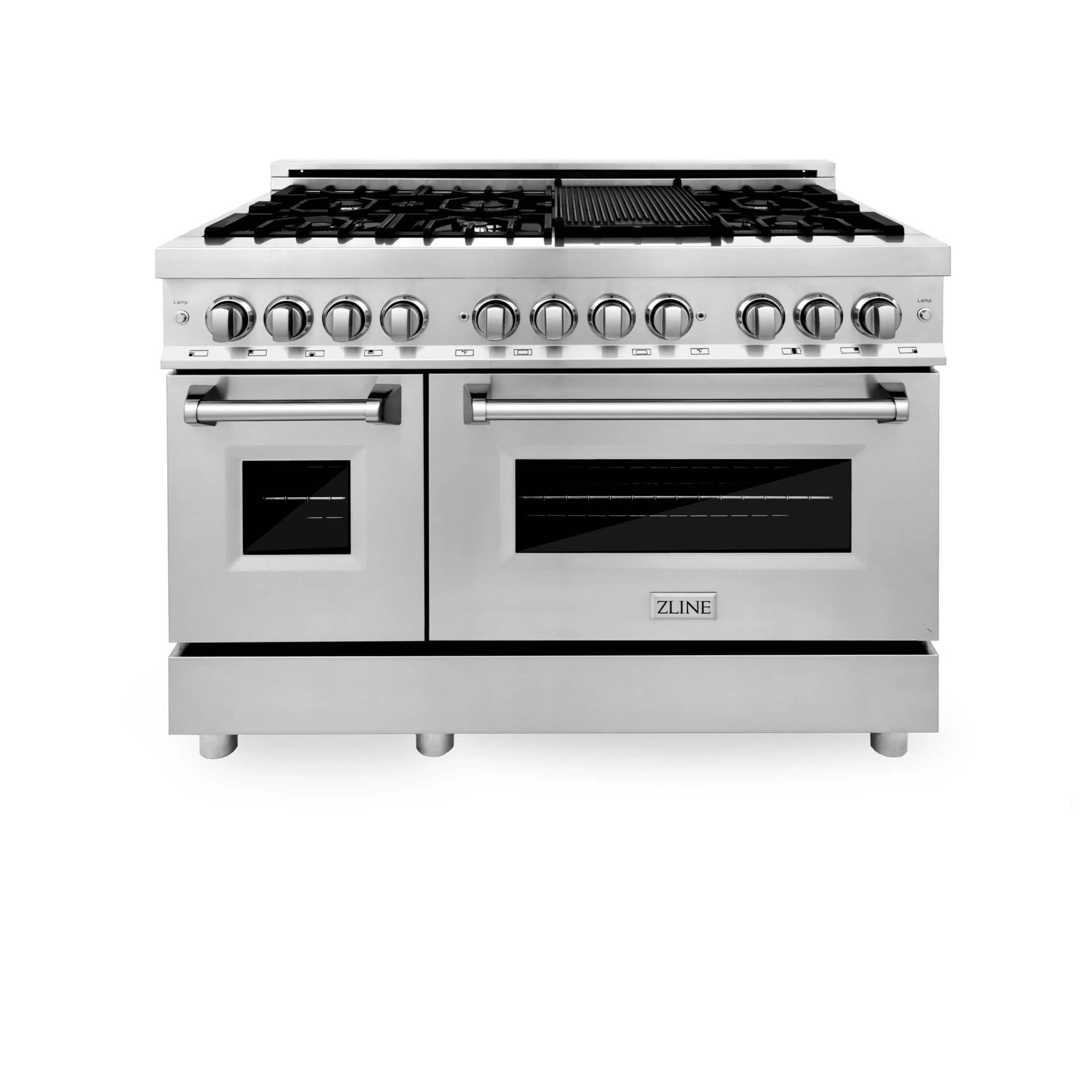

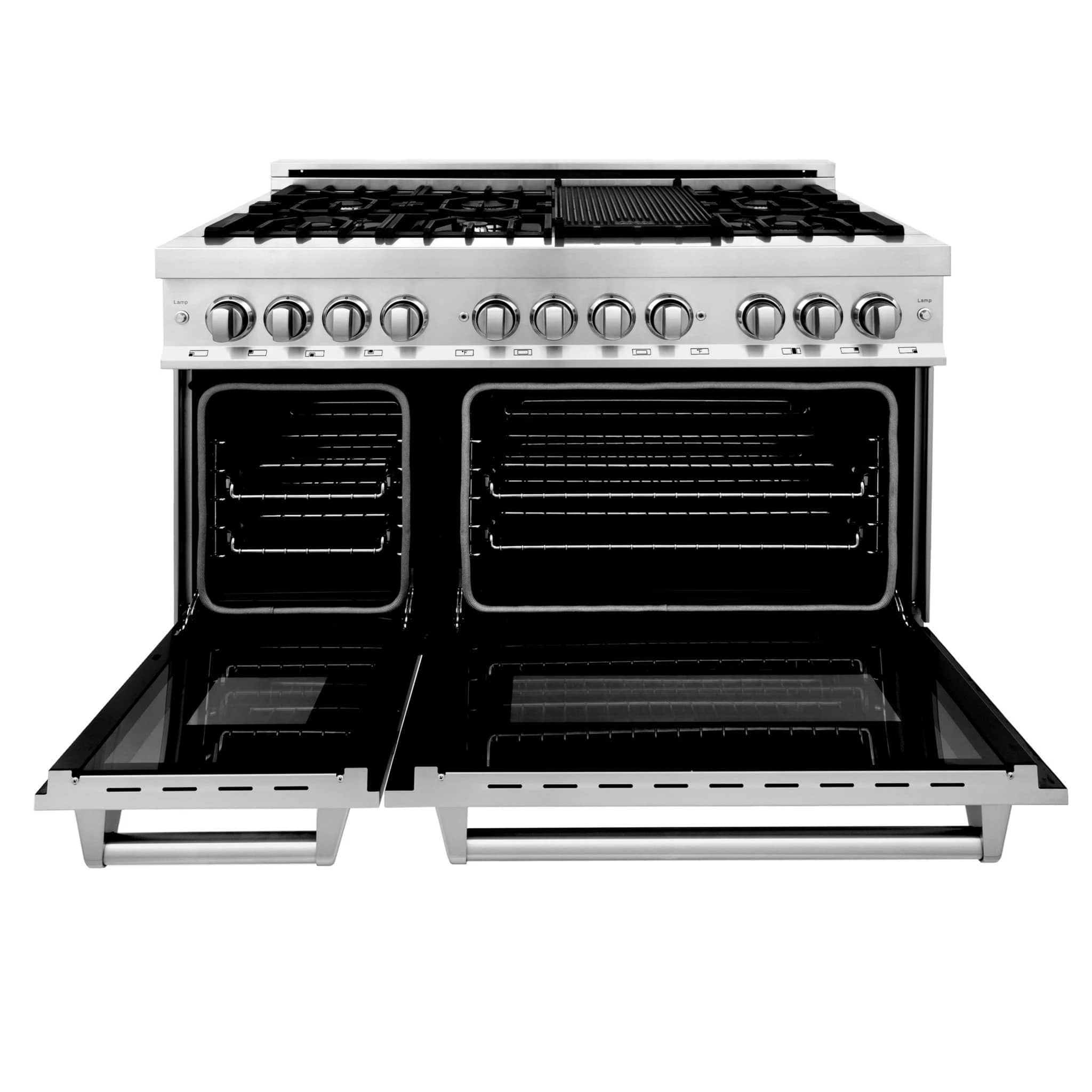

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 48" 6.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA48) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.
Build your dream kitchen with the ZLINE Dual Fuel Range
Features of ZLINE Dual Fuel Range:
- Professional Dual Fuel Cooking - Blends high-performance technology of a gas cooktop and an electric convection oven

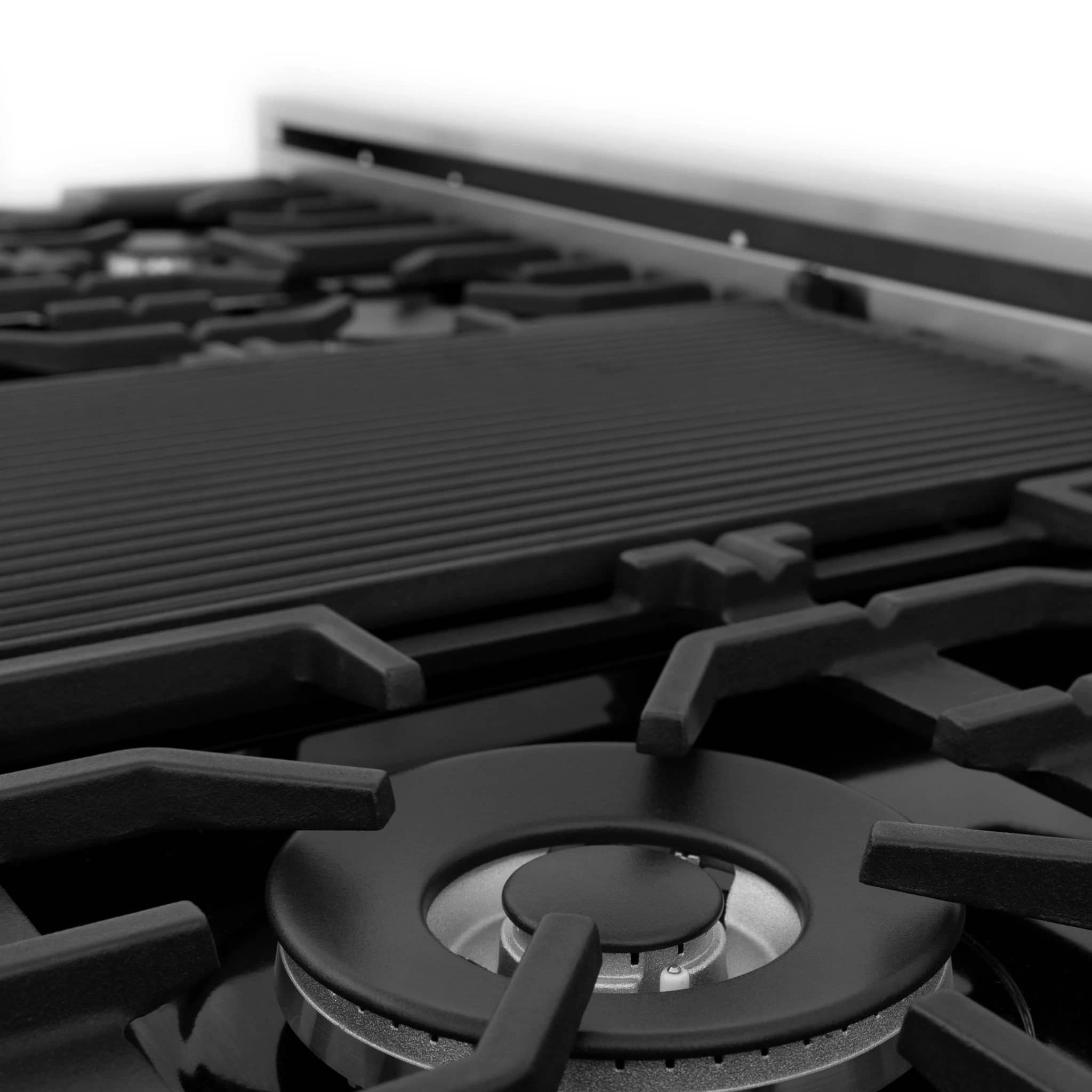

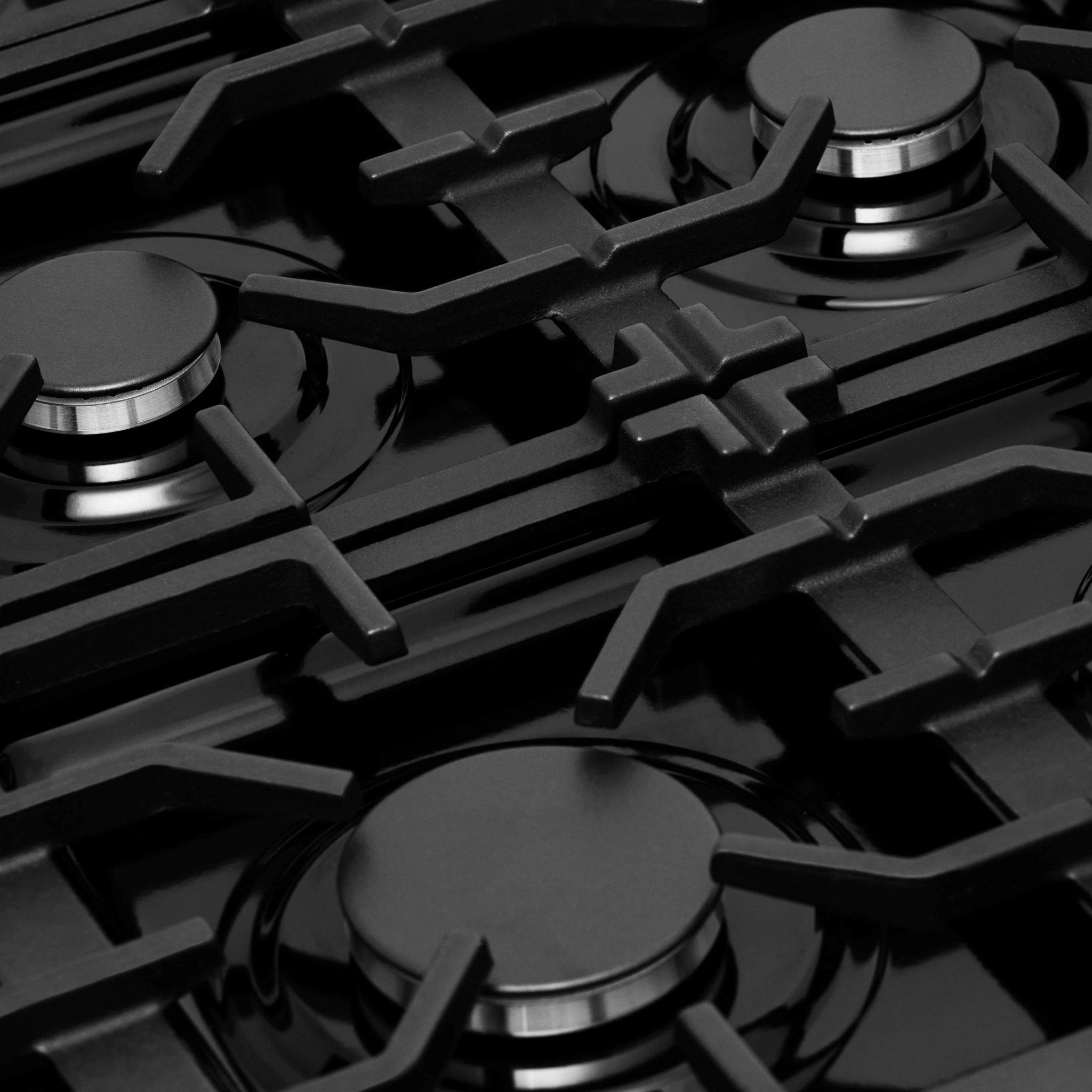

- Italian-Made Sealed Burners - Industry-leading gas cooktop includes 7 Hand-cast burners with cooking power ranging from 1,000 - 18,000 BTUs to optimize every meal with a powerful and even heat distribution
- Minimal Cleaning - Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance of gas cooktop
- Large Oven Capacity - 6.0 cu. ft oven capacity that fits up pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cookingximum space and convenience with everyday cooking
- Premium Oven Insulation - 3 layered glass and aluminum mesh seal offers superior heat retention and a consistent temperature, creating perfect dishes every time

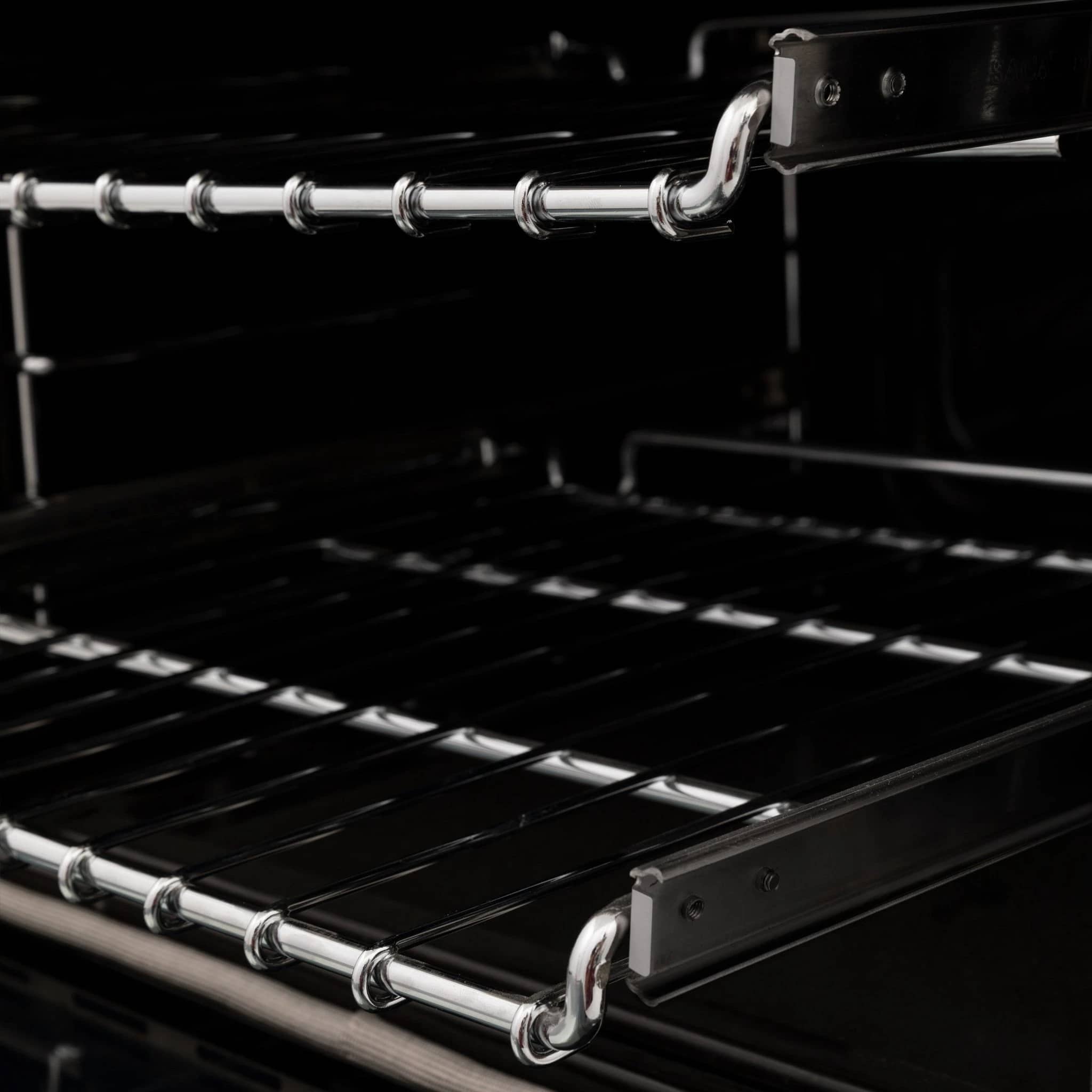

- Smooth Glide Ball-Bearing Oven Racks - Durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- StayPut Oven Door Hinges - Designed to support the full weight of the oven door, offering additional convenience and safety
- Dual Oven Lights - Illuminate your oven space with dual lighting, controlled by a switch located on the front control panel
- LP Conversion Kit - Comes equipped with an LP conversion kit to convert from natural gas to liquid propane (must be done by a professional); offering versatility with your cooking preference
- Professional Look and Feel - Featuring high grade 304 grade stainless steel with durable cast iron grates
- Adjustable Oven Height - Easy adjustable legs allow you to adjust the total range height anywhere from 36 inches to 38.5 inches
- Industry First Lifetime Burner Warranty - Limited lifetime warranty on ZLINE Italian burners, includes part replacements for burners and burner caps and parts and labor for the spark tip if parts prove to be defective in materials or workmanship
- Manufacturer Warranty - 1 year parts and service warranty on ZLINE Dual Fuel Ranges
- Dimension
- 47.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 47.75" W x 29.63 " D x 36.13" H
- Open Door Depth
- 41.8"
- Oven Dimensions
- Oven Dimensions: 26.5"/12.5"W x 18.5" D x 14" H
- Product Weight
- 331 lbs.
- Brand
- ZLINE Kitchen and Bath Available at Home Outlet Direct
- Features
- Manufactured by ZLINE Kitchen and Bath Model No. RA48
- Color
- Silver
- Finish
- Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel
- Control Type

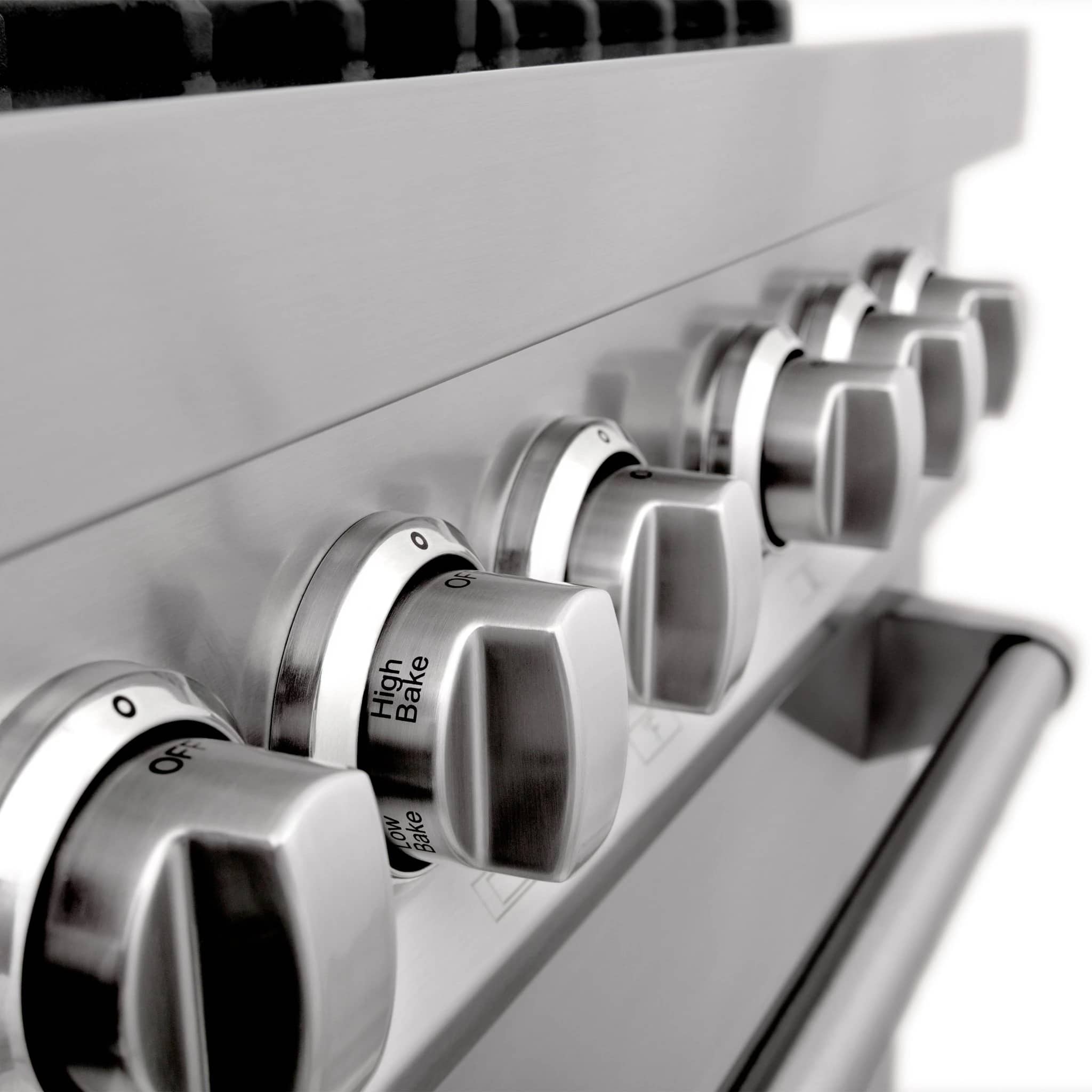

- Front Control
- Material
- Stainless Steel frame with 1 Piece Porcelain Top
- Italian made hinges and burners-Manual Clean Red indicator light shuts off to let you know when oven has gotten to temperature
- Voltage
- 240V/60Hz/40A
- Mount Type
- Free Standing
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel
- All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. Every range comes equipped with an LP conversion kit to convert from natural gas to propane; this conversion process must be done by a professional
- Fuel Type
- Convection Oven - Gas Cooktop
- Cooktop
- (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners
- BTU Rating
- Dual Burner(x2) - 18,000 BTU Griddle Burner - 13,000 Rapid Burner - 13,000 BTU Semi-Rapid Burner (x2) - 8,500 BTU Auxiliary Burner - 4,200 BTU
- Oven
- Manual Clean
- Convection Electric
- 4.6 cu.ft. deep oven
- Triple Glass Window
- Dual Lighting
- Professional Aluminum Mesh Seal
- Warranty
- 1 Year Warranty
- Certifications
- ETL Certified

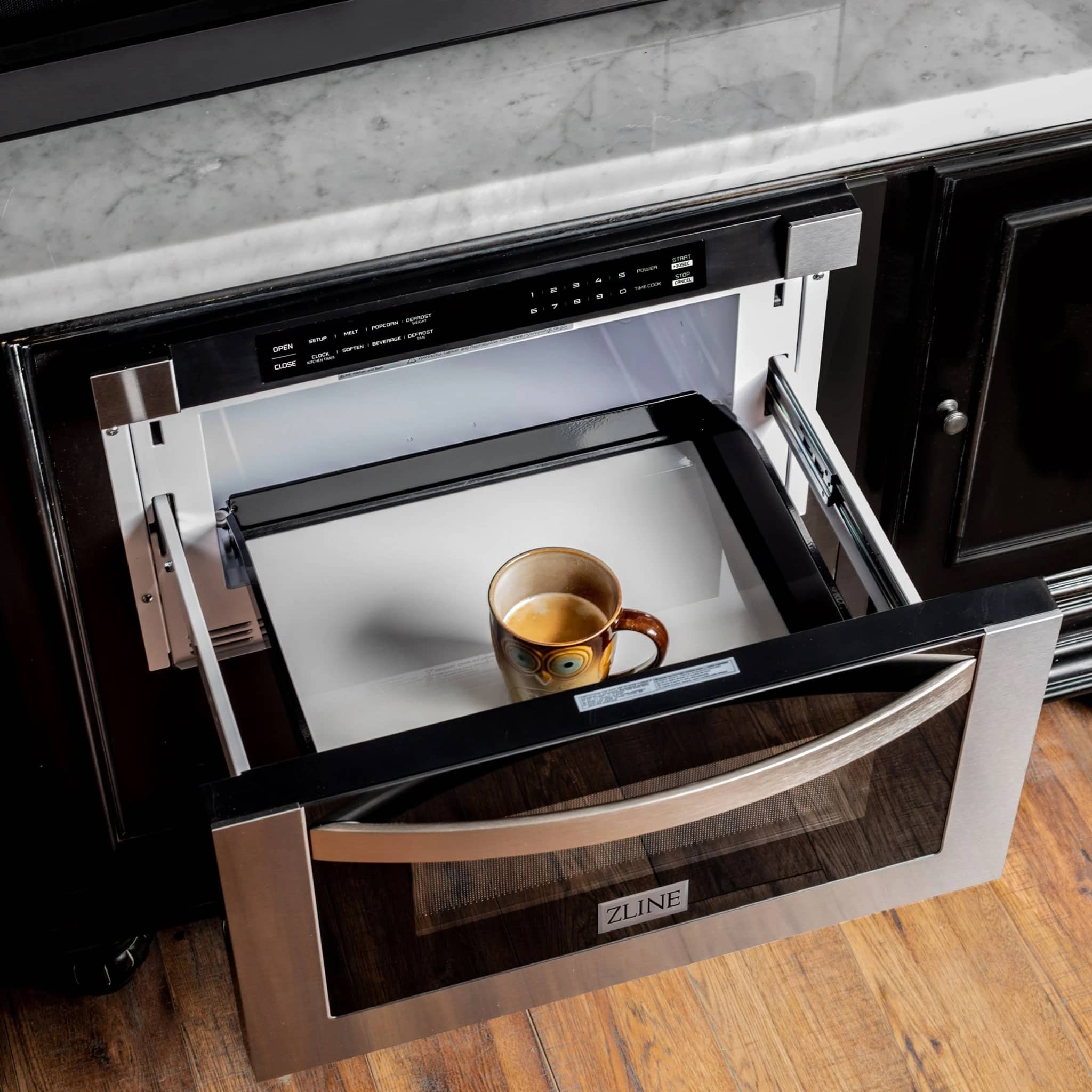

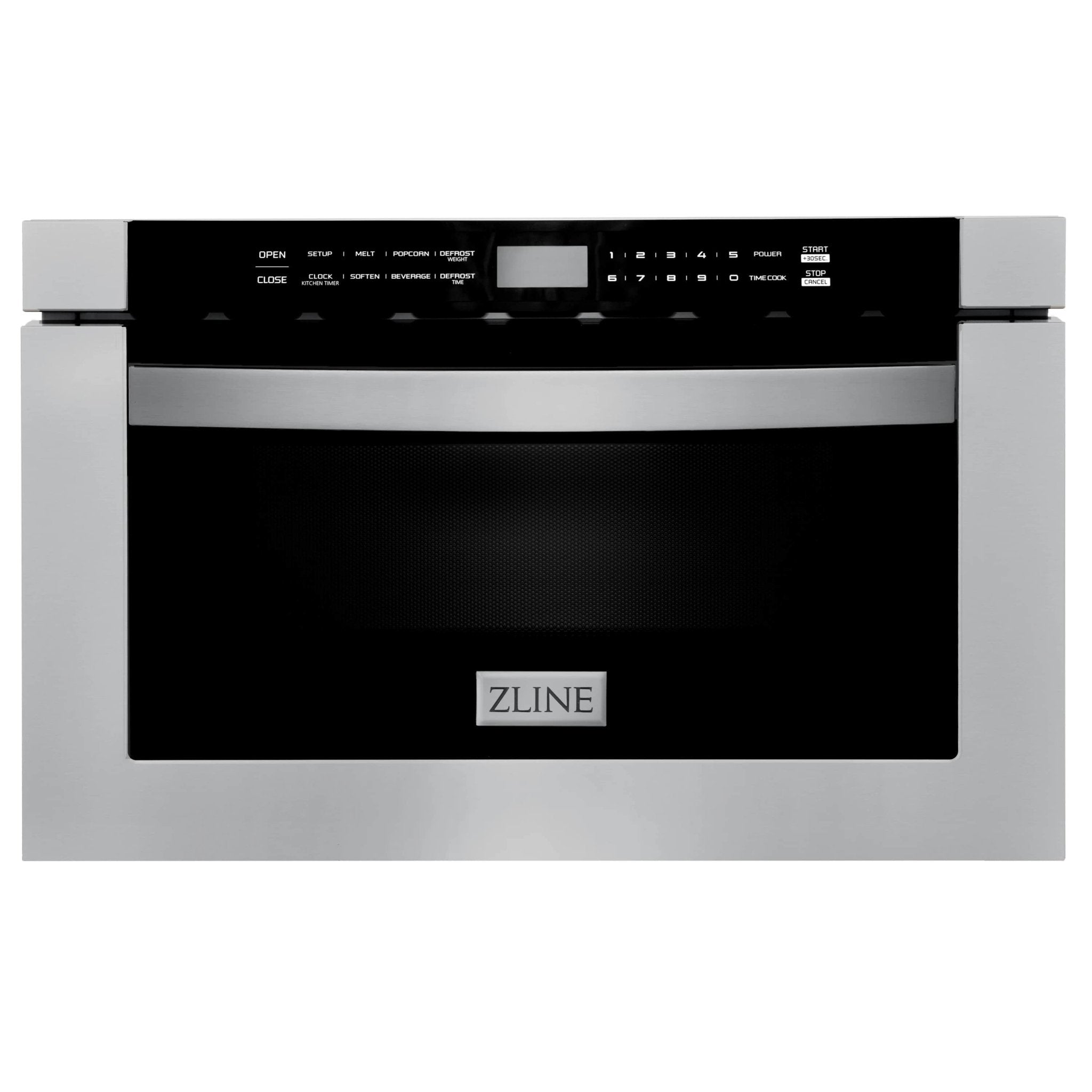

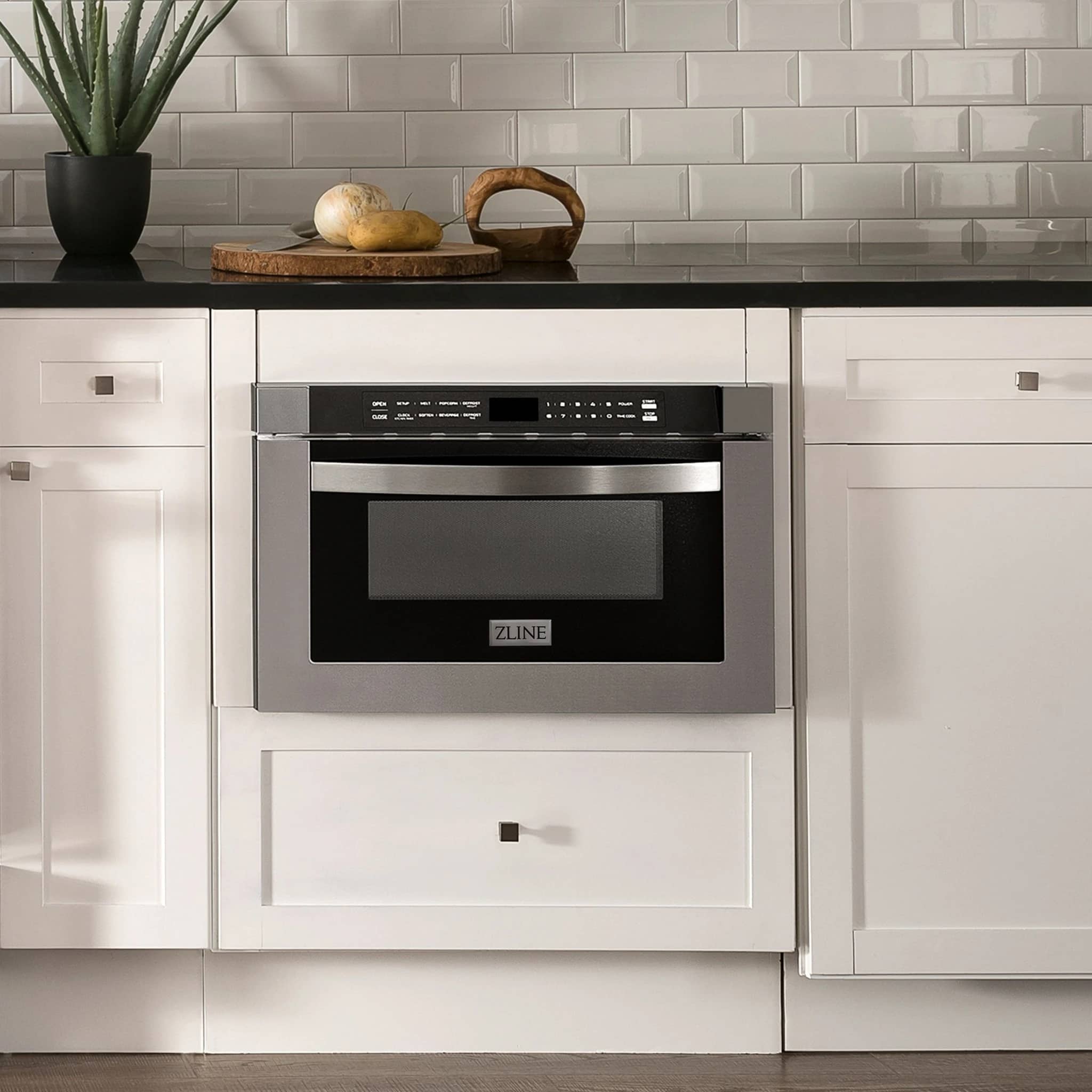

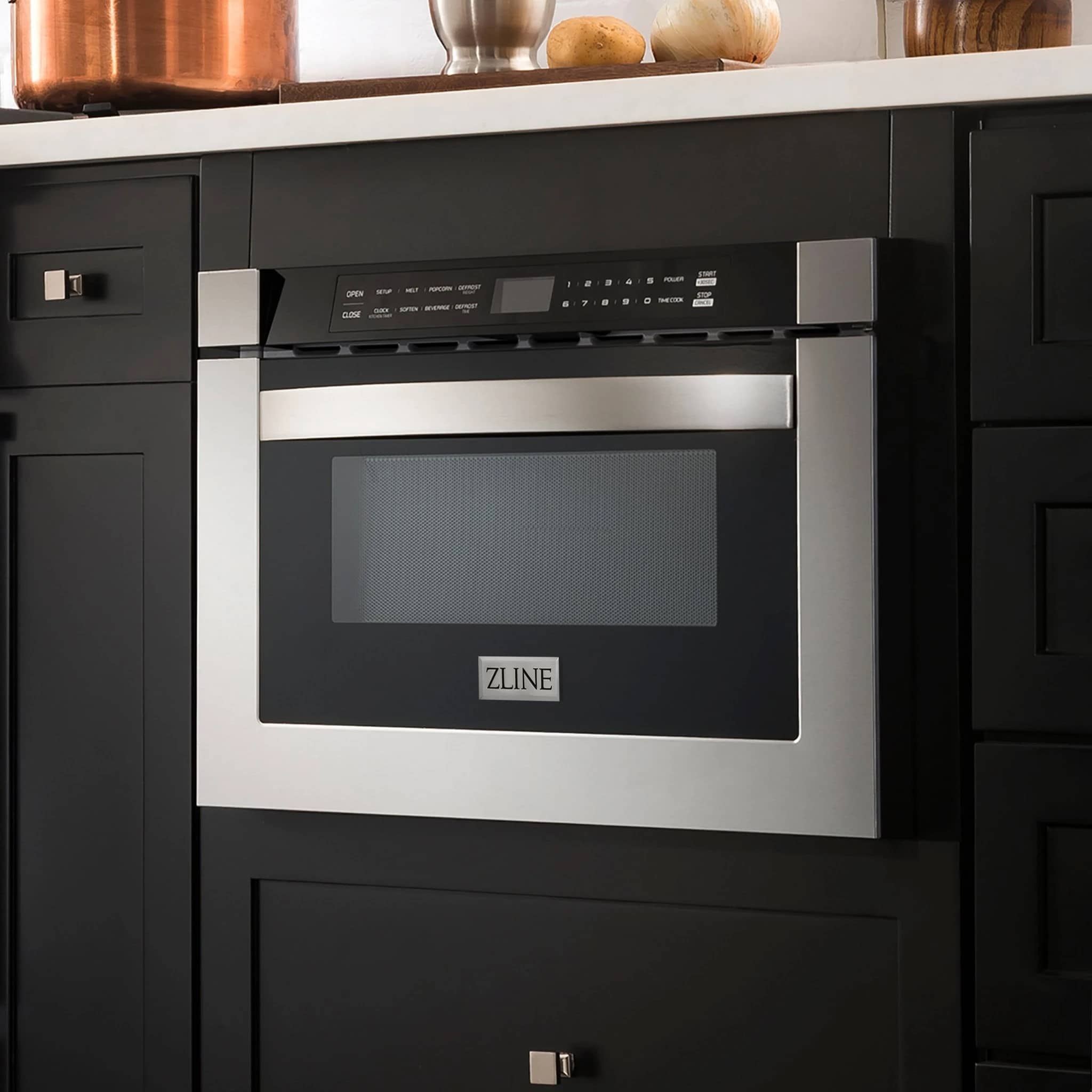

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24" 1.2 cu. ft. Built-in Microwave Drawer in Stainless Steel (MWD-1) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.
Features
- Space-Saving - Free up your countertop space with an undercounter modern design with installation location flexibility to best fit your lifestyle
- Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design
- Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings
- Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button
- Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45 degree angled design
- High-Powered Performance - Get the results you need with 11 different power levels and a powerful 1000 watt cooking power
- 1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
- Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions
- Stainless Steel Finish - Brushed 430 grade stainless steel exterior provides an easy clean up and a timeless look in your kitchen
- Manufacturer Warranty - 2 year parts warranty
- ADA Compliant - Easy-to-use front touch controls with a 45 degree angle design provides ADA compliance
- Dimensions
- 23.5 in W x 23.31 in D x 14.88 in H
- Cut Out Dimensions
- 22.13 in W x 23.5 in D x 15 in H
- Nominal Width
- 25
- Product weight
- 69.9 lbs
- Total capacity
- 1.20
- Control Type
- Touch Screen
- Voltage
- 120V/ 60HZ/13A
- Power Specs
- Amperage 13 / Frequency 60 / Voltage 120 Watts
- Motor
- 1,000 Watts
- Exhaust fan speed
- 1
- Auto Shut Off
- No
- Number of racks
- 1
- Noise Level
- 45 dB Max
- Temperature settings
- 11
- Features
- ADA Compliant
- Certification
- ADA / Not Approved for Commercial use / UL Listed: yes
- Warranty
- 2 Year Parts

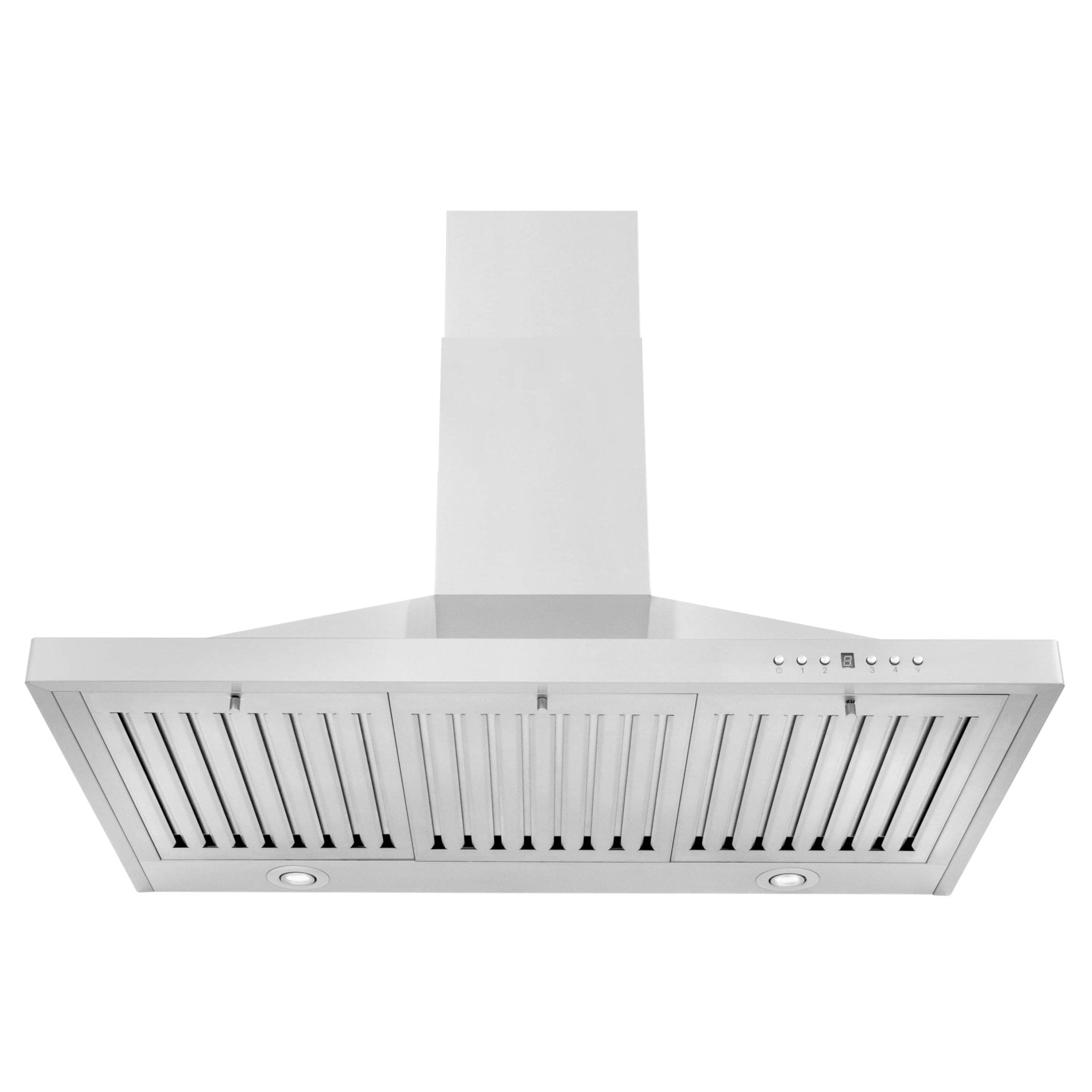

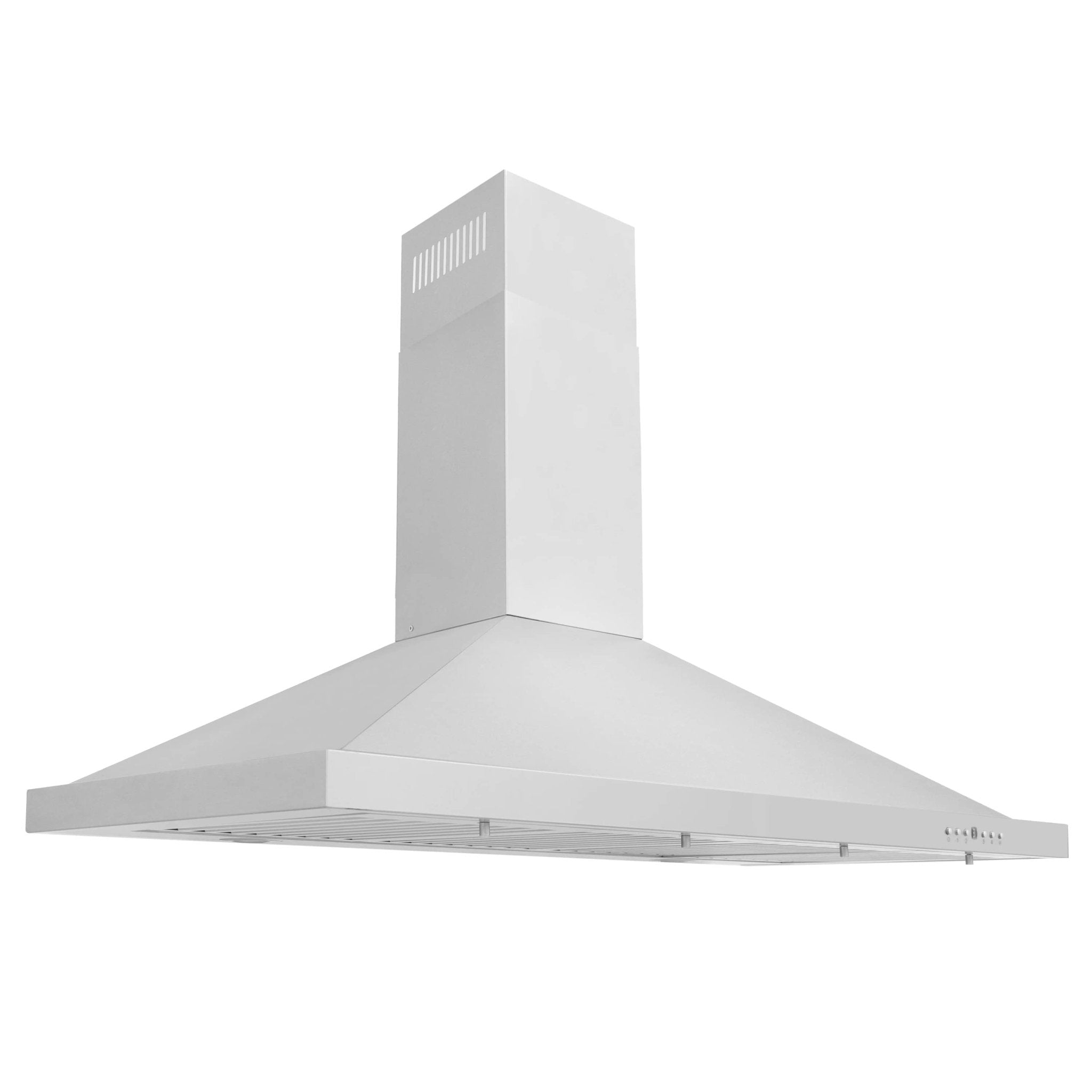

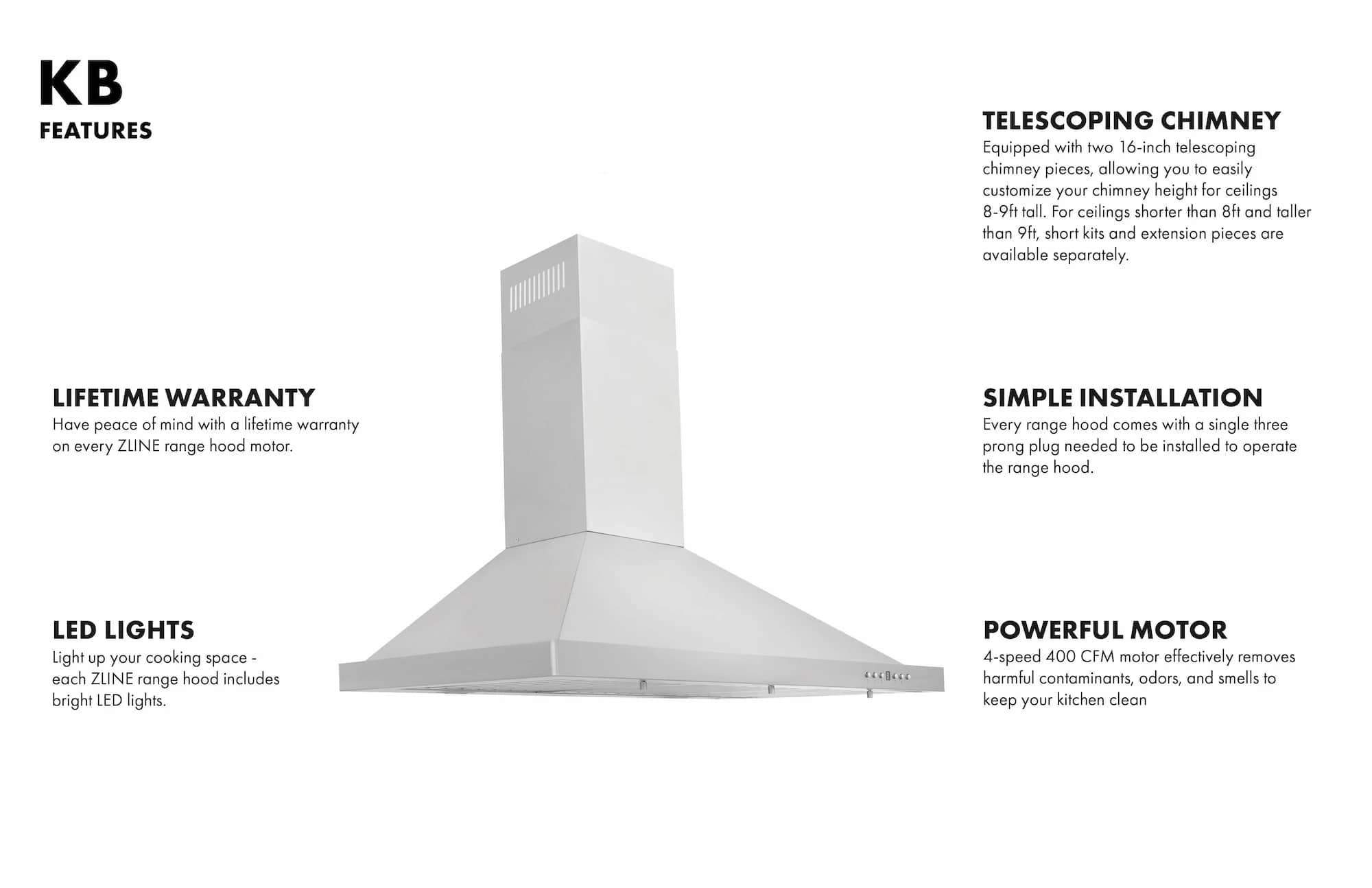

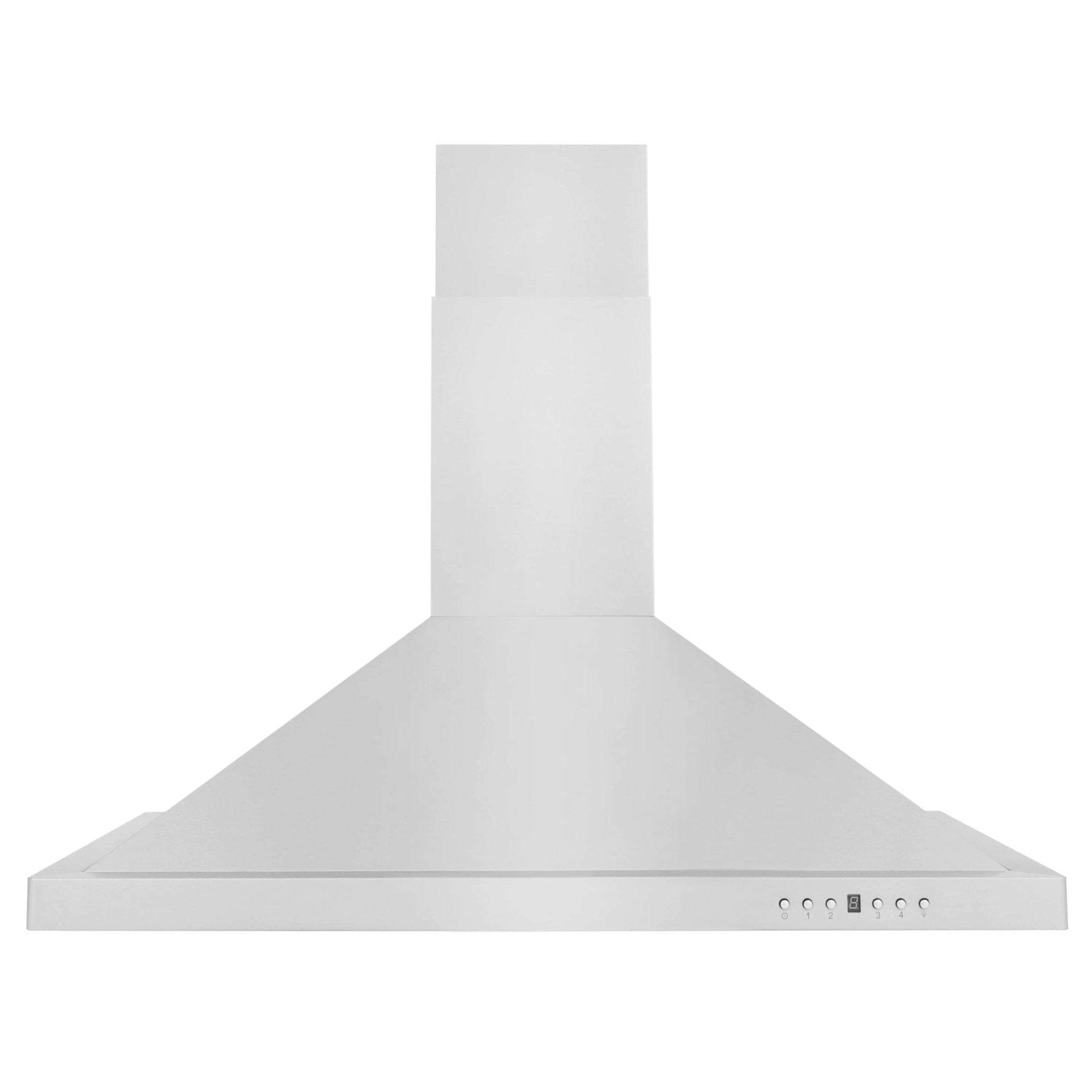

The ZLINE KB-48 is a 48-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
- Dishwasher-safe stainless steel baffle filters
- Built-in LED lighting
- High performance 4-speed motor with speeds up to 400 CFM
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The KB-48 ships next business day when in stock.
- Dimension
- 48" W x 19.7" D x 10.5" H
- Chimney (Dimension)
- 9.2" W x 8" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings
- Mount Type
- Wall Mounted
- Control Type

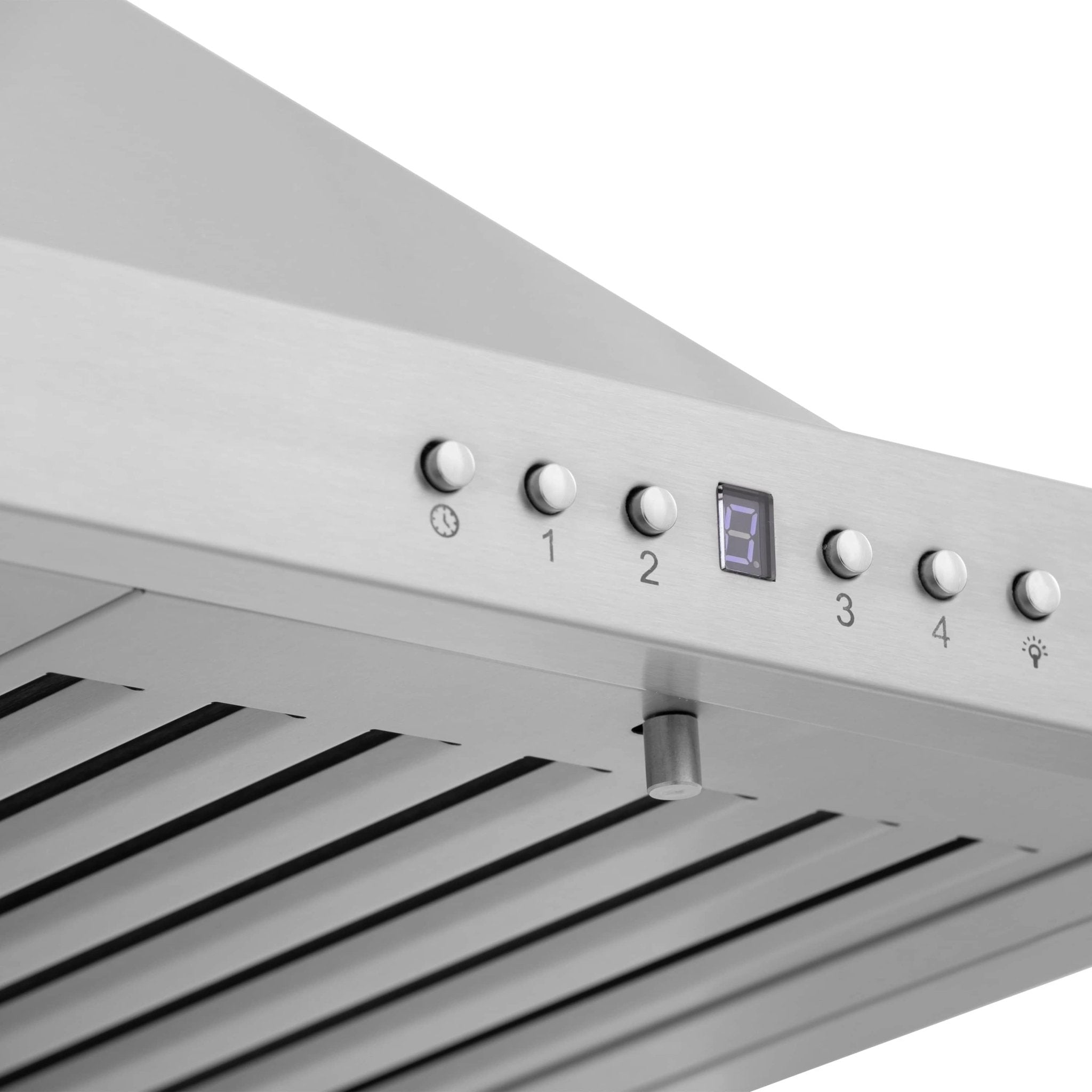

- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Material
- 21g #430 Stainless Steel
- Venting Size
- 6" Outlet (Transition piece with backdraft damper to round ducting included) Charcoal Filters (not included) available for ductless/recirculating option.
- Airflow (Q/L/M/H)
- 120/240/320/400
- Noise Level
- 20/29/34/41
- Voltage
- 110V/60HZ
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4 Speeds
- Lighting

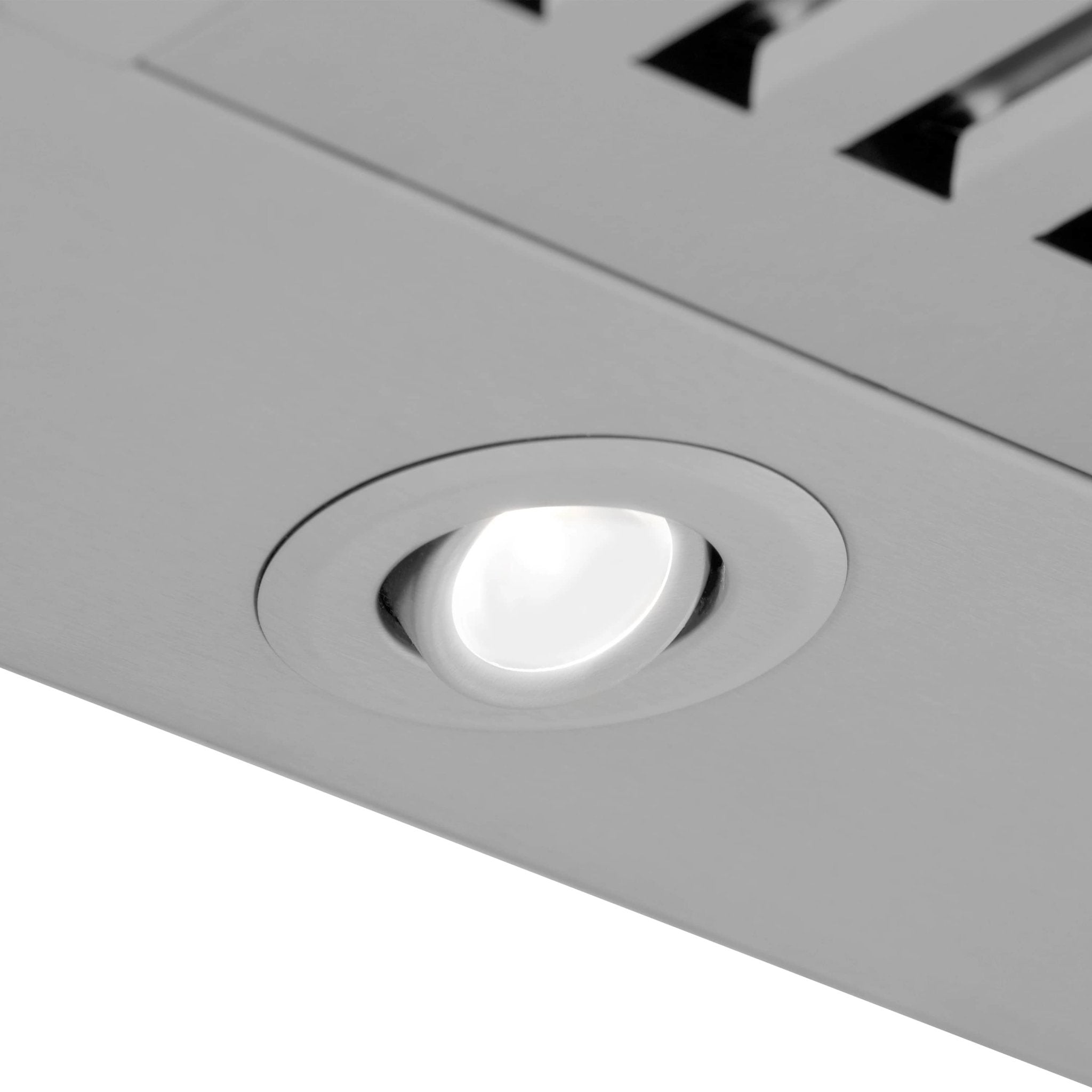

- 2 Directional LED Lights (3-Watt)
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Features
- Model No. KB-48 (ETL Listed) ***CROWN MOLDING AVAILABLE FOR THIS MODEL***
- Warranty
- 3 Year Parts Warranty
- Certifications
- ETL Certified
