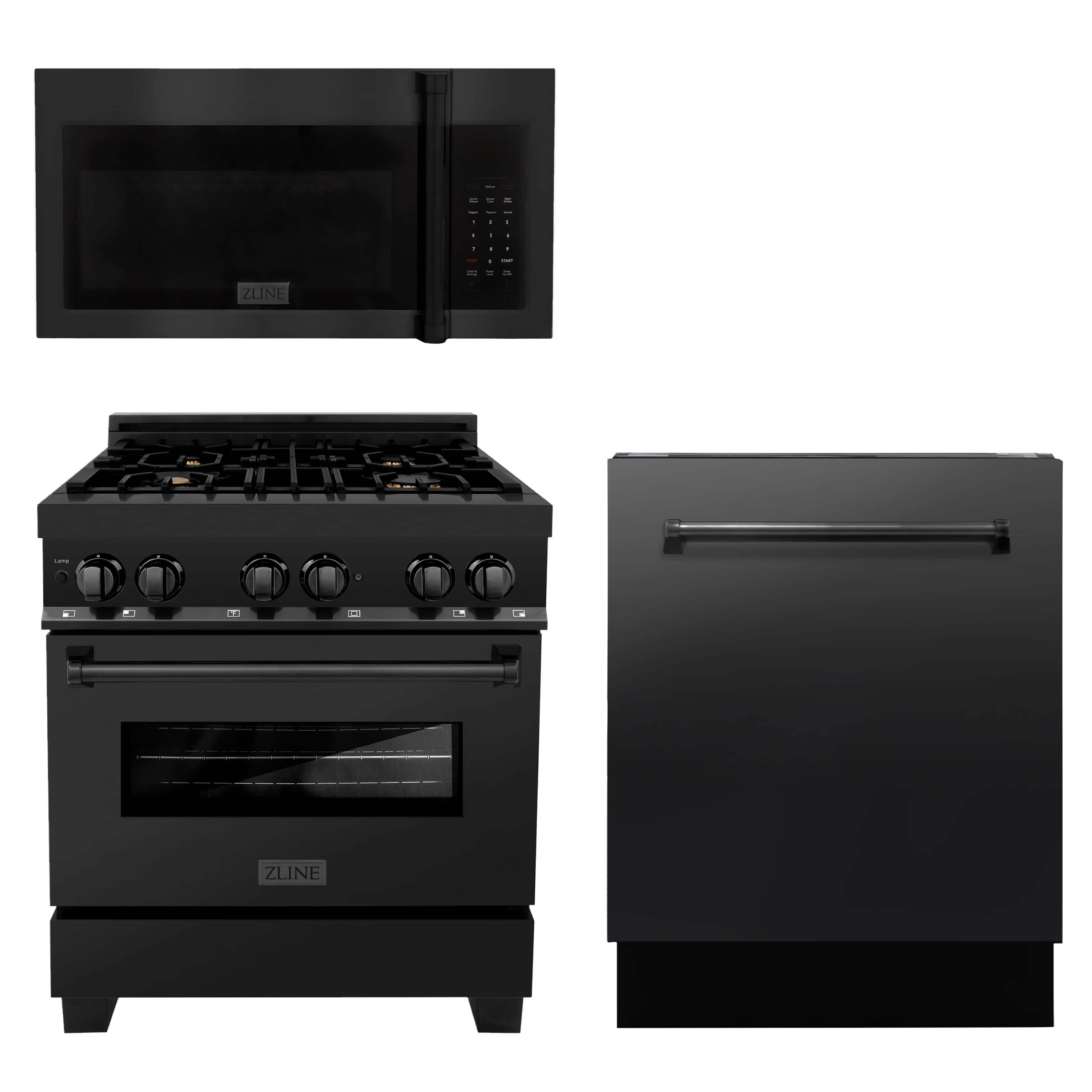

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

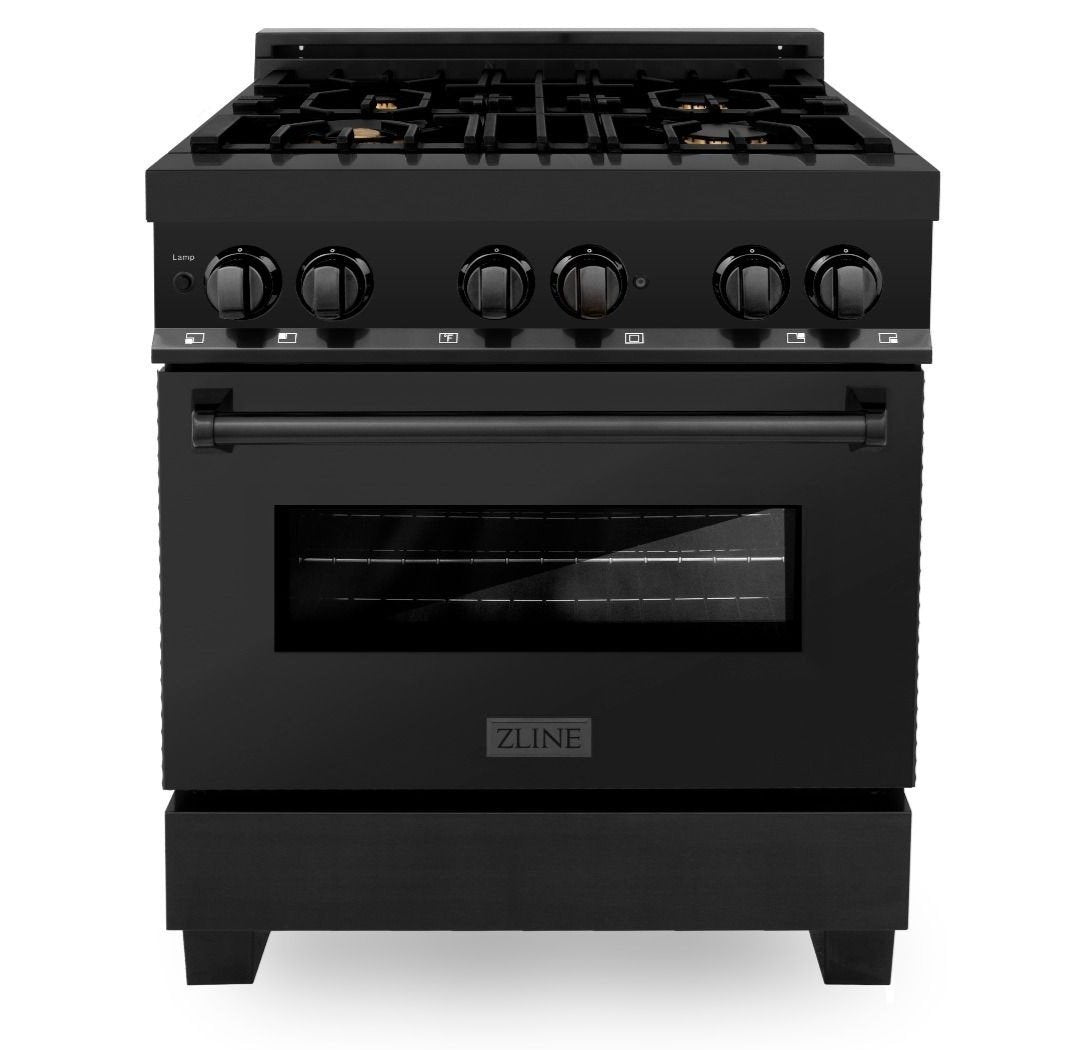

ZLINE’s professional black stainless steel is truly unique in the industry. Each piece is hand-cut and crafted utilizing 304-grade stainless steel which accomplishes its sophisticated, piano black finish through a technique called bluing. The technique of bluing has been used historically to change the finish of gun barrels. The proprietary black stainless steel finish is hand soaked in a specific ratio which depicts the final and exact result of the black stainless hue. The industrial design of the RAB-30 is executed through precise lines and detailing done with a precision laser. Each model includes Italian burners delivering over 44,000 BTU’s and also includes a durable, solid-piece Cast Iron Grill finalizing its industrial look.
ZLINE is synonymous with quality and craftsmanship. The RAB is equipped with:
- Brass Burners
- Italian StayPut Hinges

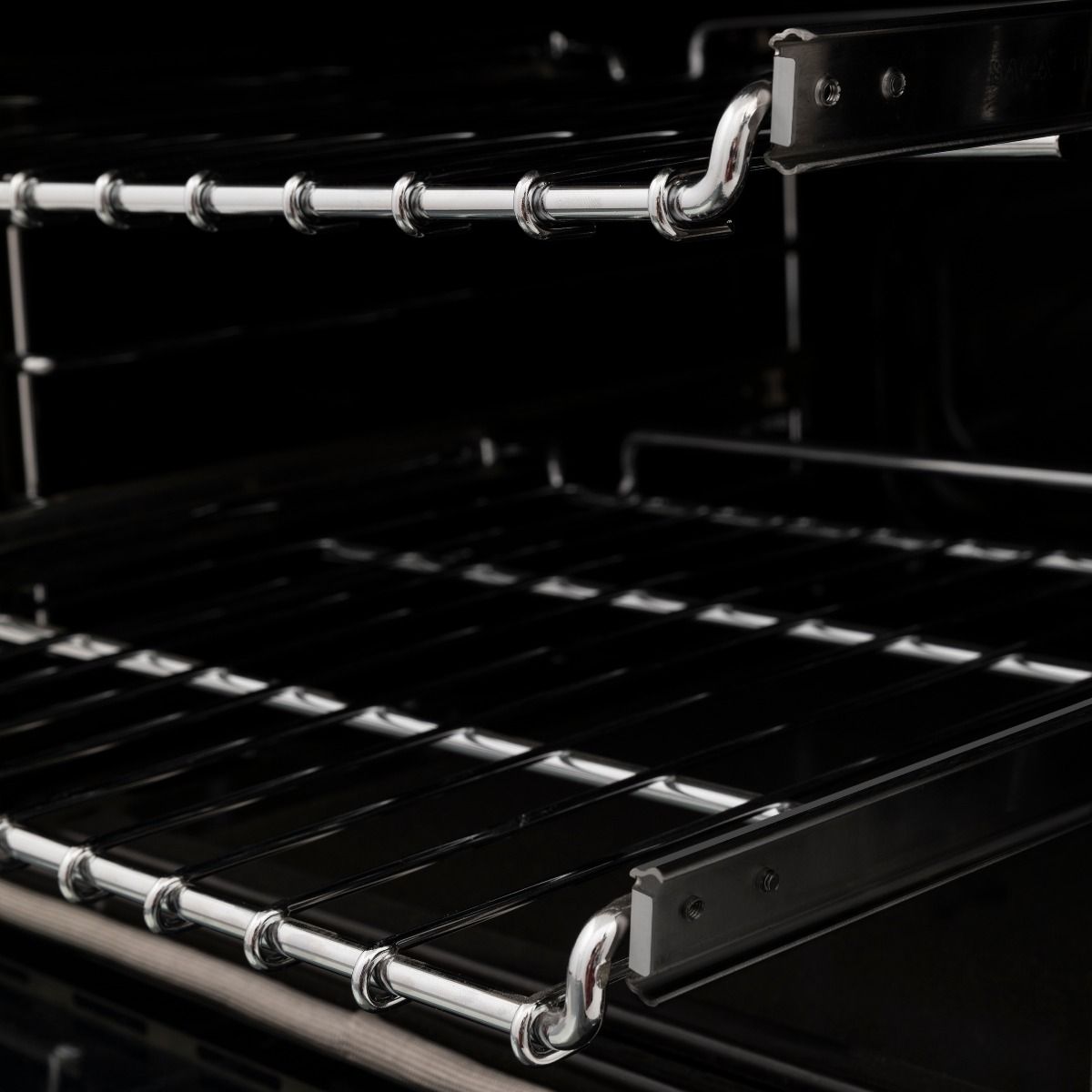

- SmoothSlide ball bearing oven racks
- Triple-layer insulated glass panel door
The triple layer insulated glass paneling is engineered to encapsulate heat and utilize up to 30% less energy compared to competitors’ products. ZLINE engineers have made sure that our manufacturing regulations meet some of the highest environmental standards in the industry; We care about our products, our people and our planet. The RAB-BR-30 ships next business day when in stock!

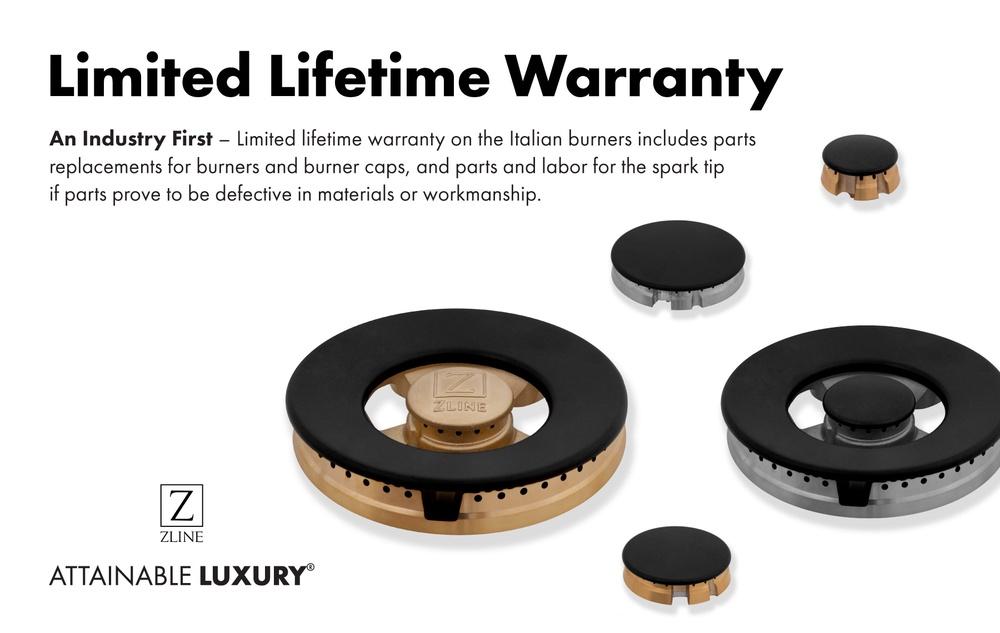

- An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.

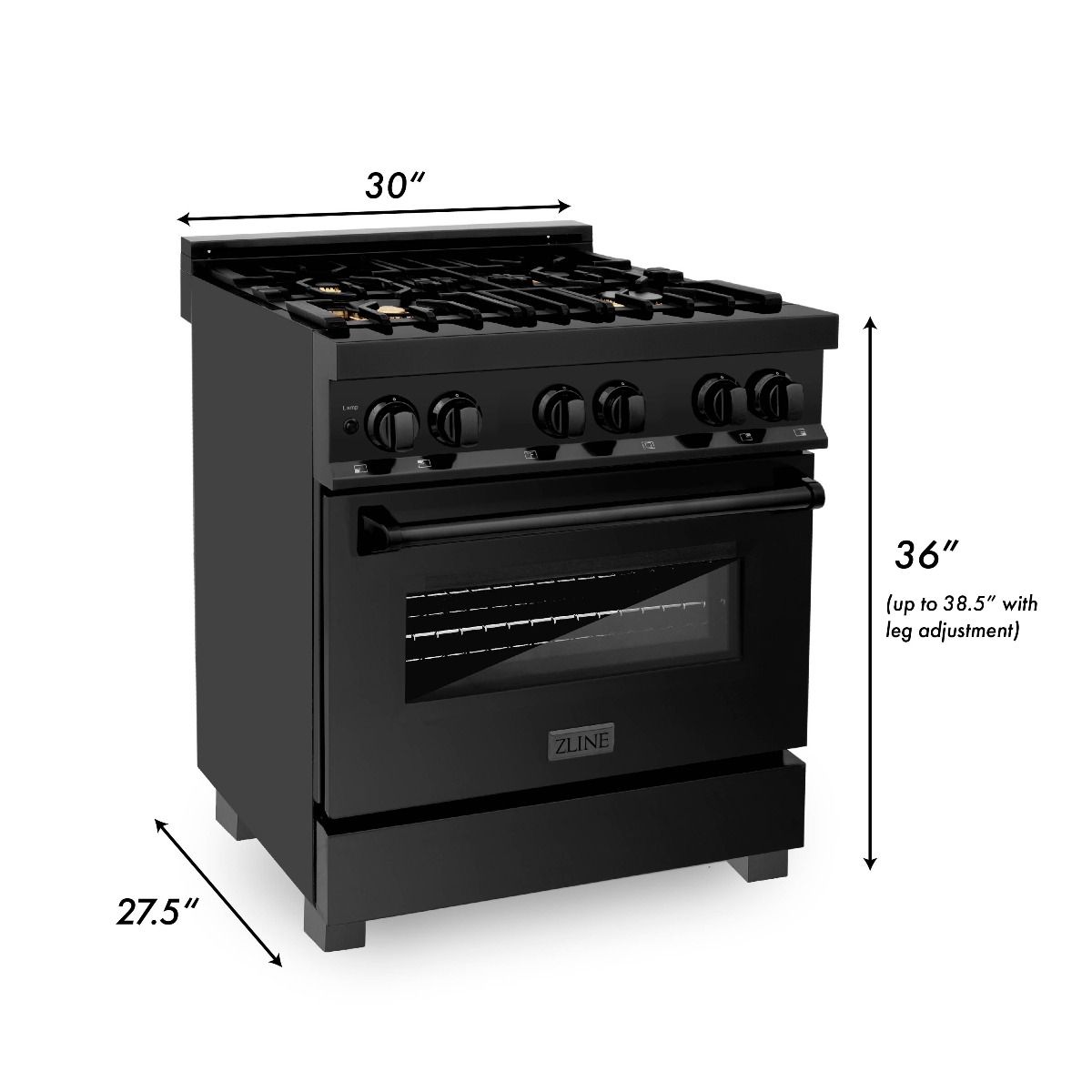

- Dimension
- 29.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 29.75" W x 29.63" D x 36.13" H
- Open Door Depth
- 41.8"
- Interior Oven Dimensions
- 24.875" W x 17.75" D x 16" H
- Product Weight
- 230lbs
- Features
- Manufactured by ZLINE Kitchen and Bath Model No. RAB-30 ETL and UL Listed CSA Approved
- Color
- Black
- Finish
- Black Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel
- Control Type

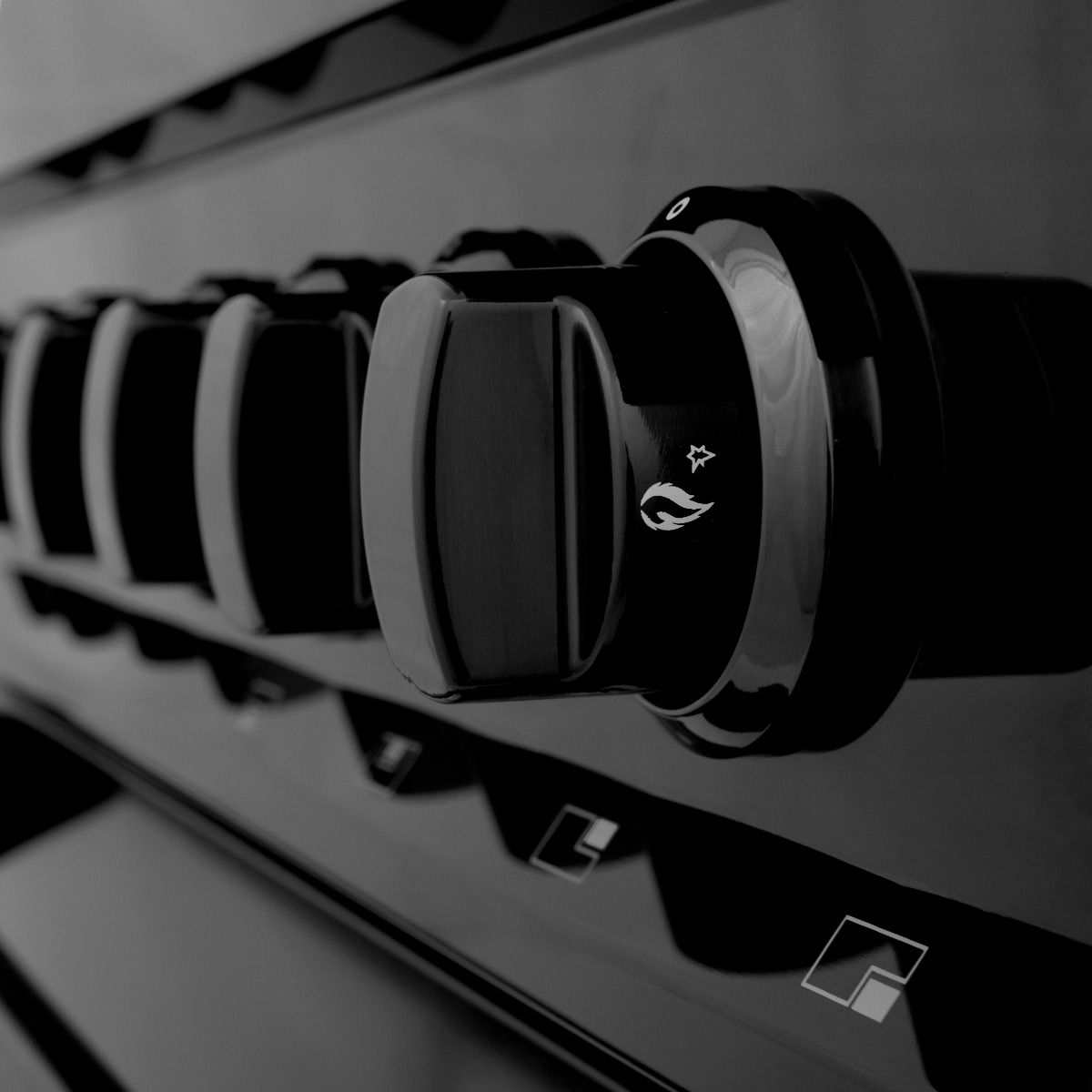

- Durable Front Control
- Material
- Stainless Steel frame with 1 Piece Enamel Top
- Italian made hinges and burners
- Voltage
- 220V-240V/60HZ/50A
- Mount Type
- Free Standing
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel
- All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. A propane adapter is included in the box and will require an extra step to convert.
- Fuel Type
- Convection Oven - Gas Cooktop
- Cooktop

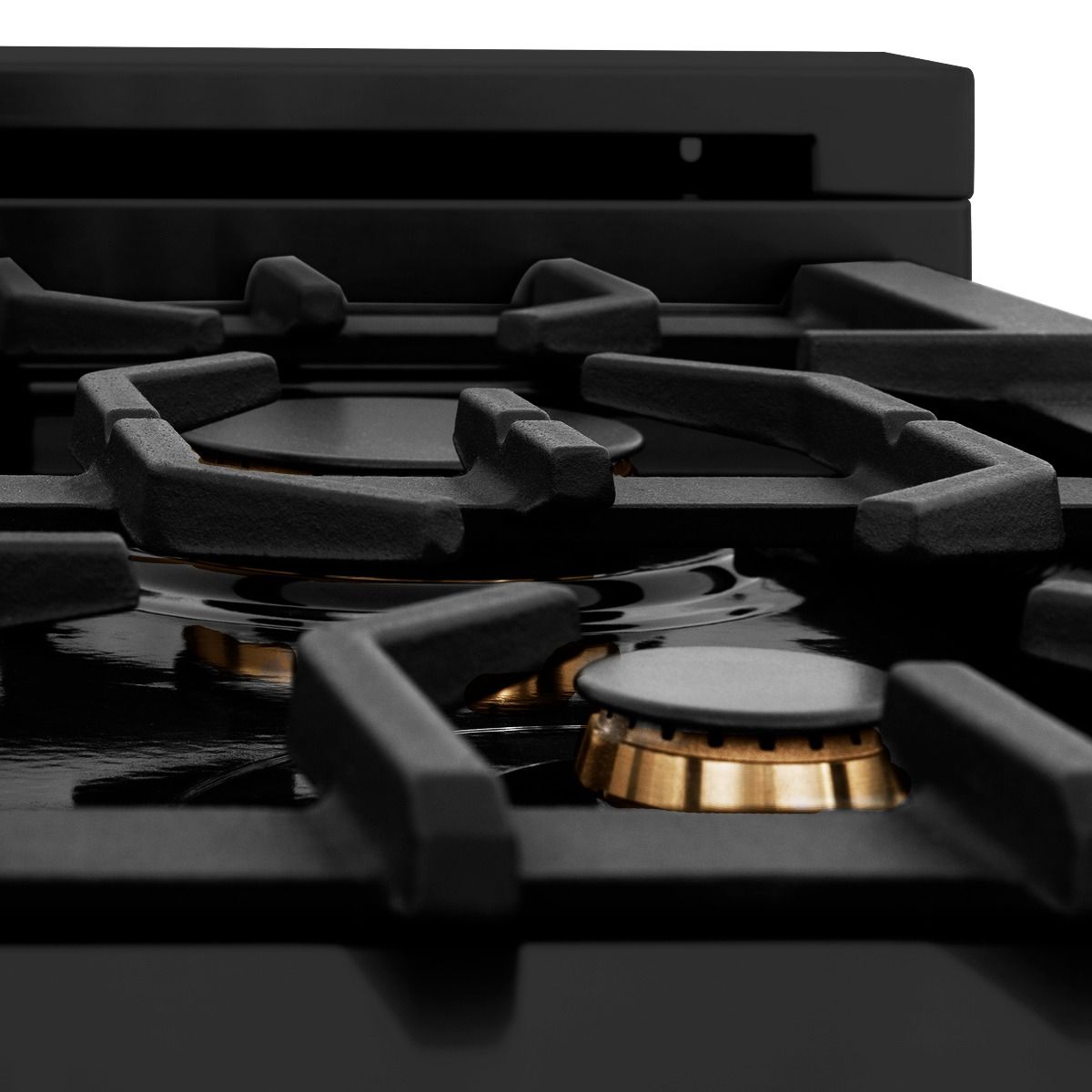

- (4) Burners with Enamel Cook Top with electronic spark ignition for all burners
- BTU Rating
- Dual Burner
- 18,000 BTU Rapid Burner - 13,000 BTU Semi-Rapid Burner - 8,500 BTU Auxiliary Burner - 4,200 BTU

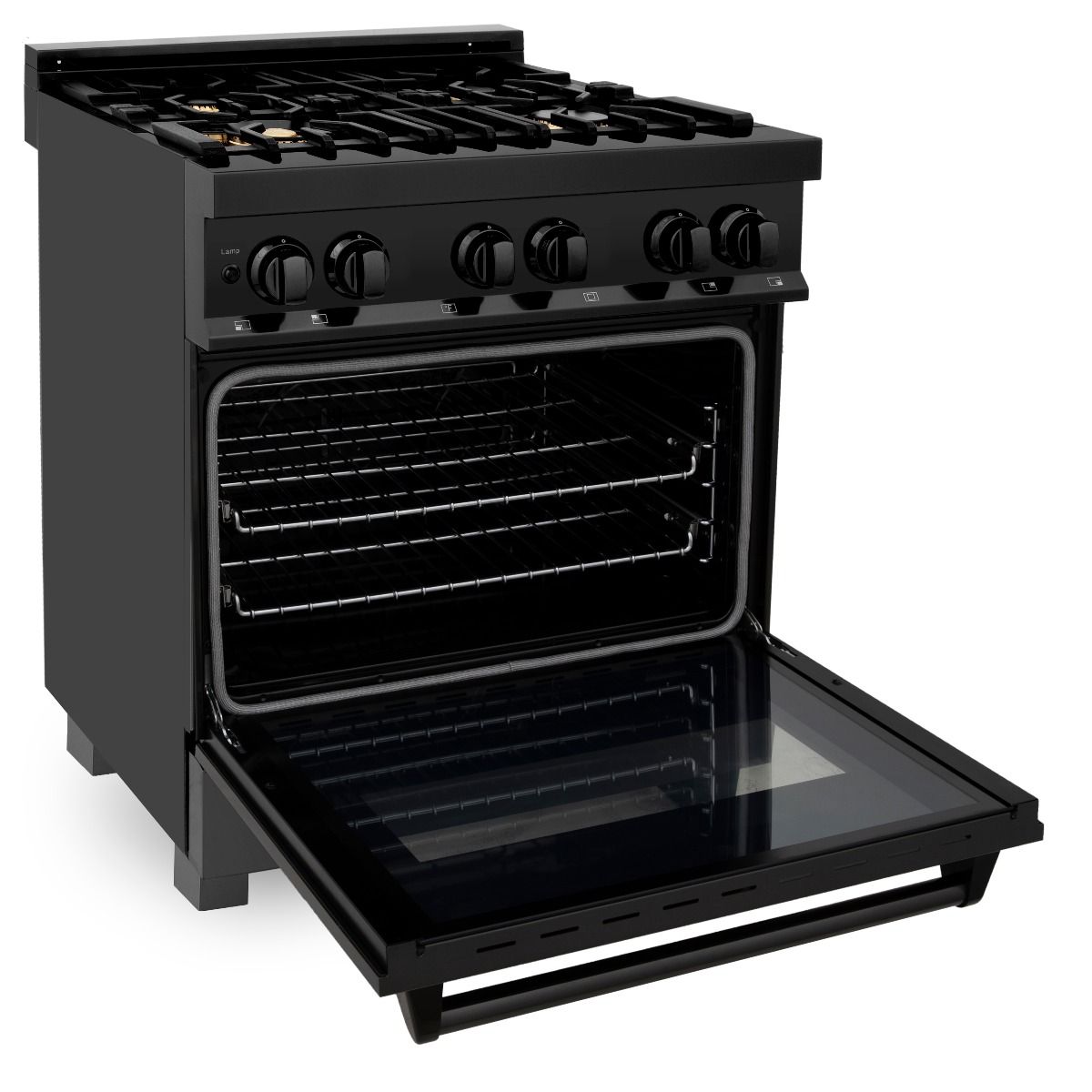

- Oven
- Manual Clean
- Convection Electric
- 4.6 cu.ft. deep oven
- Triple Glass Window
- Dual Lighting
- Professional Aluminum Mesh Seal Blue indicator light shuts off to let you know when oven has reached set temperature
- Warranty
- 1 Year Warranty
- Certifications
- ETL Certified

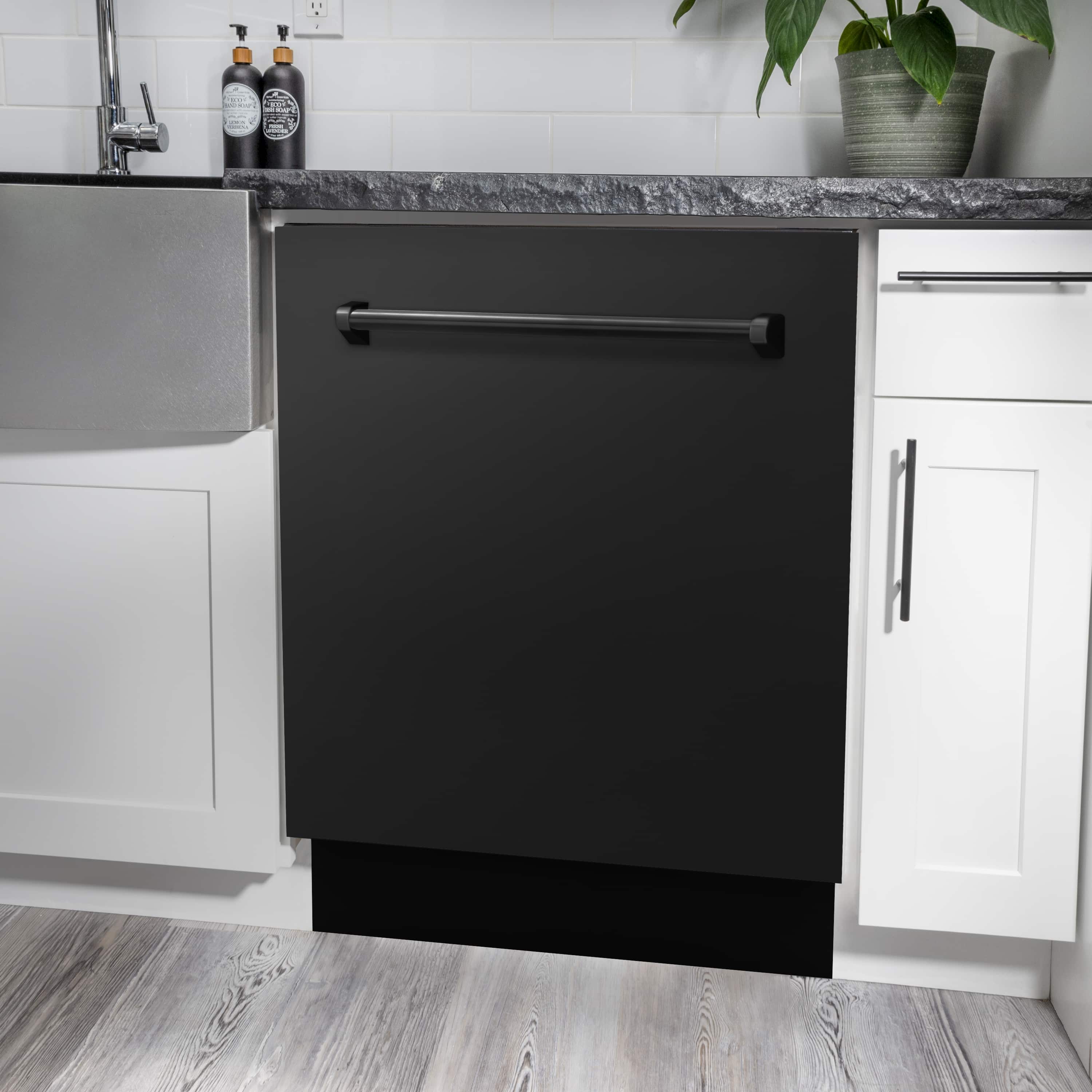

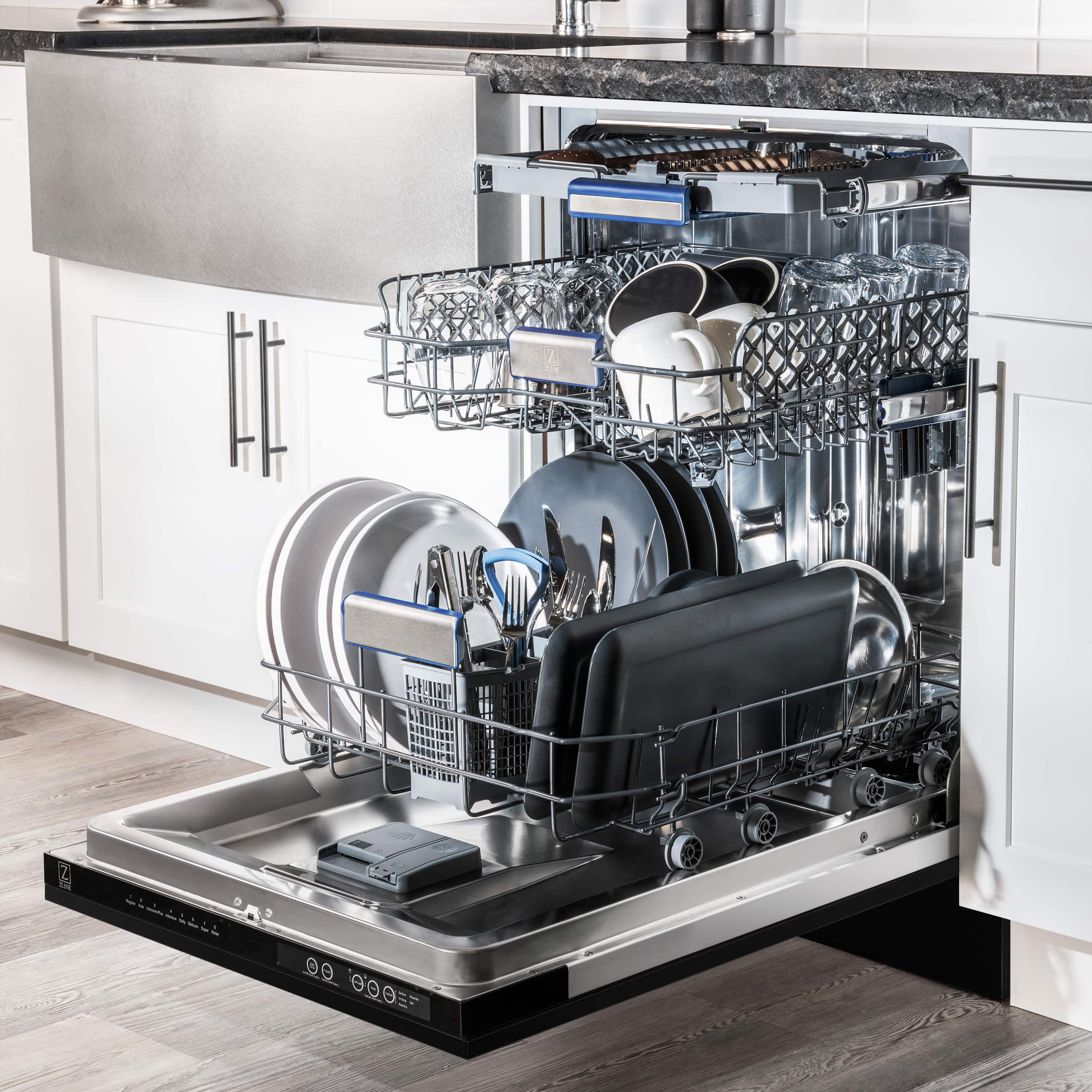

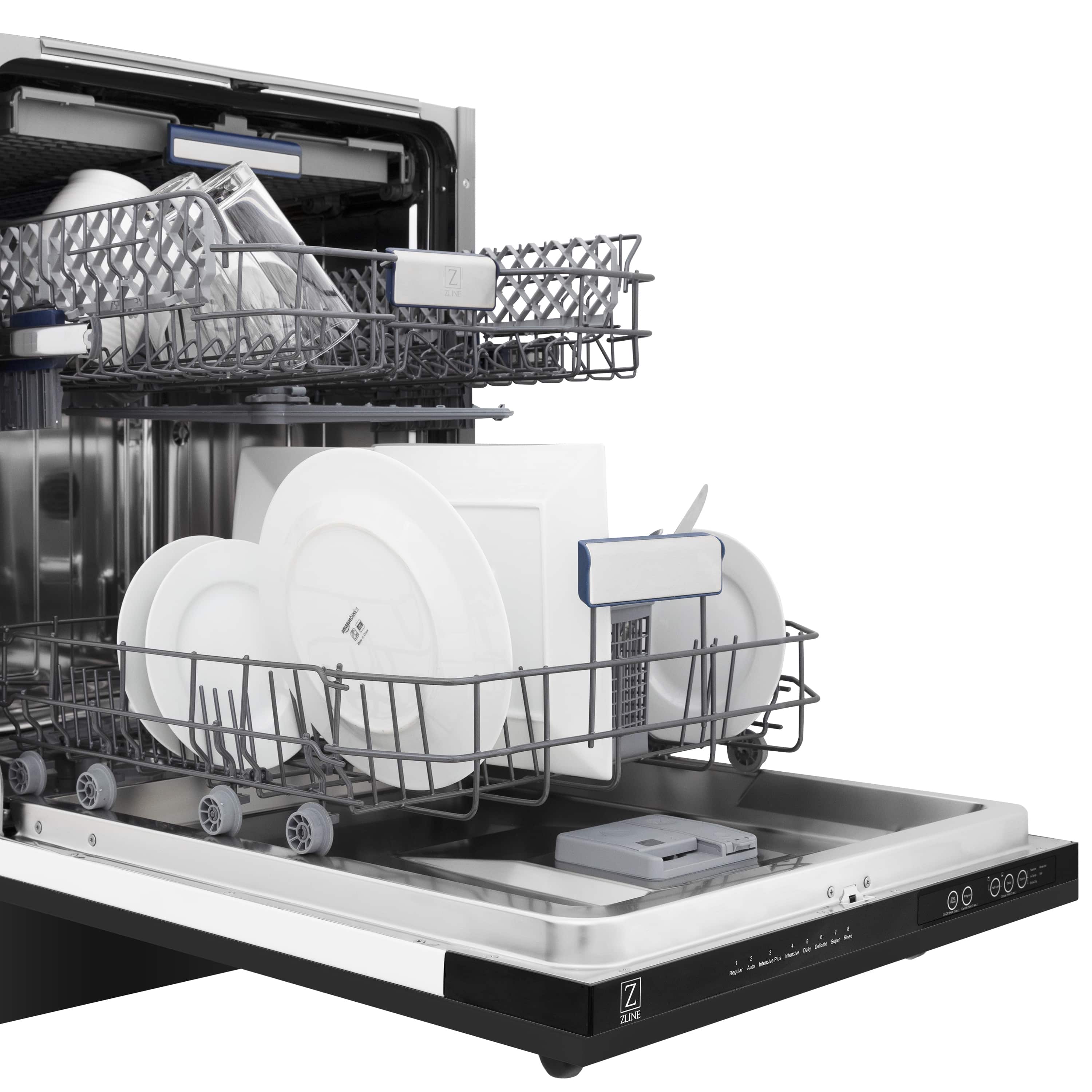

The ZLINE 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Black Stainless Steel Panel (DWV-BS-24) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
Features

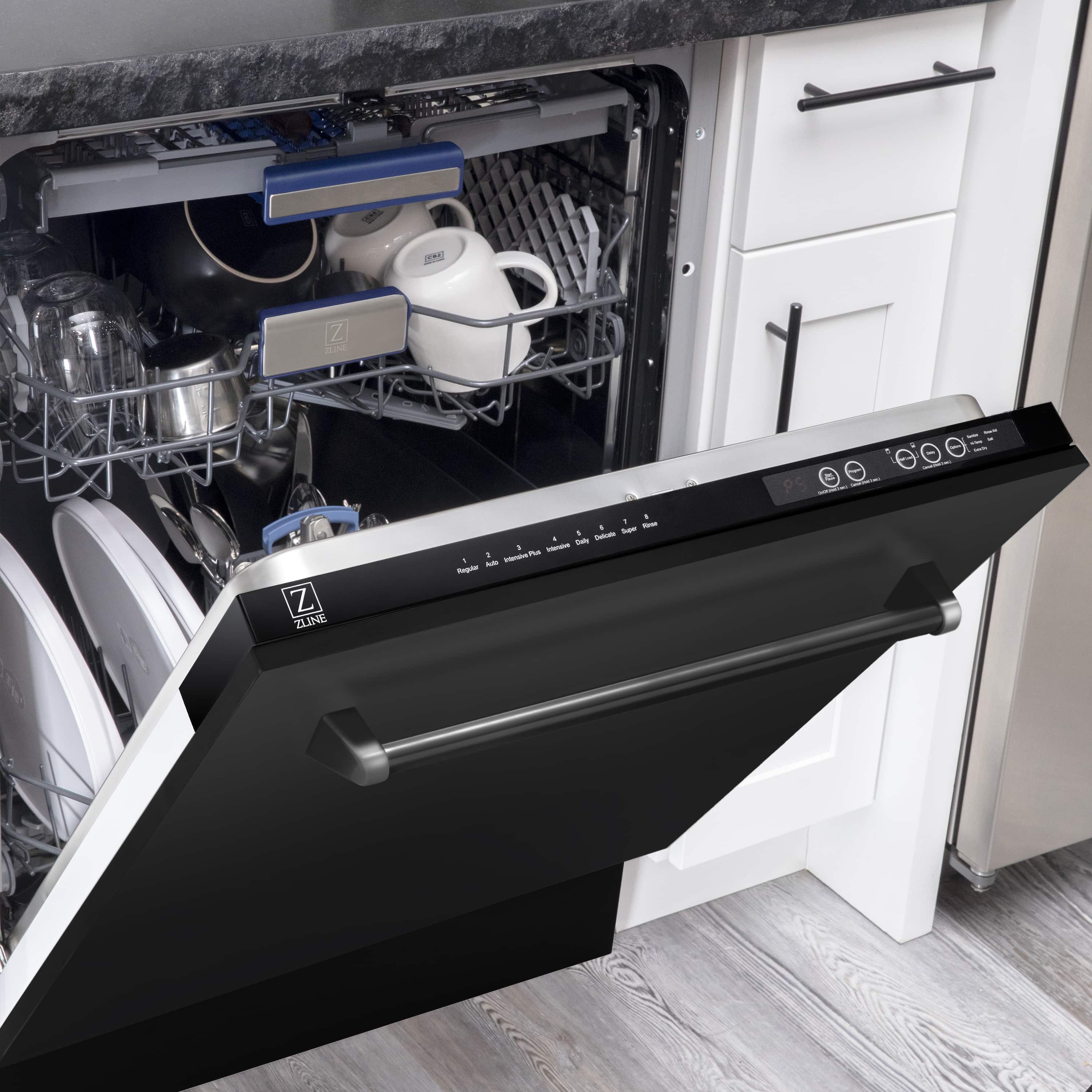

- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings

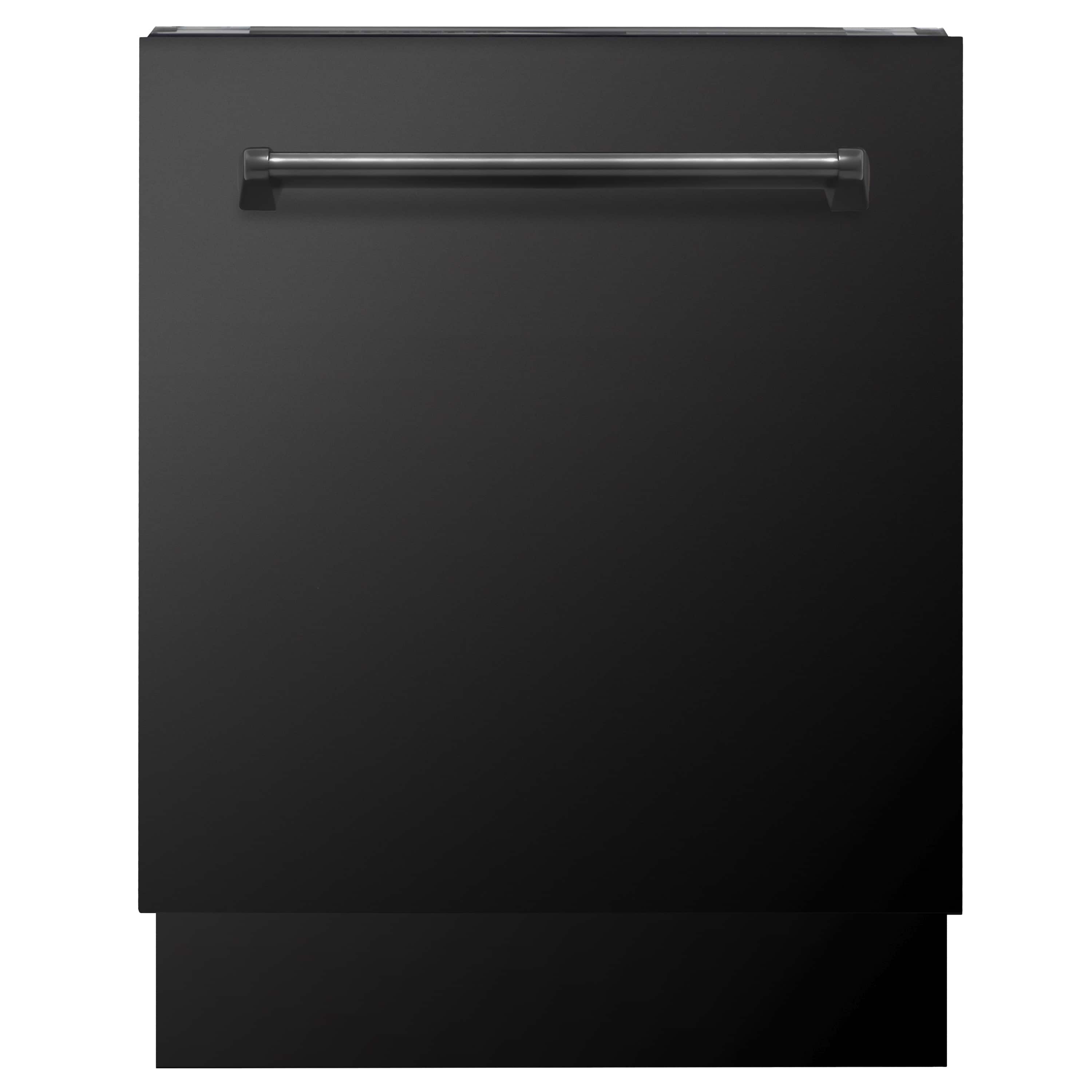

- Custom Panel Finish - Customize your Tallac Series dishwasher with a beautiful black stainless steel door panel and black stainless steel handle
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
- Size
- 24 in.
- Dimensions
- 23.6" W x 22.4" D x 33.9" H
- Product Weight
- 106.8 lbs
- Cut-Out Height
- 34.13 in.
- Cut-Out Width
- 24 in.
- Interior Dimensions
- 20.95" W x 20.5" D x 24.17"H
- Max Plate Height
- 13 in.
- Installation Type
- Plug In - Nema 5-15
- Panel Ready
- N
- Panel Finish
- Black Stainless Steel
- Handle Finish
- Black Stainless Steel
- Handle Type
- Traditional Style
- Control Location
- Top Control
- Control Type
- Button Control
- Silverware Basket Location
- Bottom Rack Center
- Voltage
- 120vac
- Frequency
- 60Hz
- Dedicated Circuit
- 15A
- Rated Current
- 12A
- Motor Wattage
- 100W
- Heater Wattage
- 1100W
- Motor Amperage
- 0.84A
- Heater Amperage
- 10A
- Energy Consumption Per Year
- 239 kWh
- Water Consumption Per Cycle (Liters)
- 11.73 L
- Water Consumption Per Cycle (Gallons)
- 3.1 gal
- Decibels
- 51 dBa
- Extended Hose Length
- 56 in.
- Drying System
- Turbo Fan Drying + Auto Door
- Steam Function
- Without Steam
- Features
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
- Custom Panel Finish - Customize your Tallac Series dishwasher with a beautiful black stainless steel door panel and black stainless steel handle
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
- Certifications
- Energy Star, CEC, UL

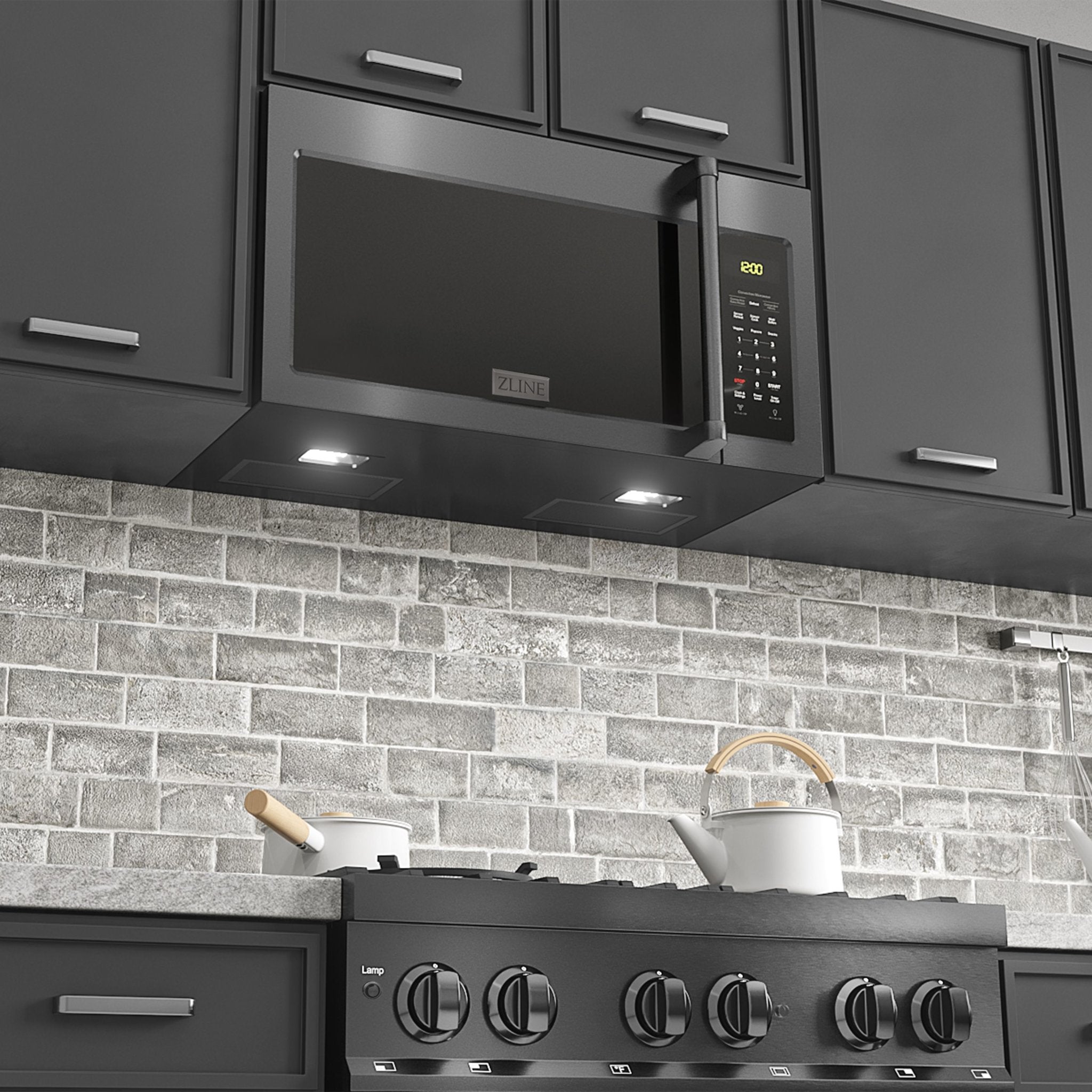

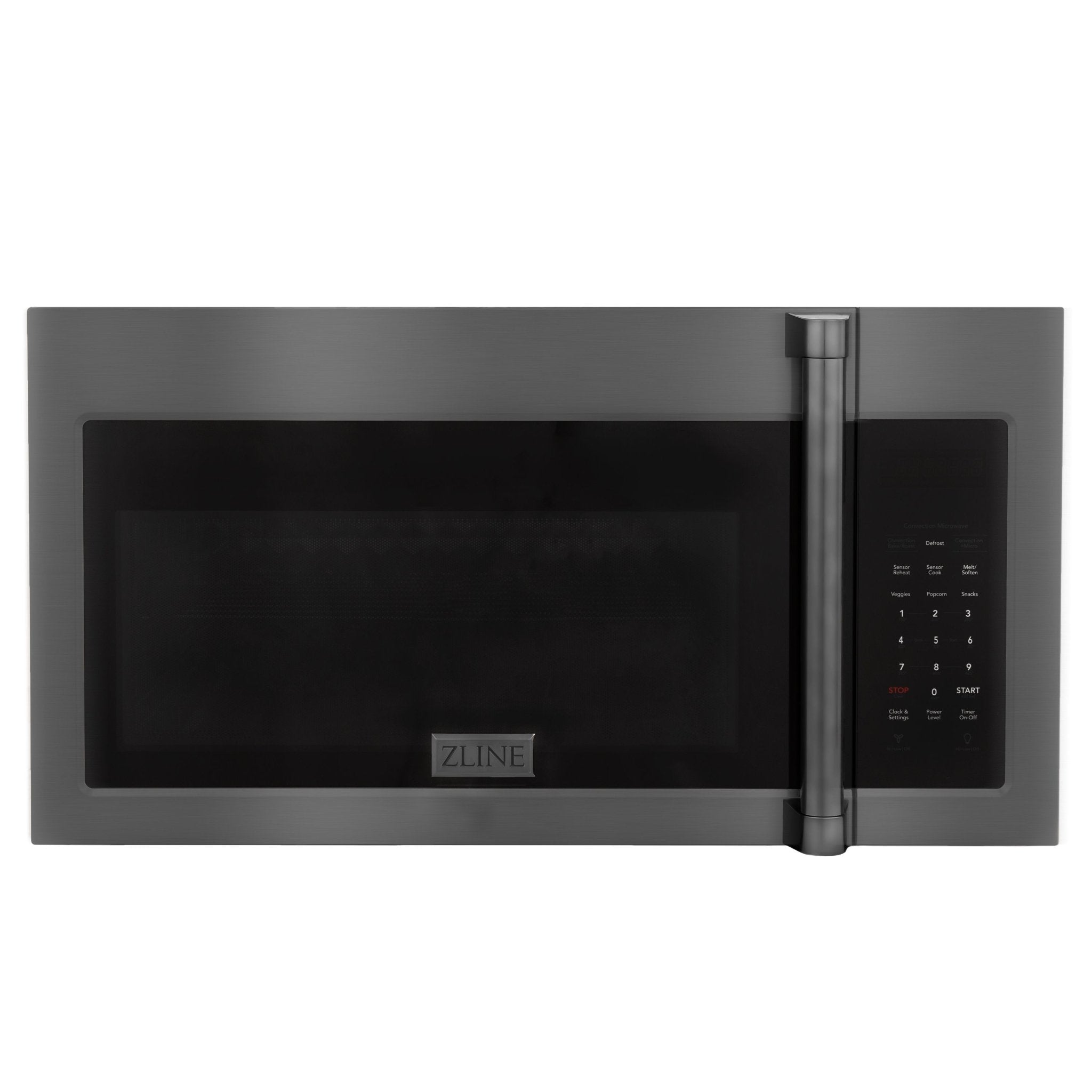

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE Over the Range Convection Microwave Oven in Black Stainless Steel with Traditional Handle and Sensor Cooking provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.
Features
- 2-Speed Powerful Ventilation - Enjoy up to a 300 CFM air flow that effectively removes unwanted smoke and grease from your kitchen - configurable for either recirculating or external ducting
- Convection and Microwave Modes - Select from a variety of convection and microwave cooking settings to provide optimal dish results

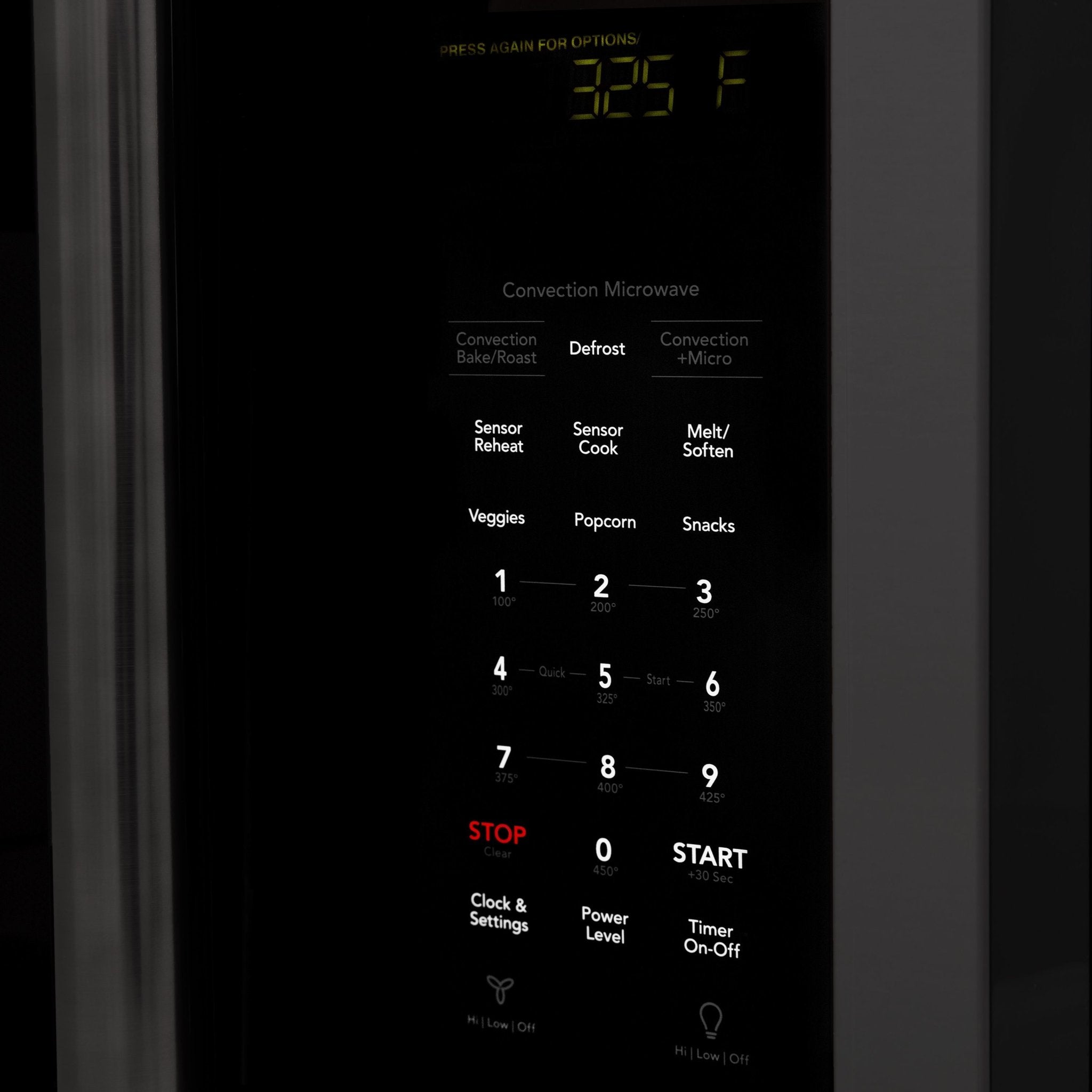

- One-Touch Cooking - Easy One-Touch controls allow you to quickly heat your favorite snacks and dishes

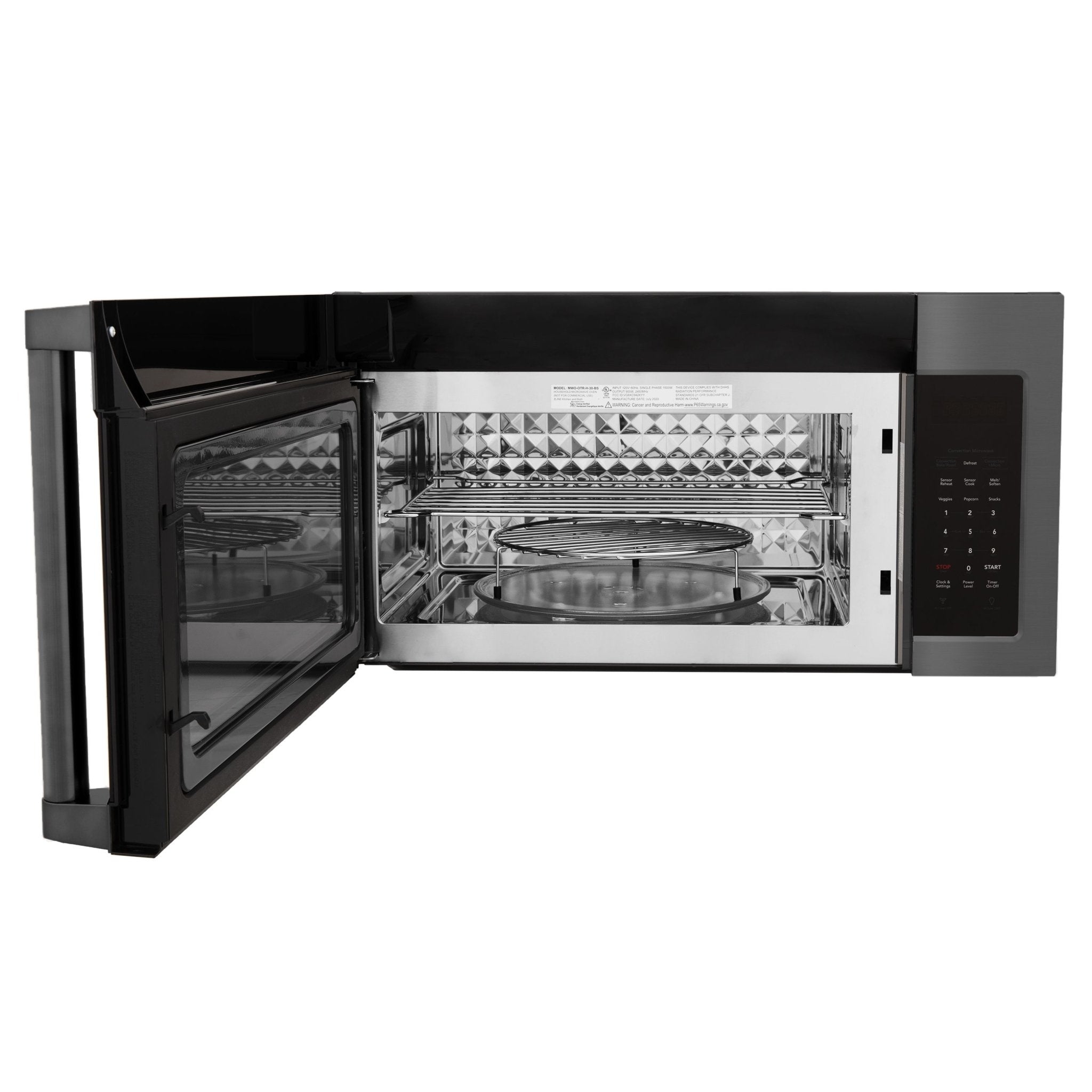

- DiamondTech Interior - A unique stainless steel interior is engineered to scatter microwaves to ensure even cooking and prevent any cold spots

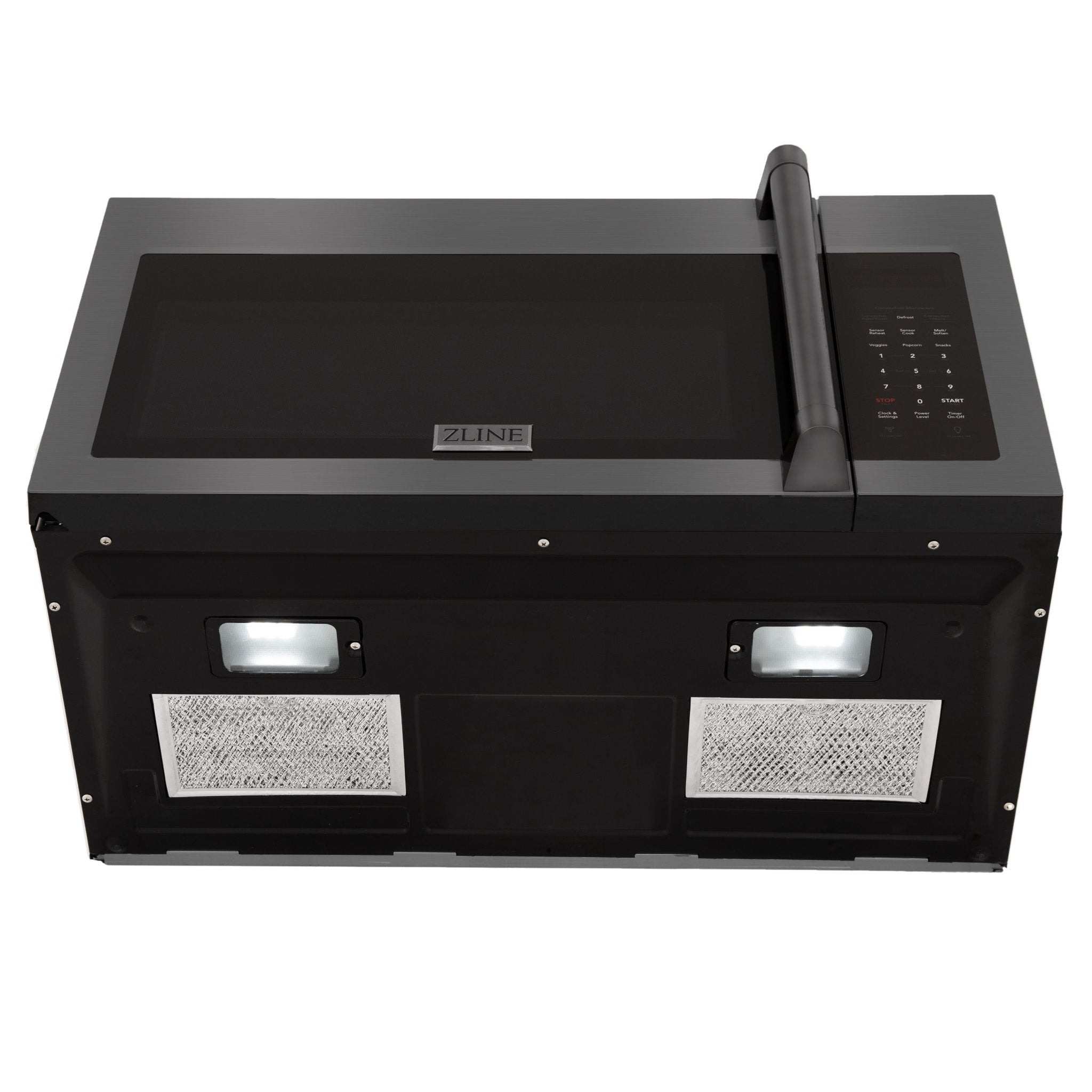

- Cooktop Lighting - Easily illuminate your cooking space with 2 built-in lights

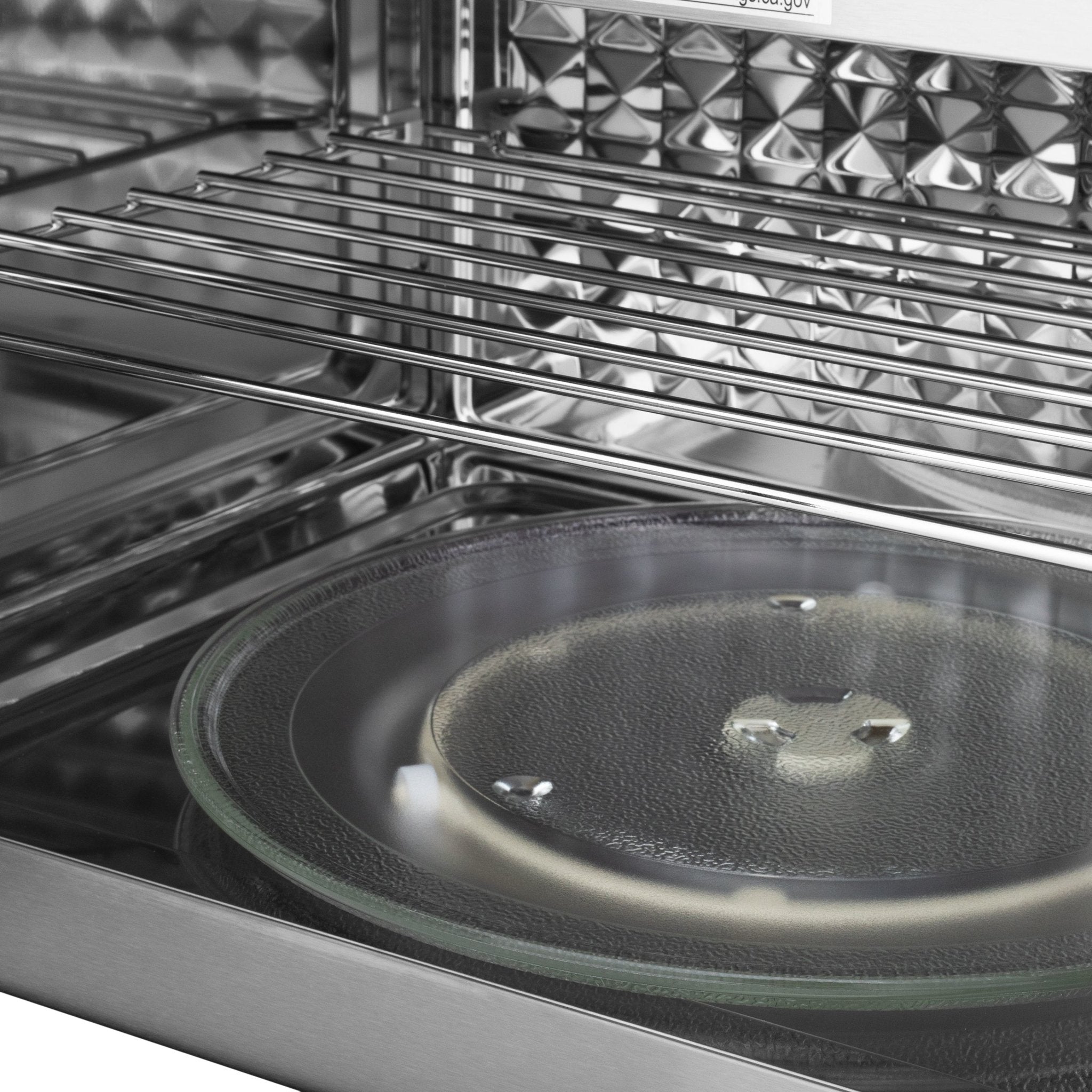

- Glass Turntable - Durable glass turntable provides an even heat distribution with every use
- Convection Rack - Achieve maximum convection performance with an included microwave rack designed to provide golden-brown results
- Convertible Microwave - Convert to ductless or recirculating with charcoal filters (sold separately, model #MWO-CF) engineered to filter out harmful odors
- Black Stainless Finish - Bring a sleek, modern look into your kitchen with ZLINE's Black Stainless Steel, achieved through PVD (physical vaper deposition) coating which creates strong ceramic layer that is durable and long lasting
- Manufacturer Warranty: 2 year parts warranty
- Electrical Requirement: 120-Volt/60 Hz

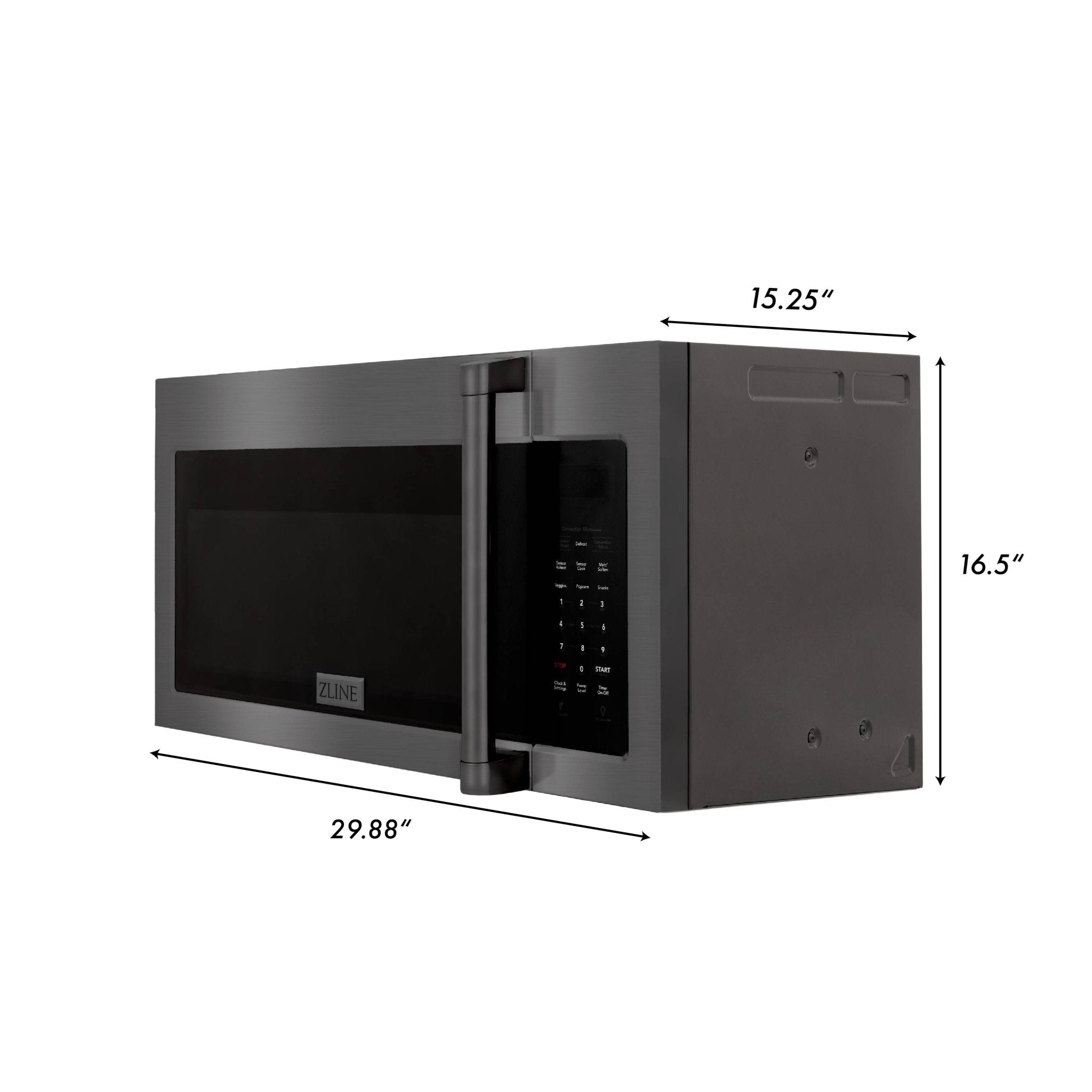

- Dimensions
- 29.75 in W x 15.25 in D x 16.5 in H
- Cut Out Dimensions
- 30 in W x 13 in D x 16.5 in H
- Depth with Door Open
- 37.5 in.
- Product Weight
- 63.9 lbs
- Mount Type
- Built-In
- Installation Type
- Over the Range
- Fuel Type
- Electric
- Control Type
- Touch Screen
- Material
- Black Stainless Steel
- Color
- Black Stainless Steel
- Voltage
- 120V/ 60HZ/13.5A
- Oven Capacity
- 1.5 Cu. Ft.
- Noise Level
- 46 Decibels
- Input Power
- 1500W
- Output Power
- 900W
- Convection Fan
- Yes
- Ductless / Recirculating
- Requires Charcoal Filter (MWO-CF)
- Warranty
- 2 Years
- Certifications
- UL Listed & ETL Listed
