This product only includes a condenser. Click here for our complete central HVAC systems.

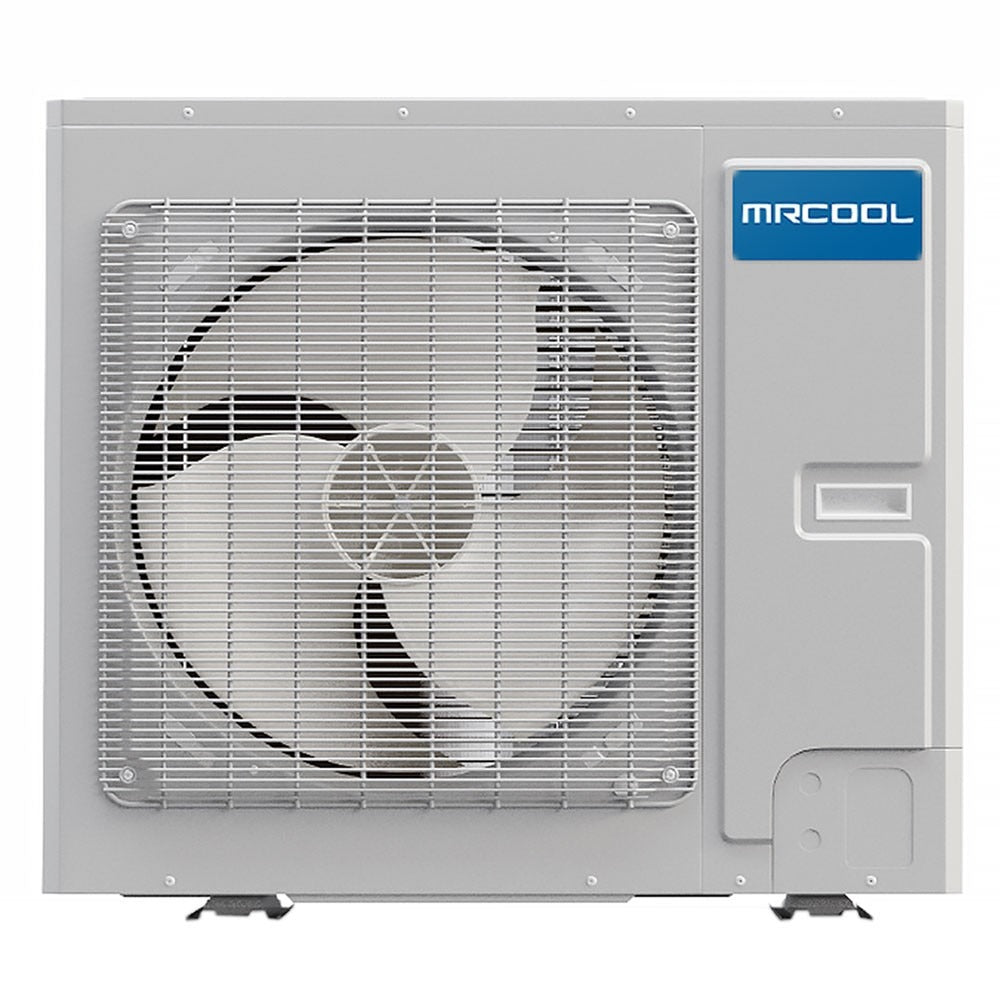

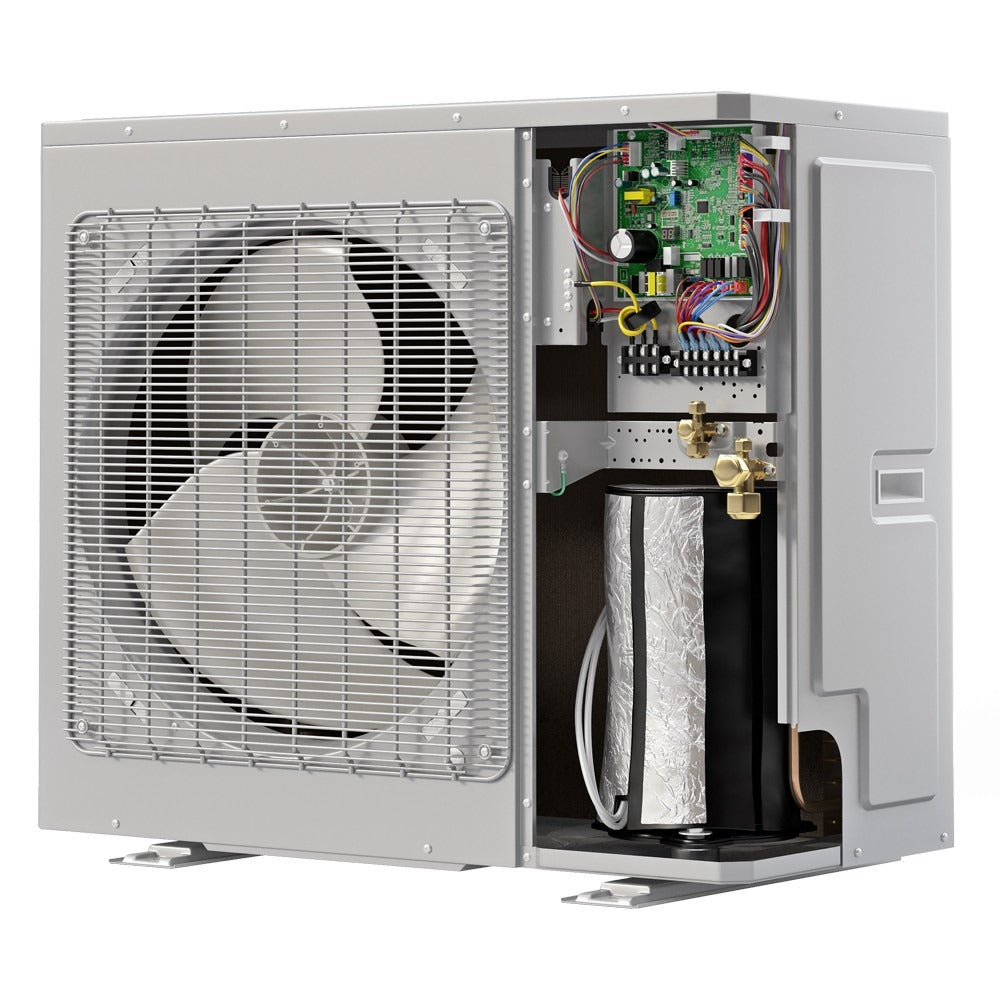

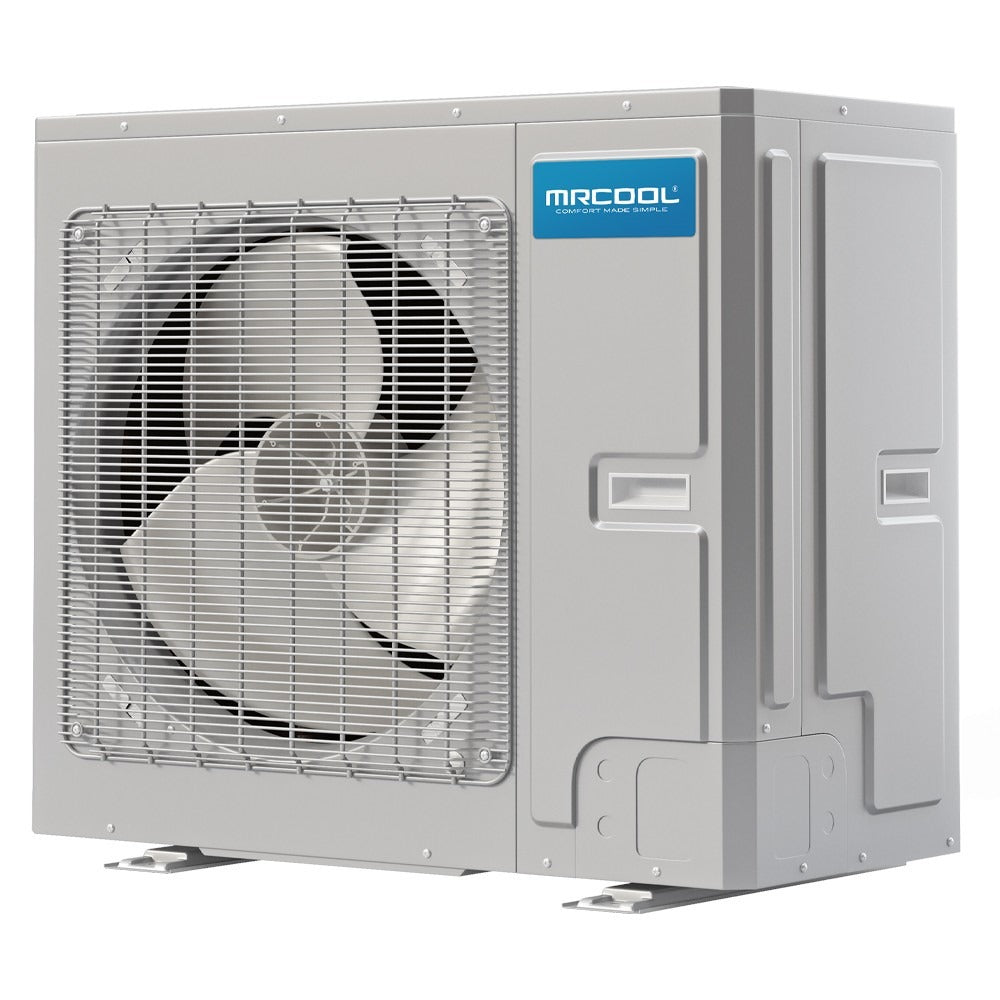

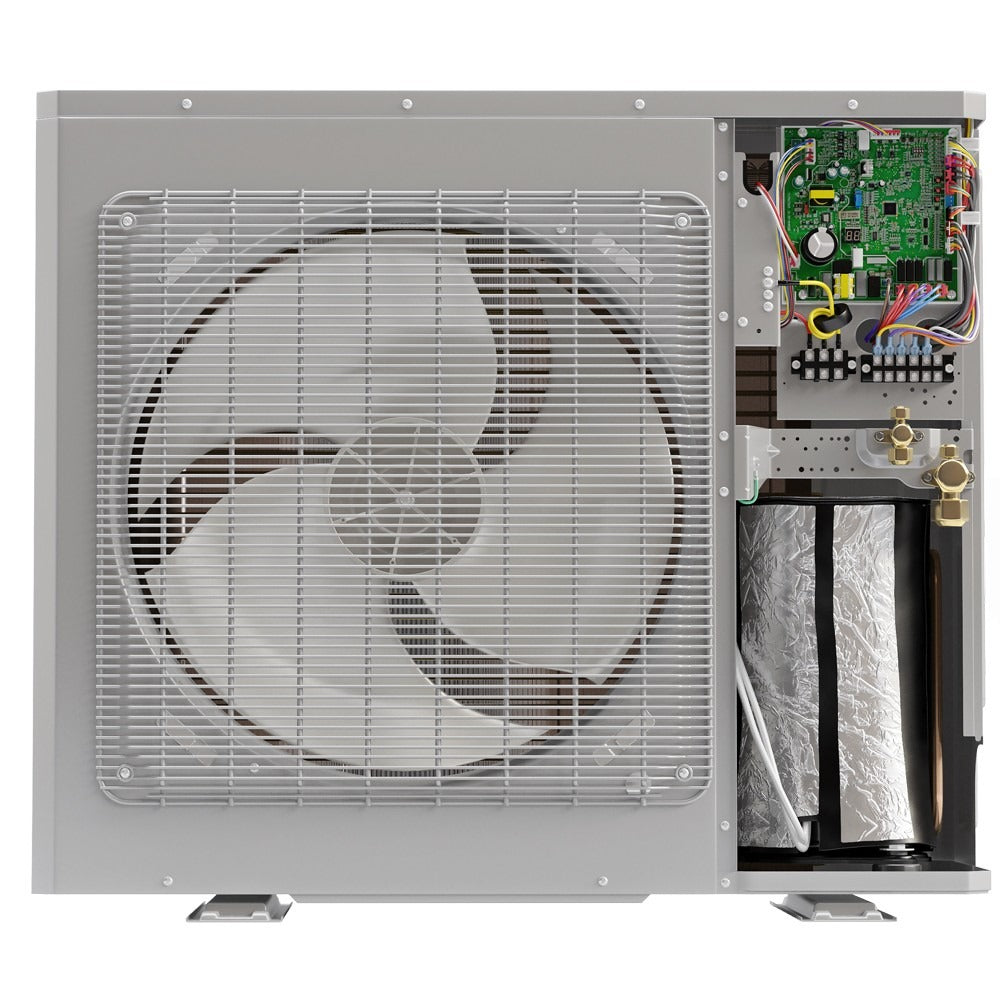

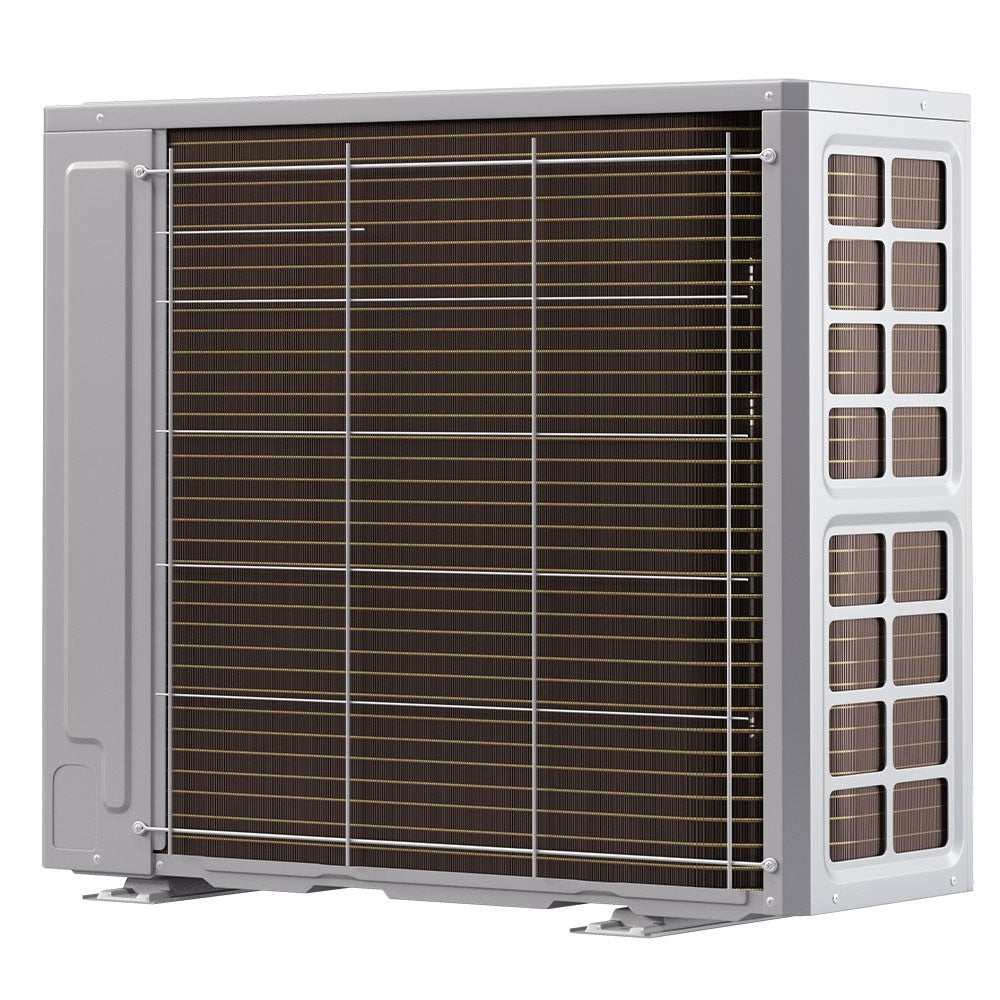

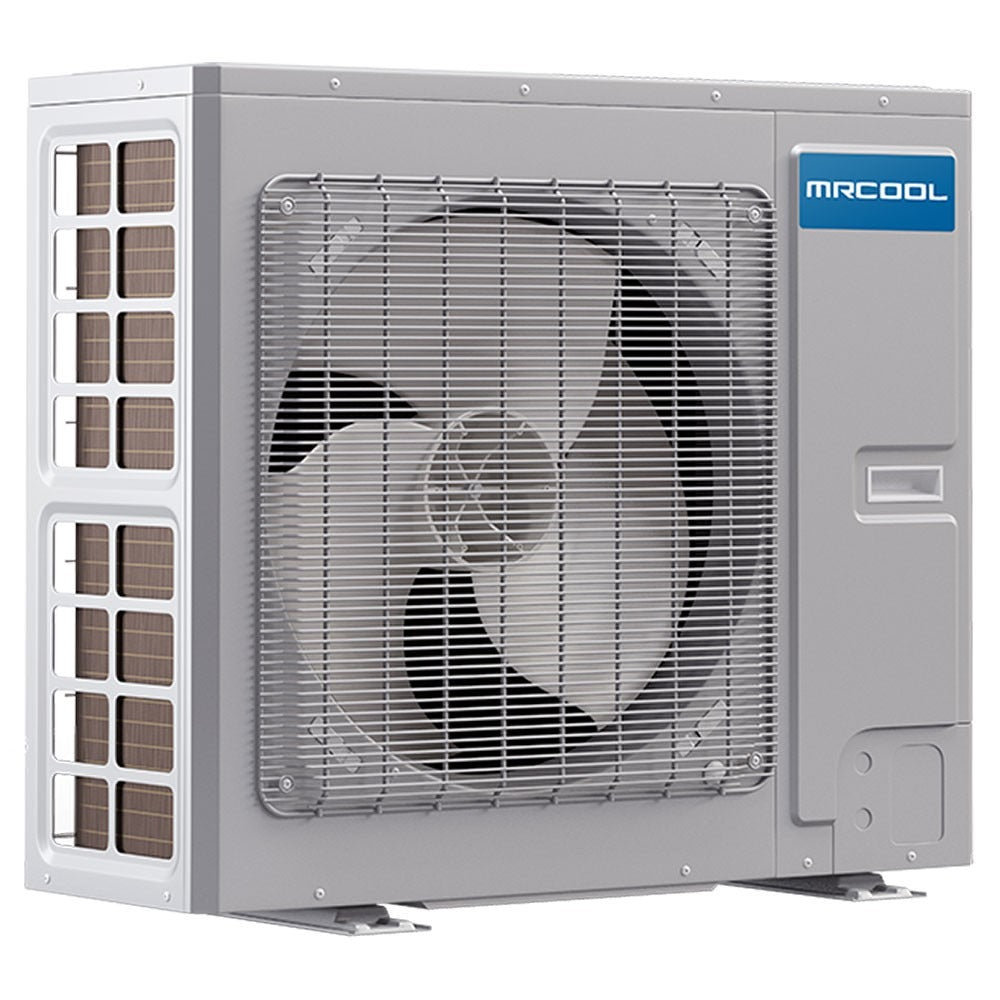

2-3 ton up to 20 SEER Universal Series Condenser
MRCOOL would like to introduce you to the future of HVAC with its new 20 SEER Ultra-Heat Inverter Unitary Condensing Unit and Air Handler. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and heating, and maximum savings while running on end. Don't be stuck in the past with your traditional system, think ahead with MRCOOL.
|
DIMENSIONS |
37' W x 32 1/4"H x 18 1/8" D |
|
SEER |
up to 20 |
|
MAX SEER |
20 |
|
EER |
12.5 |
|
HSPF |
10.5 |
|
CFM |
3000 |
|
TONNAGE |
2_3 Ton |
|
COOLING CAPACITY |
24000 BTU |
|
HEATING CAPACITY |
24000 BTU |
|
VOLTAGE |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER |
35 A |
|
MIN CIRCUIT AMPACITY |
24 A |
|
COLOR |
Gray |
|
COLOR FAMILY |
Gray |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
148.8 oz |
|
DECIBEL RATING |
55 dBA |
|
INVERTER |
DC |
|
MIN AMBIENT COOL |
5F - 129.2F |
|
MIN AMBIENT HEAT |
-22 F - 75.2F |
|
LINESET INCLUDED |
No |
|
LINE SET LENGTH |
15ft, 25ft, 35ft, 50ft |
|
MAX LINESET LENGTH |
164 FT / 5 |
|
LINESET FITTING TYPE |
Pre-Flared/Sweat & Quick Connect |
|
LIQUID LINE SIZE |
3/8 in |
|
SUCTION LINE SIZE |
3/4 |
|

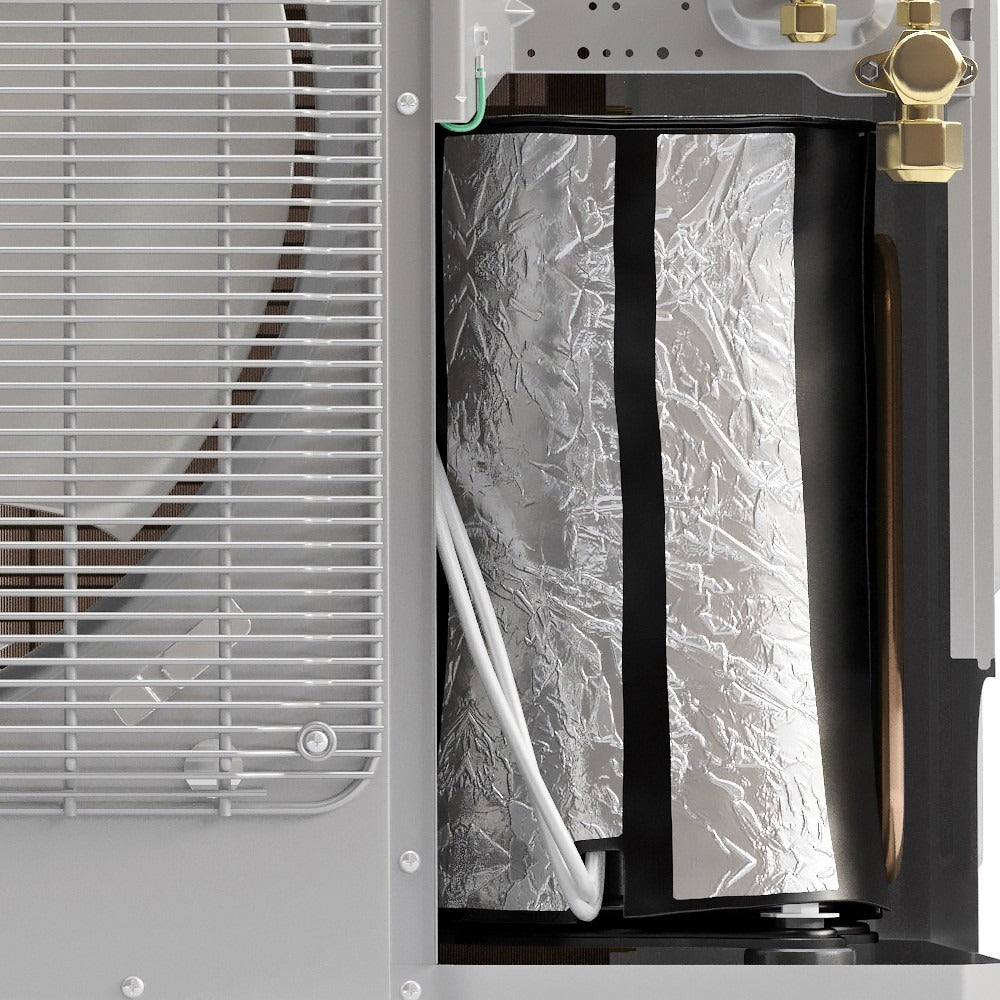

COMPRESSOR MOTOR TYPE |
Inverter Rotary |
|

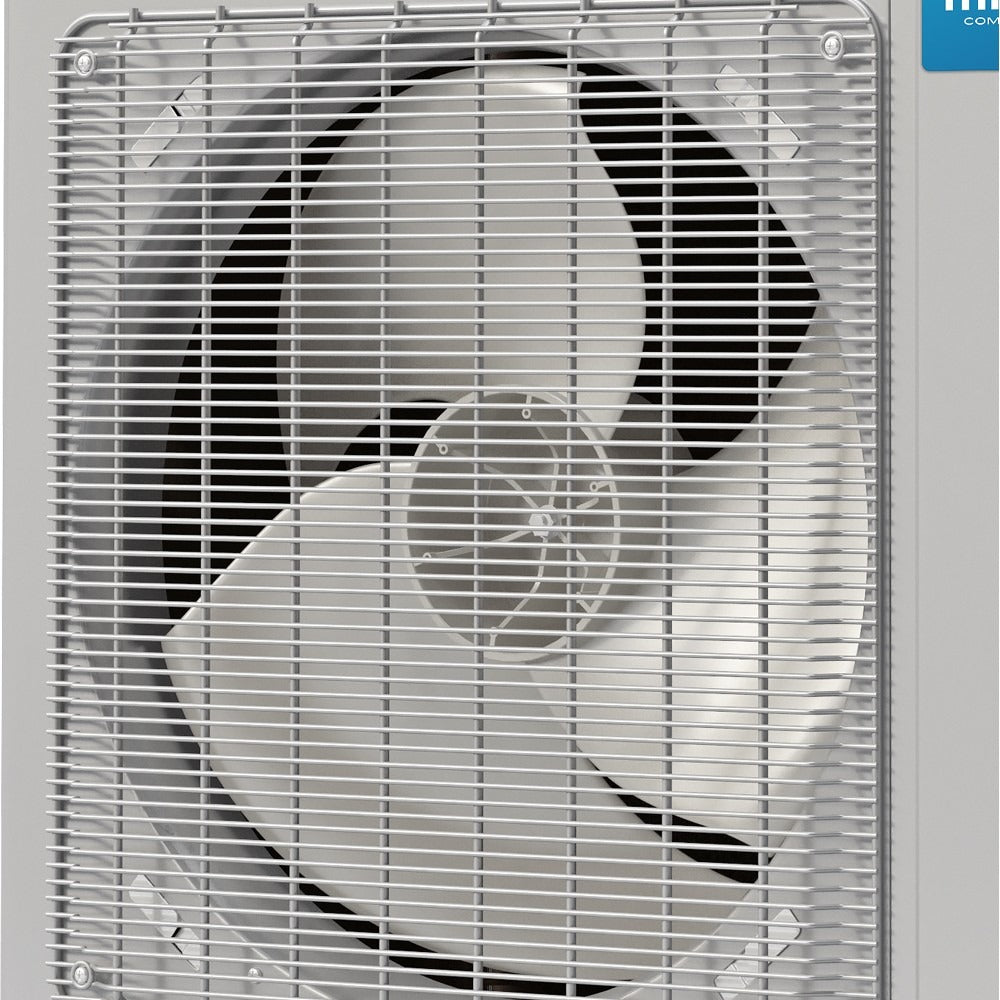

CONDENSER FAN MOTOR TYPE |
Direct Drive |
|
CONDENSER FAN MOTOR RPM |
820 |
|
METERING DEVICE |
EEV |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
UL RECONIZED |
No |
|
UL LISTED |
No |
|
ETL LISTED |
Yes |
|
ETL CERTIFIED |
Yes |
|
LEED CERTIFIED |
No |
|
ENERGY STAR COMPLIANT |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
10 Year Registered Limited Warranty |
|
BASE WARRANTY |
5 Year Limited Parts Warranty |
|
BASE PARTS WARRANTY |
5 year limited extended parts warranty |
|
HAS BATTERIES |
No |
|

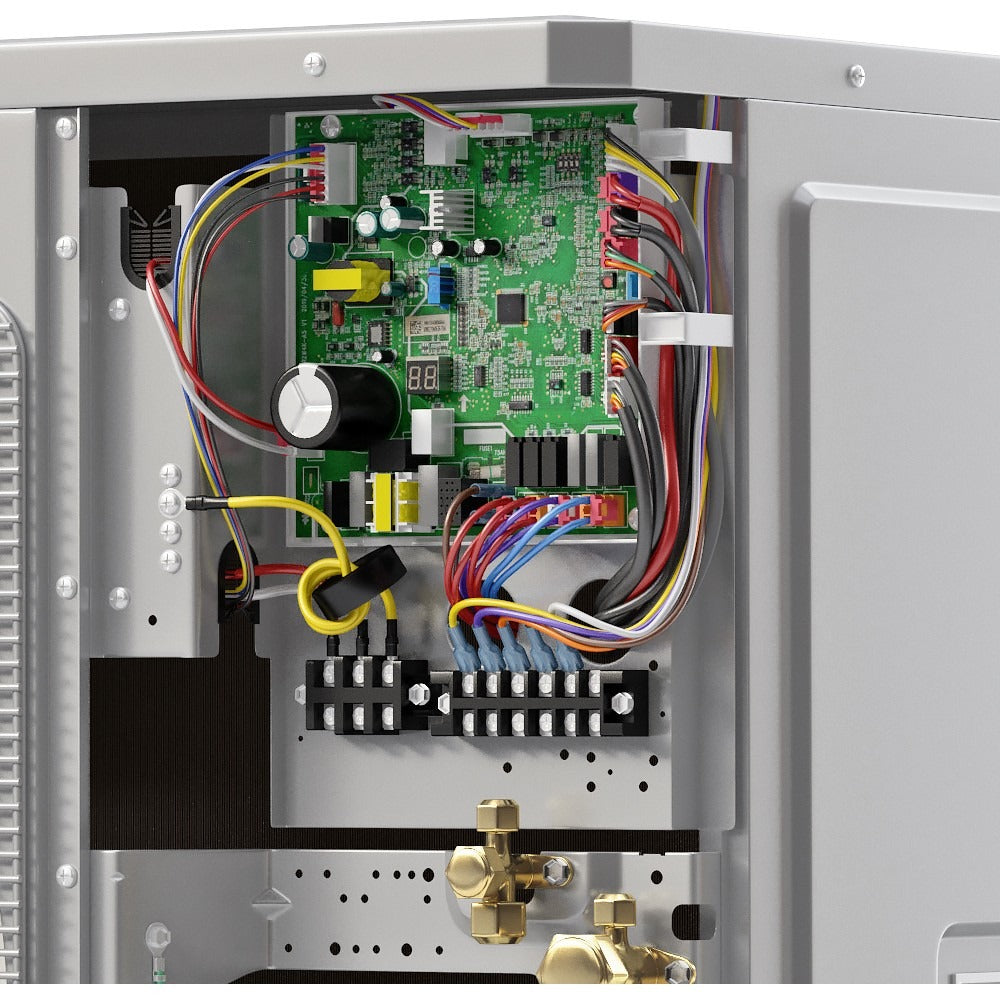

CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
No |
|
NET WEIGHT |
217.2 lbs |
|
GROSS DEPTH |
22-5/8 in |
|
GROSS HEIGHT |
38-1/4 in |
|
GROSS WIDTH |
42-5/8 in |
|
GROSS WEIGHT |
240.3 lbs |
|
FREIGHT CLASS |
92.5 |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
| 9K BTU | Up to 375 Sq. ft |
| 12K BTU | Up to 500 Sq. ft |
| 18K BTU | Up to 750 Sq. ft |
| 24k BTU | Up to 1000 Sq. ft |
| 36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
*Shipping Policy
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Very good delivery service installed and works like a Should
Product came packaged well, undamaged. Installation was difficult, followed instructions for suction line above coil on bilevel installation with coil above condenser. 108 inside house on startup, 103 ambient. First start, high pressure 500, low pressure 170, supply air temp 66 degrees. Very worried at first, but after house cooed down, everything within parameters. Researched 410a refrigerant, found out it looses efficiency exponentially during temperature extremes. My old r22 unit would supply 54 degree supply air in comparable operating conditions. EPA, government, a/c manufactures all lying to American public
First time ever installing Mr cool unit was built very good it has a dc converted fan motor,came with a salt shelf type coating om inside of unit over all very impressed 5star system
