MRCOOL DIY 4th Gen 24K BTU, 2 Ton, 20.5 SEER, Ductless Mini-Split Heat Pump Complete System (DIY-24-HP-WM-230C25)

MRCOOL DIY 4th Gen 24K BTU, 2 Ton, 20.5 SEER, Ductless Mini-Split Heat Pump Complete System (DIY-24-HP-WM-230C25)

SKU: DIY-24-HP-WM-230C25

Sale price$2,502.00 Regular price$3,999.00
Save 37%



Estimated delivery:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

MRCOOL DIY 4th Gen 24K BTU, 2 Ton, 20.5 SEER, Ductless Mini-Split Heat Pump Complete System (DIY-24-HP-WM-230C25)

MrCool E Star DIY 4th Gen 24k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz

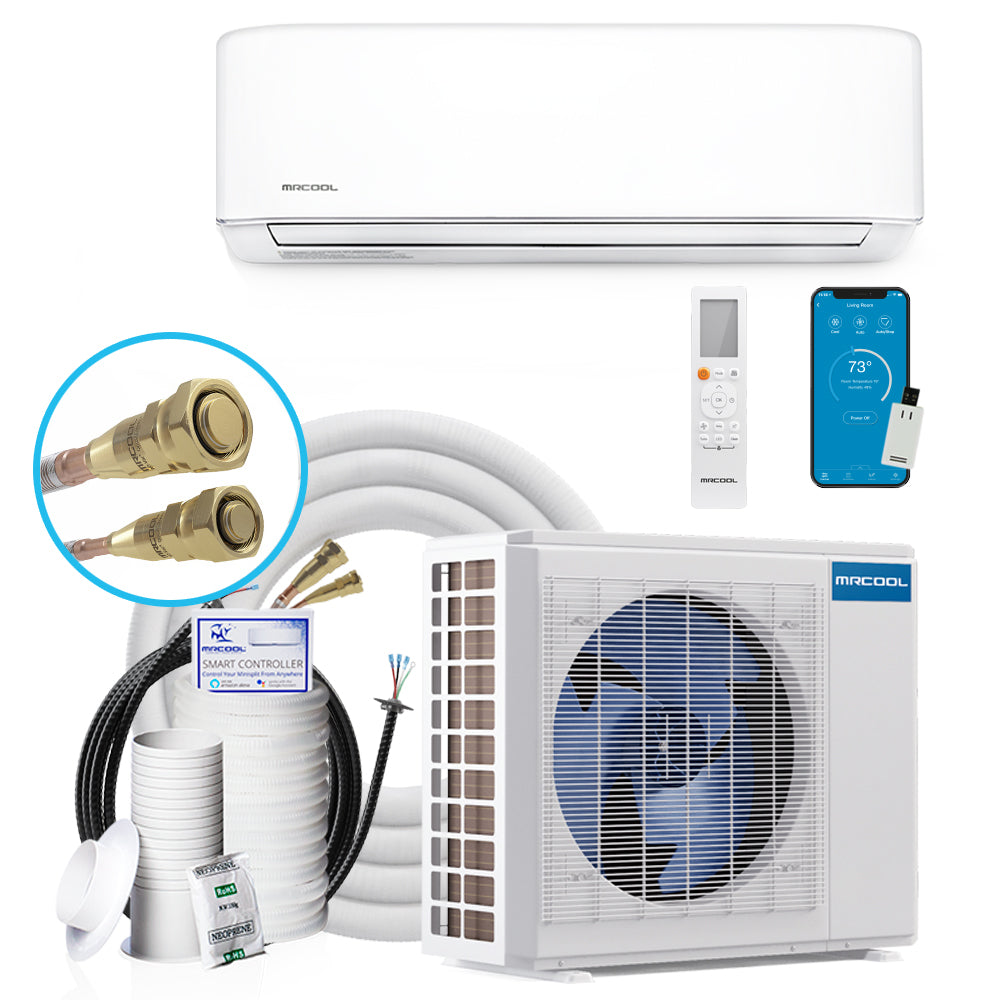

The MrCool 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity.

This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser.

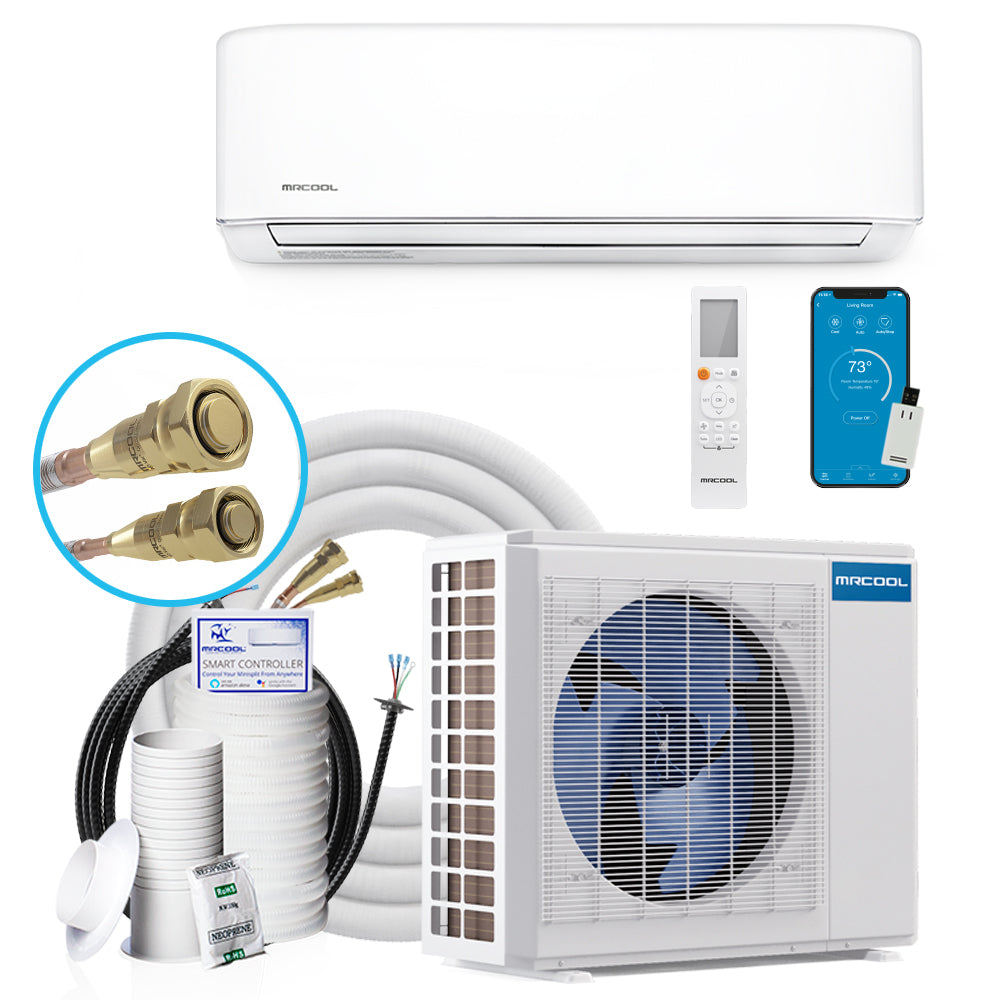

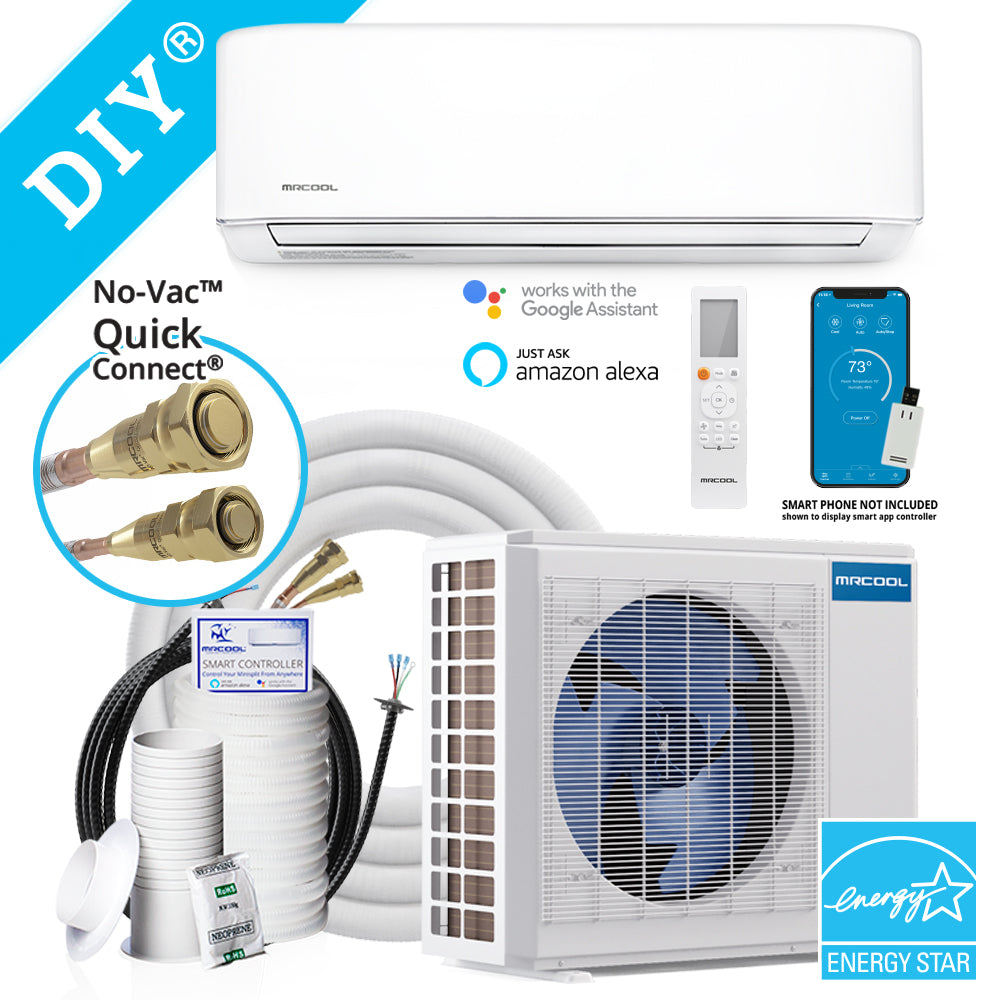

All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MrCool Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP.

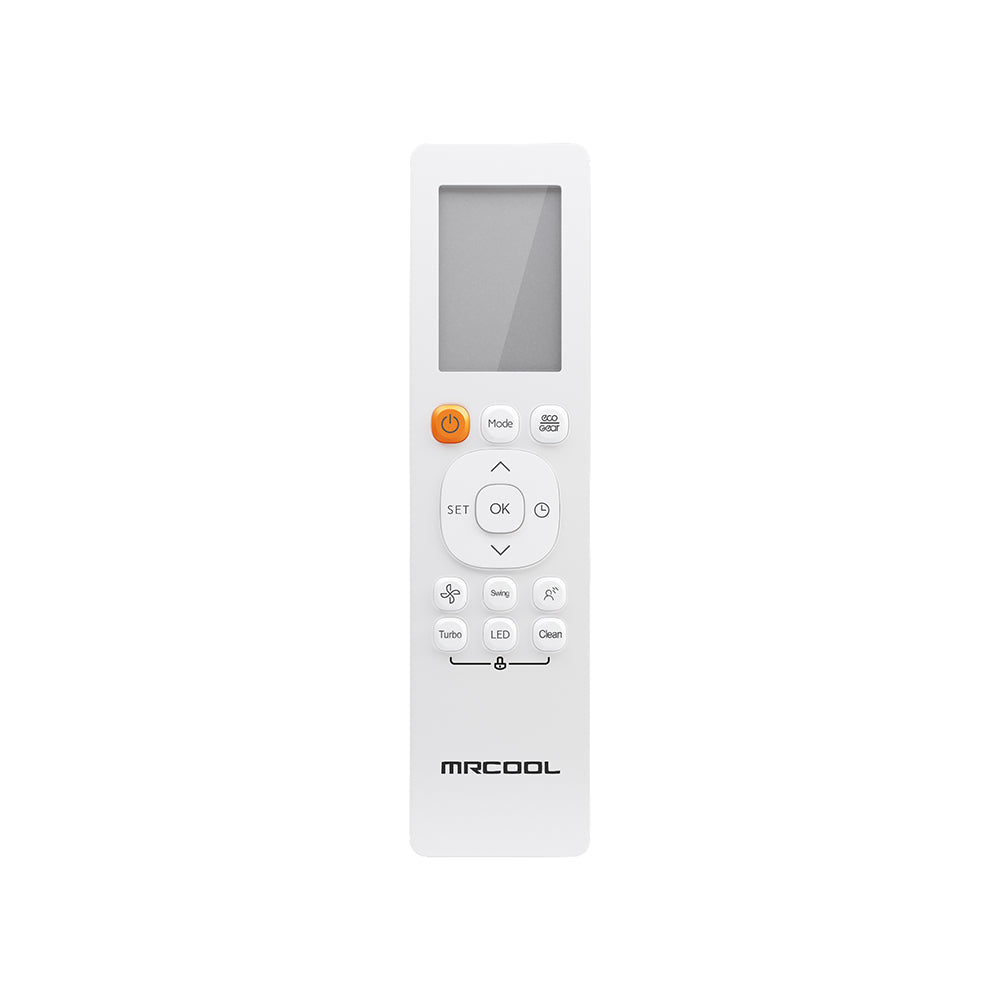

The system's Follow Me Feature allows the system to adjust the room temperature based on wherever you're standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.

Features

  • Up to 20.5 SEER

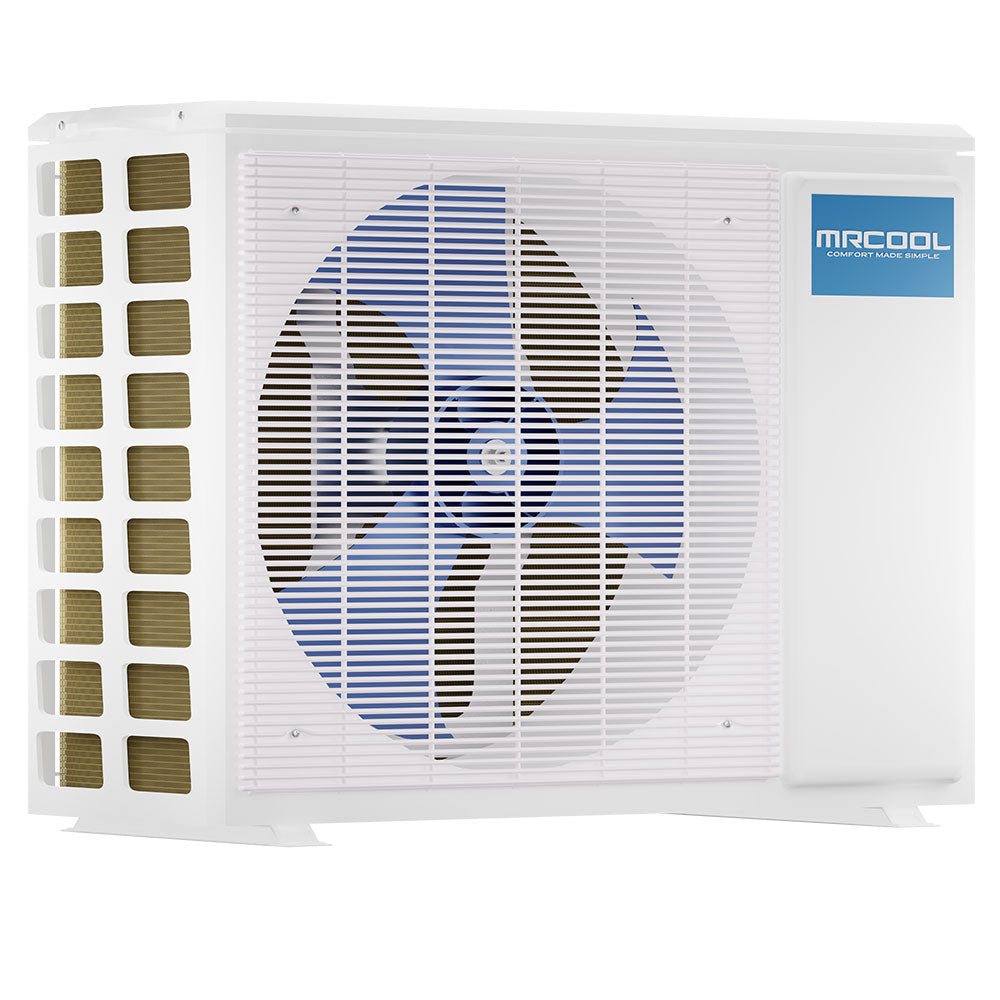

  • Gold Fin condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
  • Variable-speed DC inverter compressor technology cuts operating costs
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Accessories

DiversiTech 3/4 Inch x 6 Ft Metallic Electrical Whip with #8 Wire (6-34-6)DiversiTech 3/4 Inch x 6 Ft Metallic Electrical Whip with #8 Wire (6-34-6)
DiversiTech Non-Fusible 60A Disconnect Switch (DDS-60U)DiversiTech Non-Fusible 60A Disconnect Switch (DDS-60U)
MRCOOL Condenser Wall Mounting Kit for 24K & 36K BTU Ductless Split Systems (MB440A)MRCOOL Condenser Wall Mounting Kit for 24K & 36K BTU Ductless Split Systems (MB440A)
MRCOOL Smart HVAC Mini Stat in White (MTSK02)MRCOOL Smart HVAC Mini Stat in White (MTSK02)
MRCOOL MRCOOL Smart HVAC Mini Stat in White (MTSK02)
Sale price$98.00 Regular price$149.00

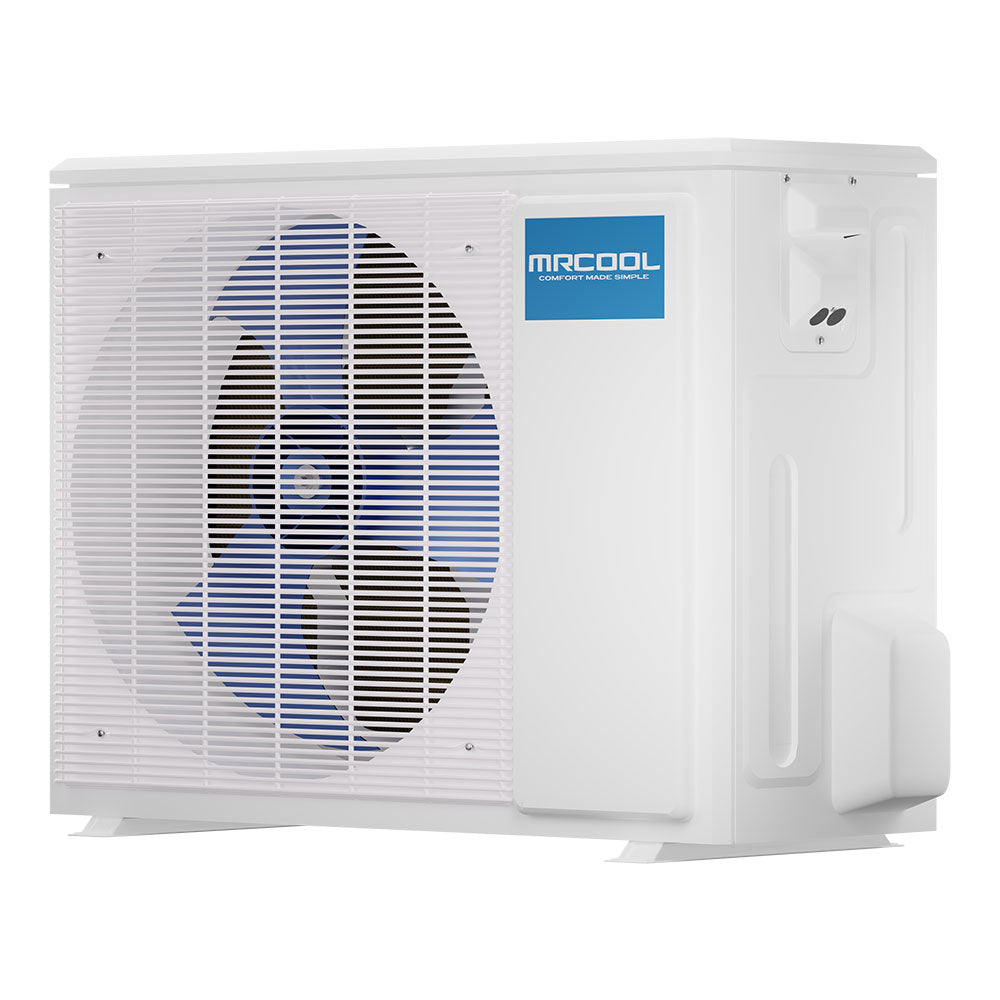

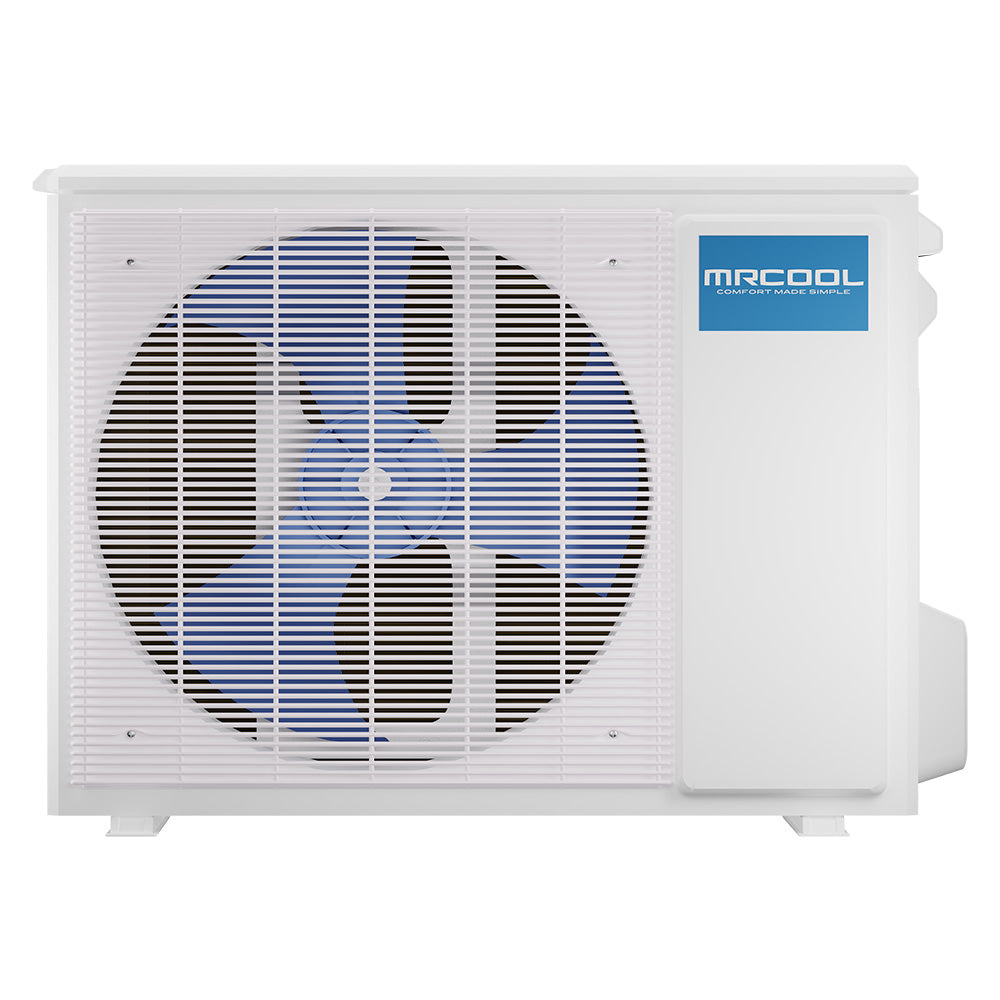

Condenser Dimensions

16.14" D x 31.89"H x 37.24" W

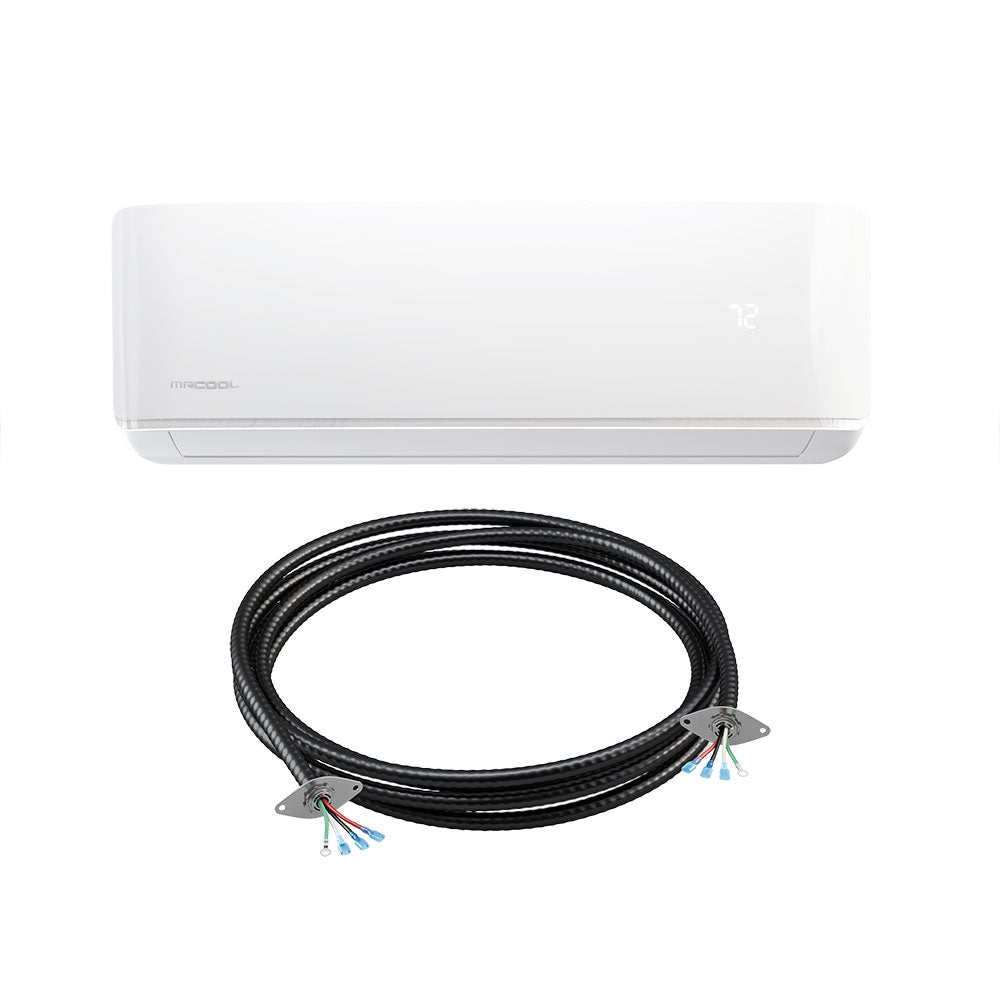

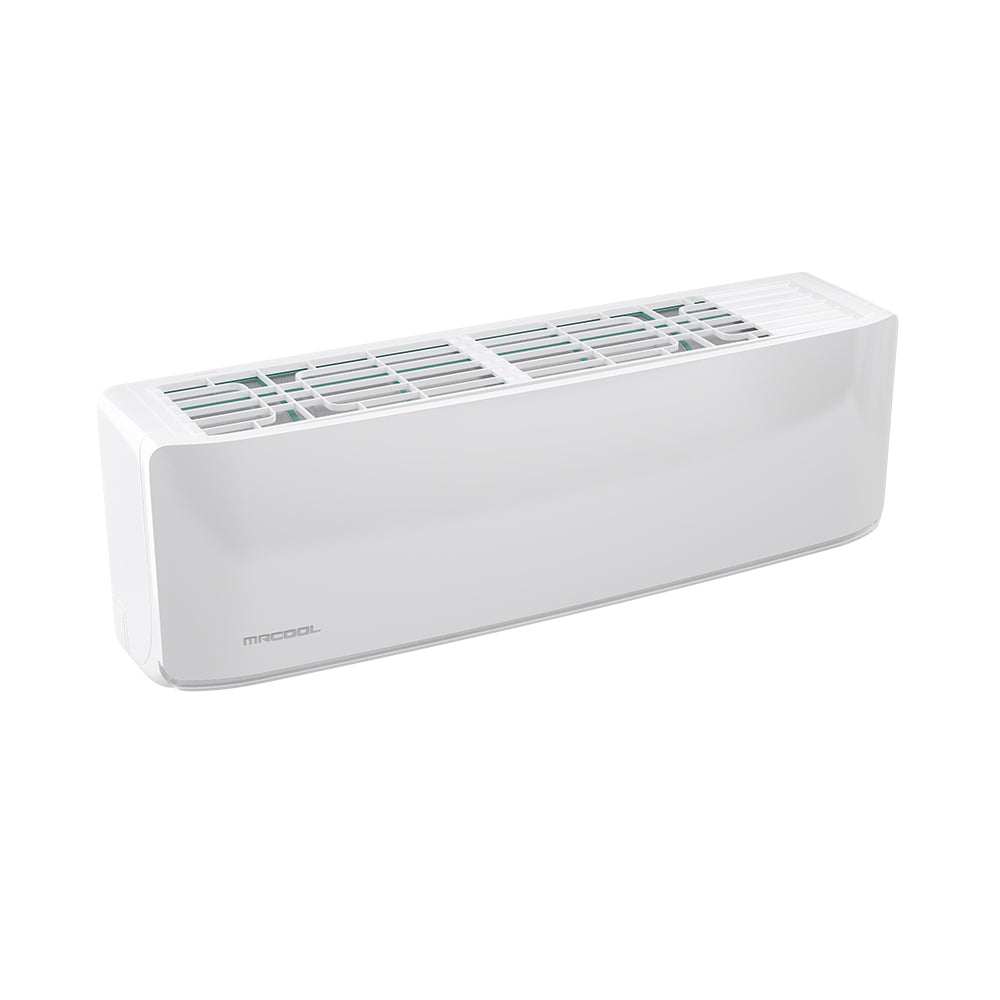

Air Handler Dimensions

8.90" D x 13.19" H x 42.52" W

SEER

20.5

EER

12.5

COP 47

3.15

HSPF

HSPF4: 10.5

HSPF5: 9

CFM

605.88/505.88/364.71

Tonnage

2

Cooling Capacity

23000BTU

Heating Capacity

25000 BTU

Voltage

208-230 V

Phase

1

Cycle

60 Hz

Max Fuse Breaker

35 A

Min Circuit Ampacity

22 A

Color

White

Color Family

White

Rated Load

0.45 A

Max Coverage Area

Up to 1000 sqft

Zone Capacity

1

Refrigerant Type

R-410A

Refrigerant Volume

81.13 oz

Decibel Rating

48.5/43.5/33

Decibel Rating Low

33 dBA

Decibel Rating High

48.5 dBA

Oscillation

4-W

Inverter

Yes

Min Ambient Cool

-13F - 122F

Min Ambient Heat

-13F - 75F

Line Set Length

25ft

Max Lineset Length

98.42 ft

Liquid Line Size

3/8 in

Suction Line Size

5/8 in

Compressor Motor Type

Twin-Rotary

Condenser Fan Motor Rpm

850/750/700

Blower Motor Rpm

1200/1000/700

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

Wi-Fi Compatibility

Yes

App Compatibility

Yes

Works With iOS

Yes

Works With Android

Yes

Remote Control Included

Yes

UL Listed

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Registered Warranty

Limited Lifetime Compressor

Base Warranty

5-year Parts/7-year Compressor

Base Parts Warranty

5-year Parts

Registered Compressor Warranty

Limited Lifetime Compressor

Base Compressor Warranty

7-year Compressor

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

GU;PR;VI

Condenser Weight

125.22 lbs

Air Handler Weight

35.27 lbs



Mini Split FAQ

What BTU rating should I choose for my air handler?

  • This depends on the coverage area/room size you are trying to heat/cool
  • An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area
Air Handler BTU Coverage Area/Room Size (Sq Ft.)*
9K BTU
Up to 375 Sq. ft
12K BTU Up to 500 Sq. ft
18K BTU Up to 750 Sq. ft
24k BTU Up to 1000 Sq. ft
36k BTU  Up to 1500 Sq. ft

*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
