This item only includes a Condenser. Browse our complete Mini Split systems here.

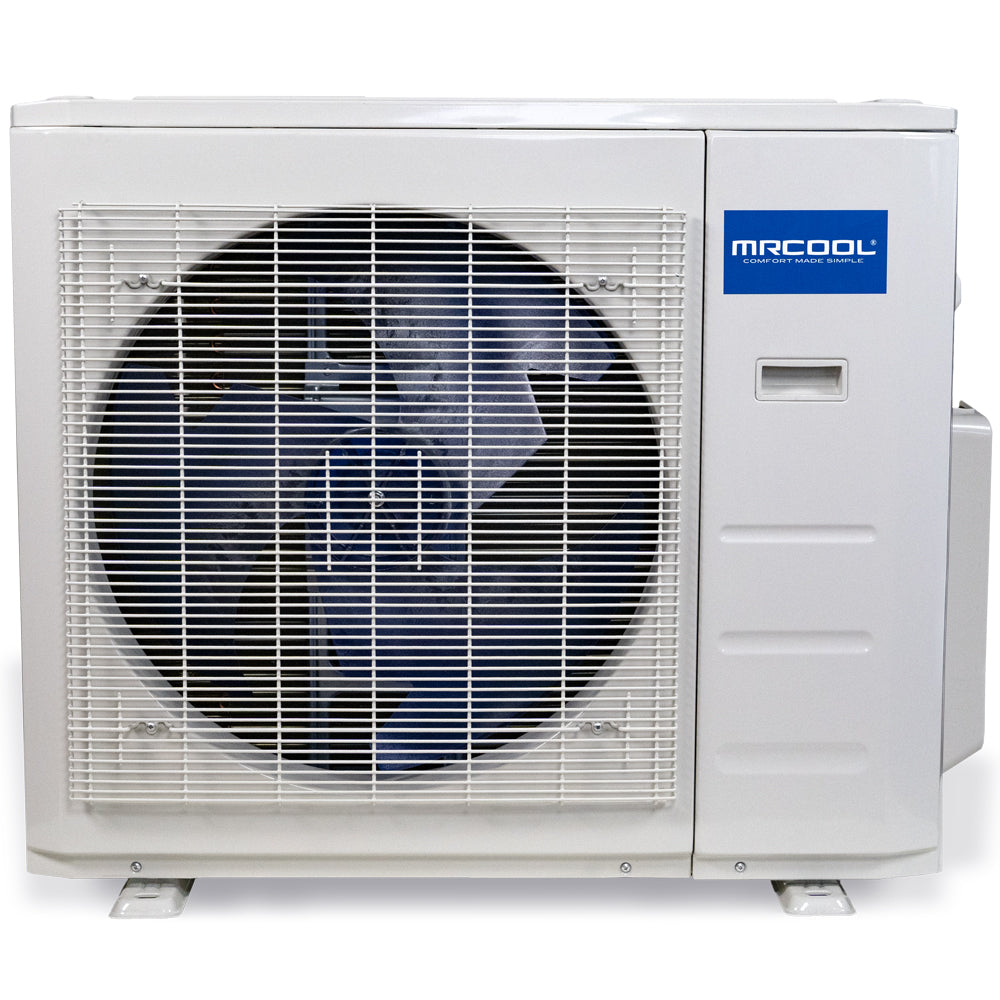

Olympus Hyper Heat 9,000 BTU 0.75 Ton Ductless Mini Split Air Conditioner and Heat Pump Condenser- 230V/60Hz
|
Dimensions |
13.11 in D x 21.81 in H x 31.5 in W |
|
SEER |
25 |
|
EER |
14.5 |
|
HSPF |
hspf4/hspf5 : 11.2/8.6 |
|
CFM |
1176.47 |
|
Cooling Capacity |
9000 BTU |
|
Heating Capacity |
10900 BTU |
|
Voltage |
208-230 V |
|
Phase |
1 |
|
Cycle |
60 Hz |
|
Max Fuse Breaker |
15 A |
|
Min Circuit Ampacity |
9 A |
|
Color |
White |
|
Color Family |
White |
|
Refrigerant Type |
R-410A |
|
Refrigerant Volume |
52.9 oz |
|
Decibel Rating |
55.5 dBA |
|
Inverter |
Yes |
|
Line Set Length |
16ft or 25 |
|
Max Lineset Length |
82.02 ft |
|
Liquid Line Fitting |
3/8 in |
|
Liquid Line Size |
1/4 in |
|
Suction Line Fitting |
1/2 in |
|
Suction Line Size |
3/8 in |
|
Condenser Fan Motor RPM |
810/700/450 |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
Energy Star Compliant |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
5-year Parts/7-year Compressor/1-year Remote |
|
Registered Parts Warranty |
5-year |
|
Registered Compressor Warranty |
7-year |
|
Registered Remote Warranty |
1-year |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed GAS |
Yes |
|
Proposition 65 Warning |
No |
|
Restricted States |
GU, PR, VI |
|
Net Weight |
88.18 lbs |
|
Gross Depth |
15.35 in |
|
Gross Height |
24.61 in |
|
Gross Width |
36.22 in |
|
Gross Weight |
93.7 lbs |
|
Freight Class |
125 |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
| 9K BTU | Up to 375 Sq. ft |
| 12K BTU | Up to 500 Sq. ft |
| 18K BTU | Up to 750 Sq. ft |
| 24k BTU | Up to 1000 Sq. ft |
| 36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
*Shipping Policy
Installed with ceiling cassettes... Quiet and keeping us cool so far !
I had purchase a 2 zone/ 2 head Mr.cool unit.
Installed to manufacture specs and instructions.
One machine lasted 30 days before an internal fan motor- bearing broke and caused product failure.
A week after that, the interior -second head unit failed. Completely iced up internally.
I put a complaint in as soon as each issue presented itself.
I have yet to receive compensation, a replacement part or acknowledgement of the second unit failing.
I do not recommend Mr. Cool products to anyone. They are cheaply made and the customer support is extremely poor.
Not worth DIY savings (pre charged units)
Very good delivery service installed and works like a Should
Product came packaged well, undamaged. Installation was difficult, followed instructions for suction line above coil on bilevel installation with coil above condenser. 108 inside house on startup, 103 ambient. First start, high pressure 500, low pressure 170, supply air temp 66 degrees. Very worried at first, but after house cooed down, everything within parameters. Researched 410a refrigerant, found out it looses efficiency exponentially during temperature extremes. My old r22 unit would supply 54 degree supply air in comparable operating conditions. EPA, government, a/c manufactures all lying to American public
First time ever installing Mr cool unit was built very good it has a dc converted fan motor,came with a salt shelf type coating om inside of unit over all very impressed 5star system
