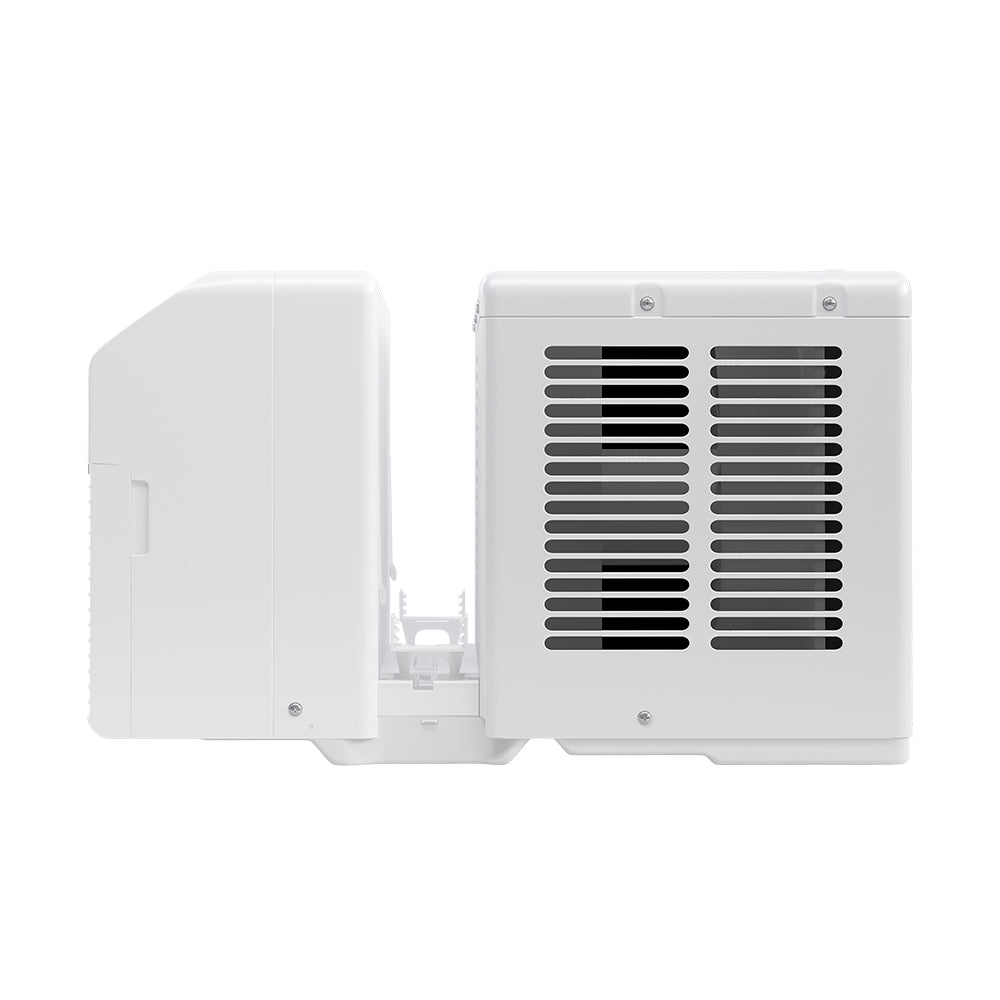

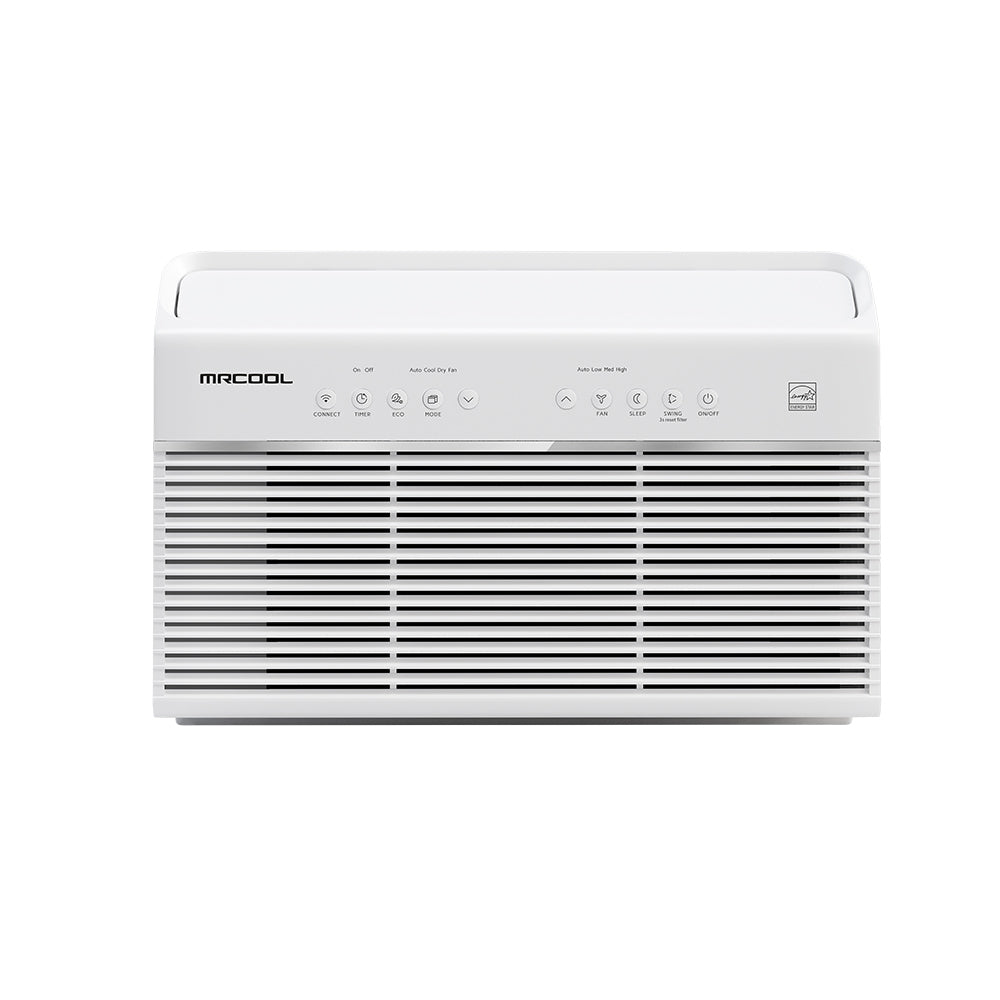

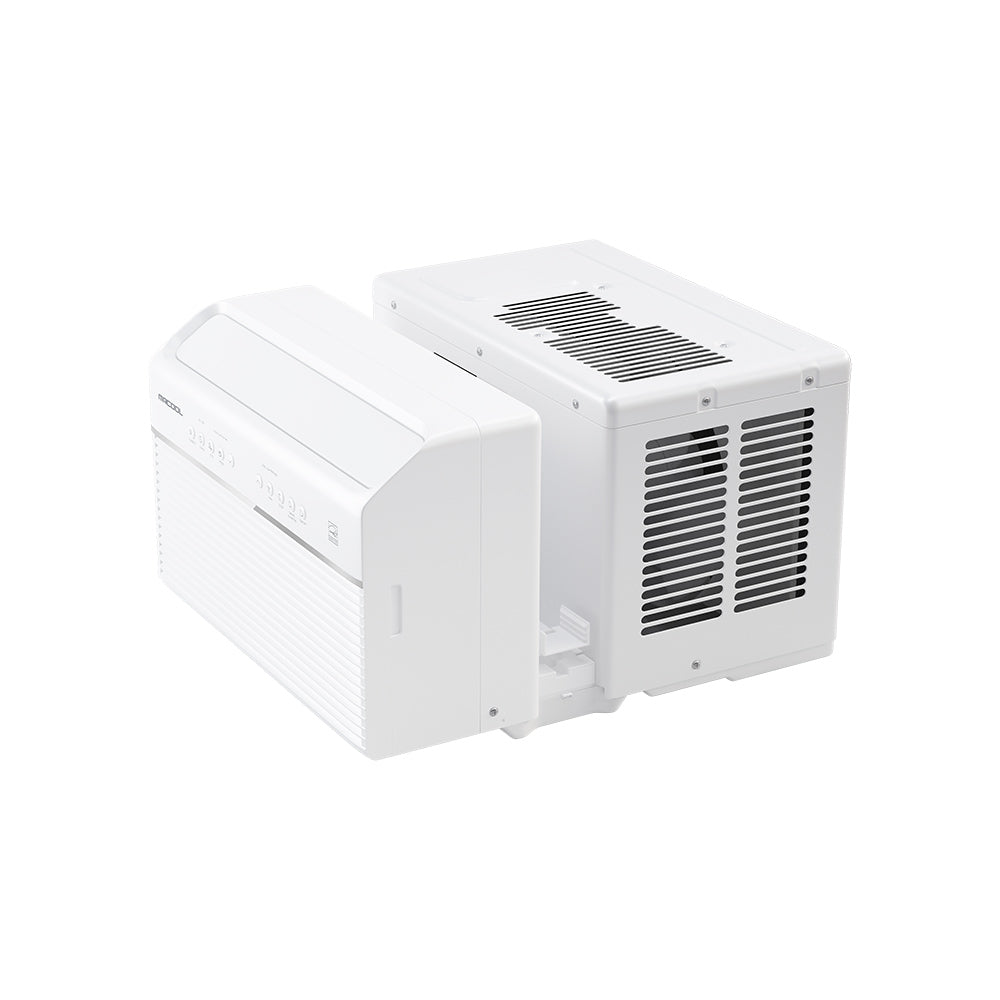

The new U-shaped Window Air Conditioner is the latest technology to come from MRCOOL. With its revolutionary U-Shaped design, this Air Conditioner gives you the ability to open and close the window it is installed in. By being able to close the window, it helps create a sound barrier to keep unwanted noise outside making it incredibly quiet. The unit also features a redesigned bracket that simplifies and shortens the installation process.
|
Dimensions |
21.97" D x 13.46" H x 19.17" W |
|
EER |
3.3 |
|
CFM |
112/141/203 |
|
Cooling Capacity |
8000 BTU |
|
Voltage |
115 V |
|
Phase |
1 |
|
Cycle |
60 Hz |
|
Max Fuse Breaker |
12 A |
|
Color |
White |
|
Rated Load |
8.78 A |
|
Max Coverage Area |
350 sqft |
|
Refrigerant Type |
R32 |
|
Decibel Rating Low |
42 dBA |
|
Decibel Rating High |
47 dBA |
|
Number Of Speeds |
3 Speed |
|
Oscillation |
No |
|
Inverter |
DC |
|
Min Ambient Cool |
60.8F – 89.6F |
|
Compressor Motor Type |
Rotary |
|
Condenser Fan Motor RPM |
1100/1225/1476 |
|
Filter Type |
Washable |
|
Auxiliary Heater Available |
No |
|
Low Voltage Compensation |
Yes |
|
Overload Protection |
Yes |
|
Fan Only Option |
Yes |
|
Sleep Mode |
yes |
|
Auto Cool |
Yes |
|
Wi-Fi Compatibility |
Yes |
|
APP Compatibility |
Yes |
|

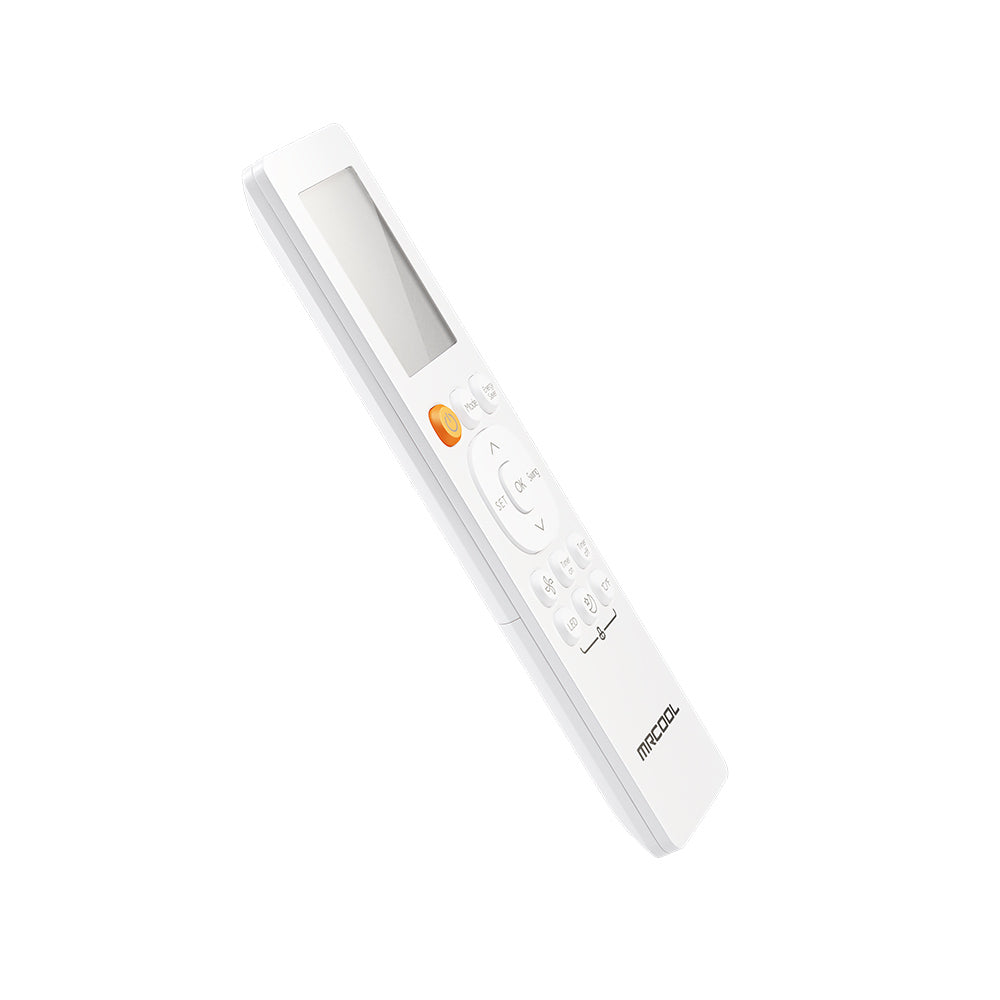

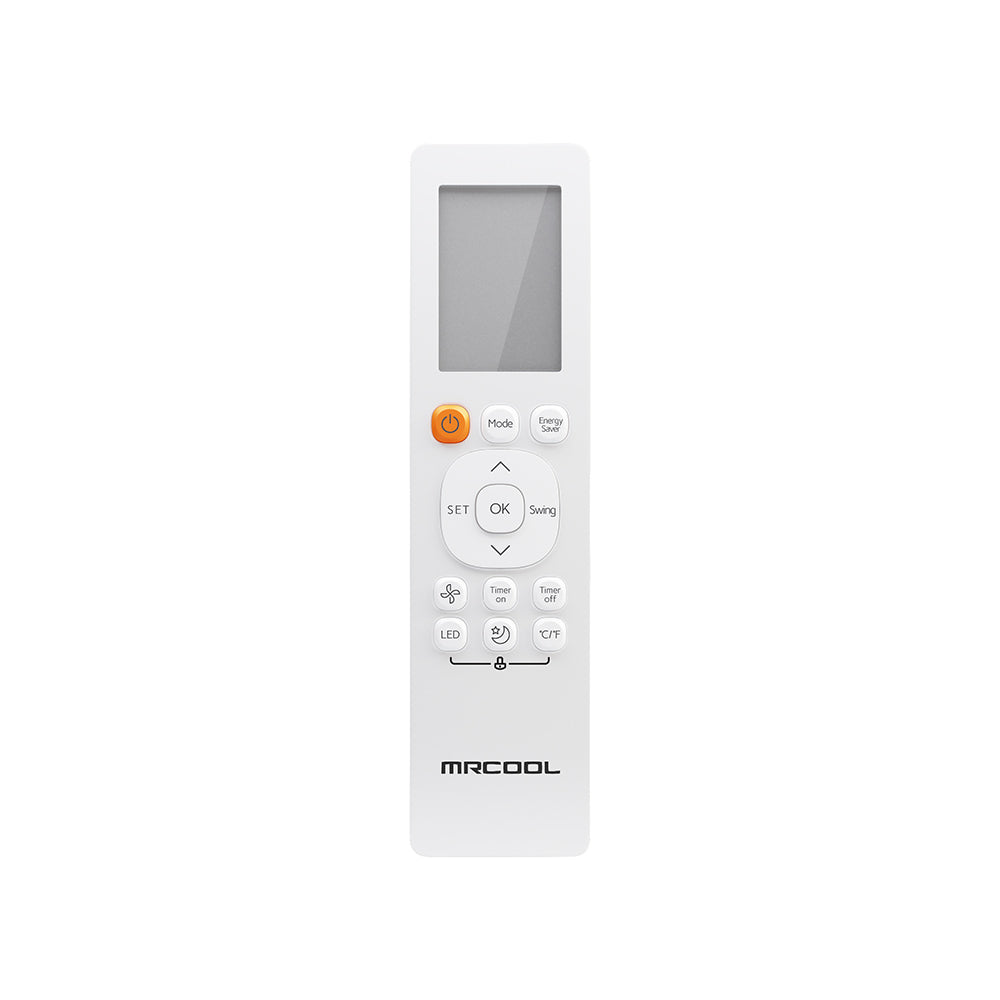

Remote Control Included |
Yes |
|
Energy Star Certified |
Yes |
|
Registered Warranty |
1 Year Limited Warranty |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Proposition 65 Warning |
Yes |
|
Net Weight |
55.55 lbs |
|
Gross Depth |
24.29 in |
|
Gross Height |
17.48 in |
|
Gross Width |
21.14 in |
|
Gross Weight |
69 lbs |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
| 9K BTU | Up to 375 Sq. ft |
| 12K BTU | Up to 500 Sq. ft |
| 18K BTU | Up to 750 Sq. ft |
| 24k BTU | Up to 1000 Sq. ft |
| 36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
