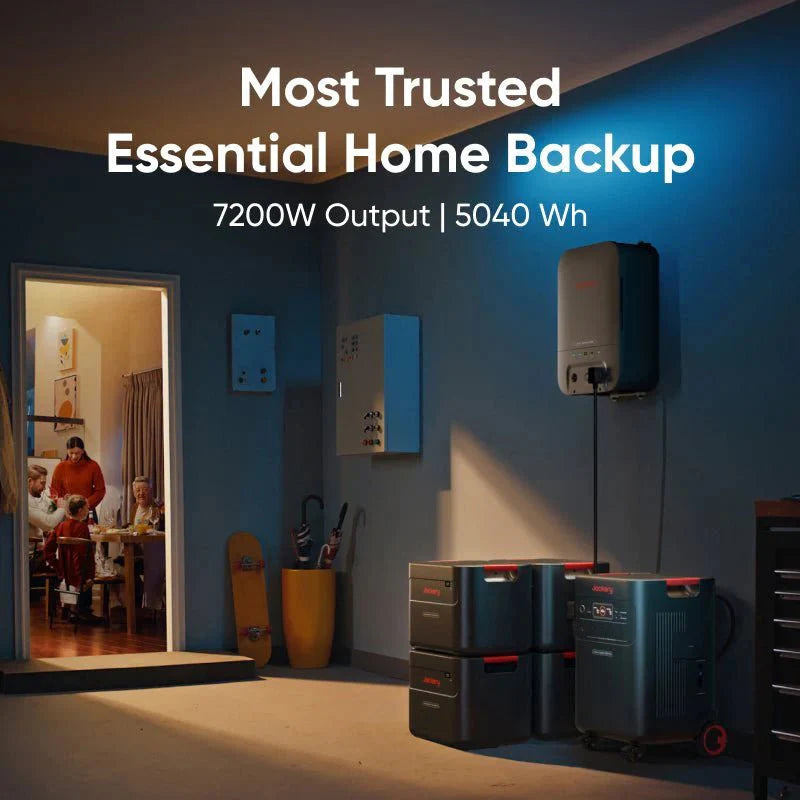

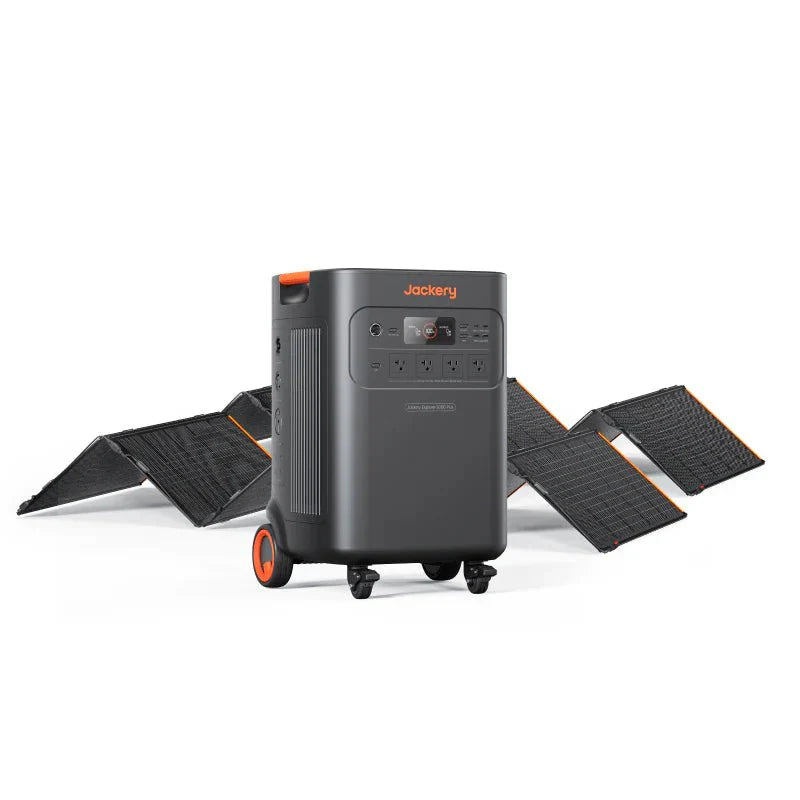

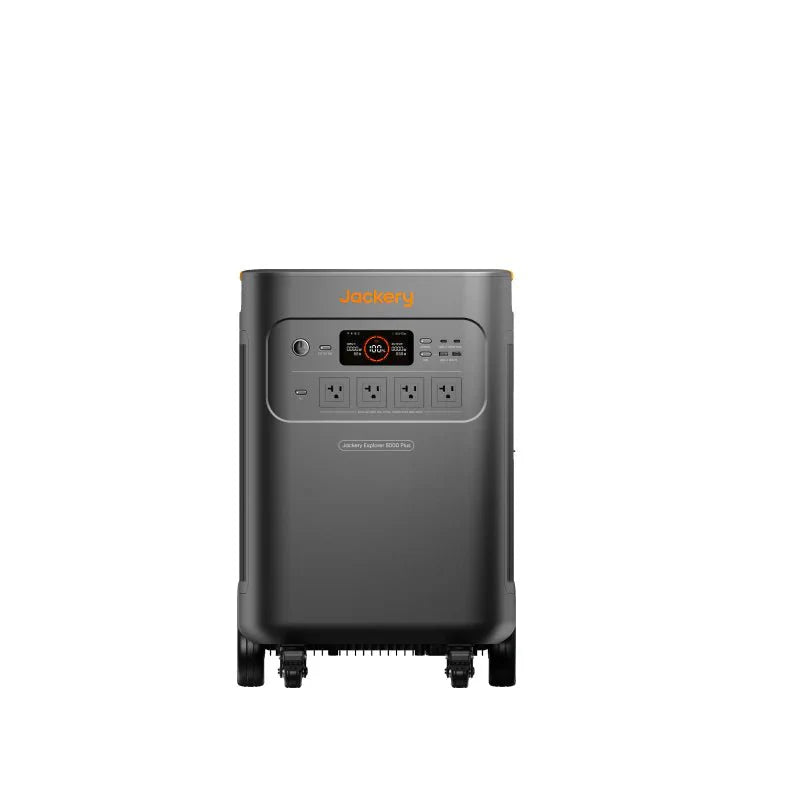

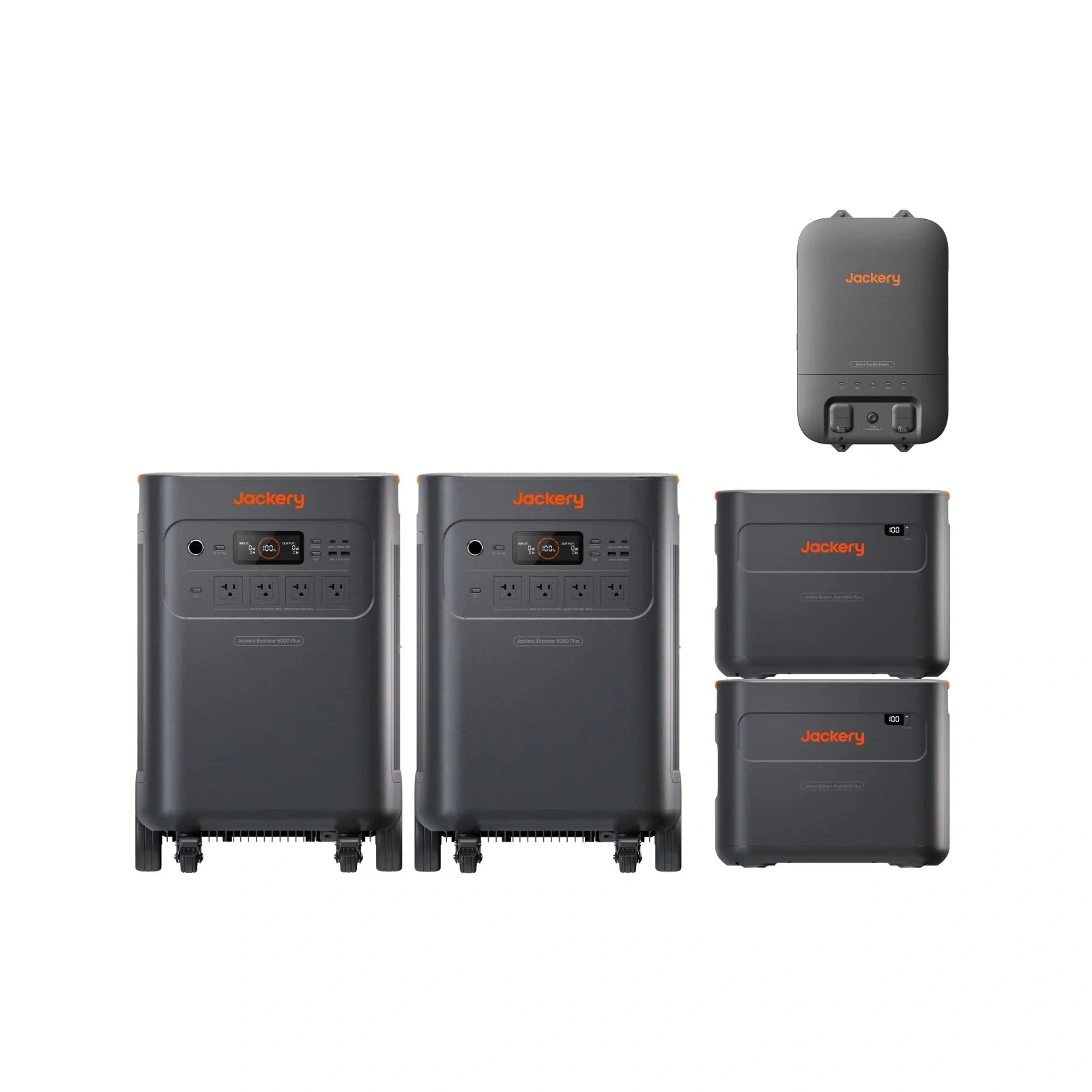

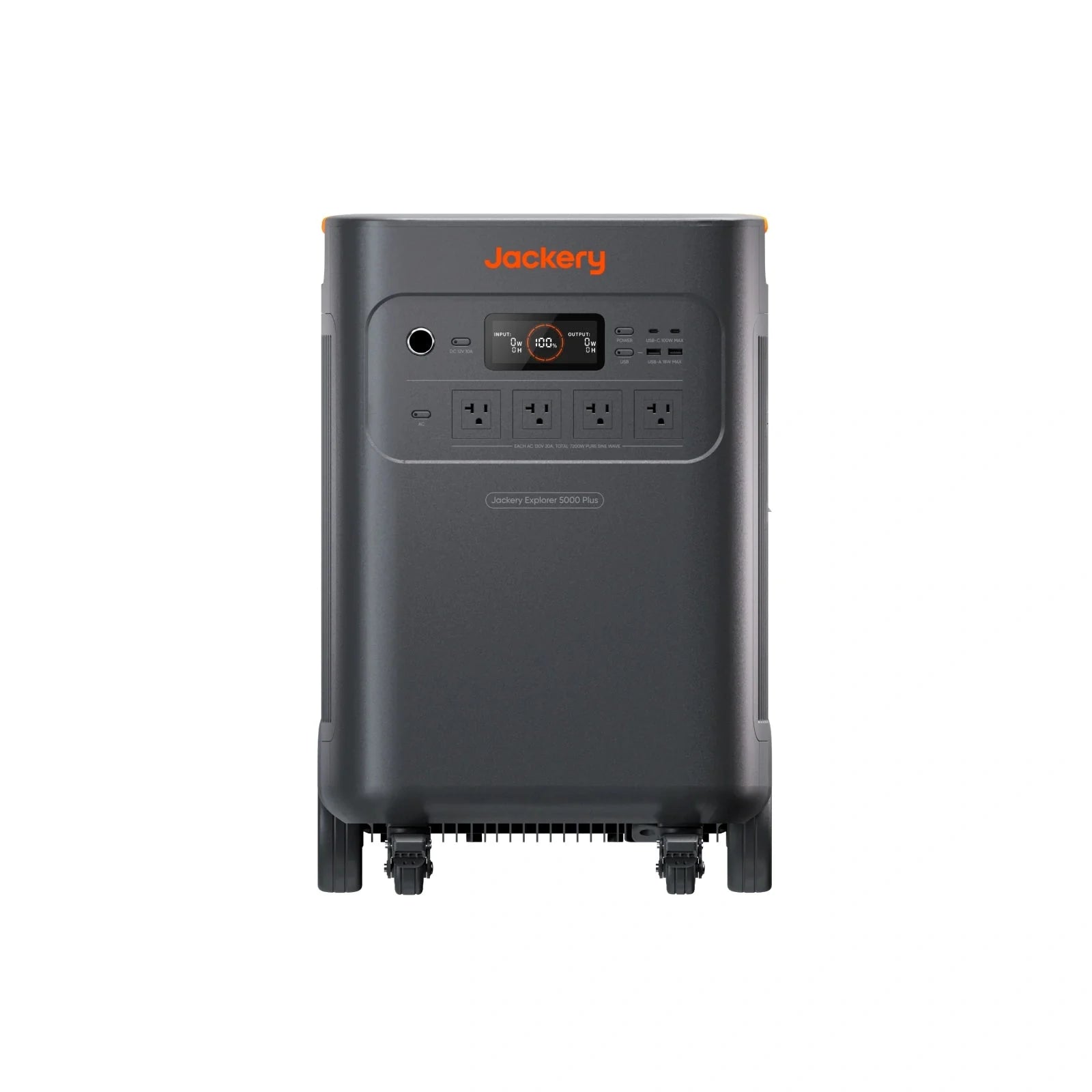

Built to handle even the biggest appliances, the award-winning Jackery Solar Generator 5000 Plus (Red Dot Design Award & A' Design Award winner) delivers 7200W of rated power and 14,400W surge, supporting both 120V and 240V to run a 5-ton AC, water heater, or other major home appliances with ease.

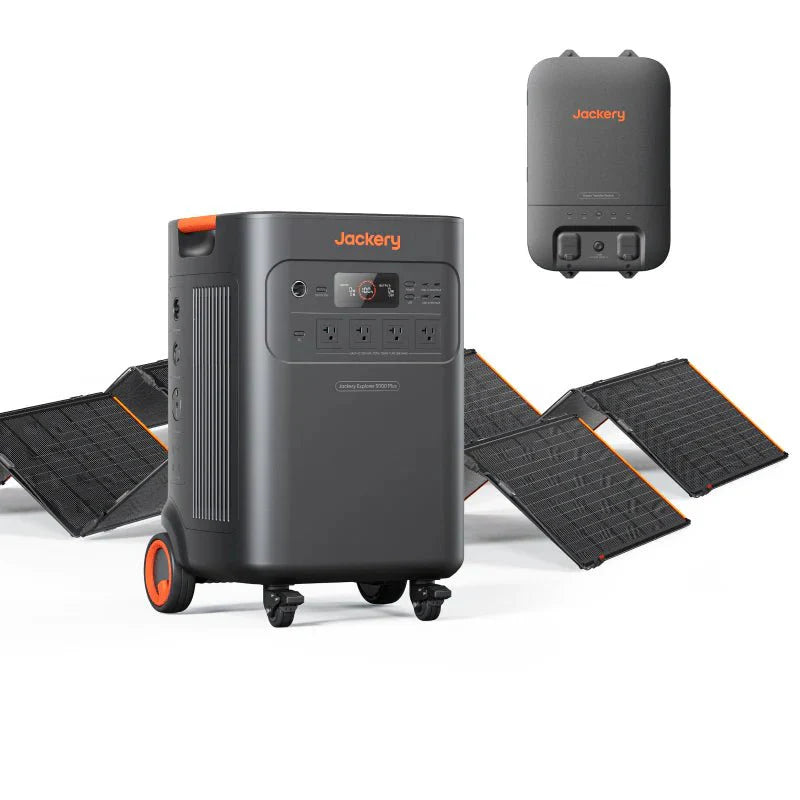

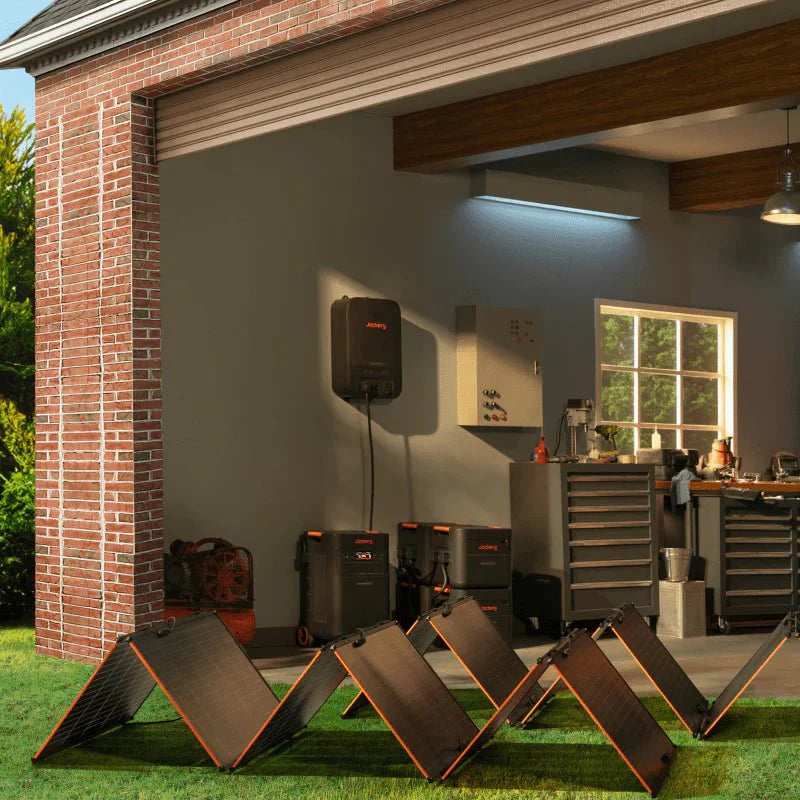

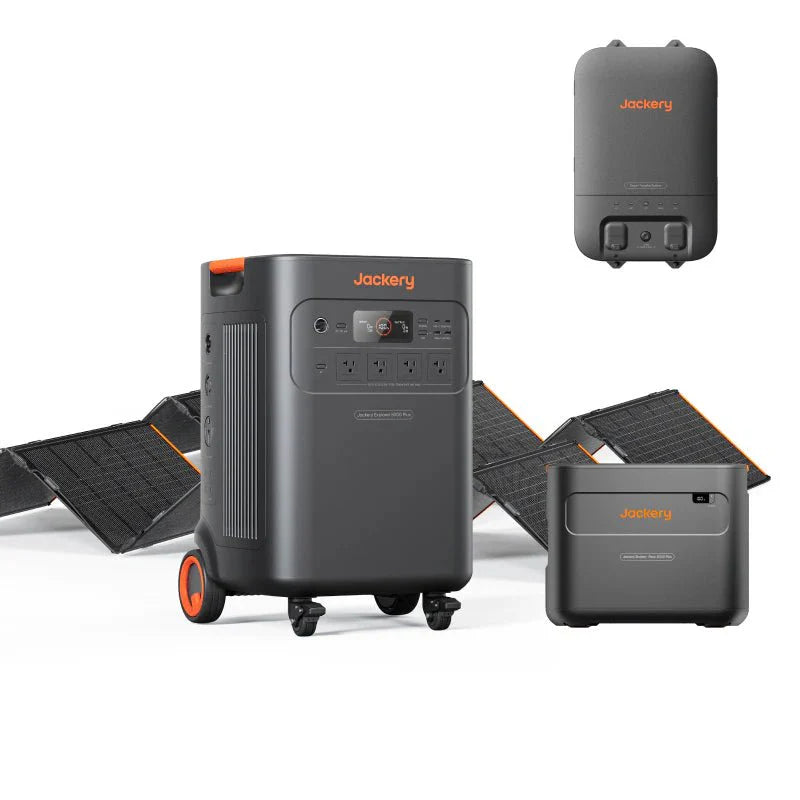

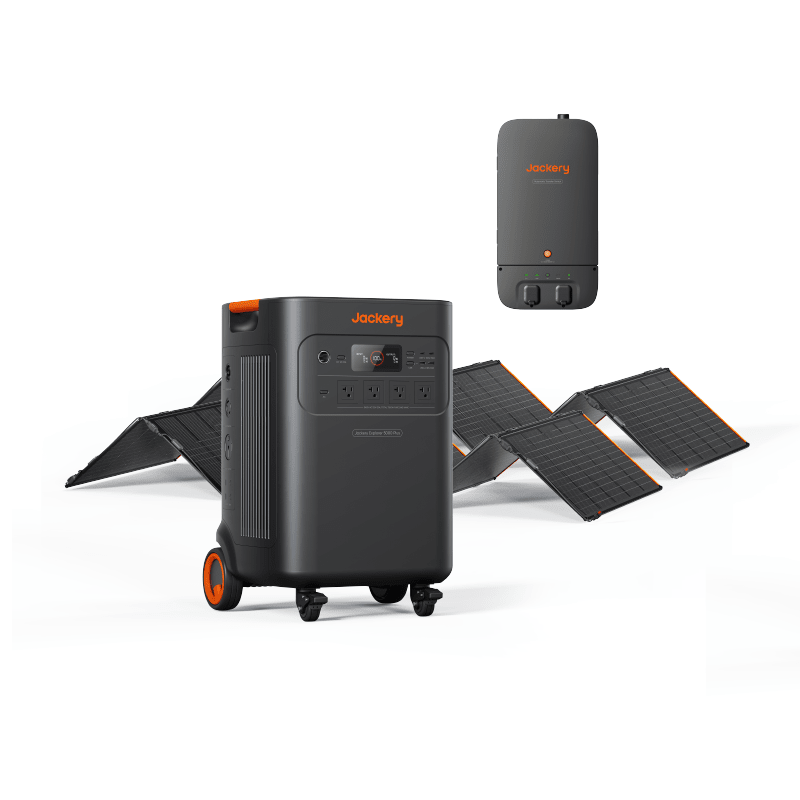

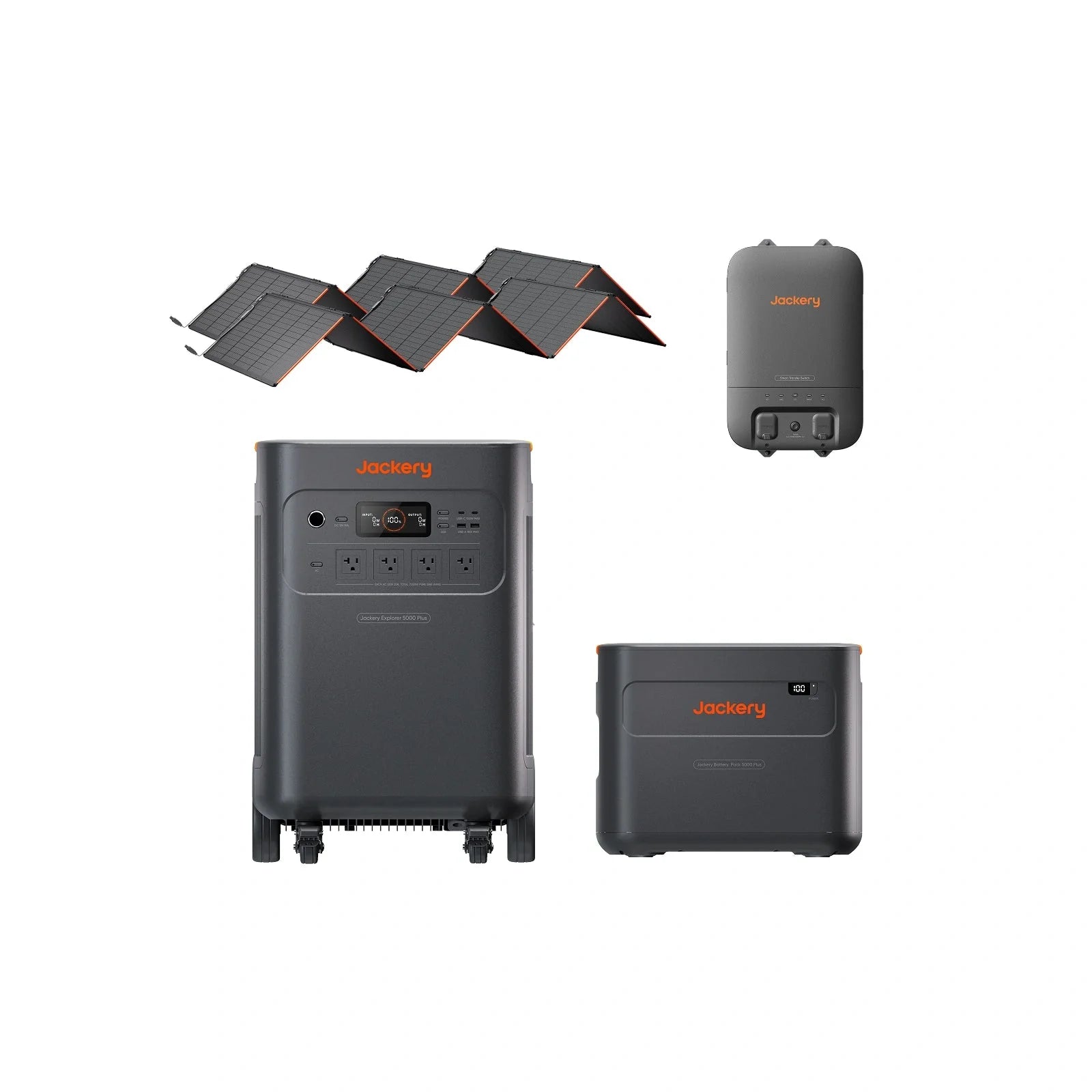

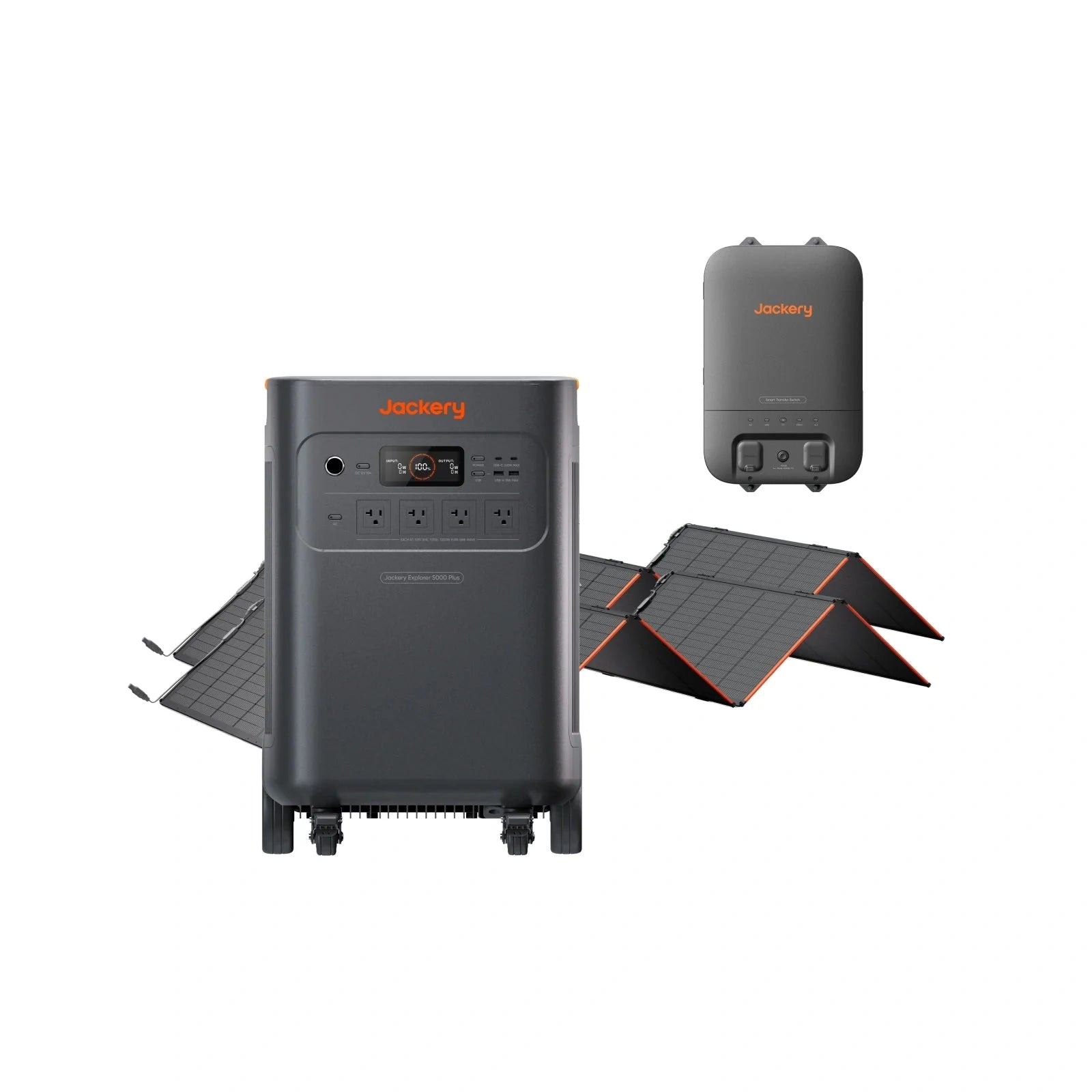

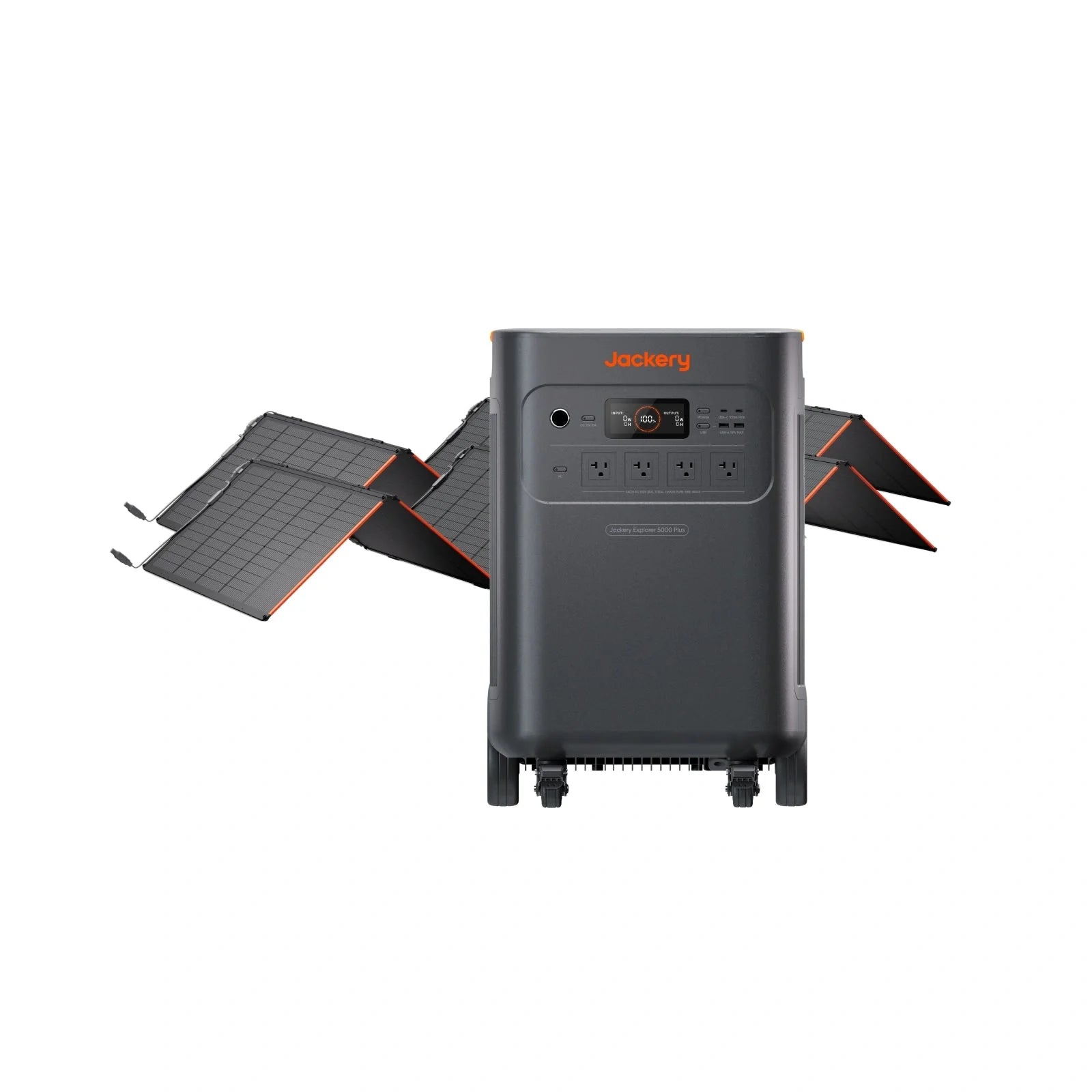

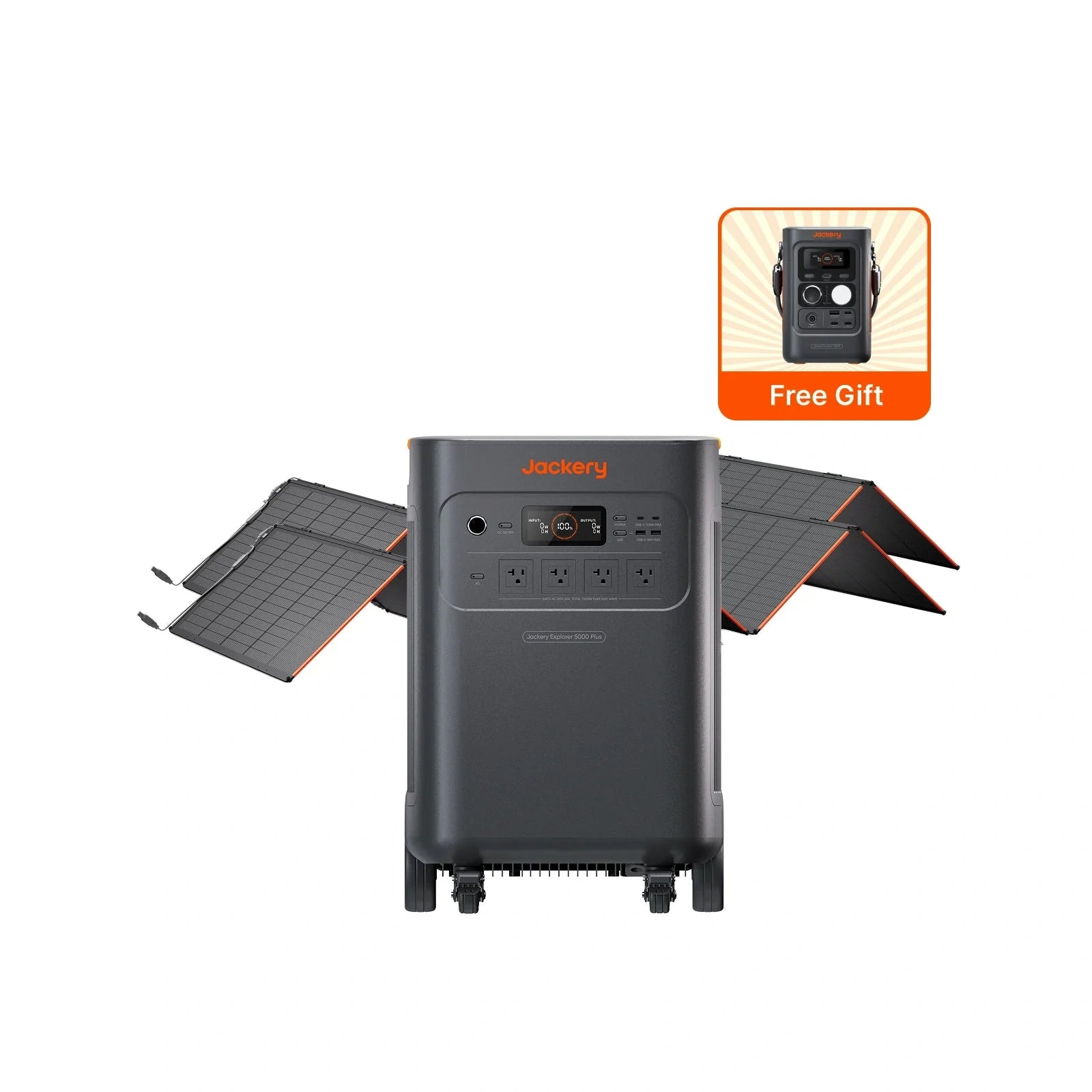

With a 5040Wh capacity expandable up to 60kWh, it provides up to 13 days of reliable backup during extended outages, while compatibility with both high- and low-voltage solar panels lets you recharge in about 2 hours using up to 4000W of solar input. Pair it with the Jackery 60A Smart Transfer Switch to power up to 12 circuits at 120V or 6 at 240V, and rest easy with true 0ms UPS switching that keeps computers, appliances, and critical devices running without interruption.

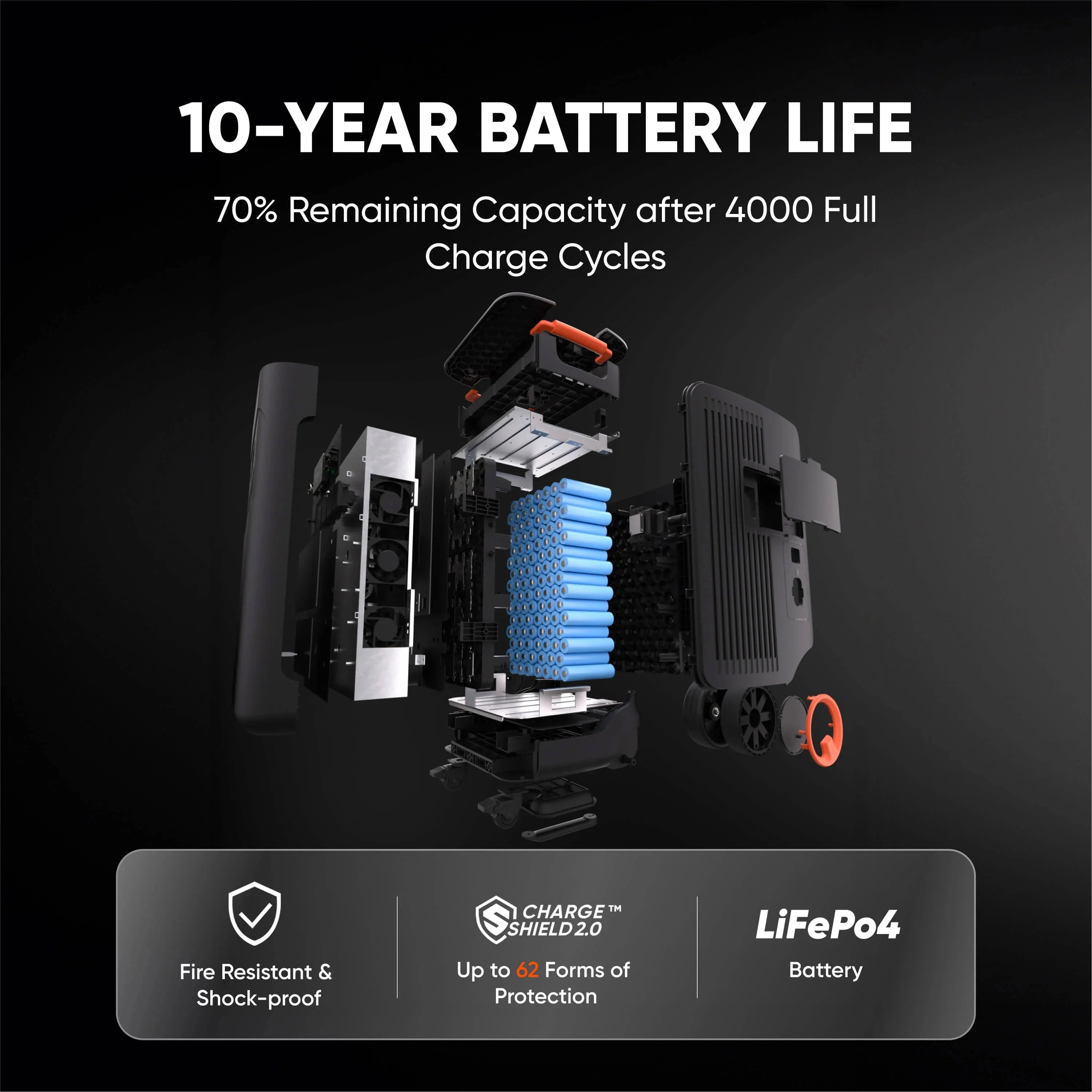

Built with durable LiFePO₄ battery cells and ChargeShield™ 2.0 protection, it offers up to 11 years of dependable performance — peace of mind for less than $1 a day.
| DIMENSIONS | |
|---|---|
| Weight | About 134.5 lbs (61 kg) |
| Dimensions |
|
| GENERAL INFORMATION | |
| Cell Chemistry | LiFePO4 |
| Cycle life | 4000 cycles to 70%+ capacity |
| Charge Temperature | 32~113 °F (0~45°C) |
| Discharge Temperature | 5~113°F (-15~45°C) |
| AC Output | (4x) 120V, 20A, 2400W (1x) NEMA L14-30R/14-50: 120V/240V~60Hz, 30A, 7200W Max |
| AC Total Output | 7200W Max, 14400W Surge |
| USB-C Output | (2x) 100W Max, 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A |
| USB-A Output | (2x) 18W Max, 5-6V=3A, 6-9V=2A, 9-12V=1.5A |
| AC Expansion Port | 240V~60Hz, 30A, 7200W |
| DC Expansion Port | 80.5V-126V=41A Max |
| AC Expansion Port (Input) | 240V~60Hz, 16.7A Max |
| DC Input | DC Expansion Port (Input): 80.5V-126V=98A Max |
| High-PV | 135V-450V=15A Max |
| Low-PV |
|
| Solar Charging | 6.5-8.5 Hours |
| UPS |
|
| Inverter Topology | Non-isolated |
| Entire Unit | Type 1 |
| Protection Class Against Electric Shock | Class II |
| Waterproof | IP68 |
| Operating Temperature Range | -40~185°F (-40~85°C) |
| Maximum Reverse Current | 15A |
| Bifaciality Coefficient (back/front) | Pmax≥80%, Voc≥97%, Isc≥80% |
| Short Circuit Current (Isc) | 13.02A±5% |
| Folded | Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm) |
| Unfolded | Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm) |
| DESIGN & FINISH | |
| Cigarette Lighter Port | 12V=10A |
| TECHNICAL DETAILS | |
| Power Factor | ≥0.98 |
| Maximum System Voltage | 600V DC |
| Voltage Temperature Coefficient | -0.26%/°C |
| Power Temperature Coefficient | -0.32%/°C |
| Peak Power (Pmax) | 500W±5% |
| Open Circuit Voltage (VOC) | 48.5V±5% |
| Power Voltage (Vmp) | 41.7V±5% |
| Power Current (Imp) | 12.0A±5% |
| Open Circuit Voltage (Voc) | 49.2V±5% |
| FEATURES | |
| Capacity | 45Ah/112V DC (5040 Wh) |
| Charge Mode AC Input | 120V~60Hz, 15A Max |
| Bypass Mode AC Input/Output |
|
| WARRANTY & CERTIFICATIONS | |
| Warranty | 5 Years |
| AC Adapter | 3.5 Hours |
| Car Adapter (12V) | NO |
