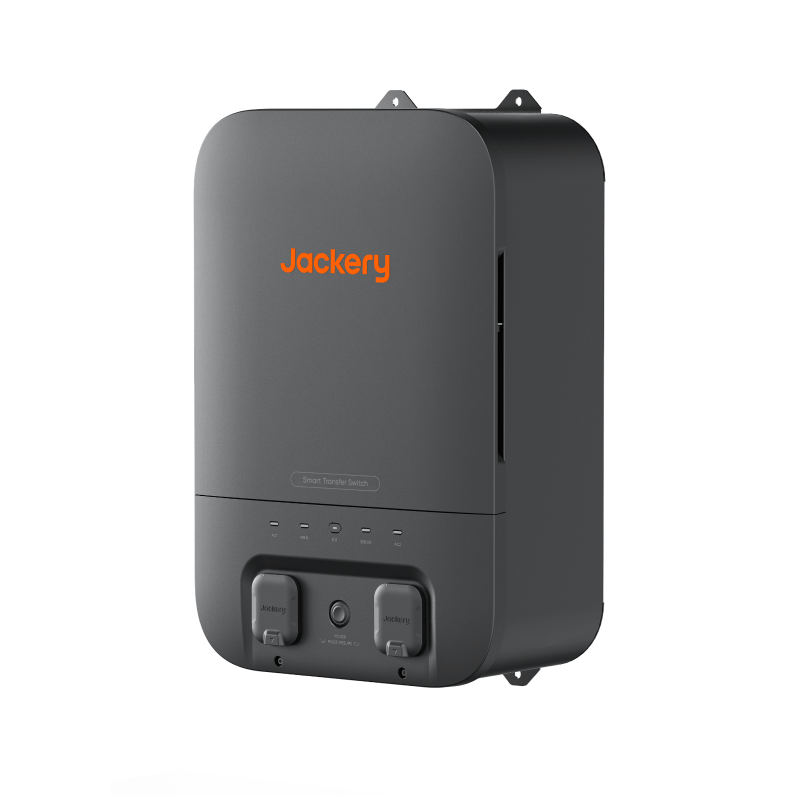

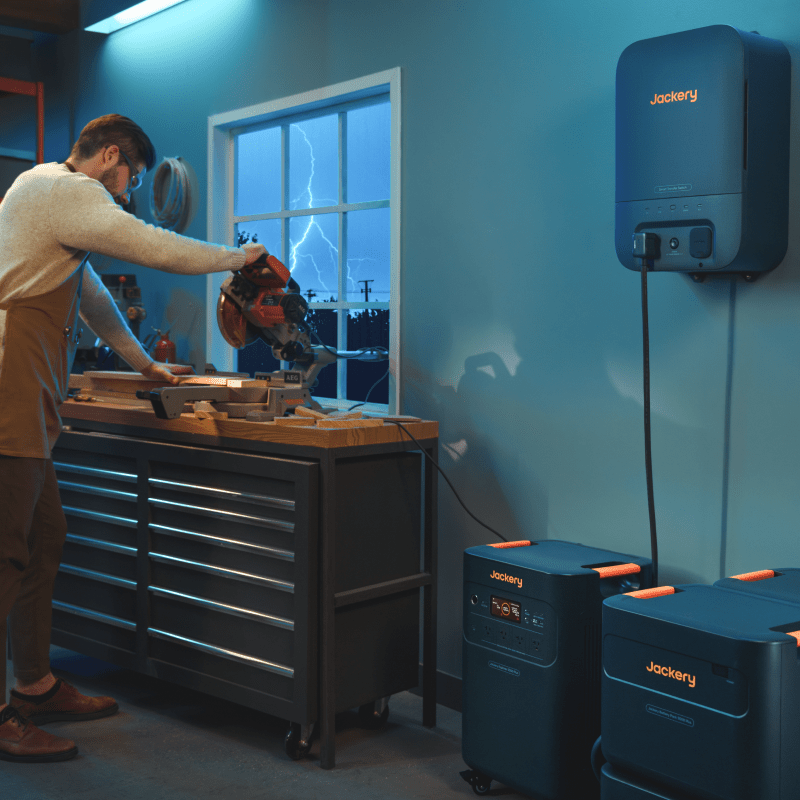

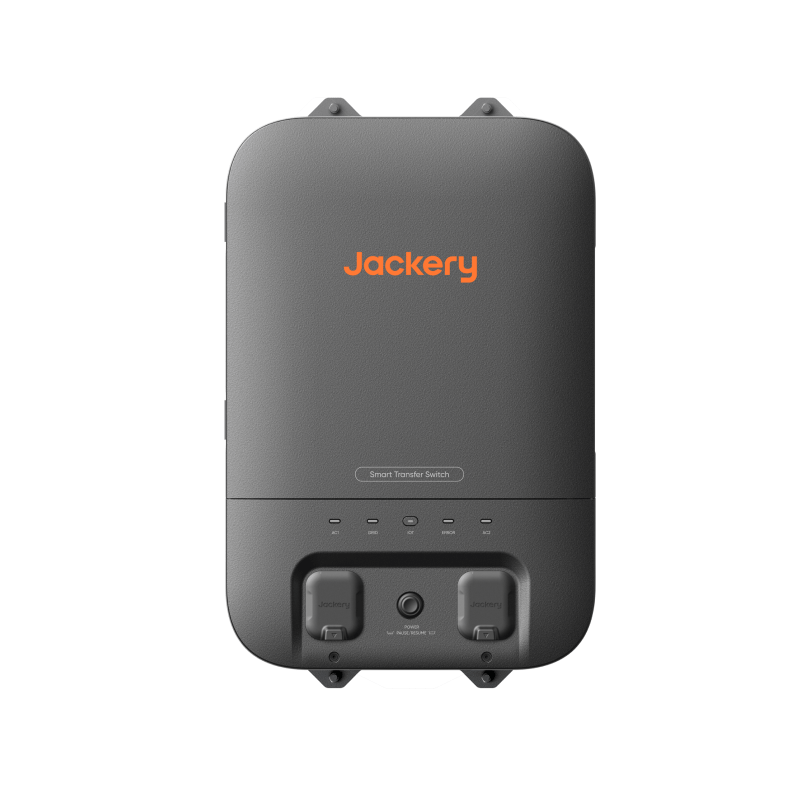

Power your home with confidence using the Jackery Smart Transfer Switch, designed to deliver seamless UPS backup within ≤20ms during outages so your essential devices keep running without interruption. Engineered to integrate with solar panels and rooftop PV systems via the Jackery Explorer 5000 Plus, it supports eco-friendly, sustainable energy use while its charging-discharging mode helps reduce overall electricity costs.

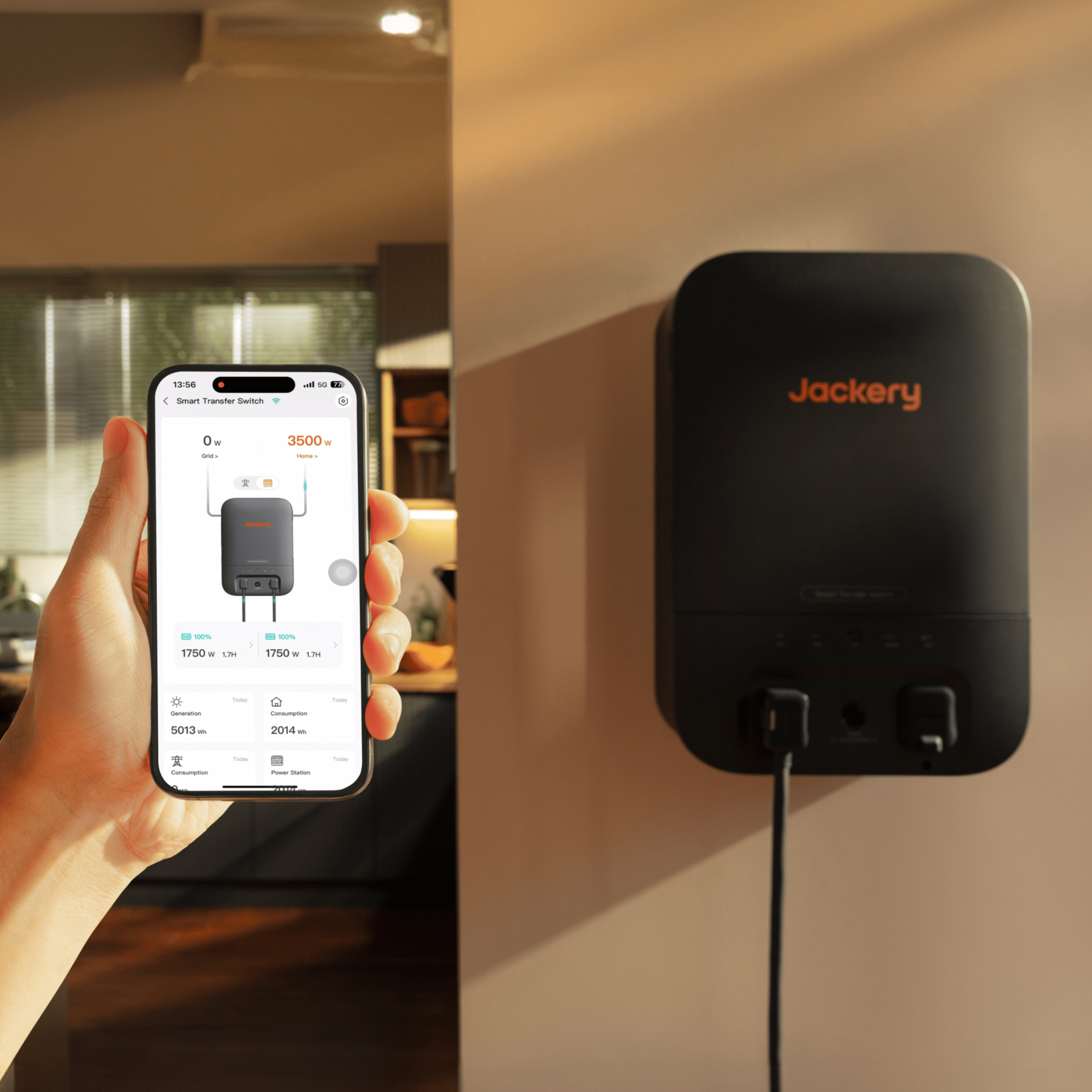

Compact, lightweight, and maintenance-free, it's easy to install and built for hassle-free long-term use. With smart app control, you can monitor and manage your energy consumption in real time, putting reliable backup power right at your fingertips. Note: compatible exclusively with the Jackery 5000 Plus Series — once you receive your unit, complete the online STS Installation Request Form and contact Jackery to initiate the installation process.
Once you receive your Jackery 5000 Plus and the STS, please complete the online STS Installation Request Form and contact Jackery to initiate the installation process.
| Jackery Smart Transfer Switch | |
|---|---|
| Specifications | |
| Model No. | JA-TS02A |
| AC Voltage (Nominal) | 120V/240V~ 60Hz |
| Feed-In Type | Split Phase |
| Maximum Input Current | 100A Grid / 60A Power Station |
| Maximum Output Current | 60A Home Load / 33.4A Power Station |
| Maximum Input Short-Circuit Current | 10KA |
| Overvoltage Category | IV |
| UPS | ≤20ms |
| Enclosure Type (Distribution Panel) | NEMA Type 1 |
| Number of Load Branches | 12 |
| Main Circuit | 2 AWG |
| Branch Circuit | 14 AWG, 12 AWG, 10 AWG |
| Communication | Wi-Fi and Bluetooth |
| Operating Temperature | -20°C~40°C (-4°F~104°F) |
| Weight | About 25.57 lbs / 11.6 kg |
| Dimensions | 22 × 14.7 × 7.87 in / 56 × 37.4 × 20 cm |
| Package List | Jackery Smart Transfer Switch, Marking-off Template, Power Input/Output Cable, 2× Wall Bracket, 4× M4 Phillips Flat Head Screw, User Manual |
