The Goodman GLXS3B Split System Air Conditioner delivers 13.4 SEER2 efficiency with R-32 refrigerant at 3 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GLXS3B |
| SKU | GLXS3BN3610 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 30 A |
| Min. Breaker Size | 17.5 A |
| Capacity & Performance | |
| Tonnage | 3.0 |
| Cooling BTU | 34200 Btu/H |
| Cooling Operating Range | 55 °F to 115 °F |
| Decibel Level (dBA) | 69 dBA |
| Efficiency Ratings | |
| SEER2 | 13.4 |
| EER2 | 11.2 |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 60 oz |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Max Line Set Length | 200 ft |
| Dimensions & Weight | |
| Height | 32.5 in |
| Width | 26 in |
| Depth | 26 in |
| Weight | 136 lb |
| Additional Information | |
| Product Features | Energy-Efficienct Compressor;Fully charged for 15' of tubing length;Copper tube/ enhanced aluminum fin coil-5mm diameter;Factory-installed filter drier;Sweat connection service valves with easy access to gauge ports;Enclosed contactor with lug connection;High-pressure switch;Capacitors with extended life;AHRI Certified;ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |

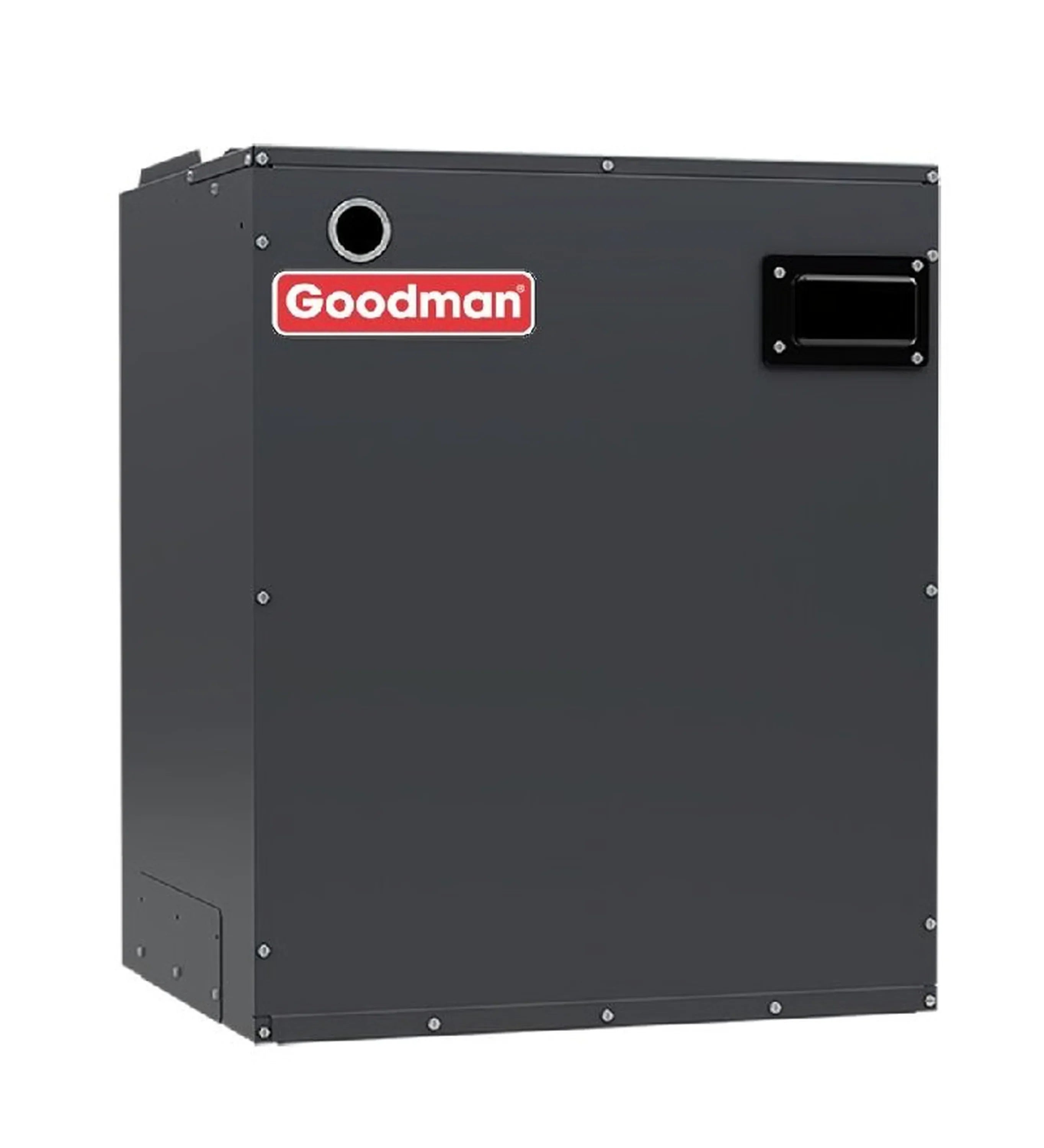

The Goodman MBVB Modular Blower is designed to deliver efficient, reliable airflow and enhanced indoor comfort for modern HVAC systems. Equipped with a variable-speed ECM blower motor, this unit maintains consistent airflow by automatically adjusting to changing static pressure conditions within the duct system. Its ability to provide constant CFM across a wide range of operating conditions helps improve system efficiency, comfort, and overall performance. The blower also supports multi-stage heat pump and cooling applications, allowing it to integrate seamlessly into a variety of residential HVAC setups while providing improved humidity control and more consistent temperature management.
This modular blower also features integrated ComfortBridge™ Technology, which enables advanced communication and configuration for optimized system performance. With built-in Bluetooth connectivity and Goodman’s CoolCloud™ mobile application, installers can easily commission, configure, and diagnose the system directly from a phone or tablet. Additional features such as advanced airflow and tonnage configuration, a CFM indicator, adjustable low-CFM fan operation, and fault recall for the six most recent system issues make maintenance and troubleshooting straightforward. The MBVB modular blower is AHRI certified, ETL listed, and compliant with UL 60335-2-40 standards, ensuring dependable performance and safety for long-term home comfort.
| General Information | |
|---|---|
| Model | MBVB Series |
| Type | Modular Blower |
| Energy Certified | No |
| ComfortBridge™ Compatible | Yes |
| Voltage | 208/230V, 1 Phase, 60 Hz |
| Certifications | AHRI Certified, ETL Listed, UL 60335 2-40 |
| Cabinet Features | |
| Configuration | Multi-position (Horizontal or Vertical) |
| Cabinet Finish | Galvanized, Leather Grain-Embossed |
| Insulation | Foil-Faced |
| Depth | 21" |
| Air Leakage at 1.0 inch H₂O | Less than 2% |
| Air Leakage at 0.5 inch H₂O | Less than 1.4% |
| Motor | |
| Motor Type | Variable-Speed ECM |
| ComfortBridge™ Technology | Yes |
| Bluetooth Commissioning | Yes (CoolCloud™ App) |
| CFM Indicator | Yes |
| Fault Recall | 6 Most Recent Faults |
| Electric Heat Kits | |
| Field Installed | Yes |
| Available Capacities | 3 kW – 20 kW |
| Compatible Kits | HKTAN031, HKTAN051, HKTAD051, HKTAN061, HKTAN081, HKTAD081, HKTAN101, HKTAD101, HKTAD151, HKTAD201 |
| Warranty | |
| Parts Limited Warranty | 10 Years |
| Registration Required | Yes, within 60 days of installation |
| Exceptions | Online registration not required in California or Quebec |

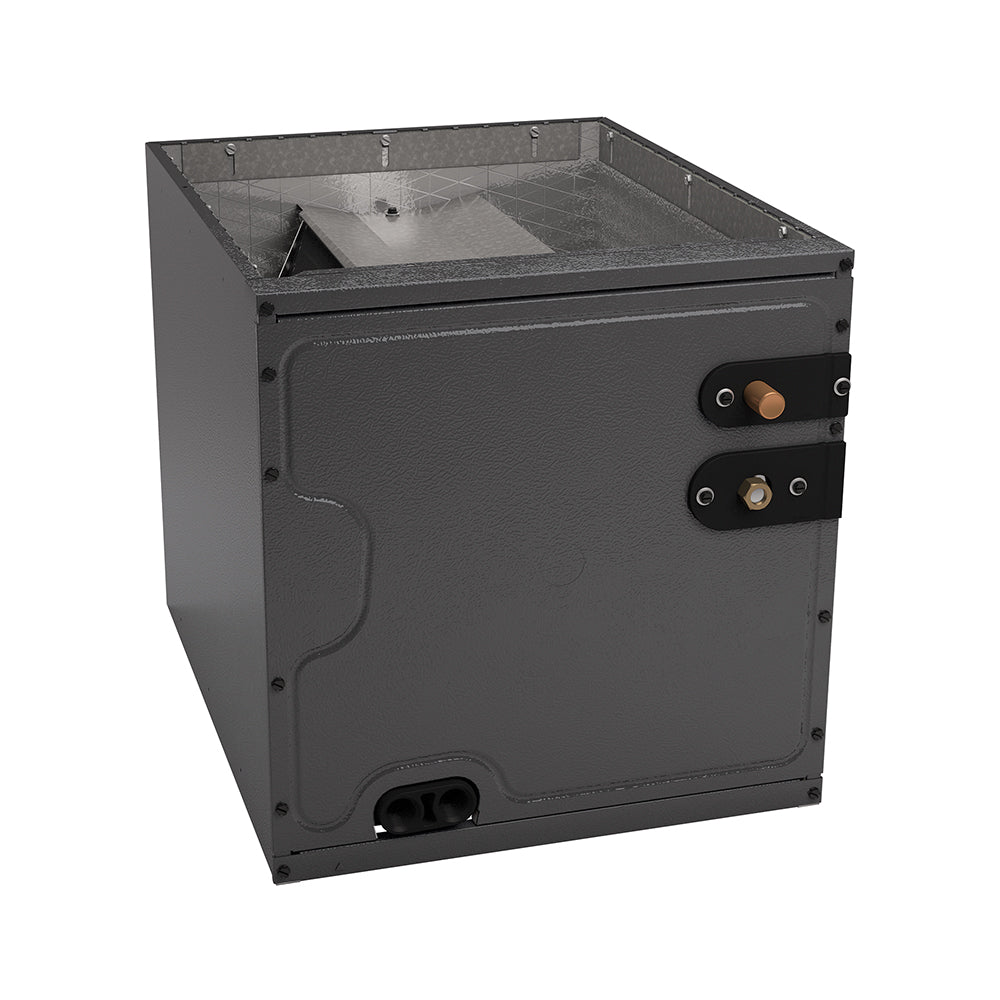

The Goodman CAUTA upflow evaporator coil is a 5 Ton all-aluminum coil optimized for R-32 refrigerant with vertical application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.
Features
| General Information | |
|---|---|
| Brand | Goodman |
| Series | CAPFA AlumaFin7™ |
| SKU | CAPFA4226C3 |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Capacity & Performance | |
| Tonnage | 3.5 |
| Compressor & Refrigerant | |
| Refrigerant | R-32 |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Dimensions & Weight | |
| Height | 21 in |
| Width | 26 in |
| Depth | 21 in |
| Additional Information | |
| Product Features | All-Aluminum evaporator coil;Optimized for use with R-32 refrigerant including circuits and manifolds;R-32 sensor designed for the life span of the coil;Factory-installed optimized metering device (piston);Standardized copper suction tube stub length;21" depth for easier attic access;Single front access panel;Foil-faced insulation covers the internal casing to reduce cabinet condensation;Vertical application;Galvanized, leather grain-embossed finish;Rust resistant, thermoplastic drain pans featuring a low water-retention design;DecaBDE-free thermoplastic drain pan with secondary drain connections;Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity;UV-resistant drain pan;AHRI certified;ETL listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
