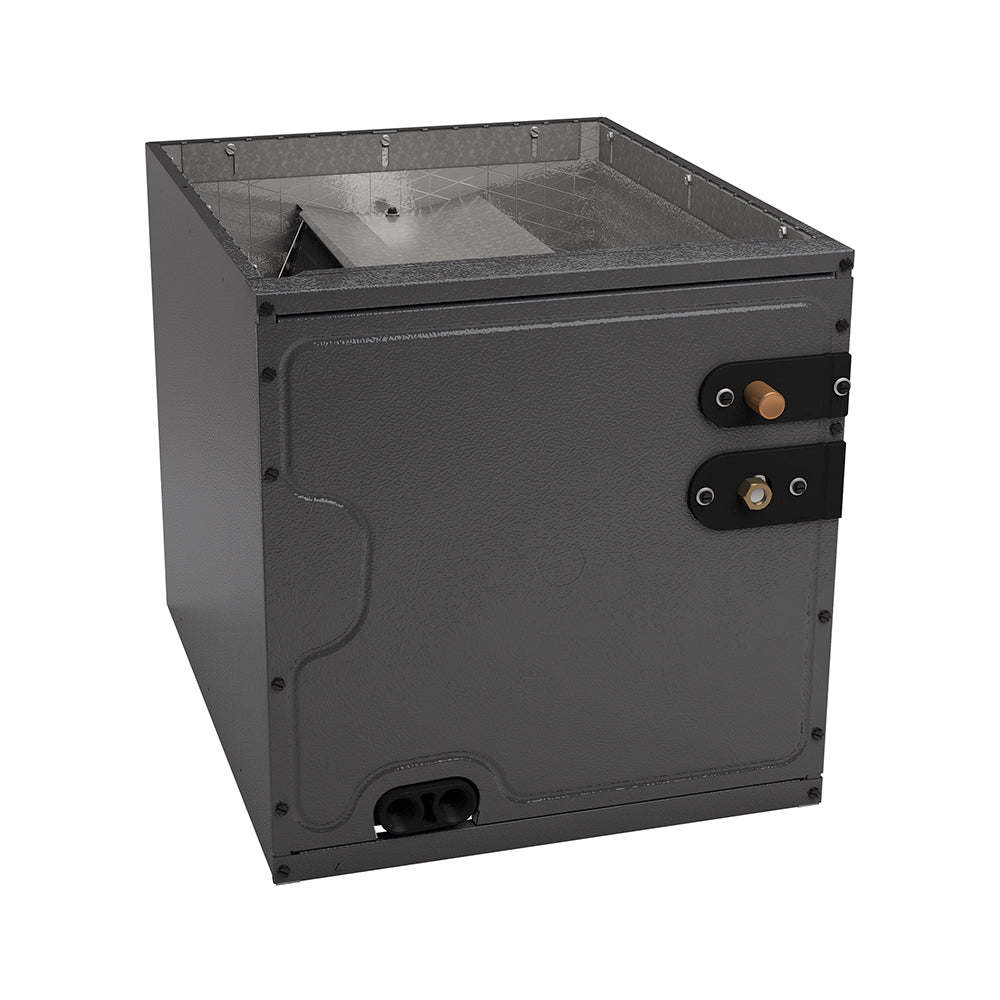

Rectangular HVAC coil with dark metal cabinet and dual service ports.
Roll over image to zoom in Click on image to zoom
Rectangular HVAC coil with dark metal cabinet and dual service ports.
Click on image to zoom

Goodman CAPFA AlumaFin7™ Coil 5 Ton R-32 Upflow/Horizontal (CAPFA6030C3)

GoodmanSKU: CAPFA6030C3
Price:
$826.51 $1,029.00SAVE 19%
In Stock
Estimated delivery: Sep 9th-23rd
Free shipping — delivered to your door by parcel carrier

Free shipping

Included on every order
Ships free by parcel carrier. Your order ships with FedEx, UPS, USPS, or similar.
Tracking lands in your inbox. We email your tracking number as soon as the order leaves our warehouse.
Delivered to your door. Most parcel deliveries don't require a signature, so you don't need to be home.
Something arrives damaged: contact us right away and we'll make it right.

Description

The Goodman CAUTA upflow evaporator coil is a 5 Ton all-aluminum coil optimized for R-32 refrigerant with vertical application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.

Features

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed optimized metering device (piston)
  • Standardized copper suction tube stub length
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Vertical application
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed
DIMENSIONS & WEIGHT
Height
21 in
Width
26 in
Depth
21 in
GENERAL INFORMATION
Brand
Goodman
Series
CAPFA AlumaFin7™
SKU
CAPFA4226C3
Product Category
Unitary
Unit Type
Indoor
Manufacturer
Goodman
Product Features
  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed optimized metering device (piston)
  • Standardized copper suction tube stub length
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Vertical application
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed
CAPACITY & PERFORMANCE
Tonnage
3.5
REFRIGERANT & PIPING
Refrigerant
R-32
Liquid Line
3/8 in
Suction Line
7/8 in
SAFETY
Proposition 65 Warning
Yes
WARRANTY
Warranty
ALL PARTS - 5 YEARS PARTS
