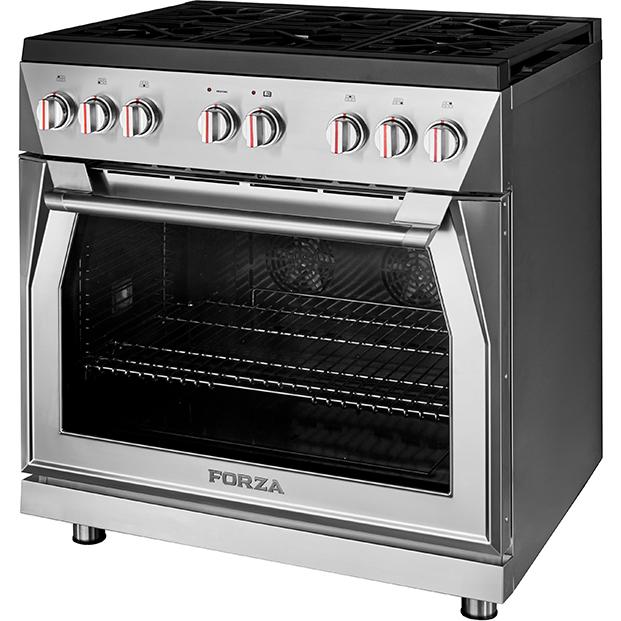

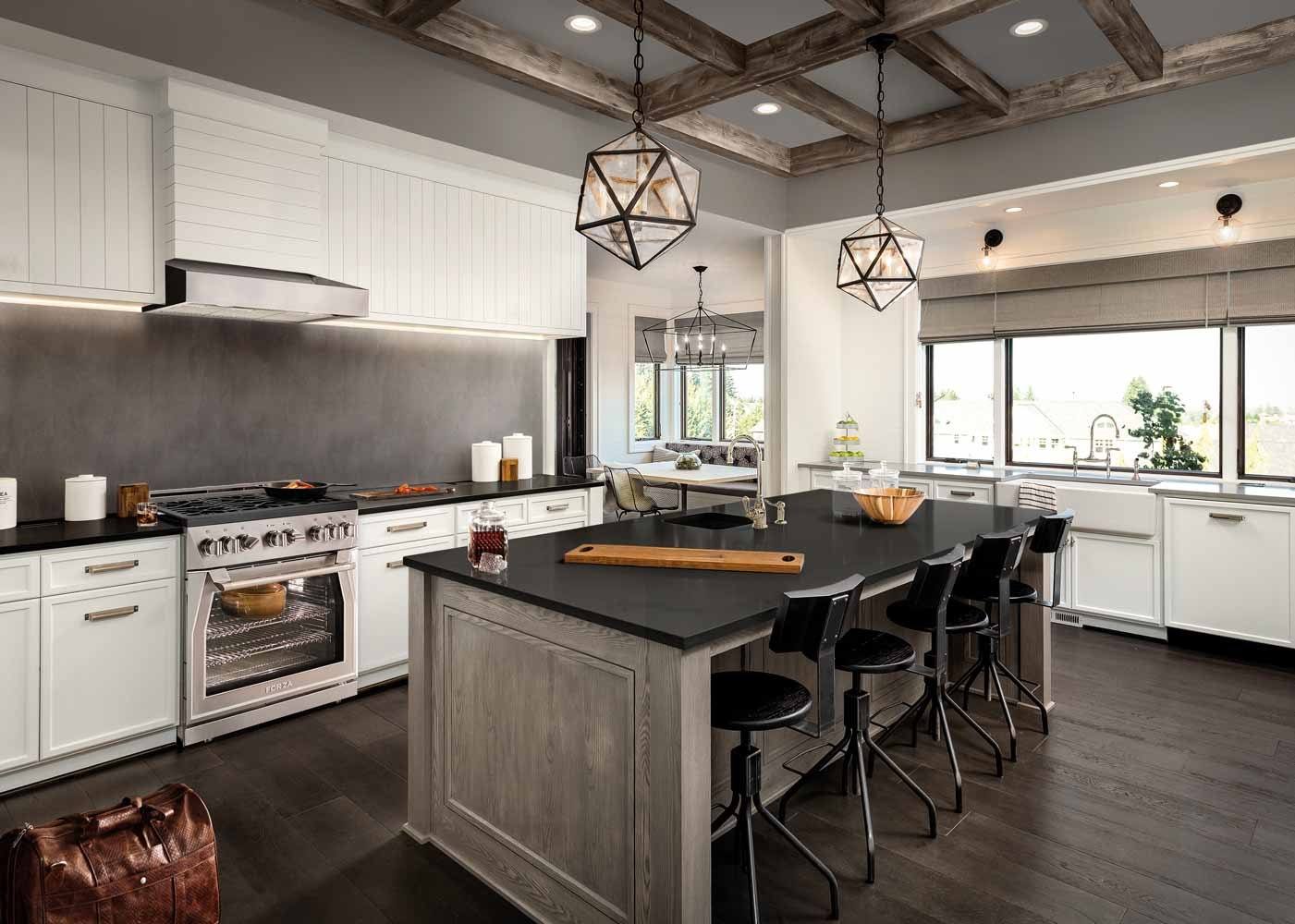

The Forza 36 inch all gas range model offers a unique Italian radical design and outstanding performance through: 6 high efficient full brass burner, Infinito™ Grate System, MassimoBlu™ Double Broiler System and the industry’s widest oven capacity compatible with a commercial sized tray. It is available in six color options. Perfect from primipiatti to dessert. Available at home outlet direct.

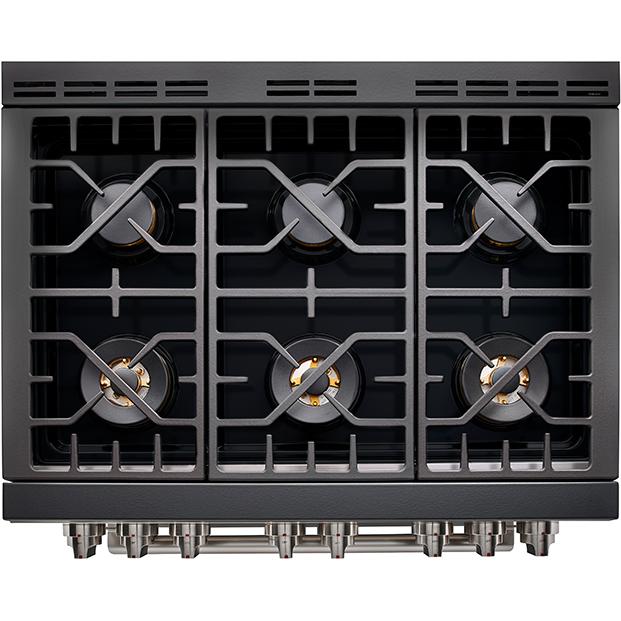

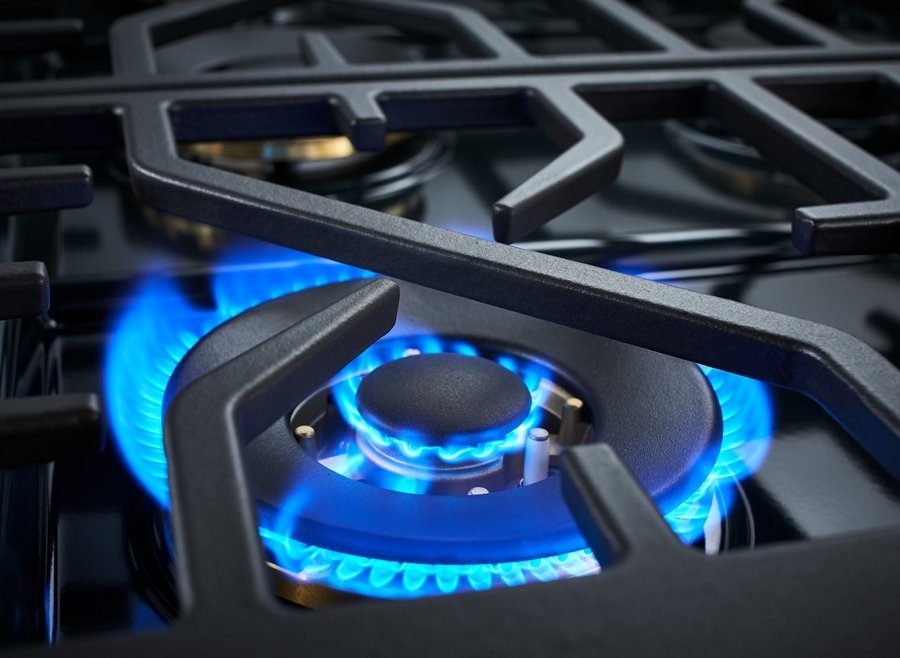

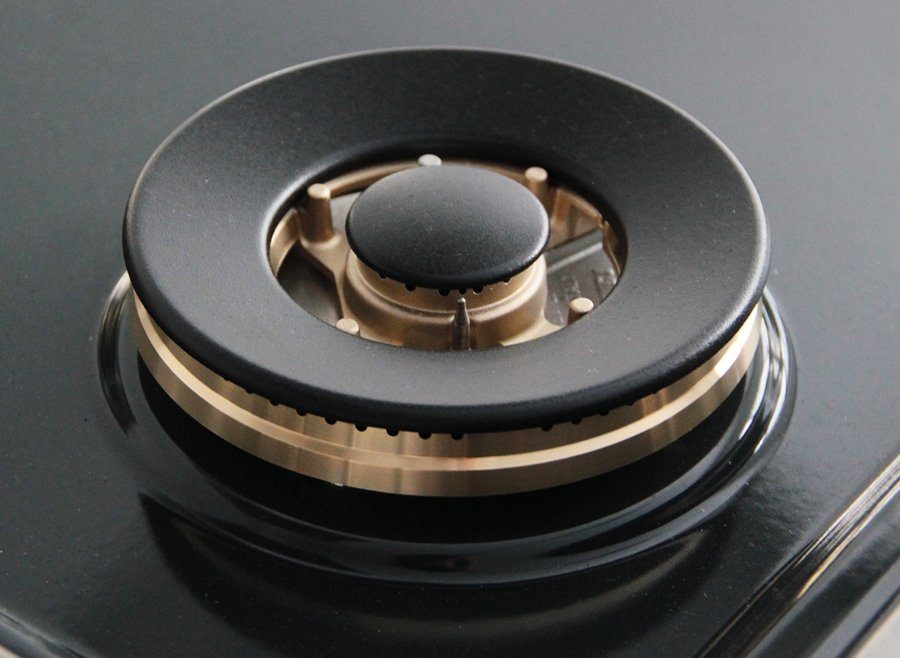

 FULL BRASS BURNERS
|

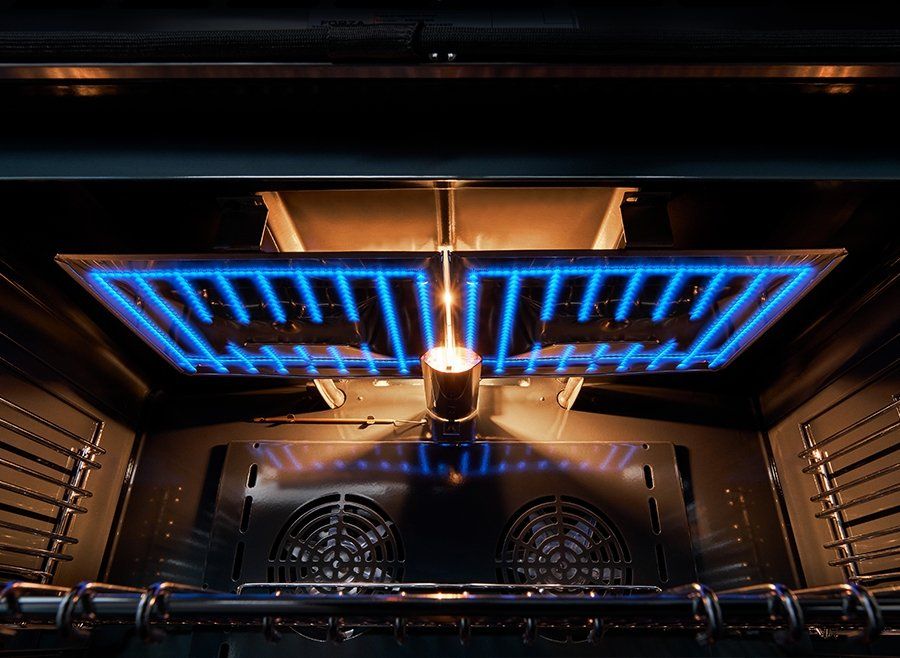

MASSIMOBLU™ DOUBLE BROILER
|

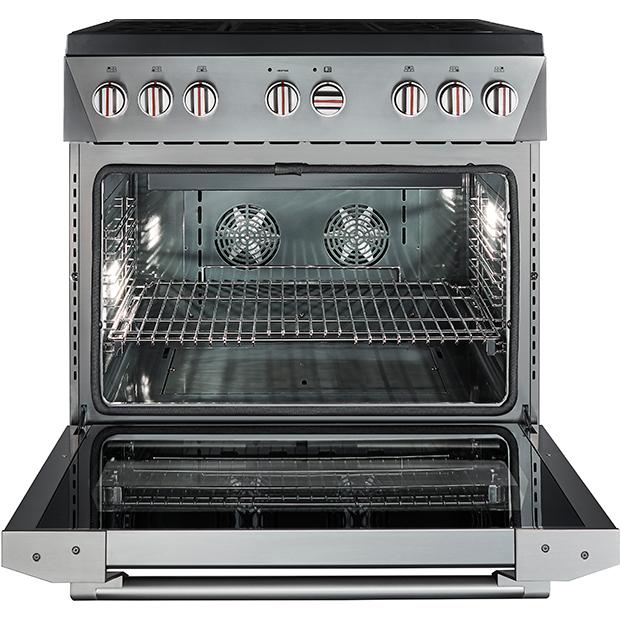

CONVECTION COOKING
|
| Brand | Forza |

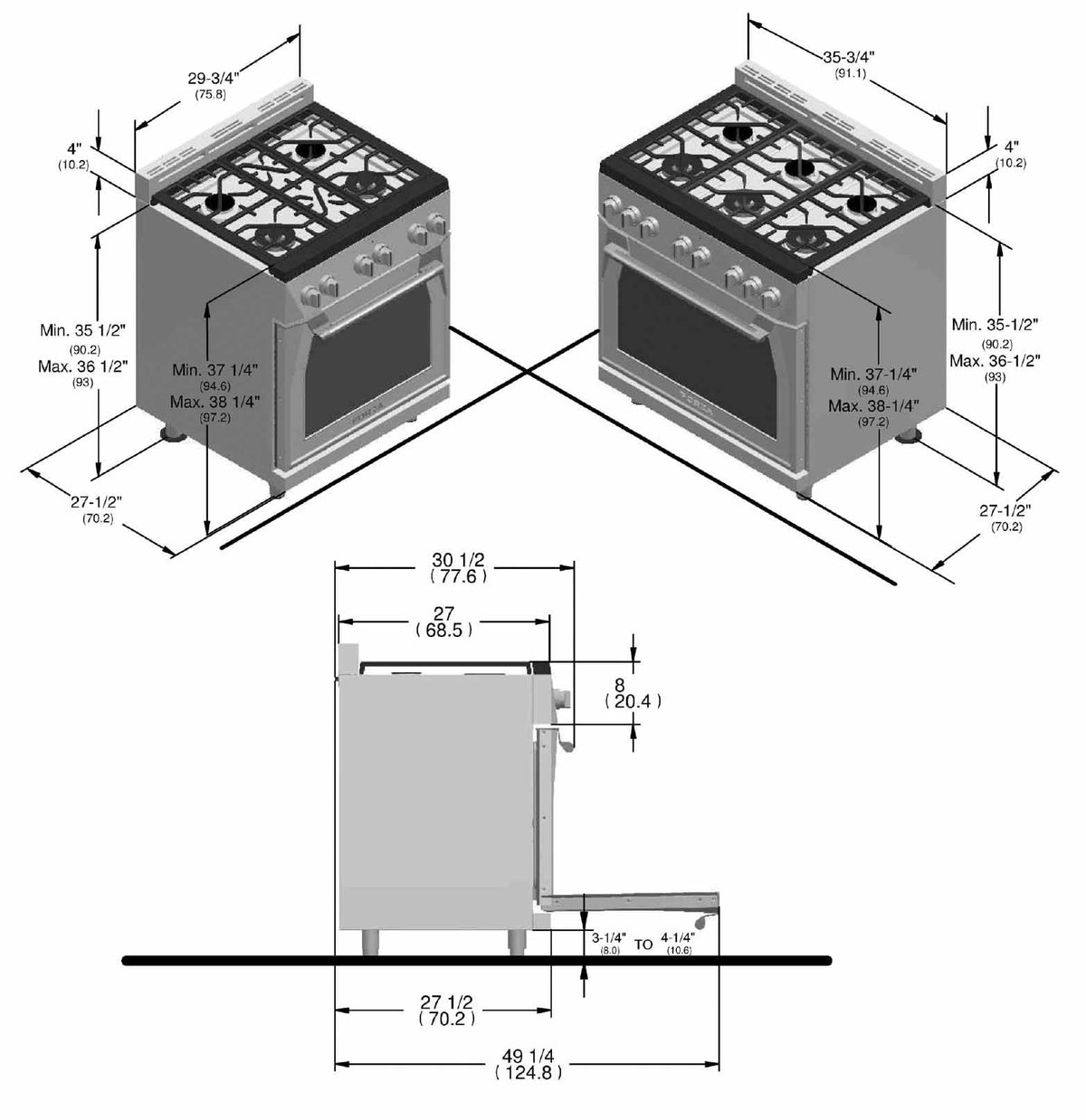

| Dimensions | W: 35 ¾, H: 37 ¼ – 38 ¼, D: 27 ½ |
| Voltage | 120V/60Hz |
| Mount Type | |
| Cooktop safety valves | Yes - Thermocouple system |
| Cooktop ignition | One hand ignition |
| Safety system on cavity burners | Hot surface ignition & safety system |
| Electronic ignition cavity burners | Hot surface ignition & safety system |
| Reignition cavity burners | Yes |
| Dual control | 3 front dual flame burners |
| Simmering power | 685 BTU |
| Cooking Zone |
|
| Oven Functions |
|
| Finishing | FORZA Porcelain grey easy to clean |
| Rack positions/levels | 6 |
| Full inner glass door | Yes |
| Triple glass | Yes |
| Removable inner glass | Yes |
| Hinge closing system | Soft closing |
| Oven light | 2 lateral halogen lamps |
| Wire shelf | 2 |
| Enamelled tray | 1 - MassimoBlu™ broiler pan-full cavity width |
| Trivet (rack for broiling on tray) | Yes |
| Splash back/backgaurd | 4” backguard |

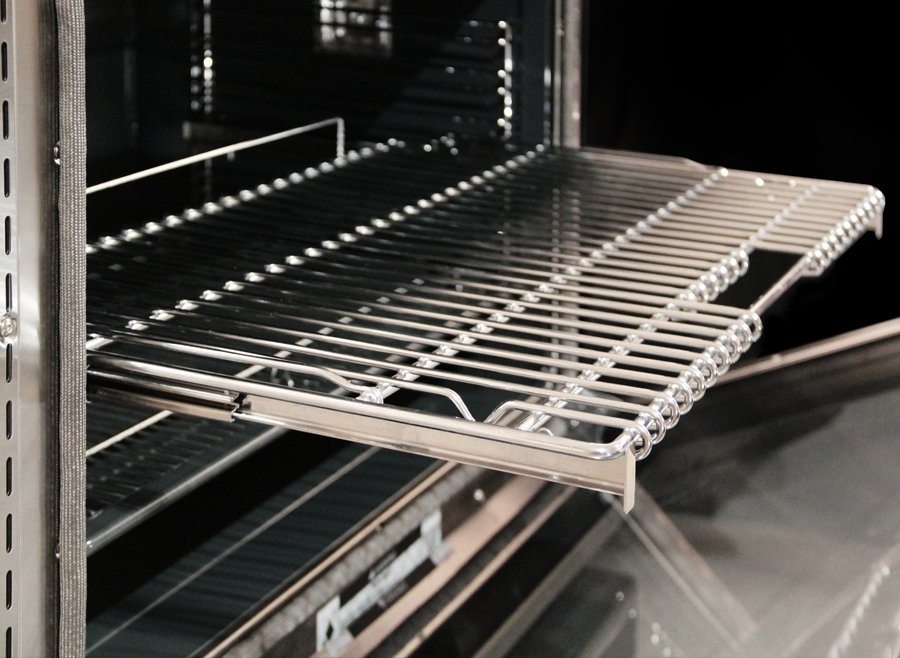

| Other accessories | 1 set telescopic glides movable on different levels |
| Oven overall capacity | 6.00 ft cube |
| Bake burner | 19, 000 BTU |
| Infinito™ Broiler | 18, 000 BTU |
|
Power W/Amps |
600W / 5A |
| Plug type | 120V 3 prong (Nema 5-15P) |
| Gas setting | NG (4 ”) |
| Conversion kit | LP (11 ”) |
| Languages | EN - ES - FR |
| Product compliance | UL (US & CAN) |
| Warranty | 2 Years - Parts & Labor |
| Spec Sheet |
|
Installation Manual |
| Use & Care Manual |
| Forza Brochure |
| Forza Warranty |

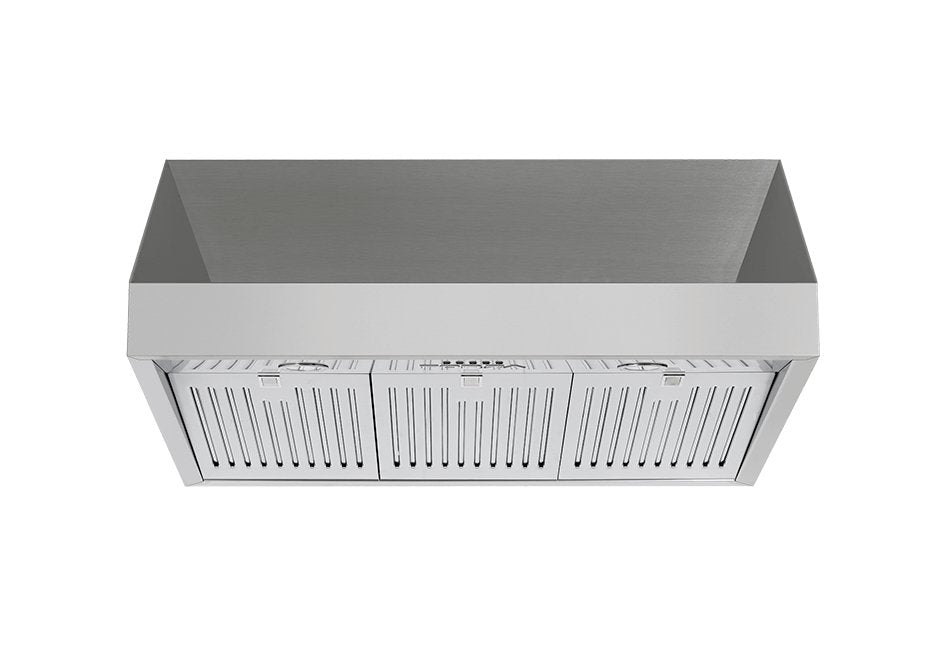

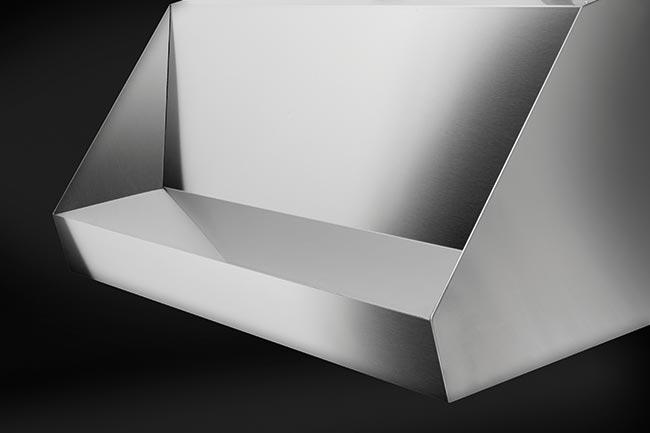

600 CFM, two baffle SS filters, push electronic button controls and LED lighting. Under Cabinet Design.
| Brand | Forza |
| Dimensions | W: 36”, H: 18”, D: 24” |
| Voltage | 120 V / 60 Hz |
| Mount Type | Pro Style Wall |
| Aspiration system | Ducted out |
| Suction power | 600 cfm |
| Suction power (free delivery) | 1000 m3/h |
| Number of blowers / code type | 1 - T7 |
| Speeds | 3 + booster |
| Booster | Yes |
| Lighting | 2 x 2W LED |
| Grease filters | 3 x SS Baffle filters |
| Controls | Square push buttons - white retrolluminated |
| Air outlet size | Ø150 mm - 6” (top or back exit available) |
| Plug | Yes - 3 prong |
| Cable length | 59 1/16” |
| Maximum power | 354W |
| Motor power | 350W |
| Warranty | 2 Years - Parts & Labor |
| Spec Sheet |
|
Installation Manual |
| Baffle-Pro Kit Manual |
| Recirculating Flue Kit Manual |
| Forza Brochure |
| Forza Warranty |

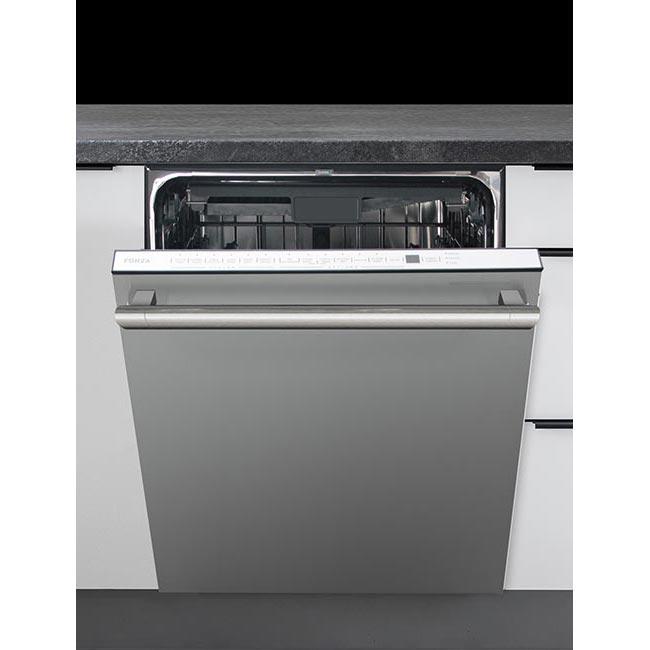

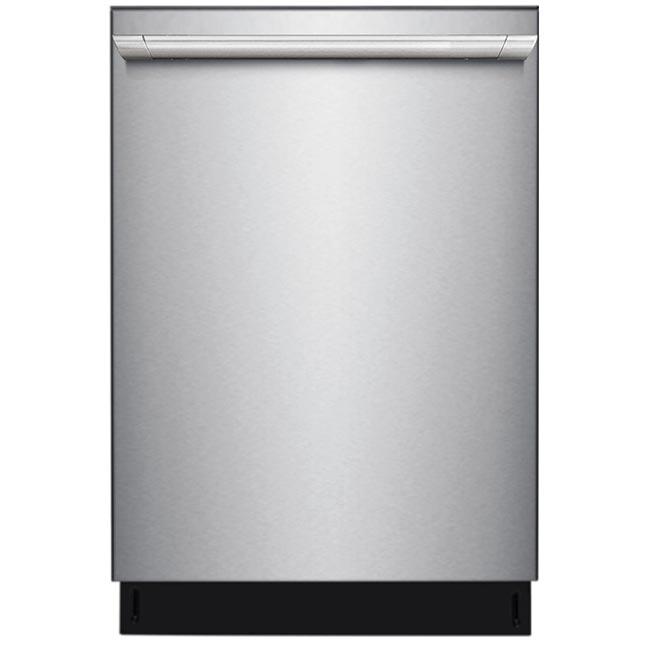

16 settings, 45 dB(A), six washing programs, extra power program washing for heavy soiled pots and pans and low energy consumption. Available at home outlet direct.
| Brand | Forza |
| Dimensions | W: 2355/64”, H: 3355/64”, D: 2629/64” |
| Voltage | 120 V / 60 Hz |
| Mount Type | Built-in tall tub |
| Nr# of settings | 16 |
| Energy Star Certified | Yes |
| Annual energy consumption | 249 kWh |
| Type of drying | Double drying (heating + fan drying) |
| Stainless steel interior | Yes |
| Nº of programs | 6(pots & pans, normal wash, China crystal, quick wash, rinse only, energy saver) |
| Indicator of end of the cycle | Yes |
| Indicator of time remaining | Yes |
| Type of control | Touch control |
| Internal light | LED |
| Type of display | LED display |
| Anti leak device | Yes |
| Anti flood device | Yes |
| Delay timer | Up to 24 hours |
| Audible signal at the end of the cycle | Yes |
| Top sprayer | Yes |
| Children security | Yes |
| Stainless steel microfilte | Yes |
| Self cleaning microfilter | Yes |
| Adjustable feet | Yes |
| Height adjustable upper basket when loaded | Yes |

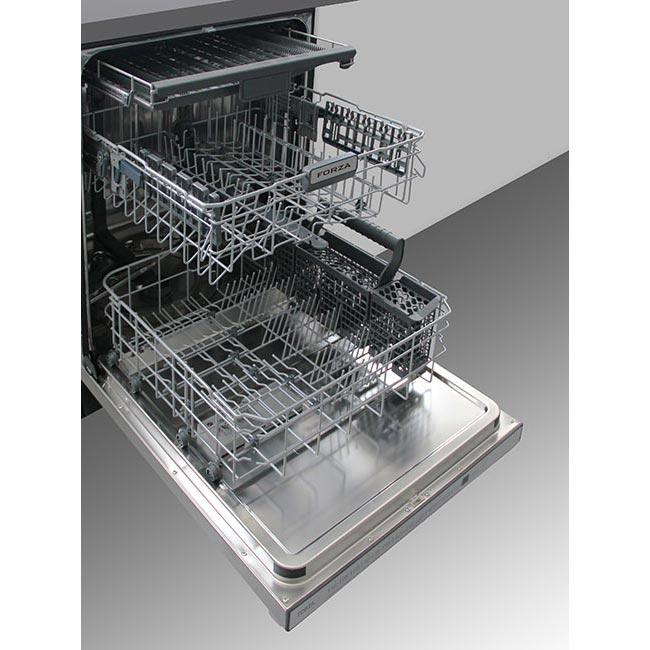

| Number of baskets | 3 |
| Number of handle on baskets | 1 on middle basket |
| Cup support number | 2 |
| Colour of the basket | Grey |
| Colour of cutlery basket | Grey |
| Colour of dispenser | Grey |
| Collapsable plate-racks | Yes |
| Noise level | 45 dBA |
| Control panel | Touch control/LED display |
| Net weight | 90 lb |
| Gross weight | 94 lb |
| Warranty | 2 Years - Parts & Labor |
| Spec Sheet |
|
Installation Manual |
| Use & Care Manual |
| Forza Brochure |
| Forza Warranty |

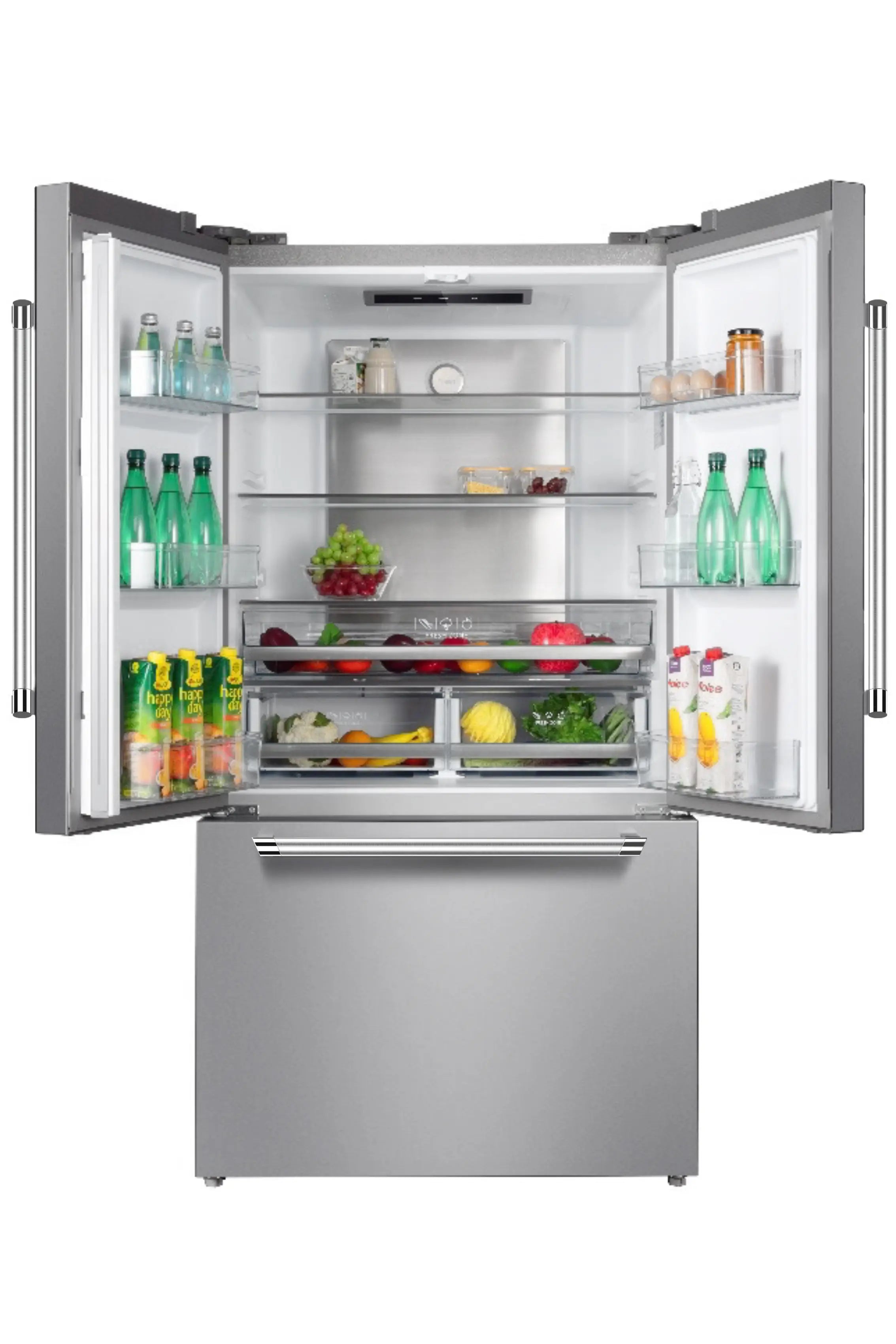

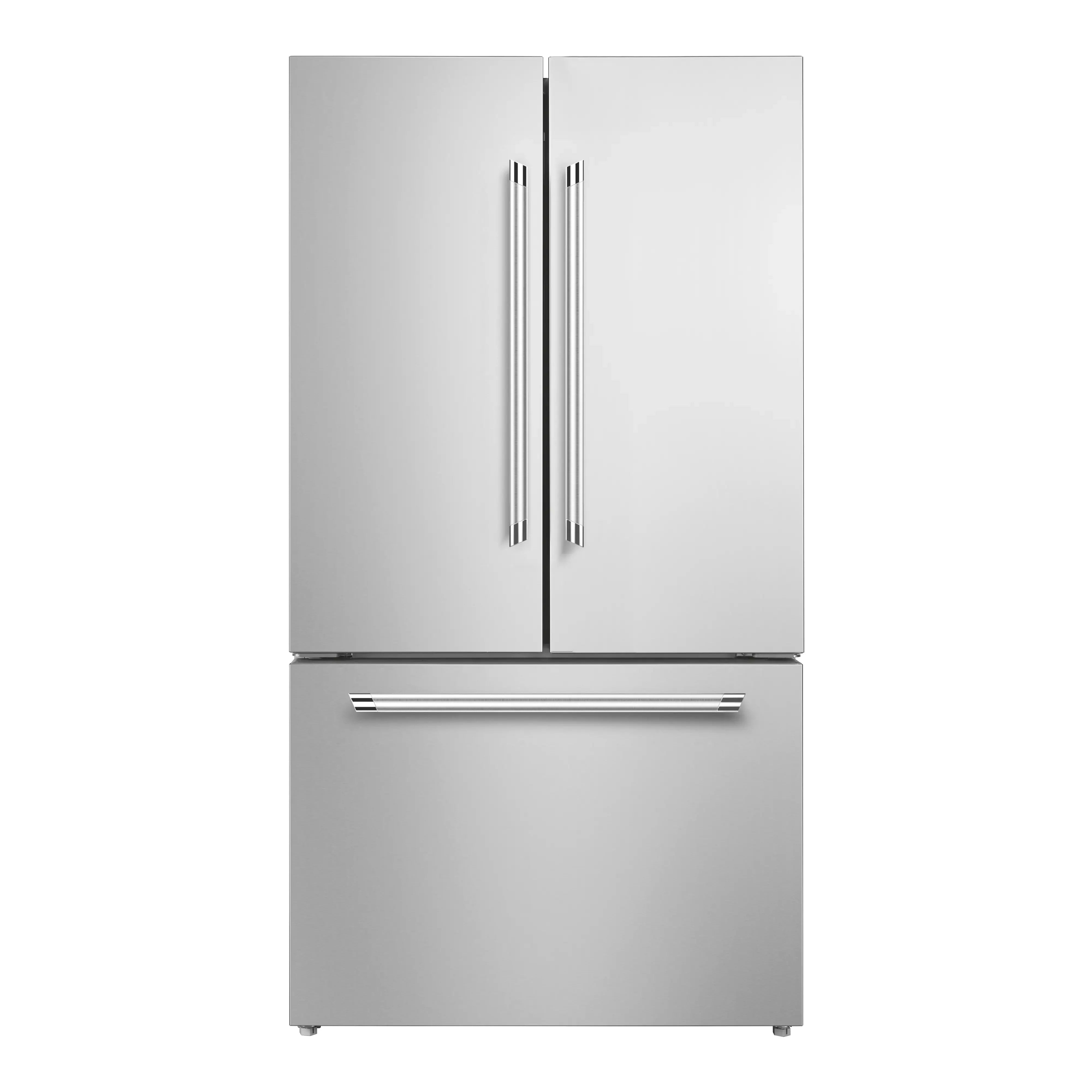

Forza 36-Inch Counter Depth French Door Refrigerator with 20.3 cu. ft. usable capacity, Internal automatic Ice Maker, total no frost with an extra efficient inverter compressor, 3 Fresh zone drawer, with Forza brushed handles kit included and metal trim finishing on internal parts.
| Dimensions | |

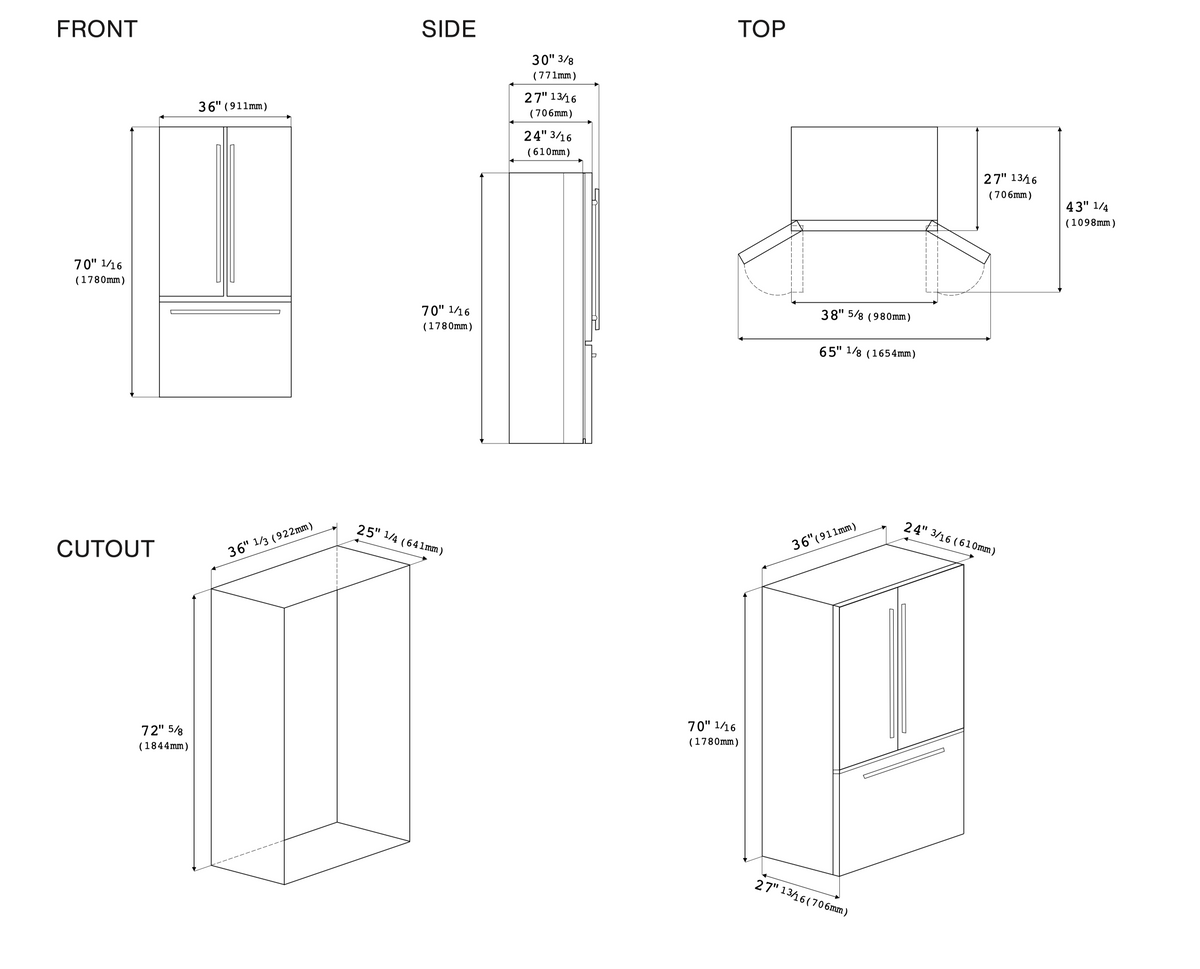

| Product Dimensions | 36" W x 70 1/16" H x 27 13/16" D (includes handle) |
| Packaging dimension | 38 1/8 x 29 1/2 x 72 5/8 |
| Features | |
| Door finish | Stainless Steel |
| Temperature control | Electronic with touch display |
| Ice making | Automatic ice maker 4.20 Ibs/24h |
| Auto settings | Smart, Quick Freeze, Quick Cool |
| Refrigerator Drawer | 3 |
| Door rack | 6 Gallon racks with metal trim finishing |
| Shelf(tempered glass) | 3: 1 fixed 2 adj |
| Freezer drawer | 1 drawer with 2 compartments |
| Technical Details | |
| Voltage/Frequency | 115V/60Hz |
| Power | 310.5 W/Amps |
| Rated current | 2.7A |
| Climate | SN-T class |
| Net Capacity(lts) | 20.3 cuft(R:14.21 cuft / F:6.13 cuft) |
| Freezing capacity / 24 hours | 12 kg/24h |
| 12 kg/24h | 9 h |
| Certifications | UL |
| Power connection / cord length | 2.4 mt / 94” 1/2 , NEMA5-15 plug |
| Noise level | 41 dbA |
| Climate | SN-T class |
| Net weight/Gross weight | 232/256 lbs |
| Warranty | 2 years parts & labor |
