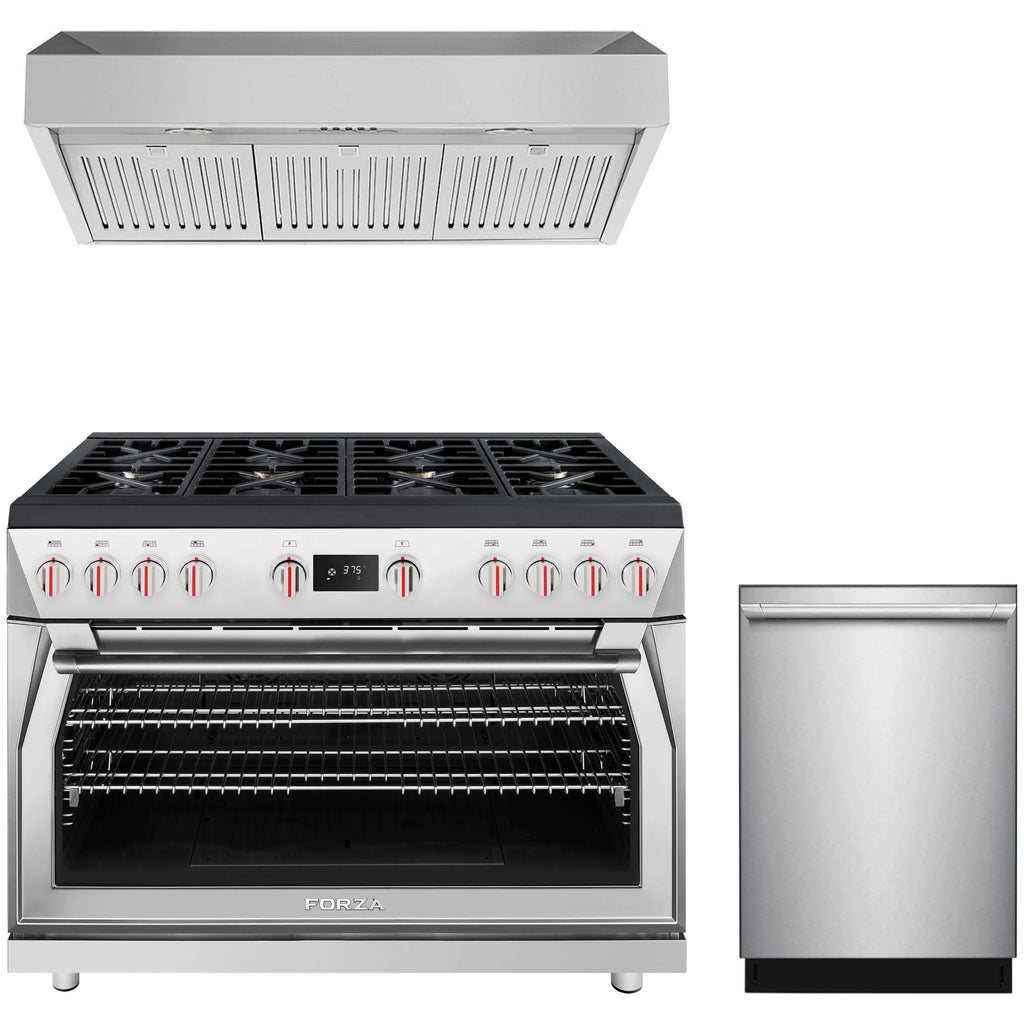

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.
Piece 1 of 3 — RANGE
With the soul of radical Italian design and the heart of an American muscle car, Forza’s 48-inch Professional Dual Fuel Range combines the high performance of Forza’s gas cooktops with an electric True Euro Convection oven. The range comes fully loaded featuring the world’s first 48-inch single cavity oven and 8 high-powered burners including 4 dual-flame burners that range from 685 BTU to 20,000 BTU and four from 2,200 to 12,000 BTU burners. Equipped with Forza’s MassimoRED™ broiler, Infinito™ Grate System and self-cleaning function, this range is a dynamic force for any kitchen.
- Model No: FR488DF
- Dimensions: 47 ¾ / H 37 ¼ - 38 ¼ / D 27 ½
- Finishes: Stainless Steel
- Fuel Type: Gas & Electric
Features

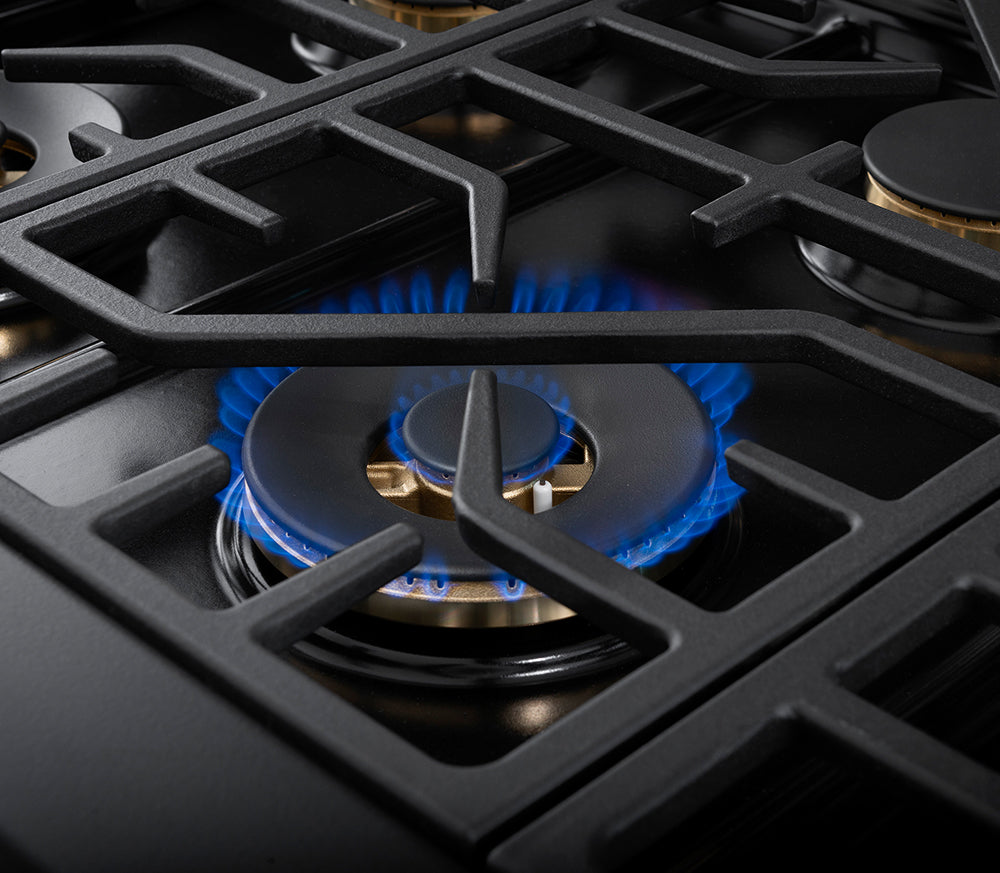

- High Power Burners - With 8 high-powered burners including 4 dual-flame burners that range from 685 BTU to 20,000 BTU and four from 2,200 to 12,000 BTU burners, this range gives you the precise heat control necessary to create masterful meals

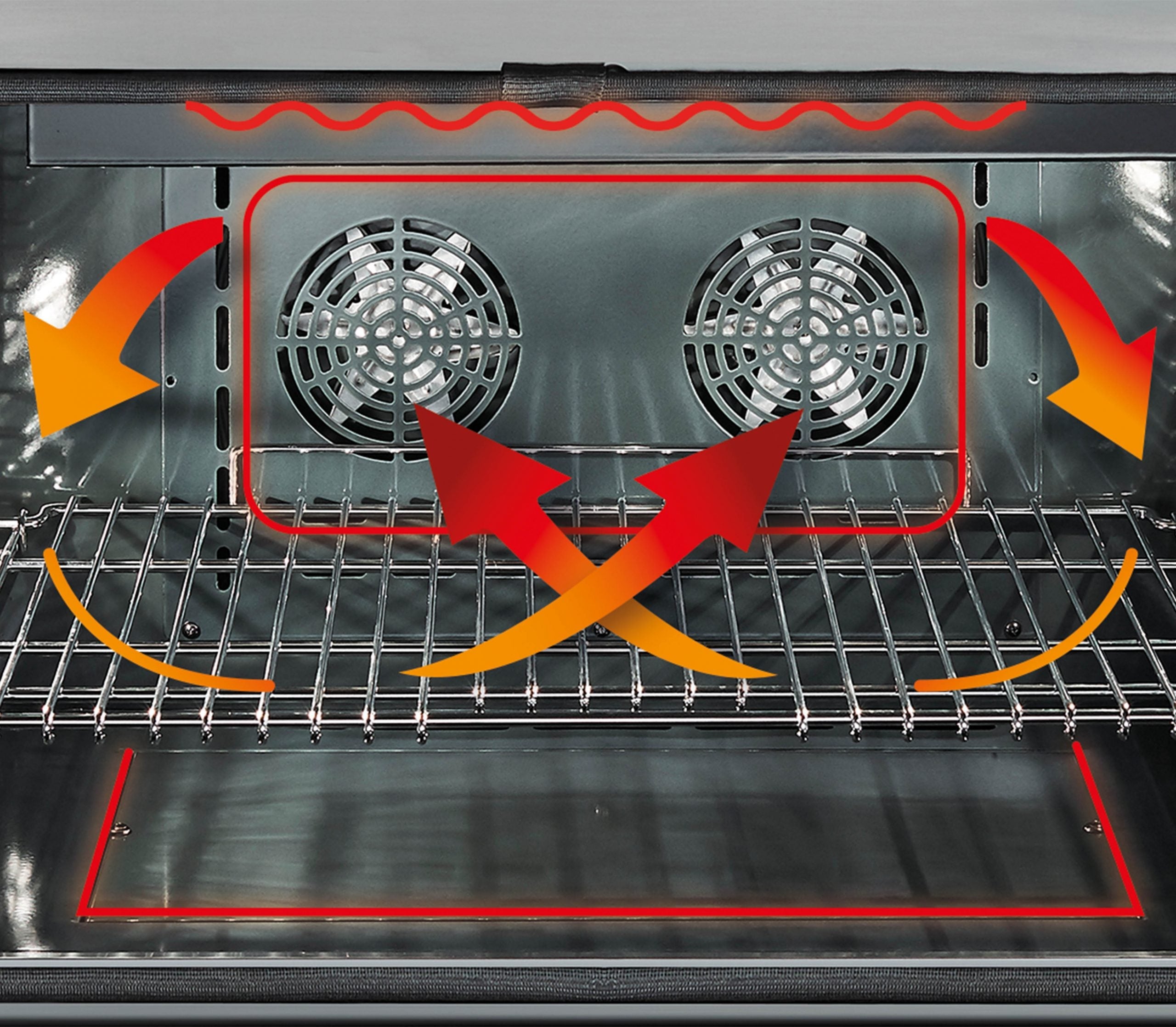

- Dual Fan with True Euro Convection - The dual fan with True Euro Convection was designed to give you maximum convection results with 3 multilevel heating elements that create a more consistent and uniform oven temperature while cooking, baking and heating your dishes

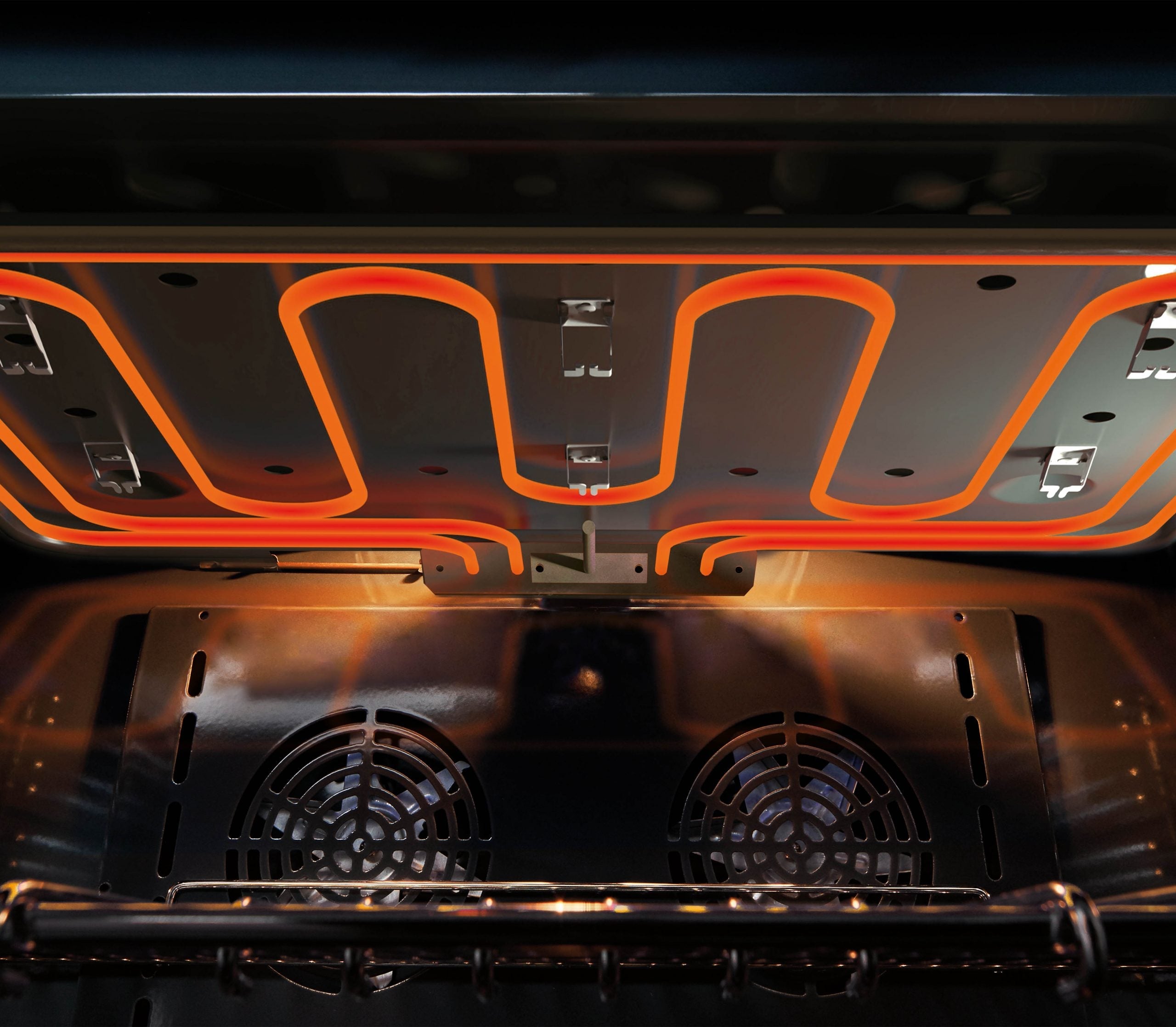

- MassimoRED™ Broiler - Spanning the width of the oven cavity, the electric broiler evenly distributes heat to give you top chef results
- MaxRotisserie - The 33″ rotisserie rod and high-powered motor can hold the largest of meats and brings outdoor BBQ technology direct to your kitchen
- Oven Functions - With multiple oven functions you can bake, broil, convection roast, convection broil, True European Convection bake, thaw and self-clean with optimal results
- Safe and Reliable - All burners are equipped with a one-hand ignition and a thermocouple safety device for reliability and safety
- World’s First 48″ Single Oven Cavity - Boasting a 7.8 cu. ft. oven capacity, the extraordinary oven spans a jaw-dropping 40″ wide and can fit two turkeys, or a full goat, lamb or pig with ease. The oven can fit multiple commercial cooking trays on a single rack giving your home kitchen the output of a five star restaurant

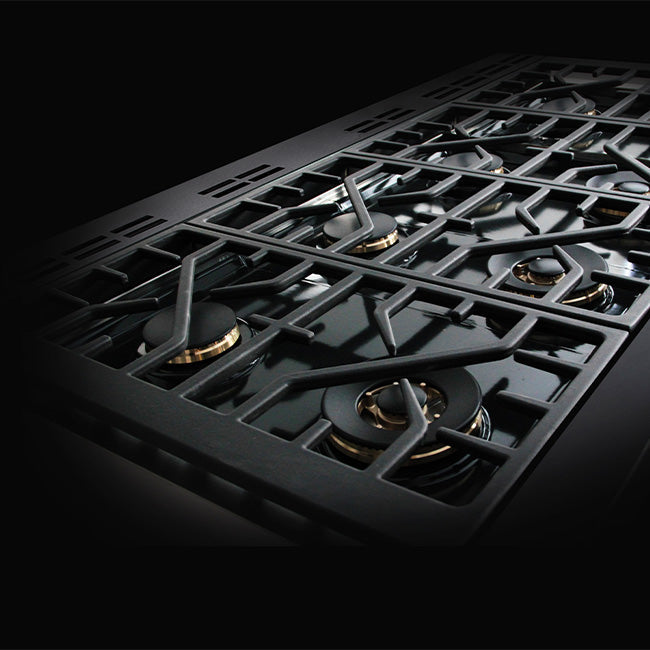

- Infinito™ Grate System - Radically designed with edge-to-edge cast iron grates and integrated bullnose, only Forza offers the largest continuous usable cooking surface for max efficiency while in the kitchen
- Cooking Versatility - The oven is equipped with 6 rack levels and includes 1 telescopic glide rack, 1 extra-large stainless steel tray and 2 wire shelves giving you the flexibility to customize the oven to your cooking needs
- 5.4″ White LED Display Controls - The large LED screen displays oven settings in a clean, easy to read format
- Full Inner Glass Door - The uniquely shaped, full inner glass window is designed to be removed by hand for easy cleaning
- Soft Close Door - The oven door closes gently to protect your exquisite soufflé and give you peace-of-mind while you’re racing around the kitchen
- Black Porcelain Spill Tray - A luxurious touch for the range top that emphasizes the brass burners and makes cleanup simple
- Color Kit Options - Match your desired kitchen aesthetic with Forza’s colored door kits that are available in 6 colors and include all necessary parts for a seamless install
DIMENSIONS
- Dimensions
- 47 ¾" W x 37 ¼ – 38 ¼" H x 27 ½" D
GENERAL INFORMATION
- Brand
- Forza
- Gas regulation
- Natural Gas / L.P conversion kit included
- User interface
- 5,4” white LED Display control
- Commands
- 10 Knobs
- Degree unit
- °F
- Hinge closing system
- Soft closing
- Gas setting
- NG (4”)
- Conversion kit
- LP (11”)
- Product compliance
- UL (US&CAN)
- Wire shelves
- 2
- Baking tray
- 1 MassimoBlu™ broiler pan with Grill trivet (rack for broiling on tray
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Dual control
- 4 front dual flame burners
- Hour Clock Formats
- AM/PM
- Cavity finishing
- FORZA Porcelain grey easy to clean
TECHNICAL DETAILS
- Voltage/frequency
- 120-208/240 V, 60 Hz
- Power W/Amps
- tbc
- Cable - Plug type
- 6ft - 125
- 250 V 4 prong (Nema 14-50Pw)
COOKTOP FEATURES
- Burners
- Front Burners: 20,000 BTU Full Brass Dual Burners with a 685 BTU Simmer Function
- Rear Burners: 12,000 BTU Full Brass Burners
- All burners are equipped with a thermocouple safety device
- One-hand ignition (spark) for the best reliability in any conditions across the time
- Number of Gas Burners
- 8 full brass burners
- Power Burners
- Front 4 x 20,000 / 685 BTU - Rear 4 x 12,000 / 2,200 BTU
- Simmering power
- 685 BTU
- Cast iron pan supports
- Continuous Infinito™ Grate System with integrated bull nose
- Cooktop safety system
- Thermocouple system device
- Cooktop ignition system
- Electronic one hand ignition
OVEN FEATURES
- Oven Capacity
- 7.8 cu. ft.
- Preheat bar
- 25%, 50%, 75%, 100%
- Oven type
- Dual fan with True Euro Convection and self cleaning
- Rack positions/levels
- 6
- Oven light
- 2 lateral halogen lamps
- Oven door
- Tempered edge to edge triple glass
- Removable inner glass
- Yes
- Oven Functions
- Oven Lights
- Thaw (defrost)
- Bake
- Convection Roast
- True European Convection Bake (Multilevel)
- Convection Broil
- Broil
- Pyrolytic Self-Clean with automatic door latch
- Oven overall capacity
- 7.8 ft3
- Glides
- 1 set telescopic glides movable on different levels
WARRANTY & CERTIFICATIONS
- Warranty
- 2 years parts & labor
Piece 2 of 3 — RANGE HOOD

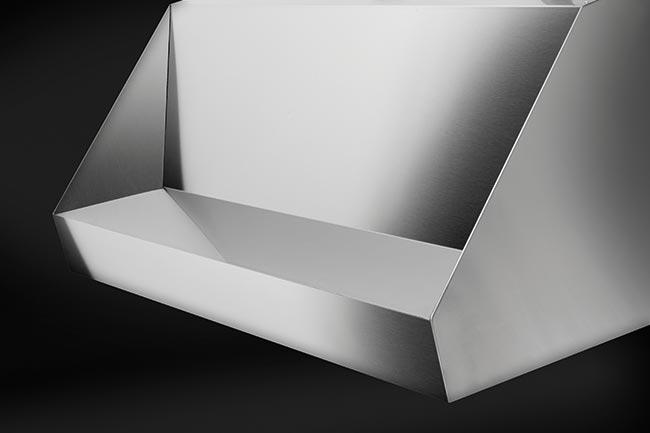

600 CFM, two baffle SS filters, push electronic button controls and LED lighting. Under Cabinet Design.
-
Model No: FH3611
-
Dimensions: W 36” / H 11 ½” / D 24”
-
Finishes: Stainless Steel
- Install Type: Under Cabinet
Features
-
FILTERS: 3 x Stainless Steel Baffle Filters
-
LIGHTING: 2 x 2W LED Lights
-
AIR OUTLET: Adjustable Top or Back Outlets
- CONTROLS: White Retro-Illuminated Square Push Buttons
-
SPEEDS: 3 speed fan + Booster
- SUCTION POWER: 600 CFM
DIMENSIONS
- Dimensions
- W: 36”, H: 11 ½”, D: 24”
GENERAL INFORMATION
- Brand
- Forza
DESIGN & FINISH
- Controls
- Square push buttons - white retrolluminated
TECHNICAL DETAILS
- Voltage
- 120 V / 60 Hz
- Suction power
- 600 cfm
- Suction power (free delivery)
- 1000 m3/h
- Speeds
- 3 + booster
- Maximum power
- 354W
- Motor power
- 350W
FEATURES
- Aspiration system
- Ducted out
- Booster
- Yes
- Lighting
- 2 x 2W LED
- Grease filters
- 3 x SS Baffle filters
- Air outlet size
- Ø150 mm - 6” (top or back exit available)
- Plug
- Yes - 3 prong
- Cable length
- 59 1/16”
WARRANTY & CERTIFICATIONS
- Warranty
- 2 Years - Parts & Labor

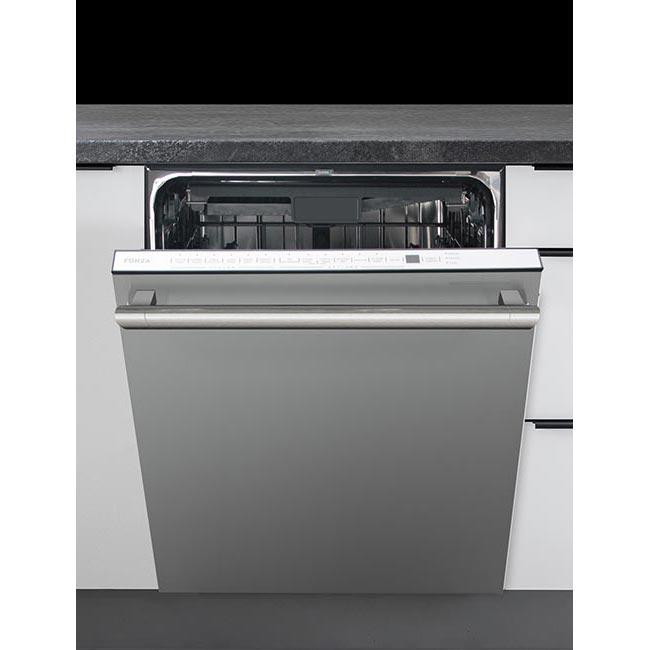

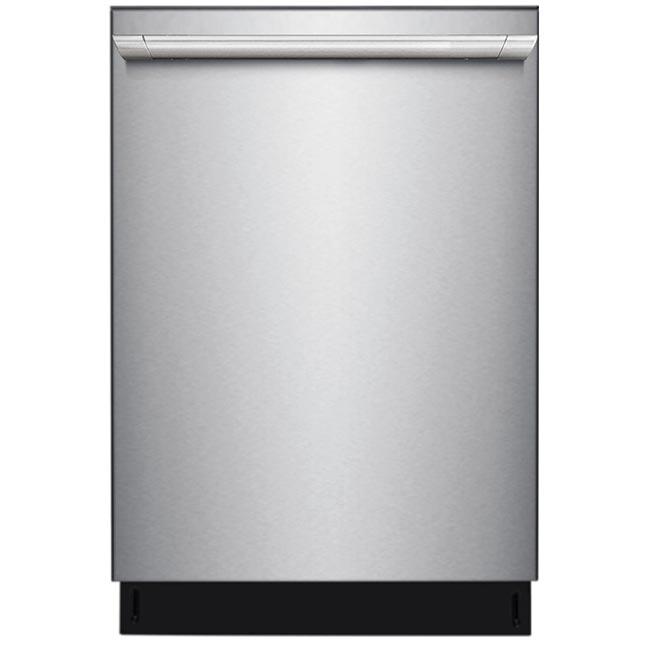

16 settings, 45 dB(A), six washing programs, extra power program washing for heavy soiled pots and pans and low energy consumption. Available at home outlet direct.
- Model No: FD24DI
- Dimensions: W 23 55/64” / H 33 55/64” / D 26 29/64”
- Finishes: Stainless Steel
- Install Type: Built-in tall tub
Features
- CLEANING: Self-cleaning microfilter

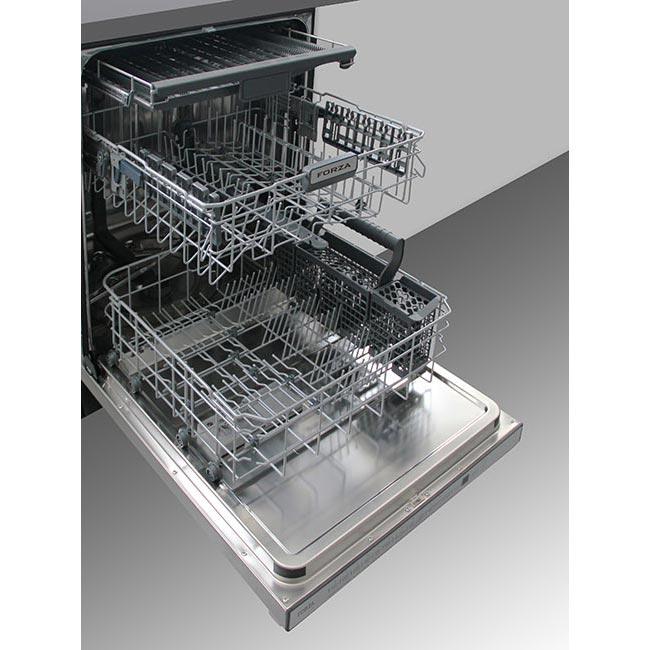

- THREE RACK SYSTEM: Three baskets with collapsible plate racks
- FINISHES: Stainless steel panel installed
- ELECTRONIC CONTROL PANEL: Touch Control LED Display
- QUIET WASH CYCLES: 45 dBA
- 6 WASHING PROGRAMS: Pots & pans, normal wash, China crystal, quick wash, rinse only, energy saver
- DRYING: Double drying system grants you best and consistent result on every cycle.
DIMENSIONS
- Dimensions
- W: 2355/64”
- H: 3355/64”
- D: 2629/64”
- Height adjustable upper basket when loaded
- Yes
- Net weight
- 90 lb
- Gross weight
- 94 lb
GENERAL INFORMATION
- Brand
- Forza
- Mount Type
- Built-in tall tub
- Type of display
- LED display
DESIGN & FINISH
- Stainless steel interior
- Yes
- Type of control
- Touch control
- Control panel
- Touch control/LED display
TECHNICAL DETAILS
- Voltage
- 120 V / 60 Hz
- Annual energy consumption
- 249 kWh
- Noise level
- 45 dBA
FEATURES
- Nr# of settings
- 16
- Type of drying
- Double drying (heating + fan drying)
- Nº of programs
- 6(pots & pans, normal wash, China crystal, quick wash, rinse only, energy saver)
- Indicator of end of the cycle
- Yes
- Indicator of time remaining
- Yes
- Internal light
- LED
- Anti leak device
- Yes
- Anti flood device
- Yes
- Delay timer
- Up to 24 hours
- Audible signal at the end of the cycle
- Yes
- Top sprayer
- Yes
- Children security
- Yes
- Stainless steel microfilte
- Yes
- Self cleaning microfilter
- Yes
- Adjustable feet
- Yes
- Number of baskets
- 3
- Number of handle on baskets
- 1 on middle basket
- Cup support number
- 2
- Colour of the basket
- Grey
- Colour of cutlery basket
- Grey
- Colour of dispenser
- Grey
- Collapsable plate-racks
- Yes
WARRANTY & CERTIFICATIONS
- Energy Star Certified
- Yes
- Warranty
- 2 Years - Parts & Labor
