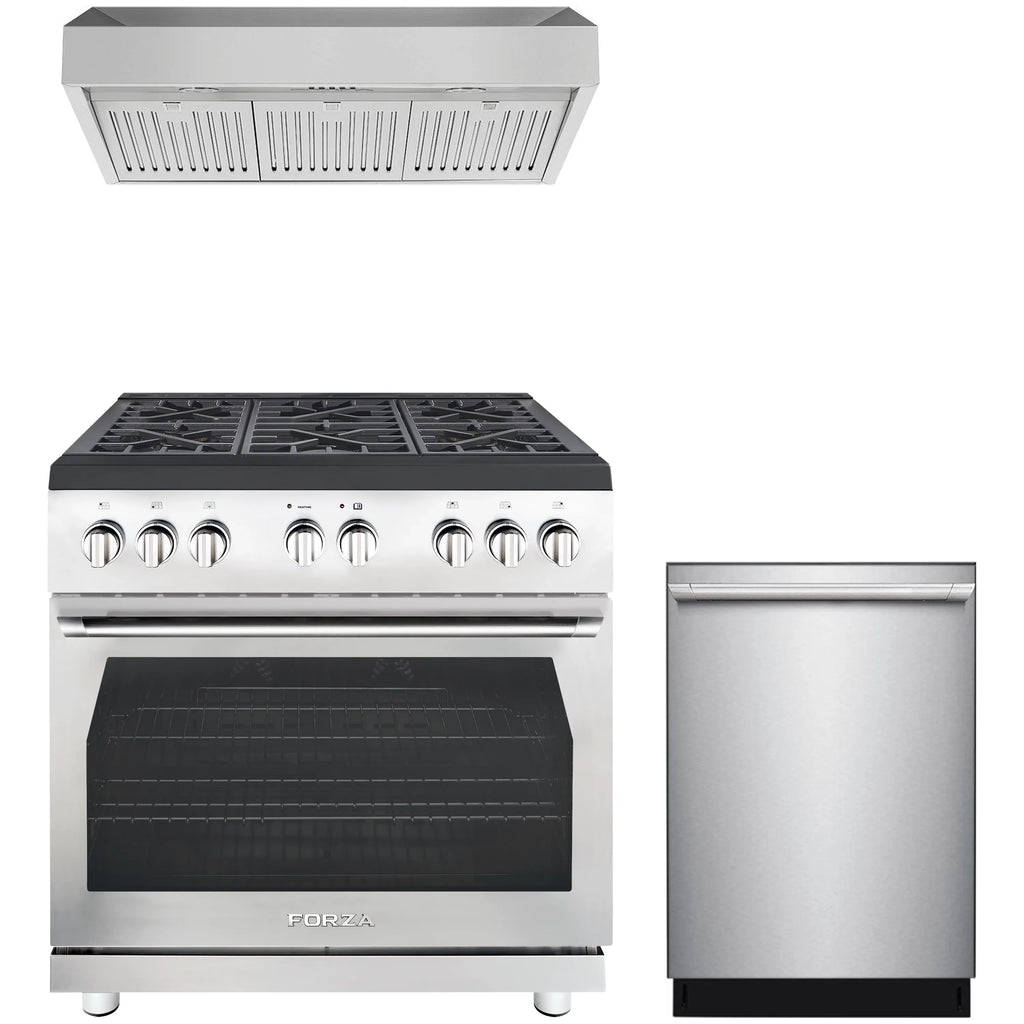

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

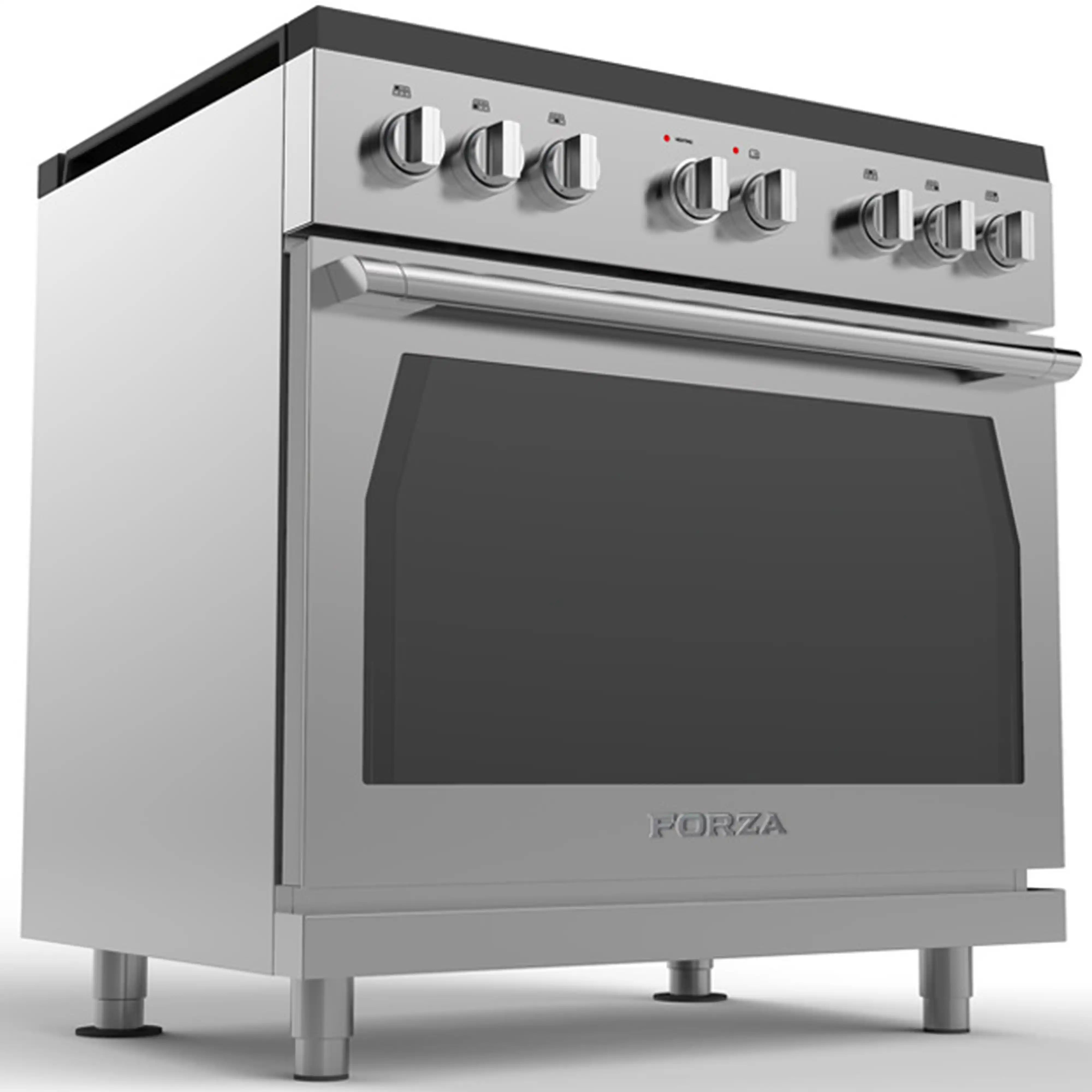

Piece 1 of 3 — RANGE
The Forza 36-inch Professional All Gas Range Special Edition is radically designed with 6 high-powered burners including three dual-flame burners that range from 685 BTU to 20,000 BTU (1 with dual control) and three 12,000 BTU burners. Equipped with Forza’s proprietary MassimoBlu™ Hyper Broiler and the Infinito™ Grate System. Forza’s Professional Range Special Edition designed to fit perfectly flush alongside standard depth cabinets.
- Model No: FR366SE
- Dimensions: 35 ¾" W x 37 ¼ – 38 ¼" H x 27 ½" D
- Finishes: Stainless Steel
- Fuel Type: Gas
Features

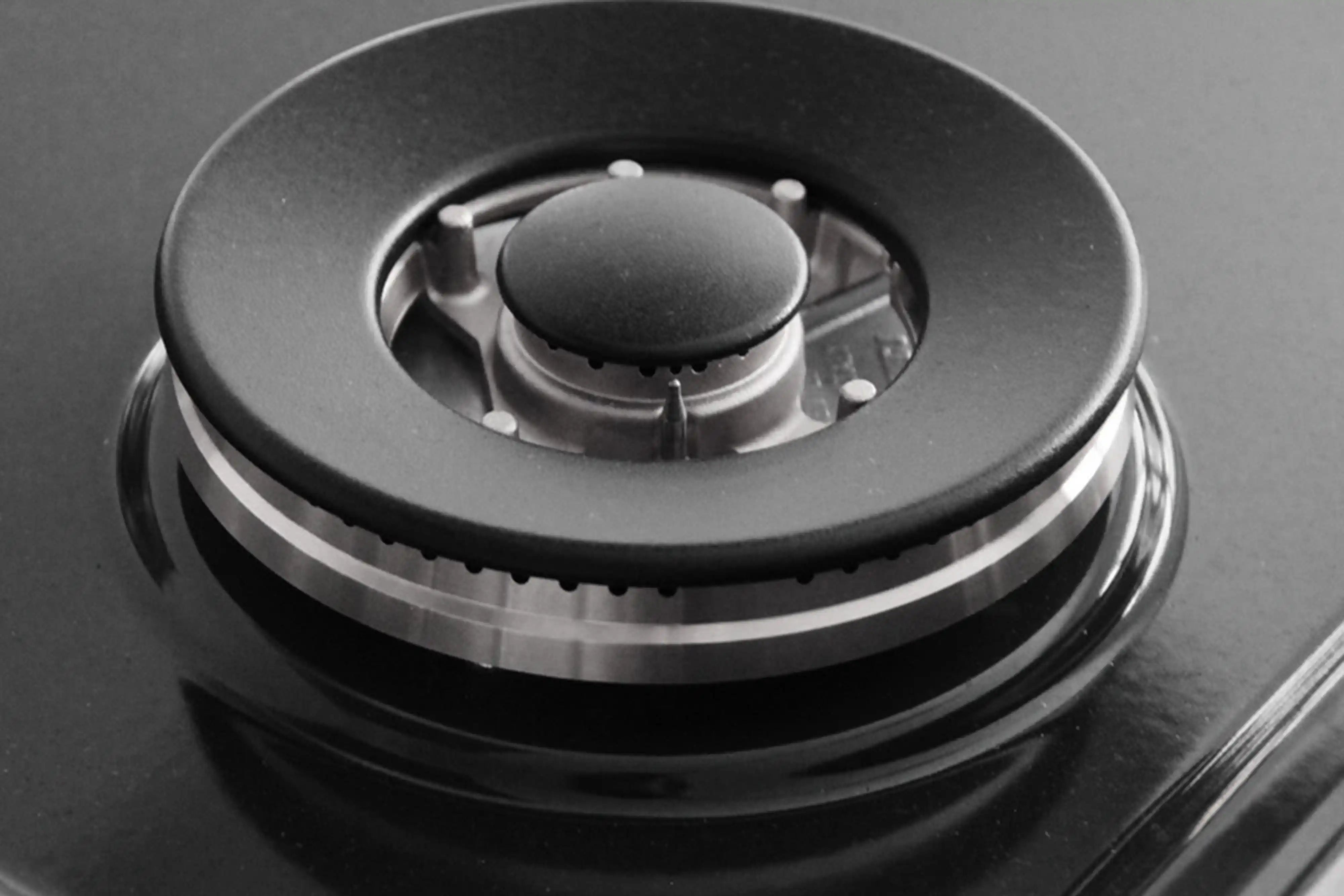

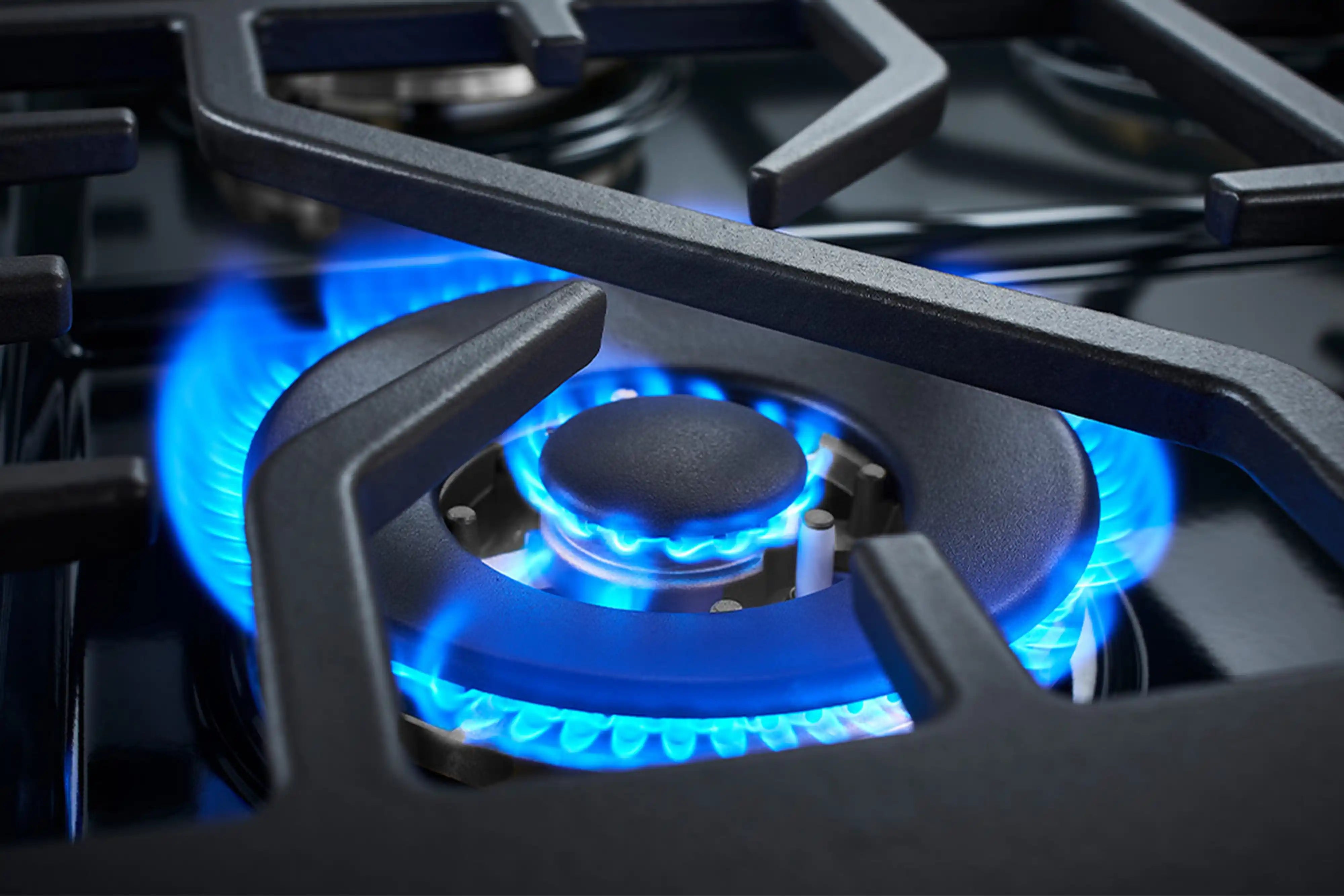

- High Power Dual-Flame Burners - With 6 high-powered burners including three dual-flame burners that range from 685 BTU to 20,000 BTU (1 with dual control) and three 12,000 BTU burners, this range gives you the precise heat control necessary to create masterful meals

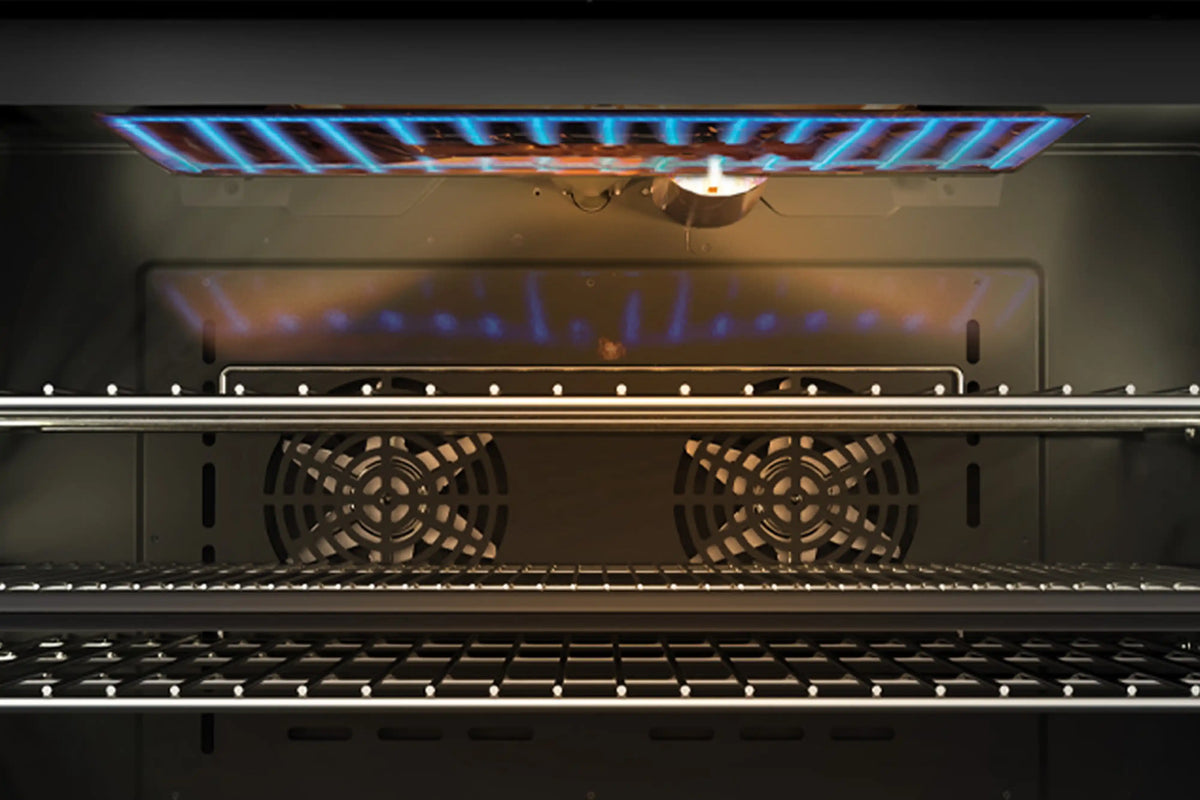

- MassimoBlu™ Hyper Broiler - Spanning the full width of the cavity, the blue flame of the 18,000 BTU Double Broiler outperforms traditional infrared broilers evenly distributing heat to give you consistent, top chef results
- Bake Burner - The 19,000 BTU bake burner gives you control to bake delicate breads and pastries and the power to roast your next holiday feast
- Dual Fan - The dual fan was designed to give you maximum convection and heat distribution while cooking, baking and heating your dishes

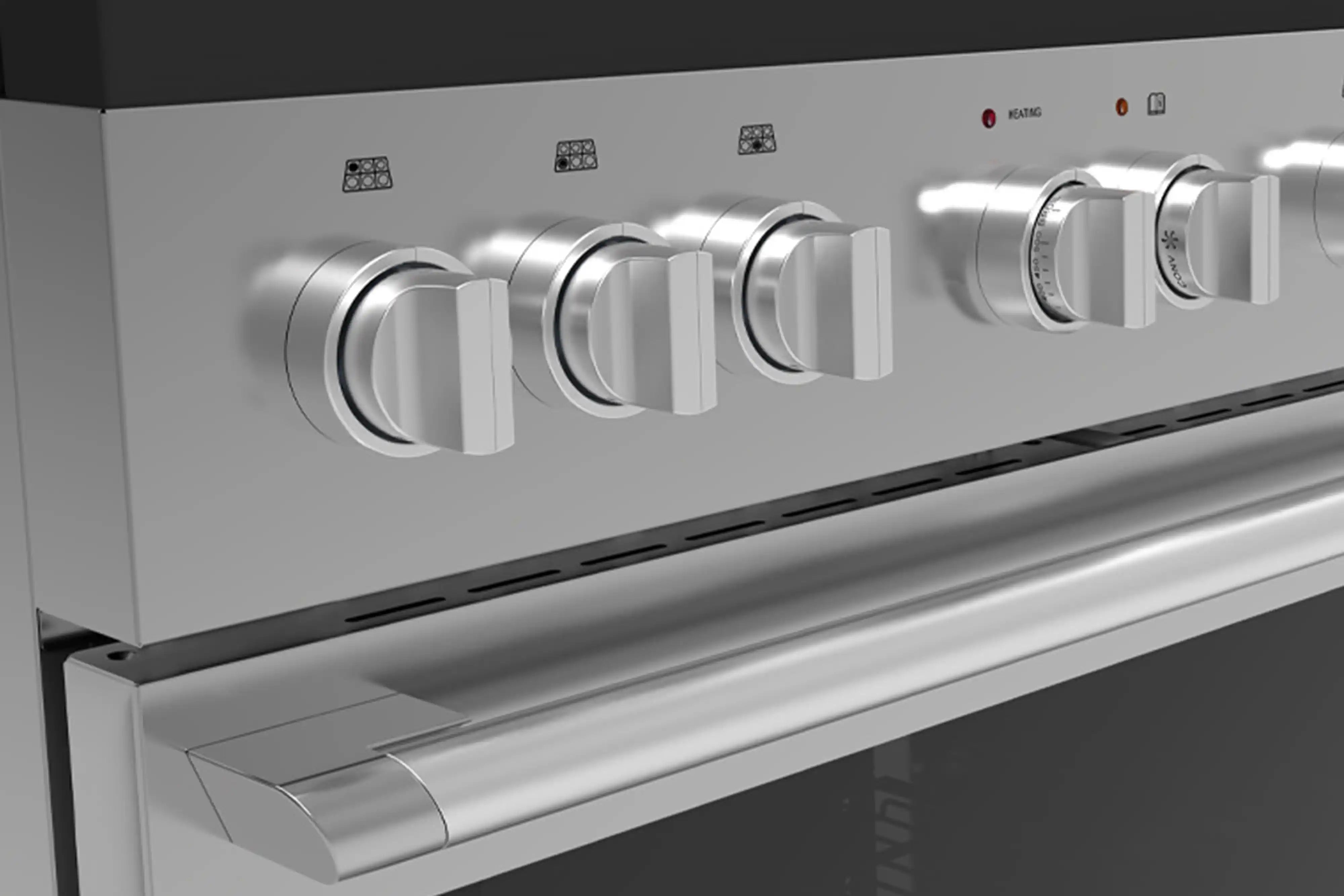

- Safe and Reliable - All burners are equipped with a one-hand ignition and a thermocouple safety device for reliability and safety
- Flat Minimal Design - The new design concept of the SE Forza professional ranges is born to perfectly match with the kitchen’s fornitures minimal style
- Large Oven Capacity - Boasting a 6.0 cu. ft. oven capacity, this range is capable of fitting commercial grade cooking trays for maximum cooking power

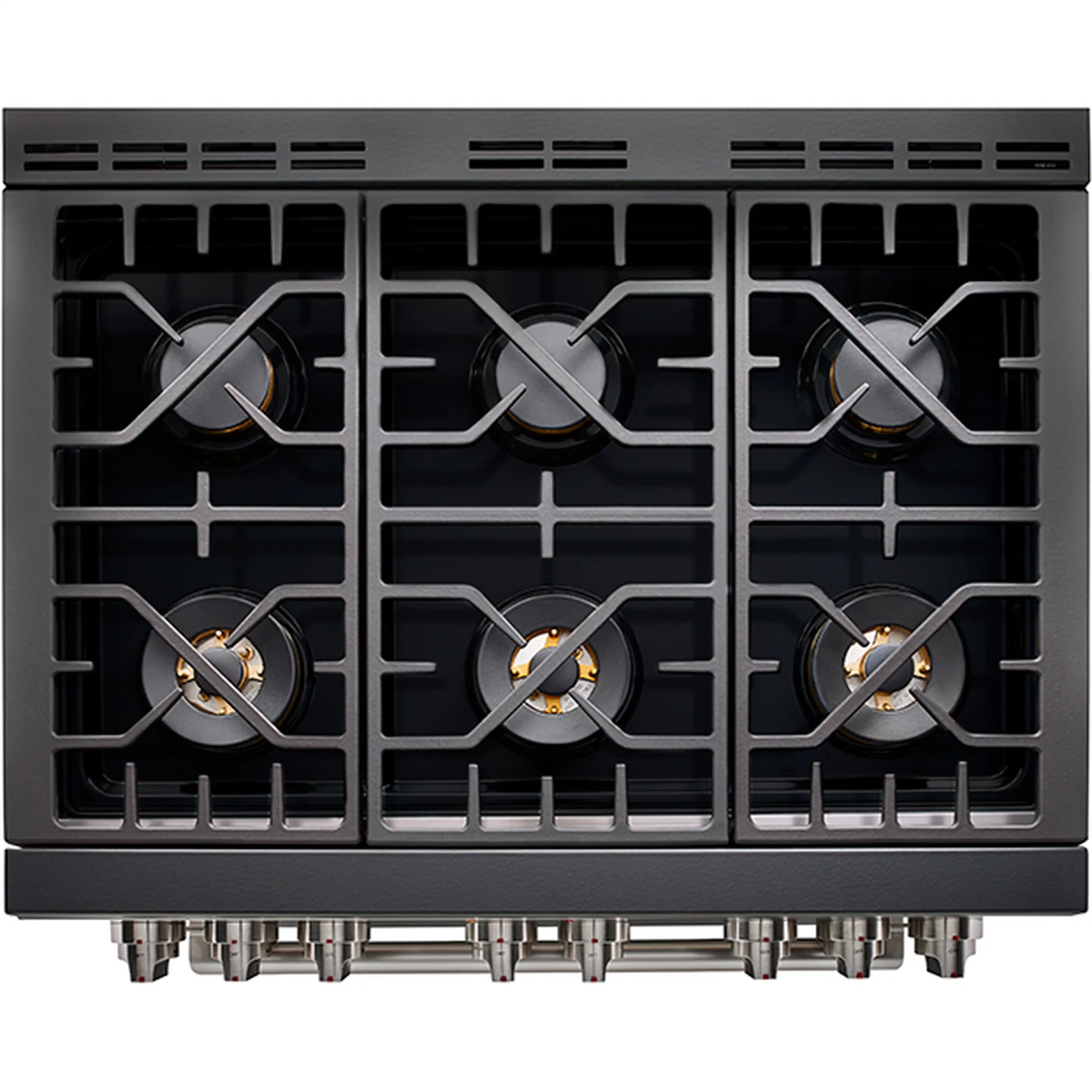

- Infinito™ Grate System - Radically designed with edge-to-edge cast iron grates and integrated bullnose, only Forza offers the largest continuous usable cooking surface for max efficiency while in the kitchen

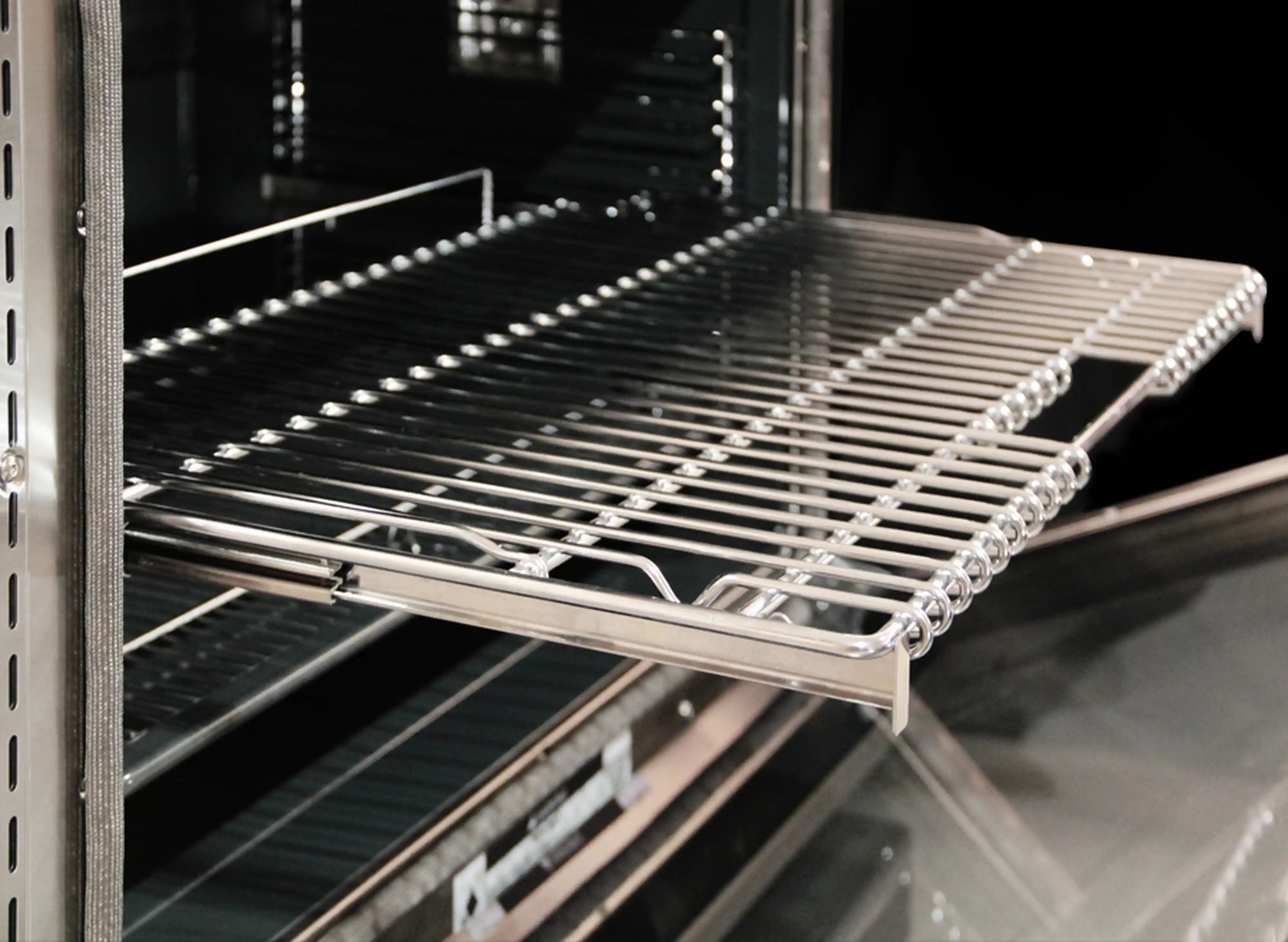

- Cooking Versatility - The oven is equipped with 6 rack levels and includes 2 wire shelves giving you the flexibility to customize the oven to your cooking needs
- Full Inner Glass Door - The uniquely shaped, full inner glass window is designed to be removed by hand for easy cleaning
- Black Porcelain Spill Tray - A luxurious touch for the range top that emphasizes the brass burners and makes cleanup simple
DIMENSIONS
- Dimensions
- 35 ¾" W x 37 ¼ – 38 ¼" H x 27 ½" D
GENERAL INFORMATION
- Brand
- Forza
- Wire shelves
- 2
- Baking tray
- 1 MassimoBlu™ broiler pan with Grill trivet (rack for broiling on tray
- Gas setting
- NG (4”)
- Conversion kit
- LP (11”)
- Product compliance
- UL (US&CAN)
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Dual control
- 3 Front dual flame burners (1 with Dual control)
- Cavity finishing
- FORZA Porcelain grey easy to clean
TECHNICAL DETAILS
- Voltage/frequency
- 120V / 60Hz
- Power W/Amps
- 600W / 5A
- Cable - Plug type
- 59 1/16” - 120V 3 prong (Nema 5-15P)
COOKTOP FEATURES
- Burners
- Left Front (BTU): 20K Dual Burner
- Left Rear (BTU): 12K Single Burner
- Center Front (BTU):20K Dual Burner
- Center Rear (BTU):12K Single Burner
- Right Front (BTU):20K Dual Burner (685 BTU Simmer Function)
- Right Rear (BTU):12K Single Burner
- Number of Gas Burners
- 6 aluminum burners
- Power Burners
- Front 1 x 20,000 / 685 BTU + 2 x 20,000 BTU - Rear 3 x 12,000 / 2,200 BTU
- Simmering power
- 685 BTU
- Cast iron pan supports
- Continuous Infinito™ Grate System with integrated bull nose
- Cooktop safety system
- Thermocouple system device
- Cooktop ignition system
- Electronic one hand ignition
- Oven ignition system
- Hotsurface ignitor with electrovalve gas system
- Bake burner
- 19,000 BTU
OVEN FEATURES
- Oven Capacity
- 6.0 cu. ft.
- Oven type
- Convection gas oven with double fan and MassimoBlu™ Hyper Broiler
- Cooking Functions
- Bake - Broil - Convection Bake
- Rack positions/levels
- 6
- Oven light
- 2 lateral halogen lamps
- Oven door
- Tempered edge to edge triple glass
- Removable inner glass
- Yes
- Oven overall capacity
- 6.0 ft3
- MassimoBlu™ Broiler
- Hyper - 9,000 BTU
WARRANTY & CERTIFICATIONS
- Warranty
- 2 years parts & labor

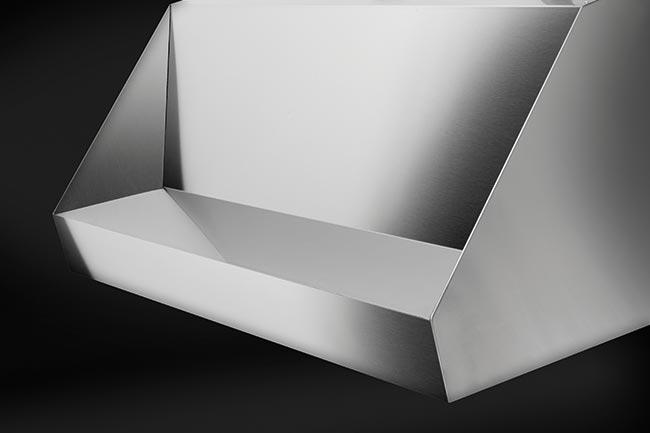

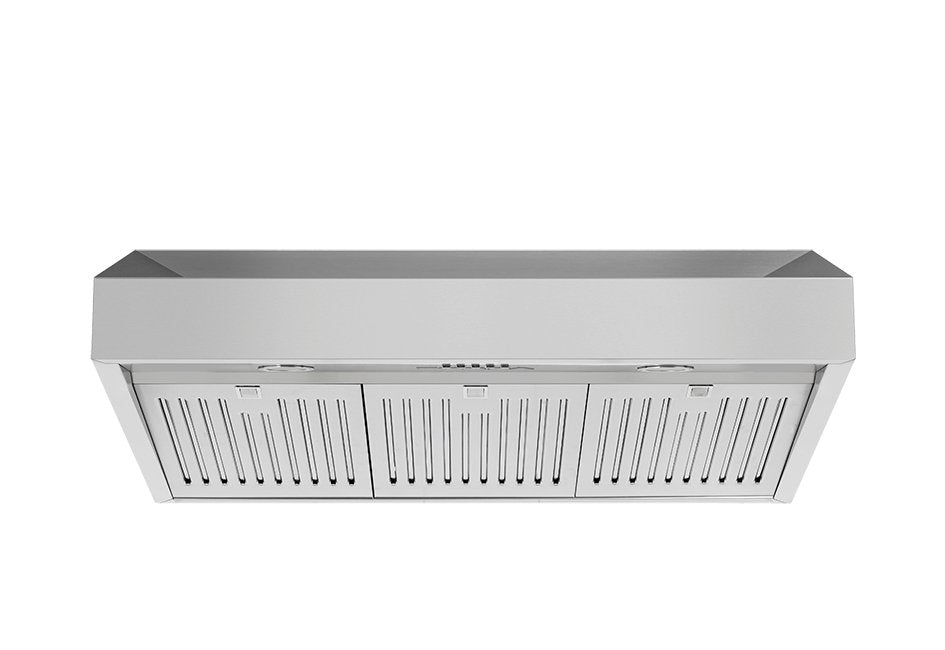

Piece 2 of 3 — RANGE HOOD
600 CFM, two baffle SS filters, push electronic button controls and LED lighting. Under Cabinet Design.
-
Model No: FH3611
-
Dimensions: W 36” / H 11 ½” / D 24”
-
Finishes: Stainless Steel
- Install Type: Under Cabinet
Features
-
FILTERS: 3 x Stainless Steel Baffle Filters
-
LIGHTING: 2 x 2W LED Lights
-
AIR OUTLET: Adjustable Top or Back Outlets
- CONTROLS: White Retro-Illuminated Square Push Buttons
-
SPEEDS: 3 speed fan + Booster
- SUCTION POWER: 600 CFM
DIMENSIONS
- Dimensions
- W: 36”, H: 11 ½”, D: 24”
GENERAL INFORMATION
- Brand
- Forza
DESIGN & FINISH
- Controls
- Square push buttons - white retrolluminated
TECHNICAL DETAILS
- Voltage
- 120 V / 60 Hz
- Suction power
- 600 cfm
- Suction power (free delivery)
- 1000 m3/h
- Speeds
- 3 + booster
- Maximum power
- 354W
- Motor power
- 350W
FEATURES
- Aspiration system
- Ducted out
- Booster
- Yes
- Lighting
- 2 x 2W LED
- Grease filters
- 3 x SS Baffle filters
- Air outlet size
- Ø150 mm - 6” (top or back exit available)
- Plug
- Yes - 3 prong
- Cable length
- 59 1/16”
WARRANTY & CERTIFICATIONS
- Warranty
- 2 Years - Parts & Labor

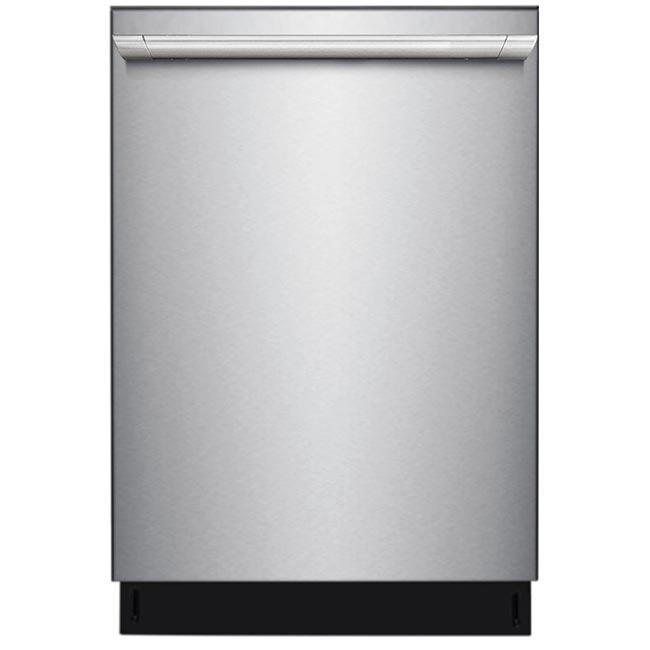

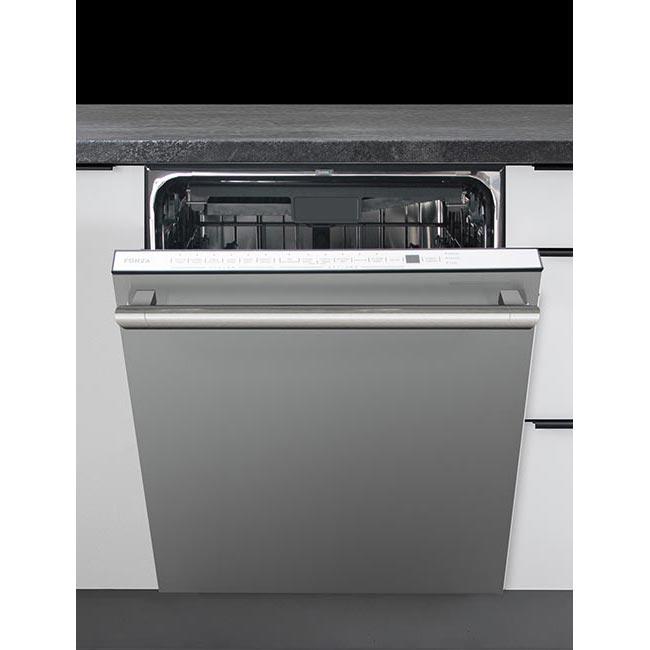

16 settings, 45 dB(A), six washing programs, extra power program washing for heavy soiled pots and pans and low energy consumption. Available at home outlet direct.
- Model No: FD24DI
- Dimensions: W 23 55/64” / H 33 55/64” / D 26 29/64”
- Finishes: Stainless Steel
- Install Type: Built-in tall tub
Features
- CLEANING: Self-cleaning microfilter

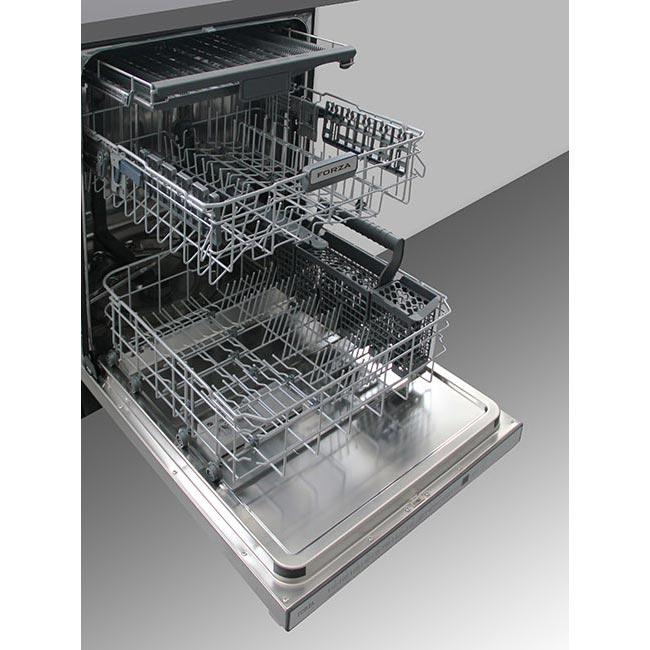

- THREE RACK SYSTEM: Three baskets with collapsible plate racks
- FINISHES: Stainless steel panel installed
- ELECTRONIC CONTROL PANEL: Touch Control LED Display
- QUIET WASH CYCLES: 45 dBA
- 6 WASHING PROGRAMS: Pots & pans, normal wash, China crystal, quick wash, rinse only, energy saver
- DRYING: Double drying system grants you best and consistent result on every cycle.
DIMENSIONS
- Dimensions
- W: 2355/64”
- H: 3355/64”
- D: 2629/64”
- Height adjustable upper basket when loaded
- Yes
- Net weight
- 90 lb
- Gross weight
- 94 lb
GENERAL INFORMATION
- Brand
- Forza
- Mount Type
- Built-in tall tub
- Type of display
- LED display
DESIGN & FINISH
- Stainless steel interior
- Yes
- Type of control
- Touch control
- Control panel
- Touch control/LED display
TECHNICAL DETAILS
- Voltage
- 120 V / 60 Hz
- Annual energy consumption
- 249 kWh
- Noise level
- 45 dBA
FEATURES
- Nr# of settings
- 16
- Type of drying
- Double drying (heating + fan drying)
- Nº of programs
- 6(pots & pans, normal wash, China crystal, quick wash, rinse only, energy saver)
- Indicator of end of the cycle
- Yes
- Indicator of time remaining
- Yes
- Internal light
- LED
- Anti leak device
- Yes
- Anti flood device
- Yes
- Delay timer
- Up to 24 hours
- Audible signal at the end of the cycle
- Yes
- Top sprayer
- Yes
- Children security
- Yes
- Stainless steel microfilte
- Yes
- Self cleaning microfilter
- Yes
- Adjustable feet
- Yes
- Number of baskets
- 3
- Number of handle on baskets
- 1 on middle basket
- Cup support number
- 2
- Colour of the basket
- Grey
- Colour of cutlery basket
- Grey
- Colour of dispenser
- Grey
- Collapsable plate-racks
- Yes
WARRANTY & CERTIFICATIONS
- Energy Star Certified
- Yes
- Warranty
- 2 Years - Parts & Labor
