What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.
Piece 1 of 3 — RANGE

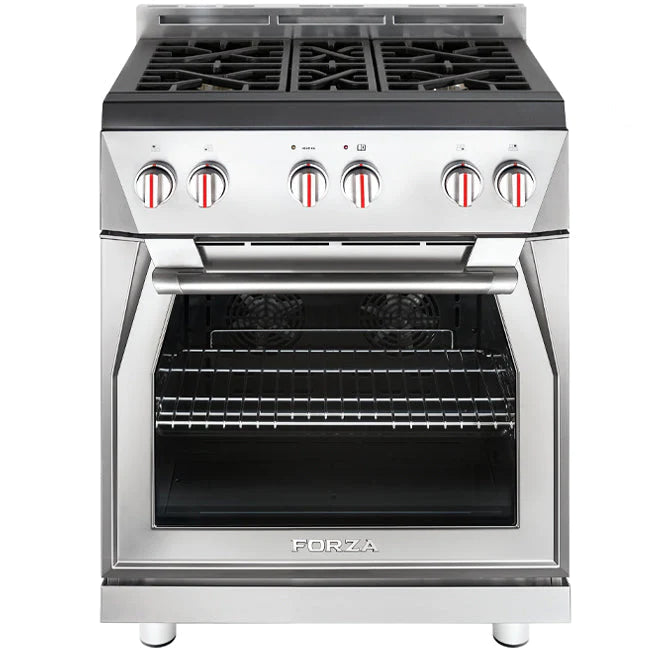

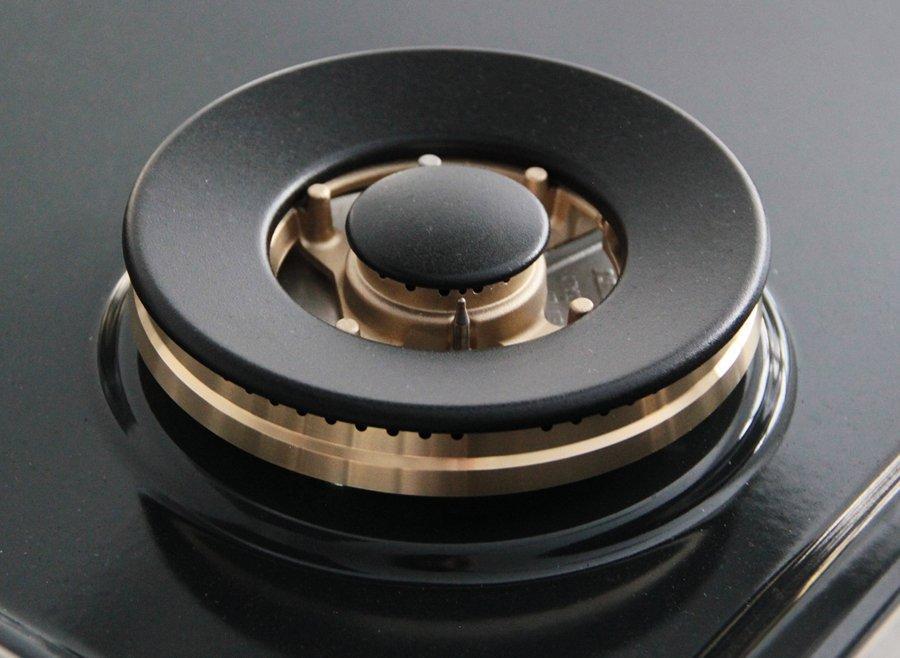

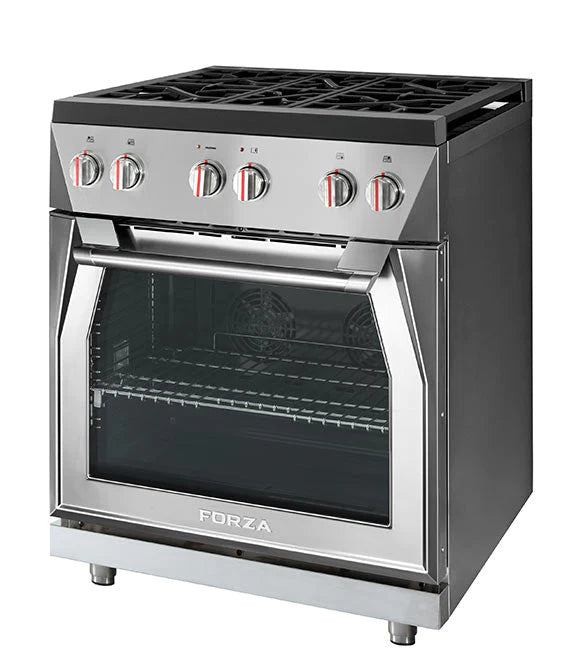

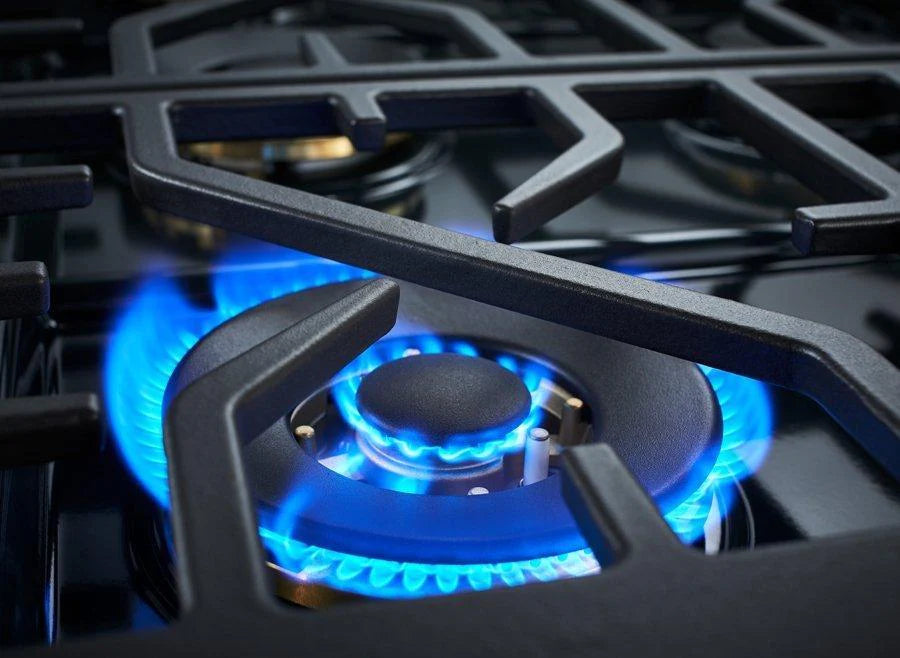

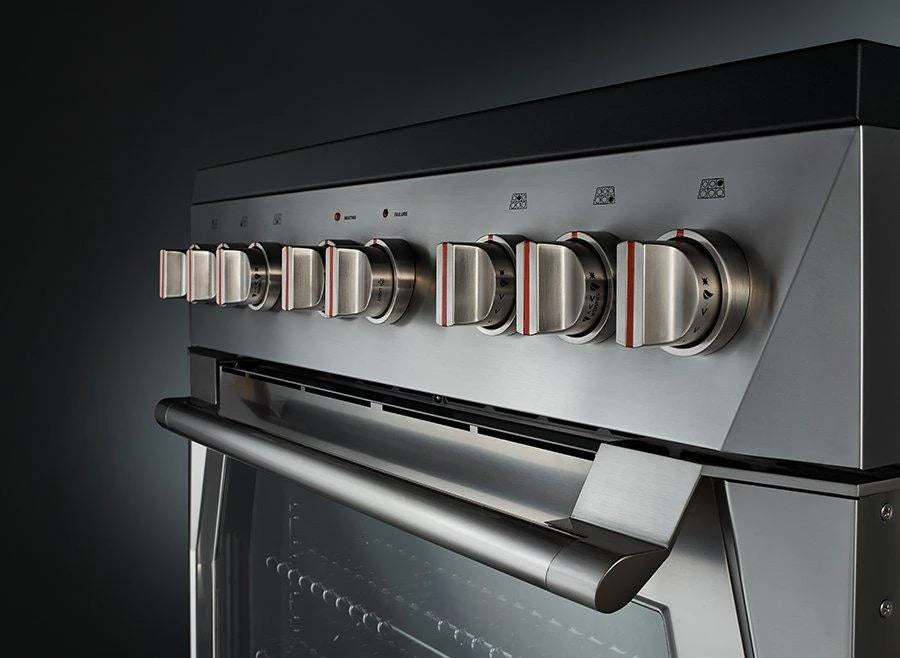

The Forza 30 inch all gas range model offers a unique Italian radical design and outstanding performance through: 4 high efficient full brass burner, Infinito™ Grate System, MassimoBlu™ Double Broiler System and the industry’s widest oven capacity compatible with a commercial sized tray. It is available in six color options. Perfect from primipiatti to dessert. Available at Home Outlet Direct.
-
MODEL NO: FR304GN
-
DIMENSIONS: W 29 ¾ / H 37 ¼ - 38 ¼ / D 27 ½
- FINISH: Stainless Steel
-
FUEL TYPE: Natural Gas - LP Kit included
Features
- Continuous Infinito™ Grate System with Integrated Bull Nose
- Easy-to-Clean Black Porcelain Spill Surface
- Uniquely Shaped Window
- 5.20 cu. ft. capacity
- Soft Closing Door
- 6 Rack Positions

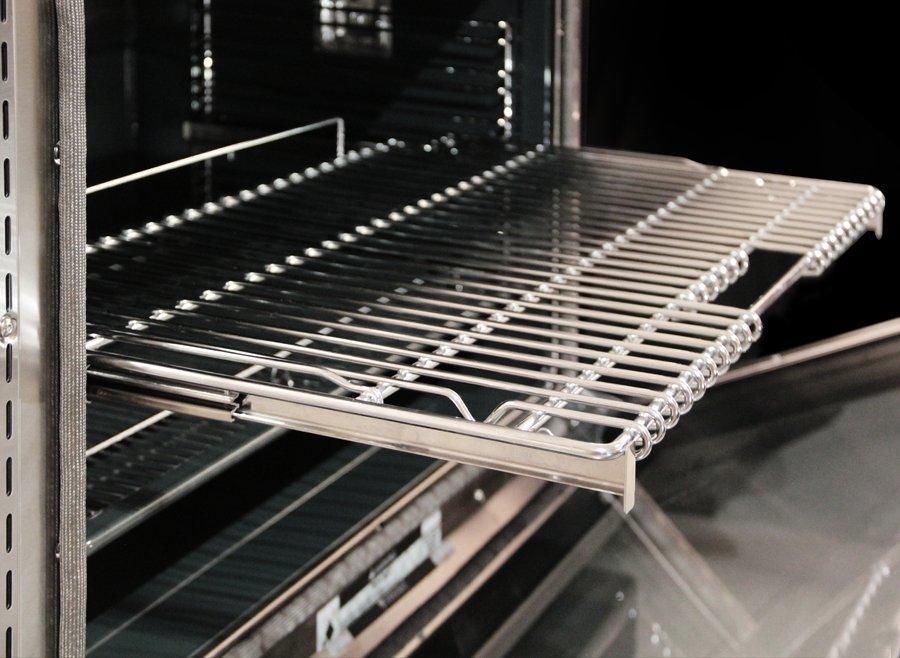

- 1 set of Telescopic Glides
- 2 Wire Shelves
- FullWidth Enameled Tray
- Commercial Tray Compatible
- Full Inner Glass Door
- Double Halogen Oven Lamps
DIMENSIONS
- Dimensions
- H: 37 1/4 - 38 1/4, W: 29 3/4, D: 27 1/2
GENERAL INFORMATION
- Brand
- Forza
- Hinge closing system
- Soft closing
- Wire shelf
- 2
- Enamelled tray
- 1 - MassimoBlu™ double broiler pan - full cavity width
- Splash back/backgaurd
- 4” back guard
- Other accessories
- 1 set telescopic glides movable on different levels
- Cable
- 59 1/16"
- Gas setting
- NG (4”)
- Conversion kit
- LP (11 ” )
- Languages
- EN - ES - FR
- Product compliance
- UL (US & CAN)
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Dual control
- 2 front dual flame burners
- Finishing
- FORZA Porcelain grey easy to clean
TECHNICAL DETAILS
- Voltage
- 120V / 60Hz / 15A
- Fuel Type
- Natural Gas - Liquid Propane Kit Included
- Voltage/frequency
- 120V/60Hz
- Power W/Amps
- 200W / 5A
- Plug type
- 120V 3 prong ( Nema 5-15 P)
COOKTOP FEATURES
- Cooktop safety valves
- Yes - Thermocouple system
- Cooktop ignition
- One hand ignition
- Safety system on cavity burners
- Hot surface ignition & safety system
- Electronic ignition cavity burners
- Hot surface ignition & safety system
- Reignition cavity burners
- Yes
- Simmering power
- 685 BTU
- Cooking Zone
- Cast iron pan supports

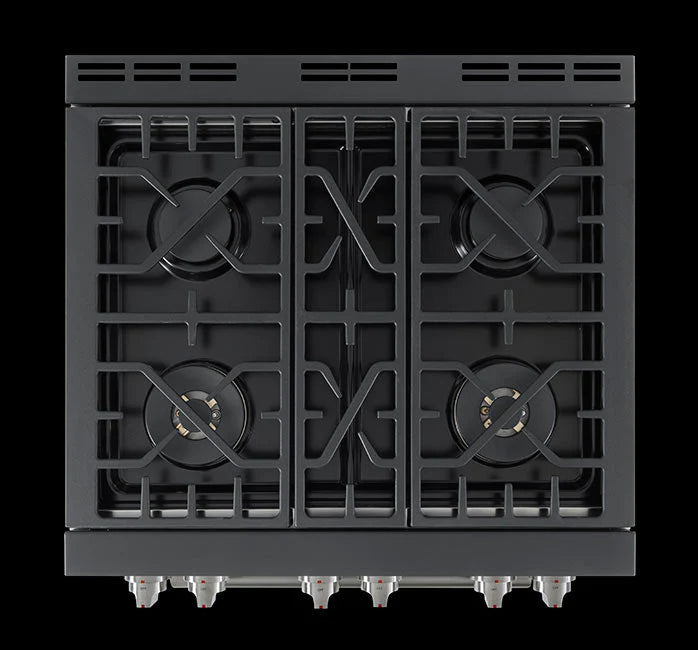

- Infinito™ Grate System with integrated bull nose
- Bake burner
- 19,000 BTU
OVEN FEATURES
- Oven Functions
- Bake
- Broil
- Convection Bake
- Rack positions/levels
- 6
- Full inner glass door
- Yes
- Triple glass
- Yes
- Removable inner glass
- Yes
- Oven light
- 2 lateral halogen lamps
- Trivet (rack for broiling on tray)
- Yes
- Oven overall capacity
- 5.20 ft

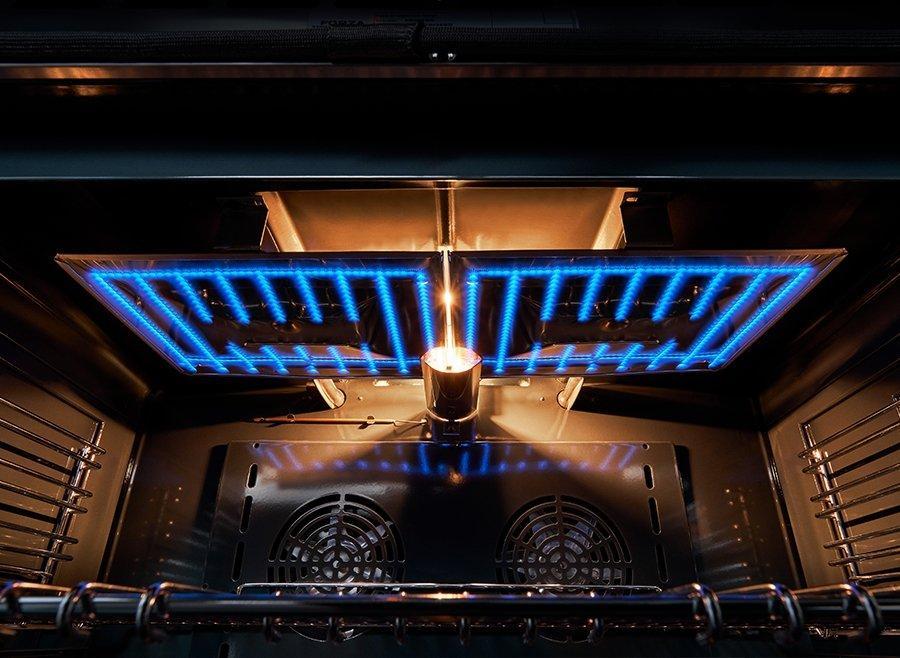

- MassimoBlu™ Broiler
- 18,000 BTU
WARRANTY & CERTIFICATIONS
- Warranty
- 2 Years - Parts & Labor

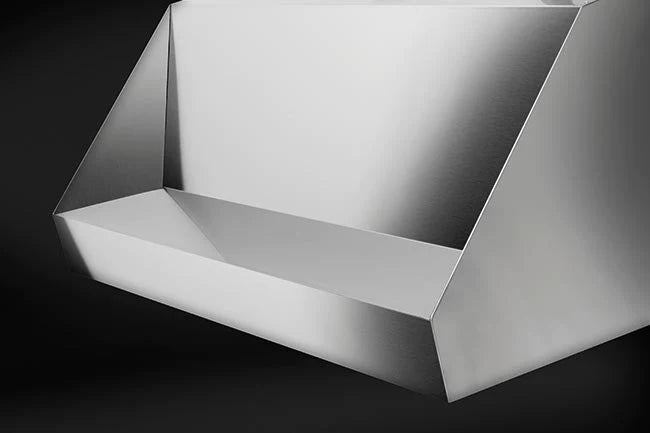

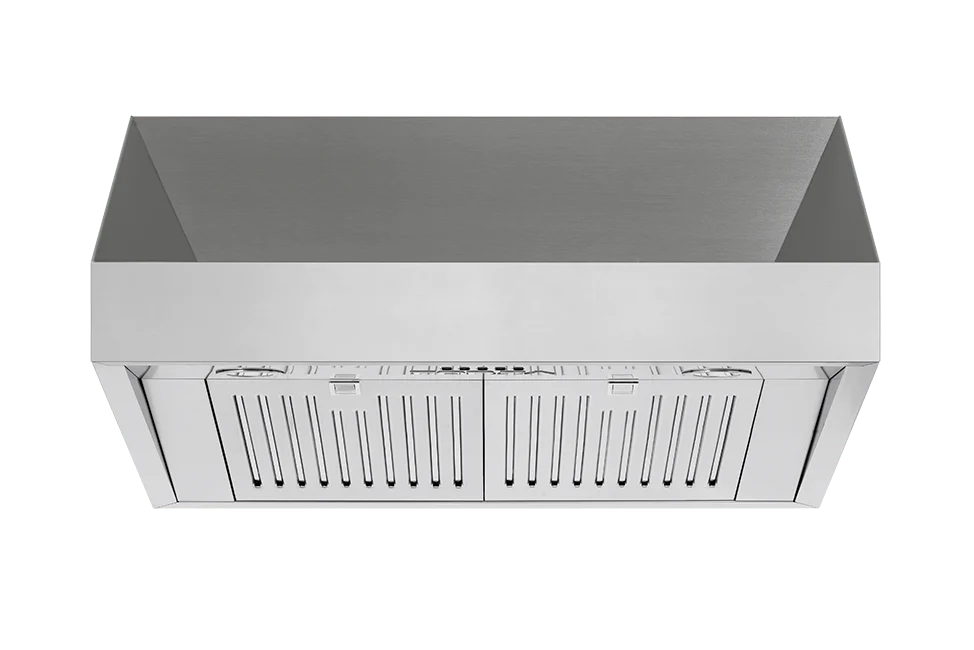

Piece 2 of 3 — RANGE HOOD
600 CFM, two baffle SS filters, push electronic button controls and LED lighting. Under Cabinet Design. Available at Home Outlet Direct.
-
Model No: FH3018
-
Dimensions: W 30” / H 18” / D 24”
-
Finishes: Stainless Steel
- Install Type: Pro Style Wall
Features
-
FILTERS: 2 x Stainless Steel Baffle Filters
-
LIGHTING: 2 x 2W LED Lights
-
AIR OUTLET: Adjustable Top or Back Outlets
- CONTROLS: White Retro-Illuminated Square Push Buttons
-
SPEEDS: 3 speed fan + Booster
- SUCTION POWER: 600 CFM
DIMENSIONS
- Dimensions
- W: 30”, H: 18”, D: 24”
GENERAL INFORMATION
- Brand
- Forza
- Mount Type
- Pro Style Wall
DESIGN & FINISH
- Controls
- Square push buttons - white retrolluminated
TECHNICAL DETAILS
- Voltage
- 120 V / 60 Hz
- Suction power
- 600 cfm
- Suction power (free delivery)
- 1000 m3/h
- Number of blowers / code type
- 1 - T7
- Speeds
- 3 + booster
- Maximum power
- 354W
- Motor power
- 350W
FEATURES
- Aspiration system
- Ducted out
- Booster
- Yes
- Lighting
- 2 x 2W LED
- Grease filters
- 2 x SS Baffle filters
- Air outlet size
- Ø150 mm - 6” (top or back exit available)
- Plug
- Yes - 3 prong
- Cable length
- 59 1/16”
- Languages
- EN - FR - ES
WARRANTY & CERTIFICATIONS
- Warranty
- 2 Years - Parts & Labor

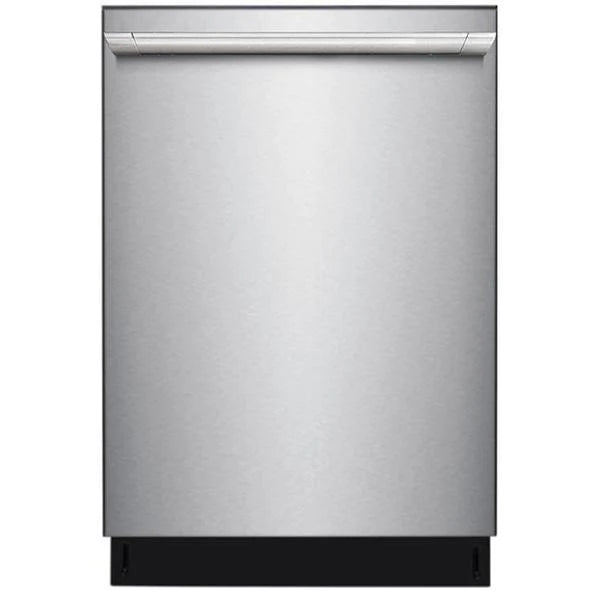

16 settings, 45 dB(A), six washing programs, extra power program washing for heavy soiled pots and pans and low energy consumption. Available at home outlet direct.
- Model No: FD24DI
- Dimensions: W 23 55/64” / H 33 55/64” / D 26 29/64”
- Finishes: Stainless Steel
- Install Type: Built-in tall tub
Features
- CLEANING: Self-cleaning microfilter
- THREE RACK SYSTEM: Three baskets with collapsible plate racks
- FINISHES: Stainless steel panel installed
- ELECTRONIC CONTROL PANEL: Touch Control LED Display
- QUIET WASH CYCLES: 45 dBA
- 6 WASHING PROGRAMS: Pots & pans, normal wash, China crystal, quick wash, rinse only, energy saver
- DRYING: Double drying system grants you best and consistent result on every cycle.
DIMENSIONS
- Dimensions
- W: 2355/64”
- H: 3355/64”
- D: 2629/64”
- Height adjustable upper basket when loaded
- Yes
- Net weight
- 90 lb
- Gross weight
- 94 lb
GENERAL INFORMATION
- Brand
- Forza
- Mount Type
- Built-in tall tub
- Type of display
- LED display
DESIGN & FINISH
- Stainless steel interior
- Yes
- Type of control
- Touch control
- Control panel
- Touch control/LED display
TECHNICAL DETAILS
- Voltage
- 120 V / 60 Hz
- Annual energy consumption
- 249 kWh
- Noise level
- 45 dBA
FEATURES
- Nr# of settings
- 16
- Type of drying
- Double drying (heating + fan drying)
- Nº of programs
- 6(pots & pans, normal wash, China crystal, quick wash, rinse only, energy saver)
- Indicator of end of the cycle
- Yes
- Indicator of time remaining
- Yes
- Internal light
- LED
- Anti leak device
- Yes
- Anti flood device
- Yes
- Delay timer
- Up to 24 hours
- Audible signal at the end of the cycle
- Yes
- Top sprayer
- Yes
- Children security
- Yes
- Stainless steel microfilte
- Yes
- Self cleaning microfilter
- Yes
- Adjustable feet
- Yes
- Number of baskets
- 3
- Number of handle on baskets
- 1 on middle basket
- Cup support number
- 2
- Colour of the basket
- Grey
- Colour of cutlery basket
- Grey
- Colour of dispenser
- Grey
- Collapsable plate-racks
- Yes
WARRANTY & CERTIFICATIONS
- Energy Star Certified
- Yes
- Warranty
- 2 Years - Parts & Labor
