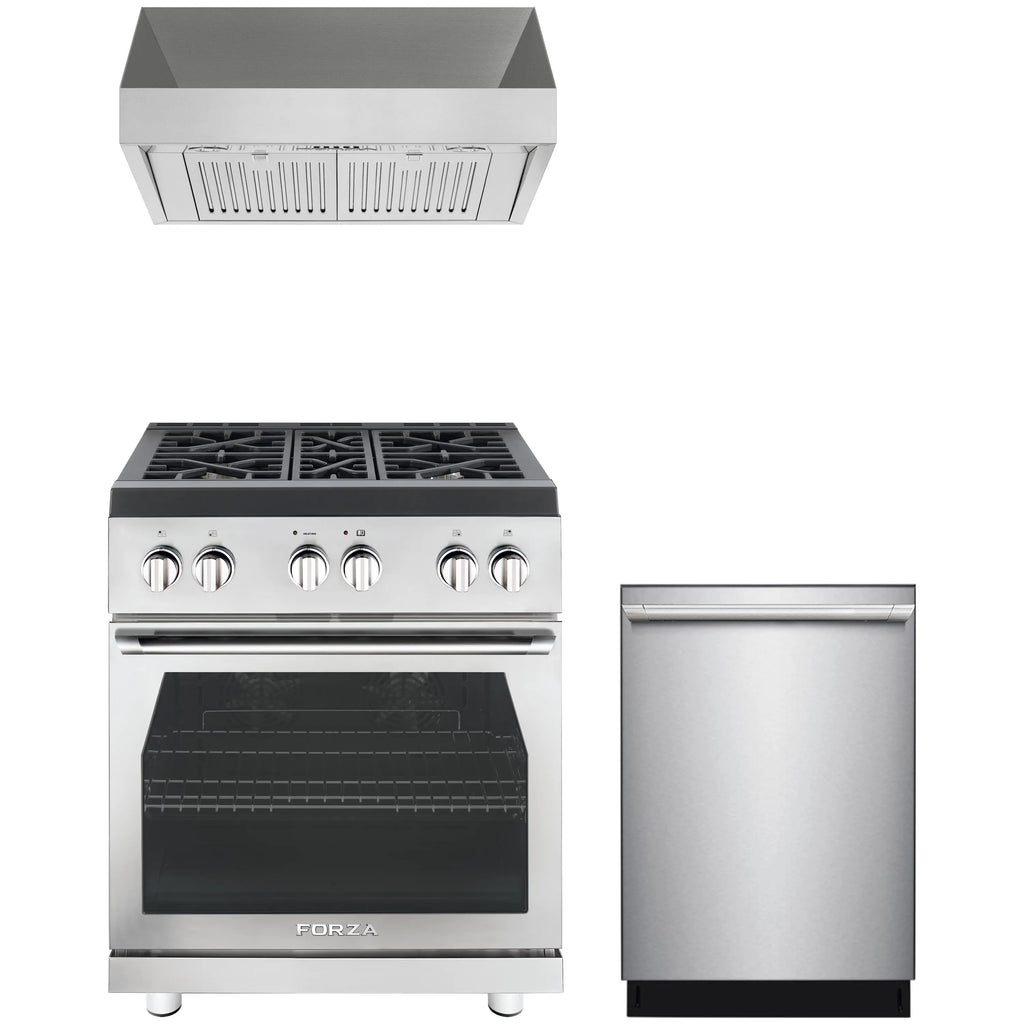

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

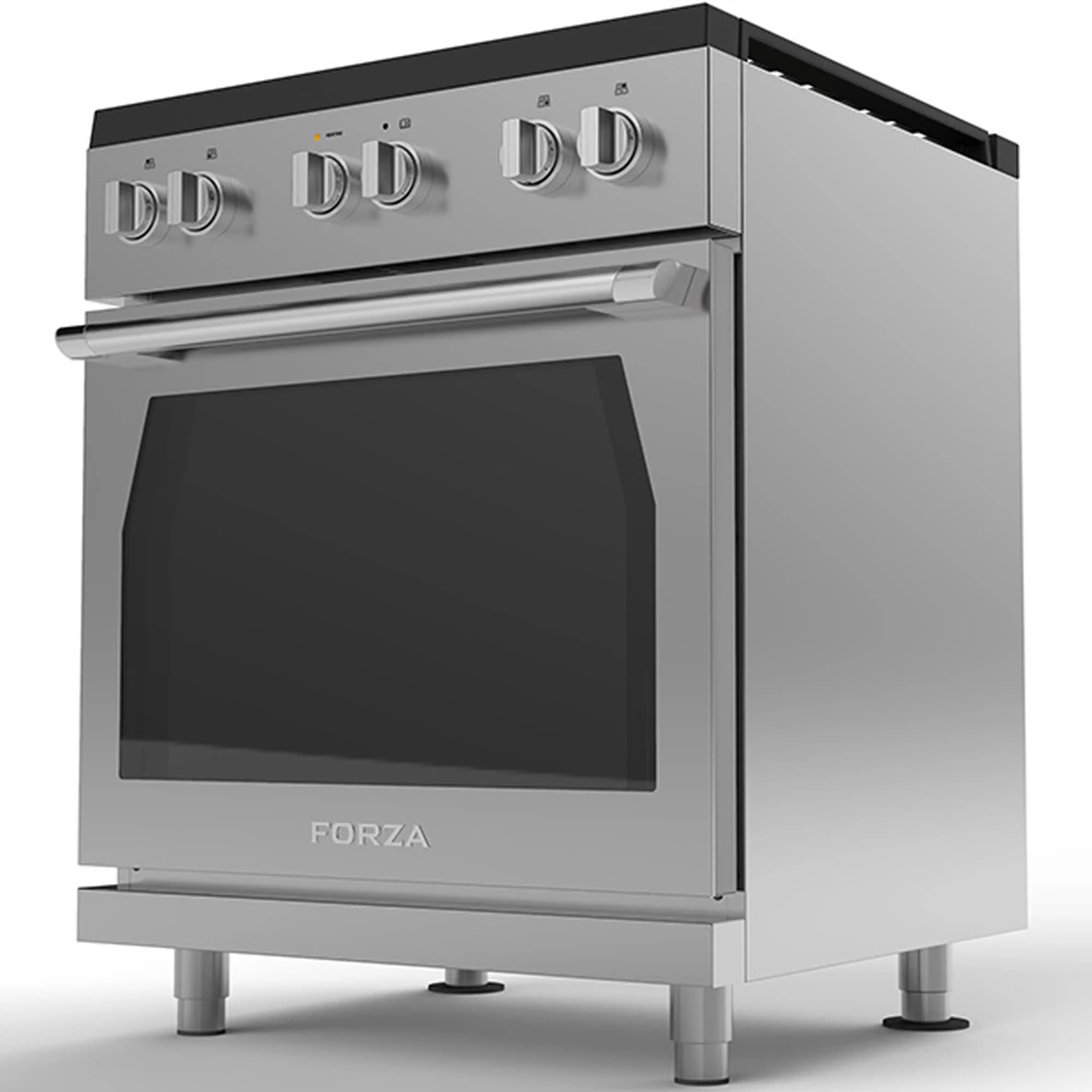

The Forza 30-inch Professional All Gas Range Special Edition it is radically designed with 4 high-powered burners including two dual-flame burners that range from 685 BTU to 20,000 BTU (1 with dual control) and two 12,000 BTU burners. Equipped with Forza’s proprietary MassimoBlu™ Hyper Broiler and the Infinito™ Grate System. Forza’s Professional Range Special Edition designed to fit perfectly flush alongside standard depth cabinets.
- Model No: FR304SE
- Dimensions: W 29 ¾ / H 37 ¼ - 38 ¼ / D 27 ½
- Finishes: Stainless Steel
- Fuel Type: Gas
Features

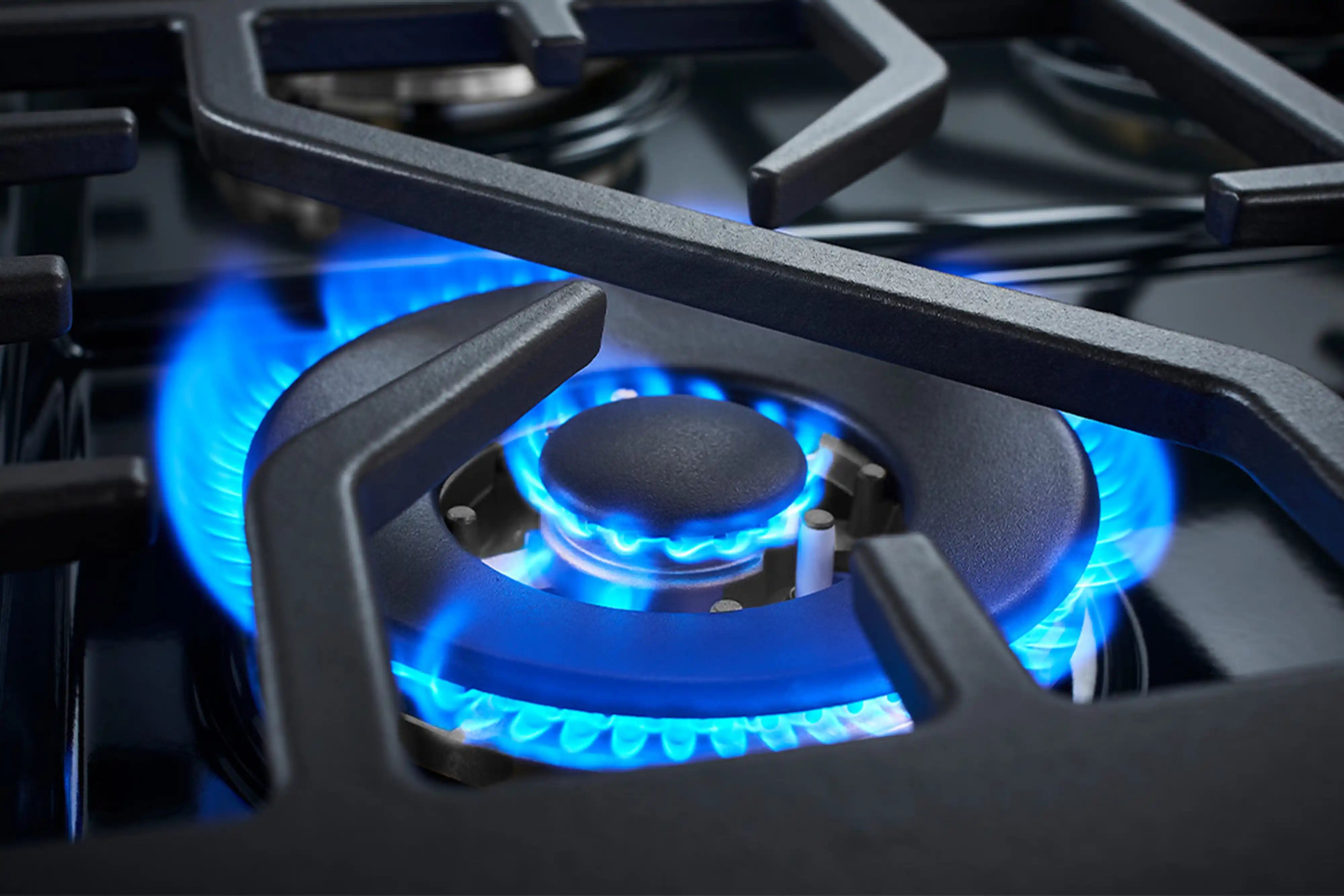

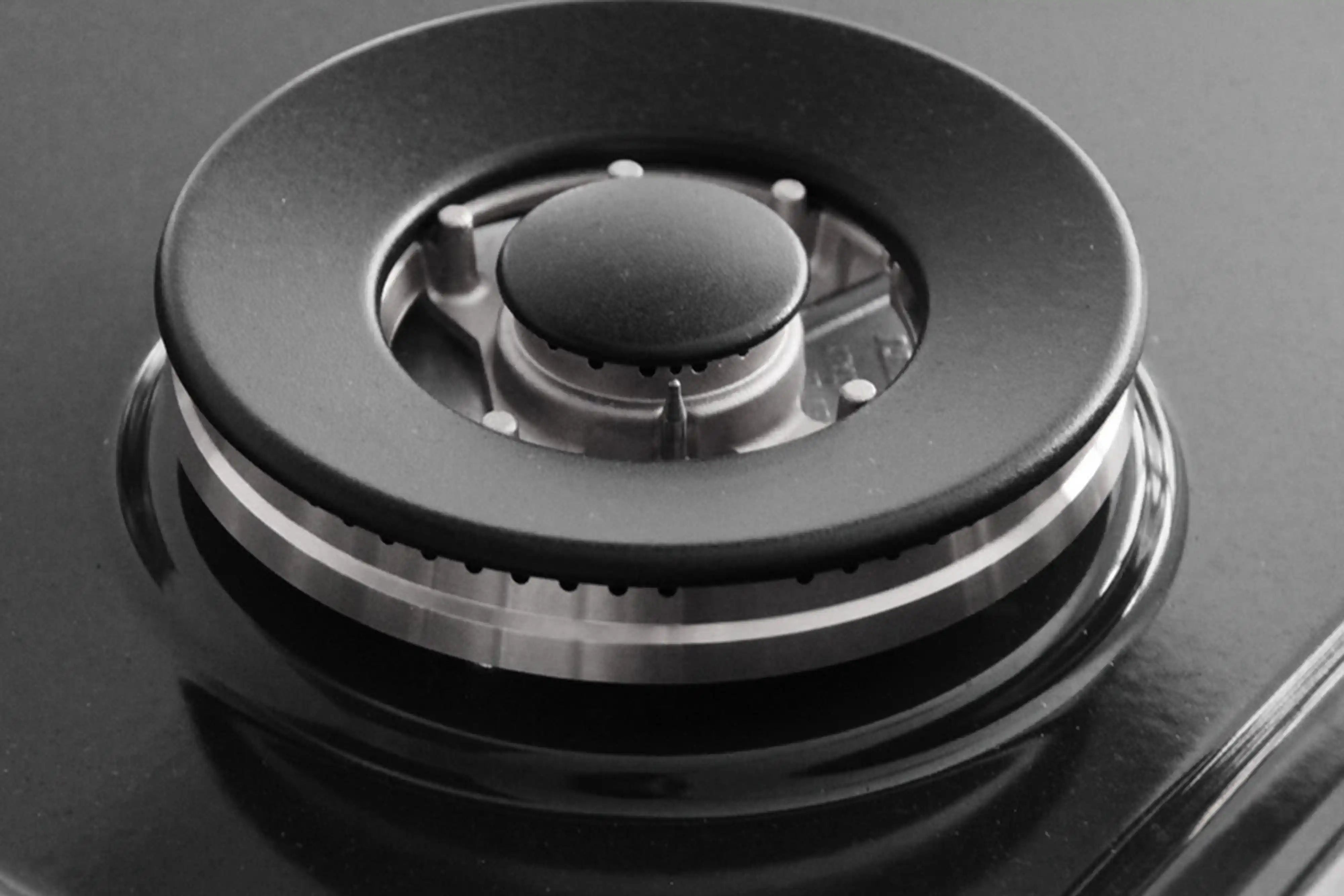

- High Power Dual-Flame Burners - With 4 high-powered burners including two dual-flame burners that range from 685 BTU to 20,000 BTU and two 12,000 BTU burners, this range gives you the precise heat control necessary to create masterful meals

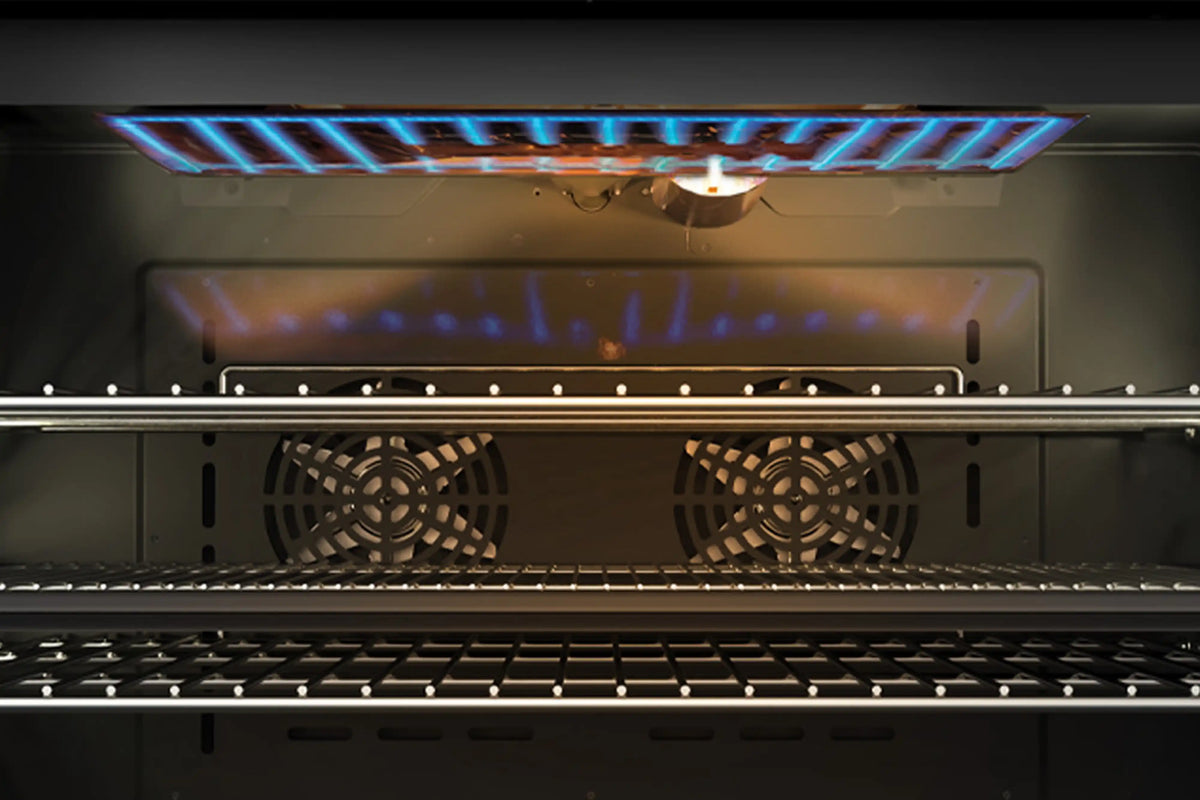

- MassimoBlu™ Hyper Broiler - Spanning the full width of the cavity, the blue flame of the 18,000 BTU Double Broiler outperforms traditional infrared broilers evenly distributing heat to give you consistent, top chef results
- Bake Burner -The 19,000 BTU bake burner gives you control to bake delicate breads and pastries and the power to roast your next holiday feast
- Dual Fan - The dual fan was designed to give you maximum convection and heat distribution while cooking, baking and heating your dishes

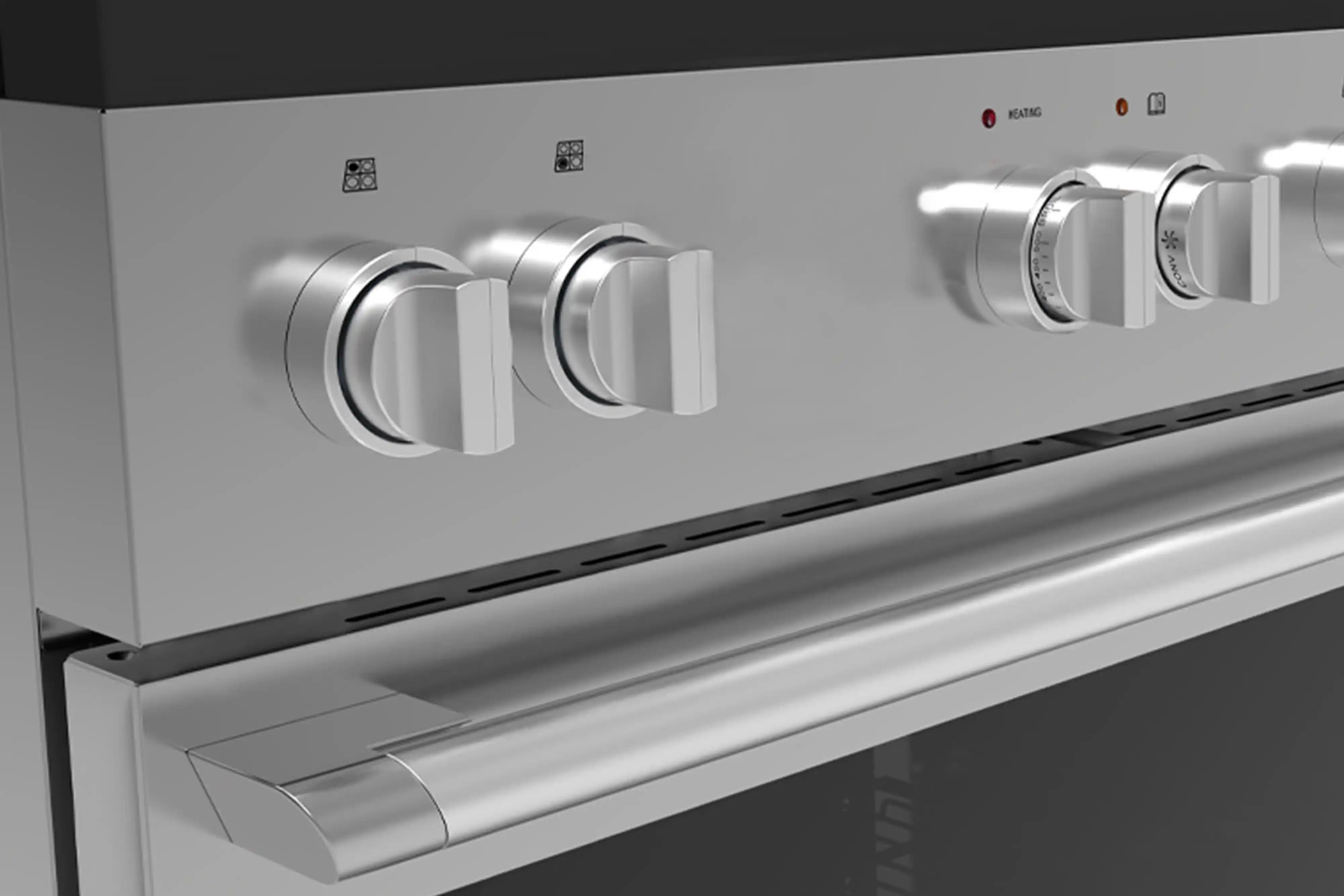

- Safe and Reliable - All burners are equipped with a one-hand ignition and a thermocouple safety device for reliability and safety
- Flat Minimal Design - The new design concept of the SE Forza professional ranges is born to perfectly match with the kitchen’s fornitures minimal style
- Large Oven Capacity - Boasting a 5.2 cu. ft. oven capacity, this range is capable of fitting commercial grade cooking trays for maximum cooking power

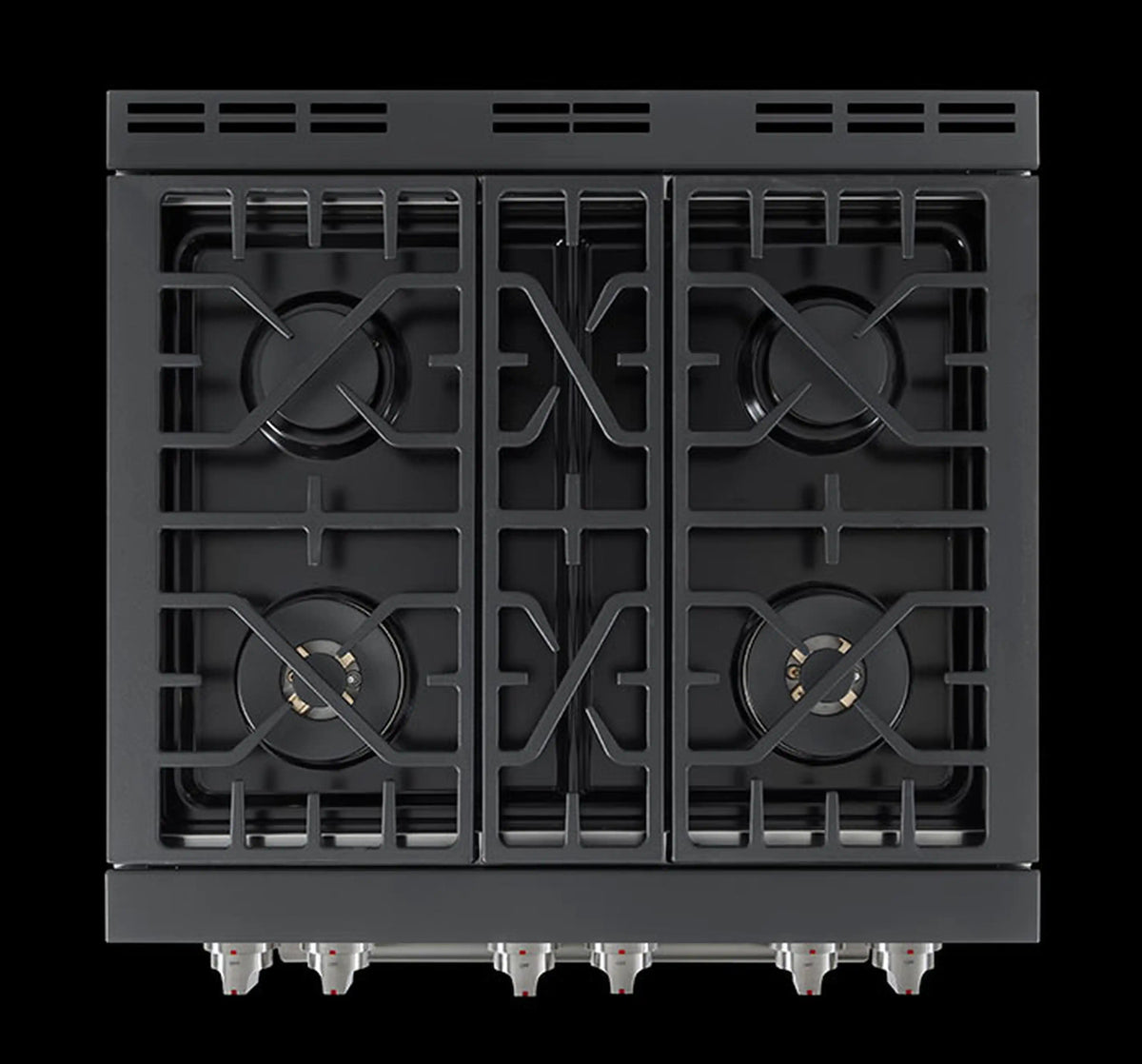

- Infinito™ Grate System - Radically designed with edge-to-edge cast iron grates and integrated bullnose, only Forza offers the largest continuous usable cooking surface for max efficiency while in the kitchen

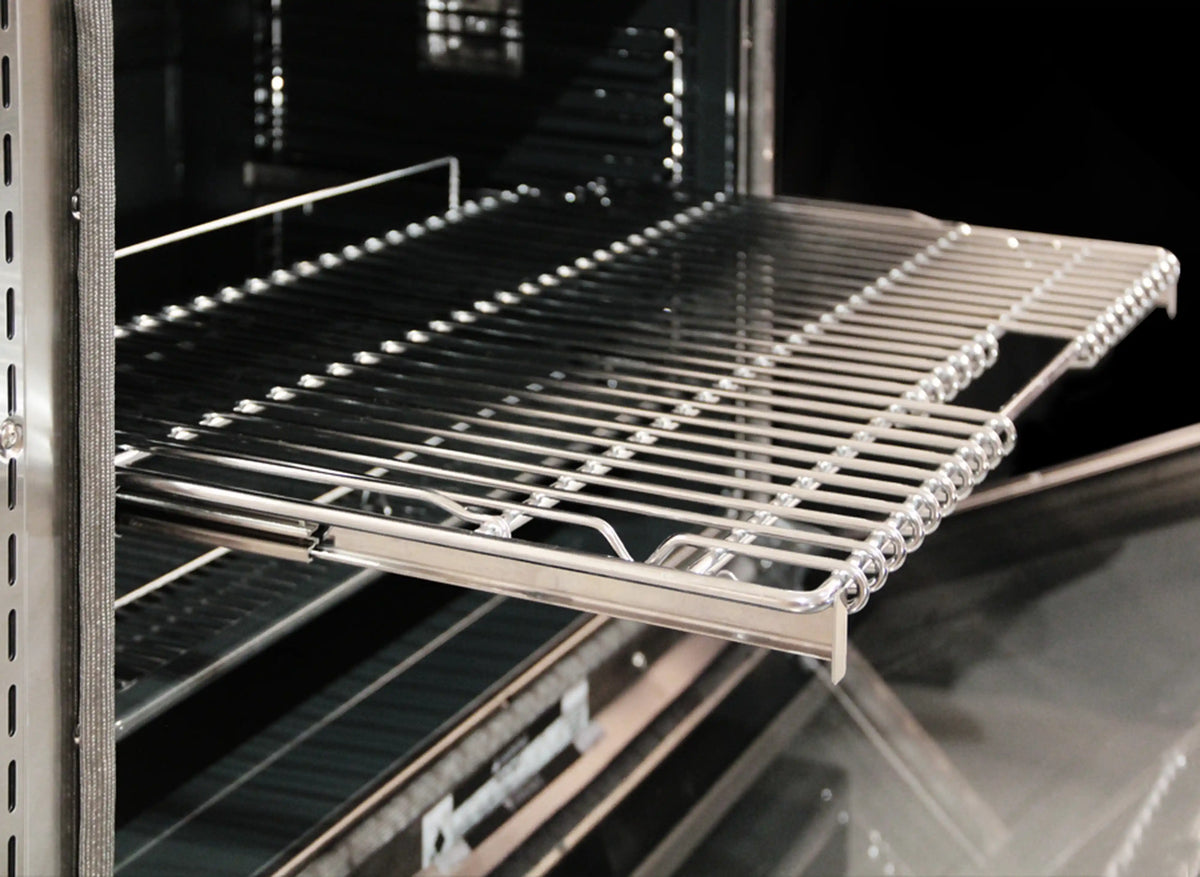

- Cooking Versatility - The oven is equipped with 6 rack levels and includes 2 wire shelves giving you the flexibility to customize the oven to your cooking needs
- Full Inner Glass Door - The uniquely shaped, full inner glass window is designed to be removed by hand for easy cleaning
- Black Porcelain Spill Tray - A luxurious touch for the range top that emphasizes the brass burners and makes cleanup simple
DIMENSIONS
- Dimensions
- 29 ¾" W x 37 ¼ – 38 ¼" H x 27 ½" D
GENERAL INFORMATION
- Brand
- Forza
- Wire shelves
- 2
- Baking tray
- 1 MassimoBlu™ broiler pan with Grill trivet (rack for broiling on tray
- Gas setting
- NG (4”)
- Conversion kit
- LP (11”)
- Product compliance
- UL (US&CAN)
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Dual control
- 2 Front dual flame burners (1 with Dual control)
- Cavity finishing
- FORZA Porcelain grey easy to clean
TECHNICAL DETAILS
- Voltage/frequency
- 120V / 60Hz
- Power W/Amps
- 600W / 5A
- Cable - Plug type
- 59 1/16” - 120V 3 prong (Nema 5-15P)
COOKTOP FEATURES
- Burners
- Left Front (BTU): 20K Dual Burner
- Left Rear (BTU): 12K Single Burner
- Right Front (BTU):20K Dual Burner (685 BTU Simmer Function)
- Right Rear (BTU):12K Single Burner
- Number of Gas Burners
- 4 aluminum burners
- Power Burners
- Front 2 x 20,000 / 685 BTU - Rear 2 x 12,000 / 2,200 BTU
- Simmering power
- 685 BTU
- Cast iron pan supports
- Continuous Infinito™ Grate System with integrated bull nose
- Cooktop safety system
- Thermocouple system device
- Cooktop ignition system
- Electronic one hand ignition
- Oven ignition system
- Hotsurface ignitor with electrovalve gas system
- Bake burner
- 19,000 BTU
OVEN FEATURES
- Oven Capacity
- 5.2 cu. ft.
- Oven type
- Convection gas oven with double fan and MassimoBlu™ Hyper Broiler
- Cooking Functions
- Bake - Broil - Convection Bake
- Rack positions/levels
- 6
- Oven light
- 2 lateral halogen lamps
- Oven door
- Tempered edge to edge triple glass
- Removable inner glass
- Yes
- Oven overall capacity
- 5.20 ft3
- MassimoBlu™ Broiler
- Hyper - 9,000 BTU
WARRANTY & CERTIFICATIONS
- Warranty
- 2 years parts & labor
Piece 2 of 3 — RANGE HOOD

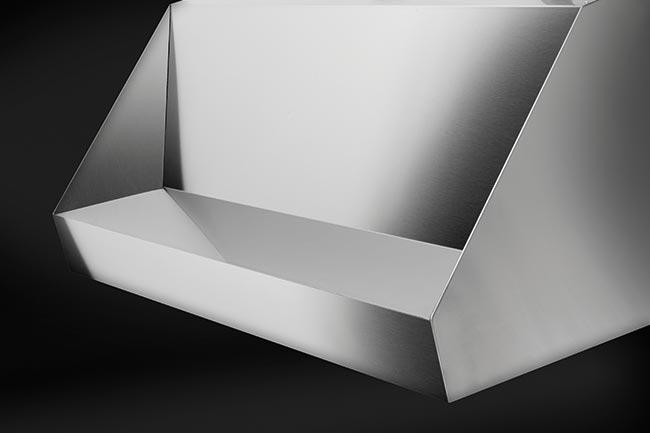

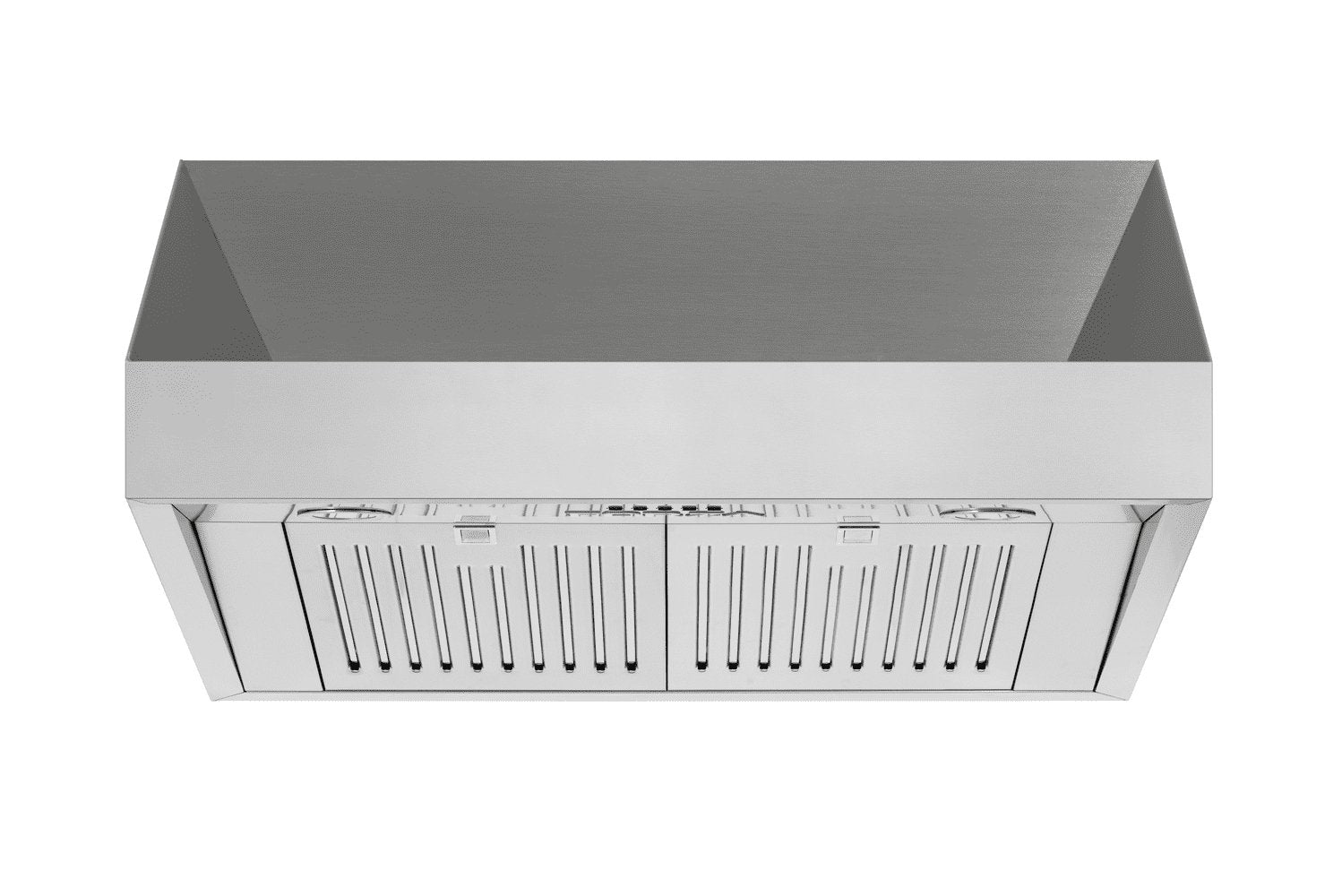

600 CFM, two baffle SS filters, push electronic button controls and LED lighting. Under Cabinet Design. Available at Home Outlet Direct.
-
Model No: FH3018
-
Dimensions: W 30” / H 18” / D 24”
-
Finishes: Stainless Steel
- Install Type: Pro Style Wall
Features
-
FILTERS: 2 x Stainless Steel Baffle Filters
-
LIGHTING: 2 x 2W LED Lights
-
AIR OUTLET: Adjustable Top or Back Outlets
- CONTROLS: White Retro-Illuminated Square Push Buttons
-
SPEEDS: 3 speed fan + Booster
- SUCTION POWER: 600 CFM
DIMENSIONS
- Dimensions
- W: 30”, H: 18”, D: 24”
GENERAL INFORMATION
- Brand
- Forza
- Mount Type
- Pro Style Wall
DESIGN & FINISH
- Controls
- Square push buttons - white retrolluminated
TECHNICAL DETAILS
- Voltage
- 120 V / 60 Hz
- Suction power
- 600 cfm
- Suction power (free delivery)
- 1000 m3/h
- Number of blowers / code type
- 1 - T7
- Speeds
- 3 + booster
- Maximum power
- 354W
- Motor power
- 350W
FEATURES
- Aspiration system
- Ducted out
- Booster
- Yes
- Lighting
- 2 x 2W LED
- Grease filters
- 2 x SS Baffle filters
- Air outlet size
- Ø150 mm - 6” (top or back exit available)
- Plug
- Yes - 3 prong
- Cable length
- 59 1/16”
- Languages
- EN - FR - ES
WARRANTY & CERTIFICATIONS
- Warranty
- 2 Years - Parts & Labor

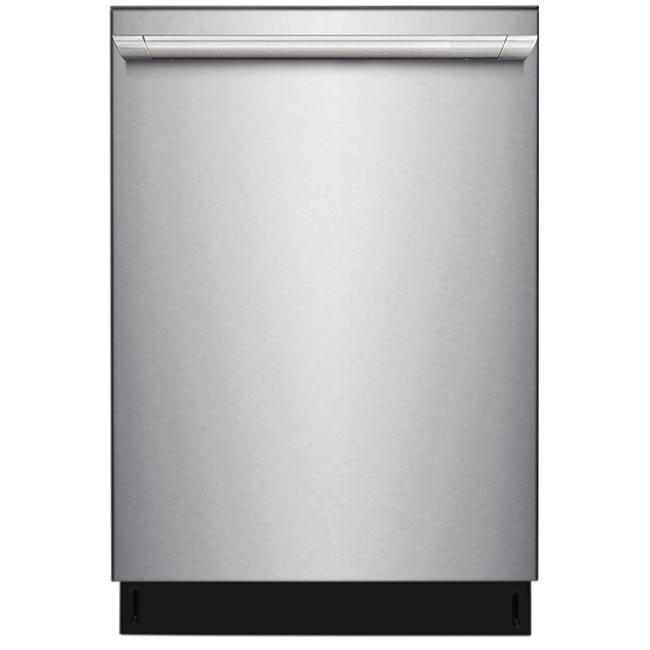

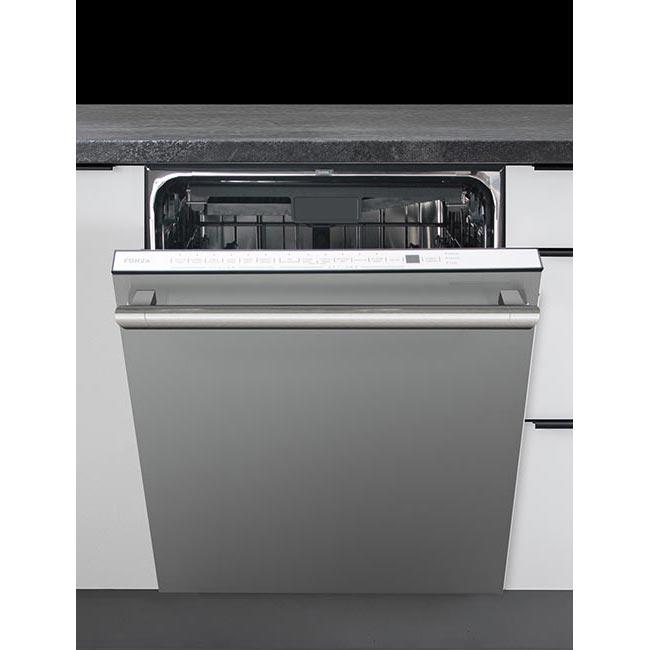

16 settings, 45 dB(A), six washing programs, extra power program washing for heavy soiled pots and pans and low energy consumption. Available at home outlet direct.
- Model No: FD24DI
- Dimensions: W 23 55/64” / H 33 55/64” / D 26 29/64”
- Finishes: Stainless Steel
- Install Type: Built-in tall tub
Features
- CLEANING: Self-cleaning microfilter

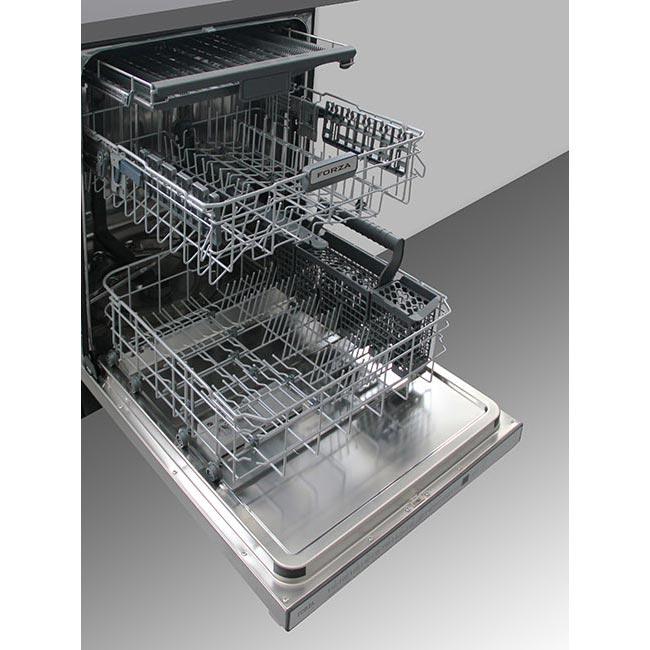

- THREE RACK SYSTEM: Three baskets with collapsible plate racks
- FINISHES: Stainless steel panel installed
- ELECTRONIC CONTROL PANEL: Touch Control LED Display
- QUIET WASH CYCLES: 45 dBA
- 6 WASHING PROGRAMS: Pots & pans, normal wash, China crystal, quick wash, rinse only, energy saver
- DRYING: Double drying system grants you best and consistent result on every cycle.
DIMENSIONS
- Dimensions
- W: 2355/64”
- H: 3355/64”
- D: 2629/64”
- Height adjustable upper basket when loaded
- Yes
- Net weight
- 90 lb
- Gross weight
- 94 lb
GENERAL INFORMATION
- Brand
- Forza
- Mount Type
- Built-in tall tub
- Type of display
- LED display
DESIGN & FINISH
- Stainless steel interior
- Yes
- Type of control
- Touch control
- Control panel
- Touch control/LED display
TECHNICAL DETAILS
- Voltage
- 120 V / 60 Hz
- Annual energy consumption
- 249 kWh
- Noise level
- 45 dBA
FEATURES
- Nr# of settings
- 16
- Type of drying
- Double drying (heating + fan drying)
- Nº of programs
- 6(pots & pans, normal wash, China crystal, quick wash, rinse only, energy saver)
- Indicator of end of the cycle
- Yes
- Indicator of time remaining
- Yes
- Internal light
- LED
- Anti leak device
- Yes
- Anti flood device
- Yes
- Delay timer
- Up to 24 hours
- Audible signal at the end of the cycle
- Yes
- Top sprayer
- Yes
- Children security
- Yes
- Stainless steel microfilte
- Yes
- Self cleaning microfilter
- Yes
- Adjustable feet
- Yes
- Number of baskets
- 3
- Number of handle on baskets
- 1 on middle basket
- Cup support number
- 2
- Colour of the basket
- Grey
- Colour of cutlery basket
- Grey
- Colour of dispenser
- Grey
- Collapsable plate-racks
- Yes
WARRANTY & CERTIFICATIONS
- Energy Star Certified
- Yes
- Warranty
- 2 Years - Parts & Labor
