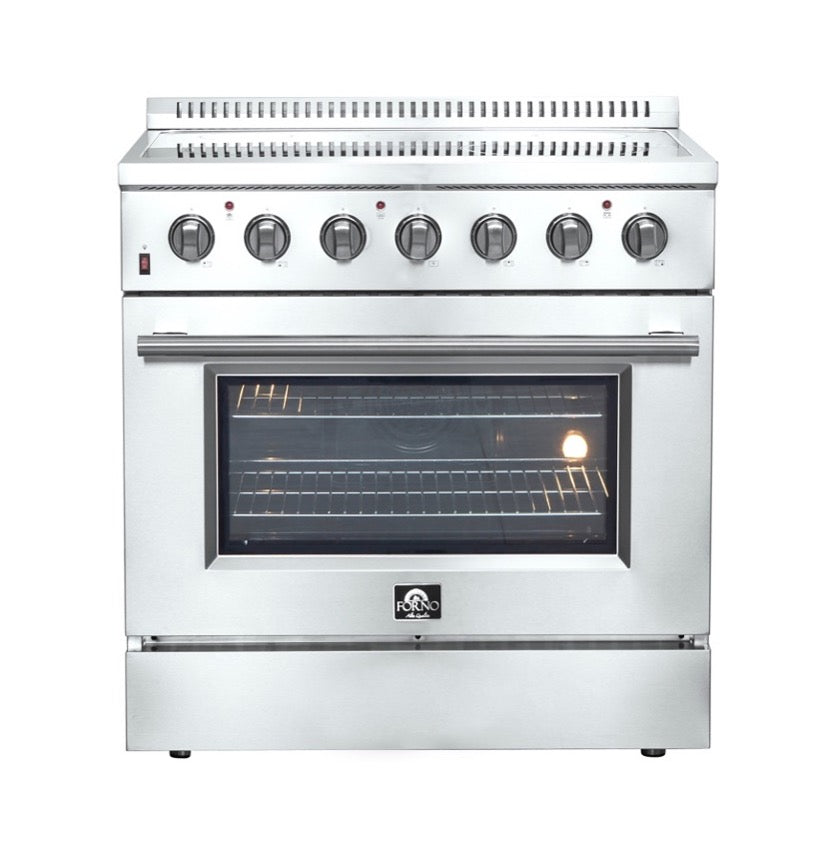

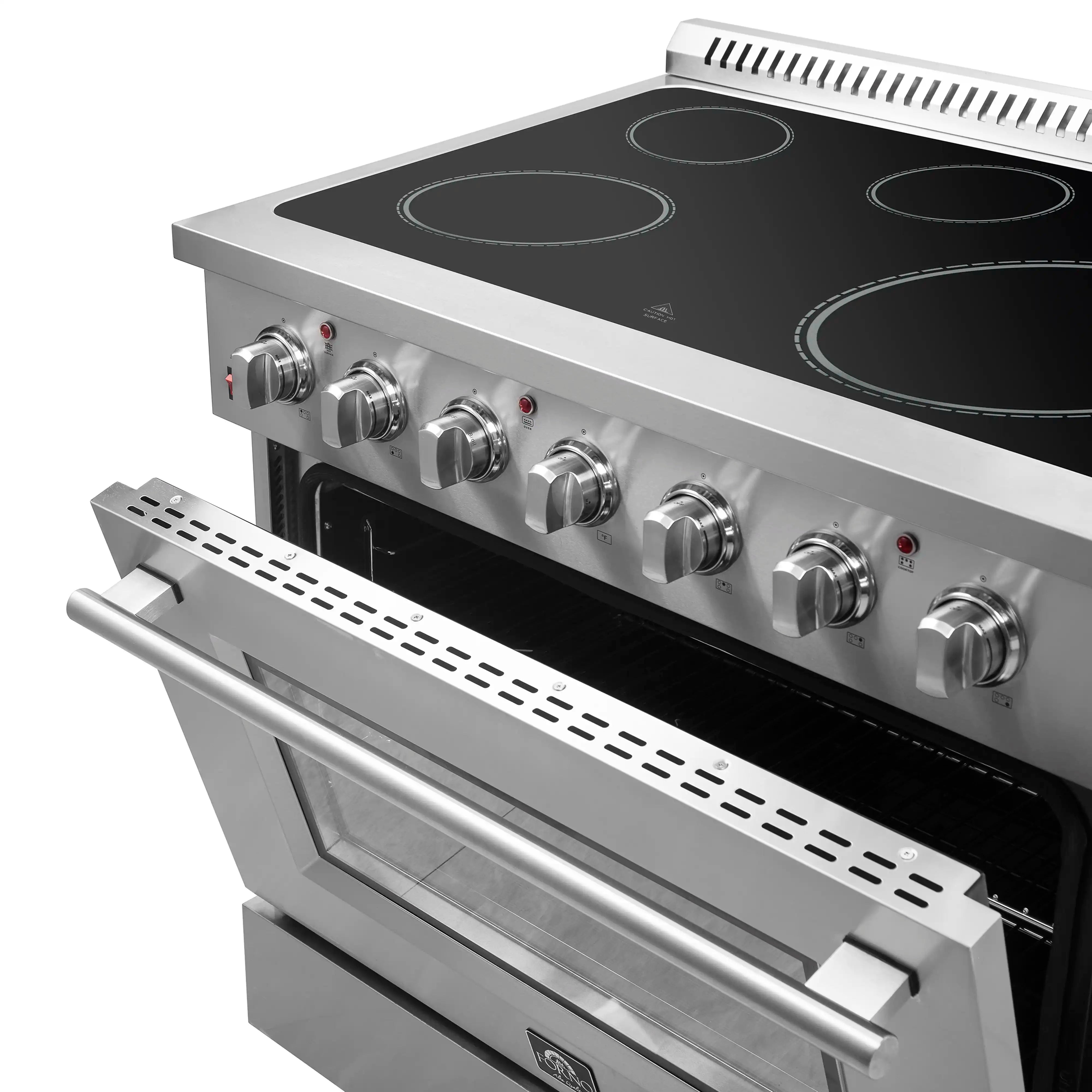

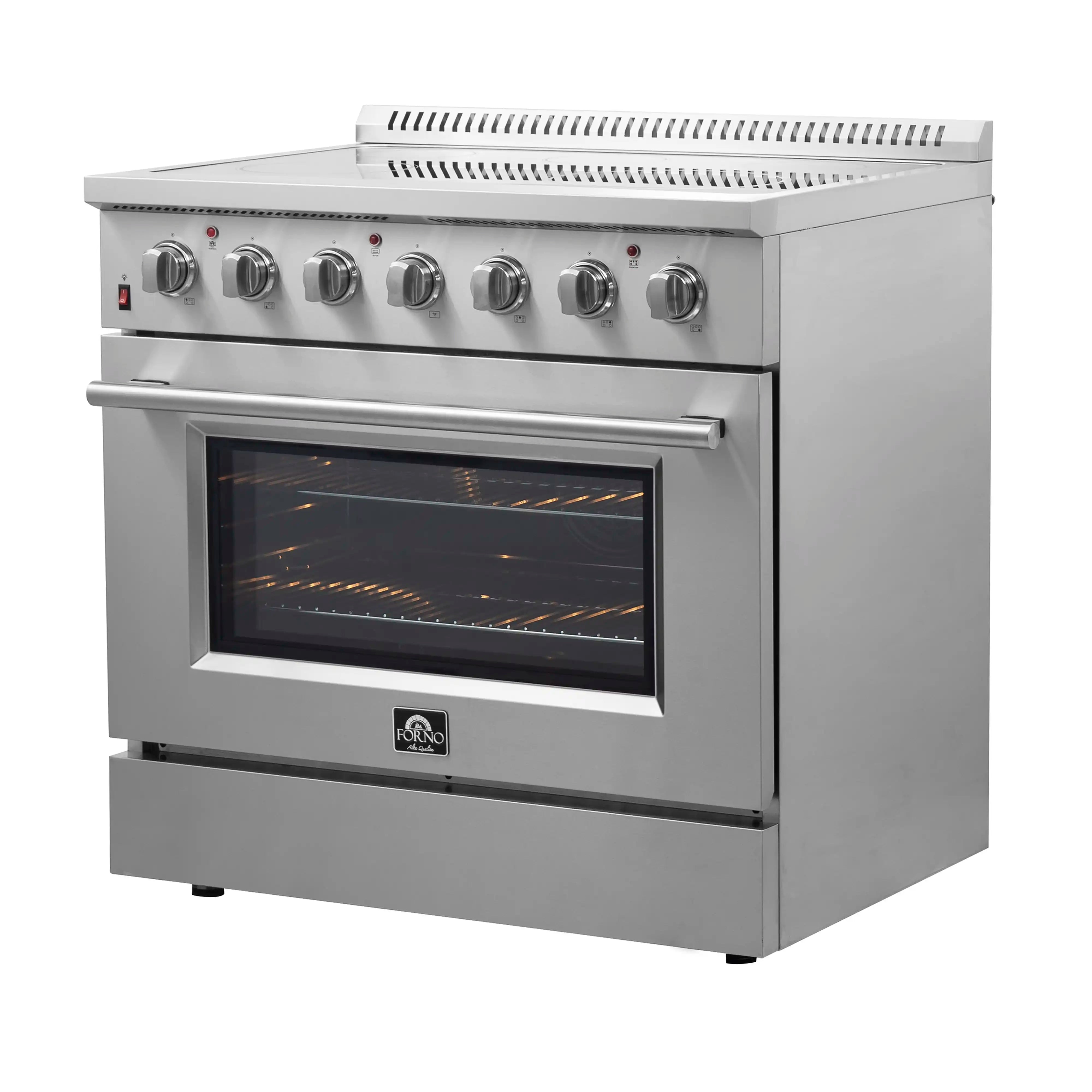

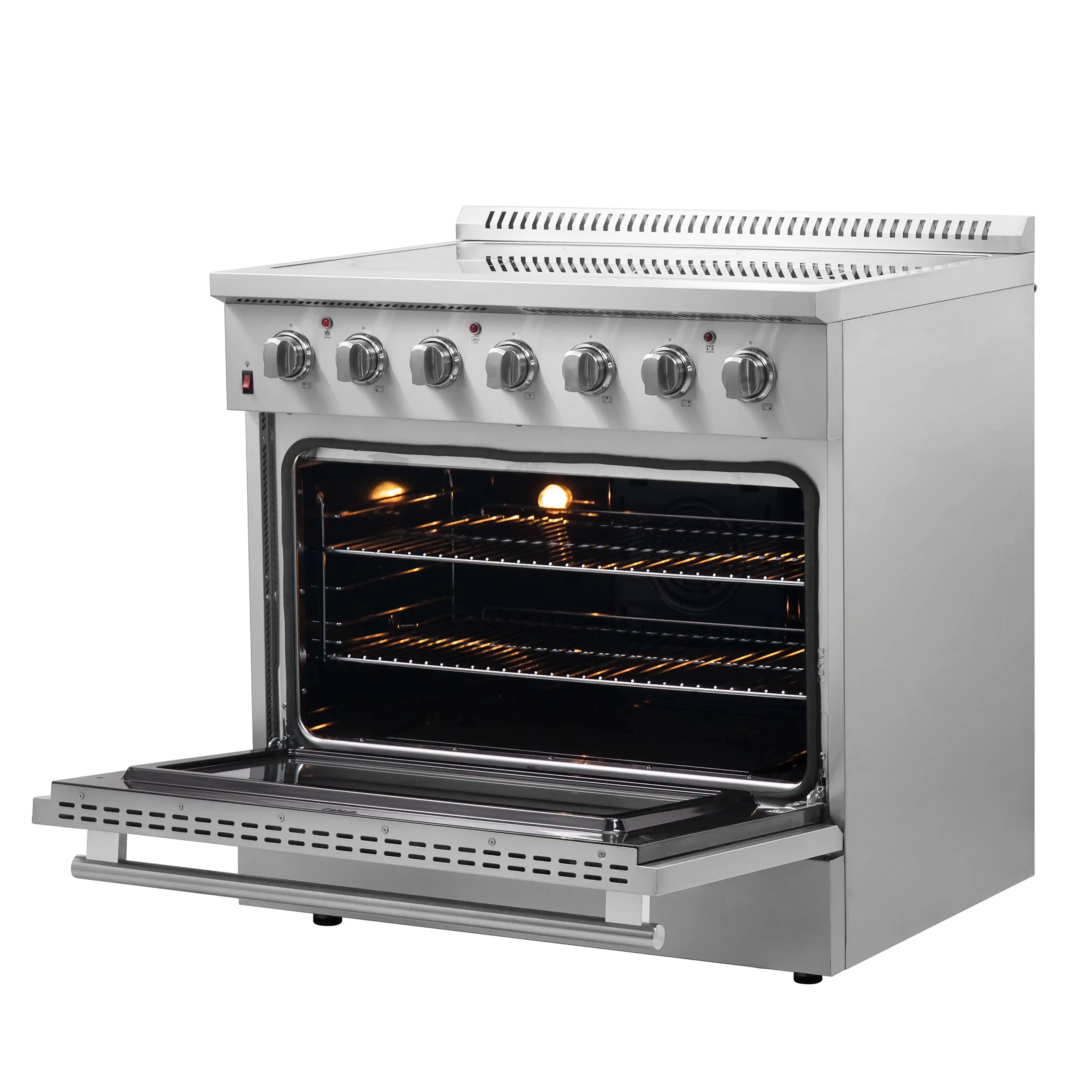

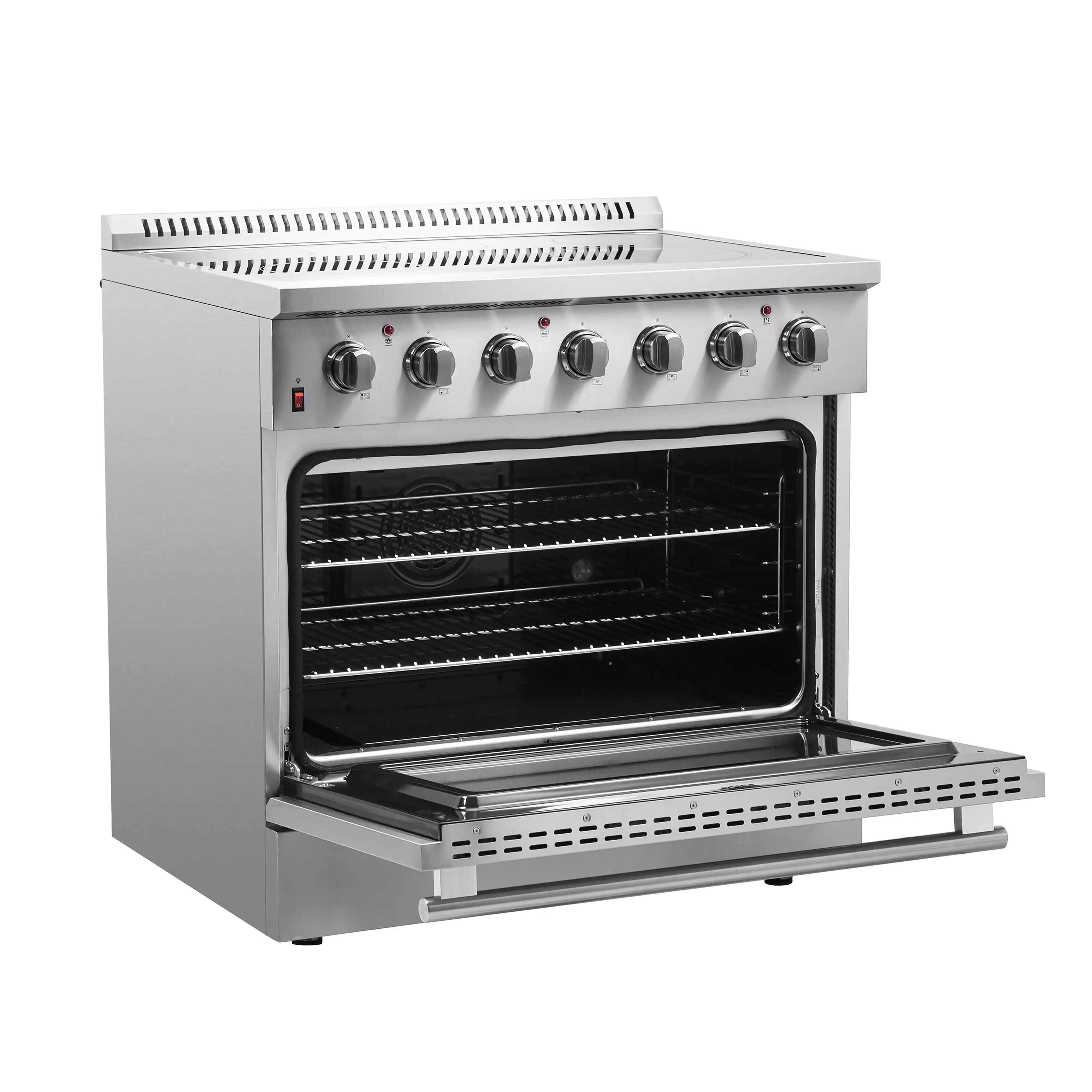

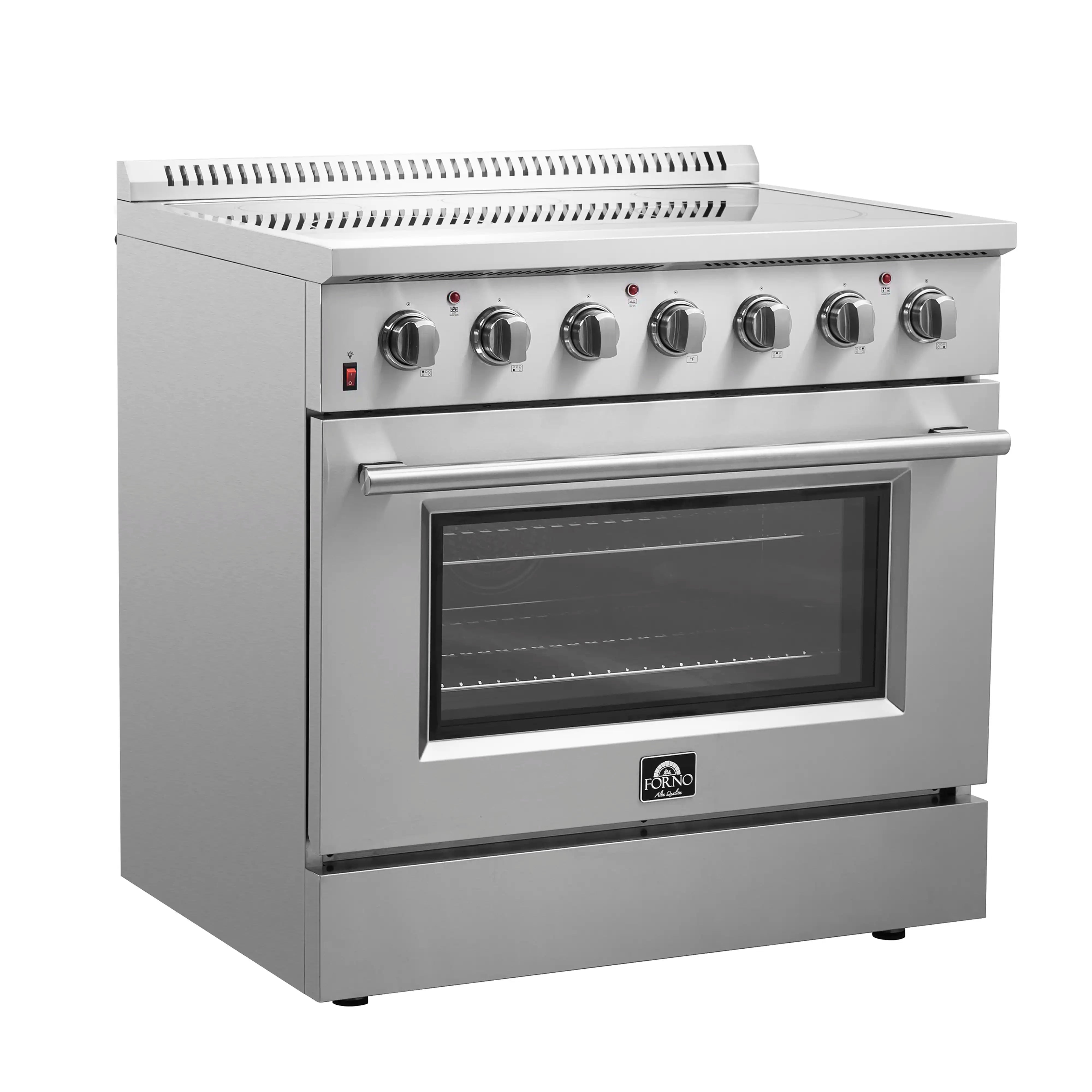

Experience the ultimate in kitchen appliance design with a Pro-Style Handle and Zinc Coated Metal Control Knobs adorned with elegant bezels. This appliance boasts a sleek and durable aesthetic, featuring stainless-steel panels that not only look stunning but also stand up to the test of time. The Adjustable Stainless Steel Legs provide versatility, accommodating various counter heights within the range of 35.5” to 36.5”
Features:
|
Weight & Dimensions |
|
|
Overall Dimensions
|
36” W x 27.30” D x 38” H |
|
Adjustable Counter Height
|
35.5” to 36.5" H |
|

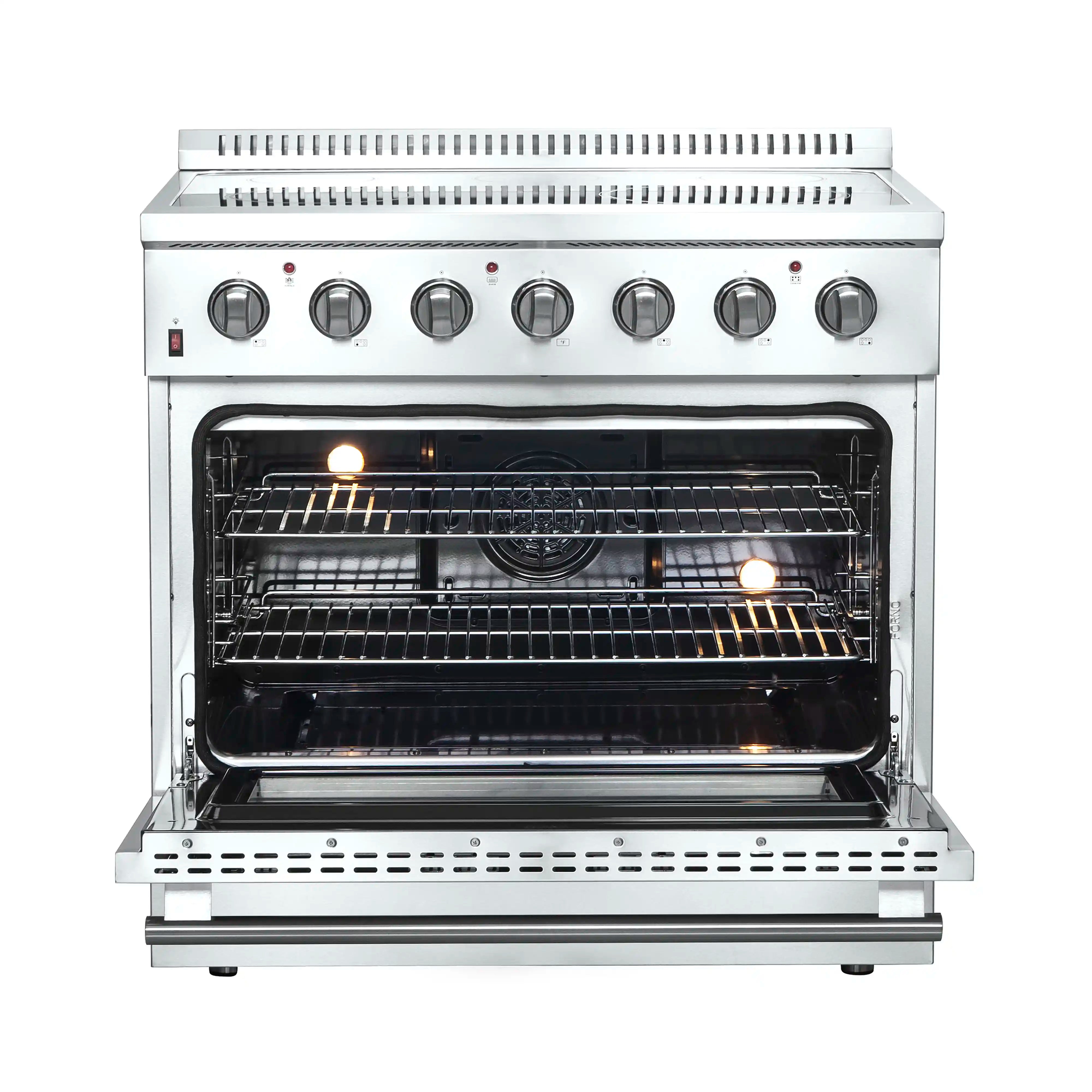

Oven Door Open 90º
|
44.25" |
|
Oven Interior Dimensions
|
30.92'' W x 18.7'' D x 16'' H |
|
Overall Weight
|
297.62 lbs |
Electrical |
|
|
Amperage
|
50 A |
|
Volts
|
240 V |
|
Wattage
|
6,300 W |

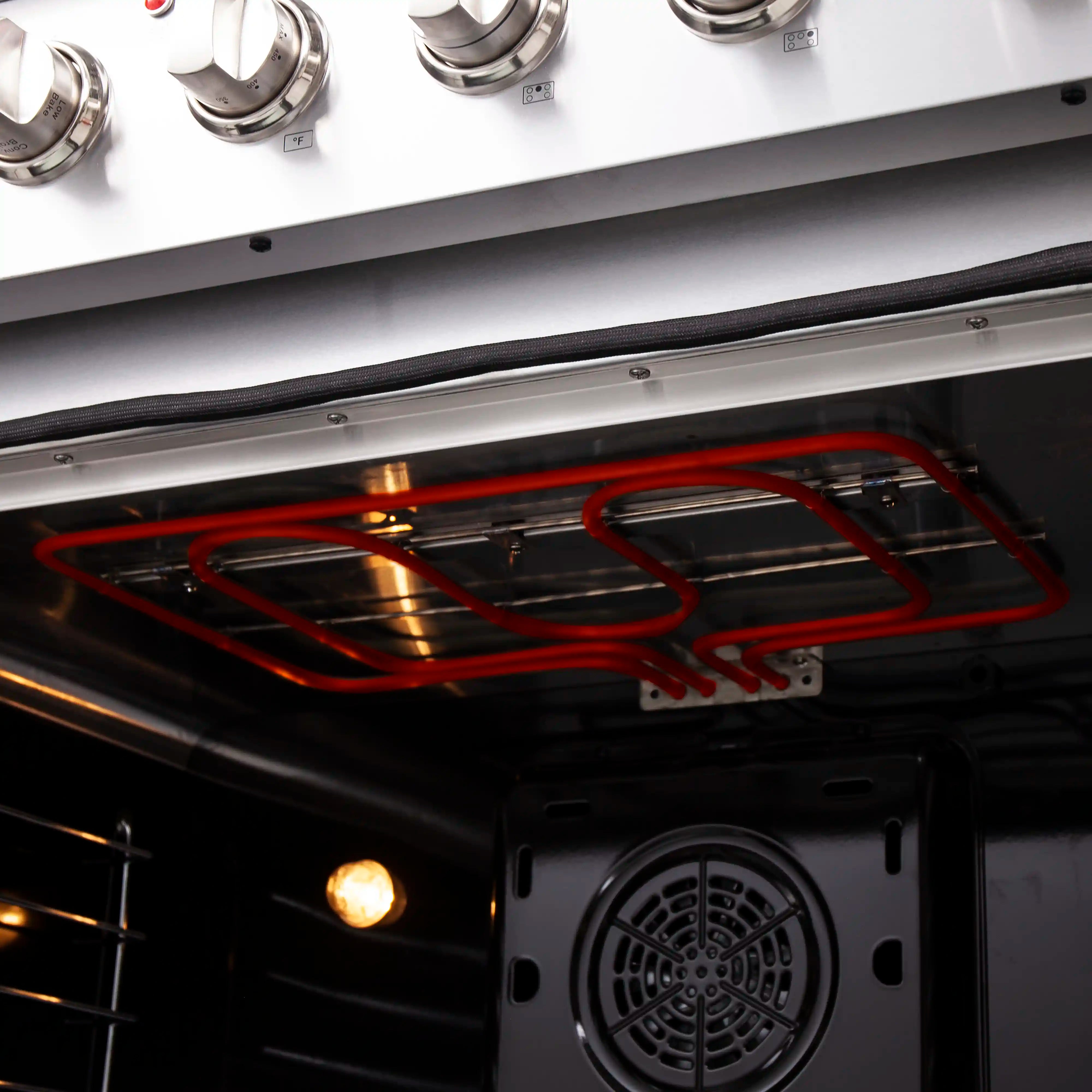

| Oven 1 inside Broil Wattage | 1000 |
| Oven 1 Outside Broil Wattage | 1800 |
| Oven 1 Bake Wattage | 2000 |
| Oven 1 True Convection Wattage | 1500 |
|
Power Cord Length
|
5' |
|
Receptacle Type
|
4-Prong Grounded |
|

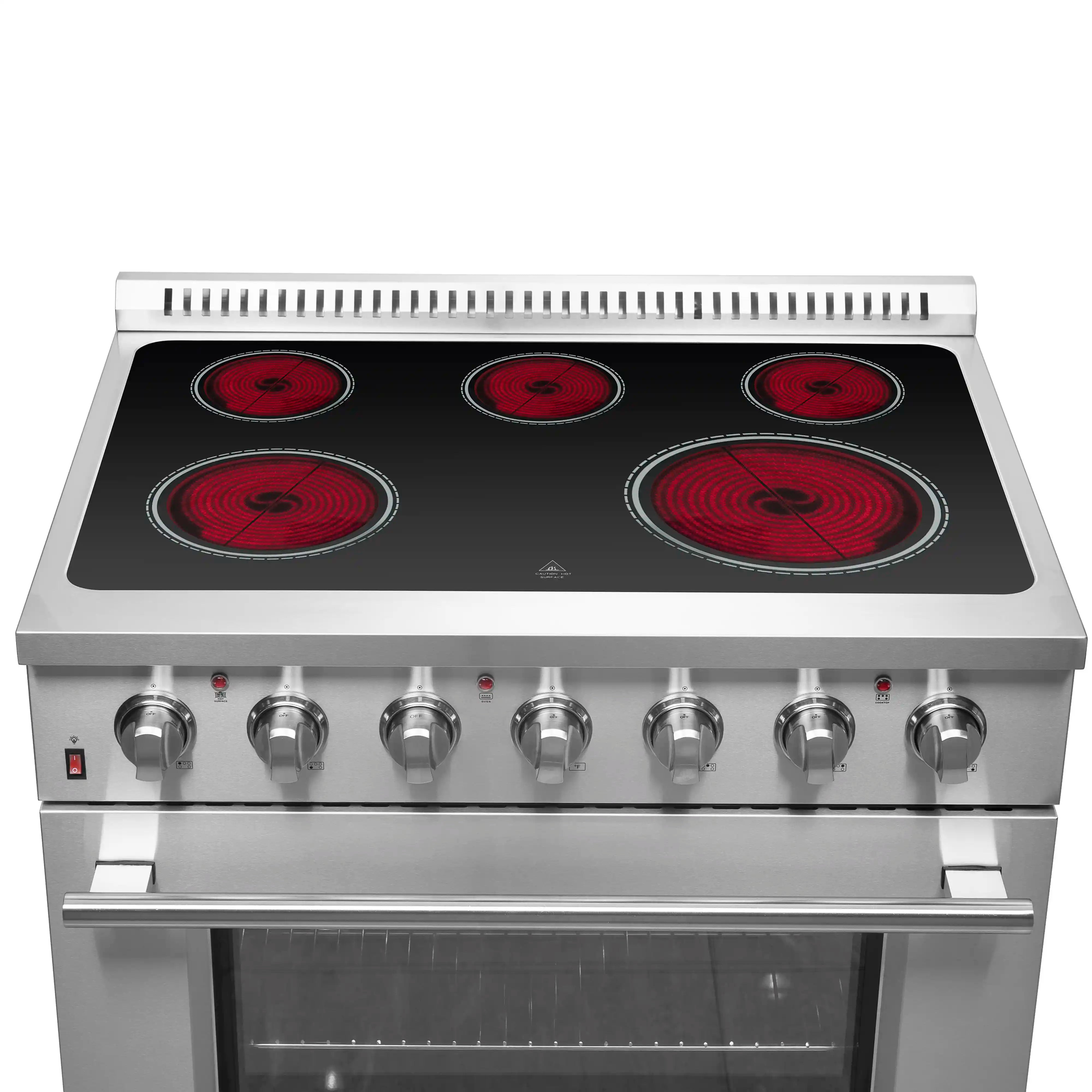

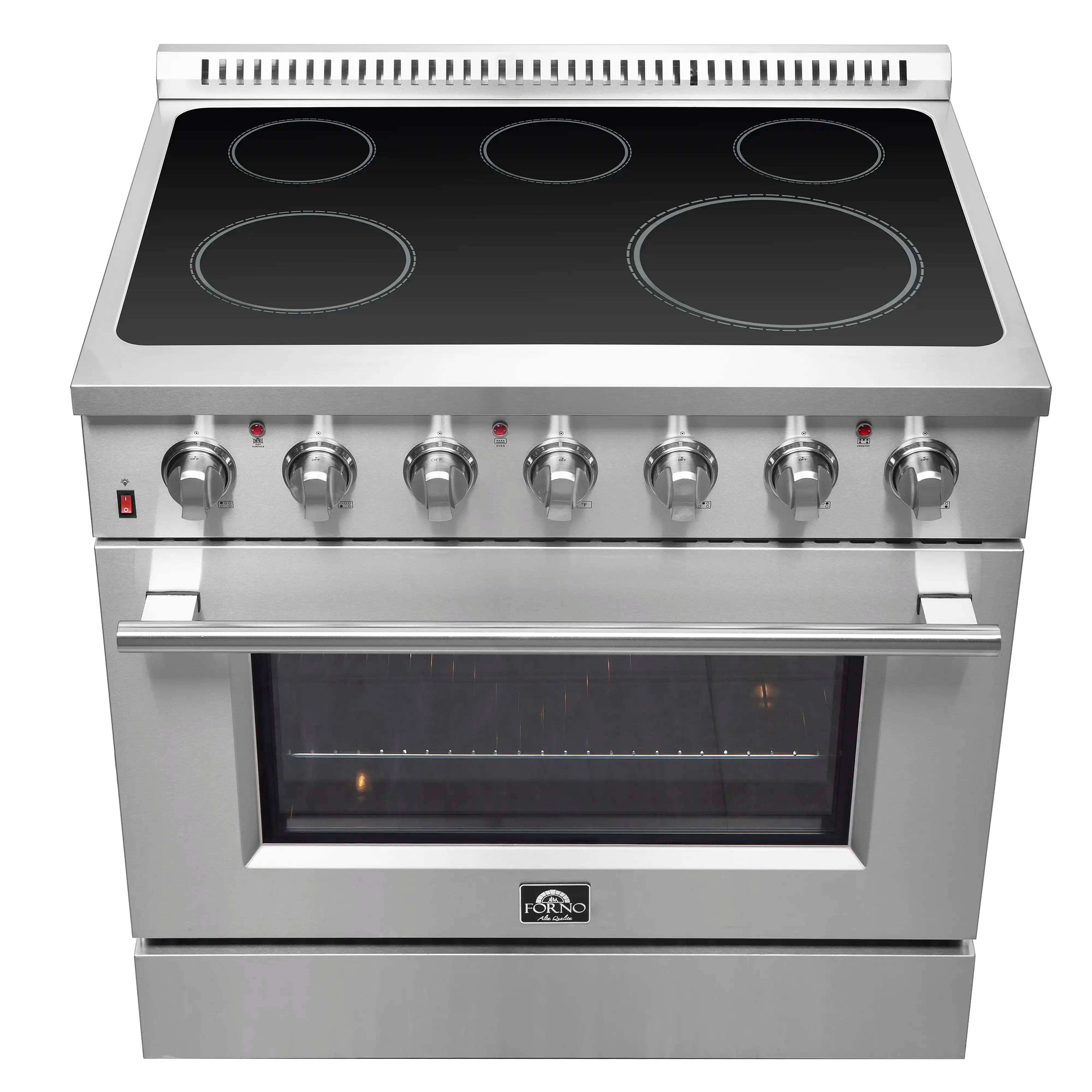

Cooktop |
|
| Total Stovetop BTU / Watts | 7700 W |
| Front Right | 12" Round Element 3,000 Watts |
| Front Left | 9" Round Element 2,200 Watts |
|
Rear Right |
6" Round Element 1,200 Watts |
| Rear Center | 6" Round Element 100 Watts |
| Rear Left | 6" Round Element 1200 Watts |
| Number of Knob | 7 |
| Switches | 1 + 0 |
|
Oven |
|
| Overall Oven Capacity | 5.36 Cubic Feet |
| Convection Fan | Yes |
Certifications |
|
| ETL Listed | Yes |
Details |
|
| Product Type | Freestanding |
| Color/Finish | Stainless Steel |
| Fuel Type | Electric |
| Gas Type | Electric |
| Gas Heat Configuration | Radiant |
| Number of Burners | 5 |
| Cooktop Surface | Ceramic Glass |
| Cooktop Gravity | Top Plate |
| Number of Ovens | 1 |

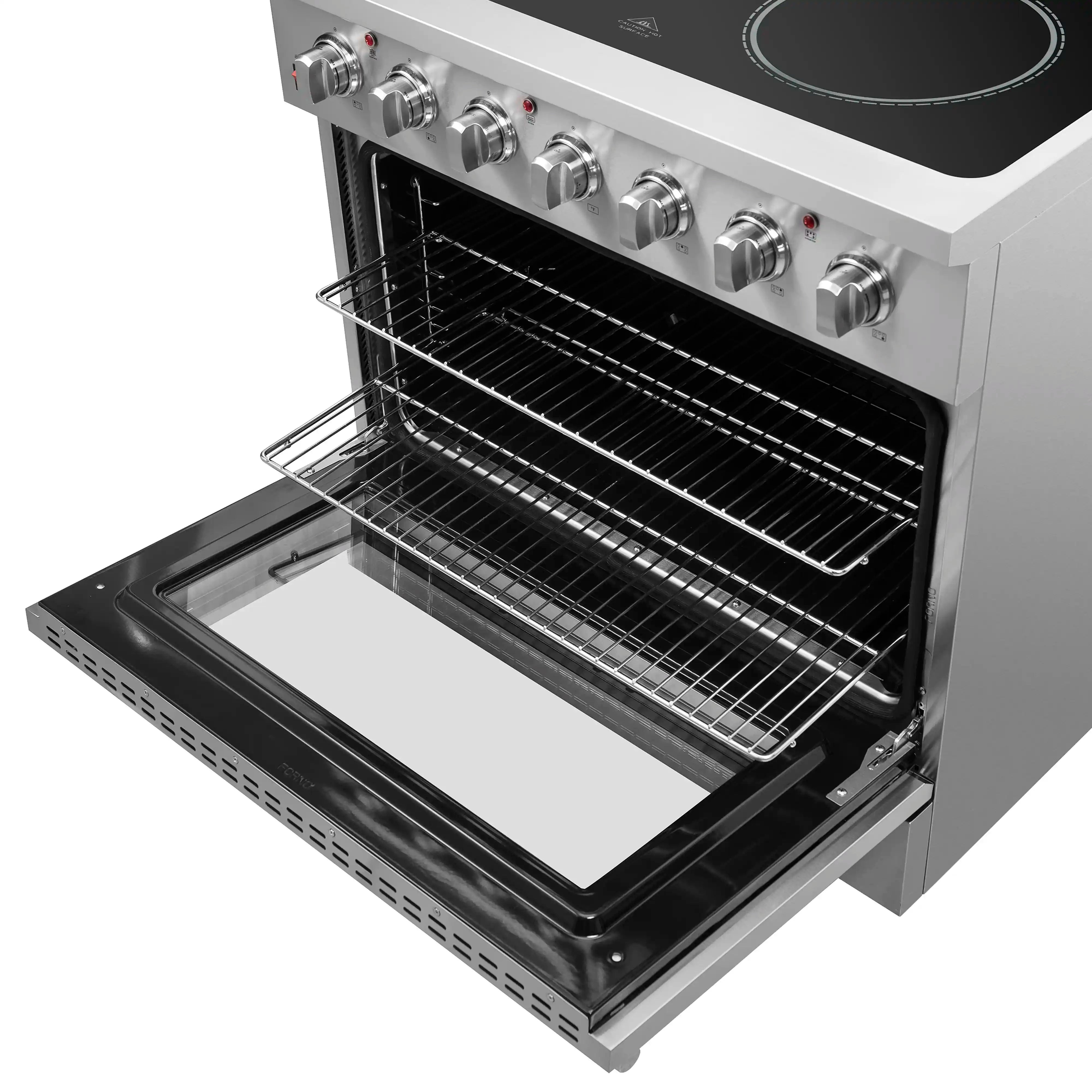

| Number of Racks | 2 |
| Number of Rack Positions | 4 |
| Broiler | Electric |
| Bake Element | Electric |
| Cleaning Type | Manual |
| Cooking Process | Radiant Heat |
| Interior Light | 2 |
| Control Type | Knob |
| Control Location | Front |
| Black Enamel Oven Interior | Yes |
| Primary Material | Metal |
| Door Panel Material | Stainless Steel |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| Wok-Ring | No |
| Reversible Grill/Griddle | No |
| Air Fryer Kit | No |
| Rotisserie Kit | No |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

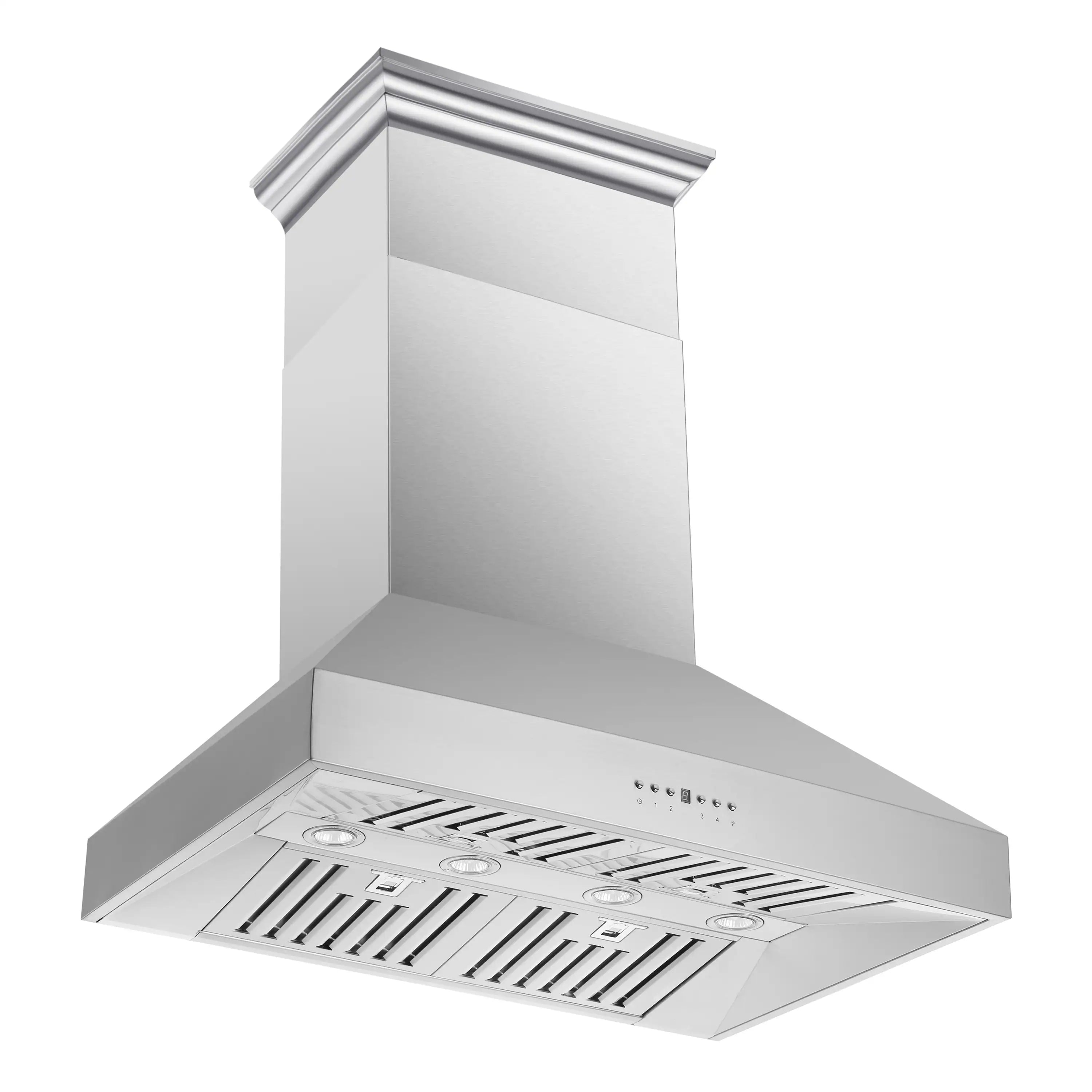

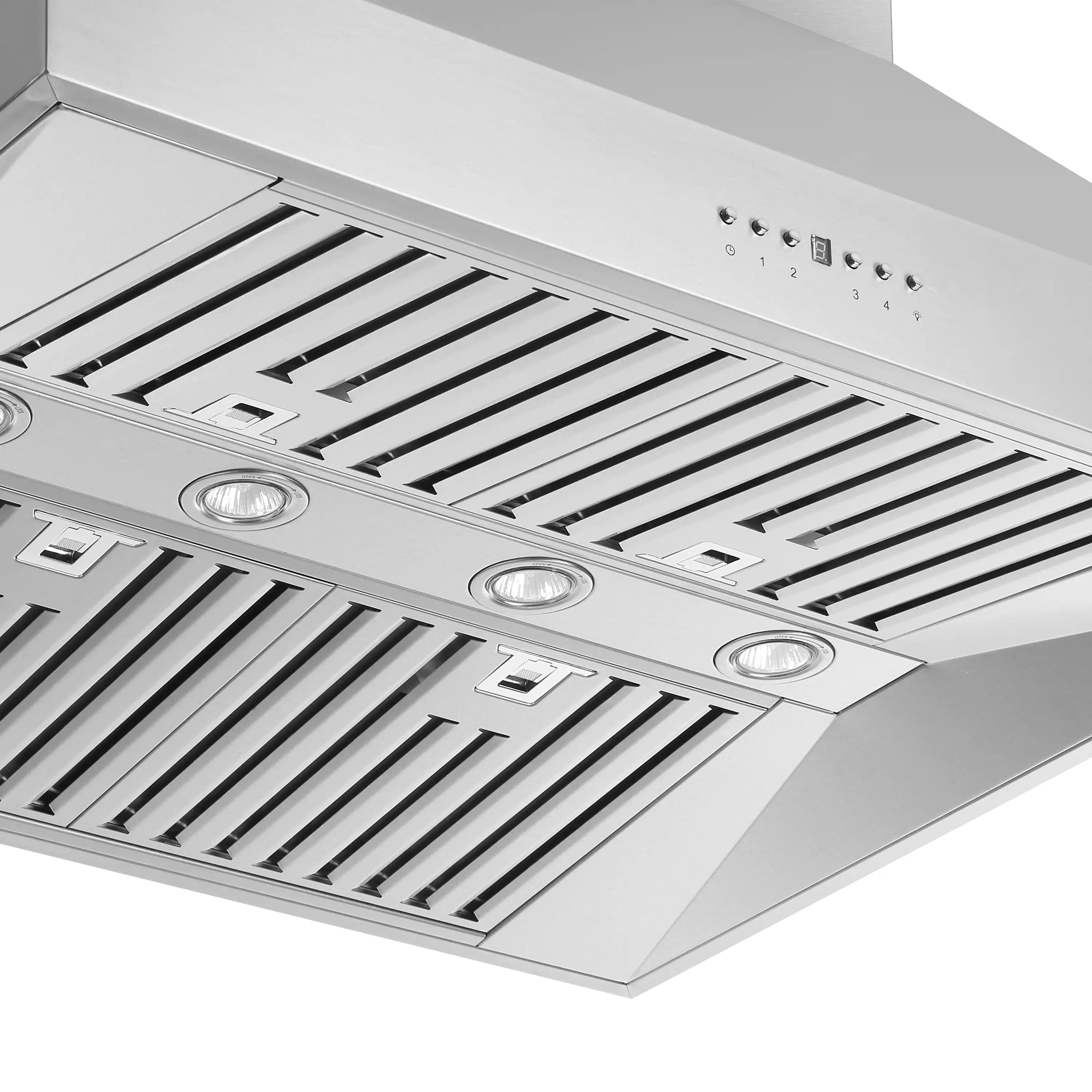

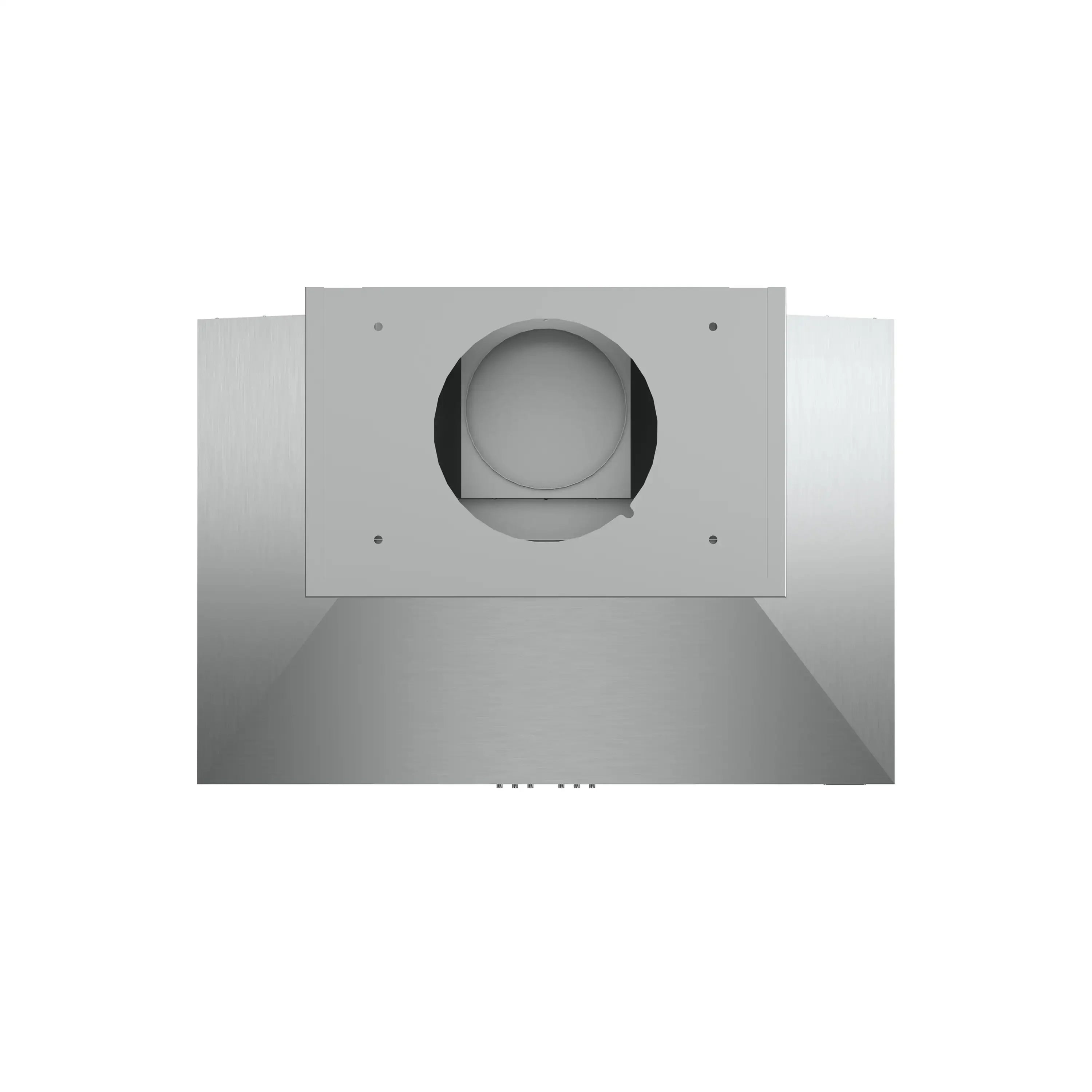

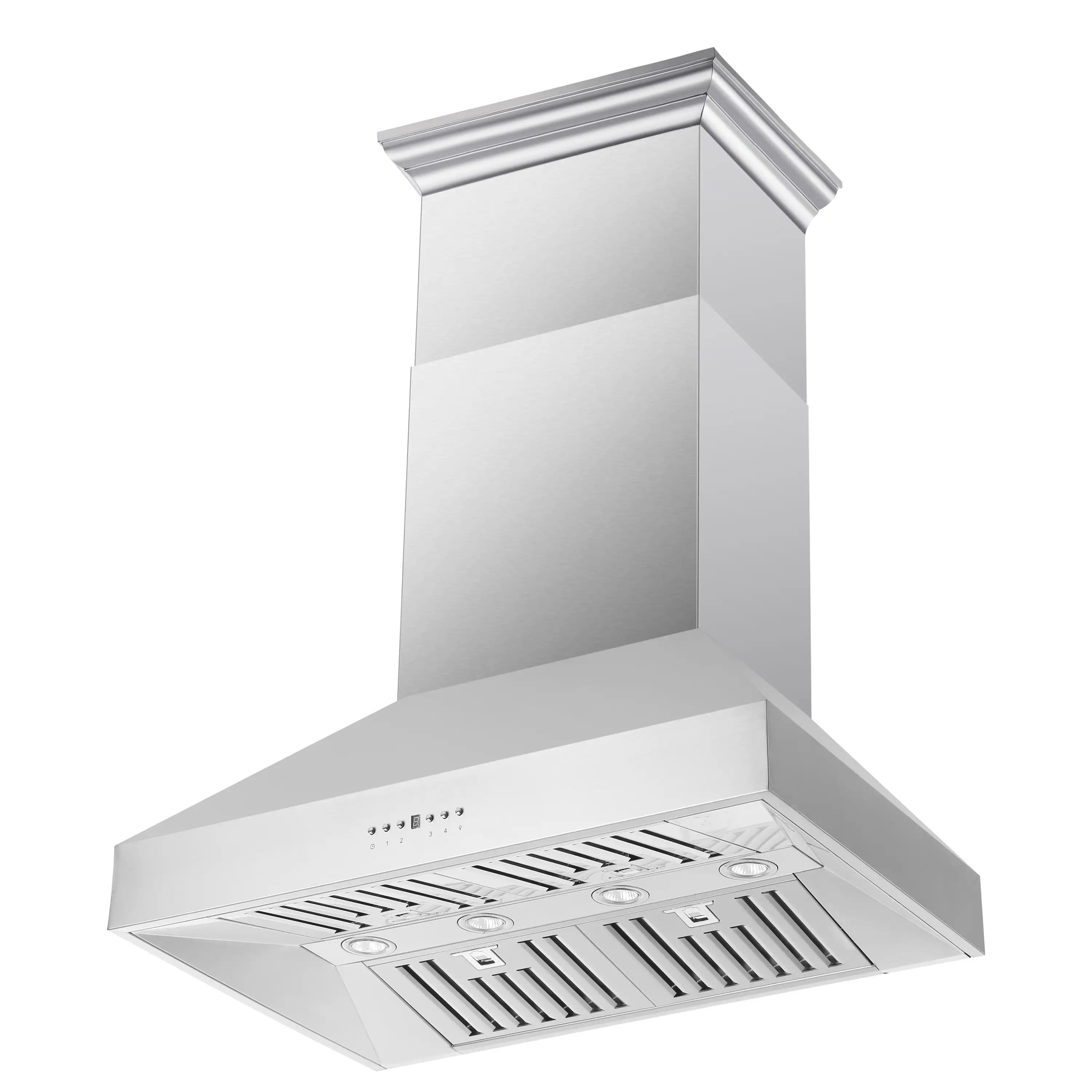

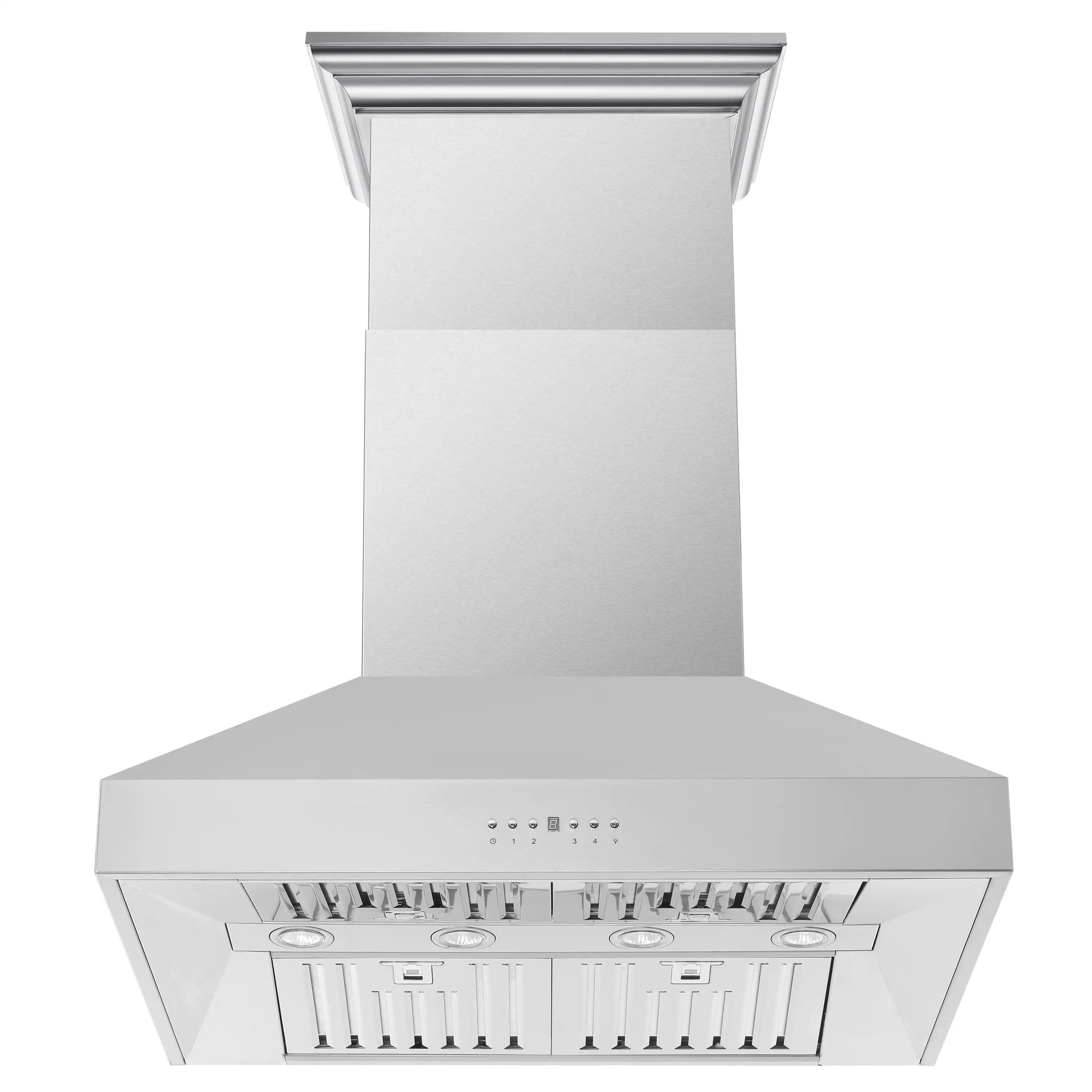

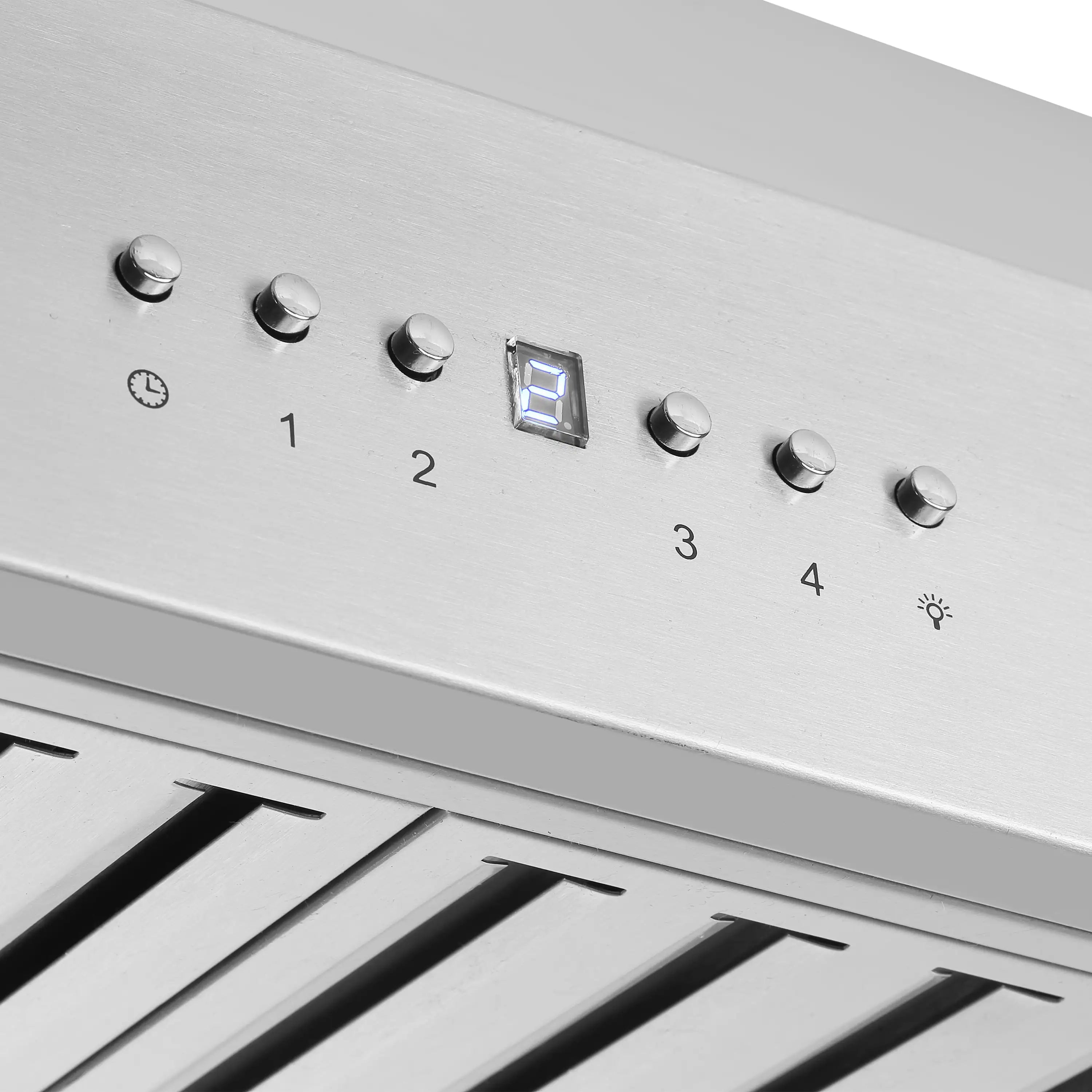

The Orvieto 36" Stainless Steel Wall Mount Range Hood delivers powerful ventilation with a 1200 CFM motor and four-speed push-button control for optimal air purification. High-grade stainless steel construction ensures long-lasting durability, while integrated noise reduction technology keeps operation quiet. Decorative crown molding adds a refined touch to any kitchen aesthetic. Bright, energy-efficient surface lights enhance visibility over your cooktop, and dishwasher-safe stainless steel baffle filters efficiently capture grease, smoke, and odors for easy cleanup and improved indoor air quality.
|
Product Dimensions W x D x H (inches)
|
35.43" W X 23.62" D X 44.29" H |
|
Product Overall Weight (lbs)
|
71.70 |
|
Color/Finish |
Stainless Steel |
|
Dishwasher Safe Filters |
Yes |
|
Primary Material |
Stainless Steel |
|
Motor(s) Power (Watts) |
120 |
|
Minimum CFM |
550 |
|
Maximum CFM |
1200 |
|
Range Hood Shape |
Pyramid |
|
Number of Lights |
4 |
|
Power off Information |
3 Minutes |
|
Power off Function |
Yes |
|
Chimney Short Kit |
Yes |
|
Chimney Extension Kit |
Yes |
|
Hardware Finish |
Stainless Steel |
|
Filter Material |
Stainless Steel |
| Removable Grease Filter | Yes |
| Damper Type | 10-in Round |
| Speed Control | 4 |
| Filter Type | Baffle |
| Vent Style | External |
|
Vent Type |
Ducted |
| Exhaust Vent Location | Roof/Wall |

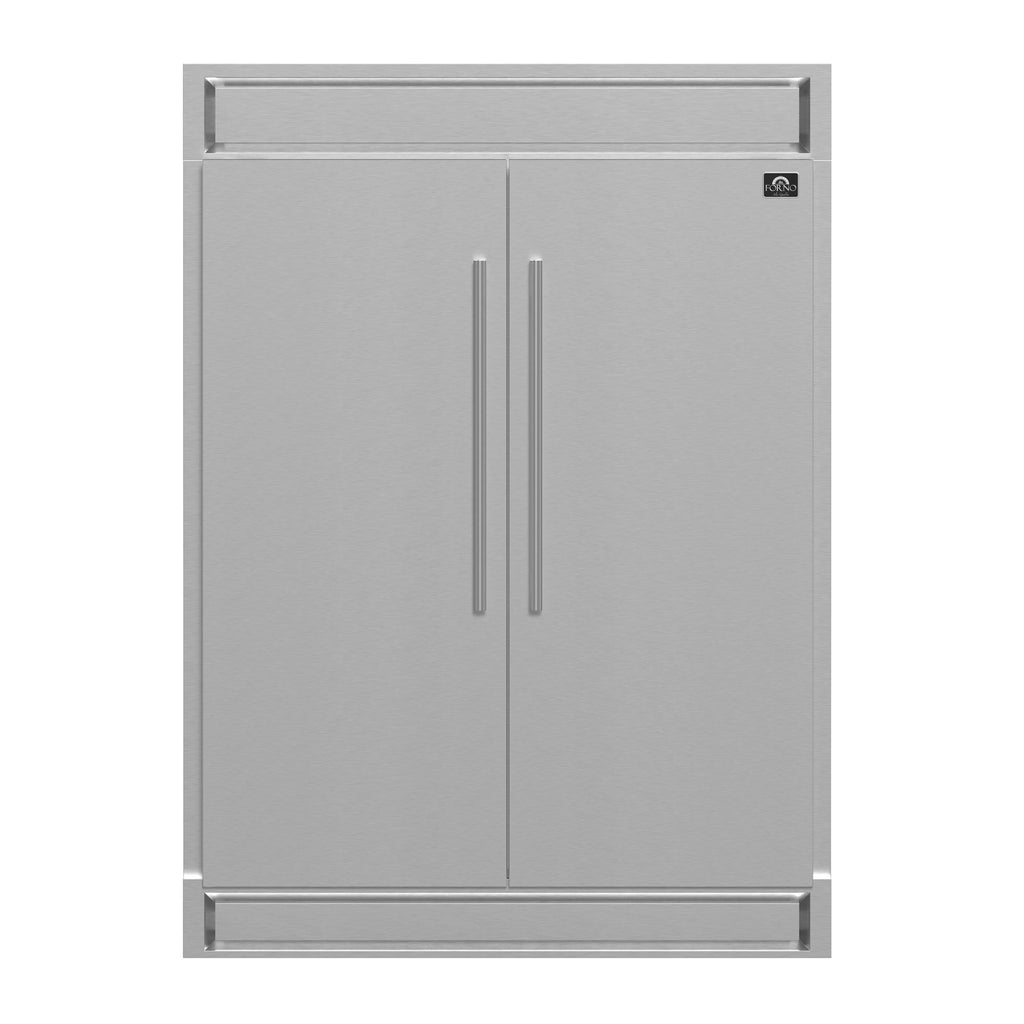

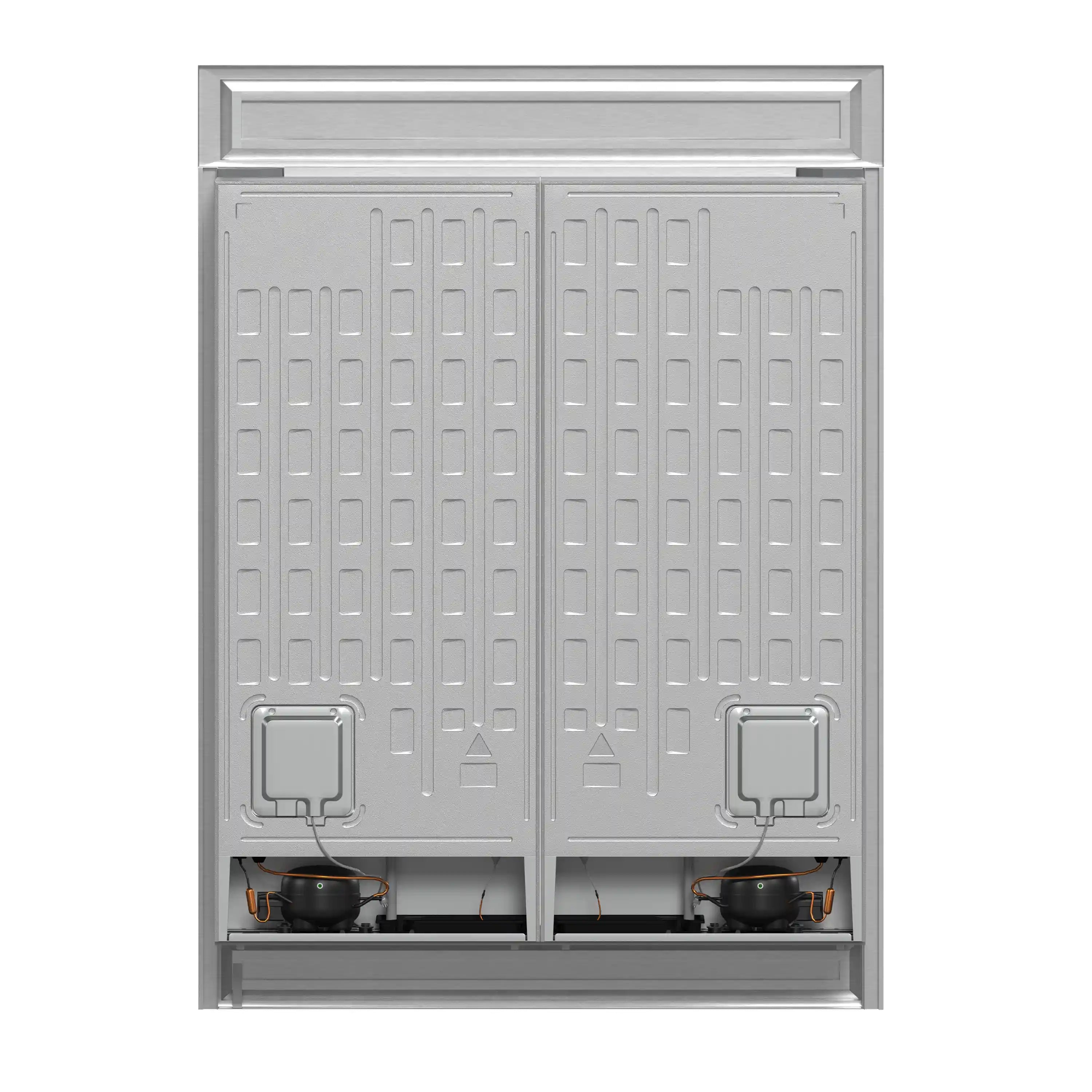

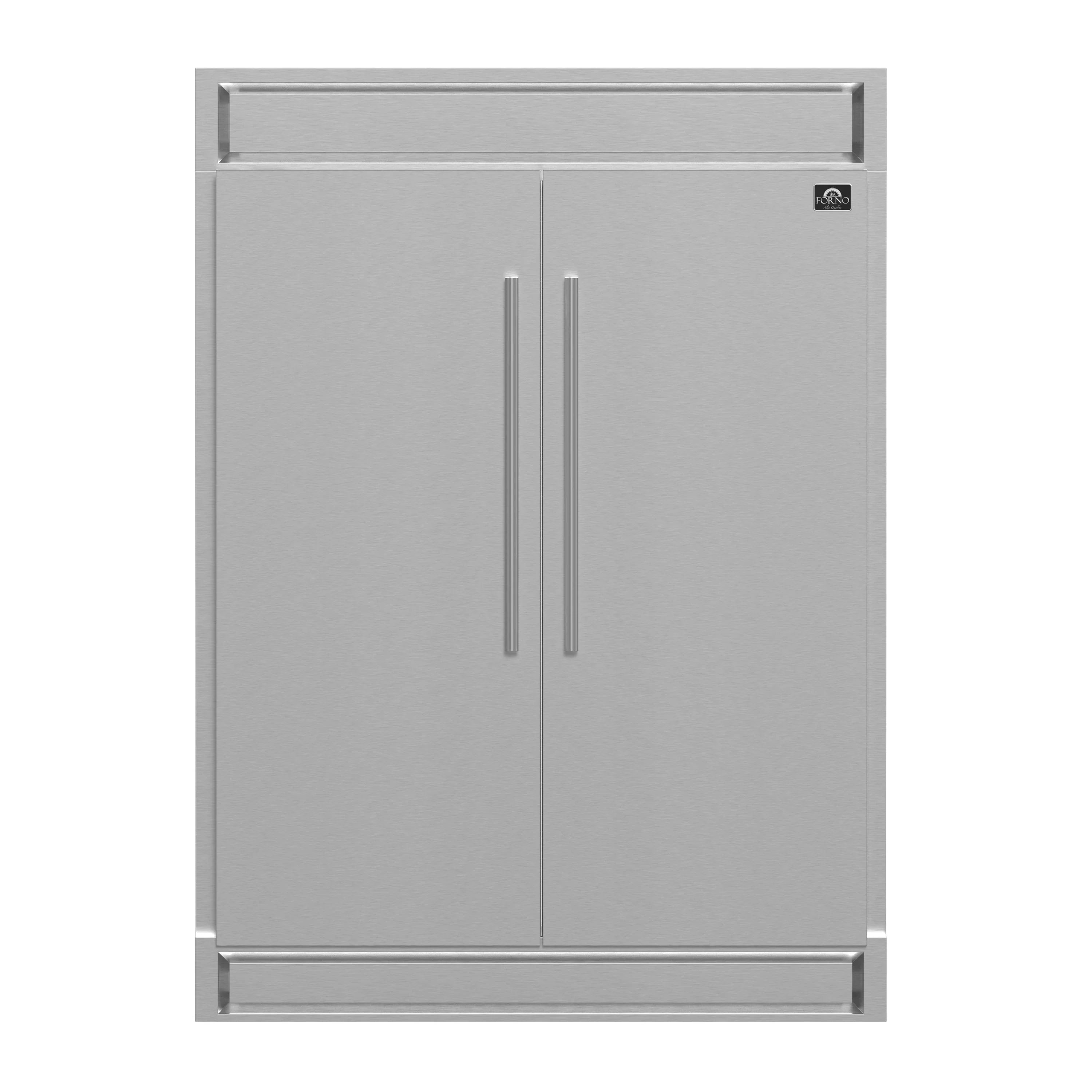

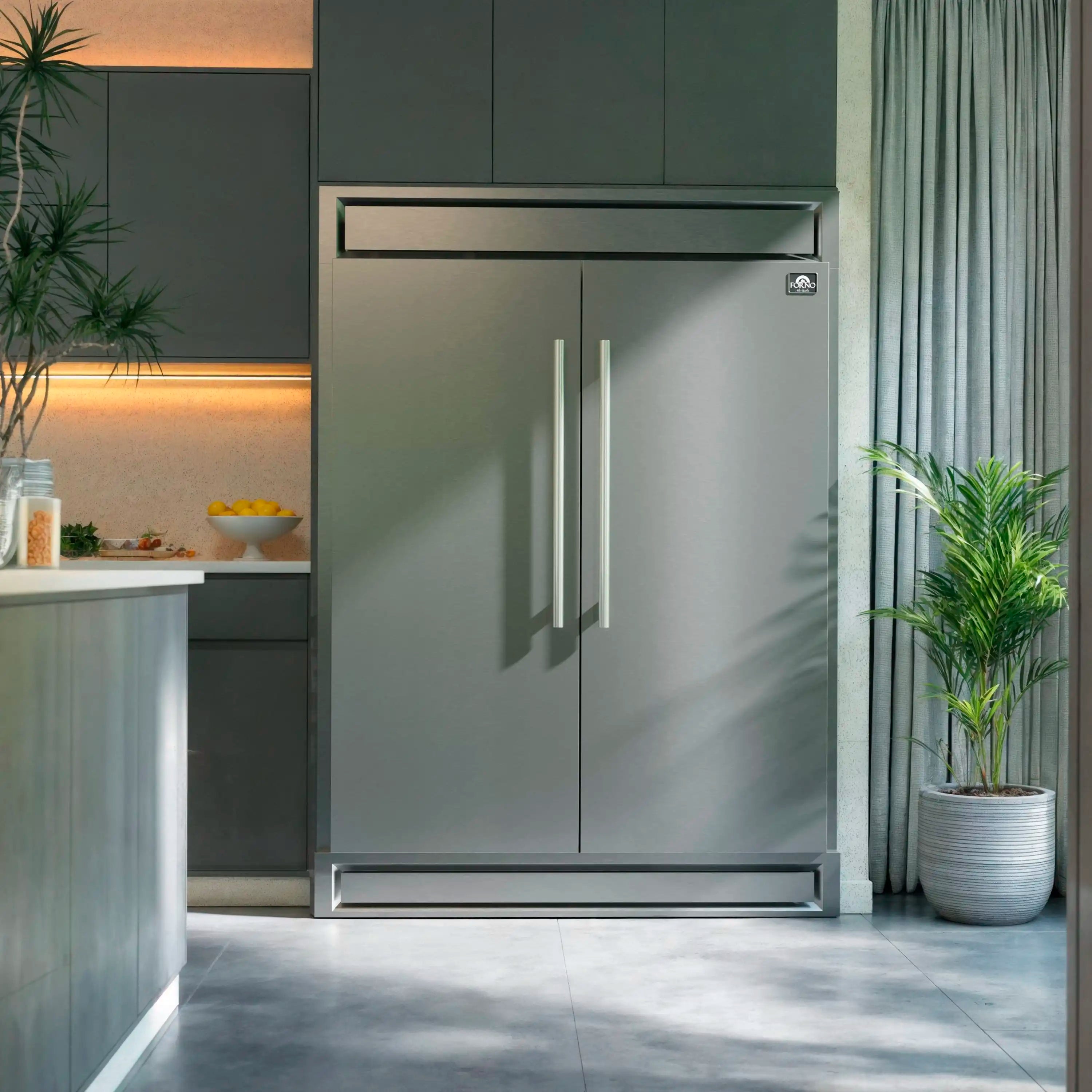

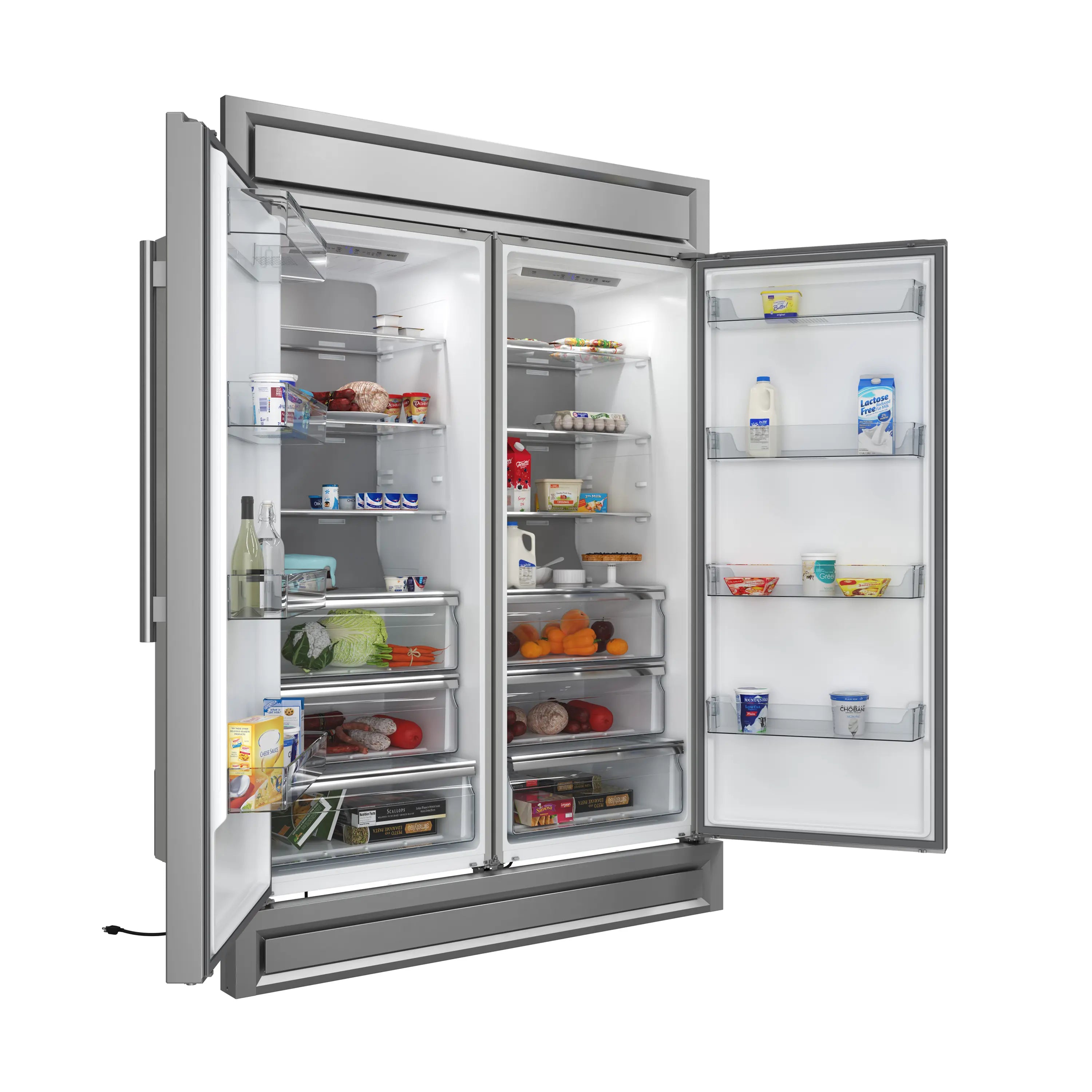

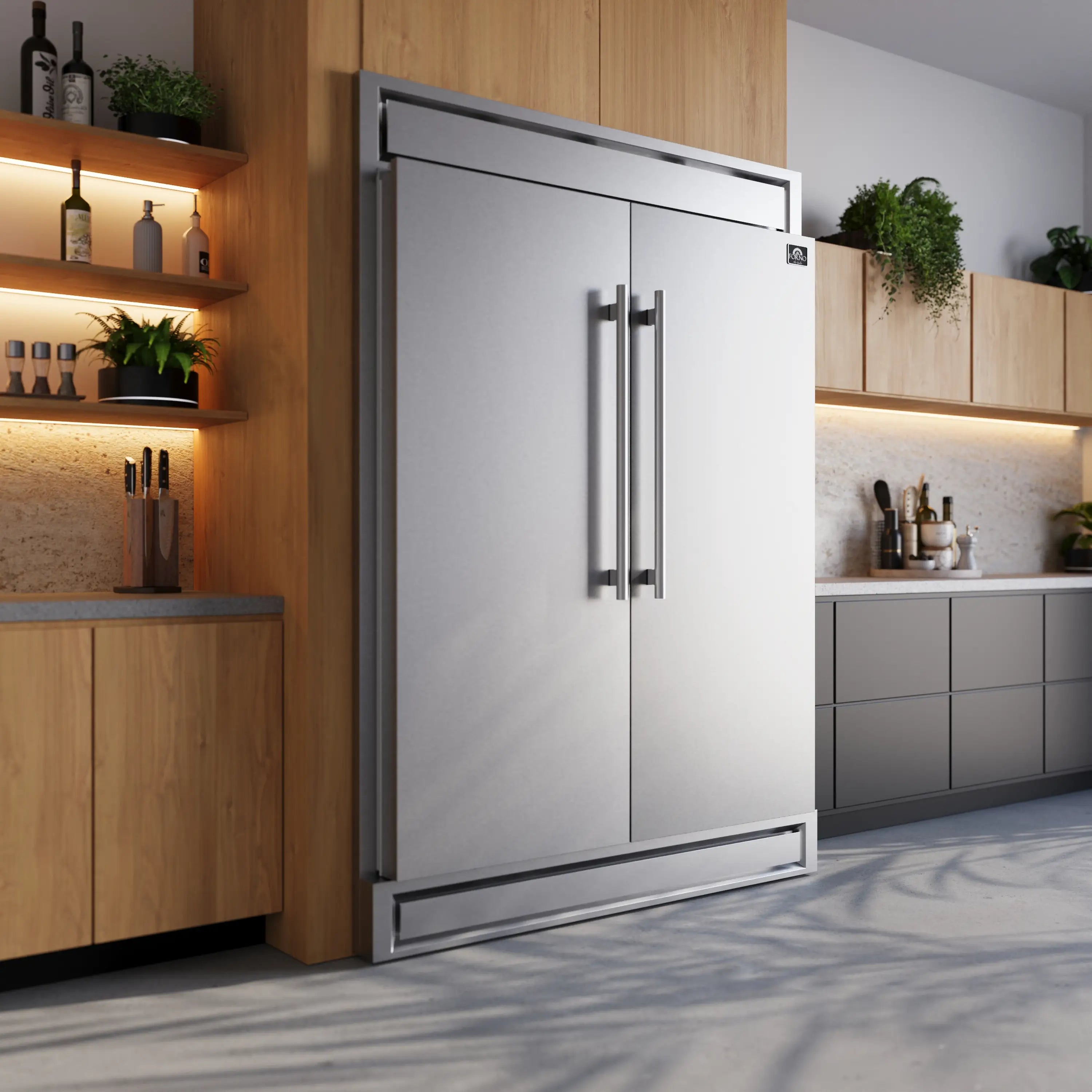

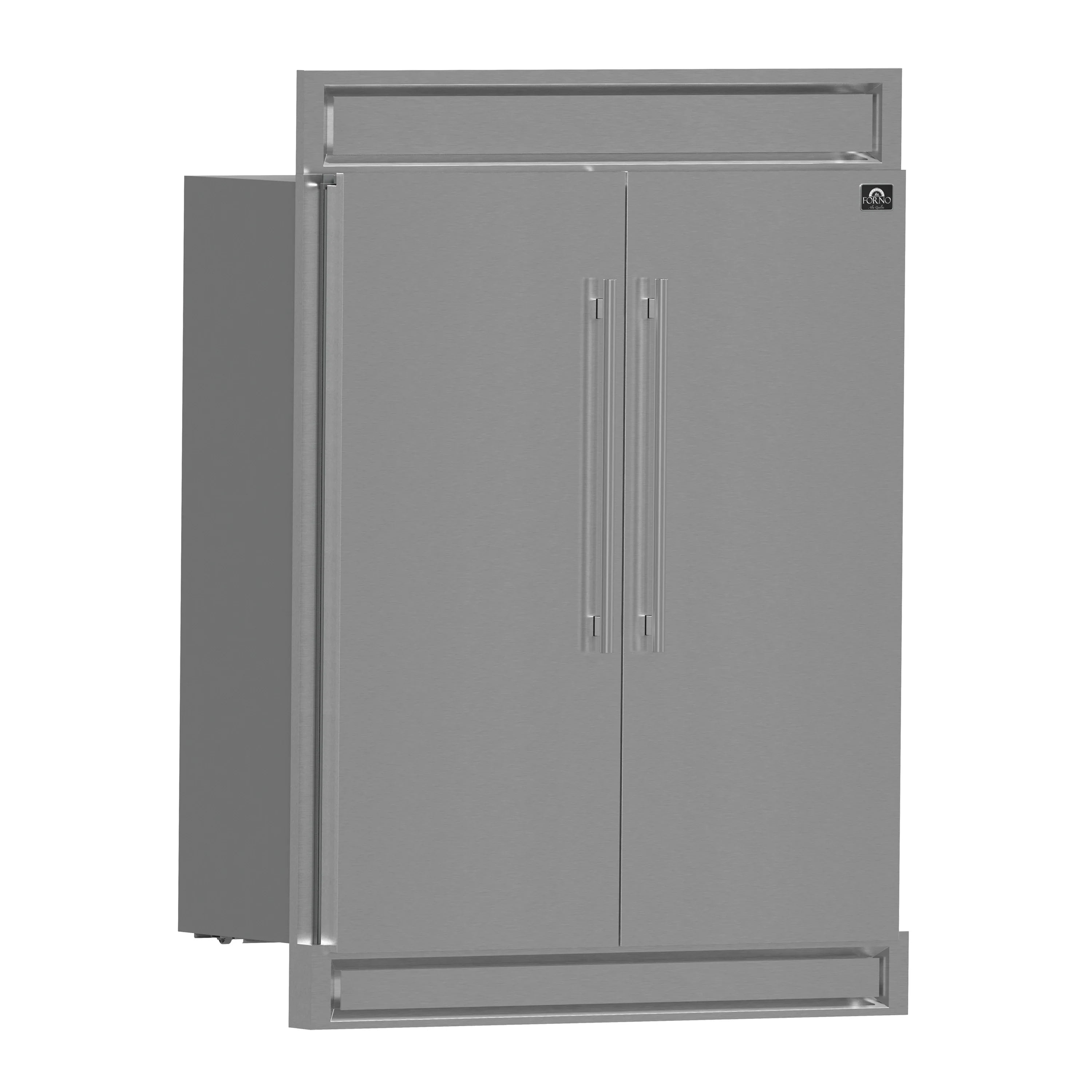

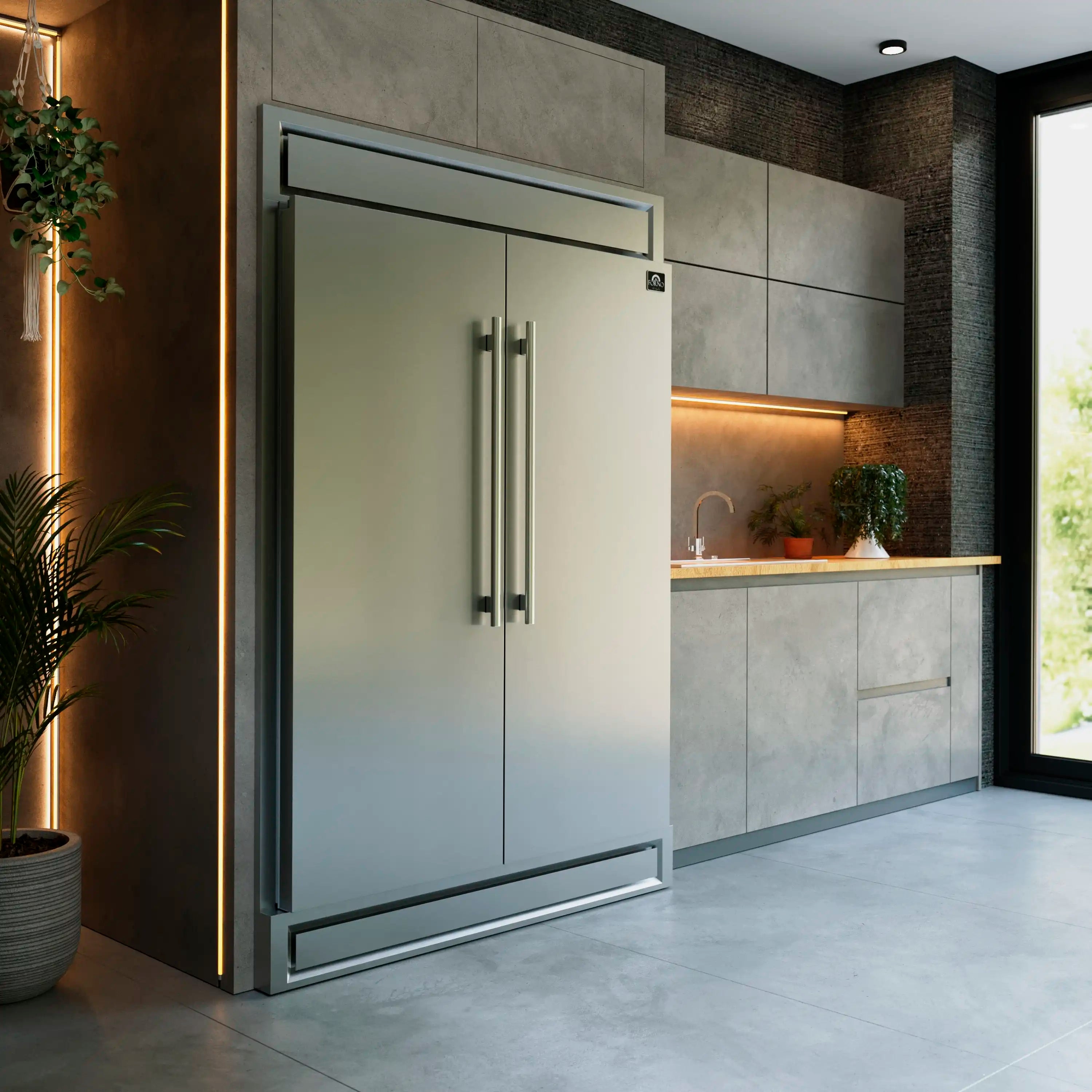

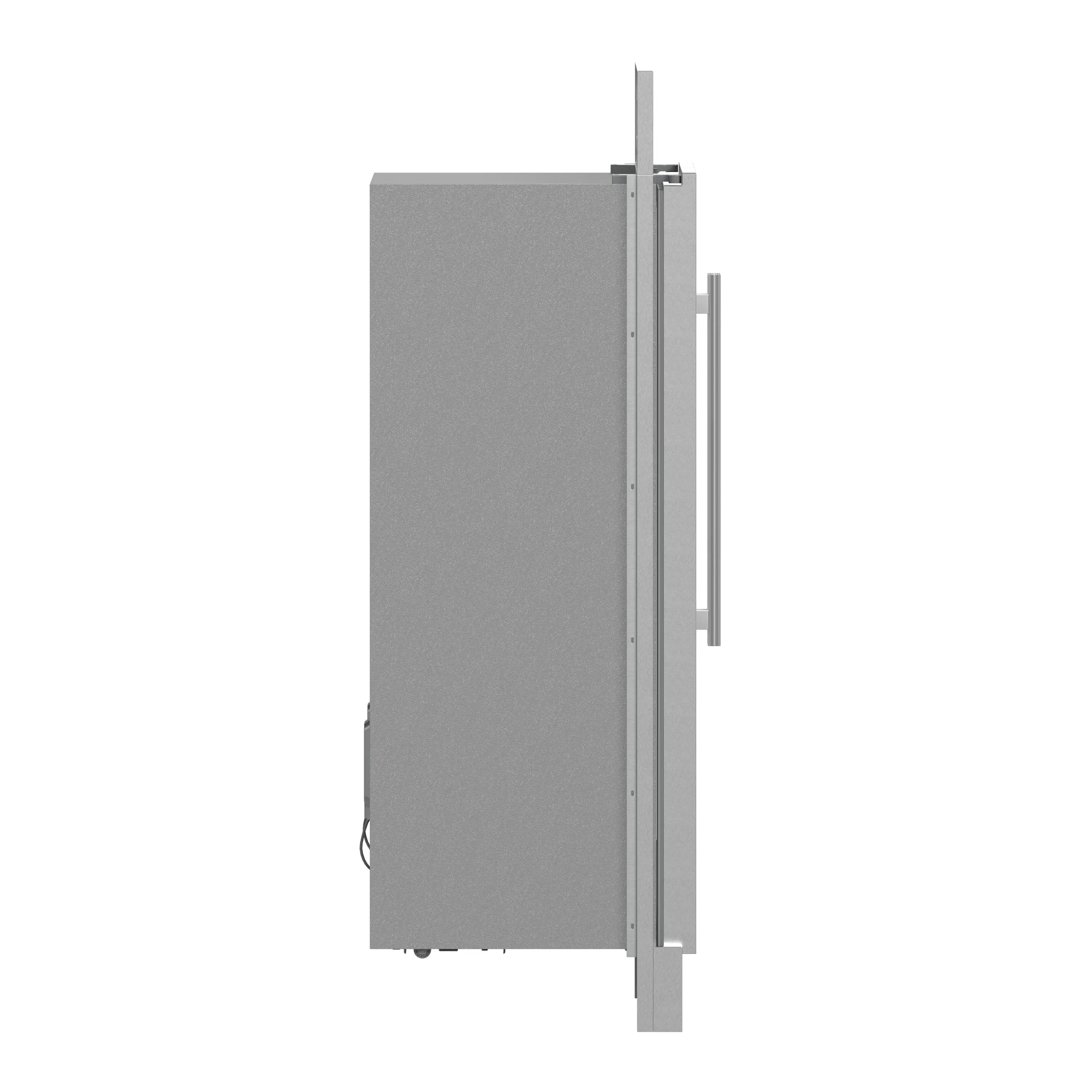

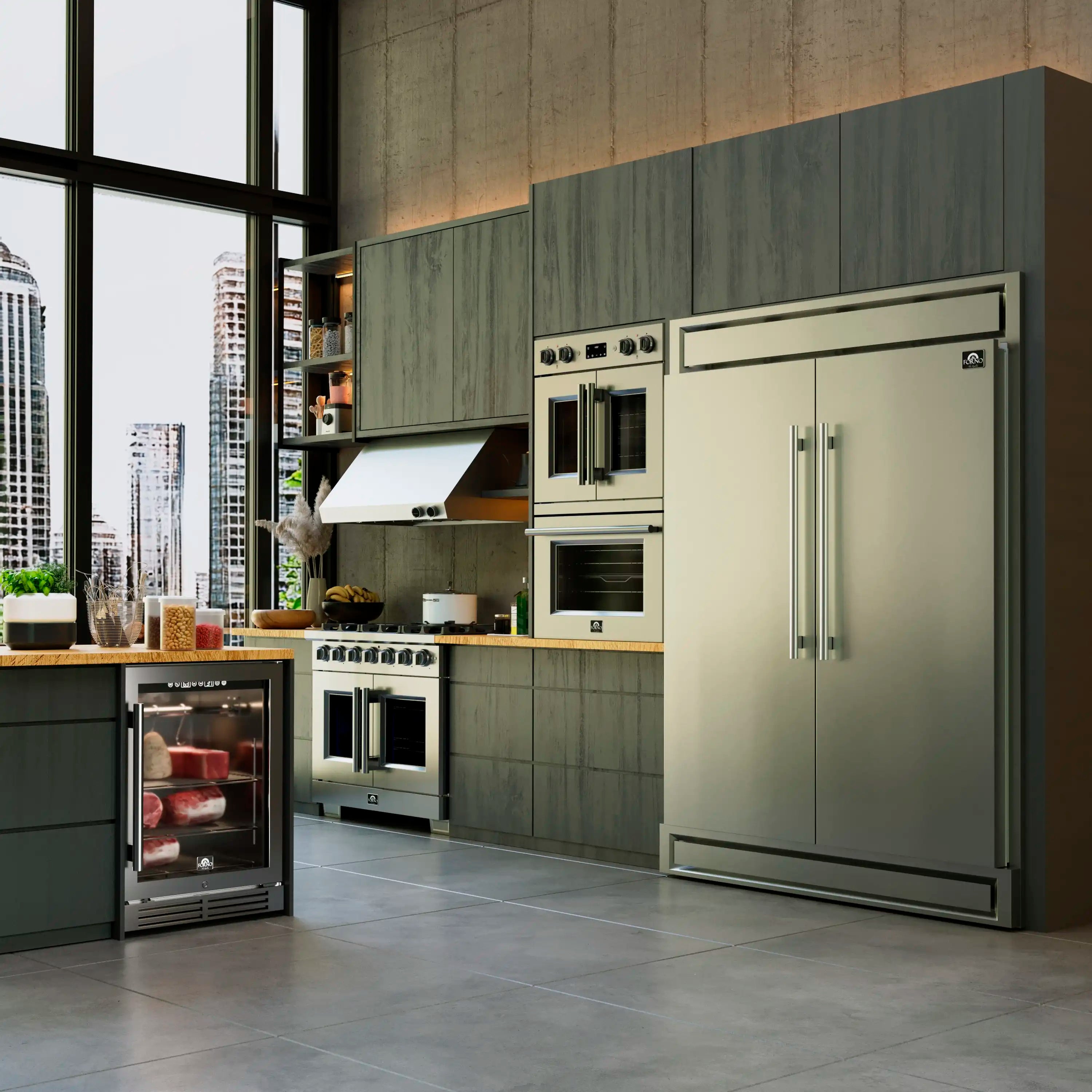

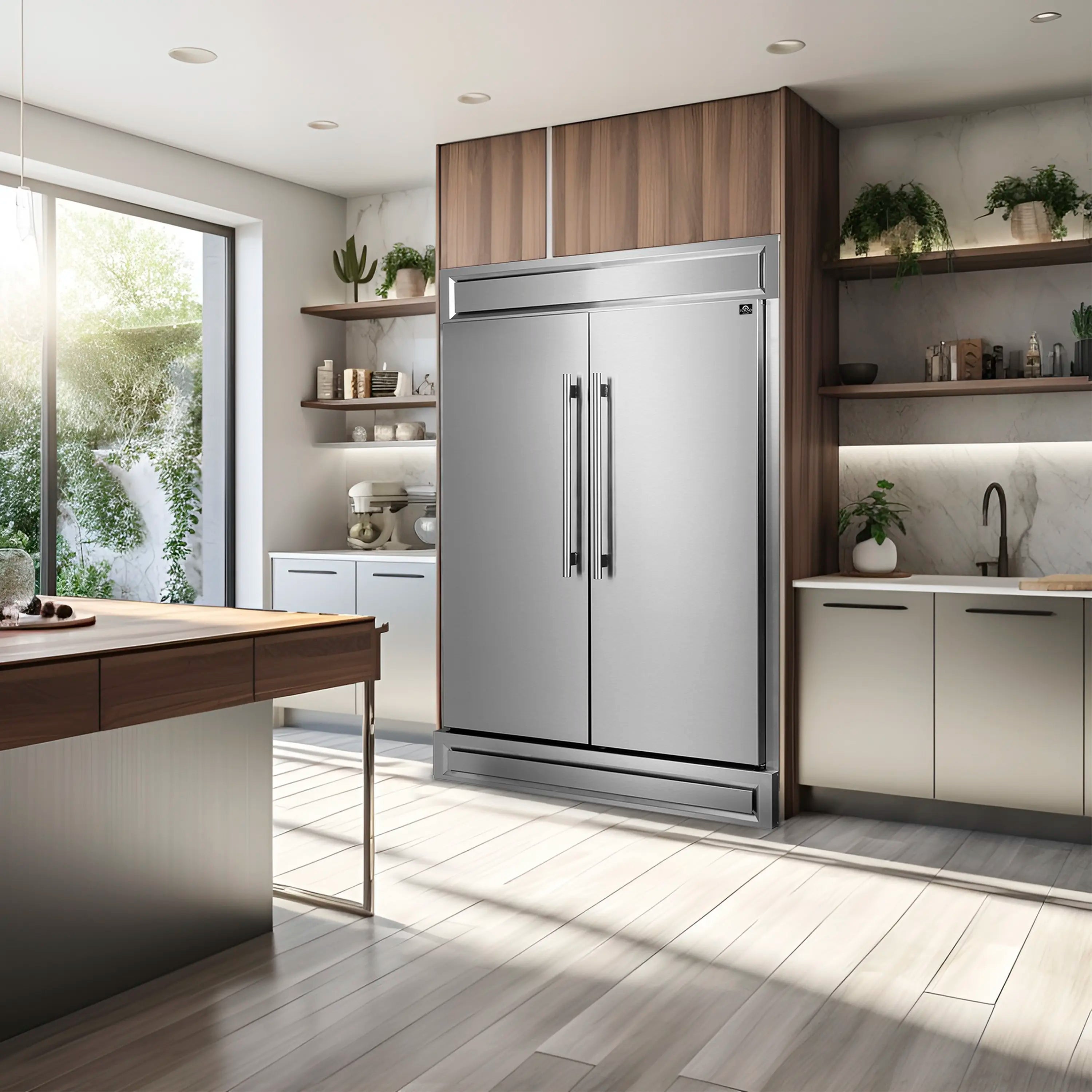

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grille, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting.

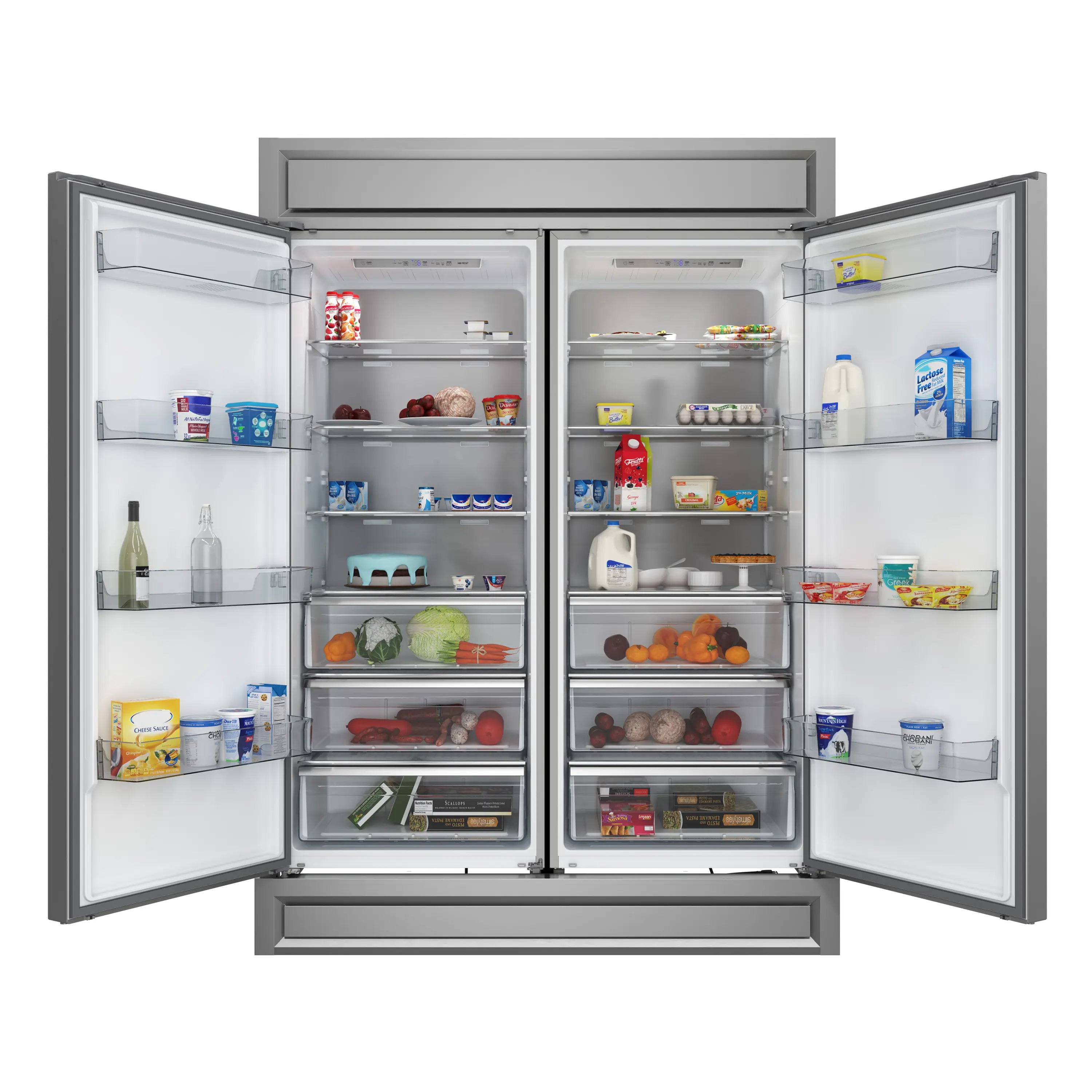

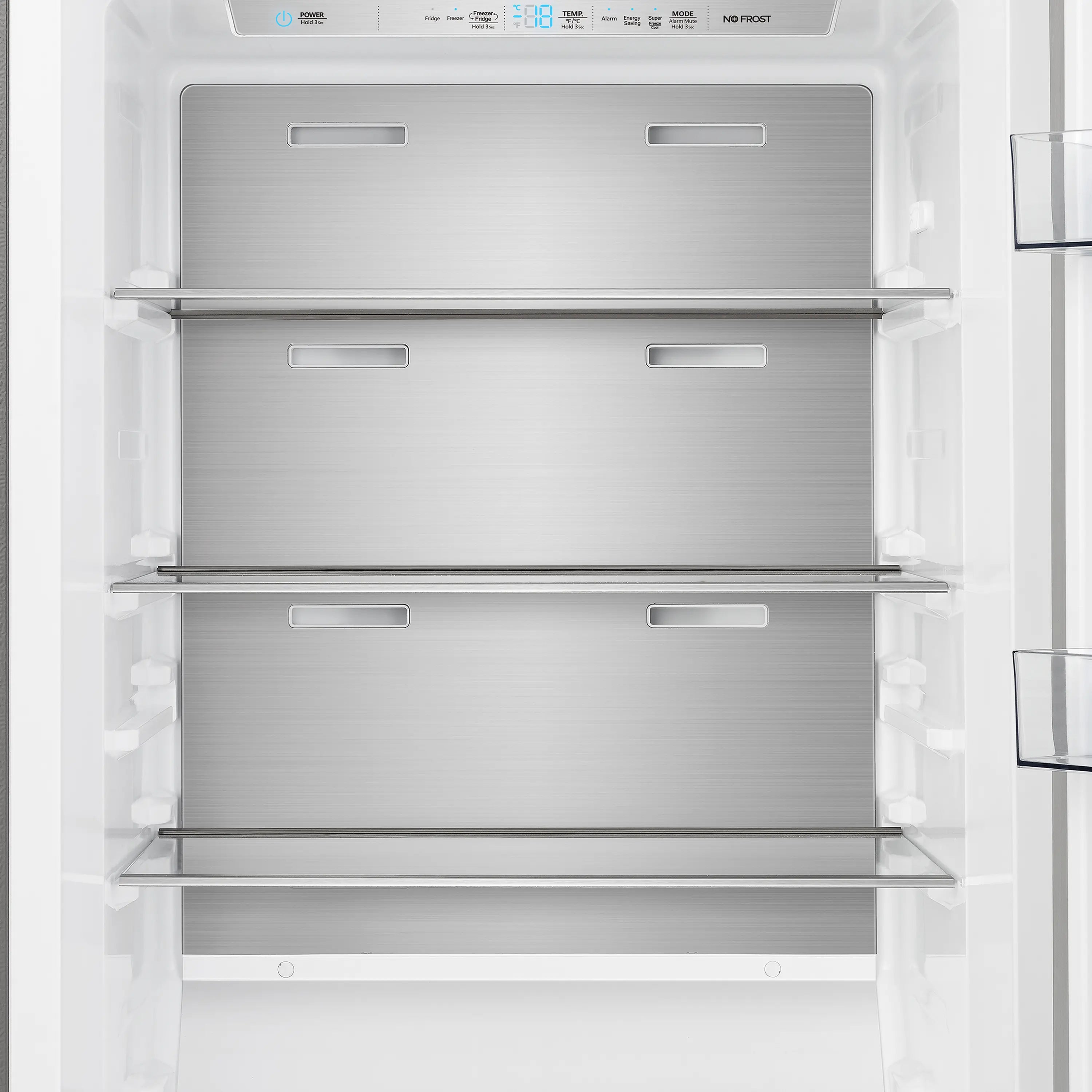

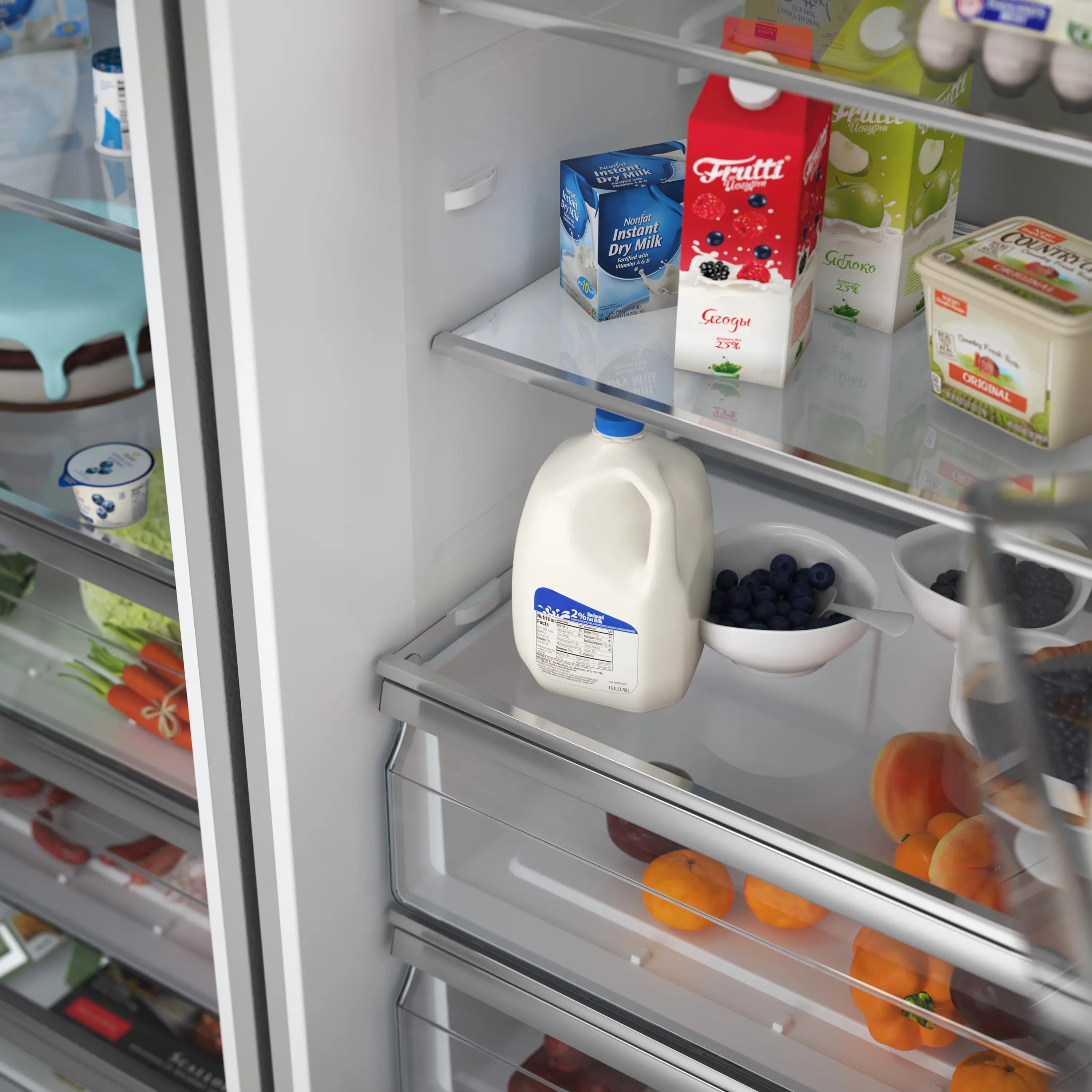

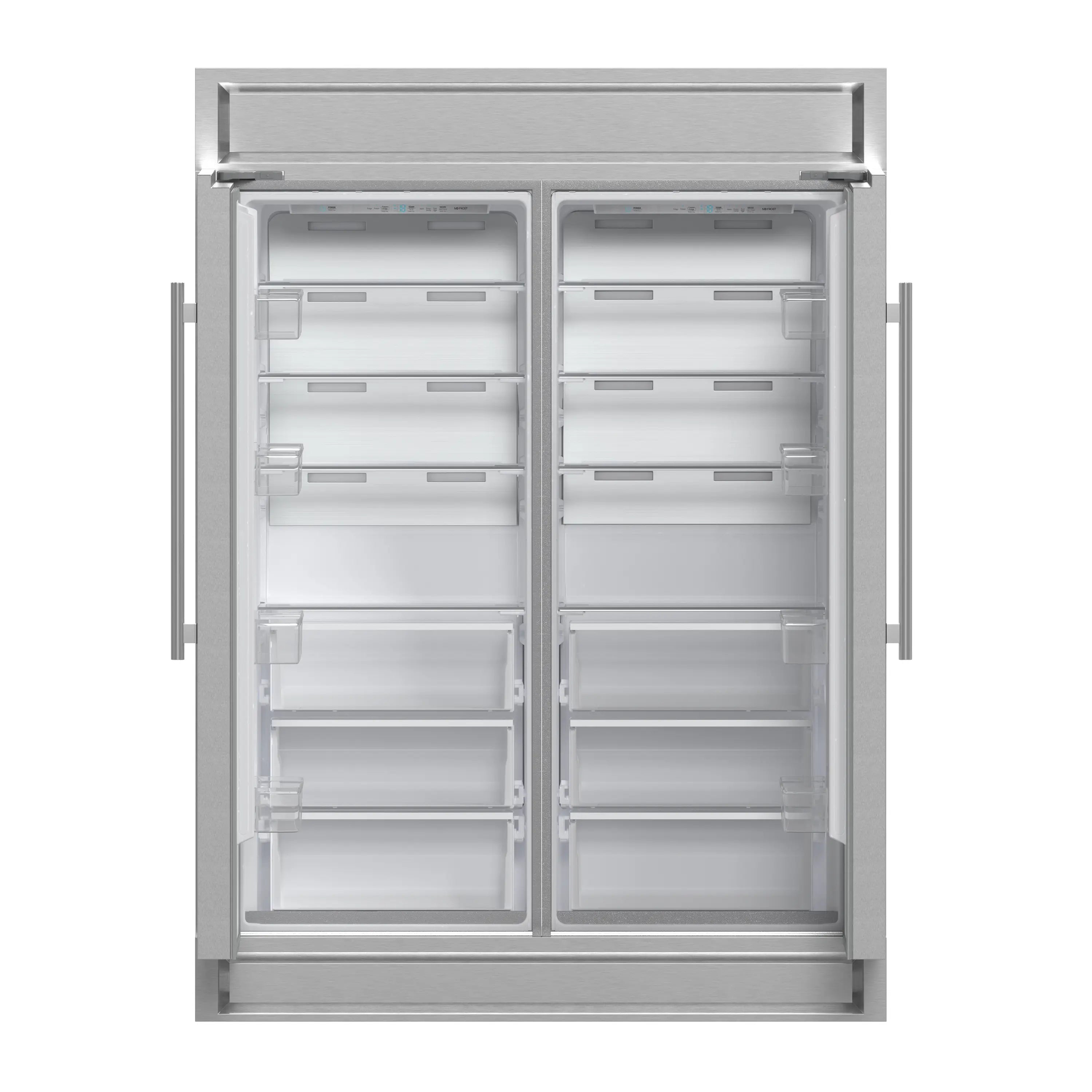

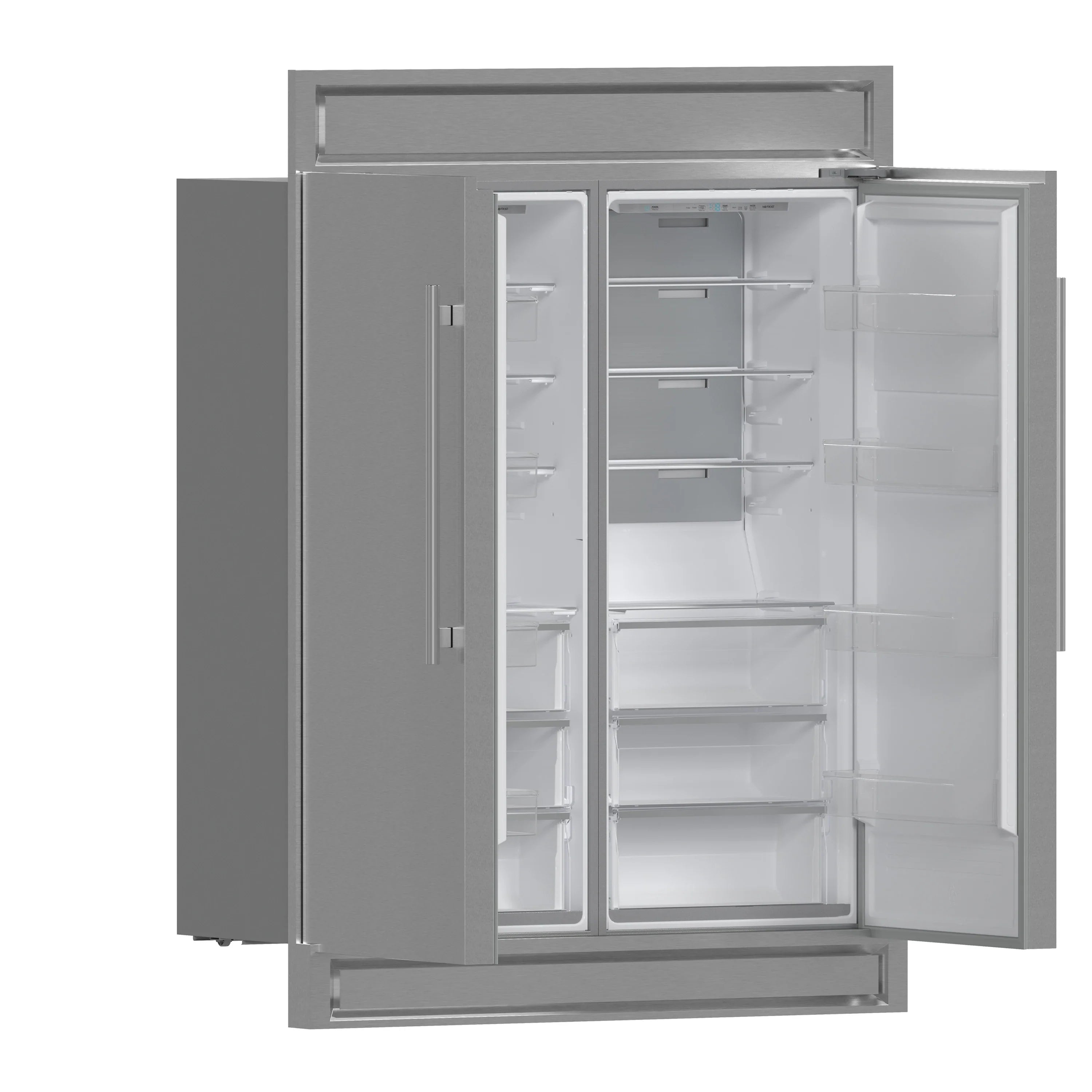

The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
This refrigerator comes in three pieces:
*Installation requires a base to be built for the refrigerator - please see cut-out sheet for more details
|

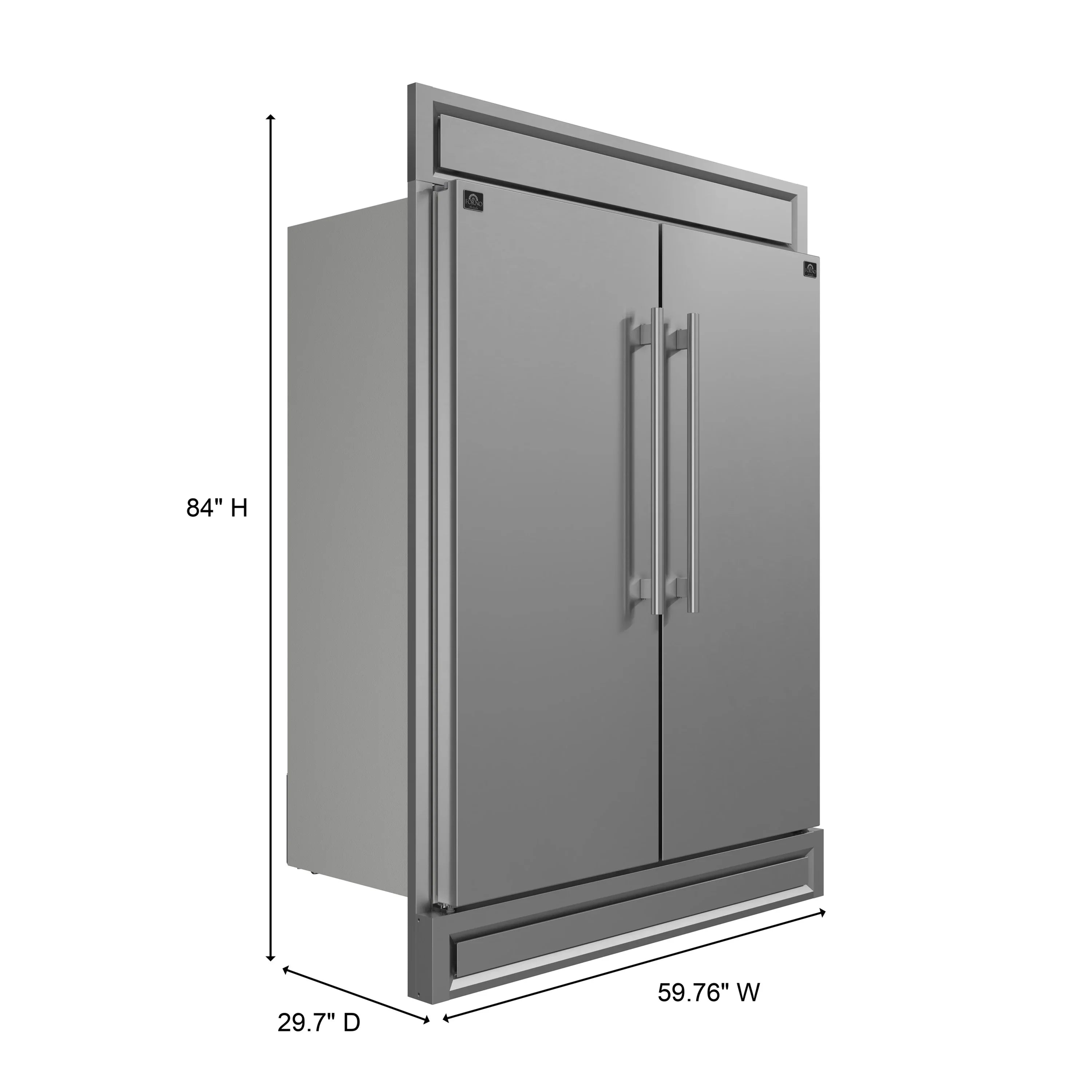

Overall Dimensions |
59.76" W X 29.7" D X 84" H |
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
|
Product Overall Weight (lbs) |
330.00
|
|
Advertised Unit Width |
60” |
|
Unit Style |
Side-By-Side |
|
Counter-Depth |
Yes |
|
Converting Fridge/Freezer |
Yes |
|
Build Type |
Built-In |
|
Door Color |
Stainless-Steel |
|
Door Material |
VCM Door Panel |
|
Finger Print Resistant |
Yes |
|
Reversible Doors |
No |
|
Handle Color |
Stainless steel |
|
Case Material |
Metal |
|
Case Color |
Light Gray |
|
Primary Material |
White HIPS |
|
Control Type |
Internal Touch Control |
|
Air Flow |
Multi Air Flow |
|
Defrost Type |
Automatic |
|
Sabbath Mode |
No |
|
Vacation Mode / E-Saver |
Yes |
|
Super Cool |
Yes |
|
Super Freeze |
Yes |
|
Door Alarm |
No |
|
Leak Proof Shelves |
No |
|
Lighting Type |
LED |
|
Shelf Material |
Glass with Silver Trim |
|
Drawers Material |
Plastic with Silver Trim |
|
Door Bins Material |
Plastic |
|
Door Bins Color |
Clear |
|
Leveling Legs |
Yes |
|
Ice Maker |
No |

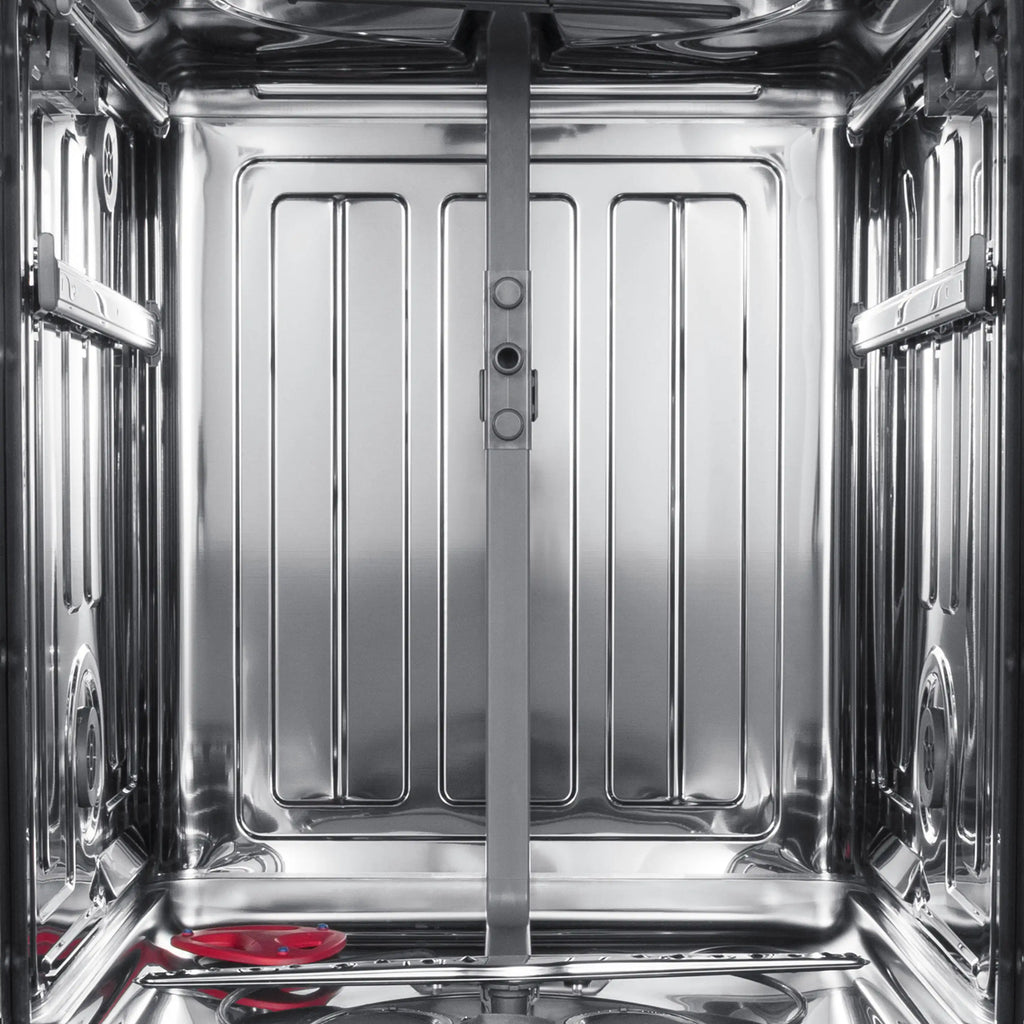

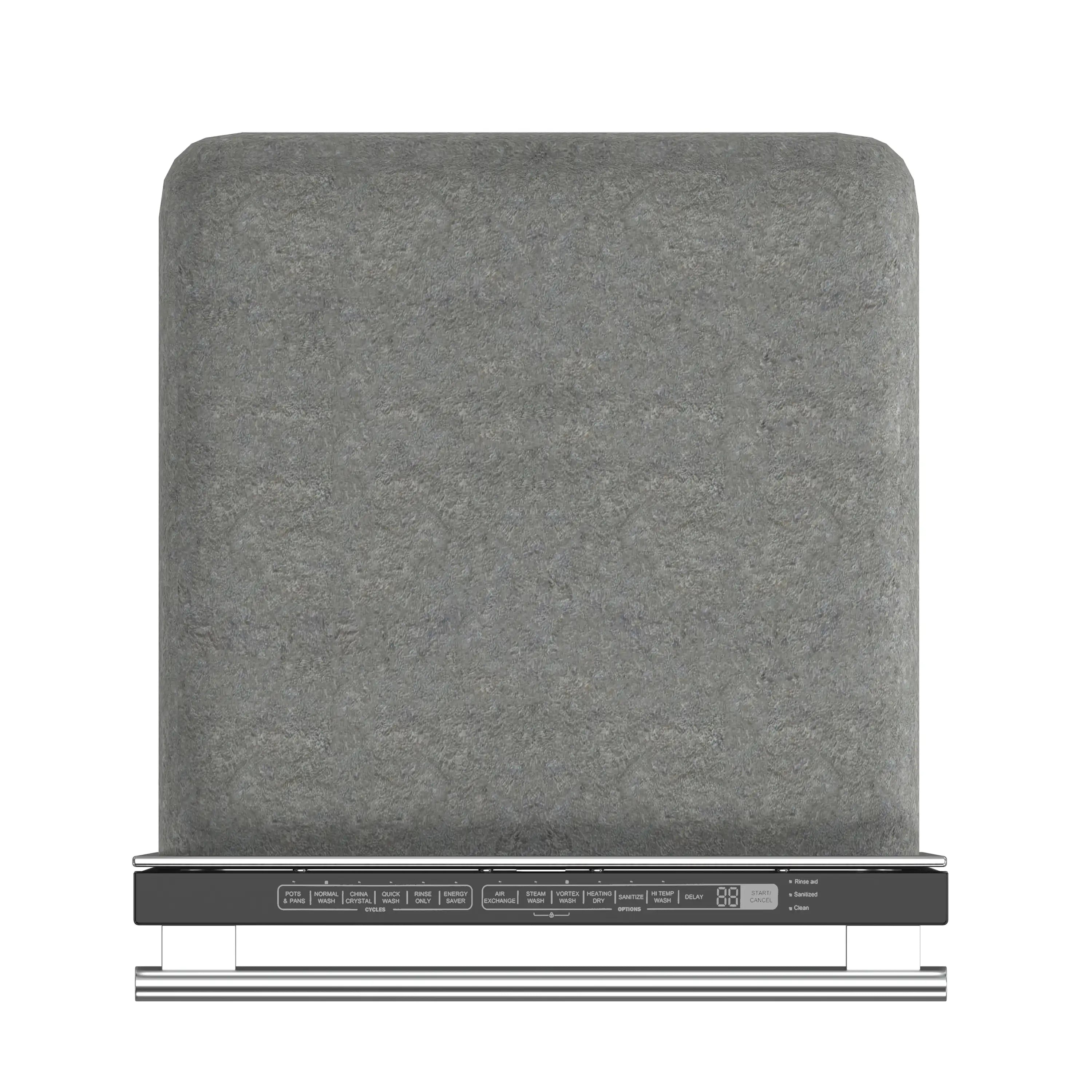

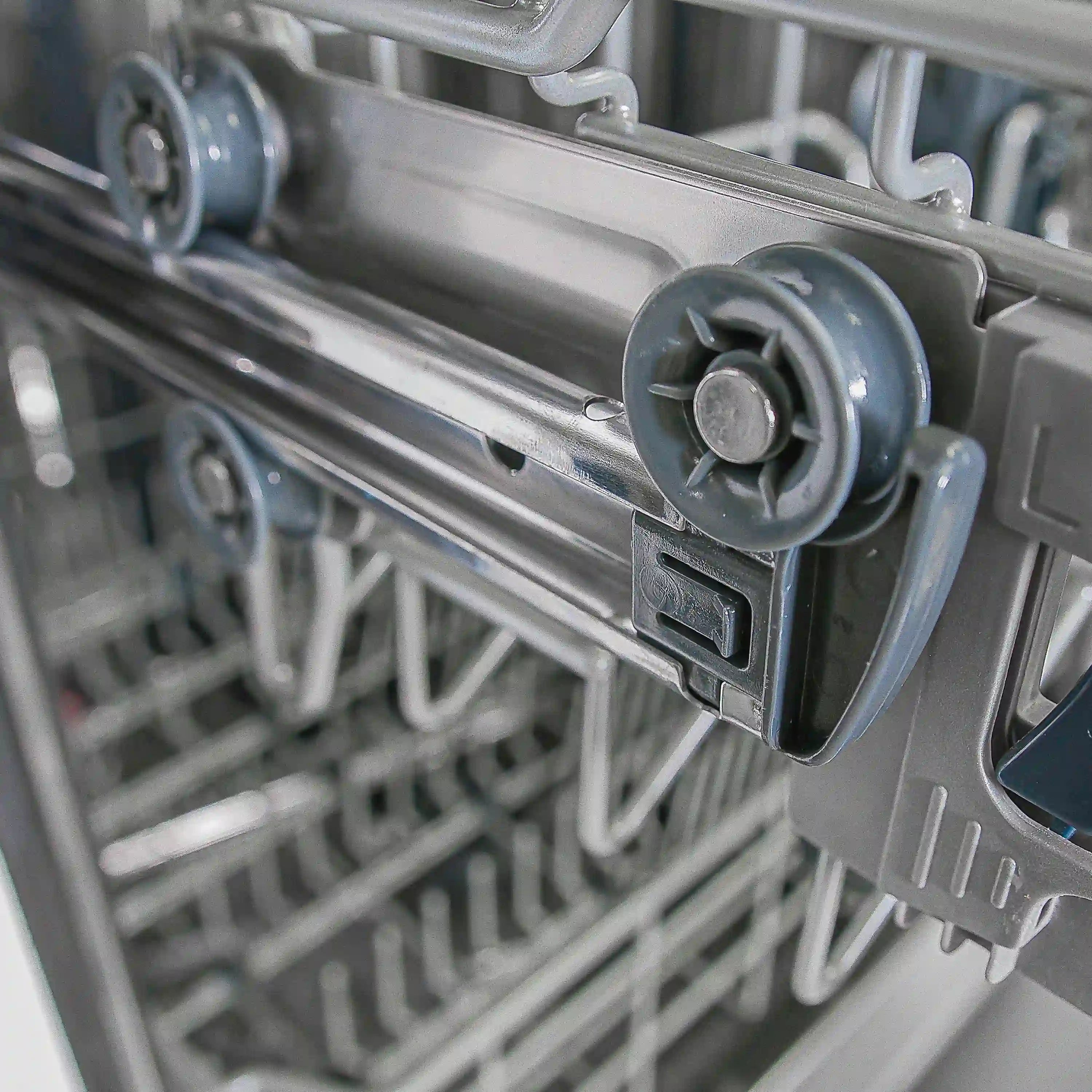

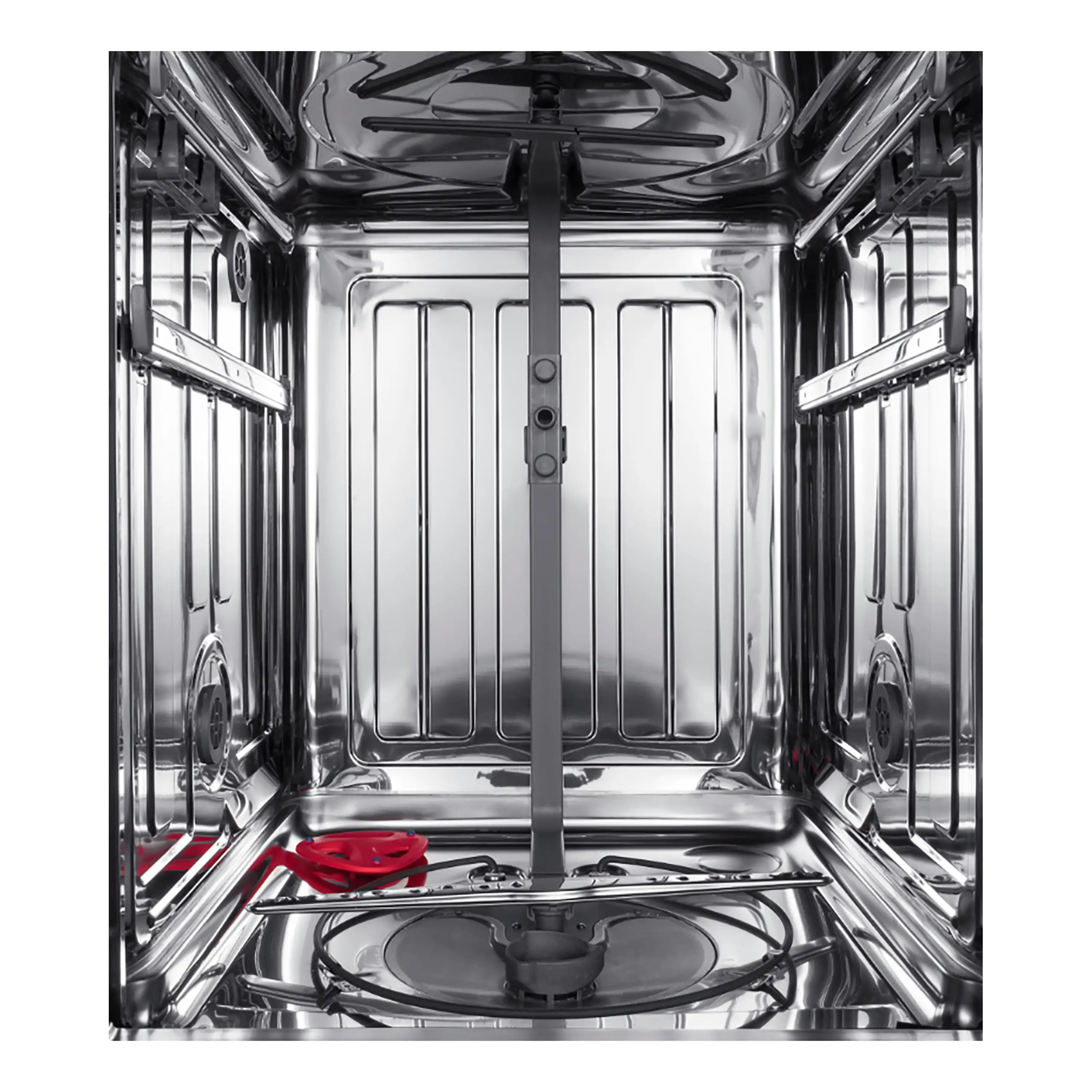

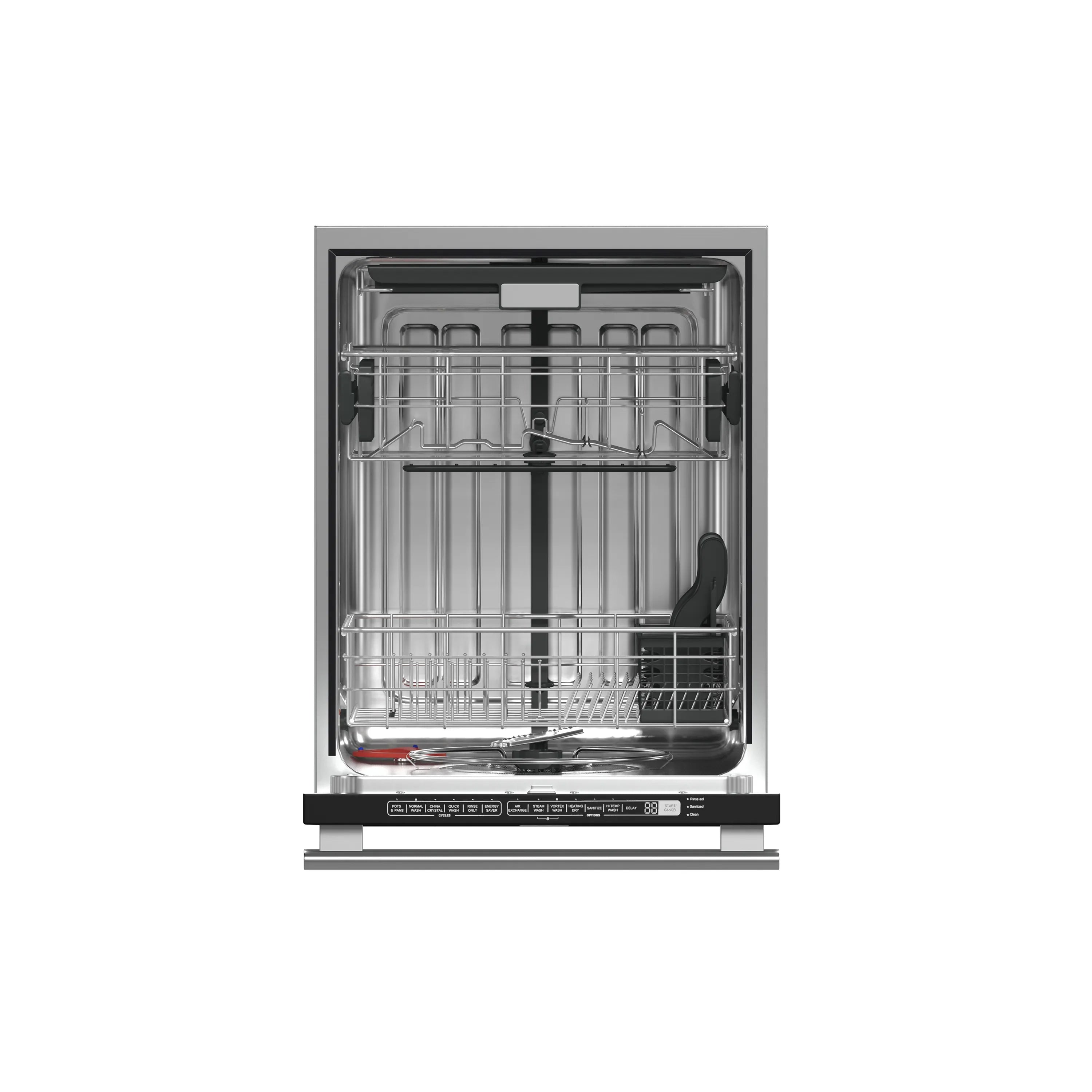

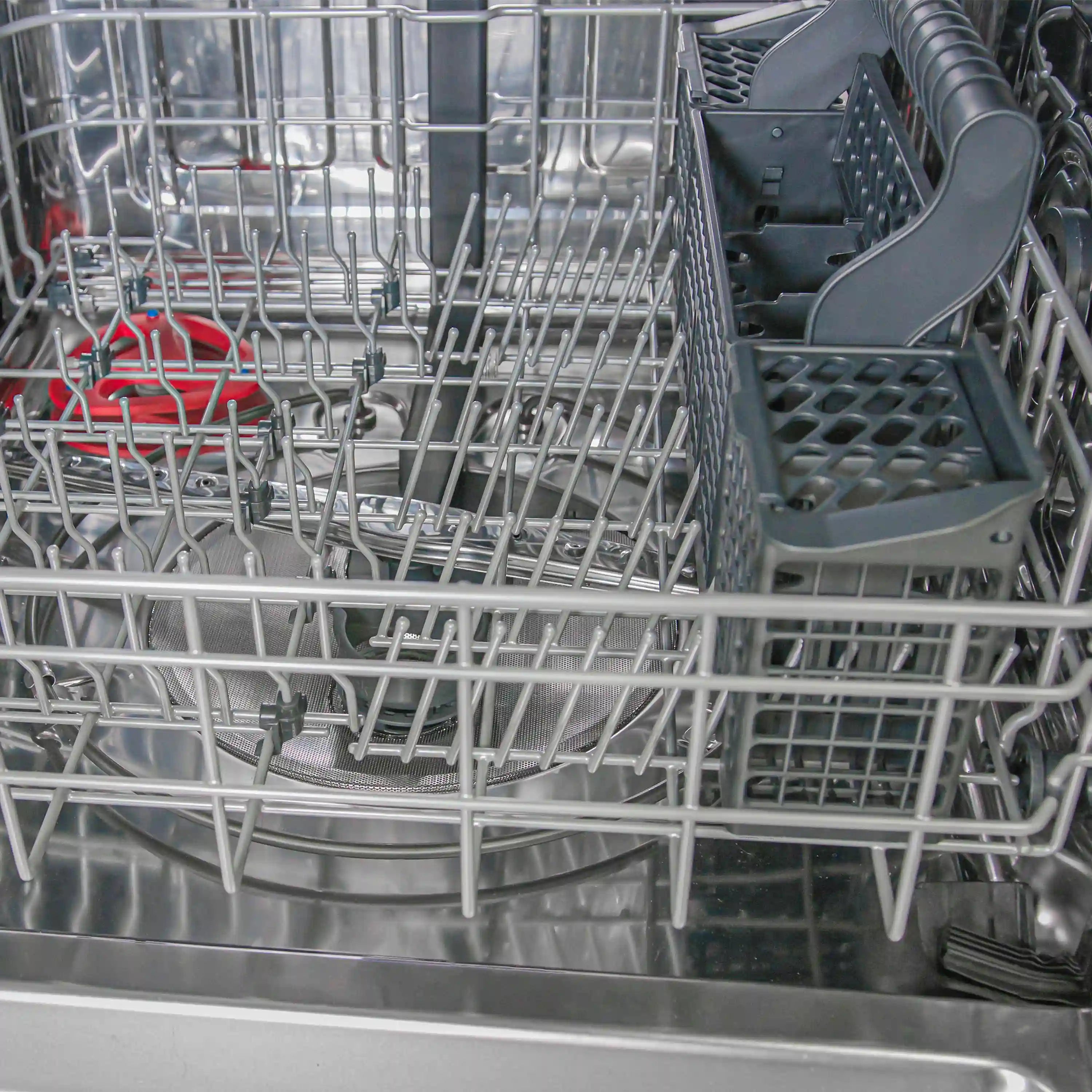

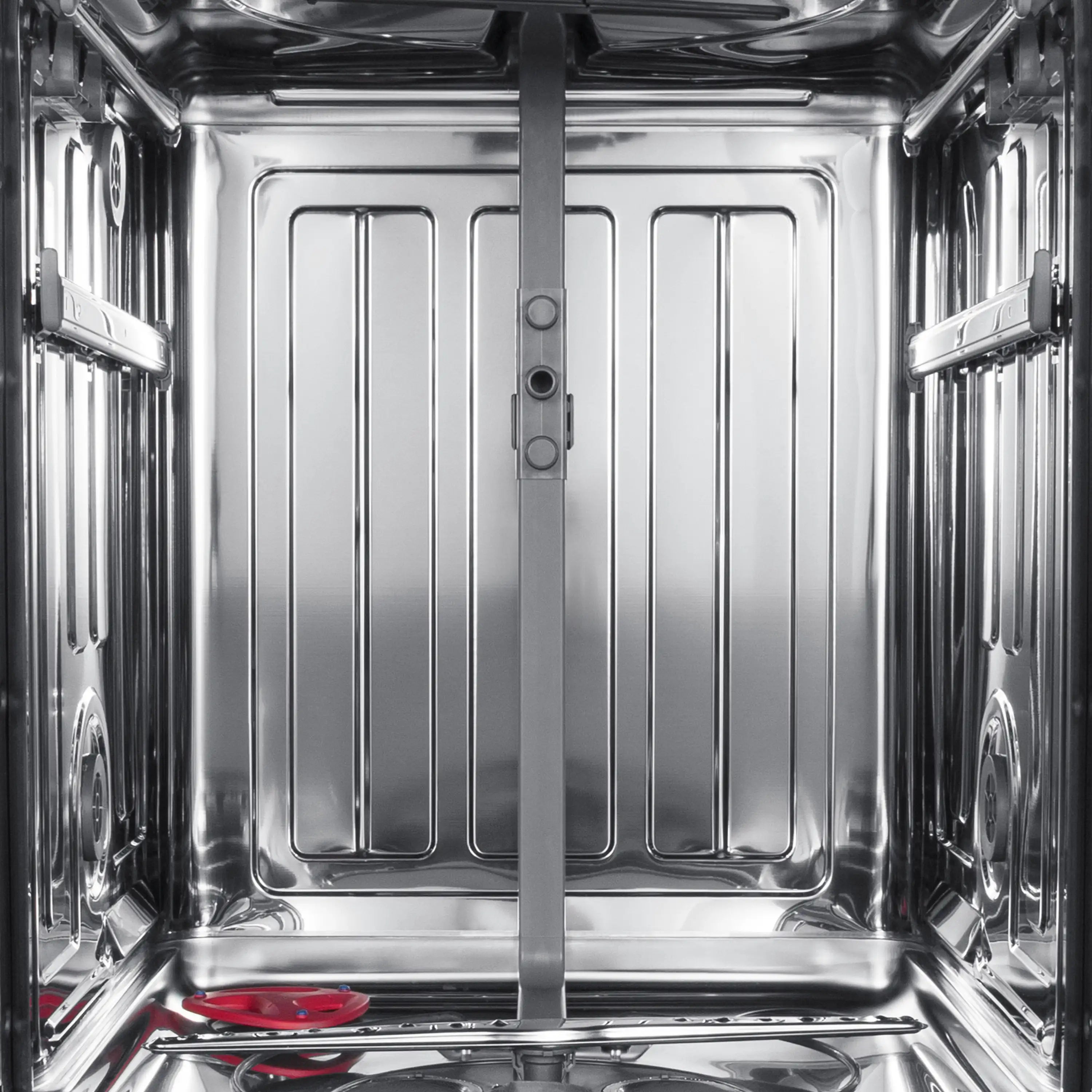

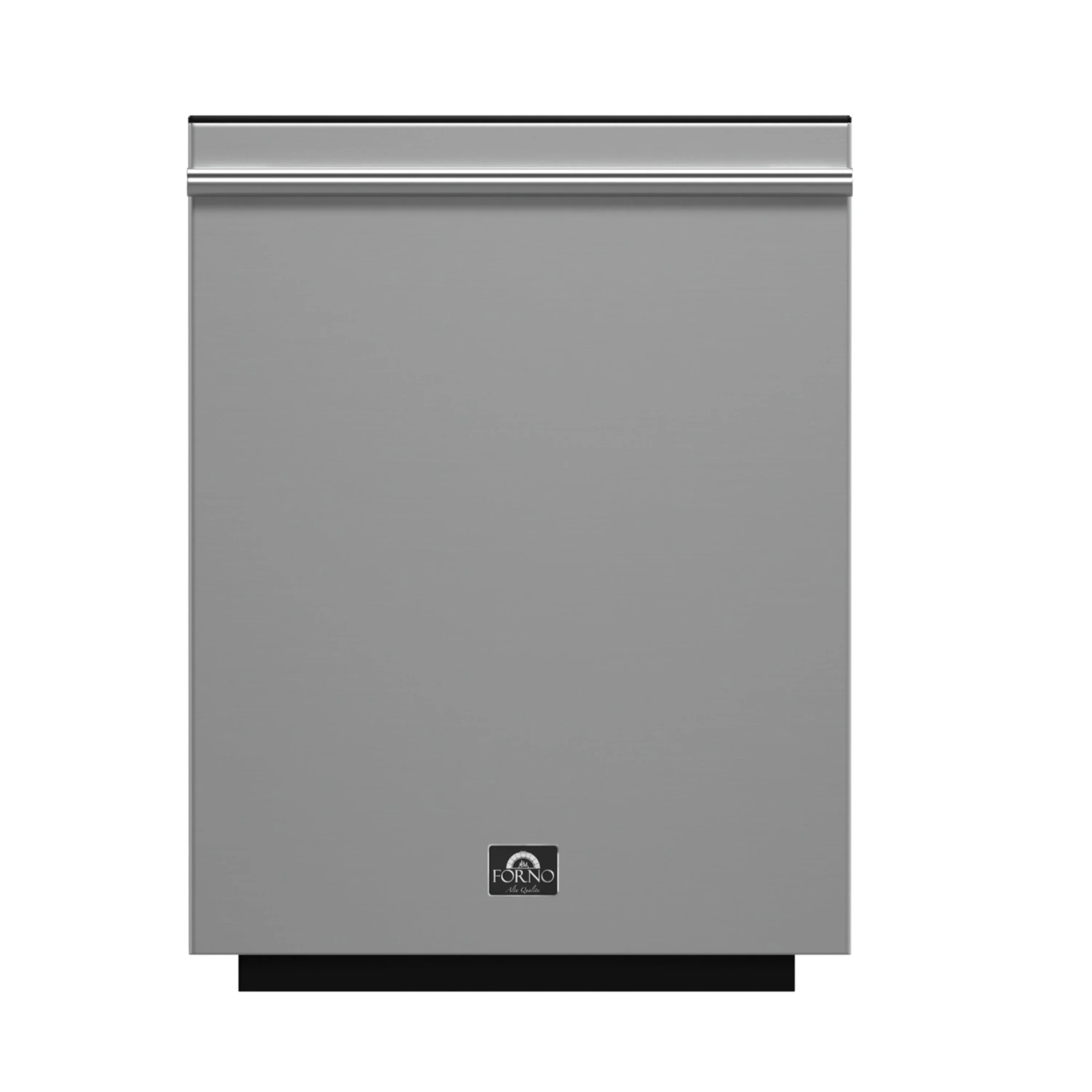

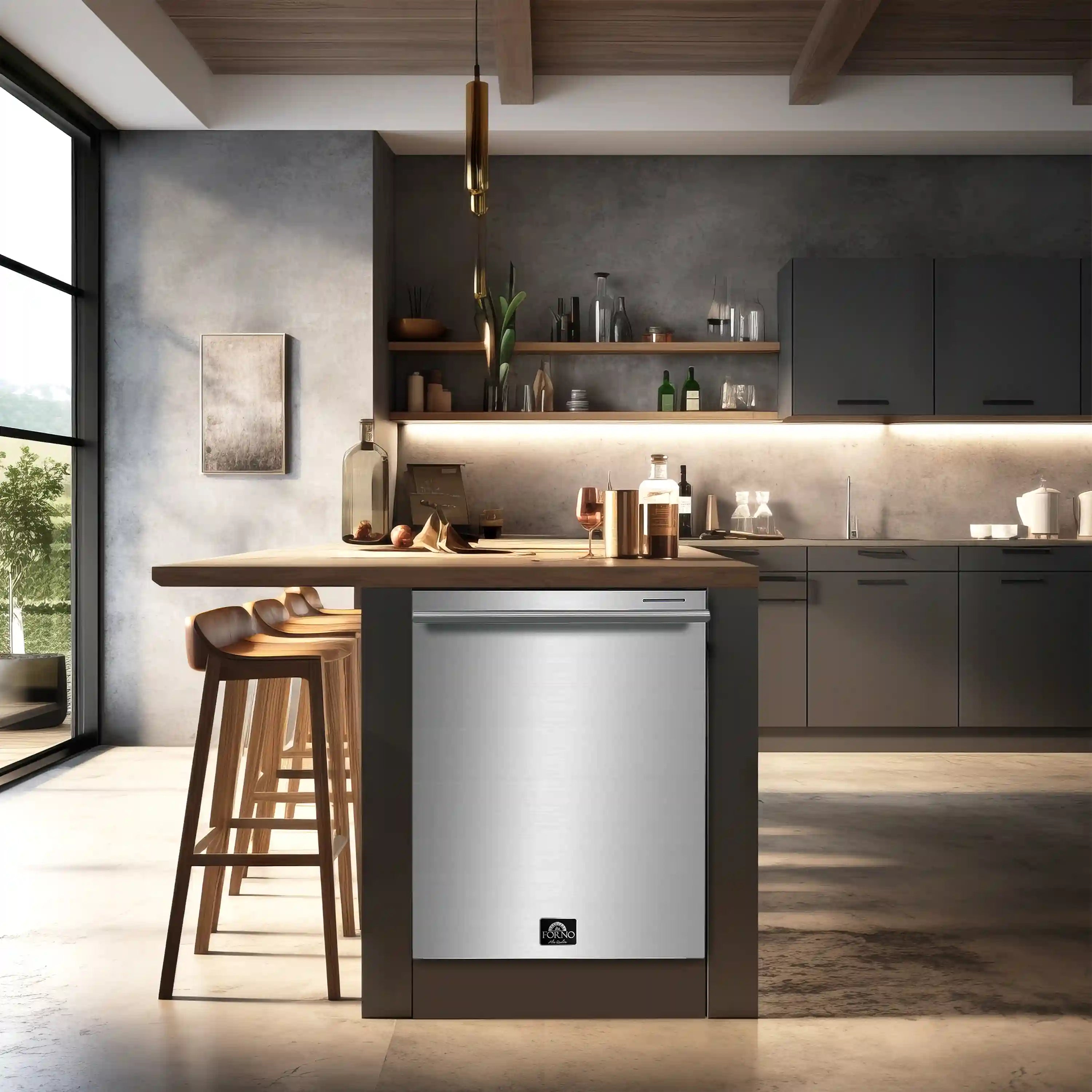

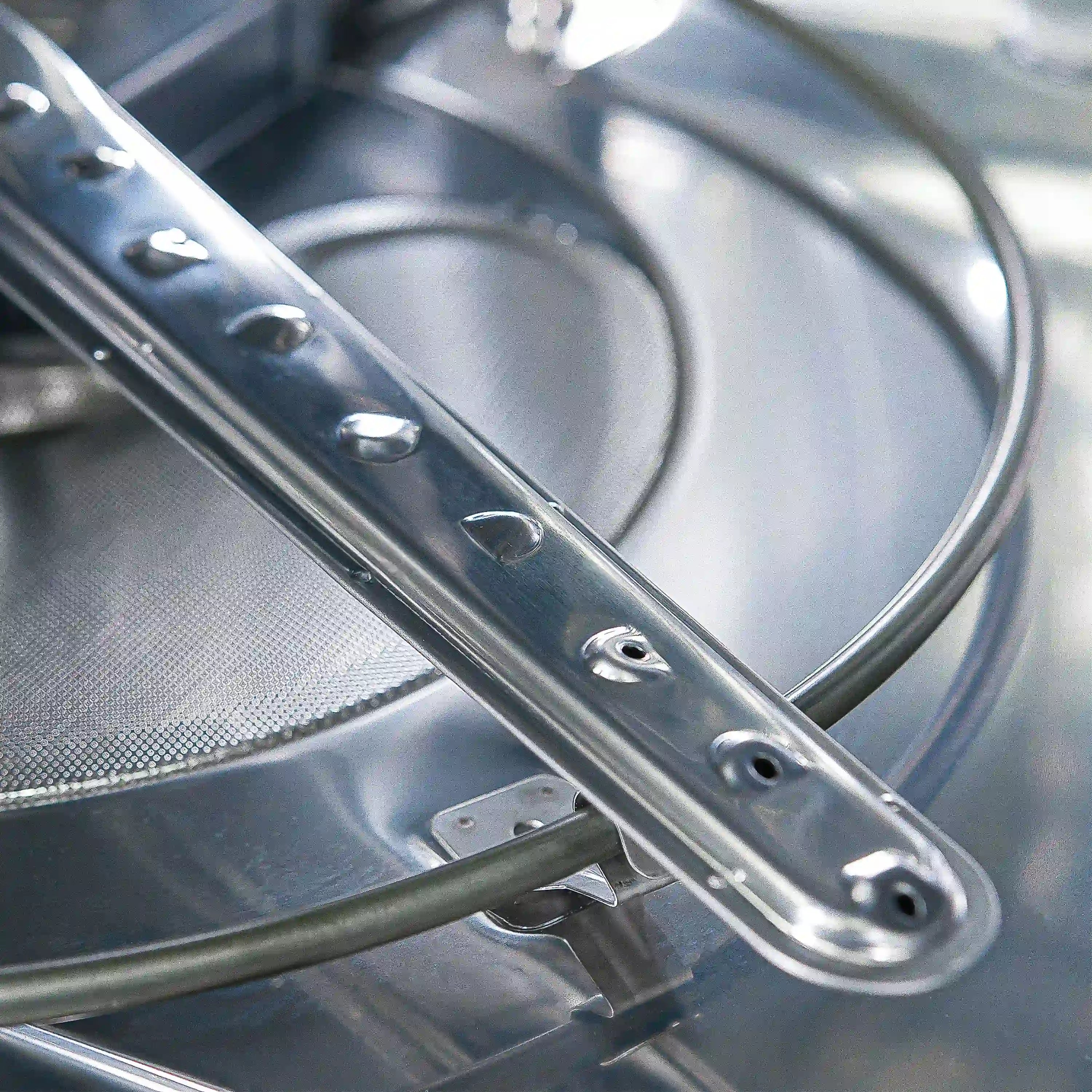

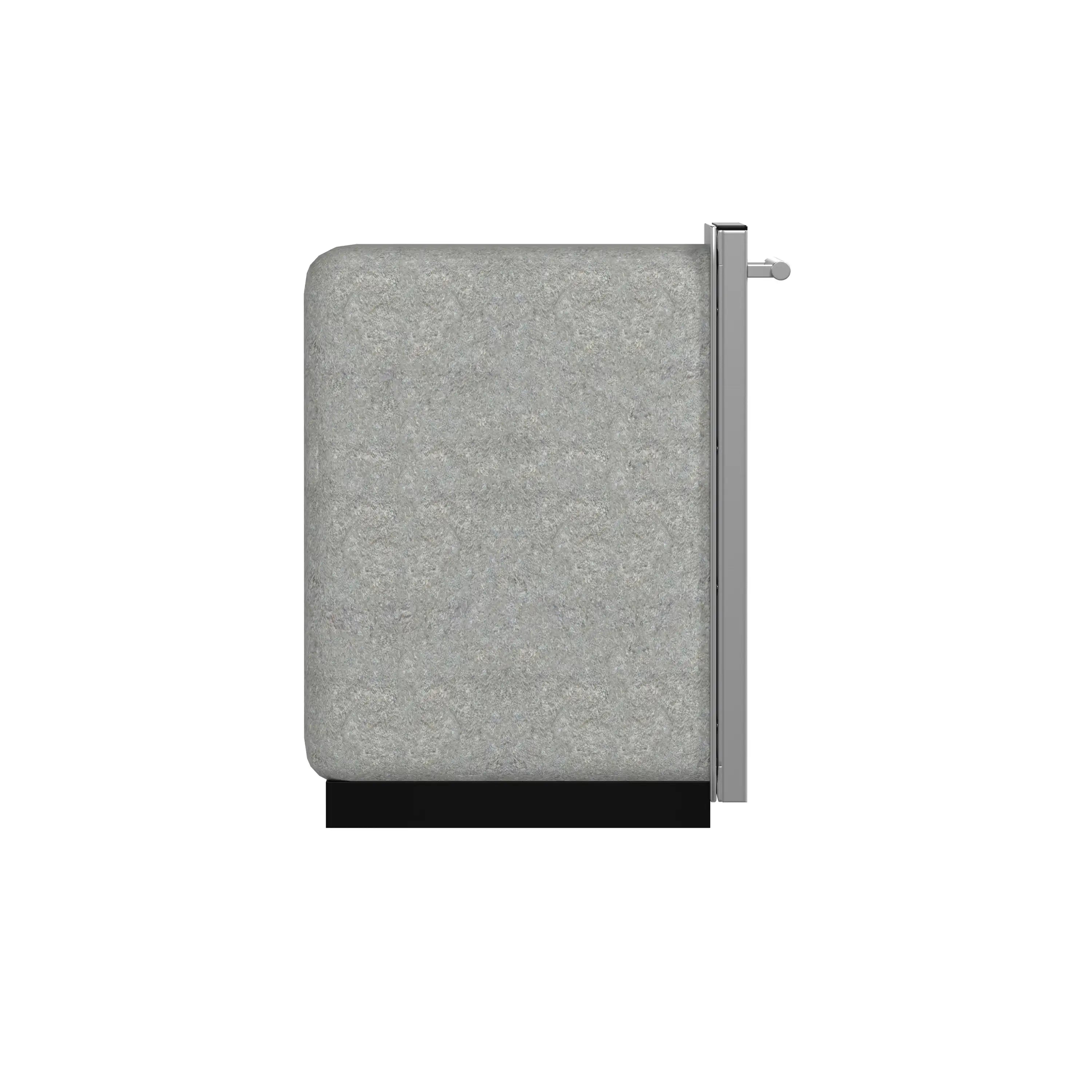

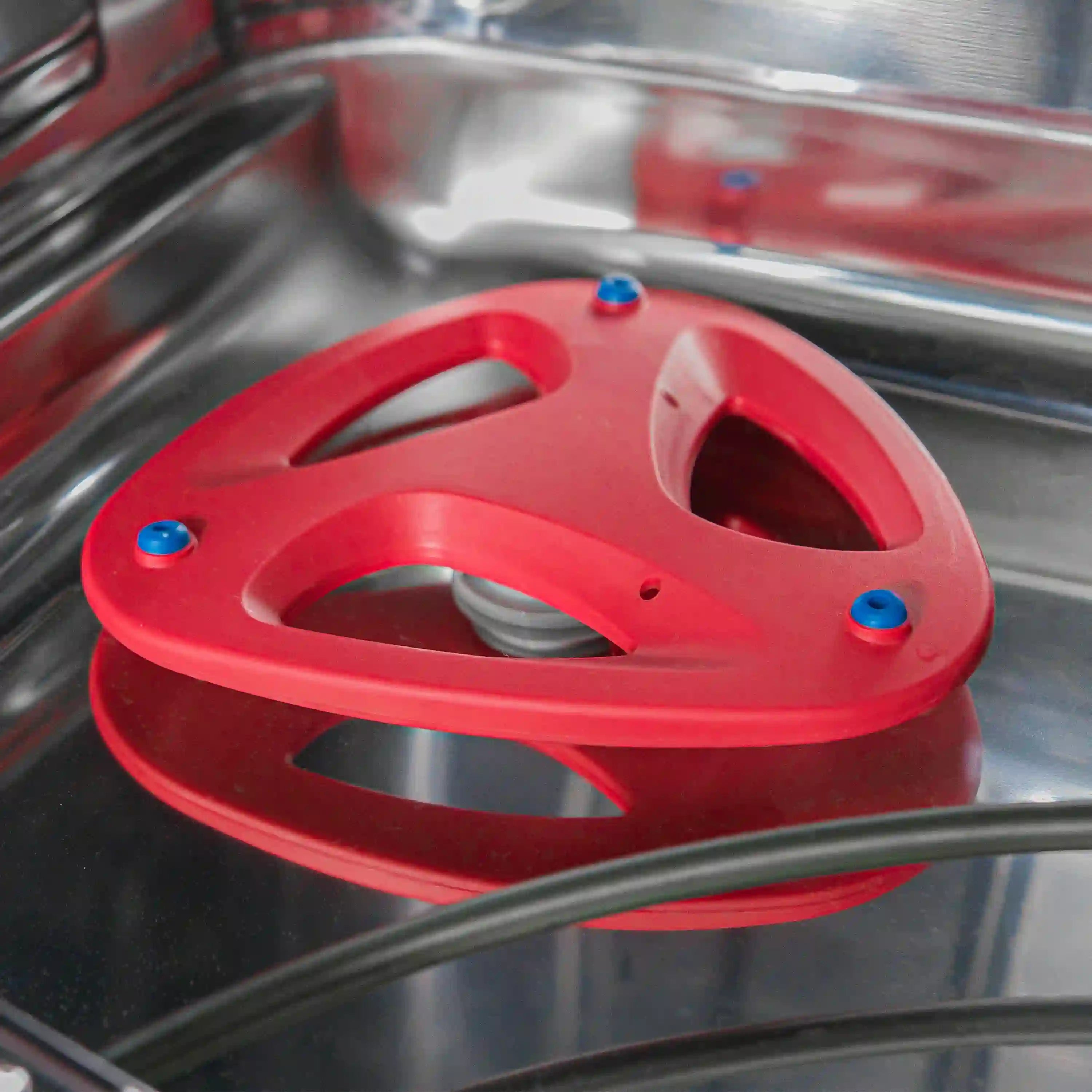

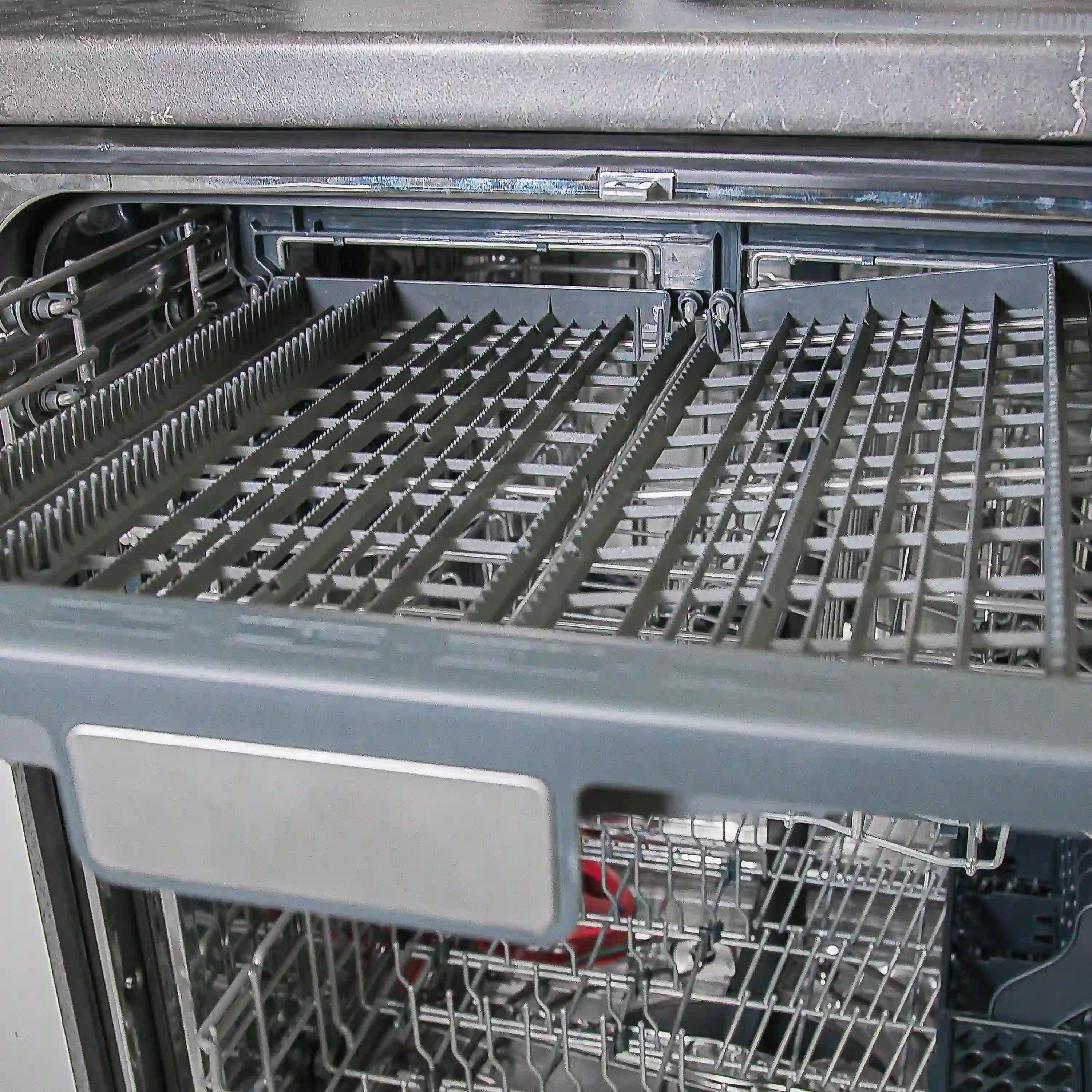

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its stainless-steel front and pro-style handle offer durability and style. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additionnal silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
| Product Dimensions W x D x H (inches) | 23.85x26.54x33.74 |
| Cutout dimensions W x D x H (inch) | 24 x 24 x 34 |
| Product Overall Weight (lbs) | 93.20 |
| Color/Finish | Stainless Steel |
| Number of Racks | 3 |
| Racks Material | Nylon Coated Steel |
| Interior Light | No |
| Control Location | Top |
| Primary Material | Steel |
| Plug-in | No |
| CEE Tier Qualified | Not Rated |
| Energy Star Most Efficient | No |
| Estimated Annual Operating Cost (USD) | 24 |

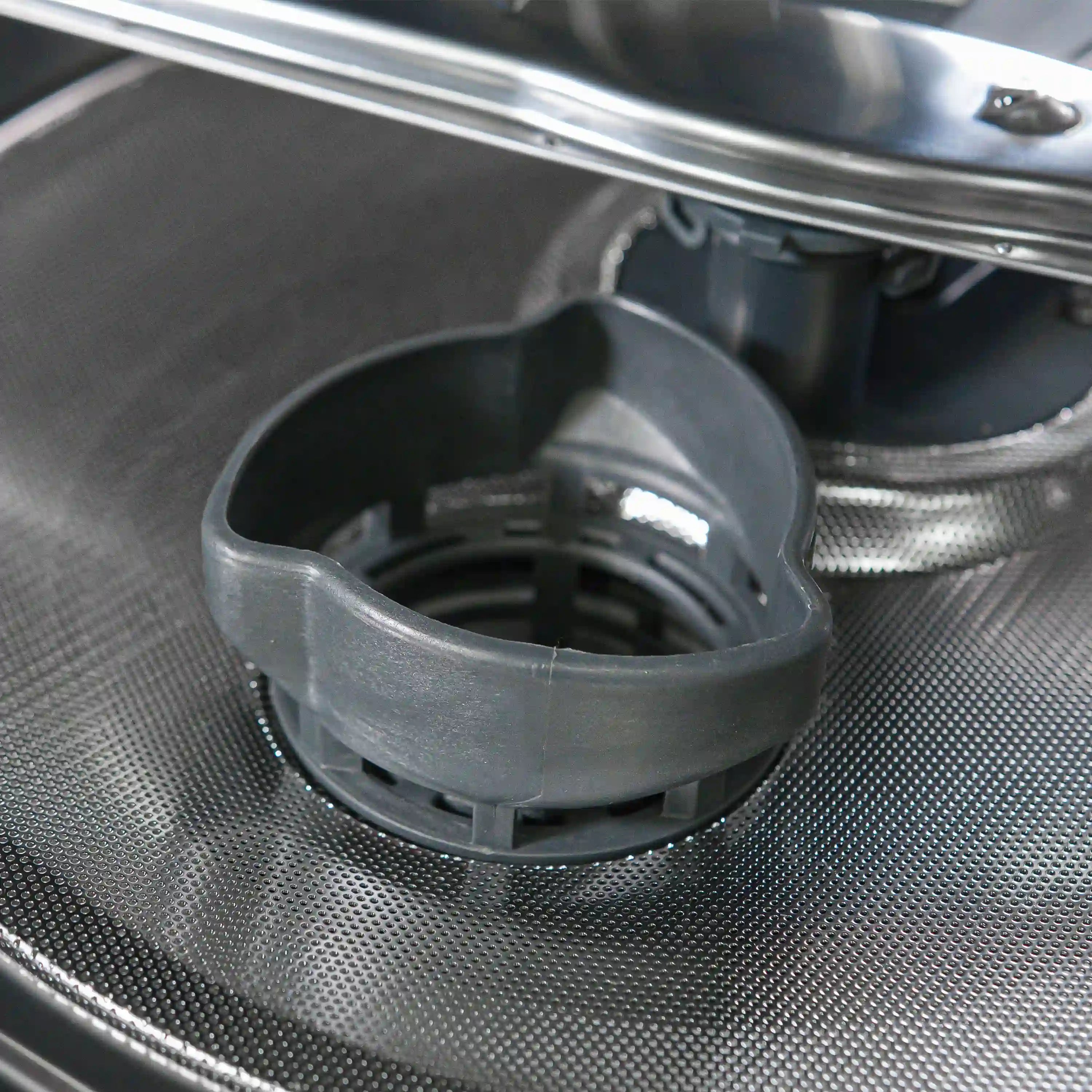

| Filter Material | Stainless Steel |
| Minimum Product Height (IN) | 33.74 |
| Fingerprint-Resistant | No |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
