Description
DIMENSIONS
- Overall Weight
- 283.3
- Overall Dimensions
- 36” W x 37.4” H x 28” D
- Cutout Dimensions
- 36.25” W x 28” D
- Oven Interior Dimensions
- 30.9” W x16” H x18.7” D
- Power Cord Length
- 3.9′
- Adjustable Legs
- Yes
GENERAL INFORMATION
- Product Type
- Freestanding Range
- Stainless Steel Square Leg Covers
- No
- Food Grade 430 Stainless Steel
- Yes
- Back Splash Guard Included
- Yes
- Safety valves
- No
- Supplier Intended and Approved Use
- Residential Use Only
DESIGN & FINISH
- Color
- Red
- Finish
- Stainless Steel
- Color/Finish
- Stainless Steel
- Gas Heat Configuration
- Sealed Burners
- Interior Light
- 1
- Control Type
- Knob
- Control Location
- Front
- Pro-Style Handle
- Yes
- Fingerprint Resistant
- Yes
- Illuminated Zinc Knobs
- No
- Clock
- No
- Primary Material
- 304 Stainless Steel
TECHNICAL DETAILS
- Volts/ Amperage
- 240V/ 30A
- Wattage
- 3600W
- Receptacle Type
- 4-prong grounding-type
- Fuel Type
- Gas & Electric
- Gas Type
- Natural Gas
- LP Gas Convertible
- Yes
- LP Conversion Kit Included
- Yes
- Regulator
- Yes

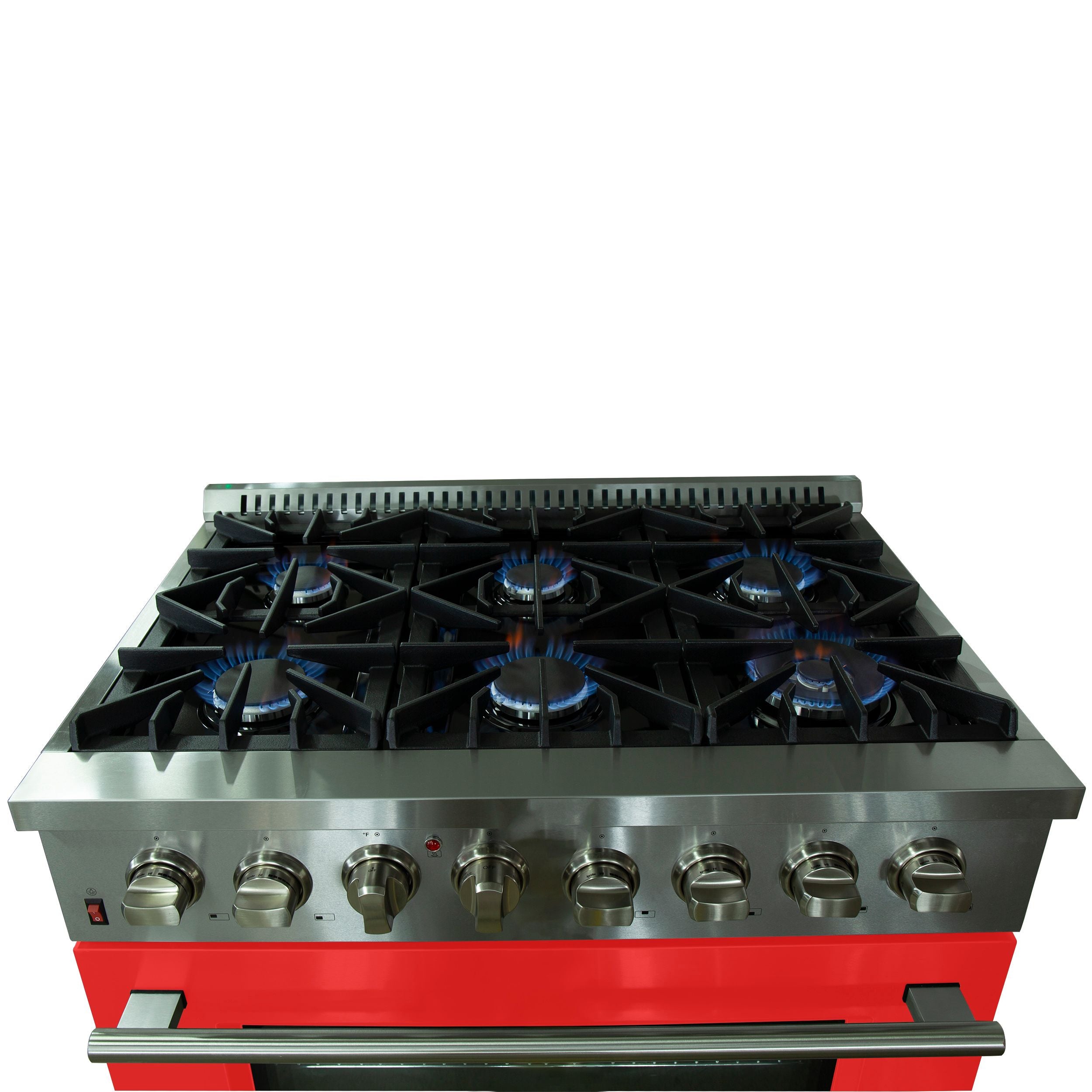

COOKTOP FEATURES
- Overall Burners BTU
- 83,000
- Front Right Dual Burner BTU
- 20,000 / Sim : 1000
- Front Center Burner BTU
- 15,000
- Front Left Burner BTU
- 15,000
- Rear Right Burner BTU
- 15,000
- Rear Center Burner BTU
- 9,000
- Rear Left Burner BTU
- 9,000
- Number of Burners
- 6
- Cooktop Surface
- Deep Recessed Enamel
- Bake Element
- Electric
- Sealed Burners
- Yes
- Continuous Cast Iron Grate
- Yes
- Griddle Include
- No

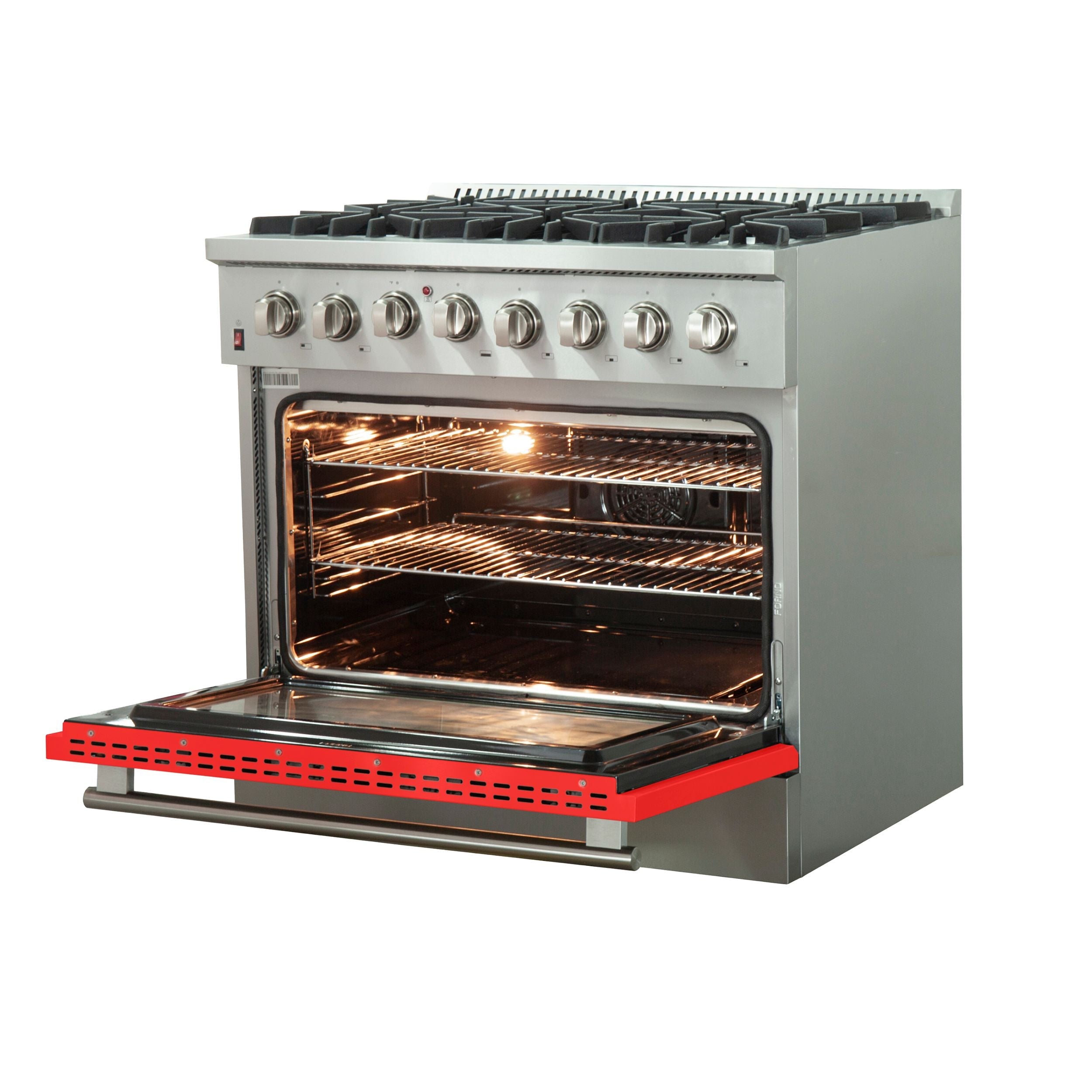

OVEN FEATURES
- Oven Door Open 90º
- +28”
- Oven Broil Wattage inside
- 1000W
- Oven Bake Wattage
- 2000W
- Oven Outside Wattage
- 1800W
- Convection Fan Wattage
- 1500W
- Overall Oven Capacity
- 5.36
- Broil Top BTU
- N/A
- Bottom BTU
- N/A
- Convection Fan
- Yes
- Number of Ovens
- 1
- Number of Racks
- 2
- Broiler
- Electric
- Cleaning Type
- Normal
- Convection Oven
- Yes
- Halogen Oven Lights
- Yes
- Soft Door Close
- Yes
- Blue Enamel Oven Interior
- No
- Thermostat
- Yes
- Temperature Gauge
- No
- Timer
- No
WARRANTY & CERTIFICATIONS
- Certifications
- ETL Listed
