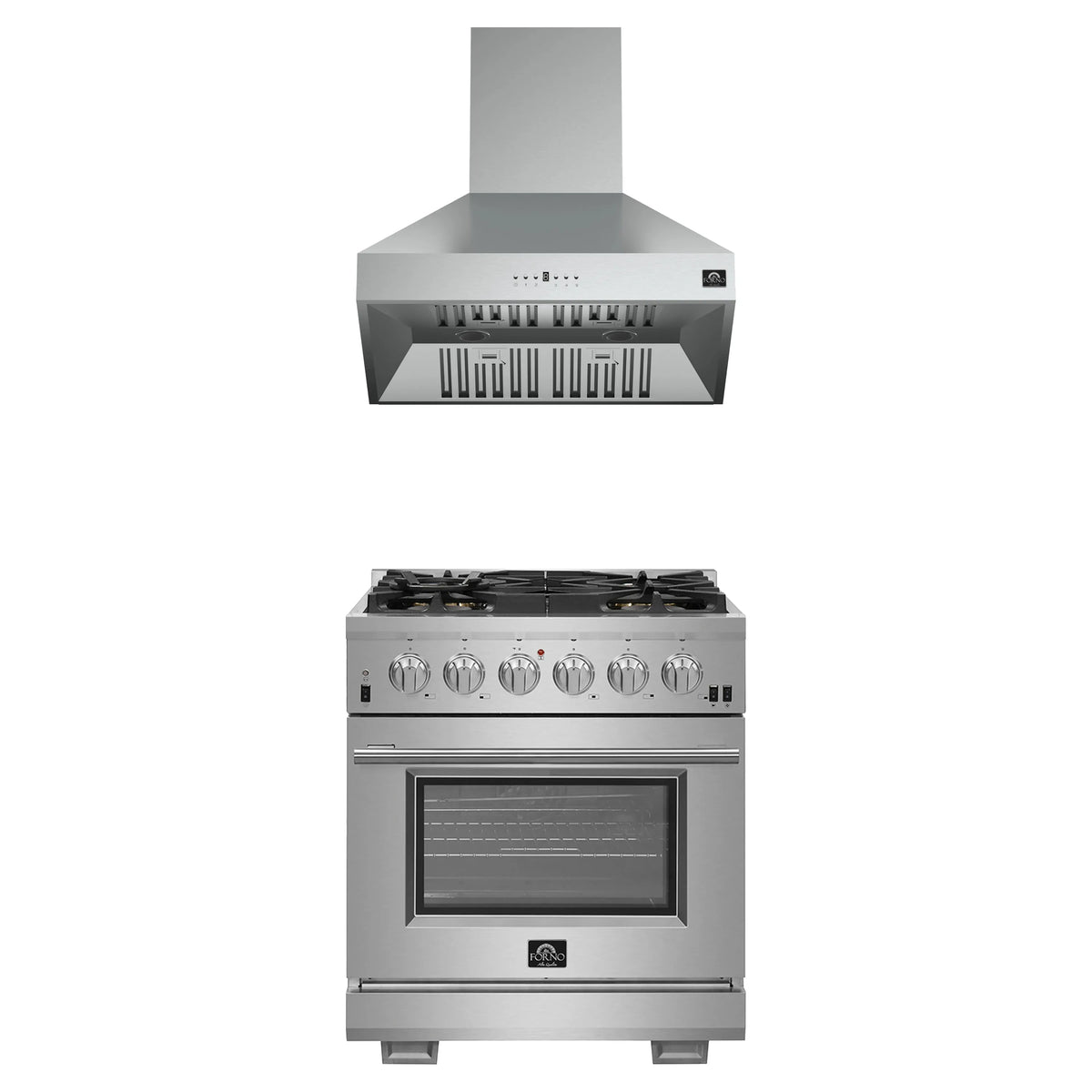

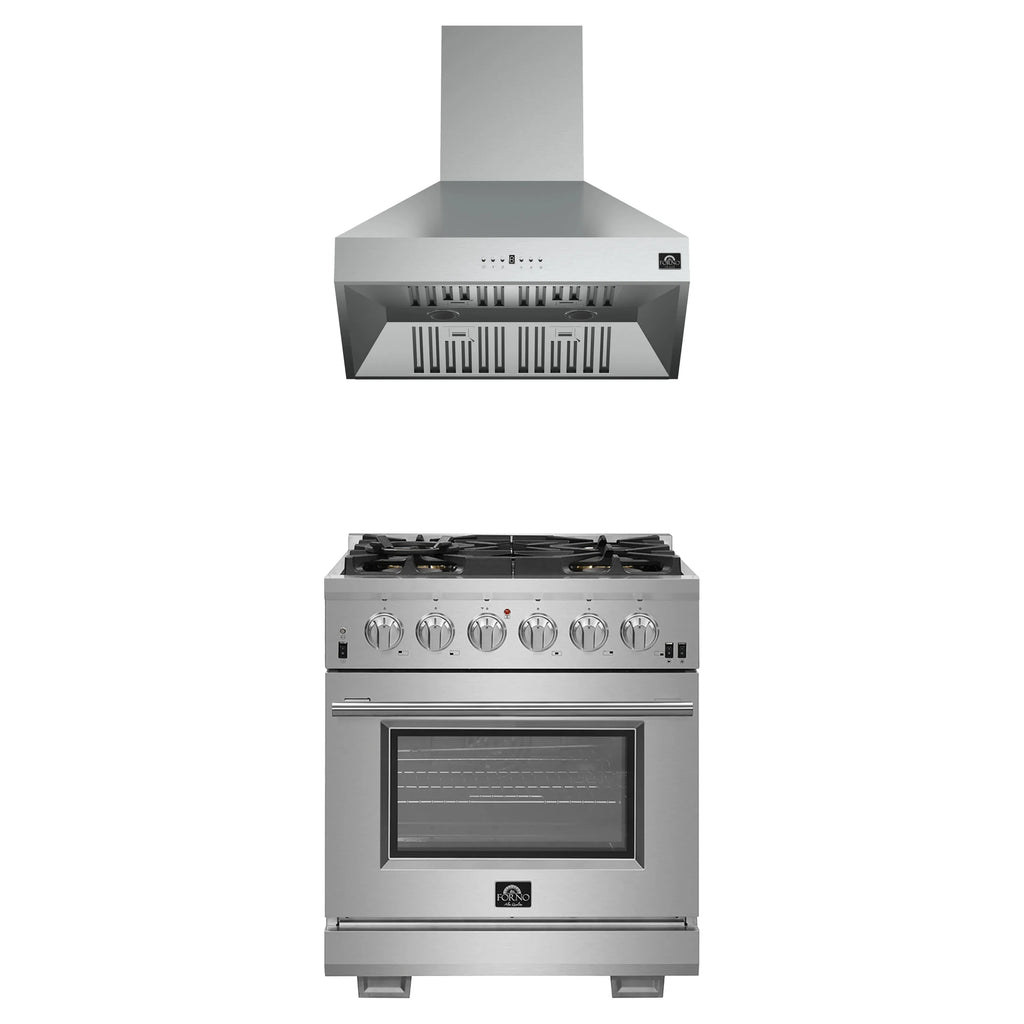

The Forno Capriasca 30 Inch Gas Range enhances your home kitchen with professional styling and performance through its durable and beautiful 304-grade stainless-steel design. The cooking surface features 5 sealed dual-ring brass burners, totaling 100,000 BTU. All burners, each at 20,000 BTU, can simmer precisely at 1,000 BTU. Continuous heavy-duty cast-iron grates facilitate easy sliding of pots or pans off heat over the enamel cooktop cavity, simplifying spill cleanup. The 4.32 cu. ft. gas oven, with a 30,000 BTU output and infrared red mesh broiler, enclosed in a blue enamel interior, offers optional convection for precise, and consistent cooking on multiple levels. For convenient viewing, a 3-layer glass oven door window is included. The package includes 3 telescopic stainless-steel oven racks, wok support, and an LP conversion kit. Additionally, zinc-coated illuminated metal knobs with bezel rings ensure enduring beauty.
Features:
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 30 x 28 x 38 |
| Cutout dimensions W x D x H (inch) | 30 x 25 x 36 |
| Product Overall Weight (lbs) | 227.07 |
| Main Oven Usable Interior (W x D x H) | 24 X 14 X 10.38 |
| Cabinet Color | Stainless Steel |
| Cabinet Material | Stainless Steel |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Color/Finish | Stainless Steel |
| Number of Knobs | 6 |
| Primary Material | Metal |
| Interior Light(s) Type | Halogen |
| Knobs Color/Finish | Zinc Coated |
| TECHNICAL DETAILS | |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
| LP gas convertible | Yes |
| COOKTOP FEATURES | |
| Burner Fuel | Gas |
| Gas Heat Configuration (cooktop) | Sealed Burner |
| Total Cooktop BTU Output | 100,000 |
| Number of Burners/Cooking Zones | 5 |
| Cooking Surface Control Type | Push & Turn/Knobs |
| Cooking Surface Ignition Type | Electronic |
| Simmer Burner | Yes |
| Number of Simmer Burner | 5 |
| Oval Burner | No |
| Cooktop Surface Structure | Grate; Deep Recessed |
| Grate Type | Heavy-Duty Continuous Cast Iron Grates |
| Auto Re-Ignition | Yes |
| Oven Ignition Type | Automatic Ignition |
| Dual-Ring Burner | Yes |
| OVEN FEATURES | |
| Number of Ovens | 1 |
| Overall Oven BTU | 30000 |
| Overall Oven Capacity (Cubic Feet) | 4.32 |
| Oven Control Type | Manual/Knob |
| Glide/Rollout Racks | Yes |
| Racks Material | Stainless Steel |
| Number of Racks | 3 |
| Overall Bake Element BTU | 20000 |
| Overall Broil BTU | 10000 |
| Door Panel Material | 304 Stainless Steel |
| Oven Fuel | Gas |
| Overall Capacity Cu. Ft. | 4.32 |
The Orvieto 30-Inch STAINLESS STEEL Wall Mount RANGE HOOD helps create superior air quality with its powerful 600 CFM motor and four-speed push-button control. The decorative stainless-steel crown molding adds an attractive finish to your kitchen design. The hood is made from high-grade stainless steel for durability, and boasts noise reduction technology for a quieter sound while in use. The included surface lights provide superior illumination and energy efficiency. Baffle filters capture heat, odors, gases and are dishwasher-safe making cleanup a breeze. This range hood is sure to be an asset in any kitchen.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH)(in) | 29.53" W X 23.62" D X 29.14" to 44.29" H |
| Net Weight (lbs) | 44lbs |
| GENERAL INFORMATION | |
| Style design | Wall Mount |
| Ventilation Type | Ducted |
| DESIGN & FINISH | |
| Unit Color | Stainless Steel |
| Control type | Push Button |
| TECHNICAL DETAILS | |
| Number of Motors | 1 |
| Duct Shape | Round |
| Number of Ducts | 2 |
| Duct Size | 6” |
| Running Amperage (A) | 1.8 |
| Circuit Breaker Amperage (A) | 15 |
| Volts (V) | 120 |
| Motor Power (WATTS) | 60 |
| Frequency | 60Hz |
| Power cord plug type | NEMA 5-15P |
| Power Cord Length (ft) | 4 |
| # Speed levels | 4 |
| FEATURES | |
| Size | 30" |
| Number of Hood filters | 4 |
| Hood Filter type | Baffle |
| Light Type | LED GU10 |
| Dimmable Lighting | No |
| Automatic Shut-Off Timer | Yes |
| Auto. Shut-off Timer Duration | 3 Min |
