The Fire Magic Echelon Diamond Series combines the ultimate in performance, beauty, and innovation, featuring a hot surface ignition, blue back-lit knobs, heat zone separators, and infrared sear burner options.
When only the best will do, Fire Magic's top-of-the-line Echelon Diamond combines the ultimate in performance, beauty, and innovation. With sleek lines, a unique contoured face, and state-of-the-art features such as hot surface ignition, blue back-lit knobs, and an optional Magic View Window, Echelon Diamond defines luxury in grilling.
Available in propane and natural gas versions.

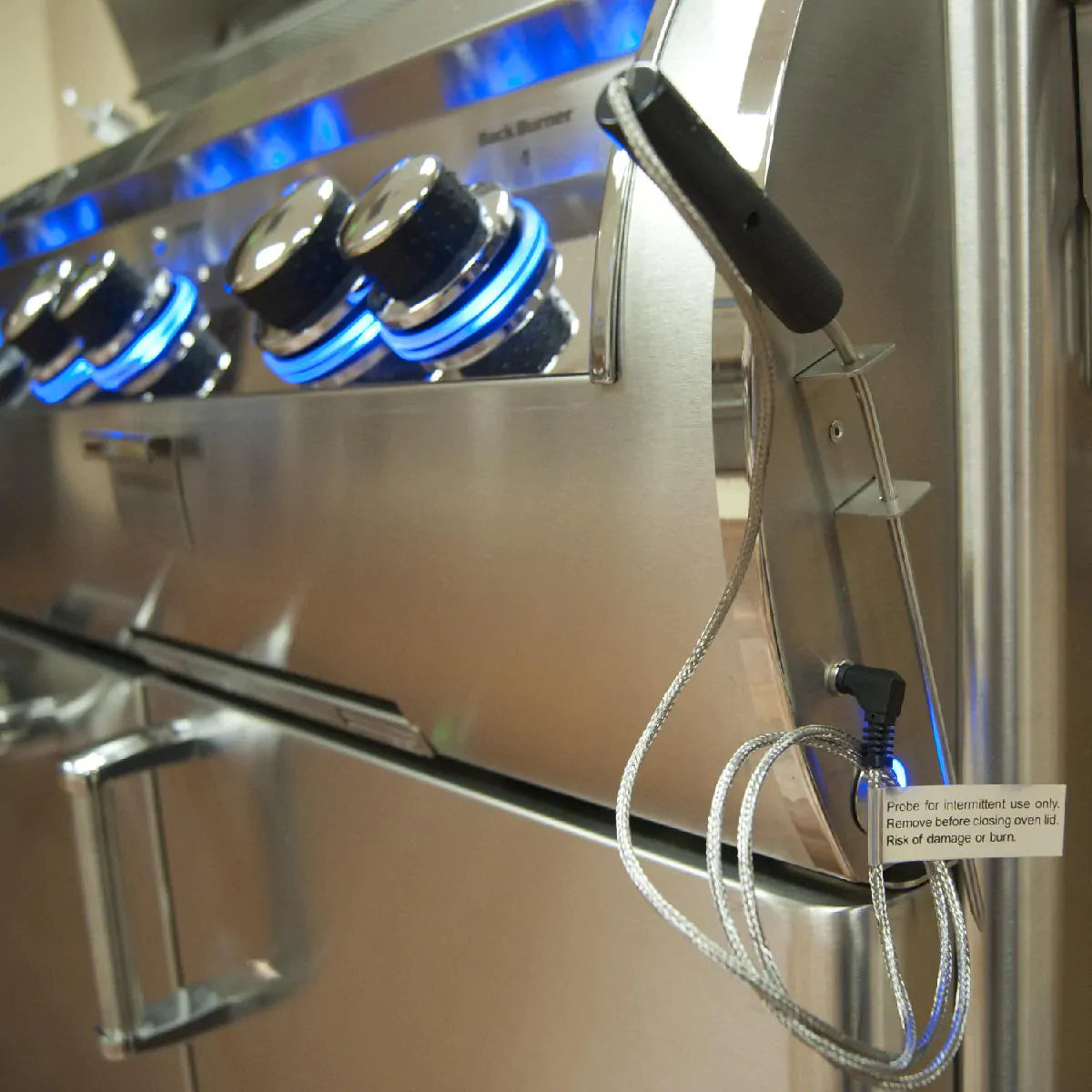

Digital Thermometer Option. Illuminated chromed digital thermometer with meat probe, timer, and alarm settings for precise grilling.

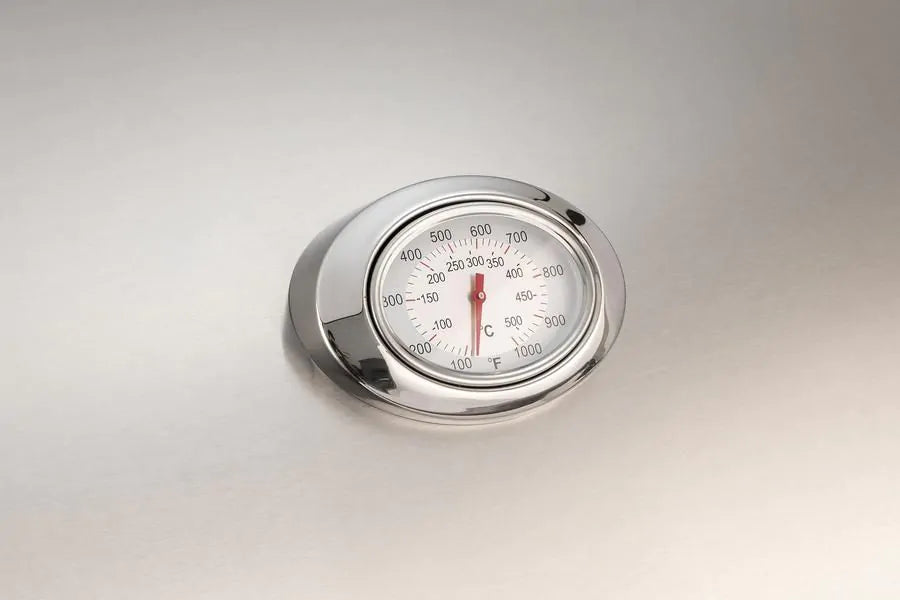

Analog Thermometer Option. Analog thermometer with polished stainless steel bezel in hood measures up to 1000 °F.
Diamond Sear Cooking Grids. All 304 stainless steel trapezoid cooking grids provide more optimal cooking surface for even heat and great searing.
Flavor Grids. 16-gauge stainless steel, flavor grids are engineered for durability, even heat distribution, and reduced flare-ups.
Heat Zone Separators. Heat zone separators between each burner, flavor grid, and cooking grid allow cooking an assortment of foods at different temperatures simultaneously, and to provide better indirect cooking.

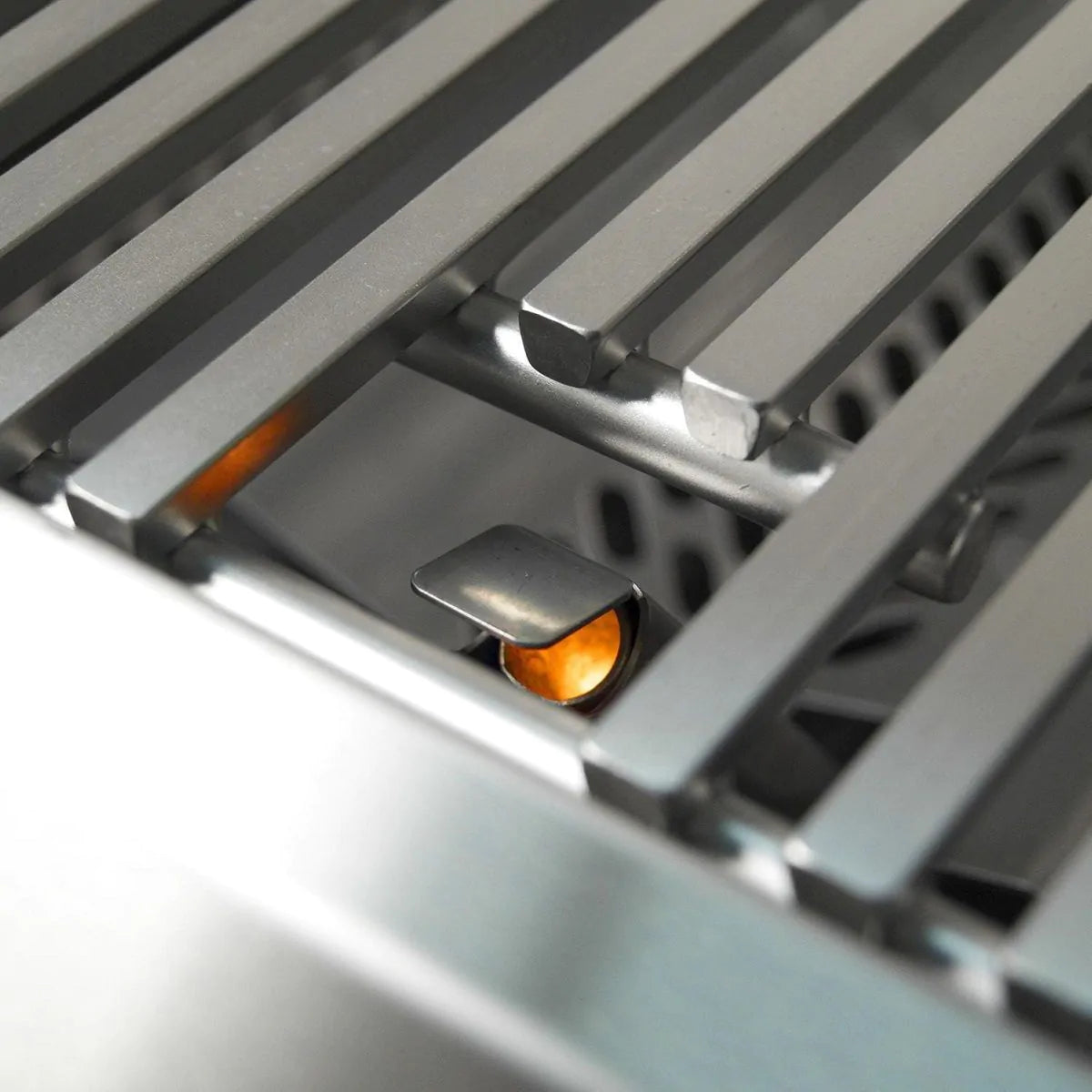

Hot Surface Ignition. Hot surface electronic ignition provides reliable lighting for every meal. Requires 120V AC power supply.
Charcoal/Smoker Basket. Included with all Echelon Diamond grills at no additional charge. Great tool for charcoal grilling and smoking.

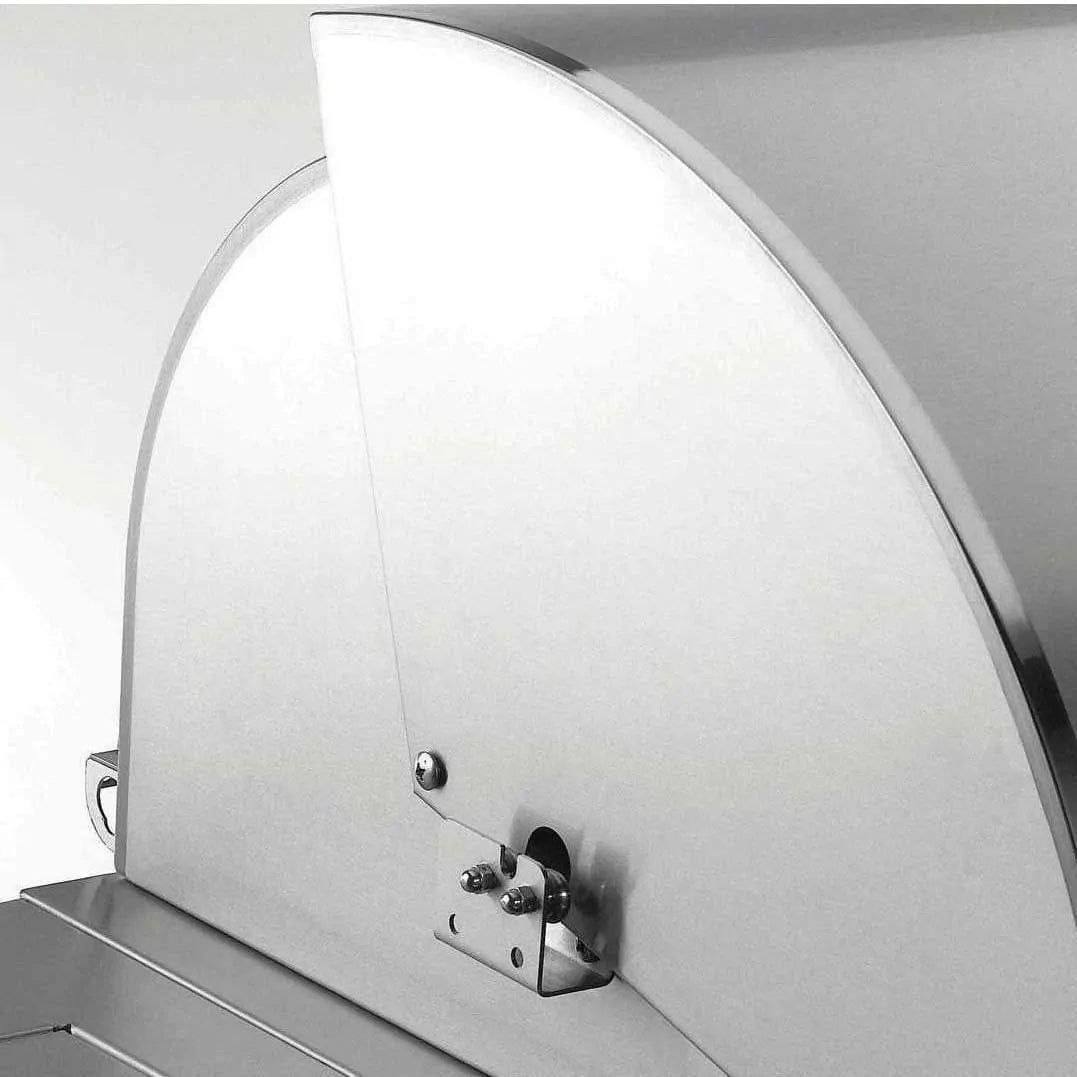

Rounded Oven Hood. Double well, seamless oven hood with featherlight easy lift, rounded for best convection cooking.

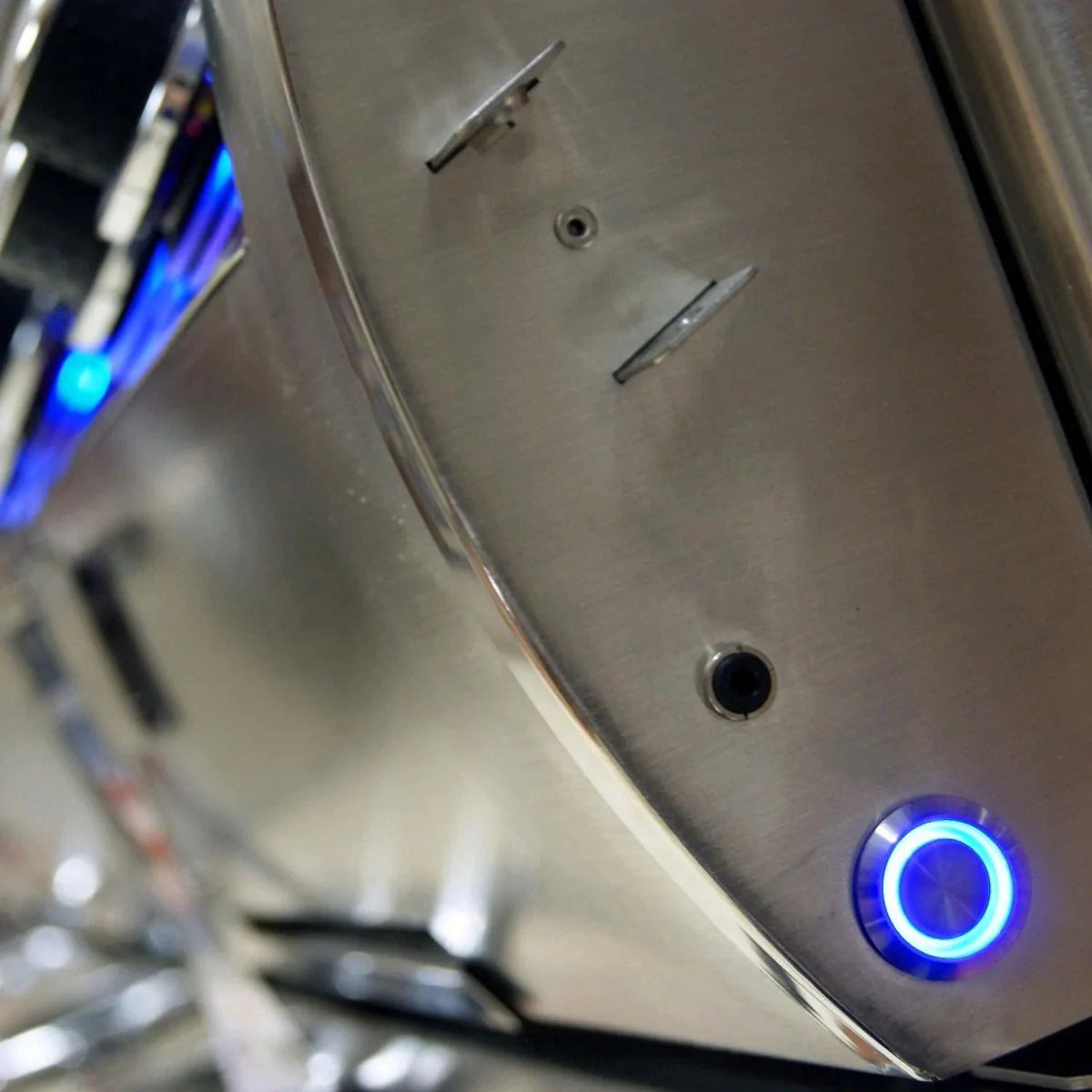

Contoured Face with Back-Lit Knobs. Smooth, seamless lines with polished highlights that feature fully illuminated, comfort touch safety control knobs (flame turns red when on).

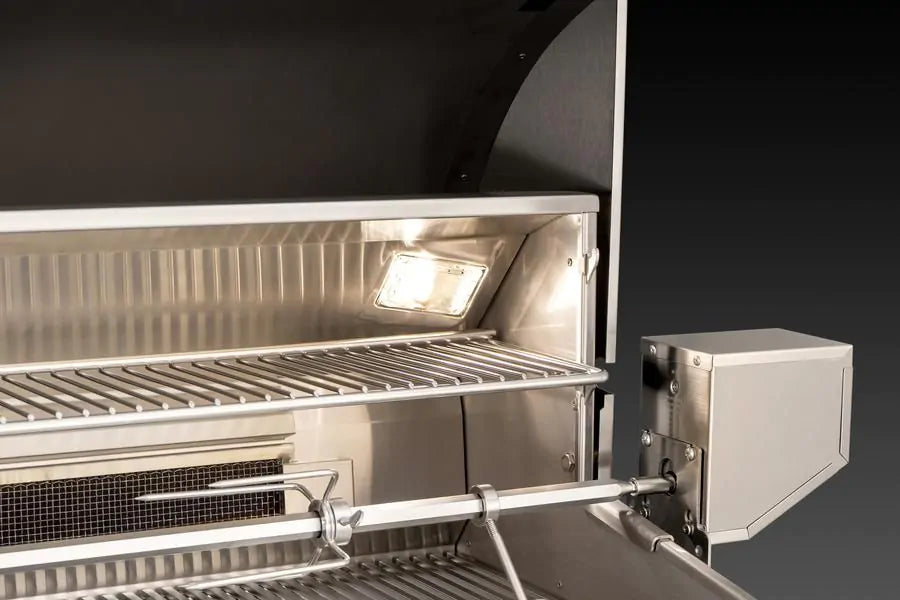

Halogen Interior Lights. Angled interior halogen lights make evening grilling a breeze.
Quantum Backburner. Recessed Quantum backburner made of stainless steel foam uses less BTUs to generate efficient high heat for rotisserie cooking. Polished stainless steel cover included for protection.
Optional Magic Window. Optional Magic View Window available on all Echelon Diamond grills. For Echelon "A" Series Grills purchased with a Magic View Window, a Grill Top Thermometer is provided at no extra cost.

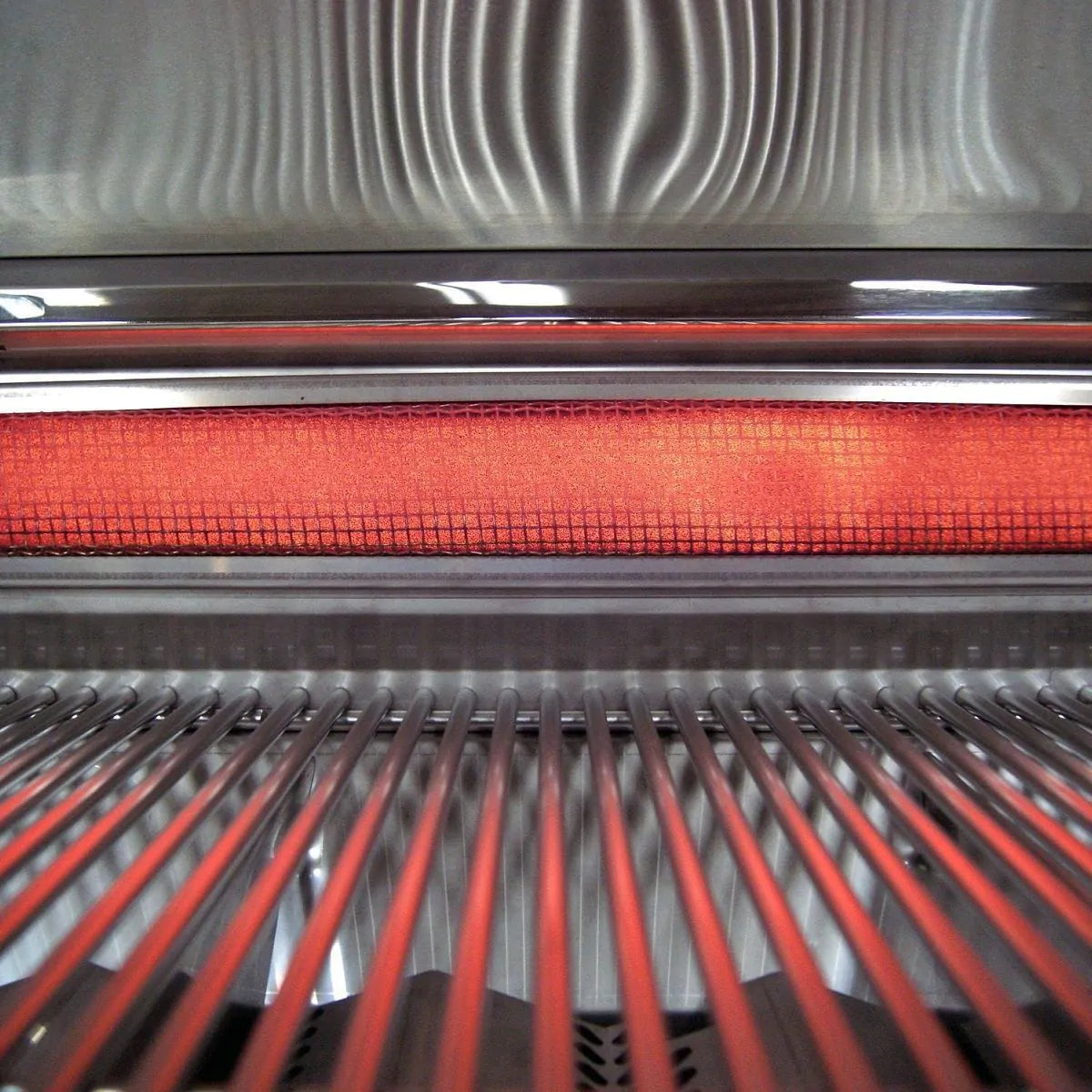

Optional Infrared Burner. Upgrade to an infrared sear burner in the left hand position at no charge on all Echelon Diamond grills.
Optional All Infrared Burners. Upgrade to an all infrared sear burner model on all Echelon Diamond grills for an additional cost.
Diamond Sear Cooking Grids. All 304 stainless steel trapezoid cooking grids provide more optimal cooking surface for even heat and great searing.
| Class | Luxury |
| Fuel Type | Propane |
| Model | Echelon |
| Cut Out Width | 37" |
| Cut Out Depth | 23 1/2" |
| Cut Out Height | 11 1/2" |
| Width | 40.125" |
| Depth | 30.5" |
| Height | 27" |
| Configuration | Built-In |
| Exterior Material | Stainless Steel |
| Exterior Stainless Grade | 304 Stainless Steel |
| Color | Stainless Steel |
| Main Burners | 3 |
| Grilling Surface BTUs | 90,000 |
| Main Burner Material | 304-Stainless Steel |
| Flame Tamer Material | Stainless Steel |
| Cooking Grate Dimensions | 36 X 22" |
| Main Grilling Area (Sq Inches) | 792 |
| Secondary Grilling Area (Sq Inches) | 288 |
| Total Grilling Area (Sq Inches) | 1080 |
| Total BTUs | 103,000 |
| Rear Rotisserie Burner BTUs | 13,000 |
| Rotisserie Kit | Included |
| Burger Count | 28 |
| Wifi/Bluetooth Enabled | None |
| Heat Zone Separators | Yes |
| Ignition Type | Hot Surface |
| Flash Tubes | Yes |
| Lights | Yes |
| Grill Lights | Internal / External |
| Spring Assisted Hood | Yes |
| Temperature Gauge | Analog |
| On Wheels | No |
| Includes Smoker Box | No |
| Side Shelves | No |
| Made In USA | Yes |
| Commercial-Grade Multi-User | No |
| Hose / Regulator Included | Yes |
| Grill Size | 36" |
| Magic View Window Option | Yes |
