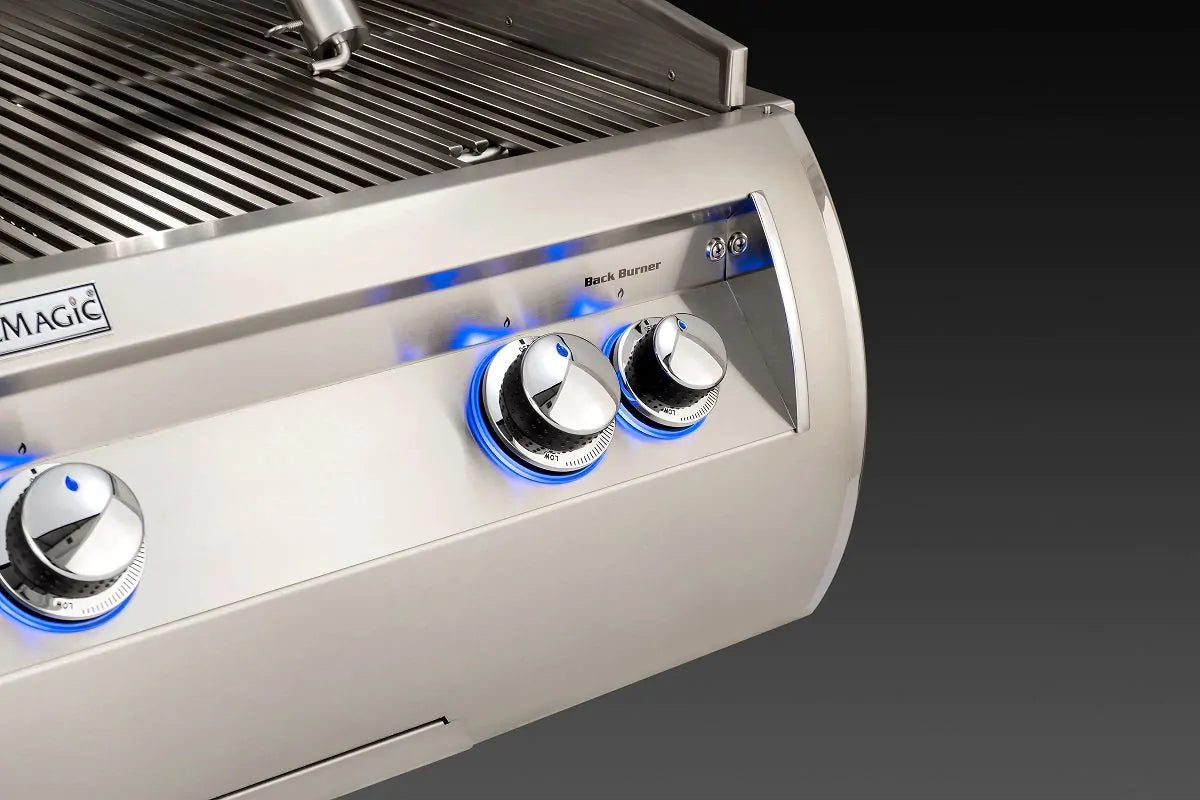

The Fire Magic Echelon Diamond Series combines the ultimate in performance, beauty, and innovation, featuring a hot surface ignition, blue back-lit knobs, heat zone separators, and infrared sear burner options.
When only the best will do, Fire Magic's top-of-the-line Echelon Diamond combines the ultimate in performance, beauty, and innovation. With sleek lines, a unique contoured face, and state-of-the-art features such as hot surface ignition, blue back-lit knobs, and an optional Magic View Window, Echelon Diamond defines luxury in grilling.
| DIMENSIONS | |
|---|---|
| Cut Out Width | 31 1/4" |
| Cut Out Depth | 23 1/2" |
| Cut Out Height | 11 1/2" |
| Width | 36.5" |
| Depth | 29.75" |
| Height | 27" |
| Cooking Grate Dimensions | 30 X 22" |
| Main Grilling Area (Sq Inches) | 660 |
| Secondary Grilling Area (Sq Inches) | 240 |
| Total Grilling Area (Sq Inches) | 900 |
| Grill Size | 30" |
| GENERAL INFORMATION | |
| Class | Premium |
| Fuel Type | Propane |
| Model | Echelon |
| Configuration | Built-In |
| On Wheels | No |
| Hose / Regulator Included | Yes |
| DESIGN & FINISH | |
| Exterior Material | Stainless Steel |
| Exterior Stainless Grade | 304 Stainless Steel |
| Color | Stainless Steel |

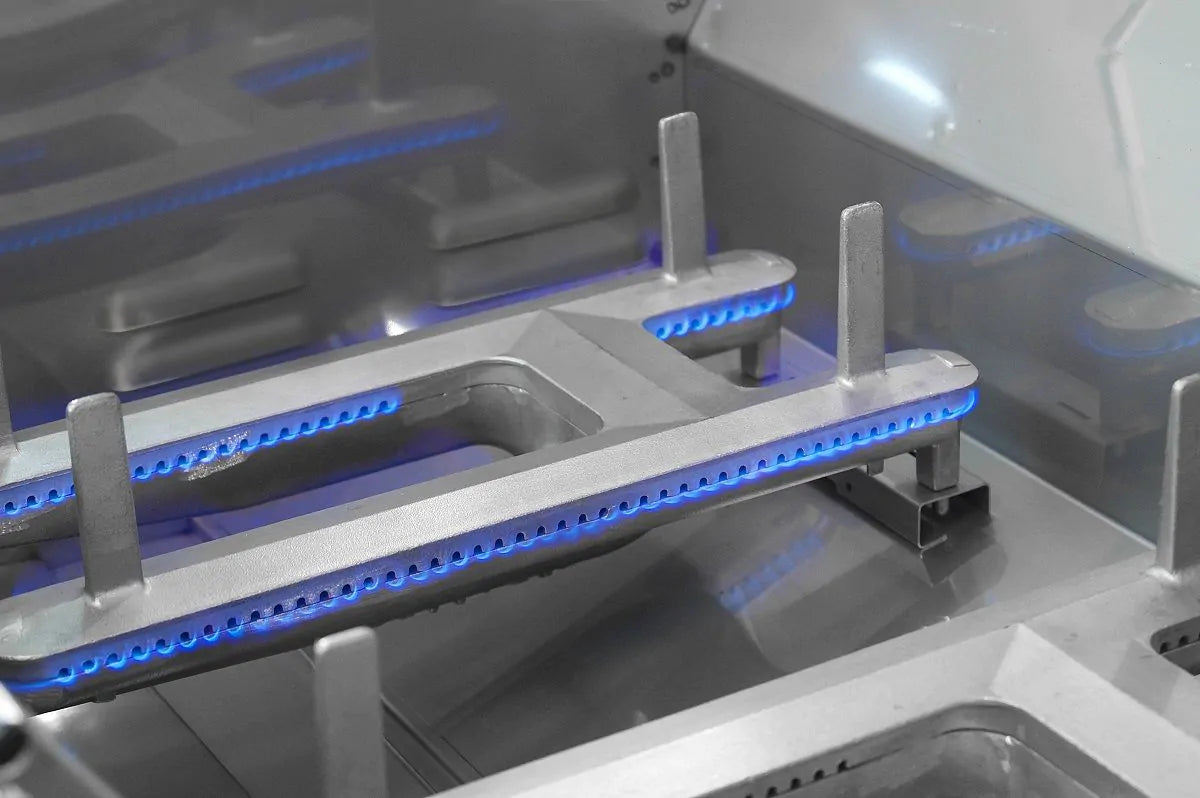

| Main Burner Material | 304-Stainless Steel |
| Flame Tamer Material | Stainless Steel |
| Commercial-Grade Multi-User | No |
| TECHNICAL DETAILS | |
| Grilling Surface BTUs | 75,000 |
| Total BTUs | 93,000 |
| Rear Rotisserie Burner BTUs | 18,000 |
| Ignition Type | Hot Surface |
| Flash Tubes | Yes |
| FEATURES | |
| Main Burners | 3 |
| Rotisserie Kit | Included |
| Burger Count | 24 |
| Wifi/Bluetooth Enabled | None |

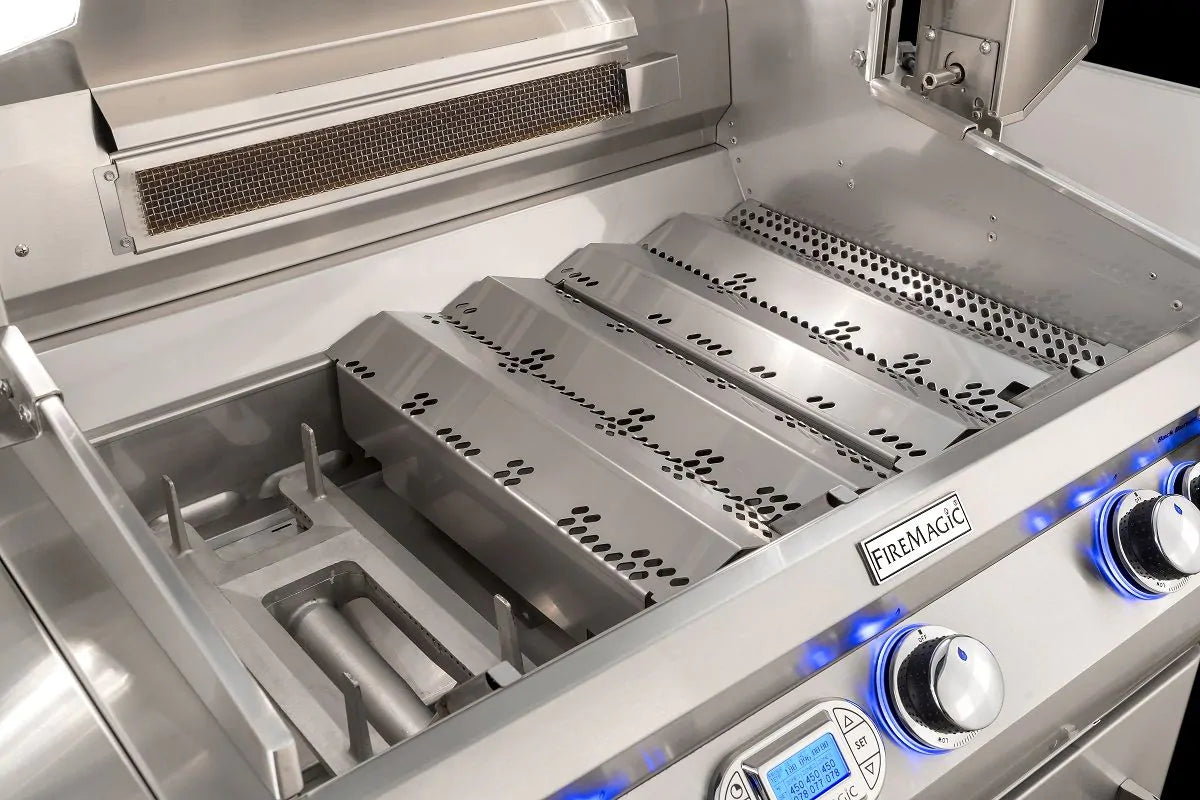

| Heat Zone Separators | Yes |
| Lights | Yes |
| Grill Lights | Internal / External |
| Spring Assisted Hood | Yes |

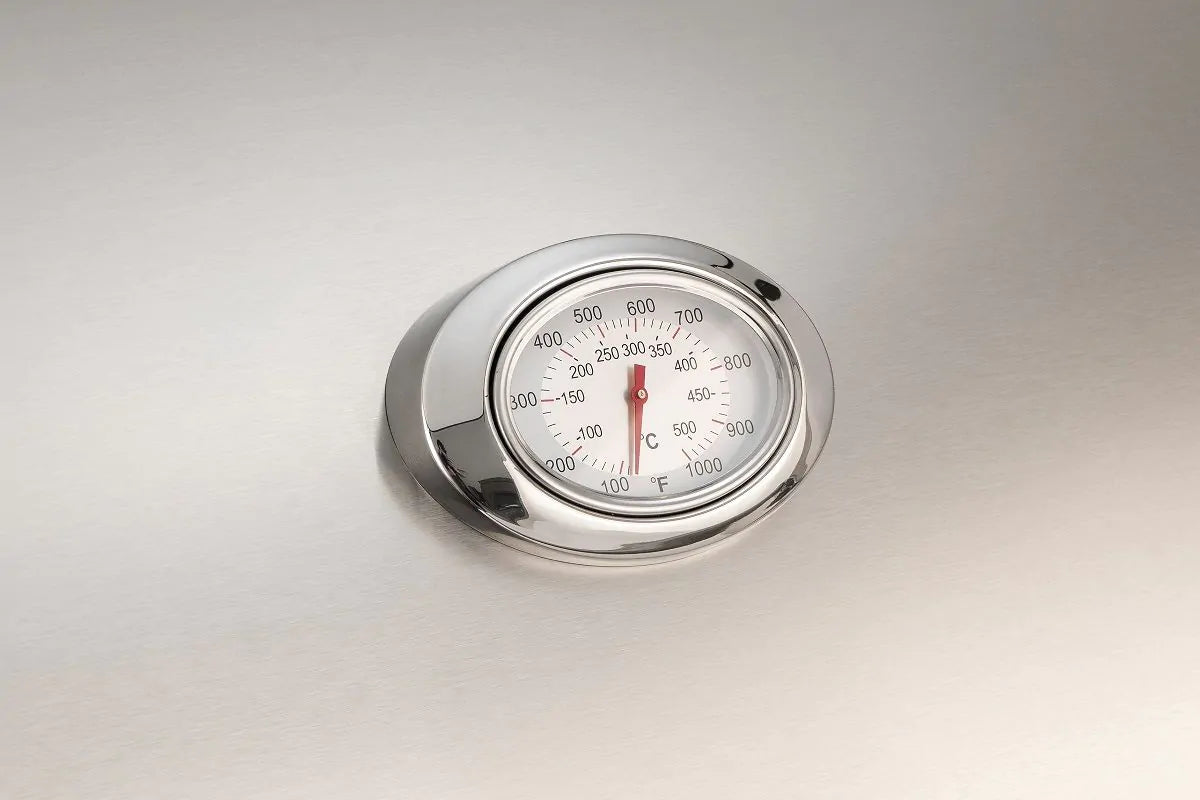

| Temperature Gauge | Analog |
| Includes Smoker Box | No |
| Side Shelves | No |
| Magic View Window Option | Yes |
| WARRANTY & CERTIFICATIONS | |
| Made In USA | Yes |
