The Fire Magic Echelon Diamond Series combines the ultimate in performance, beauty, and innovation, featuring a hot surface ignition, blue back-lit knobs, heat zone separators, and infrared sear burner options.

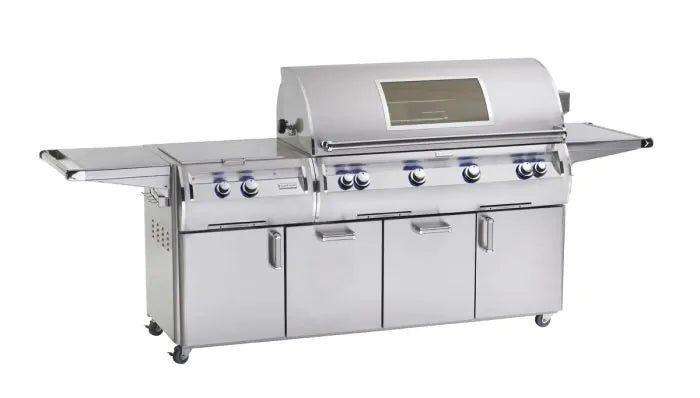

When only the best will do, Fire Magic's top-of-the-line Echelon Diamond combines the ultimate in performance, beauty, and innovation. With sleek lines, a unique contoured face, and state-of-the-art features such as hot surface ignition, blue back-lit knobs, and an optional Magic View Window, Echelon Diamond defines luxury in grilling.
Available in propane and natural gas versions.
Digital Thermometer Option: Illuminated chromed digital thermometer with meat probe, timer, and alarm settings for precise grilling.
Analog Thermometer Option: Analog thermometer with polished stainless steel bezel in hood measures up to 1000 °F.
Power Burner: The Echelon Power Burner is the largest, most powerful side cooker available and provides the high heat that's perfect for wok cooking or frying a turkey! Offering a range of 3,000 to 60,000 BTUs. Removable stainless steel cover included.
Flush Mounted Single Side Burner: Features of this single side burner include a 15,000 BTUs burner and a precise flame control valve. Includes stainless steel grid.
Diamond Sear Cooking Grids: All 304 stainless steel trapezoid cooking grids provide more optimal cooking surface for even heat and great searing.
Flavor Grids: 16-gauge stainless steel, flavor grids are engineered for durability, even heat distribution, and reduced flare-ups.
Heat Zone Separators: Heat zone separators between each burner, flavor grid, and cooking grid allow cooking an assortment of foods at different temperatures simultaneously, and to provide better indirect cooking.
Hot Surface Ignition: Hot surface electronic ignition provides reliable lighting for every meal. Requires 120V AC power supply.
Charcoal/Smoker Basket: Included with all Echelon Diamond grills at no additional charge. Great tool for charcoal grilling and smoking.

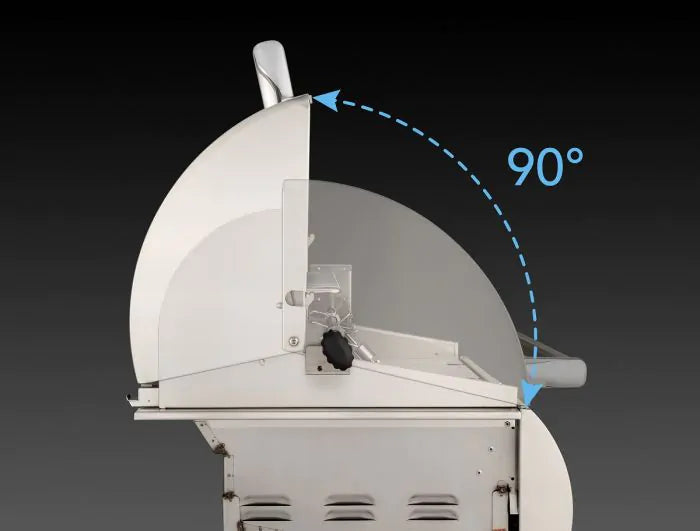

Rounded Oven Hood: Double well, seamless oven hood with featherlight easy lift, rounded for best convection cooking.
Contoured Face with Back-Lit Knobs: Smooth, seamless lines with polished highlights that feature fully illuminated, comfort touch safety control knobs (flame turns red when on).

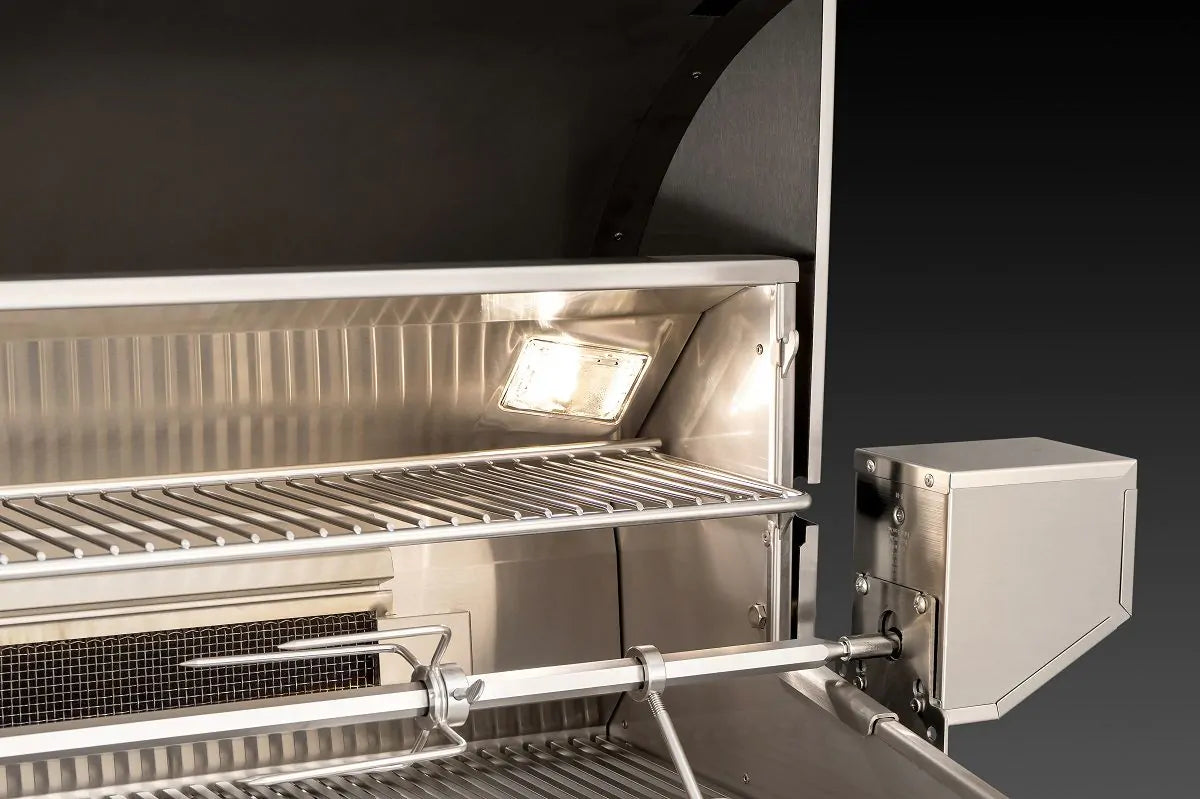

Halogen Interior Lights: Angled interior halogen lights make evening grilling a breeze.
Quantum Backburner: Recessed Quantum backburner made of stainless steel foam uses less BTUs to generate efficient high heat for rotisserie cooking. Polished stainless steel cover included for protection.
Optional Magic Window: Optional Magic View Window available on all Echelon Diamond grills. For Echelon "A" Series Grills purchased with a Magic View Window, a Grill Top Thermometer is provided at no extra cost.

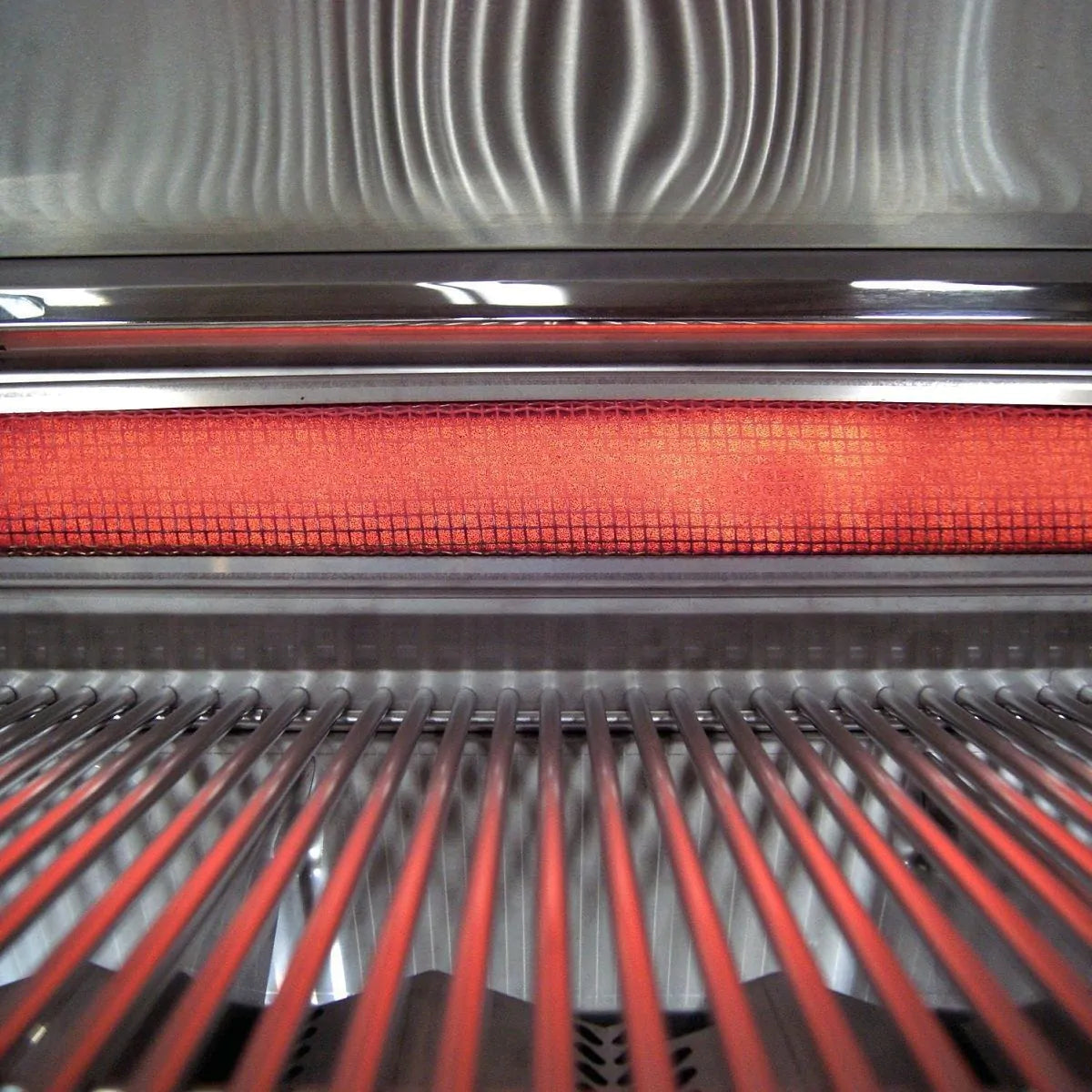

Optional Infrared Burner: Upgrade to an infrared sear burner in the left hand position at no charge on all Echelon Diamond grills.
Optional All Infrared Burners: Upgrade to an all infrared sear burner model on all Echelon Diamond grills for an additional cost.
Diamond Sear Cooking Grids: All 304 stainless steel trapezoid cooking grids provide more optimal cooking surface for even heat and great searing.
Extended Side Shelves: Capped with matching polished handles, the expansive side shelves offer the most preparation space of any portable grill. When not in use, they fold down neatly to save space.
| Class | Luxury |
| Fuel Type | Natural Gas |
| Model | Echelon |
| Width | 117" |
| Depth | 30.5" |
| Height | 52" |
| Configuration | Freestanding |
| Exterior Material | Stainless Steel |
| Exterior Stainless Grade | 304 Stainless Steel |
| Color | Stainless Steel |
| Main Burners | 4 |
| Grilling Surface BTUs | 112,000 |
| Infrared Main Burner | 1 Infrared |
| Main Burner Material | 304-Stainless Steel |
| Flame Tamer Material | Stainless Steel |
| Cooking Grate Dimensions | 48 X 22" |
| Main Grilling Area (Sq Inches) | 1,056 |
| Secondary Grilling Area (Sq Inches) | 384 |
| Total Grilling Area (Sq Inches) | 1,440 |
| Total BTUs | 1,94,000 |
| Side Burner BTUs | 60,000 |
| Rear Rotisserie Burner BTUs | 22,000 |
| Rotisserie Kit | Included |
| Burger Count | 40 |
| Wifi/Bluetooth Enabled | None |
| Heat Zone Separators | Yes |
| Ignition Type | Hot Surface |
| Flash Tubes | Yes |
| Lights | Yes |
| Grill Lights | Internal / External |
| Spring Assisted Hood | Yes |
| Temperature Gauge | Analog |
| On Wheels | Yes |
| Cart Assembly | Assembled |
| Includes Smoker Box | Yes |
| Side Shelves | Yes |
| Side Shelf Material | Stainless Steel |
| Side Burner Type | Power Burner |
| Made In USA | Yes |
| Commercial-Grade Multi-User | No |
| Magic View Window Option | Yes |
