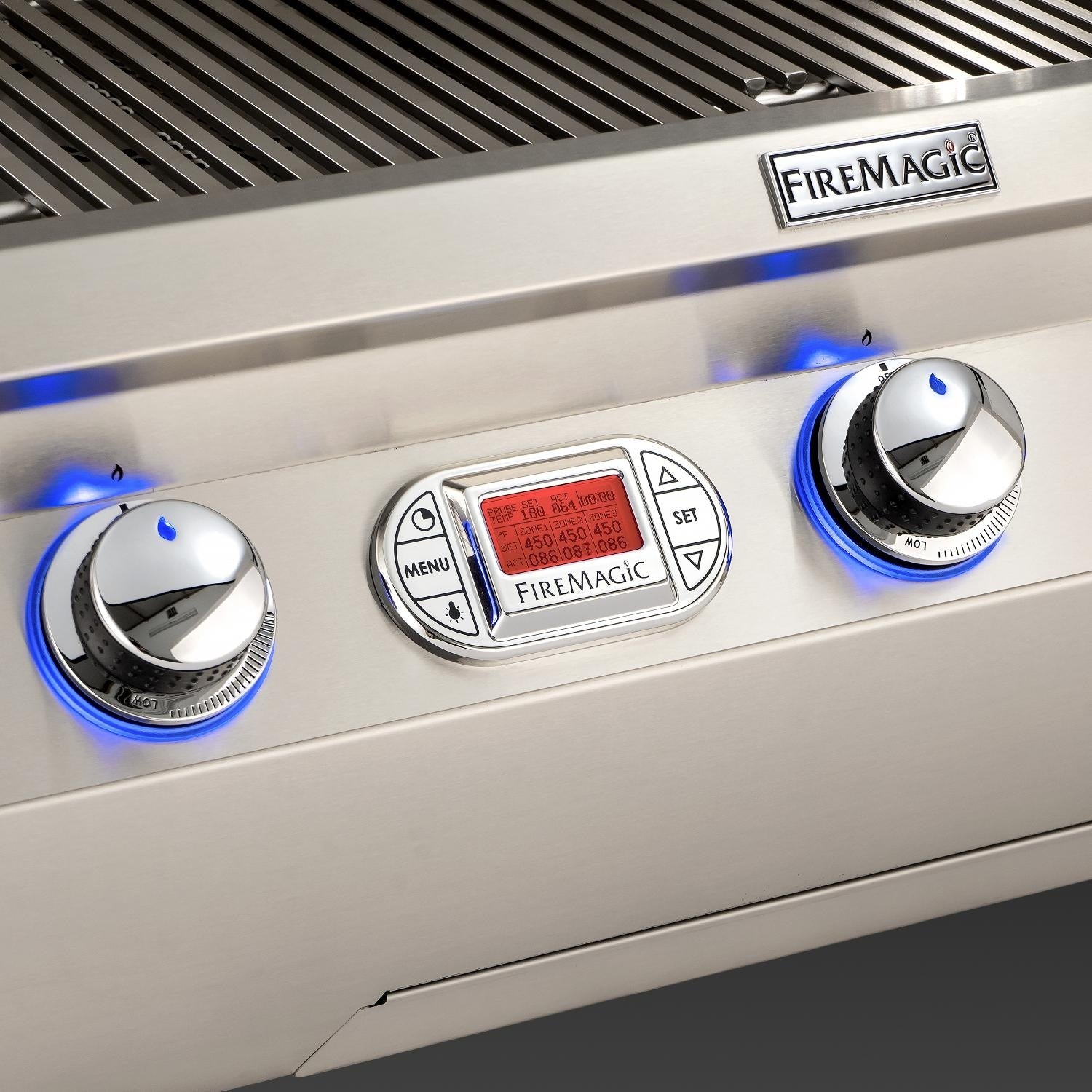

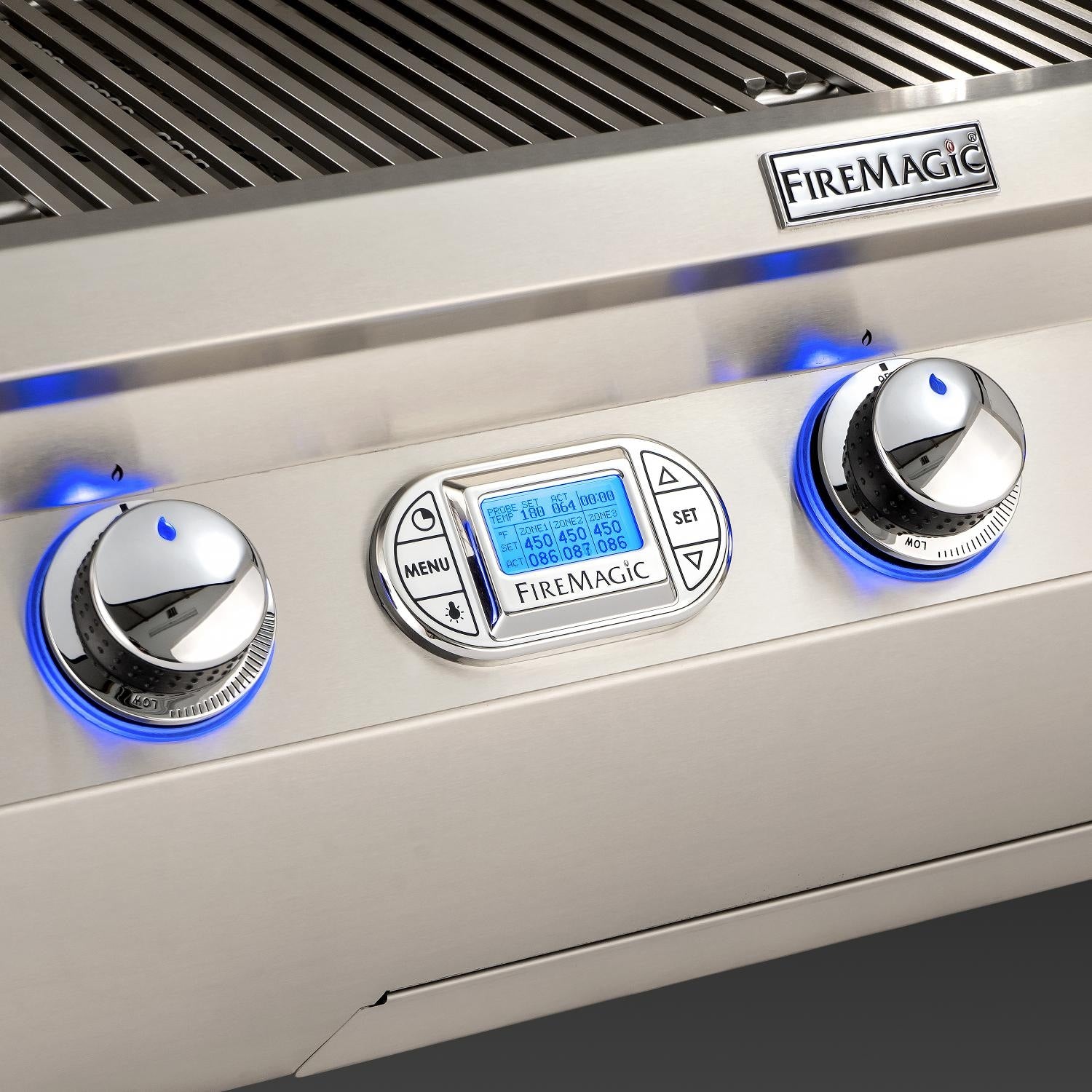

The Fire Magic Echelon Diamond Series combines the ultimate in performance, beauty, and innovation, featuring a hot surface ignition, blue back-lit knobs, heat zone separators, and infrared sear burner options.
When only the best will do, Fire Magic's top-of-the-line Echelon Diamond combines the ultimate in performance, beauty, and innovation. With sleek lines, a unique contoured face, and state-of-the-art features such as hot surface ignition, blue back-lit knobs, and an optional Magic View Window, Echelon Diamond defines luxury in grilling.
| Dimensions | 117" W x 52" H x30.5" D |
| Primary Cooking Surface | 48" x 22" (1,056 sq. in.) |

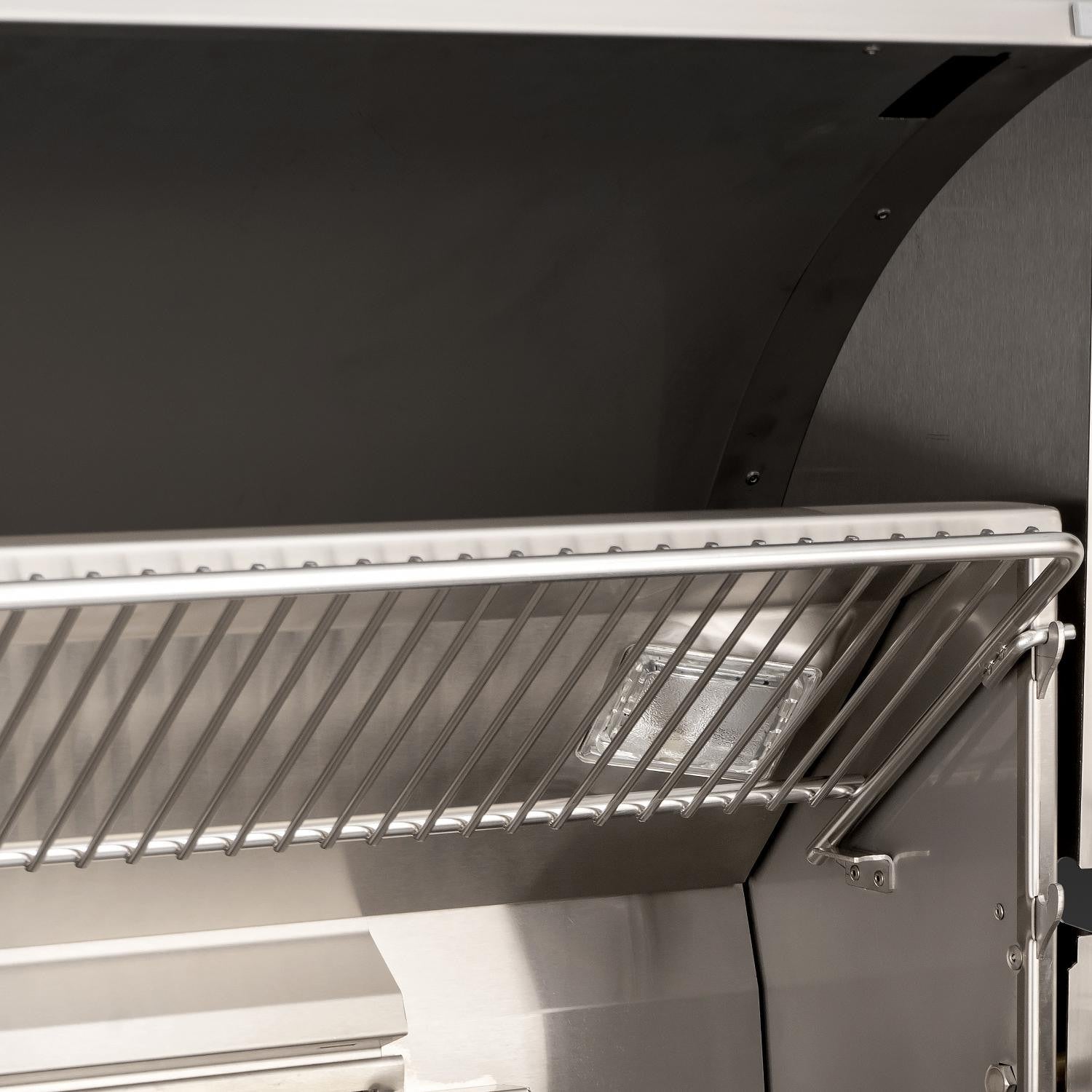

| Warming Rack Surface | 48" x 8" (384 sq. in.) |
| Main Burners | 112,000 BTUs |
| Backburners | 22,000 BTUs (11,000 x 2) |
| Class | Luxury |
| Fuel Type | Propane |
| Collection | Echelon Diamond |
| Configuration | Freestanding |
| Exterior Material | Stainless Steel |
| Exterior Stainless Grade | 304 Stainless Steel |
| Primary Color | Stainless Steel |
| Number Of Main Burners | 4 Burners |
| Main Burner Material | 304 Cast Stainless Steel |
| Flame Tamer Material | Stainless Steel |

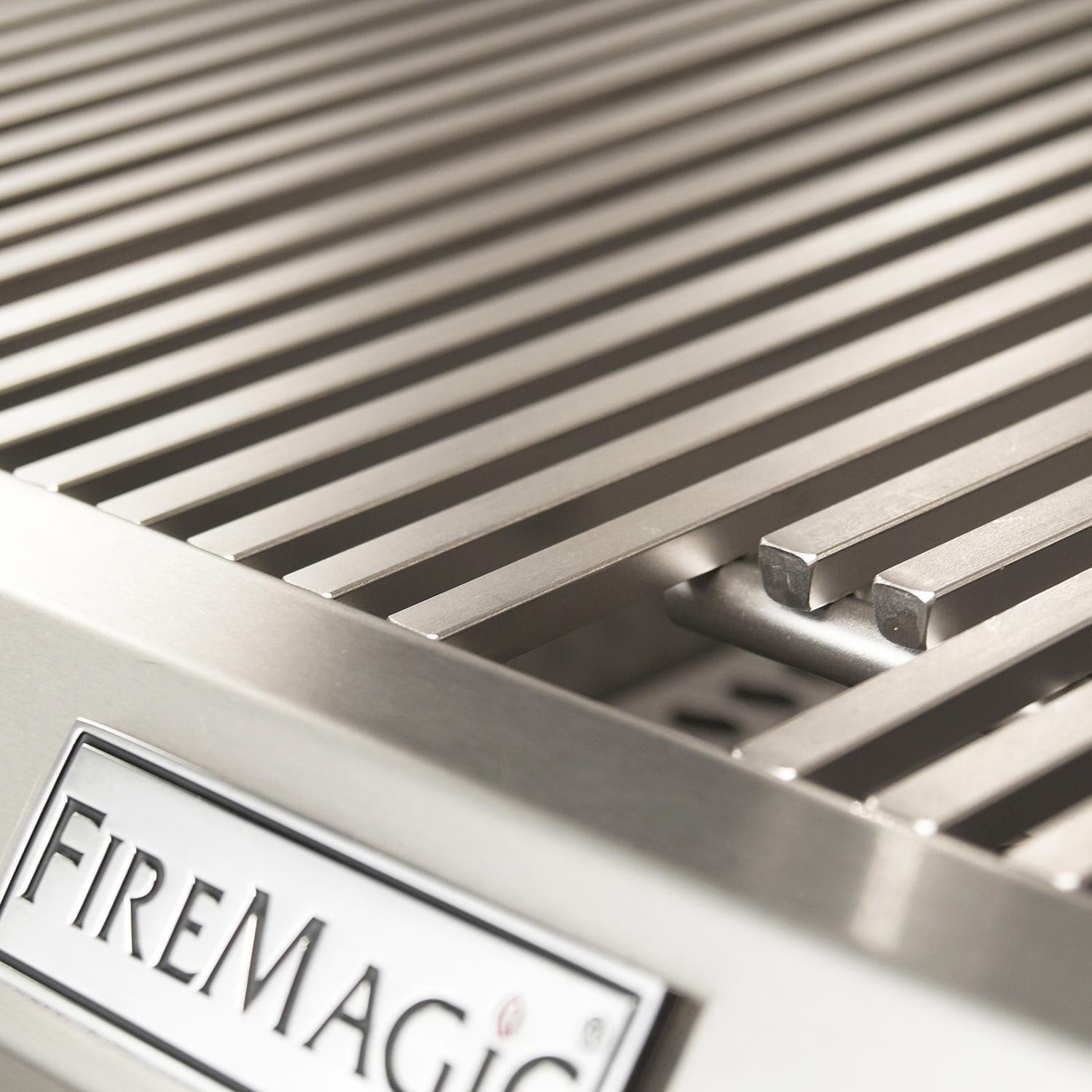

| Cooking Grate Material | Stainless Steel |
| Burger Count | 40 |
| WiFi/Bluetooth Enabled | None |
| Rotisserie Kit | Yes |
| Heat Zone Separators | Yes |
| Ignition Type | Hot Surface |
| Flash Tubes | Yes |

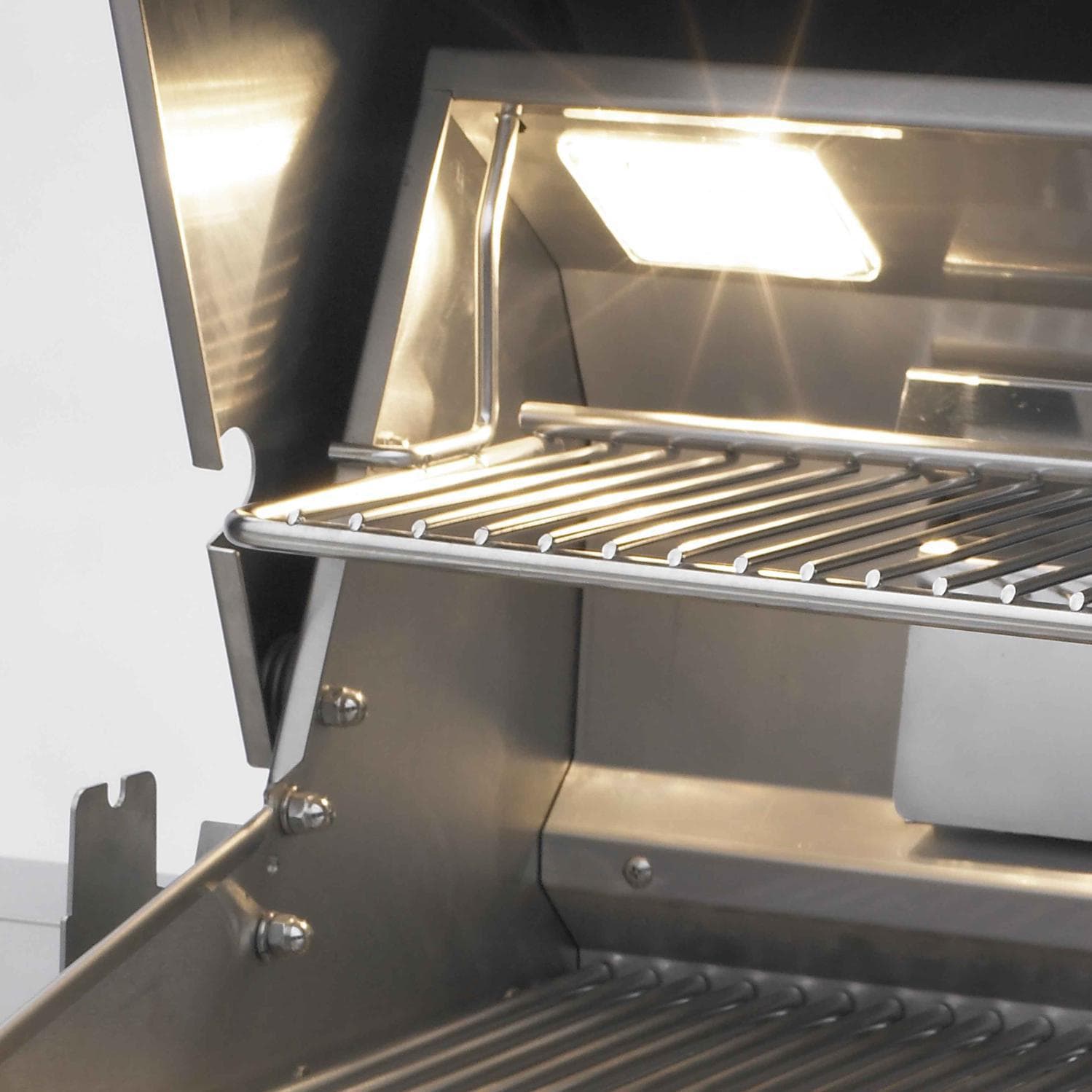

| Grill Lights | Internal / External |
| Spring Assisted Hood | Yes |
| Thermometer | Digital |
| Includes Smoker Box | No |
| Side Shelves | Yes |
| Hose Included | Yes |
| Side Burner | Power Burner |
| Total Side Burner BTUs | 60000 |
| Made In USA | Yes |
| Cart Assembly | Pre-Assembled |
| Commercial-Grade Multi-User | No |
Grill Size |
48" |
| Instructions Manual |
| Cut-Out Spec Sheet |
| QuickStart Guide |
