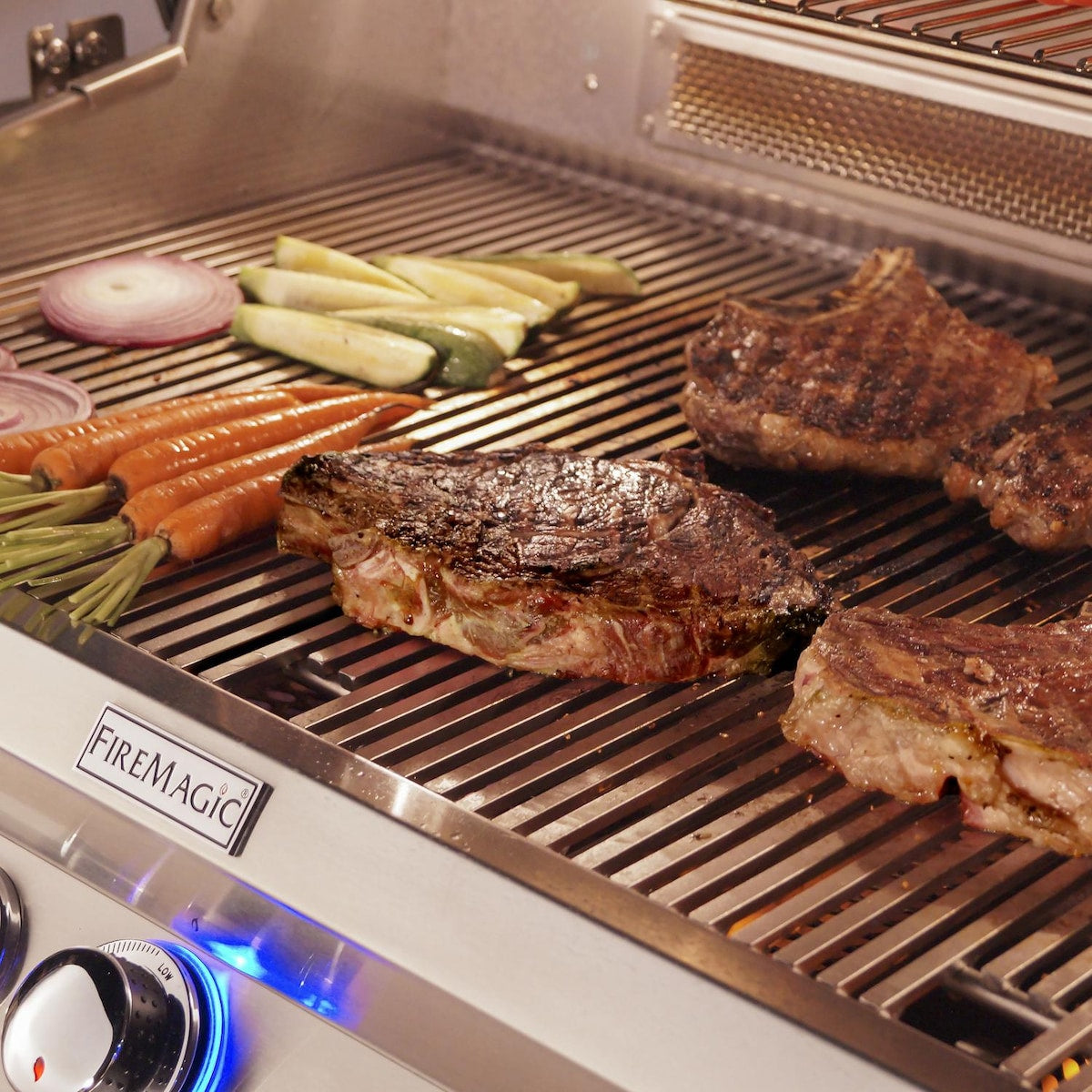

The Fire Magic Echelon Diamond Series combines the ultimate in performance, beauty, and innovation, featuring a hot surface ignition, blue back-lit knobs, heat zone separators, and infrared sear burner options.

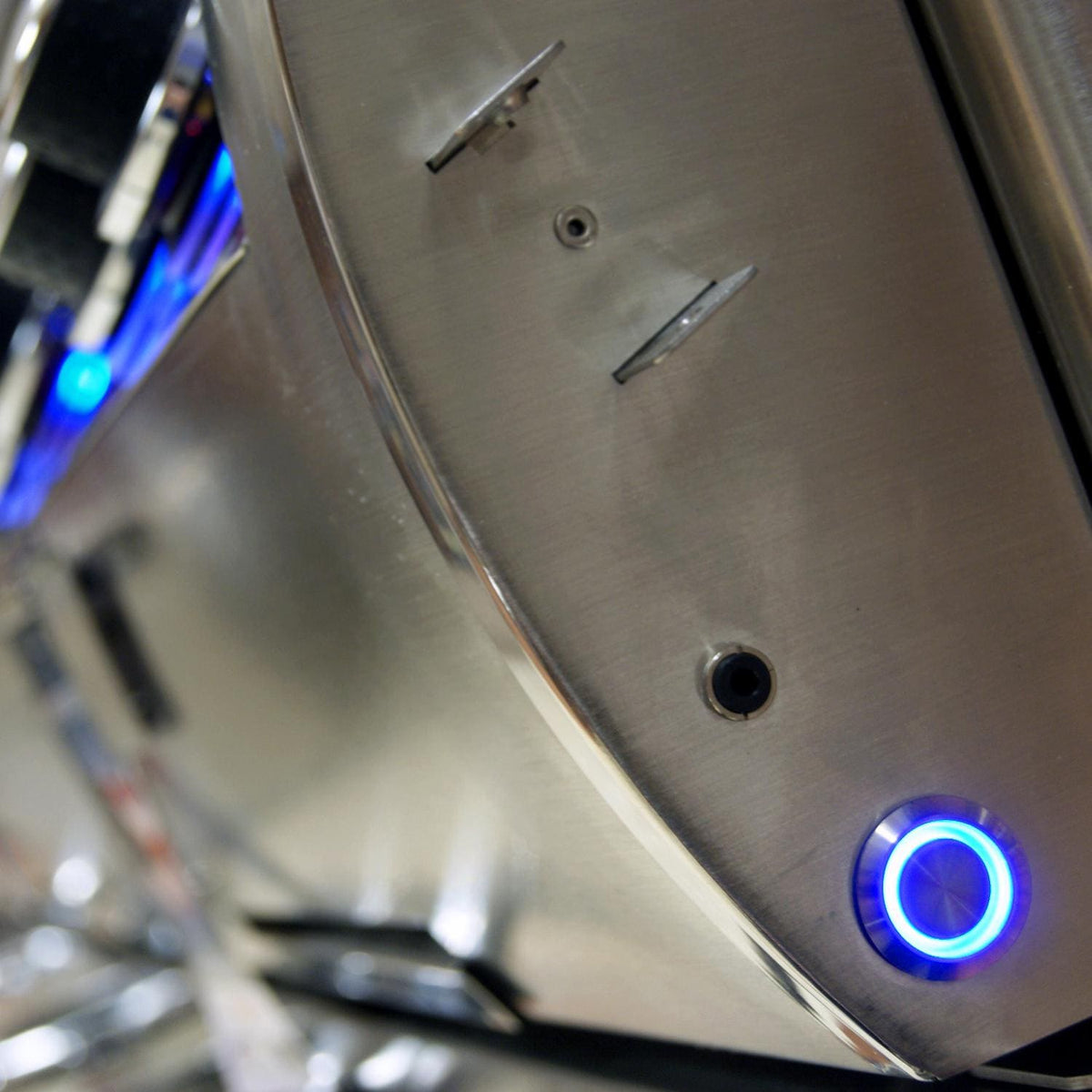

When only the best will do, Fire Magic's top-of-the-line Echelon Diamond combines the ultimate in performance, beauty, and innovation. With sleek lines, a unique contoured face, and state-of-the-art features such as hot surface ignition, blue back-lit knobs, and an optional Magic View Window, Echelon Diamond defines luxury in grilling.
| Primary Cooking Surface | 36" x 22" (792 sq. in.) |

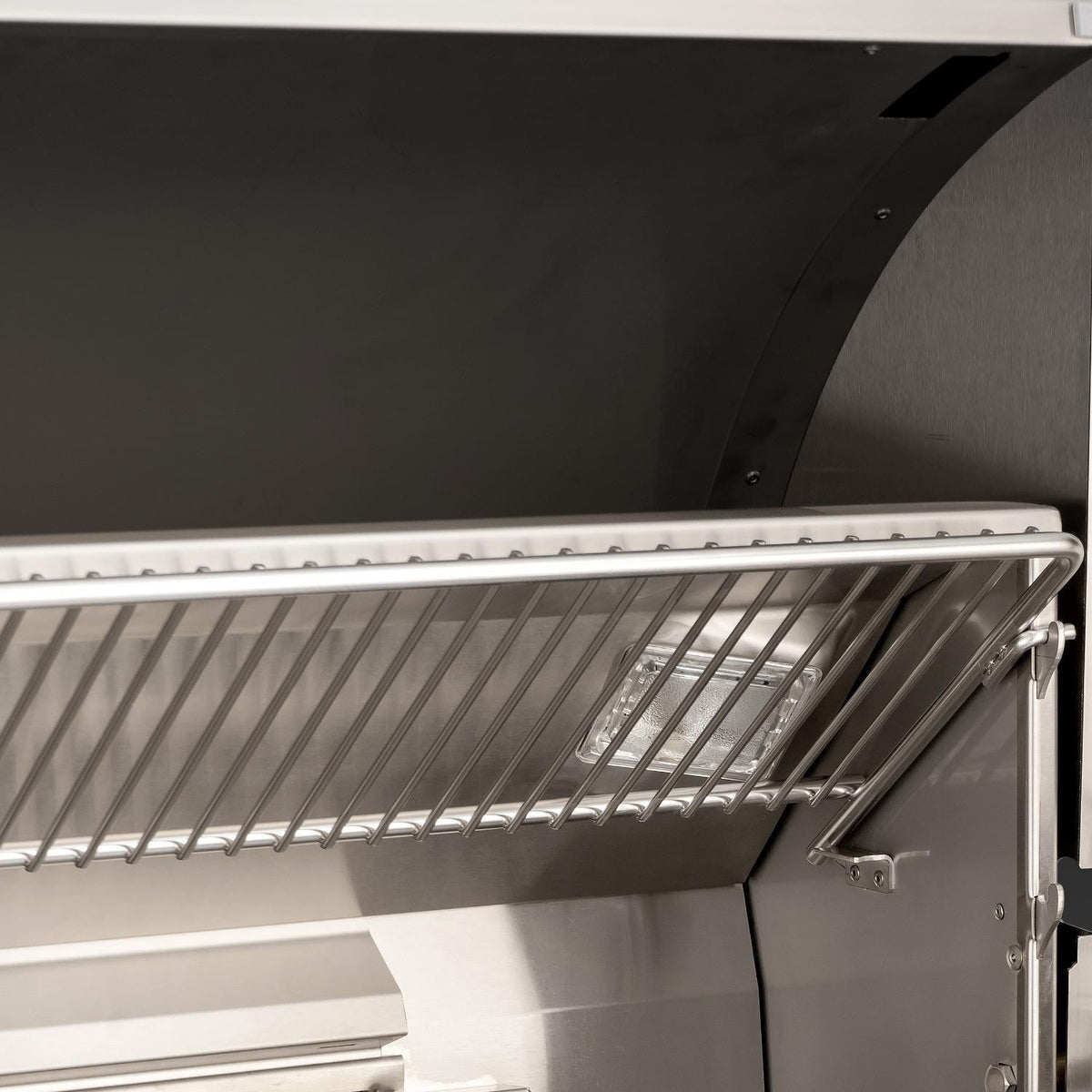

| Warming Rack Surface | 36" x 8" (288 sq. in.) |
| Cut-out Dimensions | 37" W x 23.5" D x 11.5" H |
| Dimensions | 40.125"W x27" H x 30.5""D |
| Main Burners | 96,000 BTUs |
| Backburner | 13,000 BTUs |
| Class | Luxury |
| Fuel Type | Natural Gas |
| Collection | Echelon Diamond |
| Configuration | Built-In |
| Exterior Material | Stainless Steel |
| Exterior Stainless Grade | 304 Stainless Steel |
| Primary Color | Stainless Steel |
| Number Of Main Burners | 3 Burners |

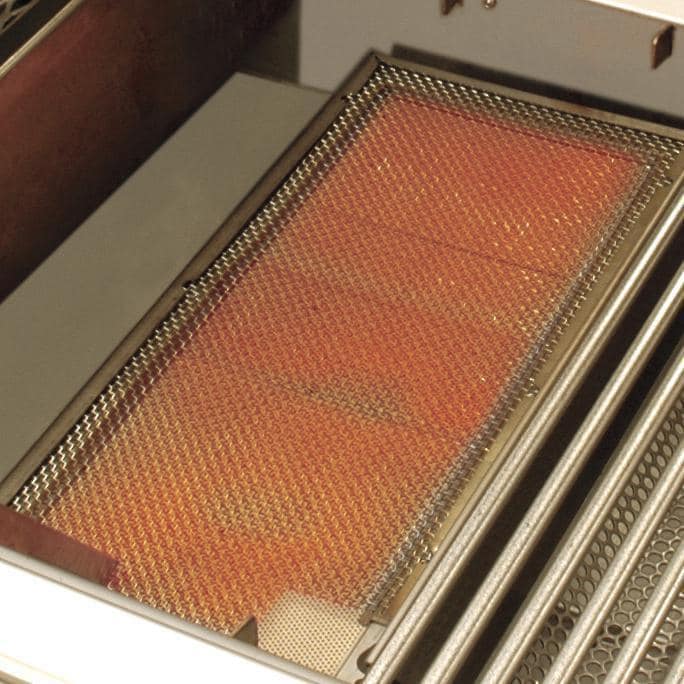

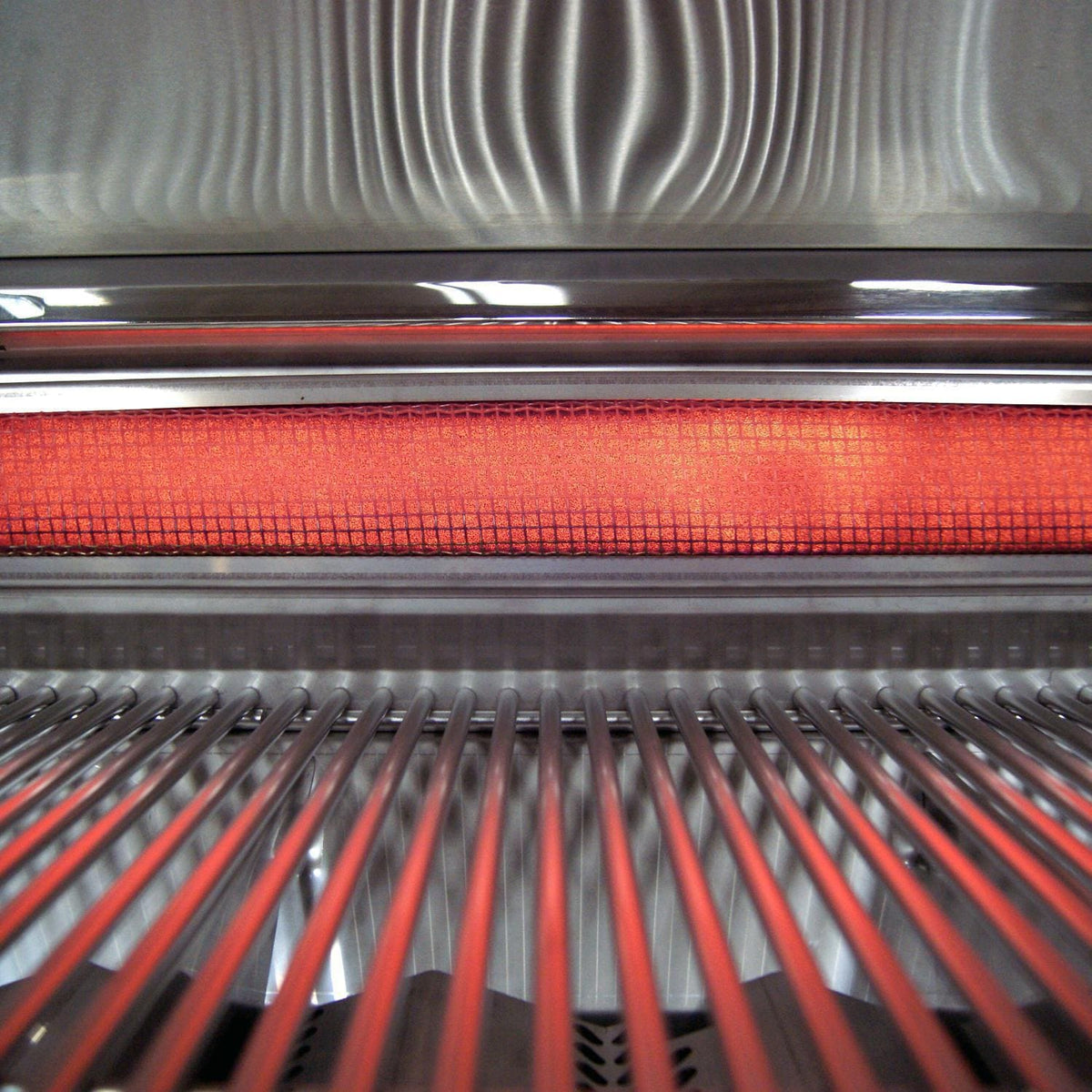

| Infrared Main Burner | 1 Infrared |

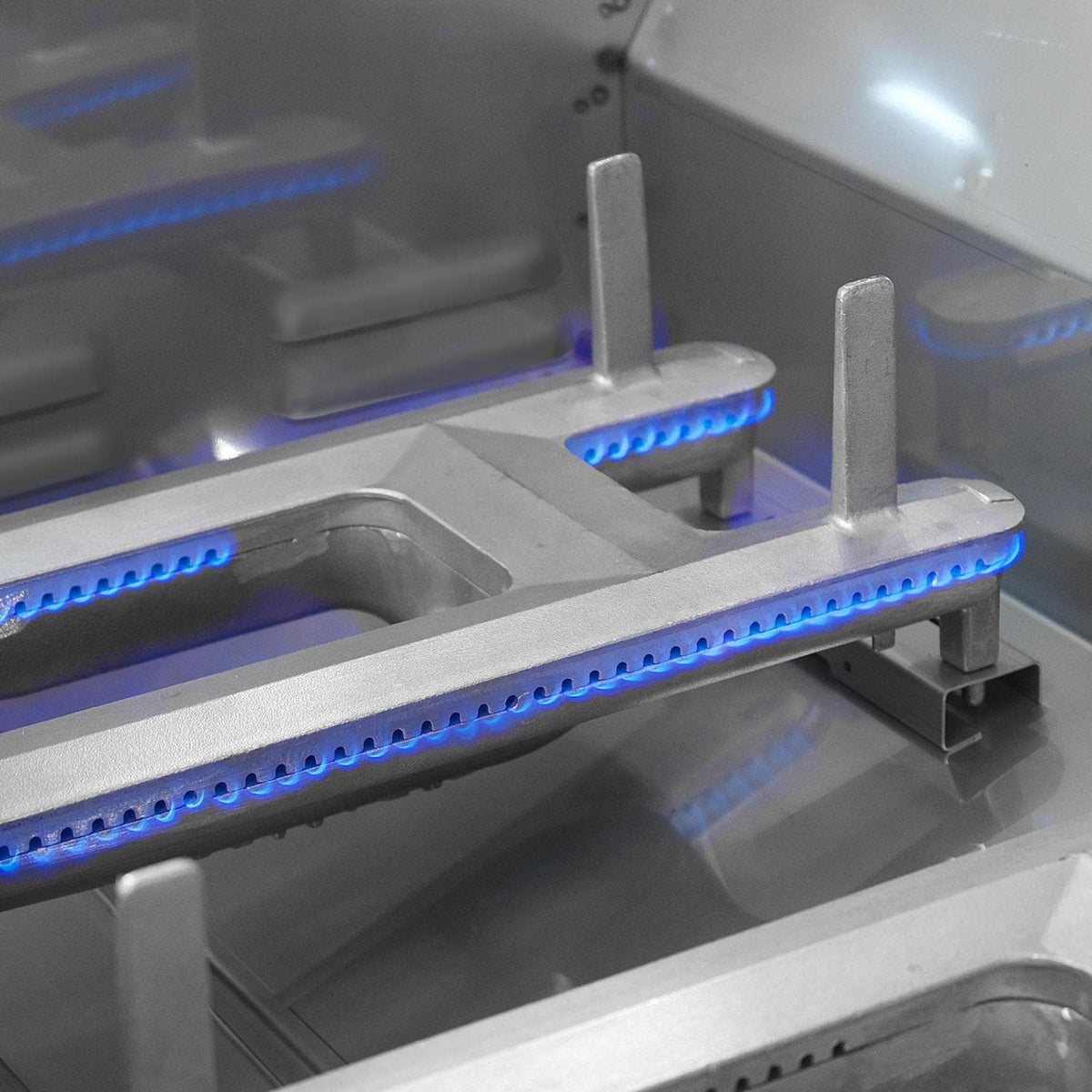

| Main Burner Material | 304 Cast Stainless Steel + Ceramic Infrared |
| Flame Tamer Material | Stainless Steel |

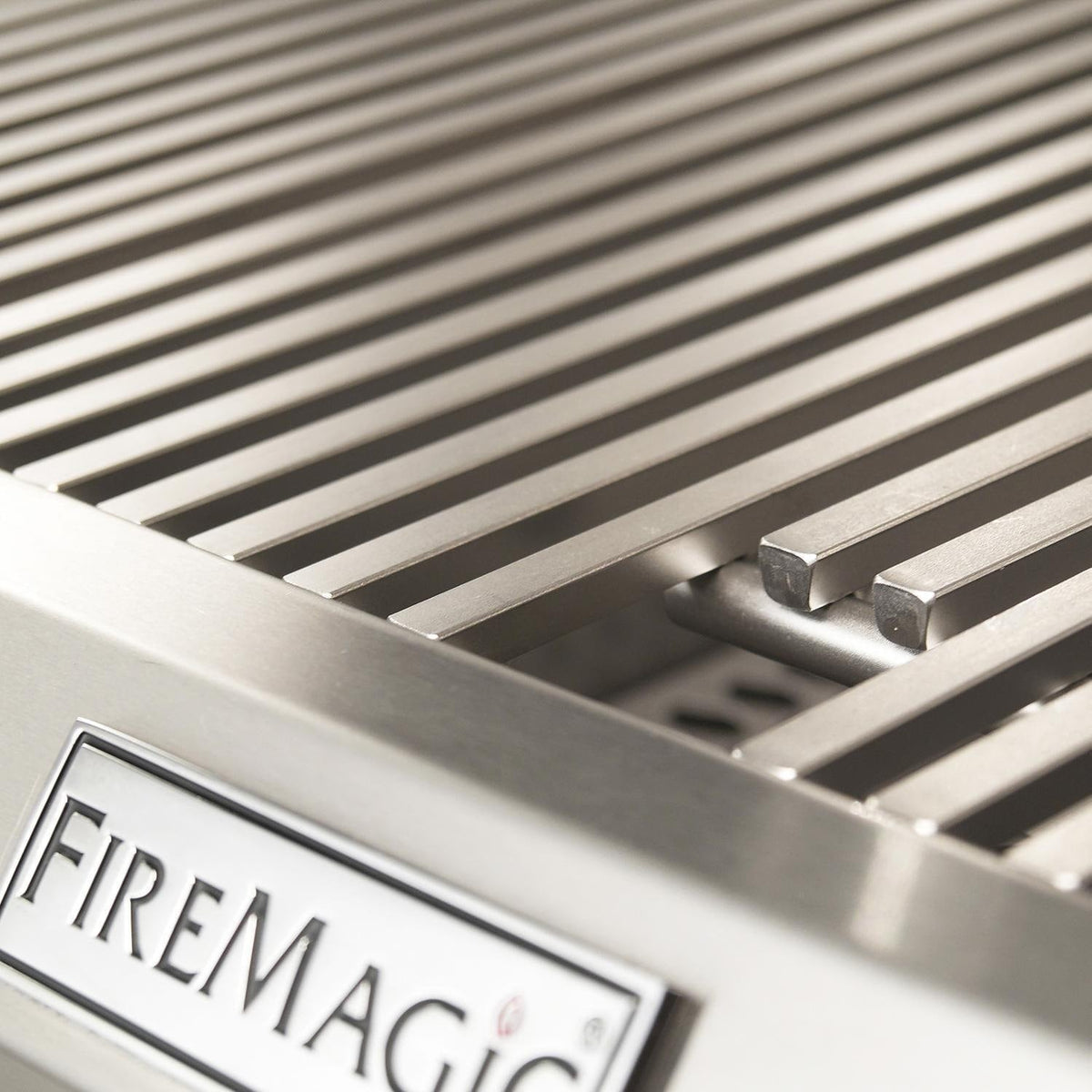

| Cooking Grate Material | Stainless Steel |
| Burger Count | 28 |
| WiFi/Bluetooth Enabled | None |
| Rotisserie Burner BTUs | 13000 |

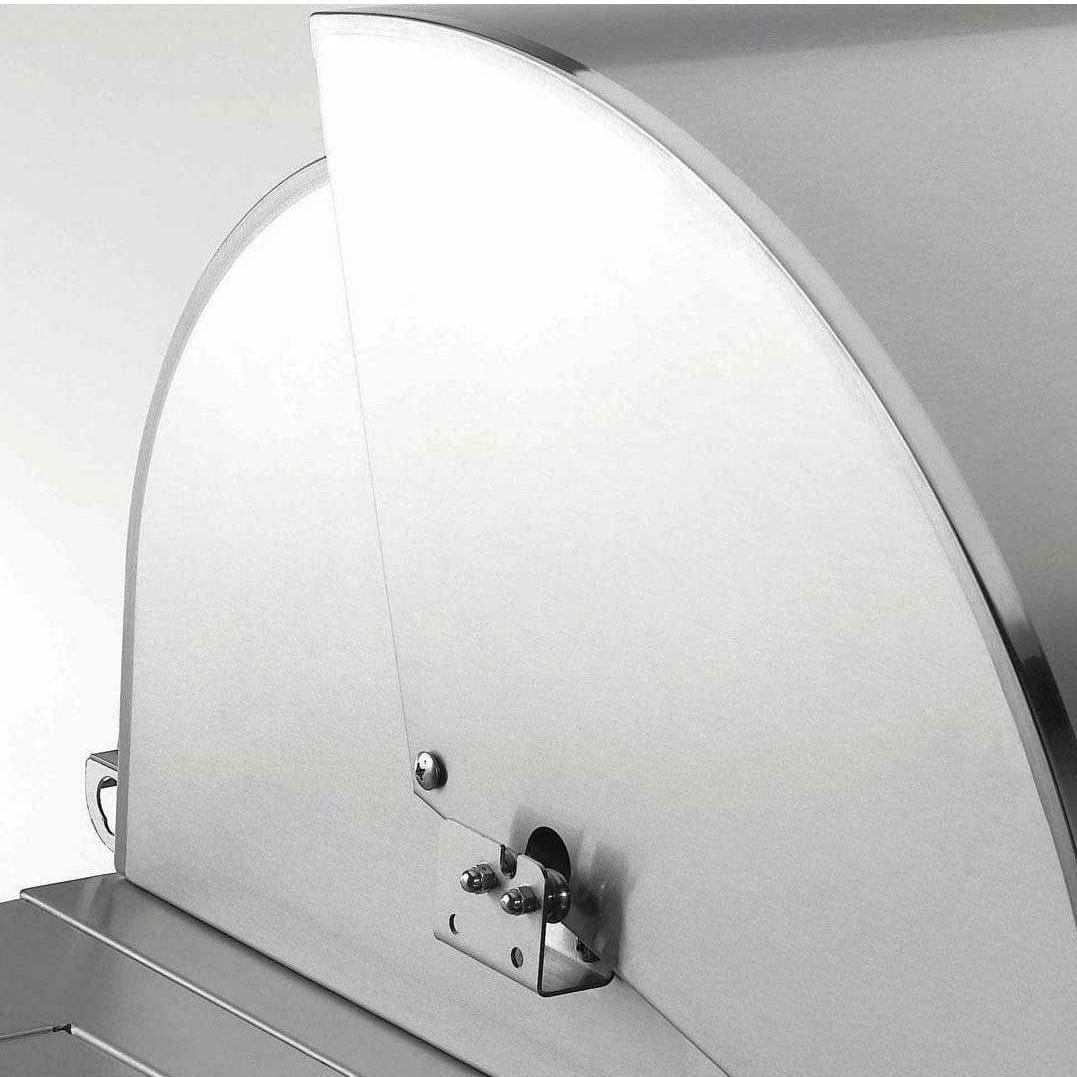

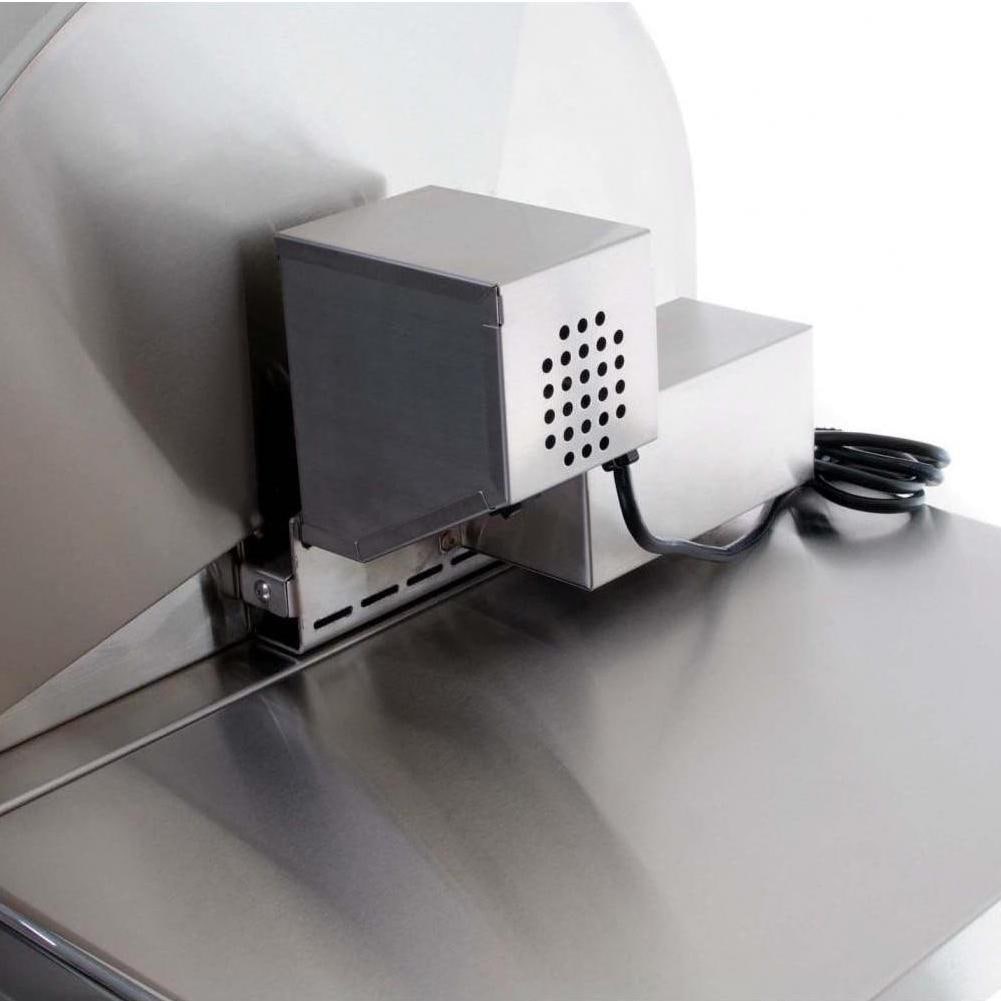

| Rotisserie Kit | Yes |

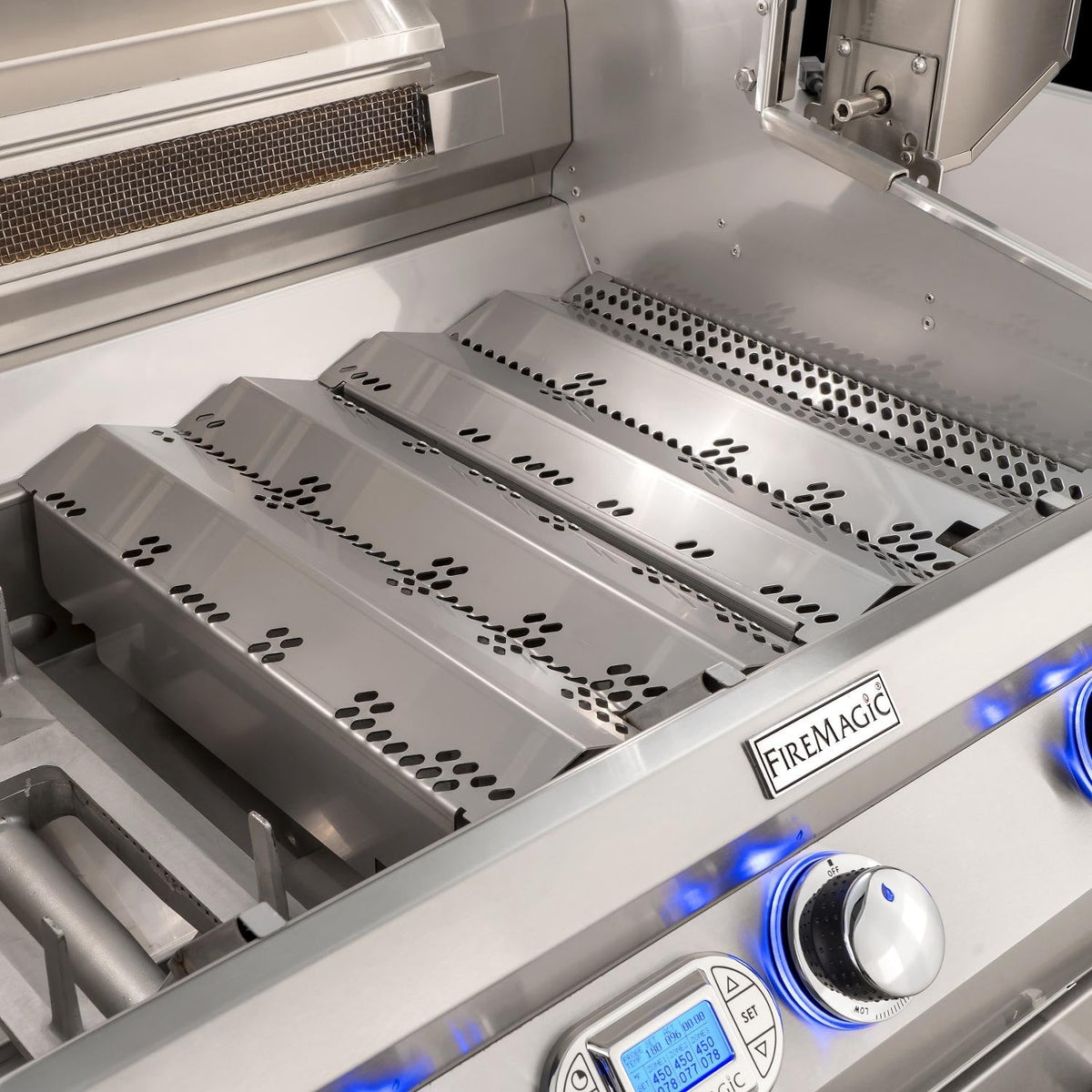

| Heat Zone Separators | Yes |

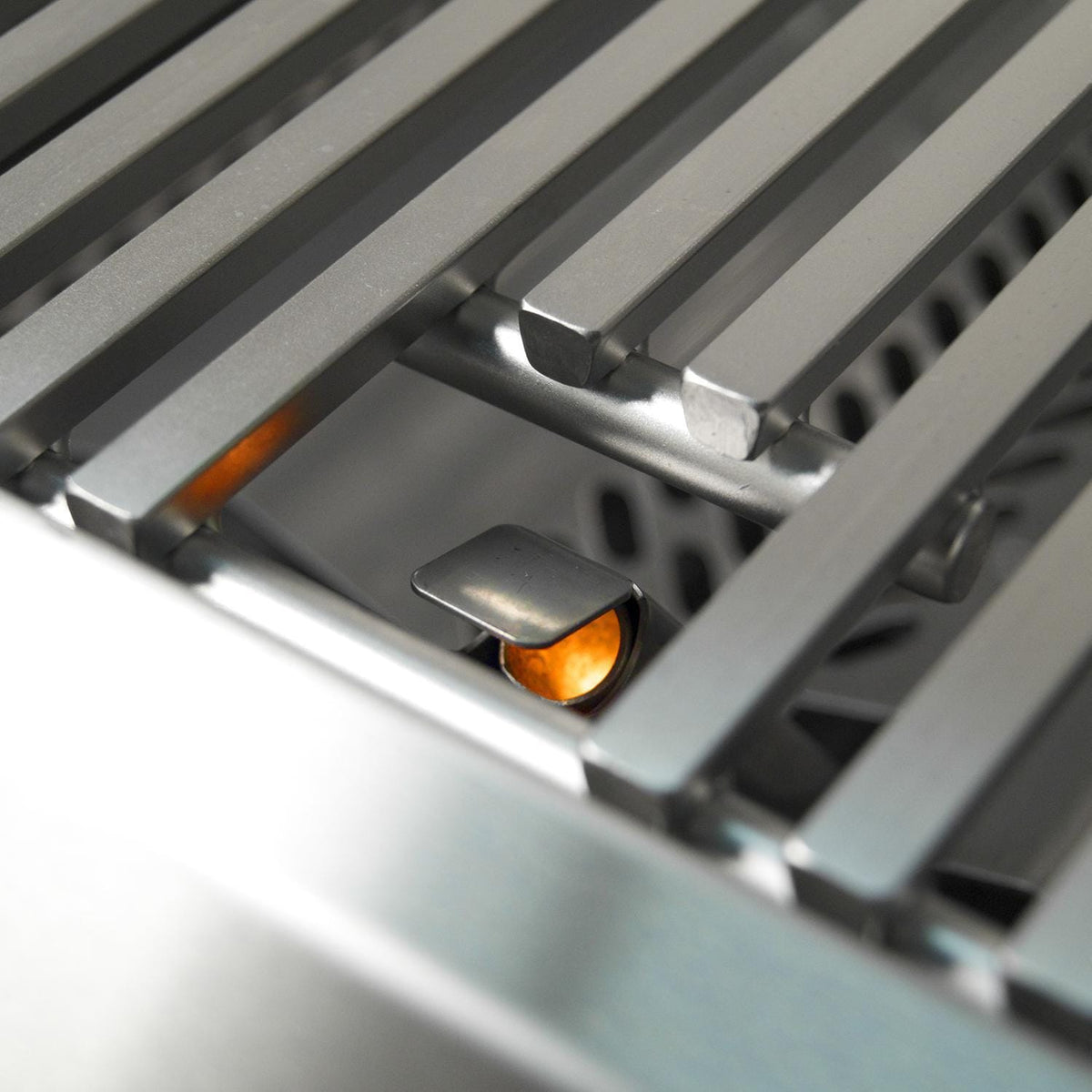

| Ignition Type | Hot Surface |
| Flash Tubes | Yes |

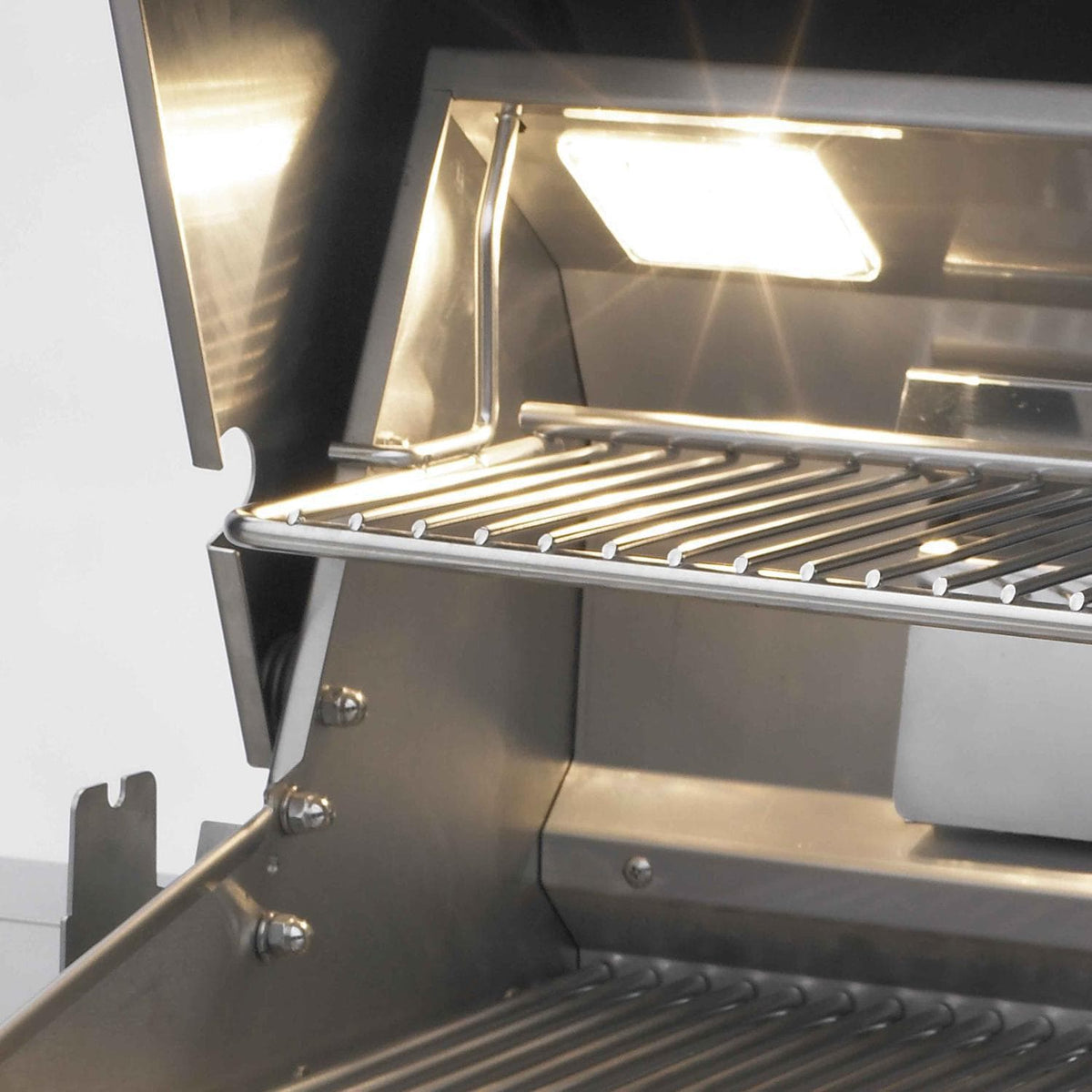

| Grill Lights | Internal / External |
| Spring Assisted Hood | Yes |

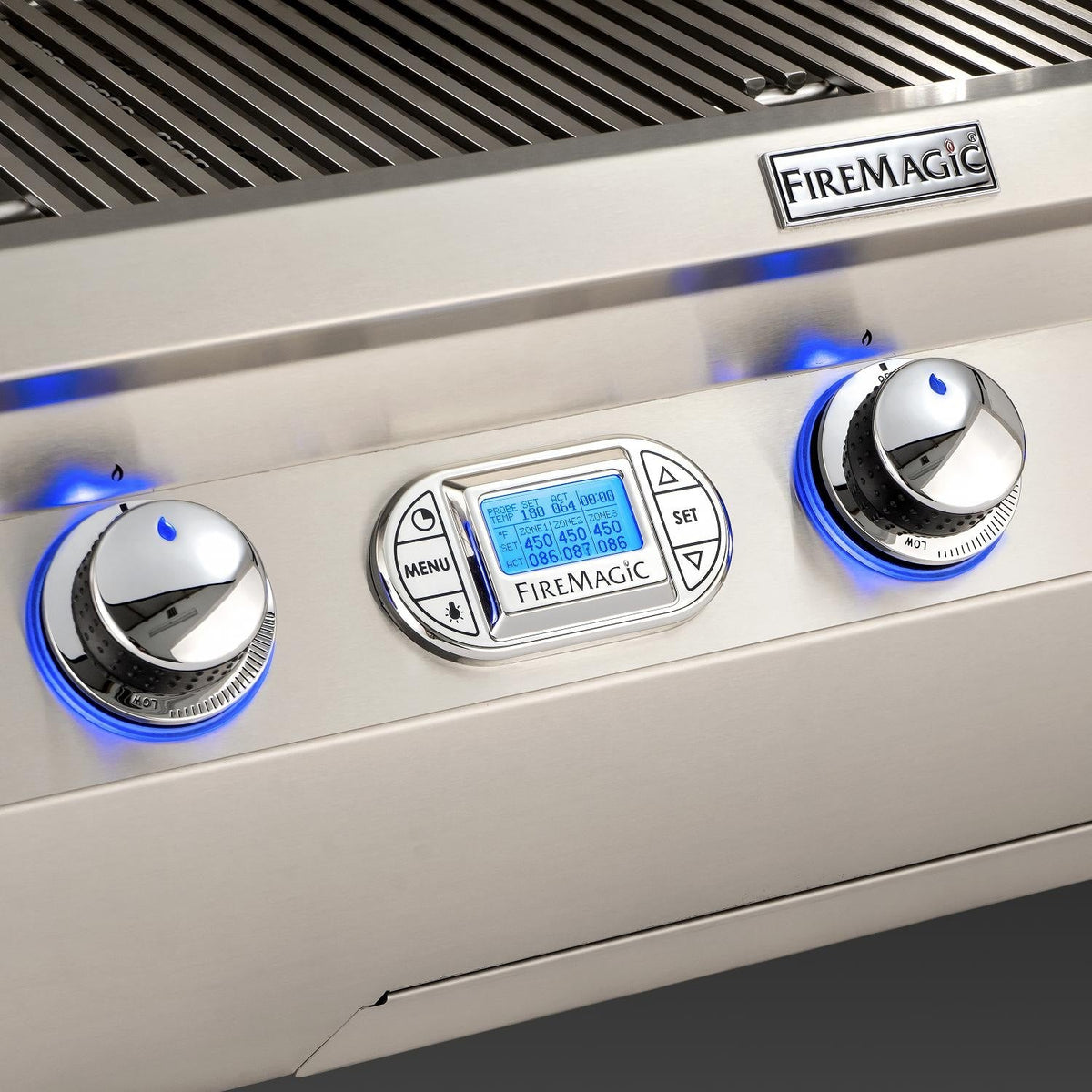

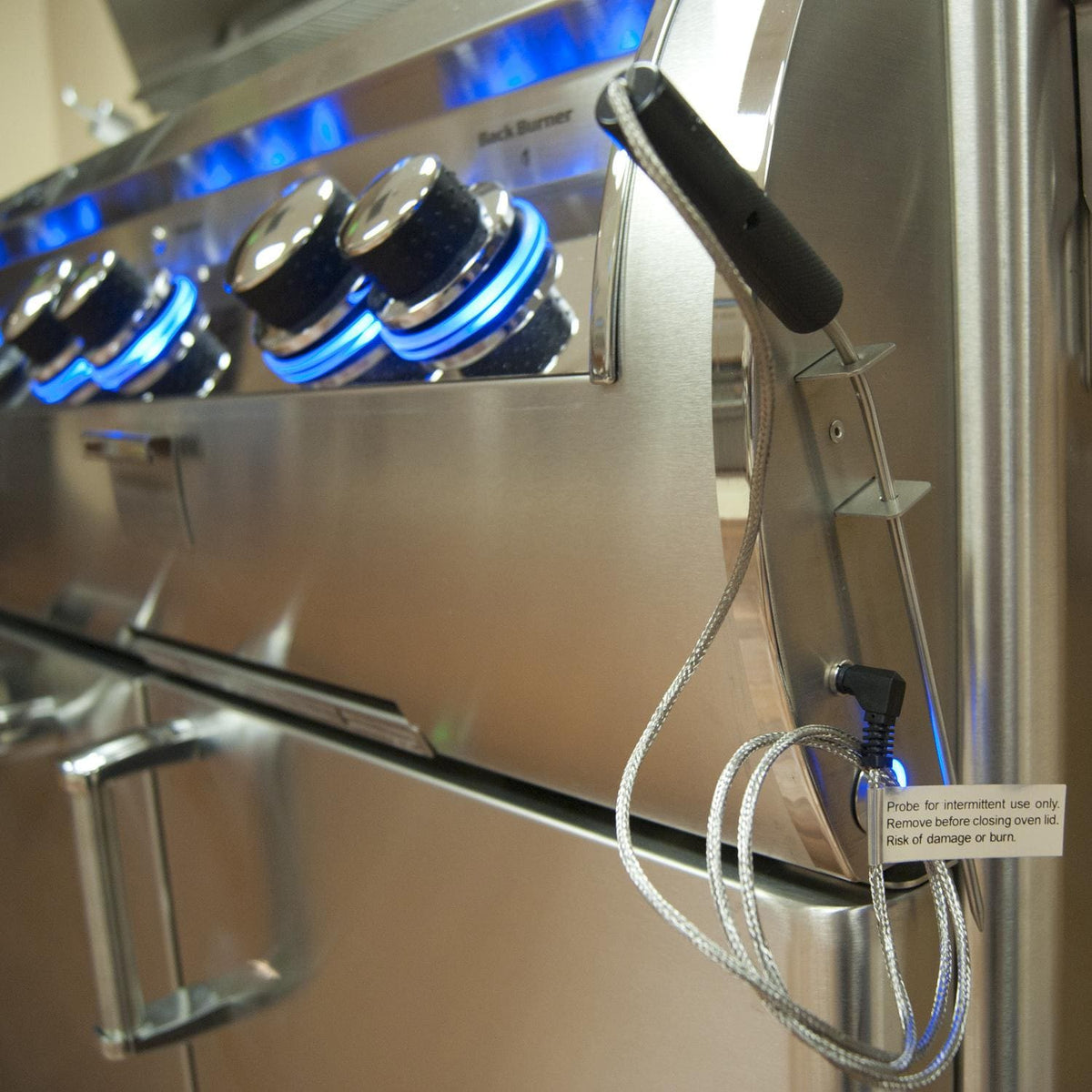

| Thermometer | Digital |
| Includes Smoker Box | No |
| Made In USA | Yes |
| Commercial-Grade Multi-User | No |
| Grill Size | 36" |
