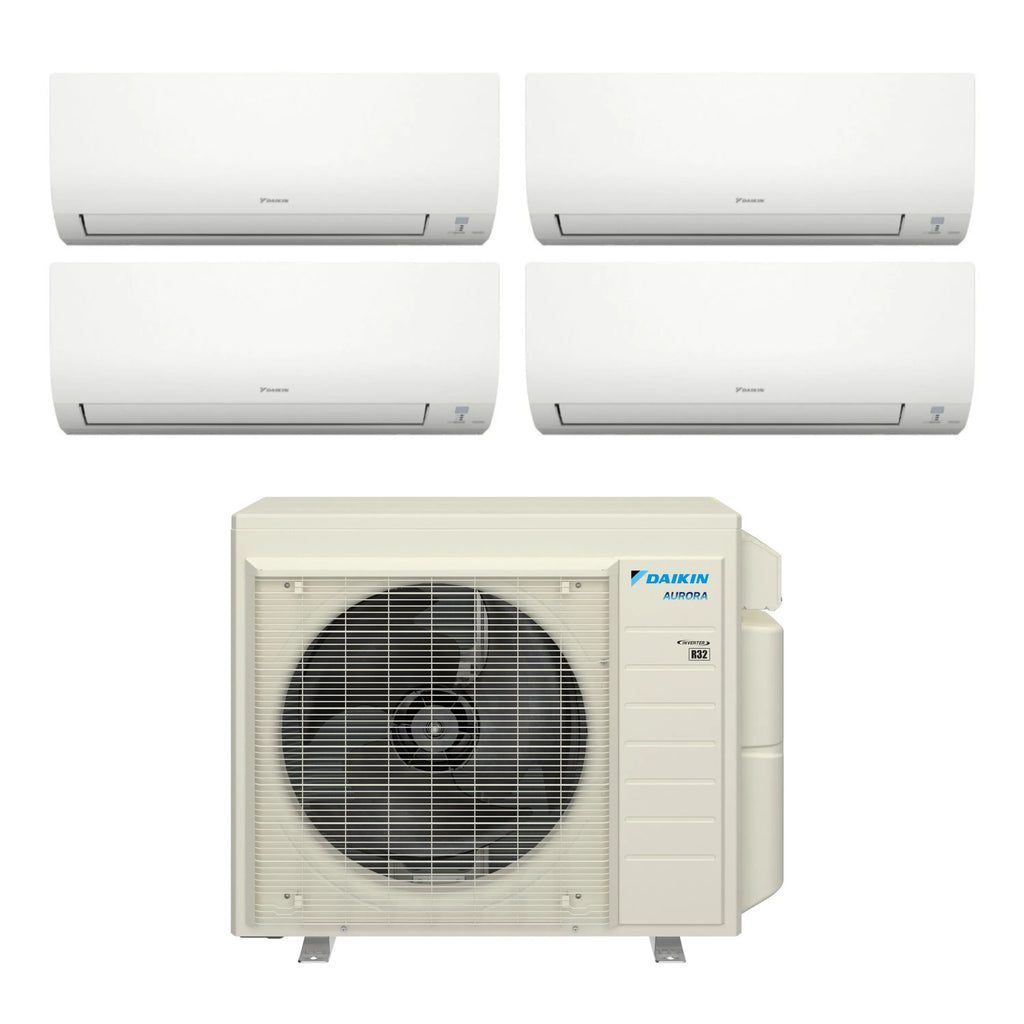

What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

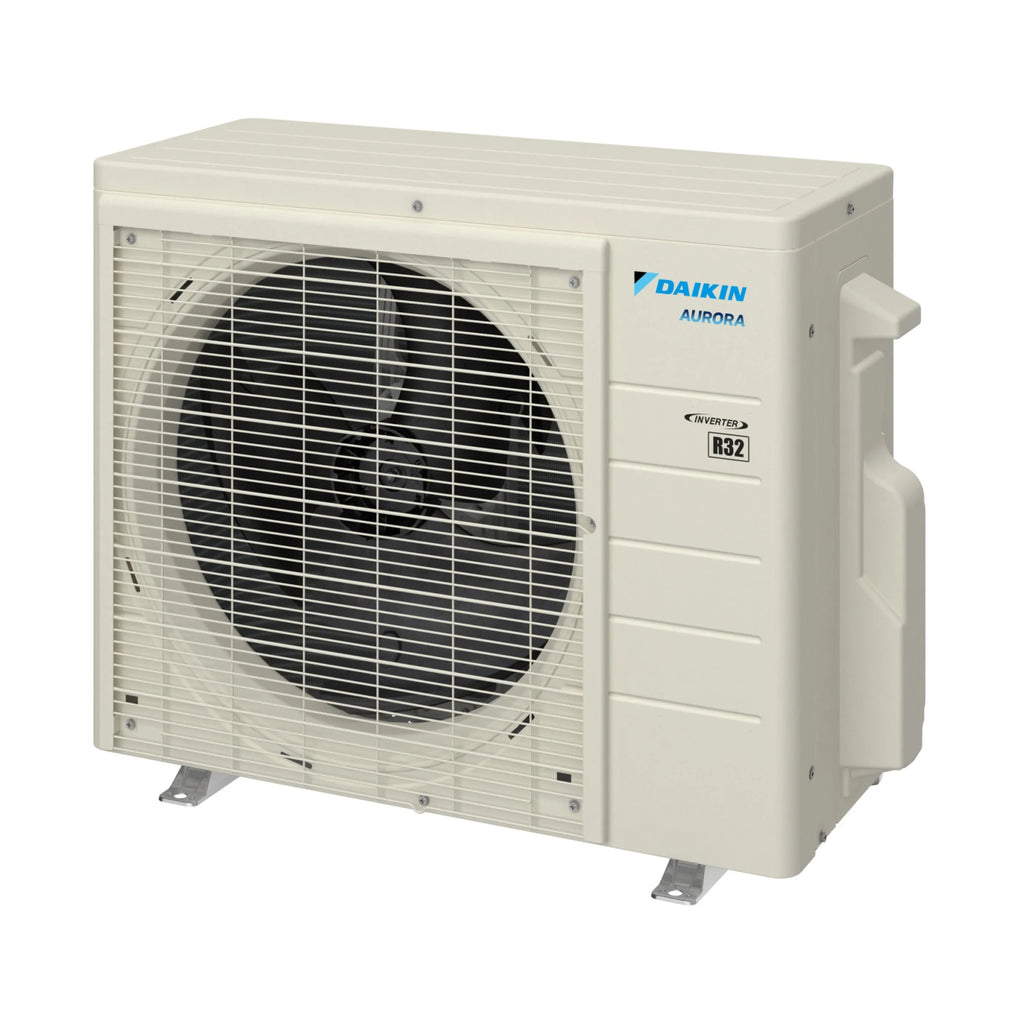

Piece 1 of 3 — MINI SPLIT CONDENSER
The Daikin 4MXM36AVJU9 is a 36,000 BTU (3-ton) outdoor multi-split heat pump that delivers efficient heating and cooling to up to four independent indoor zones. Its inverter-driven swing compressor modulates output to match demand — pairing 20 SEER2 cooling efficiency and 9.5 HSPF2 heating performance with smooth, variable-speed operation that minimizes temperature swings and energy use. Running on next-generation R-32 refrigerant.
Features
- Energy Star Certified: No
- Refrigerant Type: R-32
- Unit Height: 29-1/2 in
- Unit Width: 34-1/4 in
- Regional Compliance: North, Southeast, Southwest
- Max Overcurrent Protection: 25 A
- Power Phase: 1 Ph
- Power Voltage: 208-230 V
- Compressor Stages: Inverter
- Compressor Type: Swing
- Unit Weight: 142 lb
- Tonnage: 3.0
- Unit Depth: 12-5/8 in
- Heat Exchanger Type: Air Cooled
DIMENSIONS & WEIGHT
- Unit Dimensions
- 34-1/4 W" x 12-5/8 D" x 29-1/2 H"
- Unit Weight
- 142 lbs
- Pallet Qty
- 2
GENERAL INFORMATION
- Brand
- Daikin
- Product Family
- 4MXM_AVJU9
- Family Description
- 1.5 - 4 Ton Multi-Zone Heat Pump Up to 20 SEER2 / 9.5 HSPF2
- Unit Type
- Outdoor
- Product Class
- Mini-Split Heat Pump
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Inverter-Driven Variable-Speed Operation
- Up to 4 Indoor Zones
- Quiet 56 dB(A) Operation
CAPACITY & PERFORMANCE
- Tonnage
- 3.0
- Cooling Capacity (Rated)
- 36,000 Btu/H
- Heating Capacity (Rated)
- 36,000 Btu/H
- Airflow Rate High (Cooling)
- 2,402 ft³/min
- Airflow Rate High (Heating)
- 2,518 ft³/min
- SEER2
- 20.0
- EER2
- 10.0
- HSPF2
- 9.5
- COP @ 5°F
- 1.8 W/W
COMPRESSOR & MOTORS
- Compressor Type
- Swing
- Compressor Stages
- Inverter
- Compressor Model
- 2Y260BPAX1A
- Motor Output
- 2,400 W
ELECTRICAL REQUIREMENTS
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
- Max. Overcurrent Protection
- 25 A
- Starting Current
- 18.5 A
- Power Consumption (Cooling)
- 90.9 W
- Power Consumption (Heating)
- 102.7 W
REFRIGERANT & PIPING
- Refrigerant Type
- R-32
- Refrigerant Charge
- 4.9 lbs (2.2 kg)
- Pipe Size Gas
- 3/8 in × 1
- 1/2 in × 2
- 5/8 in × 1
- Pipe Size Liquid
- 1/4 in (× 4)
- Drain Connection
- 5/8 in I.D.
- Max Total Interunit Piping
- 230 ft (70 m)
- Max Piping Per Room
- 82 ft (25 m)
- Max Installation Height (Indoor-Outdoor)
- 49-1/4 ft (15 m)
- Heat Exchanger Type
- Air Cooled
SAFETY
- Energy Star Certified
- No
- Regional Compliance
- North, Southeast, Southwest
WARRANTY
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
Piece 2 of 3 — MINI SPLIT AIR HANDLER QTY ×3
The Daikin Aurora FTXV9 wall-mount indoor air handler delivers reliable cold-climate comfort with built-in Wi-Fi smart controls, a Titanium Apatite Photocatalytic air-purifying filter, and exceptional quiet operation. Pairs with a matching Aurora outdoor condenser for confirmed continuous operation down to -13°F.
Features
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 10,900 BTU/h
- Airflow up to 381 CFM (High)
- Indoor Sound Pressure as low as 19 dB(A) on Silent mode
- Fan Speed Steps: 5 Steps, Quiet, Auto
- Air Filter: Removable, Washable; Titanium Apatite Photocatalytic
- Wi-Fi: Built-in
- Refrigerant: R-32 (low GWP)
- Streamlined wall-mount design
- Power Supply: 208/230V, 1-Phase, 60 Hz
- Unit Weight: 19 lbs
- 12-Year Parts Limited Warranty with online registration
DIMENSIONS & WEIGHT
- Unit Dimensions
- 30-5/16 W" x 8-3/4 D" x 11-1/4 H"
- Unit Weight
- 19 lbs
- Pallet Qty
- 16
GENERAL INFORMATION
- Brand
- Daikin
- Product Family
- FTXV_AVJU9
- Family Description
- 0.75 - 2 Ton 21 Series Wall Mount Air Handler
- Unit Type
- Indoor
- Product Class
- Mini-Split Wall Mount Air Handler
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Sound Pressure as low as 19 dB(A)
CAPACITY & PERFORMANCE
- Tonnage
- 0.75
- Cooling Capacity (Rated)
- 9,000 Btu/H
- Heating Capacity (Rated)
- 10,900 Btu/H
- Airflow Rate High (Cooling)
- 381 ft³/min
- Airflow Rate High (Heating)
- 381 ft³/min
NOISE LEVELS
- Sound Pressure (High)
- 43 dB(A)
- Sound Pressure (Silent)
- 19 dB(A)
ELECTRICAL REQUIREMENTS
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
REFRIGERANT & PIPING
- Refrigerant Type
- R-32
- Pipe Size Gas
- 3/8 in
- Pipe Size Liquid
- 1/4 in
CONTROLS & CONNECTIVITY
- Wi-Fi
- Built-in
WARRANTY
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
Piece 3 of 3 — MINI SPLIT AIR HANDLER
The Daikin Aurora FTXV12 wall-mount indoor air handler delivers reliable cold-climate comfort with built-in Wi-Fi smart controls, a Titanium Apatite Photocatalytic air-purifying filter, and exceptional quiet operation. Pairs with a matching Aurora outdoor condenser for confirmed continuous operation down to -13°F.
Features
- Cooling Capacity: 10,600 BTU/h
- Heating Capacity: 13,500 BTU/h
- Airflow up to 393 CFM (High)
- Indoor Sound Pressure as low as 19 dB(A) on Silent mode
- Fan Speed Steps: 5 Steps, Quiet, Auto
- Air Filter: Removable, Washable; Titanium Apatite Photocatalytic
- Wi-Fi: Built-in
- Refrigerant: R-32 (low GWP)
- Streamlined wall-mount design
- Power Supply: 208/230V, 1-Phase, 60 Hz
- Unit Weight: 19 lbs
- 12-Year Parts Limited Warranty with online registration
DIMENSIONS & WEIGHT
- Unit Dimensions
- 30-5/16 W" x 8-3/4 D" x 11-1/4 H"
- Unit Weight
- 19 lbs
- Pallet Qty
- 16
GENERAL INFORMATION
- Brand
- Daikin
- Product Family
- FTXV_AVJU9
- Family Description
- 0.75 - 2 Ton 21 Series Wall Mount Air Handler
- Unit Type
- Indoor
- Product Class
- Mini-Split Wall Mount Air Handler
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Sound Pressure as low as 19 dB(A)
CAPACITY & PERFORMANCE
- Tonnage
- 0.8833333333333333
- Cooling Capacity (Rated)
- 10,600 Btu/H
- Heating Capacity (Rated)
- 13,500 Btu/H
- Airflow Rate High (Cooling)
- 393 ft³/min
- Airflow Rate High (Heating)
- 393 ft³/min
NOISE LEVELS
- Sound Pressure (High)
- 45 dB(A)
- Sound Pressure (Silent)
- 19 dB(A)
ELECTRICAL REQUIREMENTS
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
REFRIGERANT & PIPING
- Refrigerant Type
- R-32
- Pipe Size Gas
- 3/8 in
- Pipe Size Liquid
- 1/4 in
CONTROLS & CONNECTIVITY
- Wi-Fi
- Built-in
WARRANTY
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
