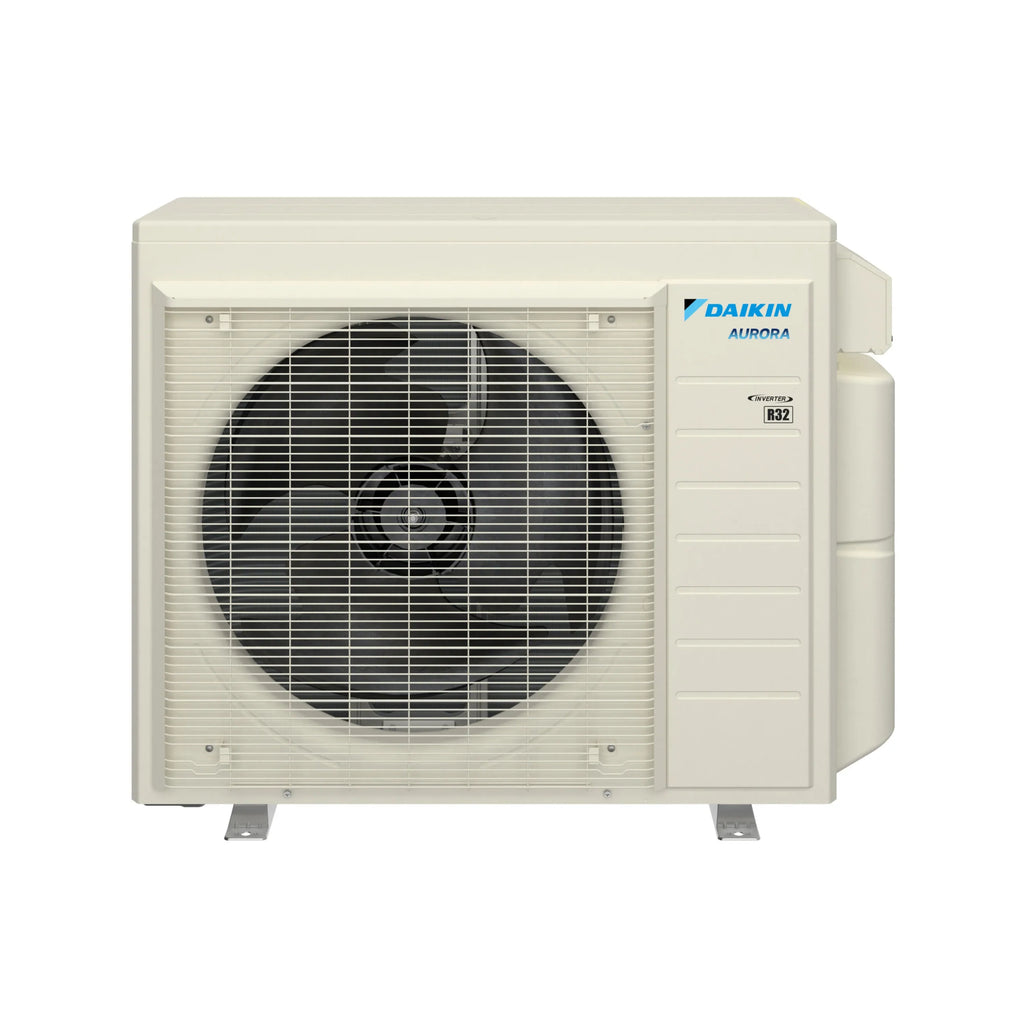

The Daikin Aurora RXP outdoor condenser pairs with the FDMA concealed ducted indoor unit to deliver heating and cooling through traditional ductwork — with no visible indoor head. Engineered for cold-climate performance with reliable operation down to -13°F and up to 18.3 SEER2 efficiency on this 1.2 ton system.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 34-1/4 W" x 12-5/8 D" x 29-1/2 H" |
| Unit Weight | 127 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | RXP_AVJU9 |
| Family Description | 0.75 - 2 Ton 18.3 Series Concealed Ducted Heat Pump Up to 18.3 SEER2 / 9.2 HSPF2 |
| Unit Type | Outdoor |
| Product Class | Mini-Split Heat Pump |
| Tonnage | 1.2 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 6 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Operating Range - Cooling (50° - 115°) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 14,400 Btu/H |
| Heating Capacity (Rated) | 18,000 Btu/H |
| Airflow Rate High (Cooling) | 2,383 ft³/min |
| Airflow Rate High (Heating) | 2,383 ft³/min |
| Energy Star Certified | Yes |
| Compressor | |
| Compressor Type | Swing |
| Compressor Stages | Inverter |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Min. Circuit Amps | 16.1 |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 1/2 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |

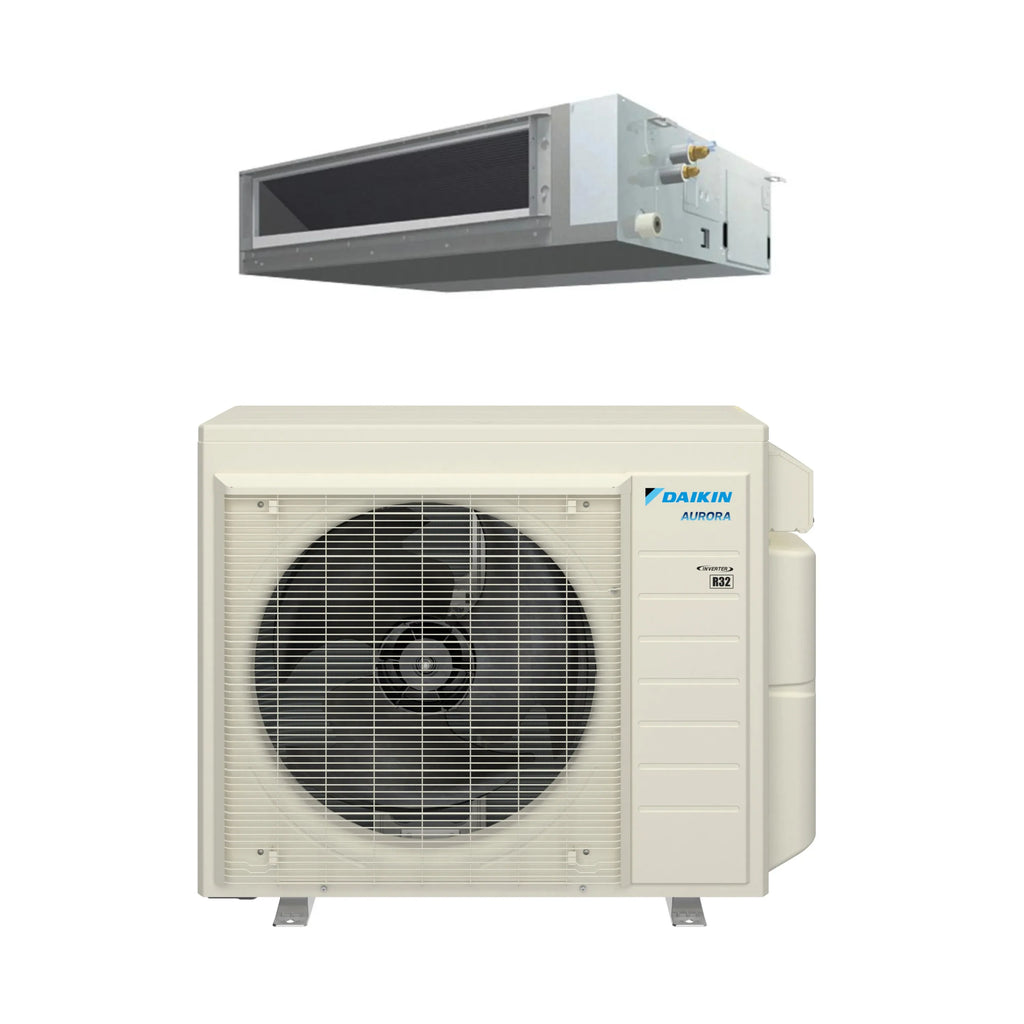

The Daikin Aurora FDMA15 concealed ducted indoor unit installs in ceilings, soffits, or closets and delivers air through standard residential ductwork — with no visible indoor head. Adjustable external static pressure up to 0.6 in. WG supports longer duct runs than standard mini splits.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 39-3/8 W" x 31-1/2 D" x 9-5/8 H" |
| Unit Weight | 82 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | FDMA_AVJU9 |
| Family Description | 0.75 - 2 Ton 18.3 Series Concealed Ducted Air Handler |
| Unit Type | Indoor |
| Product Class | Mini-Split Concealed Ducted Air Handler |
| Tonnage | 1.2 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 2 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Variable-Speed DC Inverter Fan Motor |
| Wi-Fi | Compatible (adapter) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 14,400 Btu/H |
| Heating Capacity (Rated) | 18,000 Btu/H |
| Airflow Rate High (Cooling) | 471 ft³/min |
| Airflow Rate High (Heating) | 471 ft³/min |
| Sound Pressure (High) | 34 dB(A) |
| Sound Pressure (Silent) | N/A |
| External Static Pressure | 0.20-0.60 in. WG |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 1/2 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
