Description
DIMENSIONS
- Product Dimensions

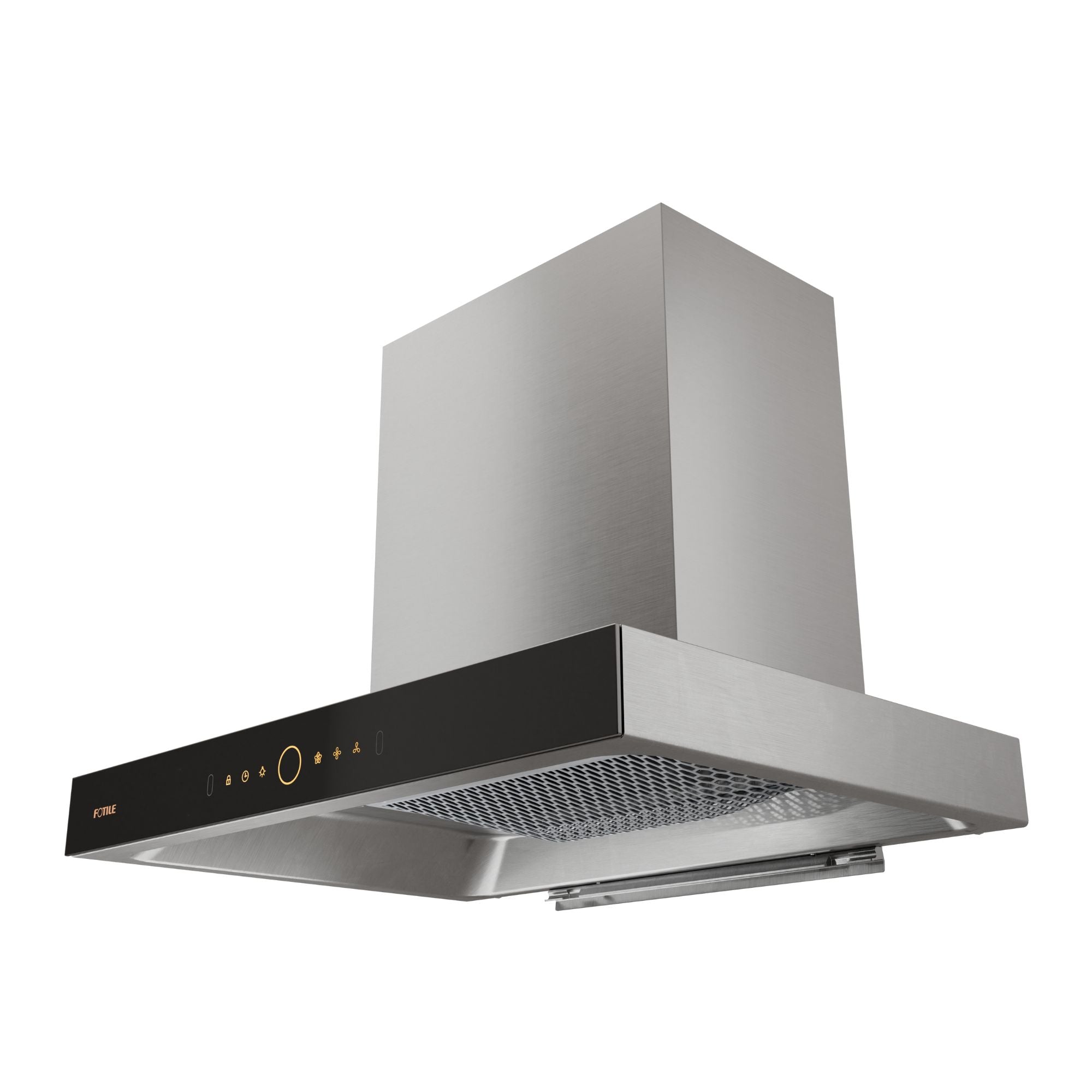

- EMG7508: 29 7/8” W x 23 7/16” H x 21 5/16”
- D

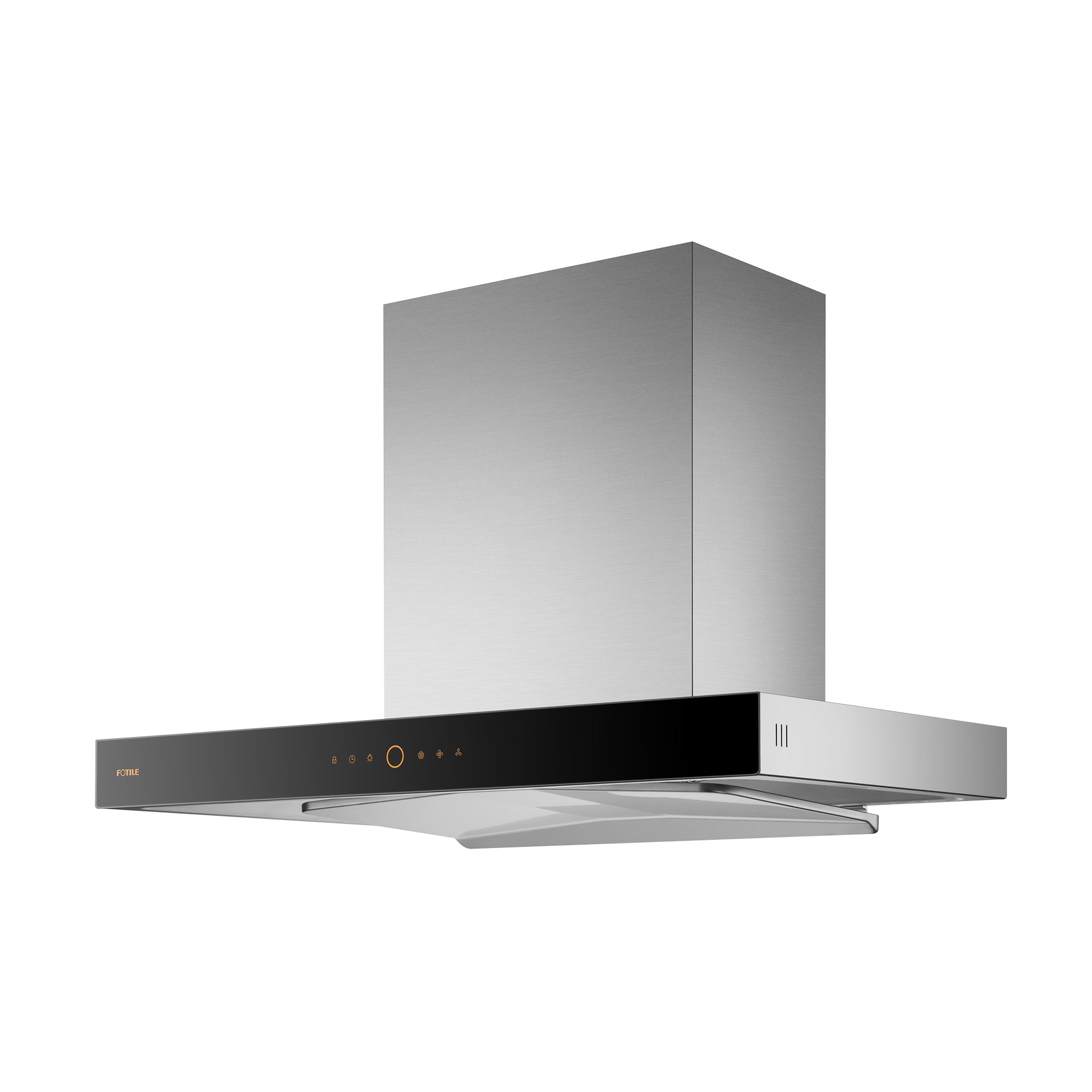

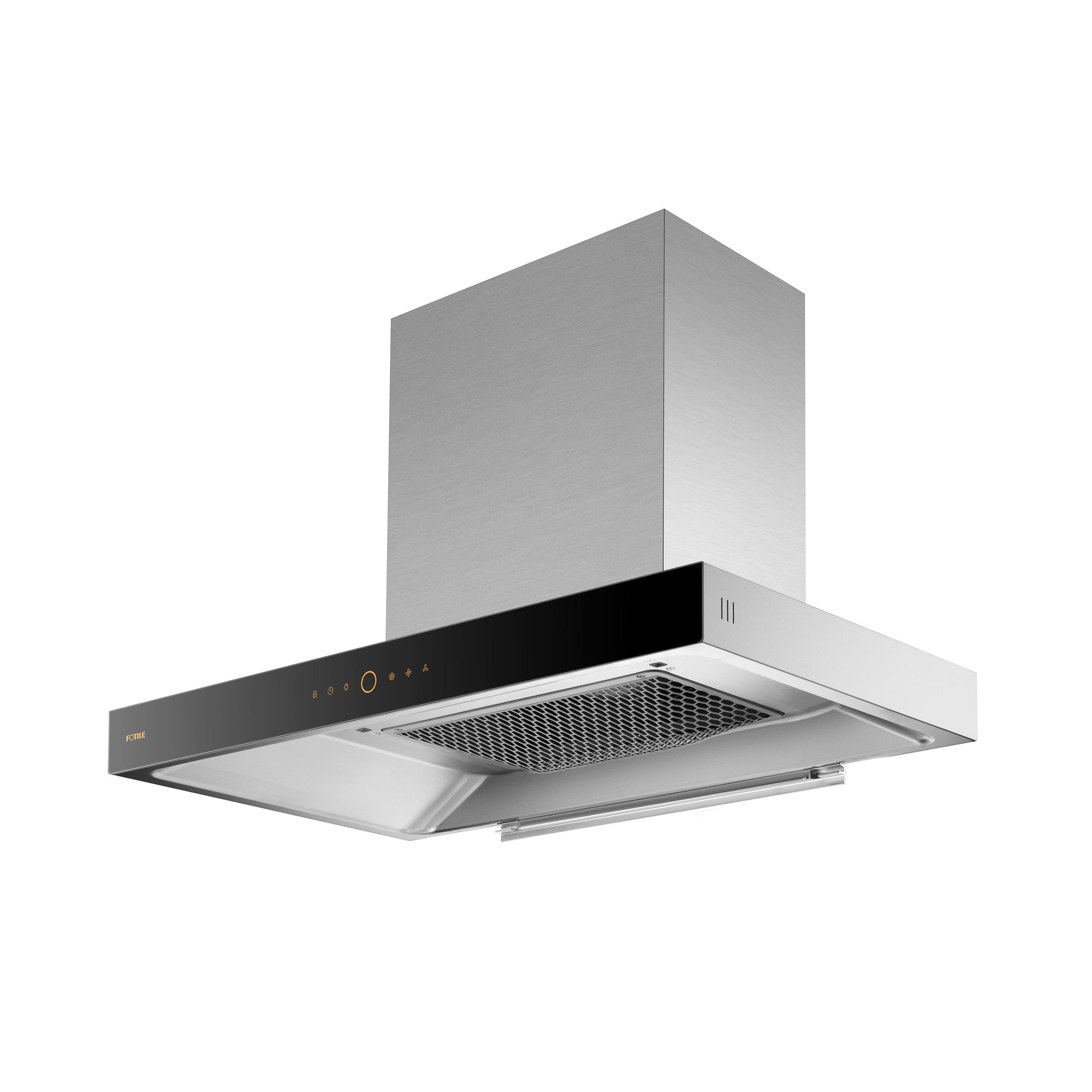

- EMG9008S: 36″ W x 40 11/16″ H x 20 11/16″ D
GENERAL INFORMATION

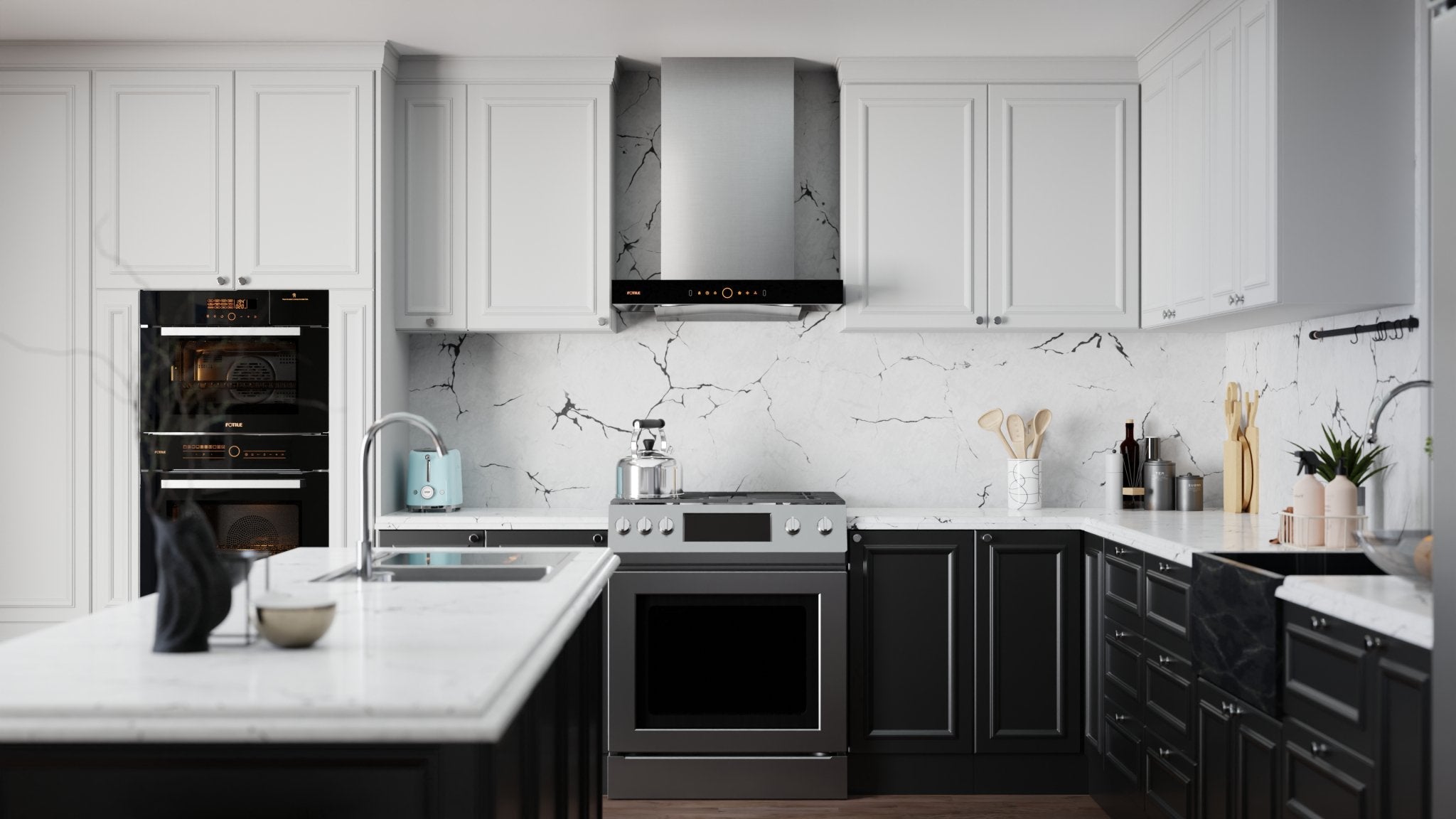

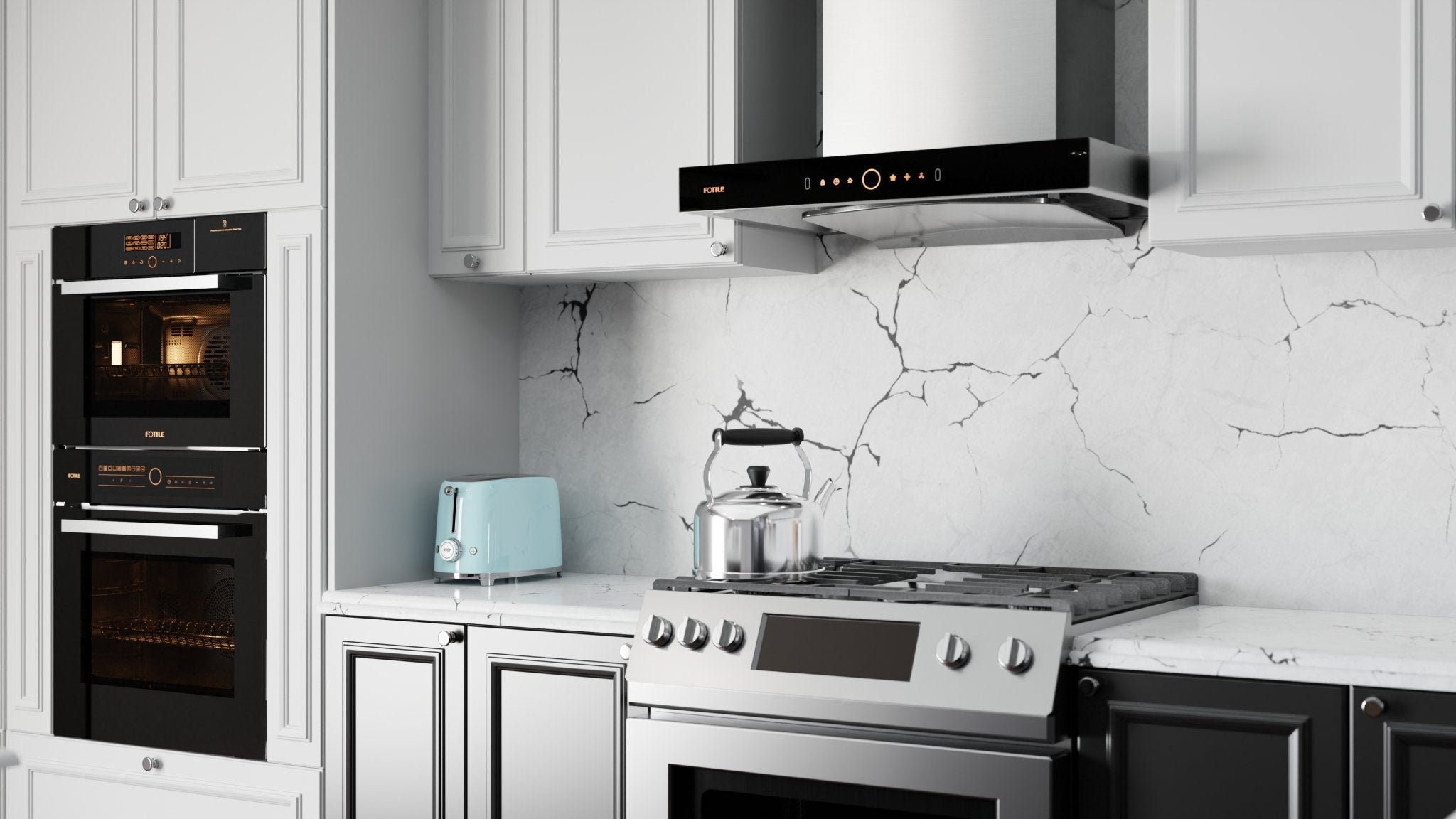

- Installation
- Wall Mount
DESIGN & FINISH
- Material
- Tempered Glass & Stainless Steel
- Color
- Black
TECHNICAL DETAILS
- Motor
- DC Motors
- Speed Setting
- 4
- Max Equiv. CFM
- 1200 CFM
- Noise Level (dB)
- 37 / 46.4 / 52.5 / 57.2
- Odor Reduction Rate
- 97%
- Wattage (W)
- 290W
- Power Supply (V/Hz)
- 120V/60Hz
- Vertical Duct
- 6” Round
FEATURES

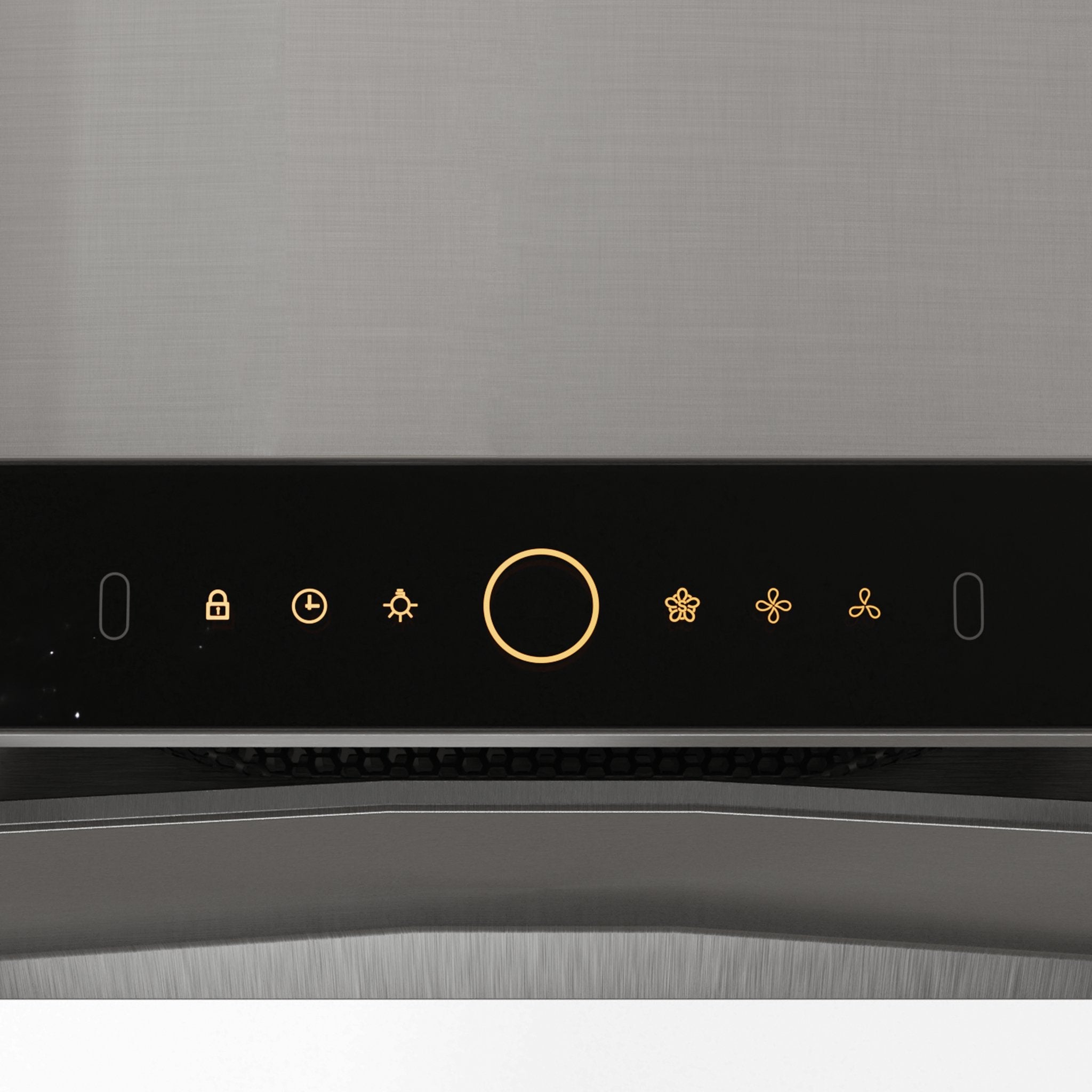

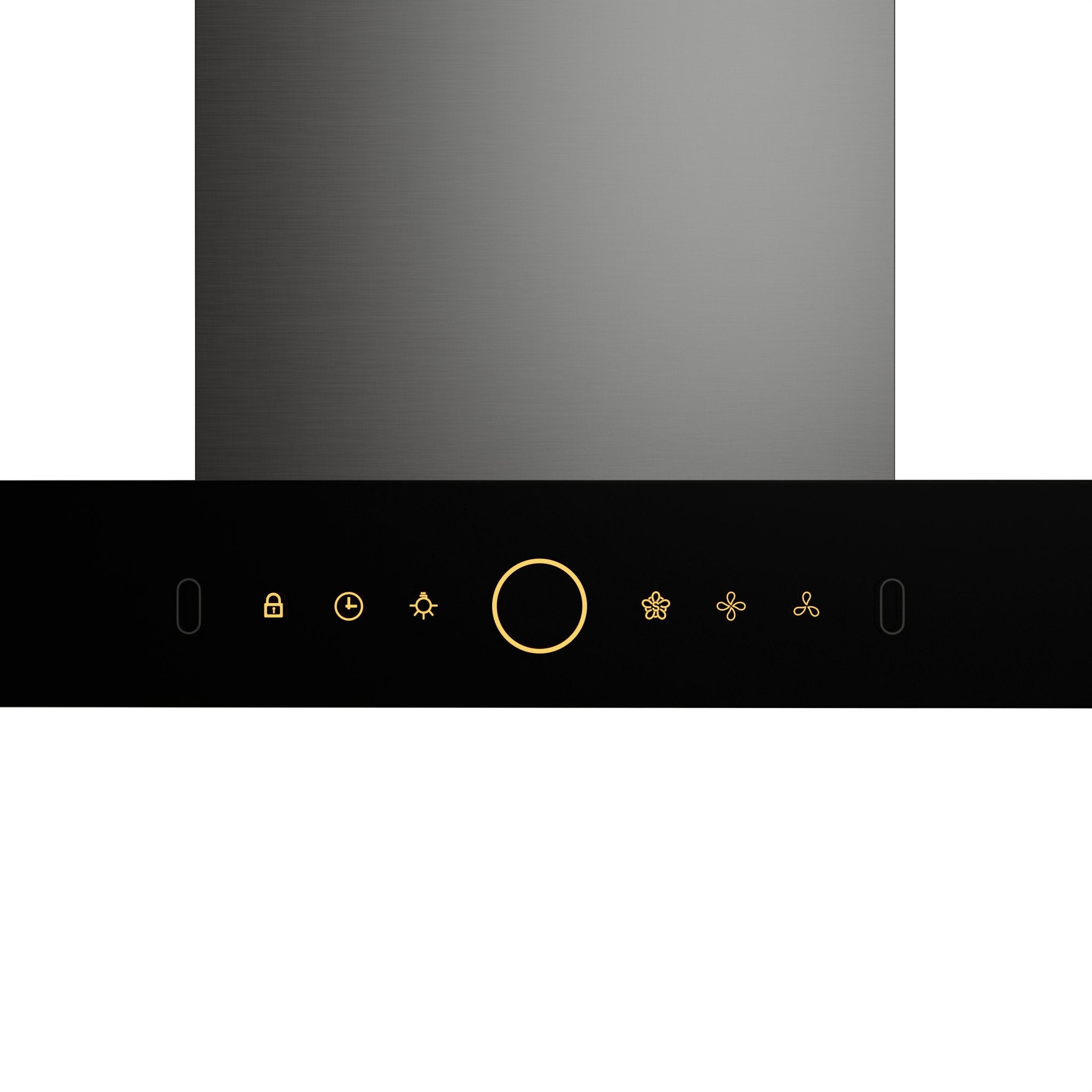

- Operation
- Motion + Touch
- Screen Lock
- Yes
- Delay Shutoff
- 2 min
- Illumination (W)
- EMG7508: 3W × 2 (LED)
- EMG9008S: 5W × 1 (LED)

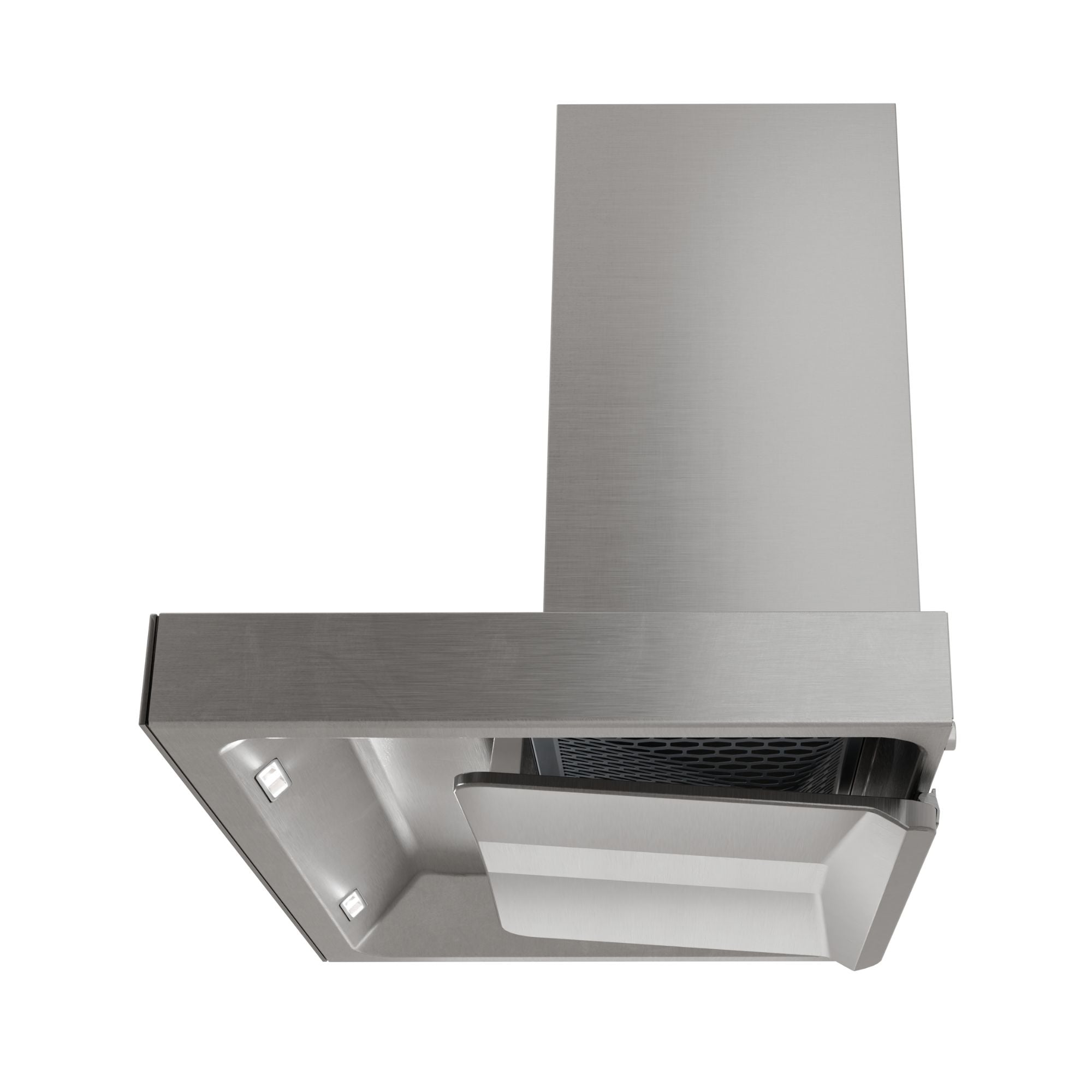

- Grease Cup
- Integrated with Capture Shield Plate
- Grease Filter
- Removable & Dishwasher Safe
- Grease Filtration Rate
- 95%
- Labor
- 2 Years
- Parts
- 5 Years (Limited)
