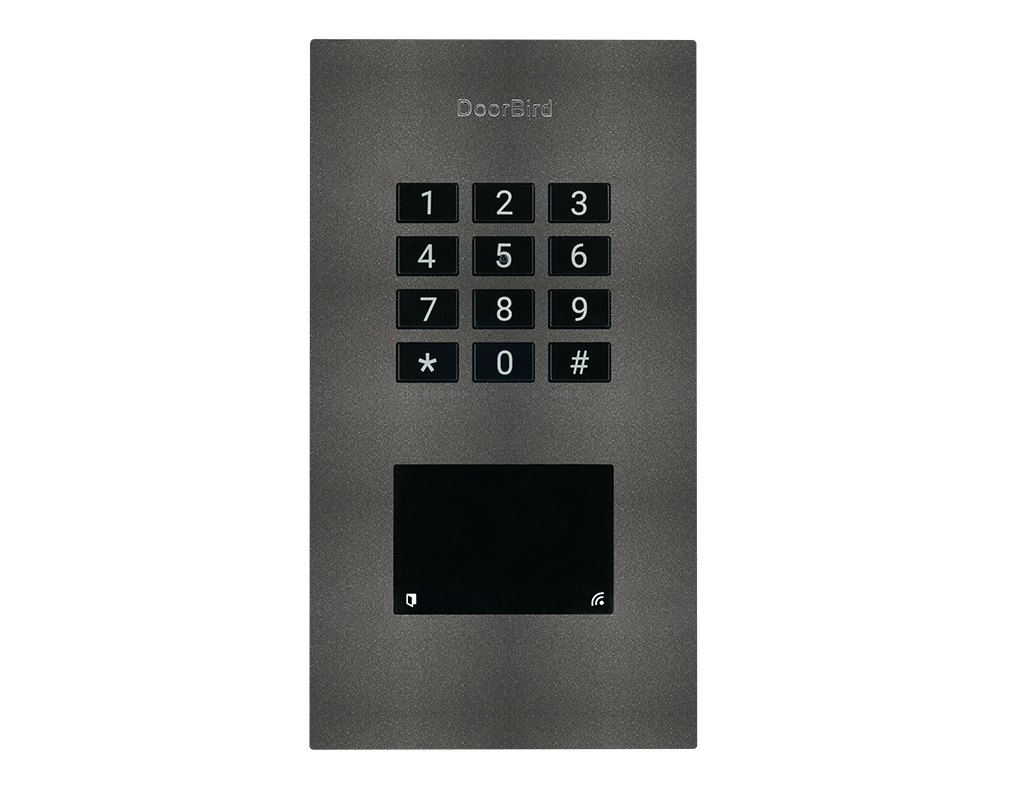

DoorBird stainless steel flush-mount access control device with numeric keypad and display
Roll over image to zoom in Click on image to zoom
DoorBird stainless steel flush-mount access control device with numeric keypad and display
Click on image to zoom

DoorBird A1121 Flush-Mount IP Access Control Device in DB 703 Stainless Steel

DoorBirdSKU: 423872240
2 reviews
Price:
$742.33 $899.99SAVE 17%
Finish: DB 703 Stainless Steel
Out of Stock
No restock estimate
Free shipping — delivered to your door by parcel carrier

Description

DoorBird A1121 Flush-Mount IP Access Control Device in DB 703 Stainless Steel

Multi-technology access control system and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms

DB 703, stainless steel, powder-coated, semi-gloss
(GTIN/EAN: 4260423872240, P/N: 423872240)

Highlights

  • Flush-mount housing included
  • WiFi / LAN connection (PoE capable)
  • Keypad
  • 125 KHz and 13.56 MHz RFID reader
  • Tamper sensor
  • Wiegand interface
  • 2 freely configurable bistable switching relays

Features

  • Three separate access control devices combined:
    Keypad
    RFID Reader
    Bluetooth low Energy (BLE)
  • Keypad Module
    Configurable via App
    Up to 500 individual PIN codes
    Individual events (e.g. trigger a relay, HTTP(s) request)
  • RFID sensor
    125 KHz
    13.56 MHZ
  • Bluetooth low Energy (BLE)
    For access control, compatible external sensors and smart locks
  • WiFi-capable
  • Two freely configurable bistable switching relay
  • Wiegand interface
  • Manipulation sensor
DIMENSIONS
Weight
465g
Dimensions
128 x 62 x 28 mm (H x W x D) 5.04 x 2.44 x 1.1 in (H x W x D)
GENERAL INFORMATION
Mounting type
Flush-mounted. Surface-mounted and retrofit version sold separately
Front panel
3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and V2A with bronze and titanium finish, DB 703, RAL 7016, Graphite Black (Raven Polar)
Mounting housing (backbox)
Stainless steel
Power supply
15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Connectors
  • LAN/PoE (T+, T-, R+, R-)
  • 2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
  • 15 – 48 V DC input (+, -), max. 15 W
  • Wiegand
Keypad module
  • Individual PIN codes
  • Individual events
  • (e.g. switch a relay, HTTP(s) request)
  • Individual schedules
  • Up to 500 PIN codes manageable
Tamper Sensor
Integrated
Weatherproof
Yes, IP65
Operating conditions
152 x 83 x 31 mm (H x W x D) 5.99 x 3.27 x 1.22 in (H x W x D)
Approvals
IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368
FEATURES
Scope of delivery
  • 1x Main Electrical Unit
  • 1x Front panel
  • 1x Flush-mounting housing (backbox)
  • 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
  • 1x RJ45 adapter
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
