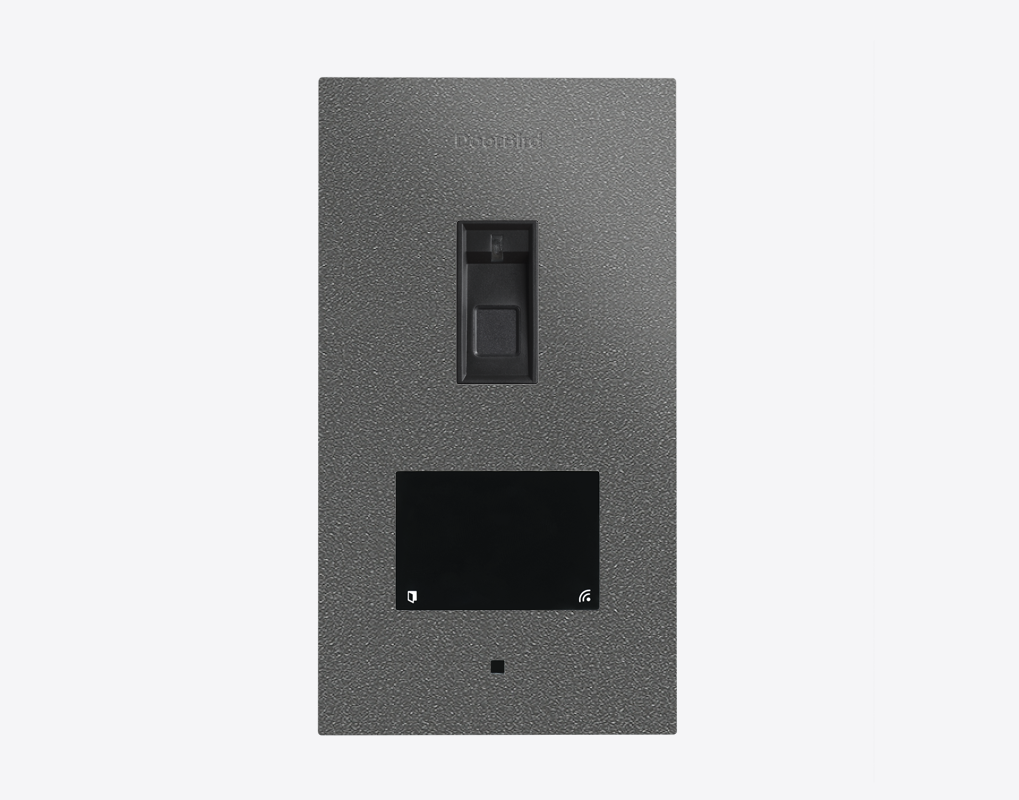

DoorBird flush-mount stainless fingerprint access device with front sensor and display

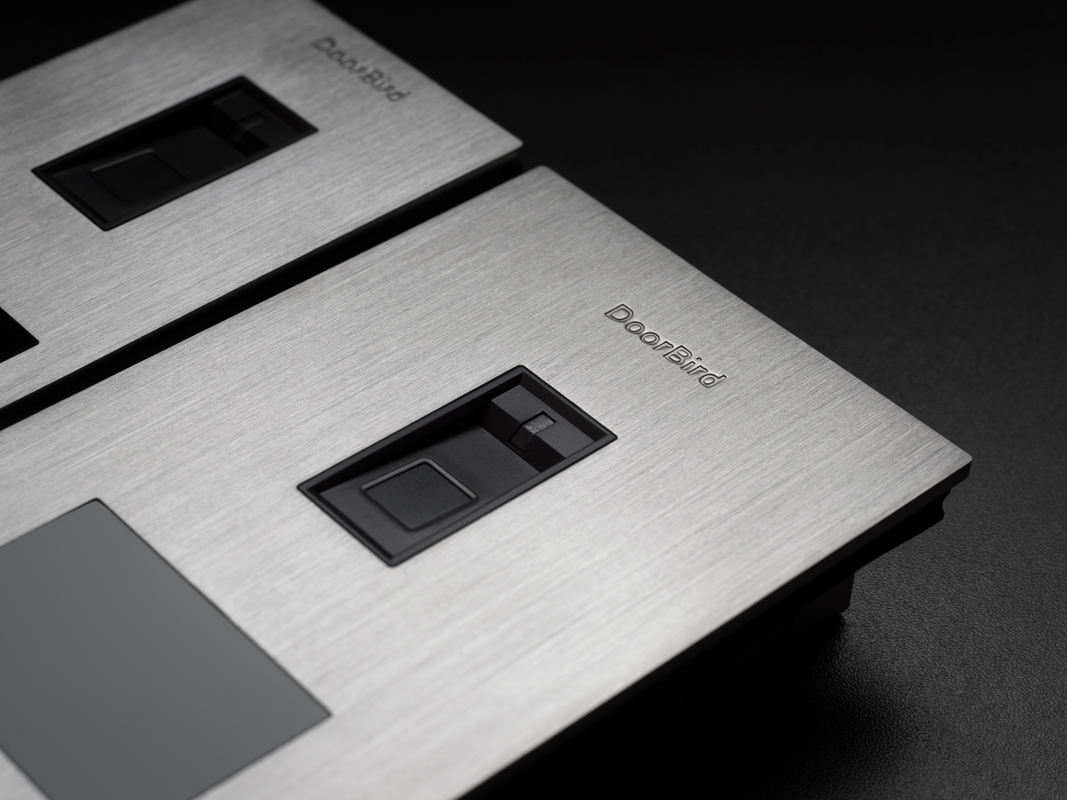

DoorBird brushed stainless flush-mount access panel with fingerprint sensor window and buttons
Roll over image to zoom in Click on image to zoom
DoorBird flush-mount stainless fingerprint access device with front sensor and displayDoorBird brushed stainless flush-mount access panel with fingerprint sensor window and buttons
Click on image to zoom

DoorBird A1122 Flush-Mount IP Access Control Device Fingerprint 50 in DB 703 Stainless Steel

DoorBirdSKU: 423872837
2 reviews
Price:
$742.35 $989.00SAVE 24%
Finish: DB 703 Stainless Steel
Style:
Out of Stock
No restock estimate
Free shipping — delivered to your door by parcel carrier

Description

DoorBird A1122 Flush-Mount IP Access Control Device Fingerprint 50 in DB 703 Stainless Steel

Multi-technology access control system with fingerprint reader and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms

DB 703, stainless steel, powder-coated, semi-gloss
(GTIN/EAN: 4260423872837, P/N: 423872837)

Highlights

  • Flush-mount housing included
  • WiFi / LAN connection (PoE capable)
  • Fingerprint sensor by Fingerprint Cards AB
  • 125 KHz and 13.56 MHz RFID reader
  • 2 freely configurable bistable switching relays
  • Tamper sensor
  • Wiegand interface

Features

  • Three separate access control devices combined:
    Fingerprint reader
    RFID Reader
    Bluetooth low Energy (BLE)
  • Fingerprint reader
    Supports up to 50 fingerprints
    Integrated Status LED (RGB) and Touch sensor
  • RFID sensor
    125 KHz
    13.56 MHZ
  • Bluetooth low Energy (BLE)
    Supports A8007 Bluetooth Remote Control
    For access control, compatible external sensors and smart locks
  • WiFi-capable - Works within a WiFi network, no LAN cable needed
  • Two freely configurable bistable switching relay
    Control one door or one gate via App
    Status configurable via App: temporary or permanent circuit
  • Wiegand interface
  • Manipulation sensor

Quality Made In Germany

All DoorBird products are designed, developed and produced by Bird Home
Automation Group in Berlin, Germany. We manufacture all products with
the greatest care and precision, and deliver them to our customers all over
the world.

DIMENSIONS
Weight
465 g
Dimensions
152 x 83 x 31 mm (H x W x D) 5.99 x 3.27 x 1.22 in (H x W x D)
GENERAL INFORMATION
Mounting type
Flush-mounted. Surface-mounted and retrofit version sold separately
Front panel
3 mm (0.12 in) For more materials and colours see material board and Online Shop.
Mounting housing (backbox)
Stainless steel
Power supply
15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Connectors
  • LAN/PoE (T+, T-, R+, R-)
  • 2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
  • 15 – 48 V DC input (+, -), max. 15 W
  • Wiegand
Fingerprint Reader
  • Configurable via App
  • Individual events (e.g. switch a relay, HTTP(s) request)
  • Individual schedules
  • 50 fingerprints manageable
  • Event history
  • Multicolored Status LED
Tamper Sensor
Integrated
Weatherproof
Yes, IP65
Operating conditions
-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
FEATURES
Scope of delivery
  • 1x Main Electrical Unit
  • 1x Front panel
  • 1x Flush-mounting housing (backbox)
  • 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
  • 1x RJ45 adapter
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
Shipping
  • Free Shipping on all orders.
  • Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
  • Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.
Full shipping policy
Returns
  • 30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
  • Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
  • Restocking Fee: A restocking fee may apply and varies by brand.
Full returns policy
Authorized DoorBird Dealer
Full manufacturer warranty on every DoorBird product we sell.
Explore DoorBird
DoorBird
DoorBird

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Carl R. (Los Angeles, CA)
High quality construction, works great.

I have installed as main gate access controller. The device is used for gate access via keypad and house call via the ring button. Setup is easy, app driven setup. Works great and love the design. It looks professional versus the other brands made of plastic that look more like toys.

User picture
D
Danny L. (Los Angeles, CA)
Great unit, works very well

I have been using the Doorbird for about 7 weeks now. The unit comes complete with with cables and miniature connectors for Ethernet, power, lock, doorbell, etc. And snap connectors. Was easy to install and operate.

The finish is beautiful, I love how they had so many color options to choose from. The Bronze looks great with our new home.

Home Outlet Direct shipped quickly and made the purchase easy. I recommend for any home that requires this type of security.

User picture
