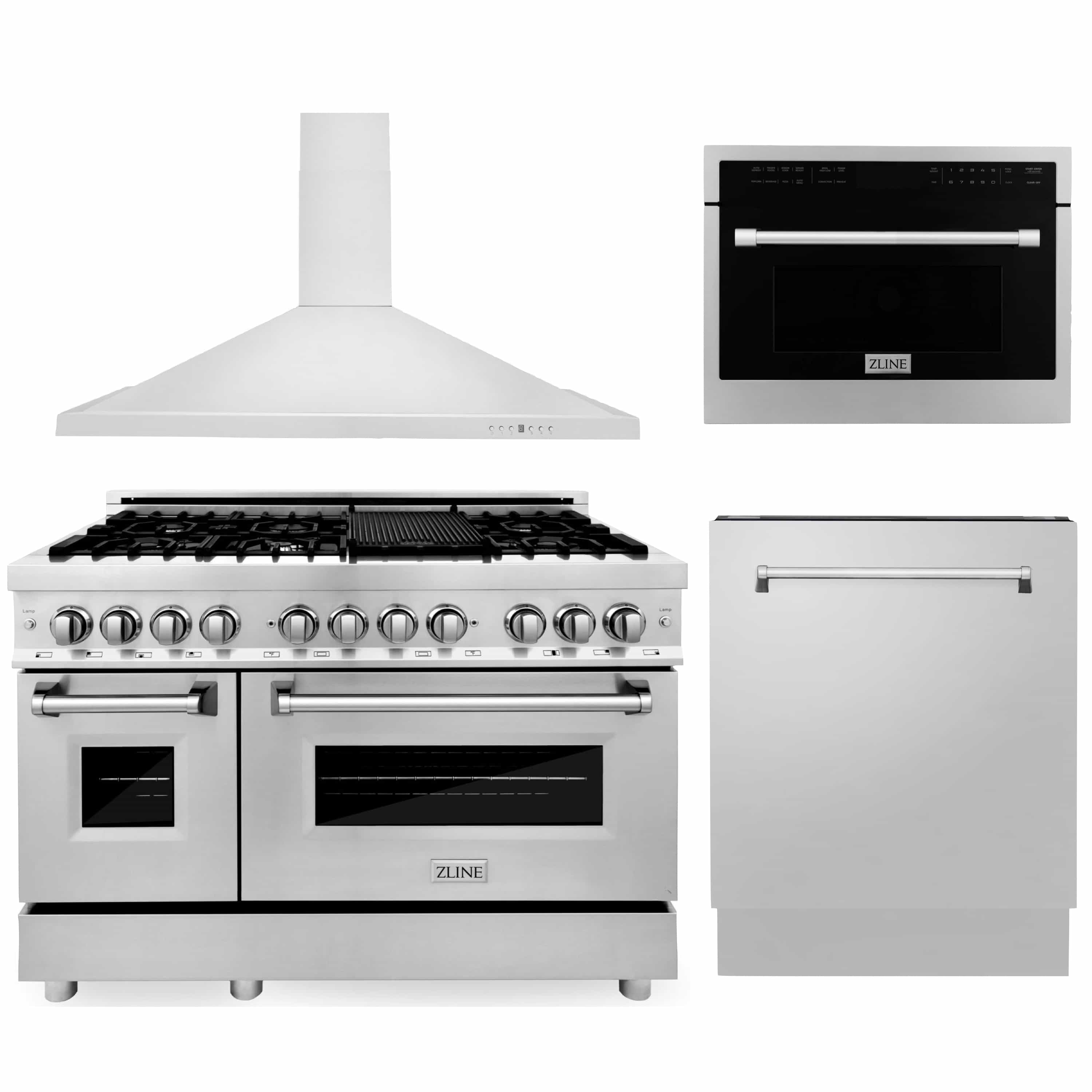

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.
Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 48" 6.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA48) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.

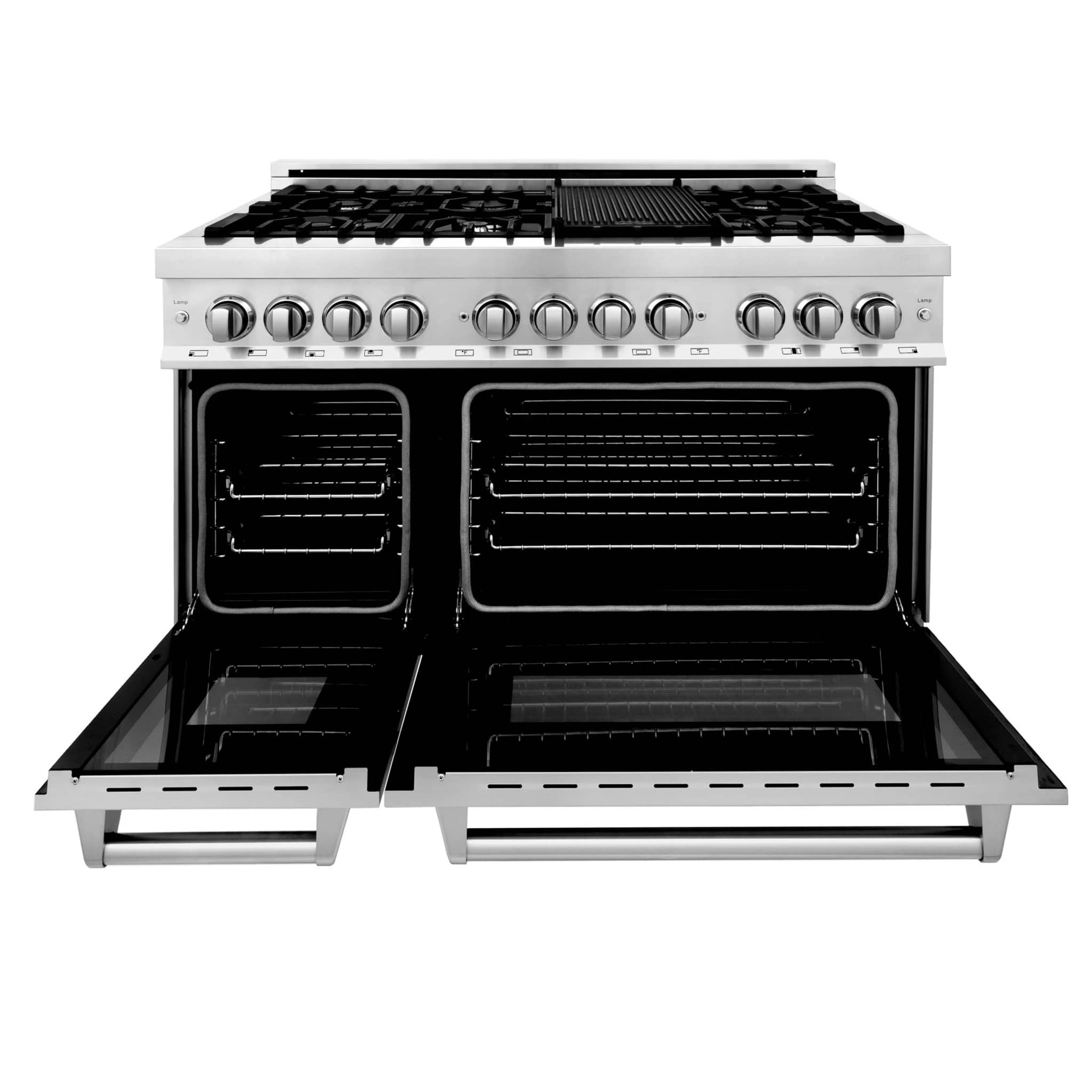

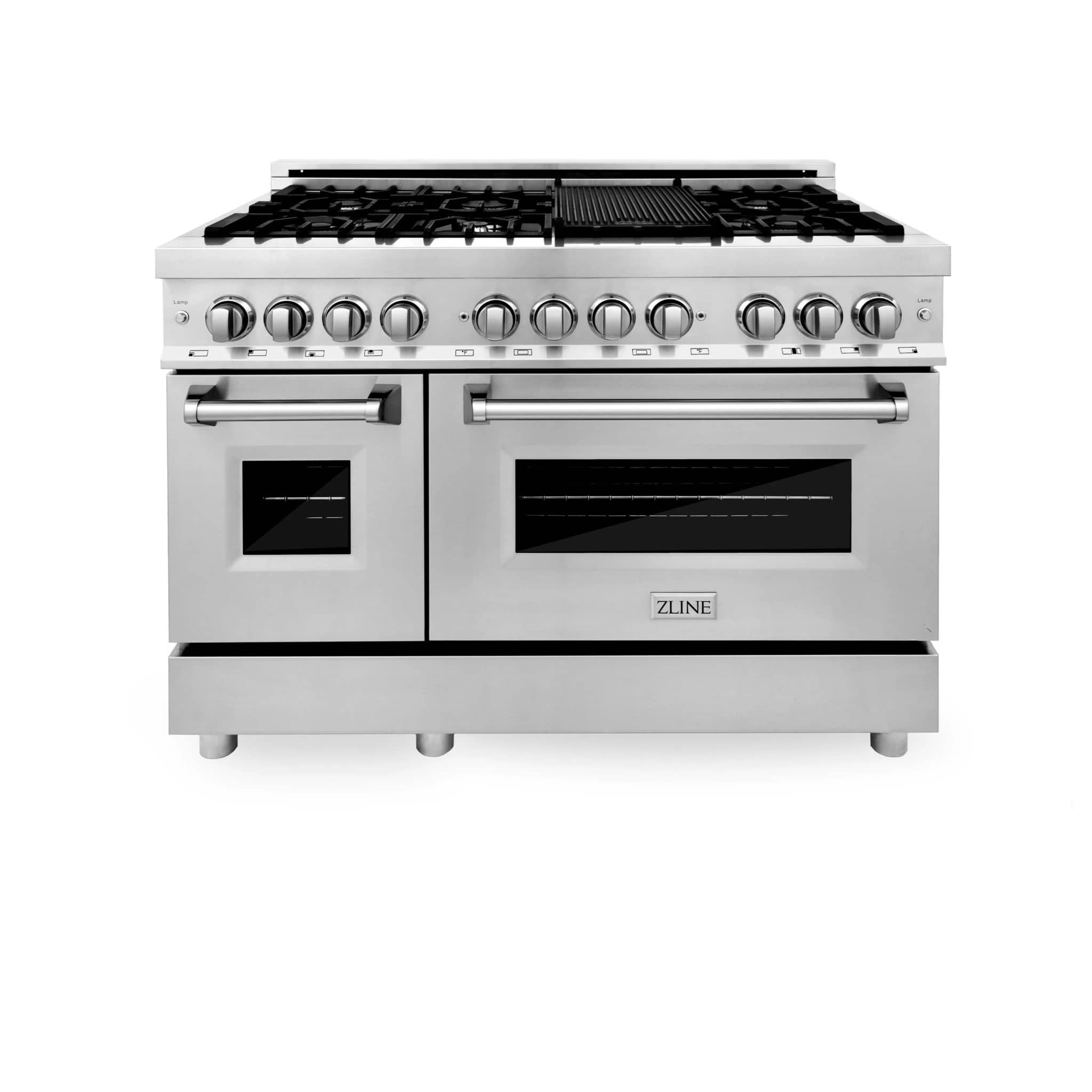

Build your dream kitchen with the ZLINE Dual Fuel Range
Features of ZLINE Dual Fuel Range:
- Professional Dual Fuel Cooking - Blends high-performance technology of a gas cooktop and an electric convection oven
- Italian-Made Sealed Burners - Industry-leading gas cooktop includes 7 Hand-cast burners with cooking power ranging from 1,000 - 18,000 BTUs to optimize every meal with a powerful and even heat distribution
- Minimal Cleaning - Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance of gas cooktop
- Large Oven Capacity - 6.0 cu. ft oven capacity that fits up pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cookingximum space and convenience with everyday cooking
- Premium Oven Insulation - 3 layered glass and aluminum mesh seal offers superior heat retention and a consistent temperature, creating perfect dishes every time
- Smooth Glide Ball-Bearing Oven Racks - Durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- StayPut Oven Door Hinges - Designed to support the full weight of the oven door, offering additional convenience and safety
- Dual Oven Lights - Illuminate your oven space with dual lighting, controlled by a switch located on the front control panel
- LP Conversion Kit - Comes equipped with an LP conversion kit to convert from natural gas to liquid propane (must be done by a professional); offering versatility with your cooking preference
- Professional Look and Feel - Featuring high grade 304 grade stainless steel with durable cast iron grates
- Adjustable Oven Height - Easy adjustable legs allow you to adjust the total range height anywhere from 36 inches to 38.5 inches
- Industry First Lifetime Burner Warranty - Limited lifetime warranty on ZLINE Italian burners, includes part replacements for burners and burner caps and parts and labor for the spark tip if parts prove to be defective in materials or workmanship
- Manufacturer Warranty - 1 year parts and service warranty on ZLINE Dual Fuel Ranges

- Dimension
- 47.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 47.75" W x 29.63 " D x 36.13" H
- Open Door Depth
- 41.8"
- Oven Dimensions
- Oven Dimensions: 26.5"/12.5"W x 18.5" D x 14" H
- Product Weight
- 331 lbs.
- Brand
- ZLINE Kitchen and Bath Available at Home Outlet Direct
- Features
- Manufactured by ZLINE Kitchen and Bath Model No. RA48
- Color
- Silver
- Finish
- Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel
- Control Type
- Front Control
- Material
- Stainless Steel frame with 1 Piece Porcelain Top
- Italian made hinges and burners-Manual Clean Red indicator light shuts off to let you know when oven has gotten to temperature
- Voltage
- 240V/60Hz/40A
- Mount Type
- Free Standing
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel
- All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. Every range comes equipped with an LP conversion kit to convert from natural gas to propane; this conversion process must be done by a professional
- Fuel Type
- Convection Oven - Gas Cooktop
- Cooktop

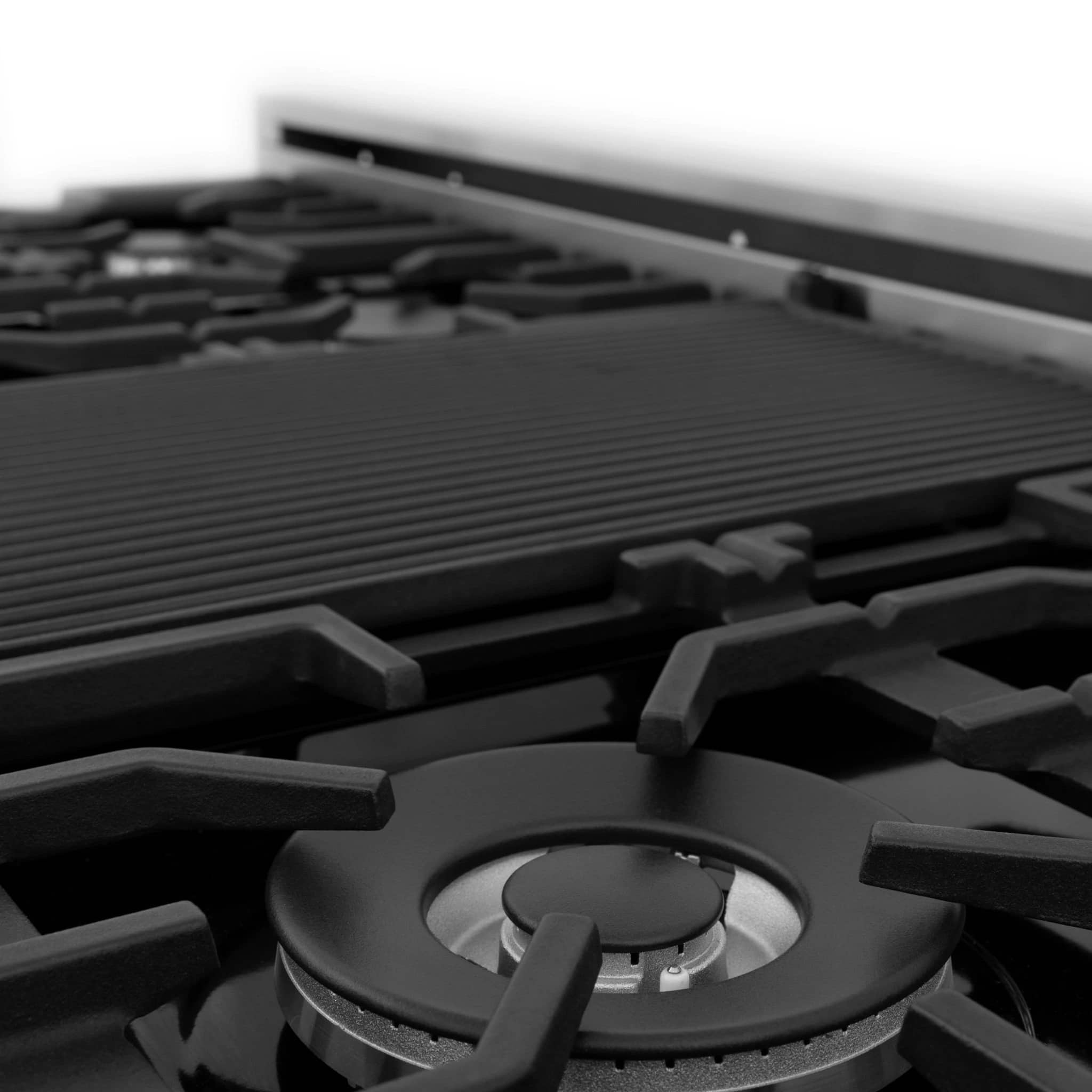

- (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners
- BTU Rating
- Dual Burner(x2) - 18,000 BTU Griddle Burner - 13,000 Rapid Burner - 13,000 BTU Semi-Rapid Burner (x2) - 8,500 BTU Auxiliary Burner - 4,200 BTU
- Oven
- Manual Clean
- Convection Electric
- 4.6 cu.ft. deep oven
- Triple Glass Window
- Dual Lighting
- Professional Aluminum Mesh Seal
- Warranty
- 1 Year Warranty
- Certifications
- ETL Certified

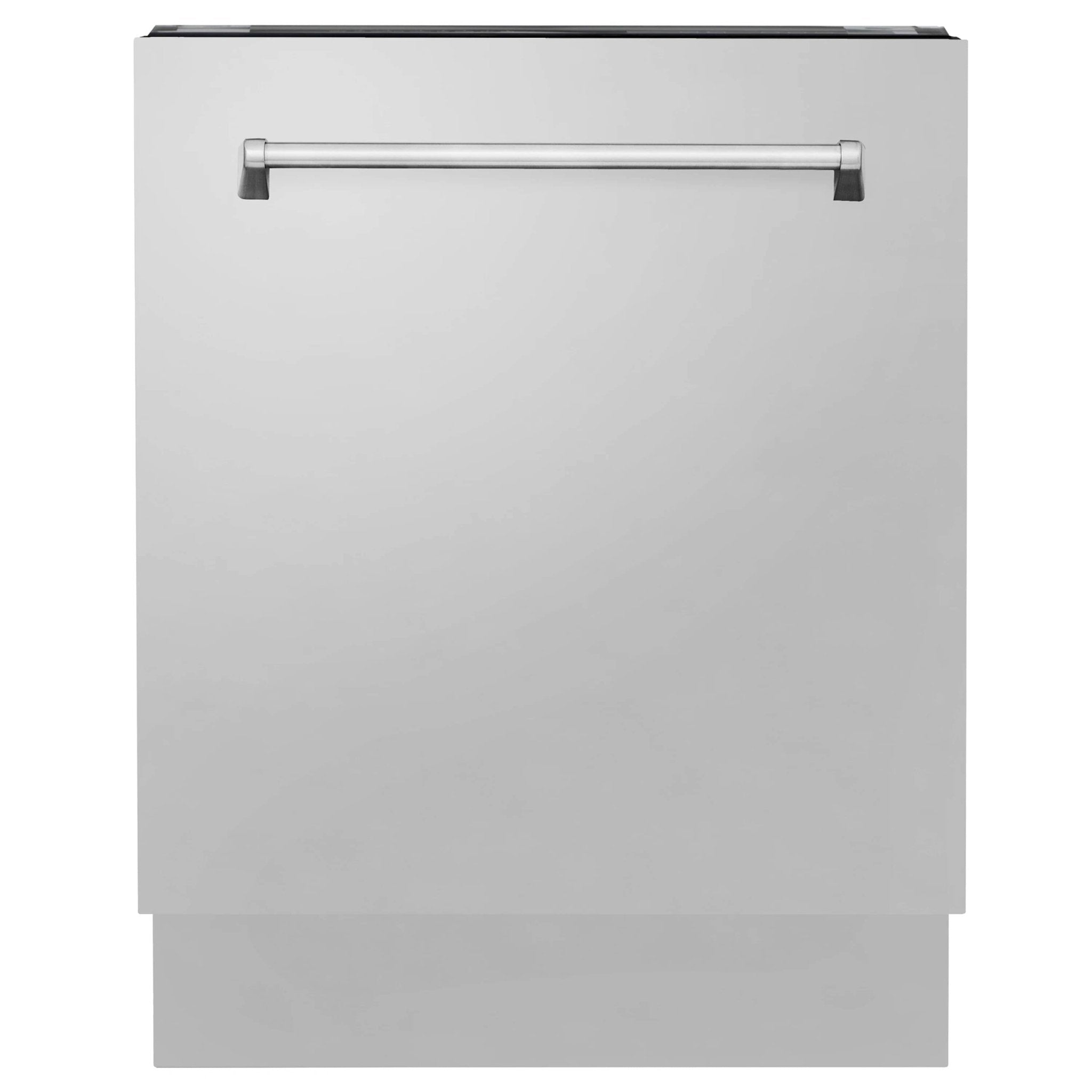

The ZLINE 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Stainless Steel Panel (DWV-304-24) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
Features
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient

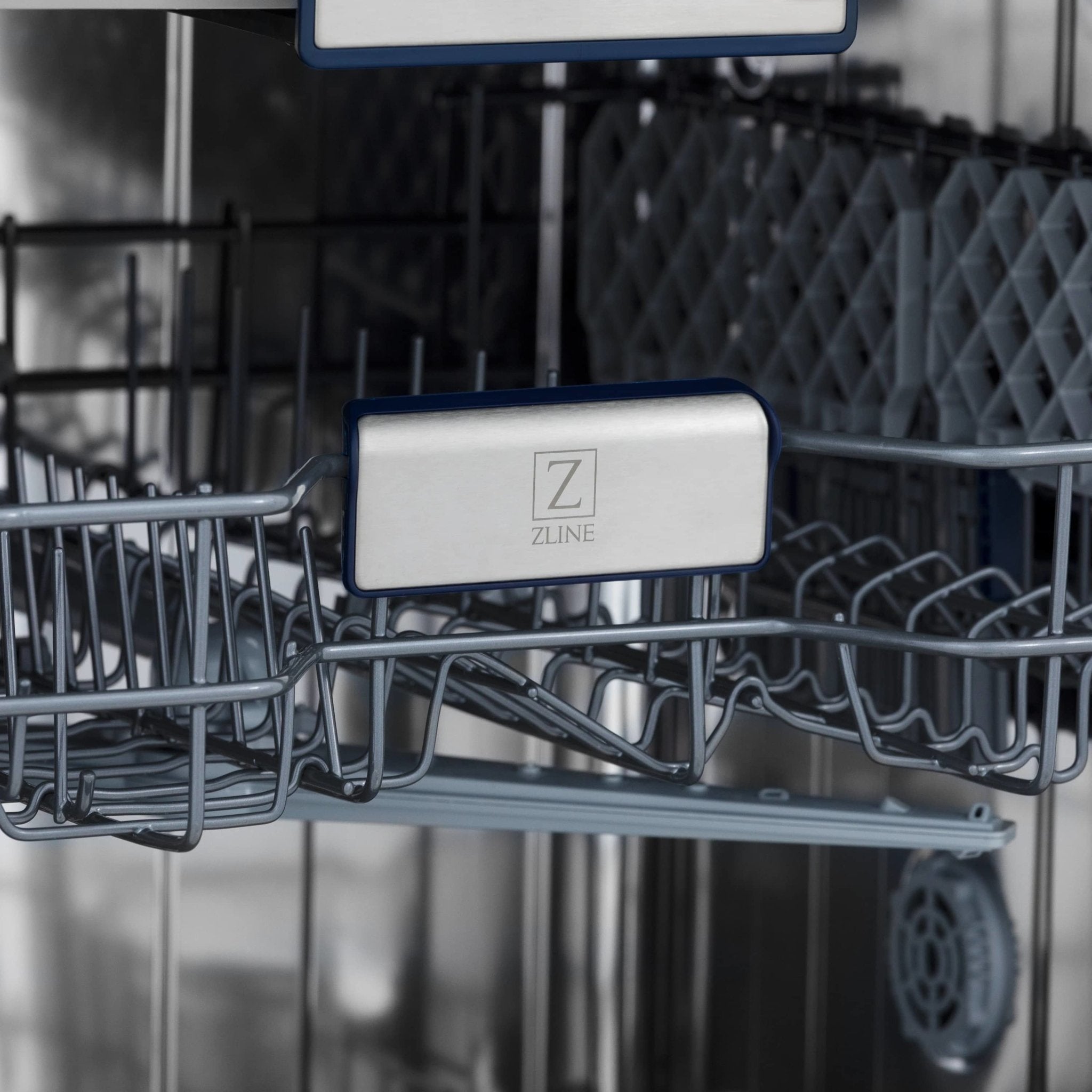

- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation

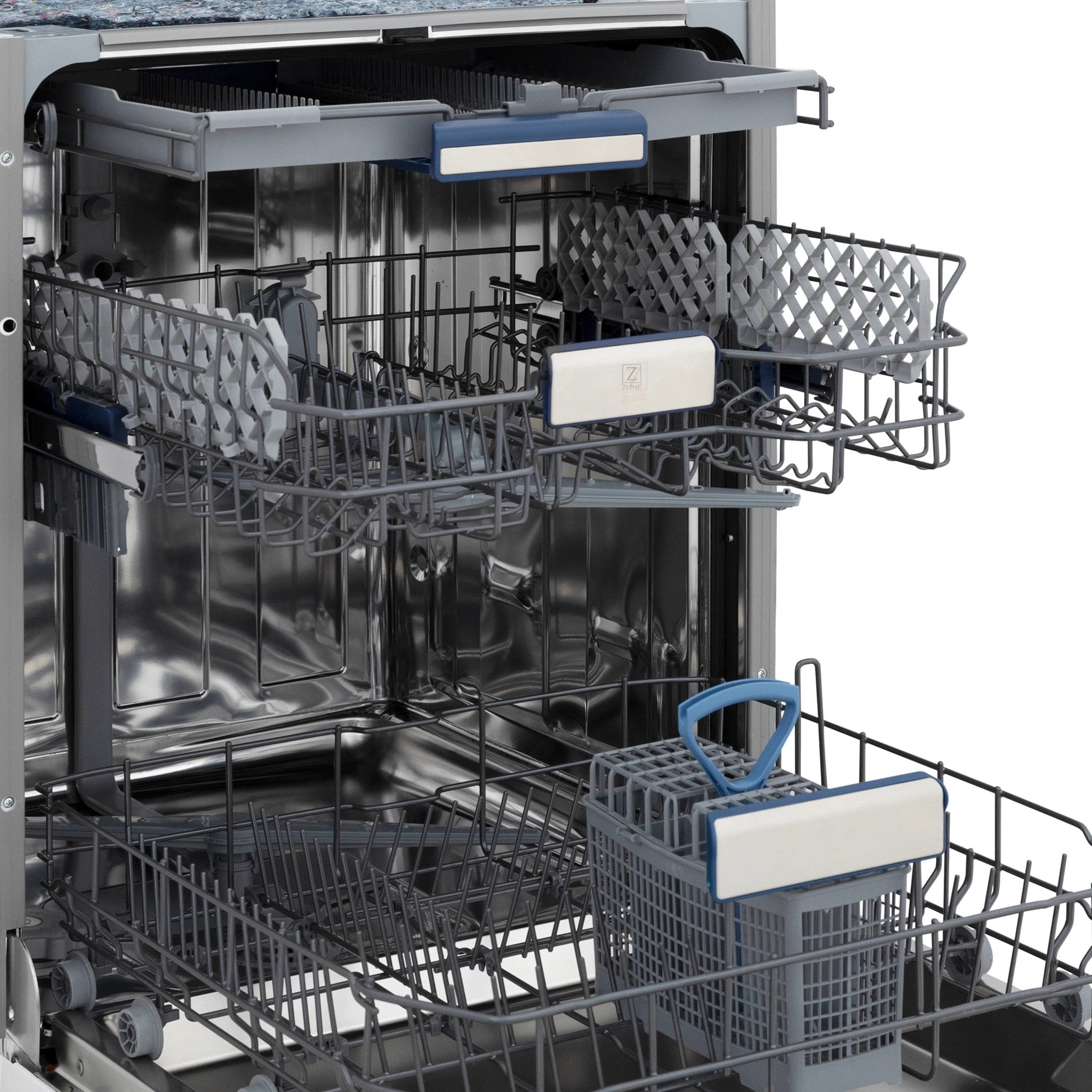

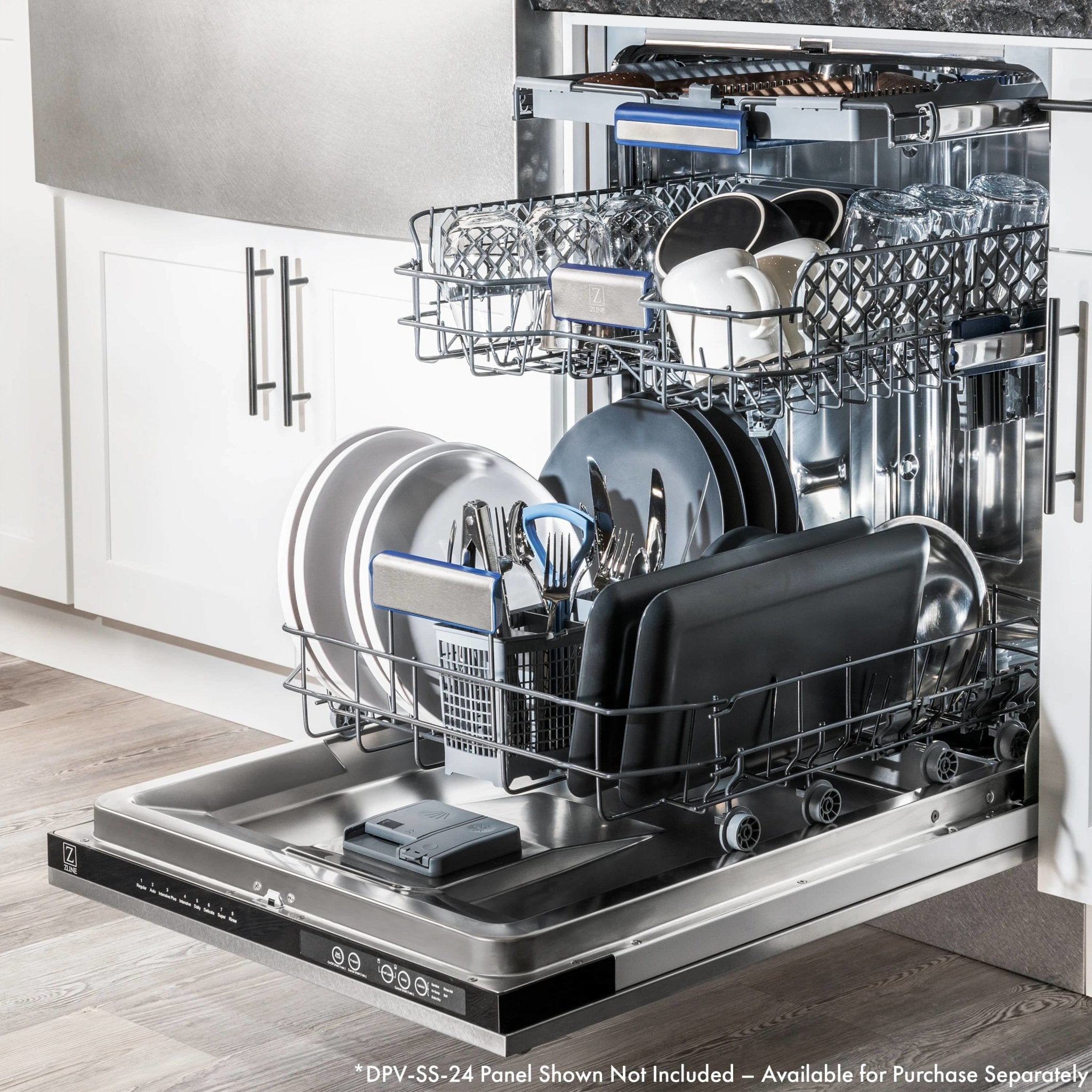

- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
- Custom Panel Finish - Customize your Tallac Series dishwasher with a beautiful 304-grade stainless steel door panel and stainless steel handle
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
- Size
- 24 in.
- Dimensions
- 23.6" W x 22.4" D x 33.9" H
- Product Weight
- 106.8 lbs
- Cut-Out Height
- 34.13 in.
- Cut-Out Width
- 24 in.
- Interior Dimensions
- 20.95" W x 20.5" D x 24.17"H
- Max Plate Height
- 13 in.
- Installation Type
- Plug In - Nema 5-15
- Panel Ready
- N
- Panel Finish
- 304 Grade Stainless Steel
- Handle Finish
- Stainless Steel
- Handle Type
- Traditional Style
- Control Location
- Top Control
- Control Type
- Button Control
- Silverware Basket Location
- Bottom Rack Center
- Voltage
- 120vac
- Frequency
- 60Hz
- Dedicated Circuit
- 15A
- Rated Current
- 12A
- Motor Wattage
- 100W
- Heater Wattage
- 1100W
- Motor Amperage
- 0.84A
- Heater Amperage
- 10A
- Energy Consumption Per Year
- 239 kWh
- Water Consumption Per Cycle (Liters)
- 11.73 L
- Water Consumption Per Cycle (Gallons)
- 3.1 gal
- Decibels
- 51 dBa
- Extended Hose Length
- 56 in.
- Drying System
- Turbo Fan Drying + Auto Door
- Steam Function
- Without Steam
- Features
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
- Custom Panel Finish - Customize your Tallac Series dishwasher with a beautiful 304-grade stainless steel door panel and stainless steel handle
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
- Certifications
- Energy Star, CEC, UL

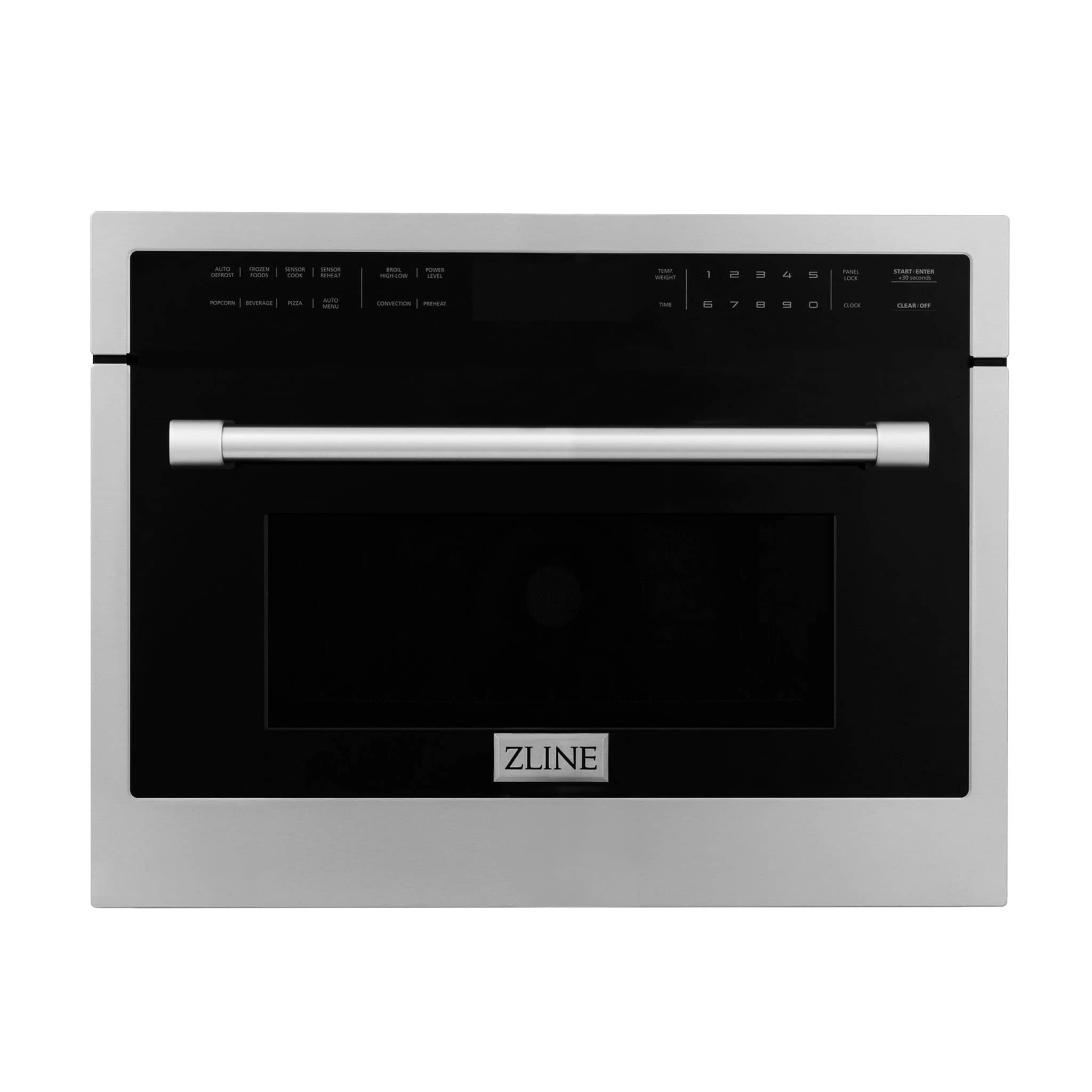

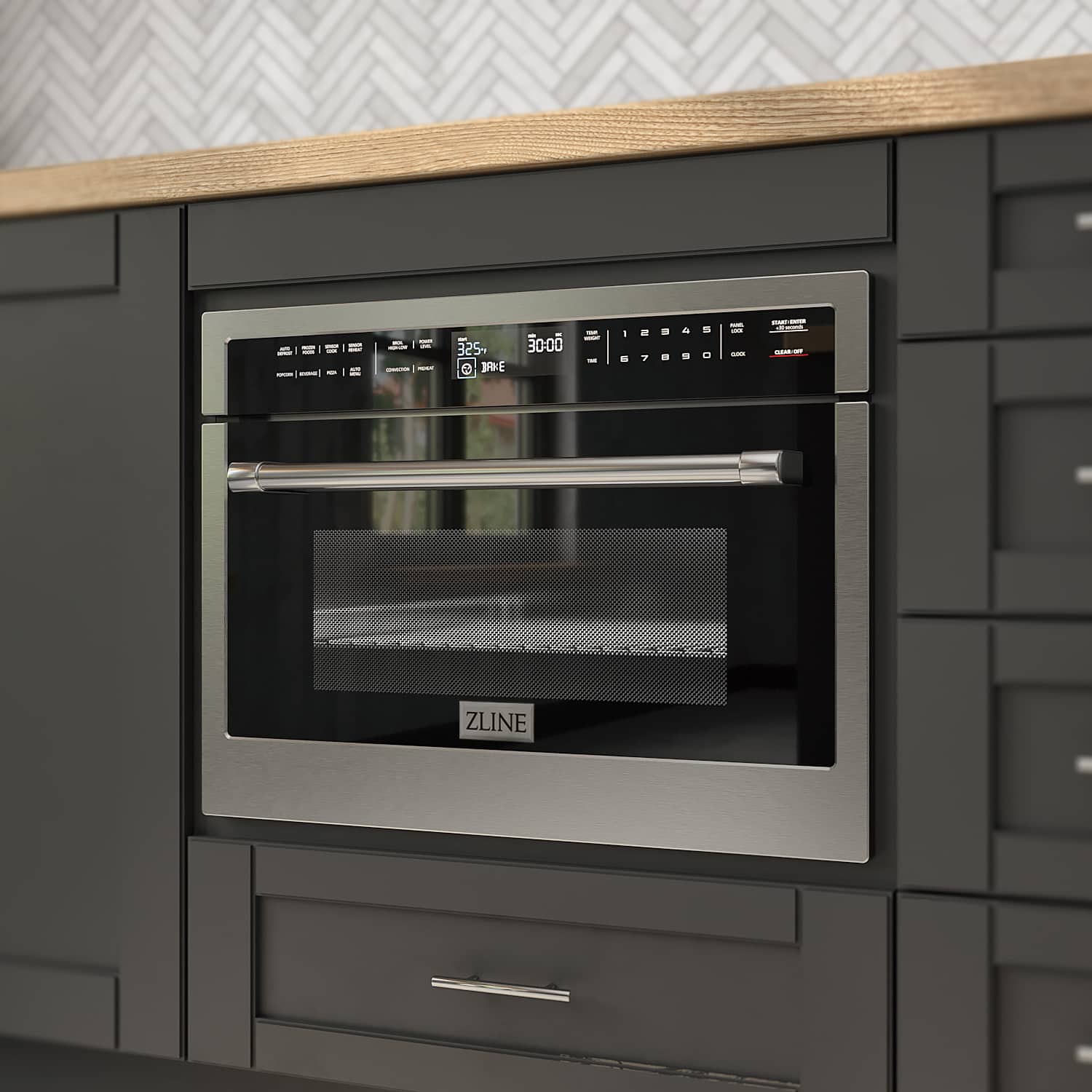

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24" Built-in Convection Microwave Oven in Stainless Steel with Speed and Sensor Cooking provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.
Features
- Convection and Microwave Modes - Select from a variety of convection, broil, and microwave cooking settings to provide optimal dish results
- High-Powered Performance - Get the results you need with 10 different power levels and a powerful 1000 watt cooking power
- Convenient Microwave Settings - Achieve optimal performance for every dish with sensor cooking, reheat, defrost, and rapid pre-heat settings

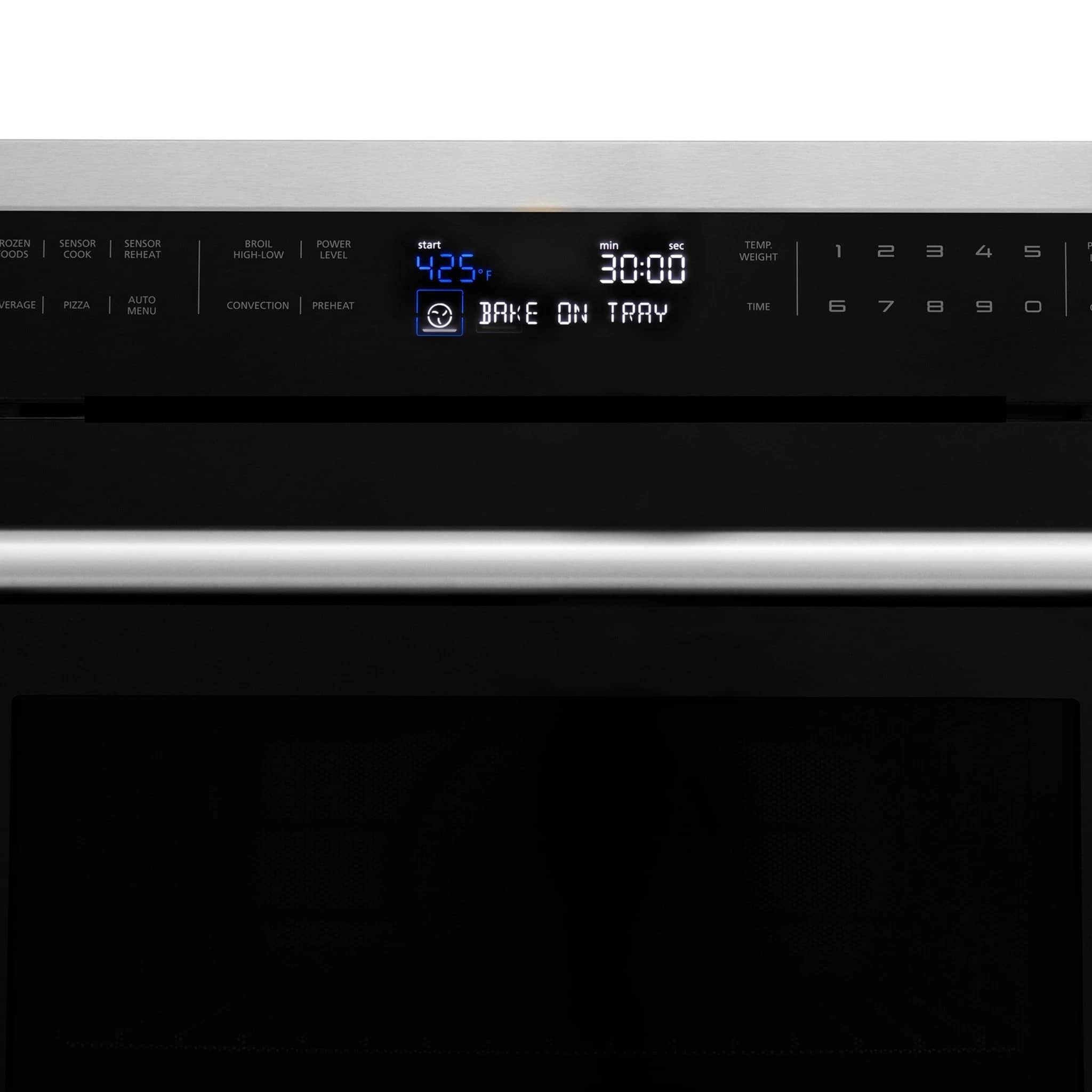

- LCD Display - Enjoy an easy-to-use crystal clear LCD display and timer

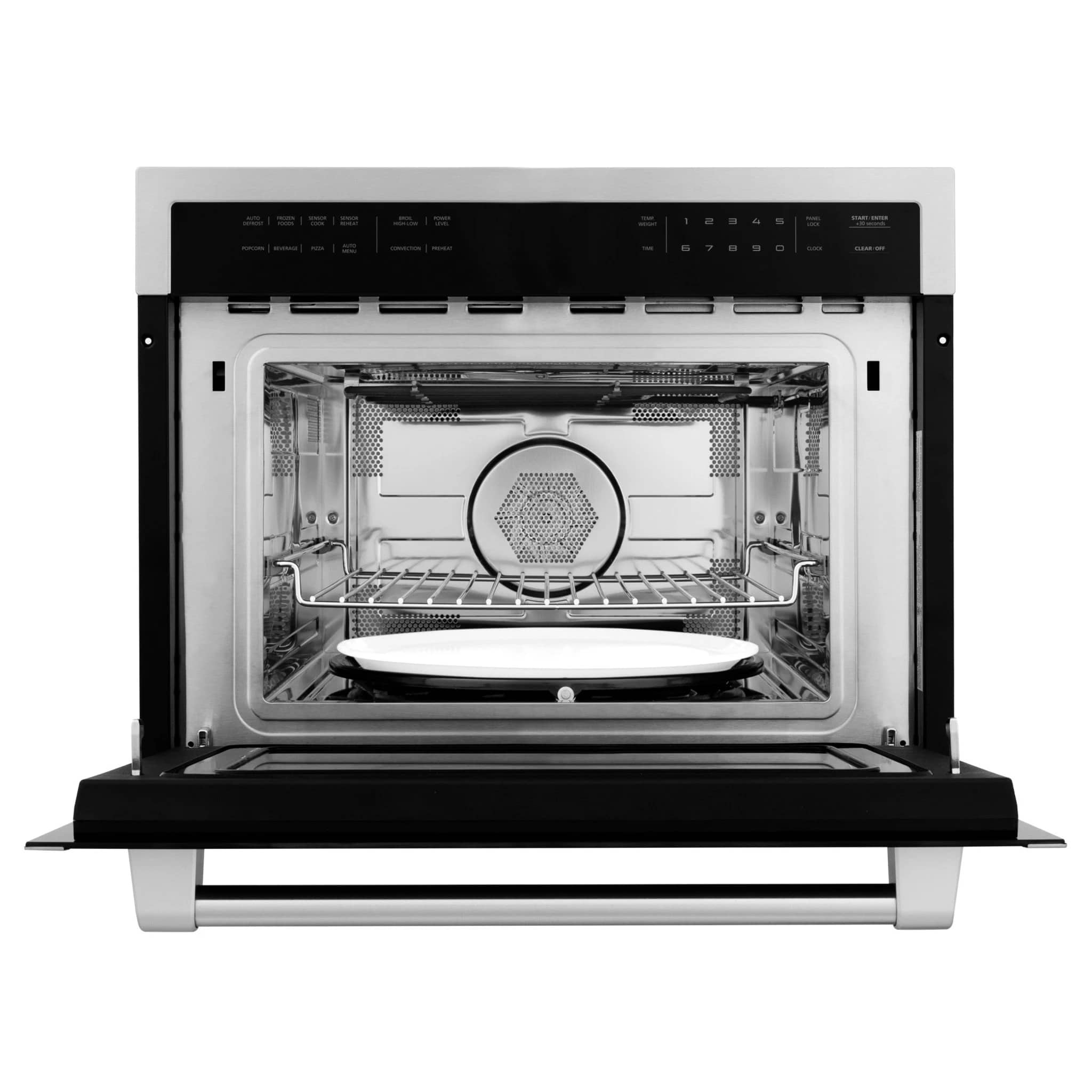

- Reversible Turntable - A durable ceramic turntable provides an even heat distribution and can be turned clockwise or counter clockwise
- Reversible Wire Rack - An included microwave rack offers maximum convection performance, for best results place face down for baking or roasting and face up for grilling
- 1.55 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
- Stainless Steel Interior - An easy-to-clean stainless steel interior is engineered to provide an efficient and even heat distribution
- Child-lock Feature - Have complete peace of mind with a microwave lock feature, offering everyday safety in the kitchen
- Stainless Steel Finish - Brushed 430 grade stainless steel exterior provides an easy clean up and a timeless look in your kitchen
- Manufacturer Warranty - 2 year parts warranty

- Dimensions
- 23.5 in W x 22.31 in D x 17.88 in H
- Cut Out Dimensions
- 22.38 in W x 23.25 in D x 17.75 in H
- Depth with Door Open
- 31.5 in.
- Weight
- 81.8 lbs
- Mount Type
- Built-in
- Installation Type
- Built-in
- Fuel Type
- Electric
- Control Type
- Touch Screen
- Material
- Stainless Steel
- Color
- Stainless Steel
- Voltage
- 120V/ 60HZ/15.5A
- Oven Capacity
- 1.6 cu. ft.
- Noise Level
- 45 Decibels
- Input Power
- 1750W
- Output Power
- 1000W
- Convection Fan
- Yes
- Certifications
- UL Listed & Title 20 Compliant
- Warranty
- 2 Year Parts

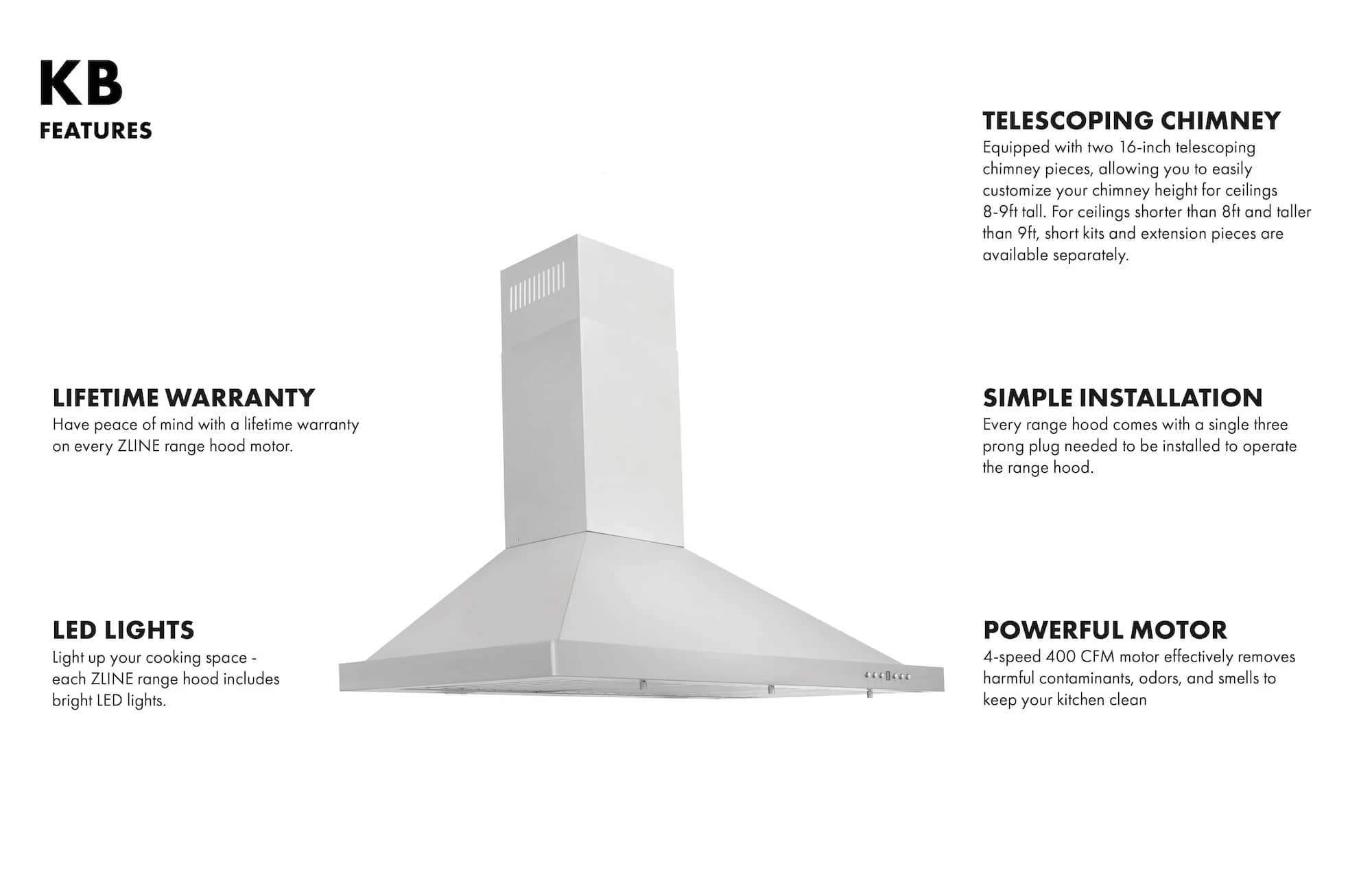

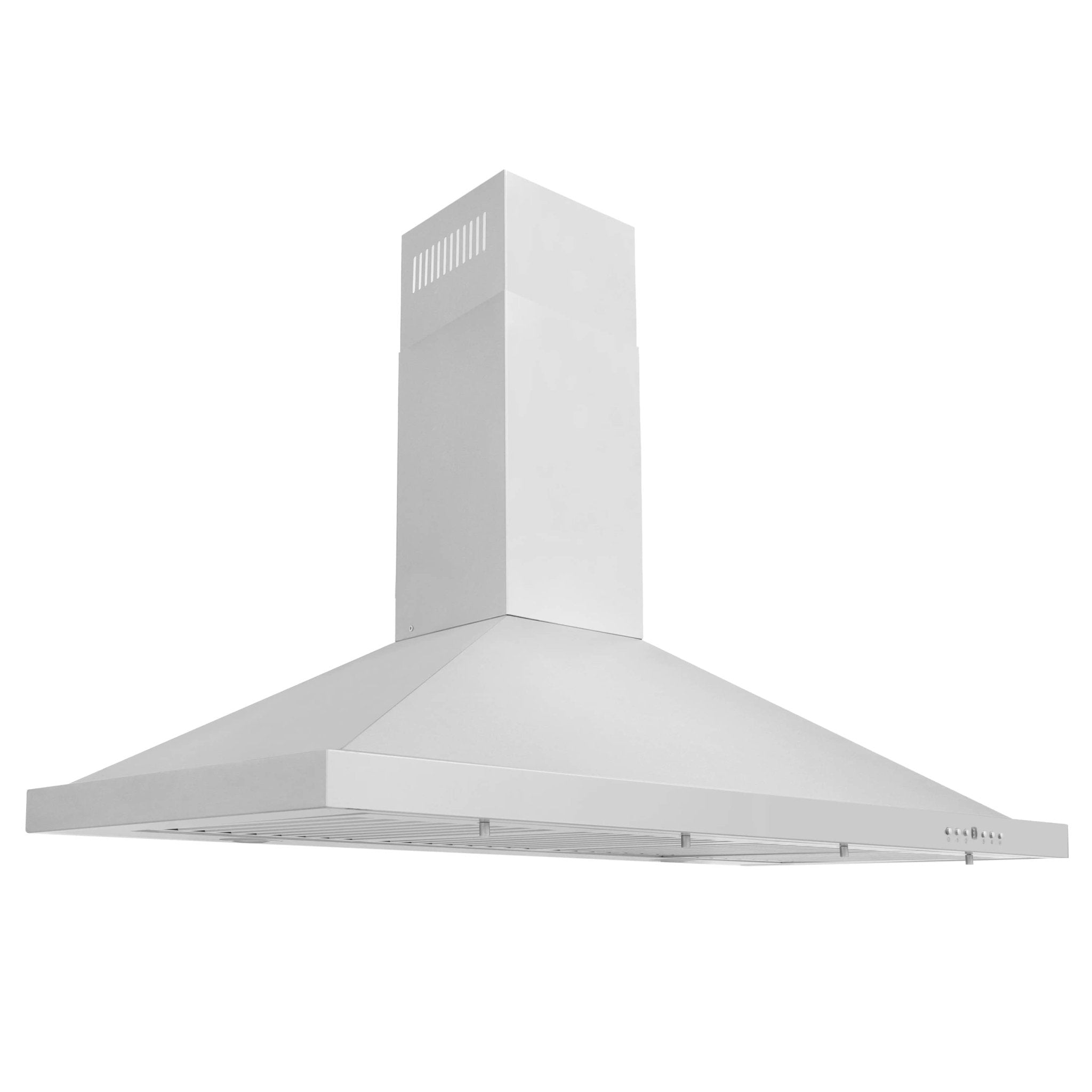

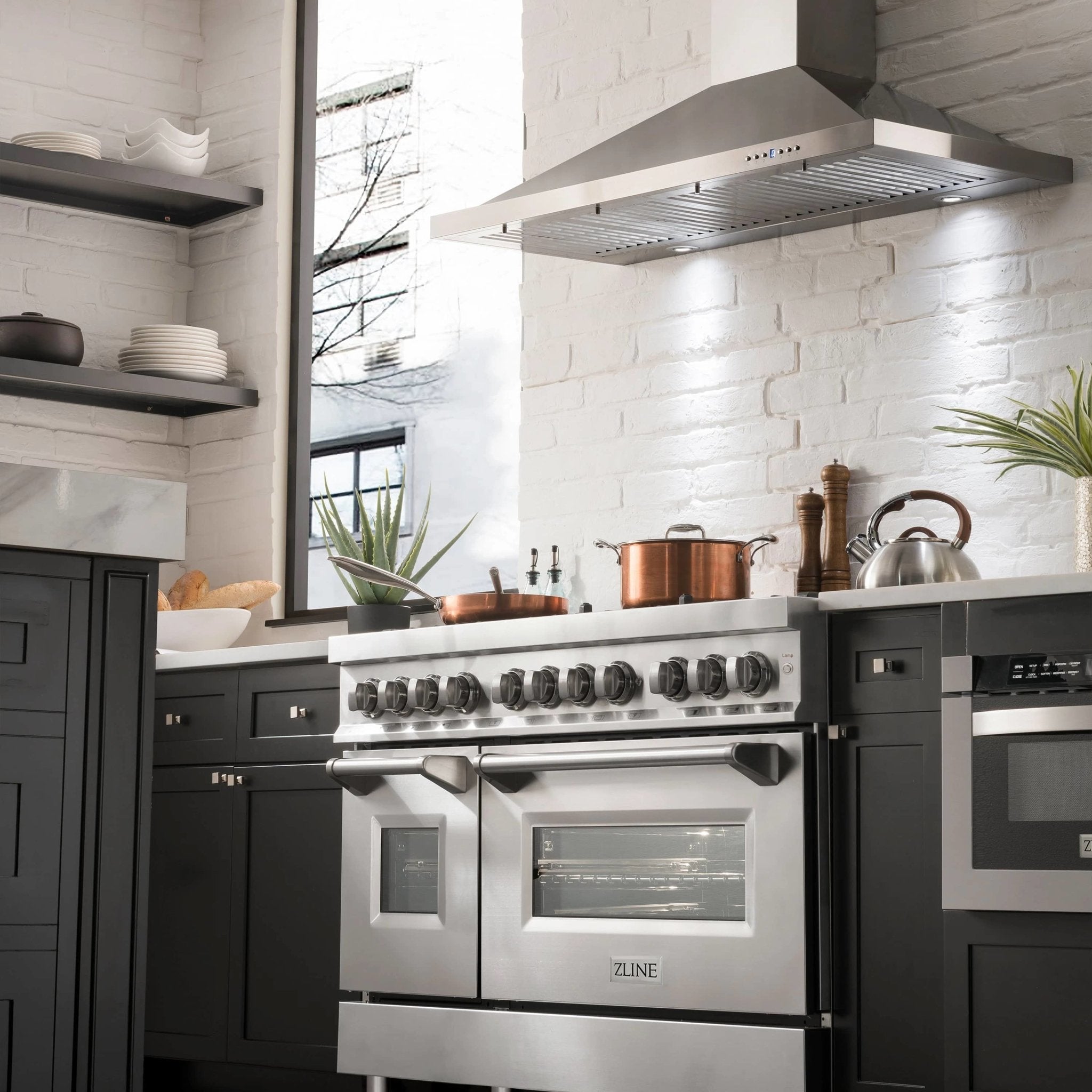

The ZLINE KB-48 is a 48-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
- Dishwasher-safe stainless steel baffle filters
- Built-in LED lighting
- High performance 4-speed motor with speeds up to 400 CFM
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The KB-48 ships next business day when in stock.


- Dimension
- 48" W x 19.7" D x 10.5" H
- Chimney (Dimension)
- 9.2" W x 8" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings
- Mount Type
- Wall Mounted
- Control Type

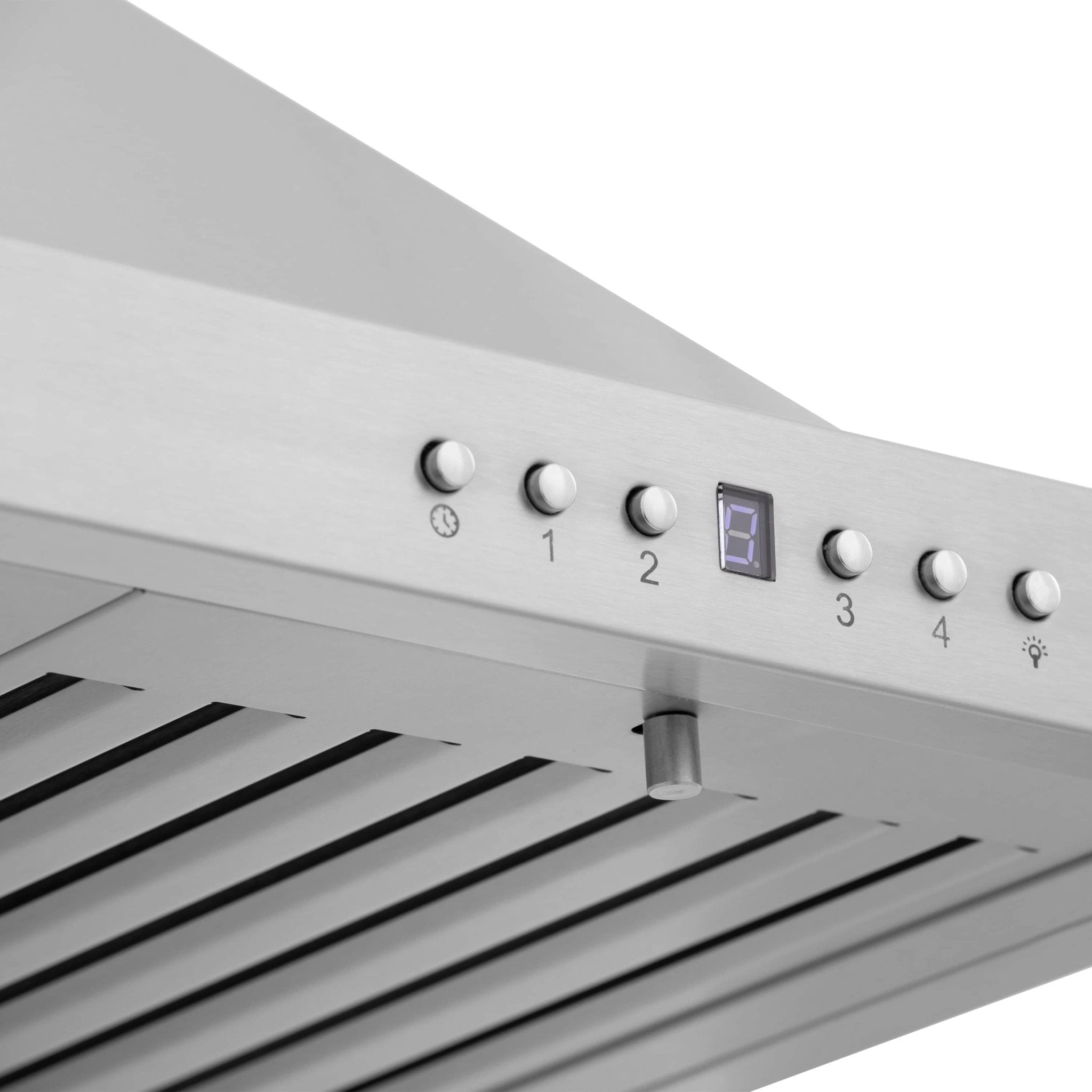

- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Material
- 21g #430 Stainless Steel
- Venting Size
- 6" Outlet (Transition piece with backdraft damper to round ducting included) Charcoal Filters (not included) available for ductless/recirculating option.
- Airflow (Q/L/M/H)
- 120/240/320/400
- Noise Level
- 20/29/34/41
- Voltage
- 110V/60HZ
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4 Speeds
- Lighting

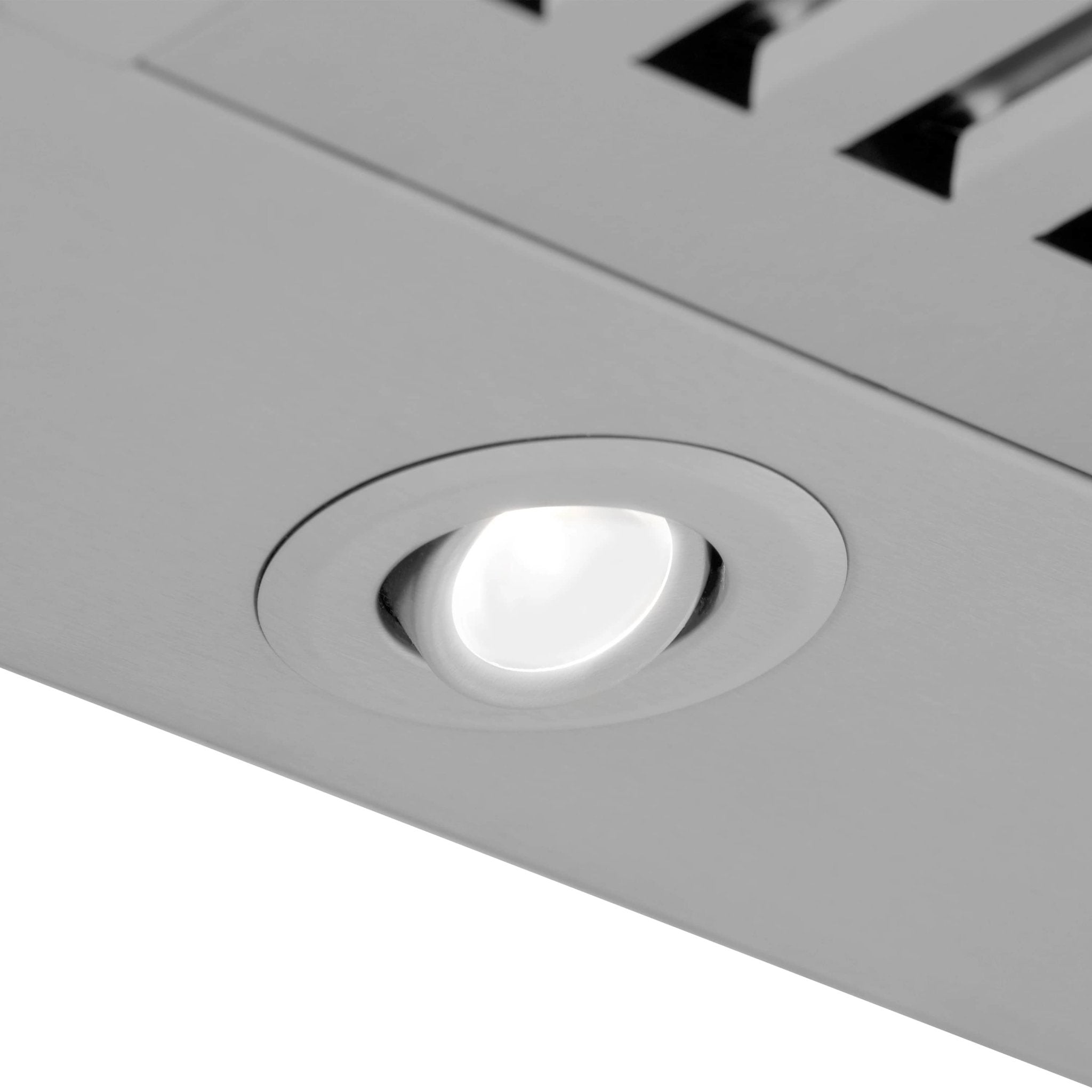

- 2 Directional LED Lights (3-Watt)
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Features
- Model No. KB-48 (ETL Listed) ***CROWN MOLDING AVAILABLE FOR THIS MODEL***
- Warranty
- 3 Year Parts Warranty
- Certifications
- ETL Certified
