Description

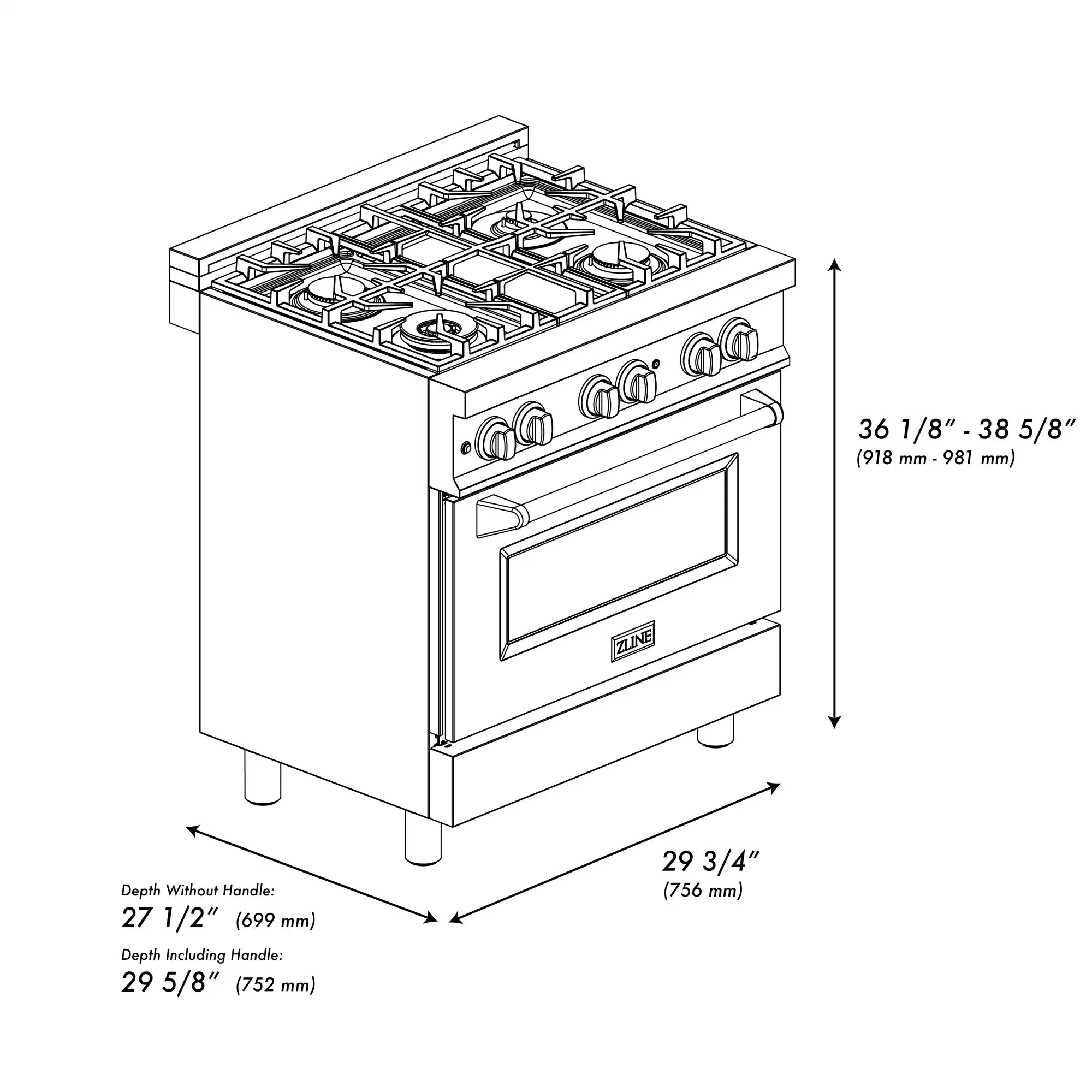

DIMENSIONS
- Dimension
- 29.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 29.75" W x 29.63" D x 36.13" H
- Open Door Depth
- 41.8"
- Interior Oven Dimensions
- 24.875" W x 17.75" D x 16" H
- Product Weight
- 230lbs
GENERAL INFORMATION
- Features
- Manufactured by ZLINE Kitchen and Bath Model No. RA30 ETL and UL Listed CSA Approved
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel

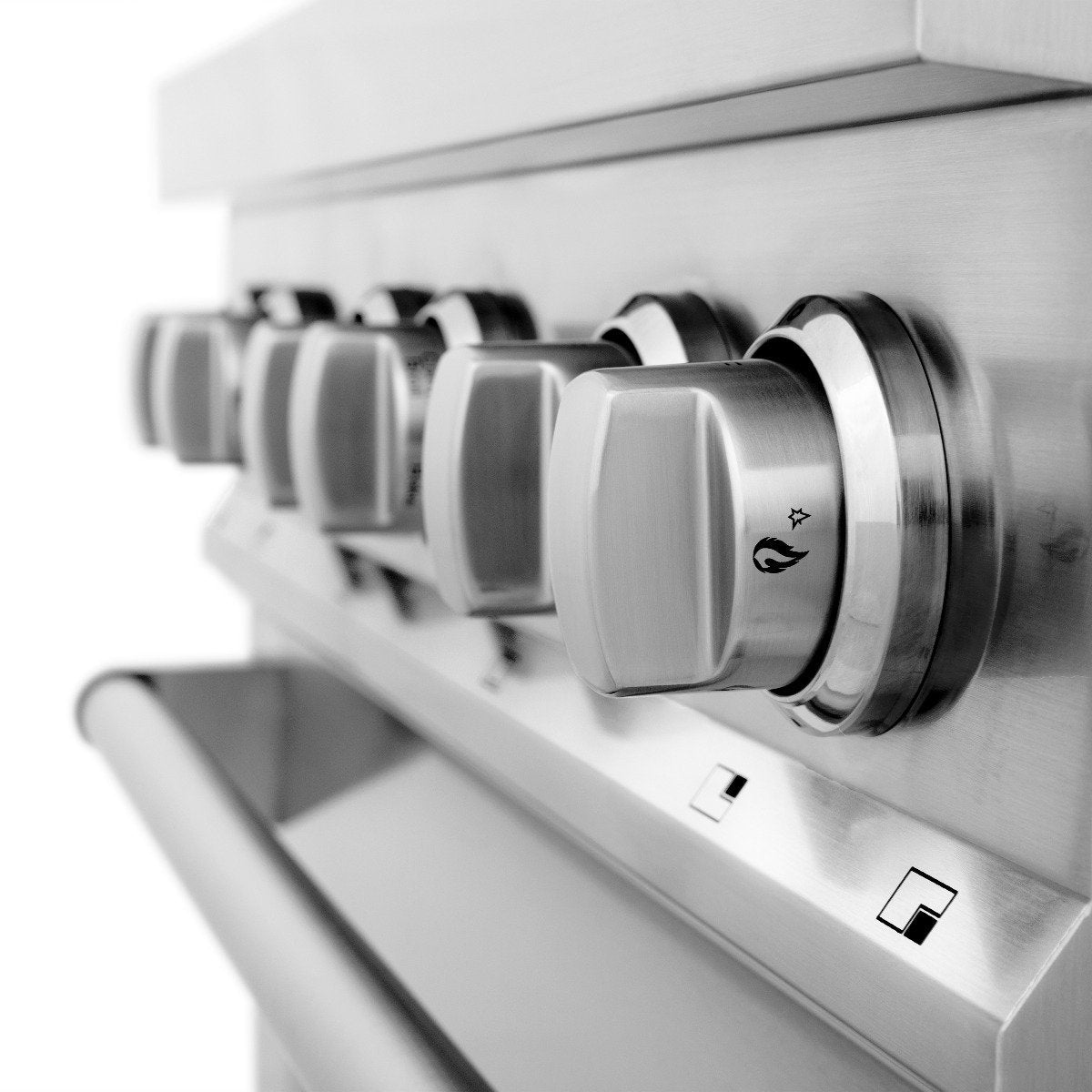

- Control Type
- Durable Front Control
- Material
- Stainless Steel frame with 1 Piece Enamel Top
- Italian made hinges and burners
TECHNICAL DETAILS
- Voltage
- Requires a minimum of 220V-240V/60HZ/50A
- Mount Type
- Free Standing
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel
- All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. A propane adapter is included in the box and will require an extra step to convert.
- Fuel Type
- Convection Electric Oven - Gas Cooktop
COOKTOP FEATURES

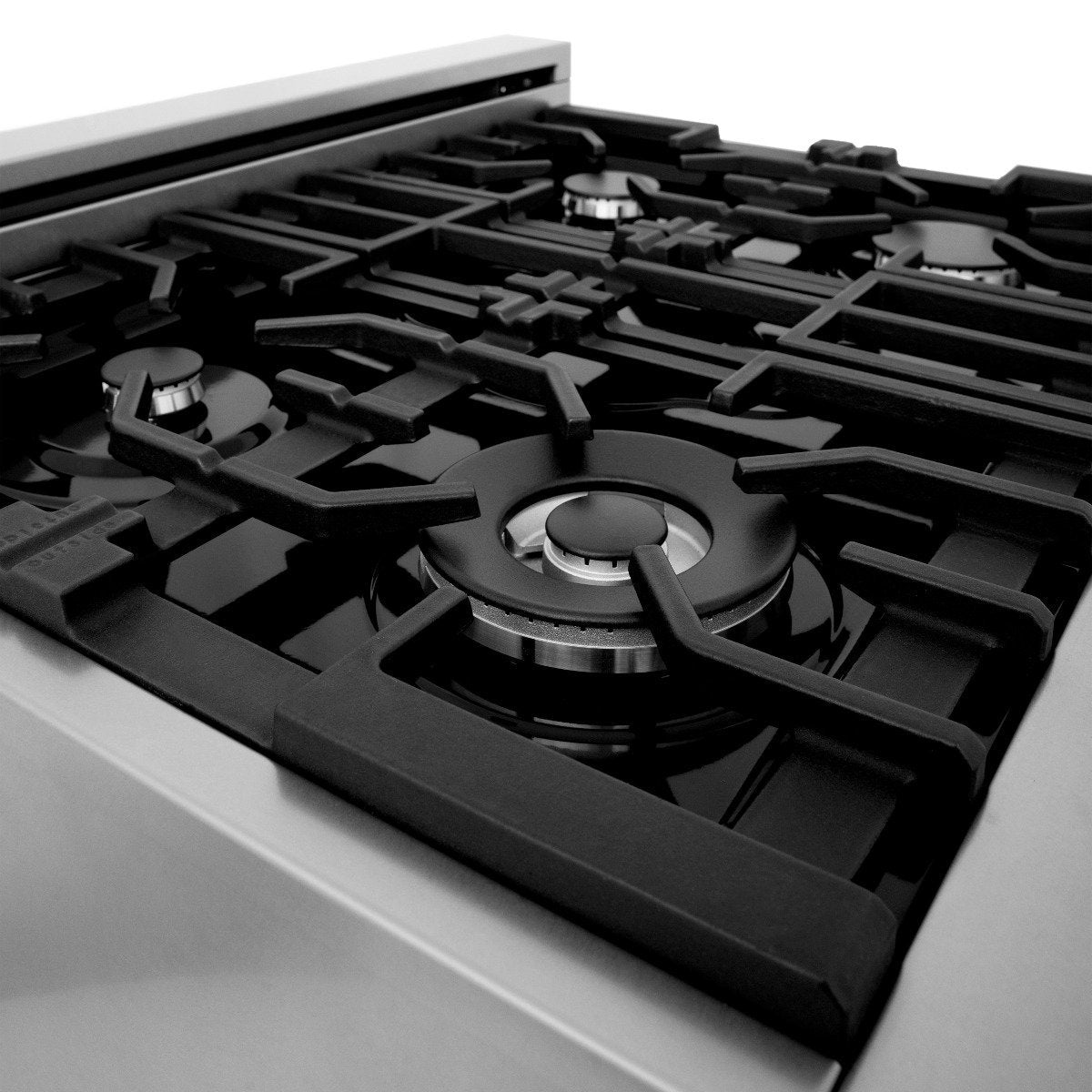

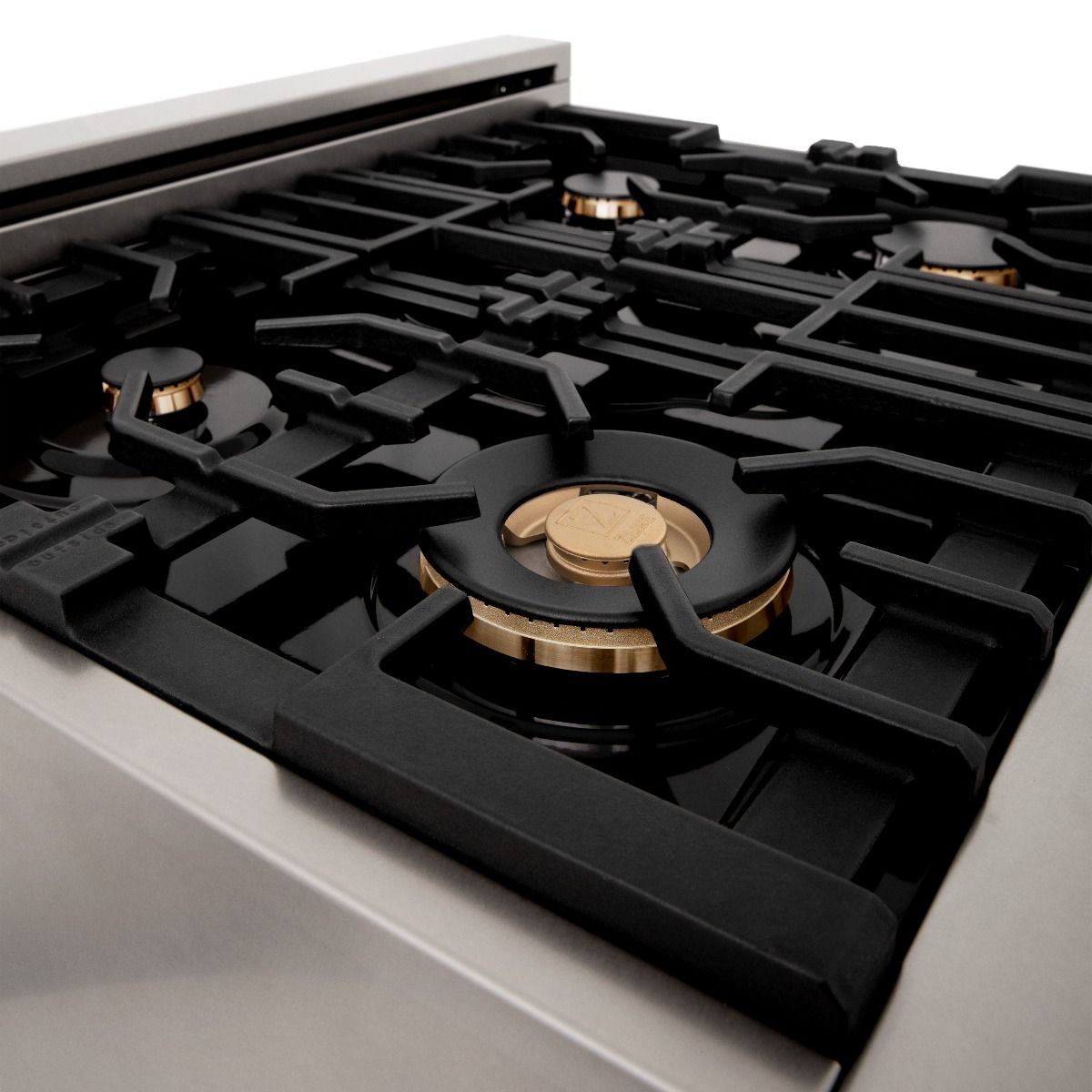

- Cooktop

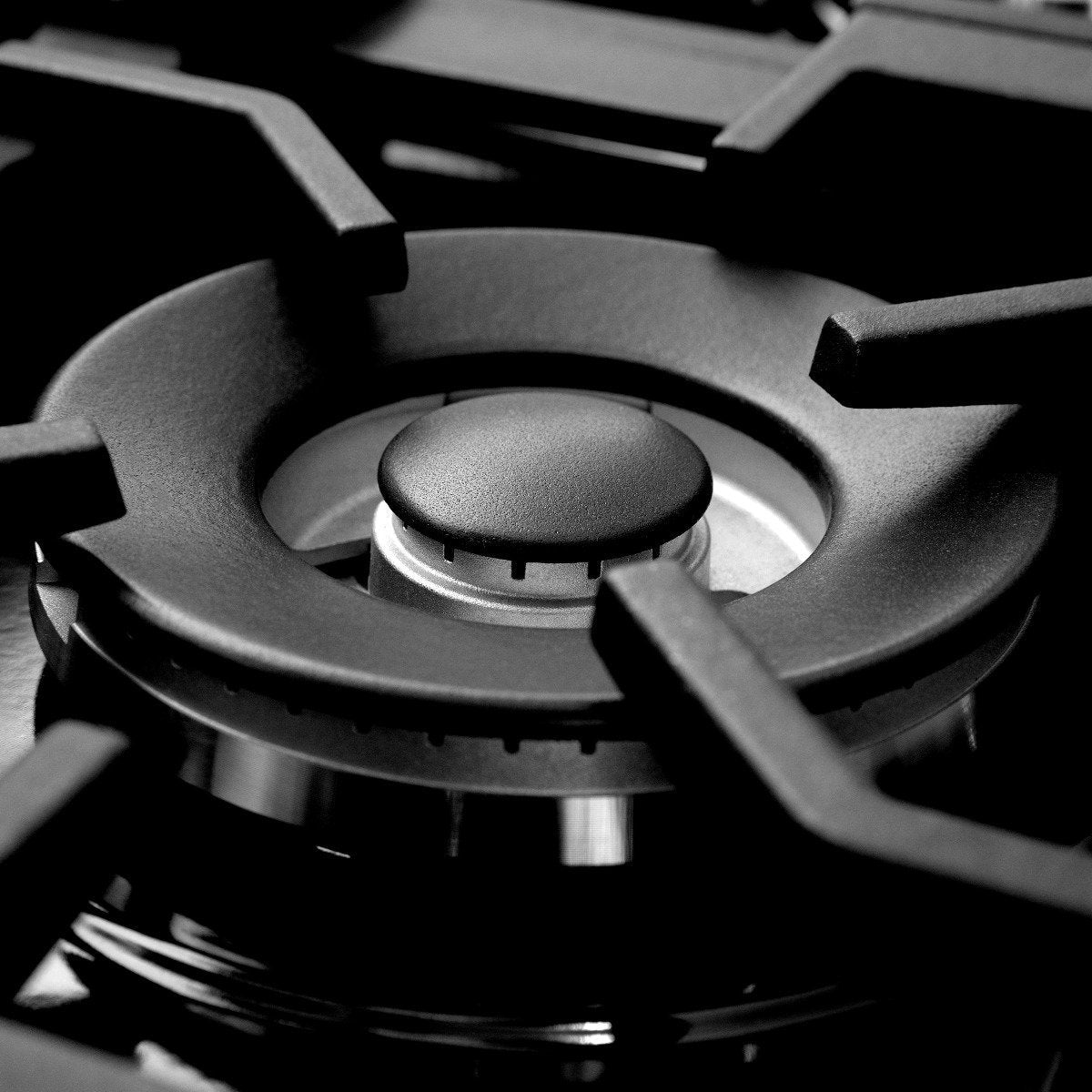

- (4) Burners with Enamel Cook Top with electronic spark ignition for all burners
- BTU Rating
- Dual Burner - 18,000 BTU Rapid Burner - 13,000 BTU Semi-Rapid Burner - 8,500 BTU Auxiliary Burner - 4,200 BTU
OVEN FEATURES
- Oven

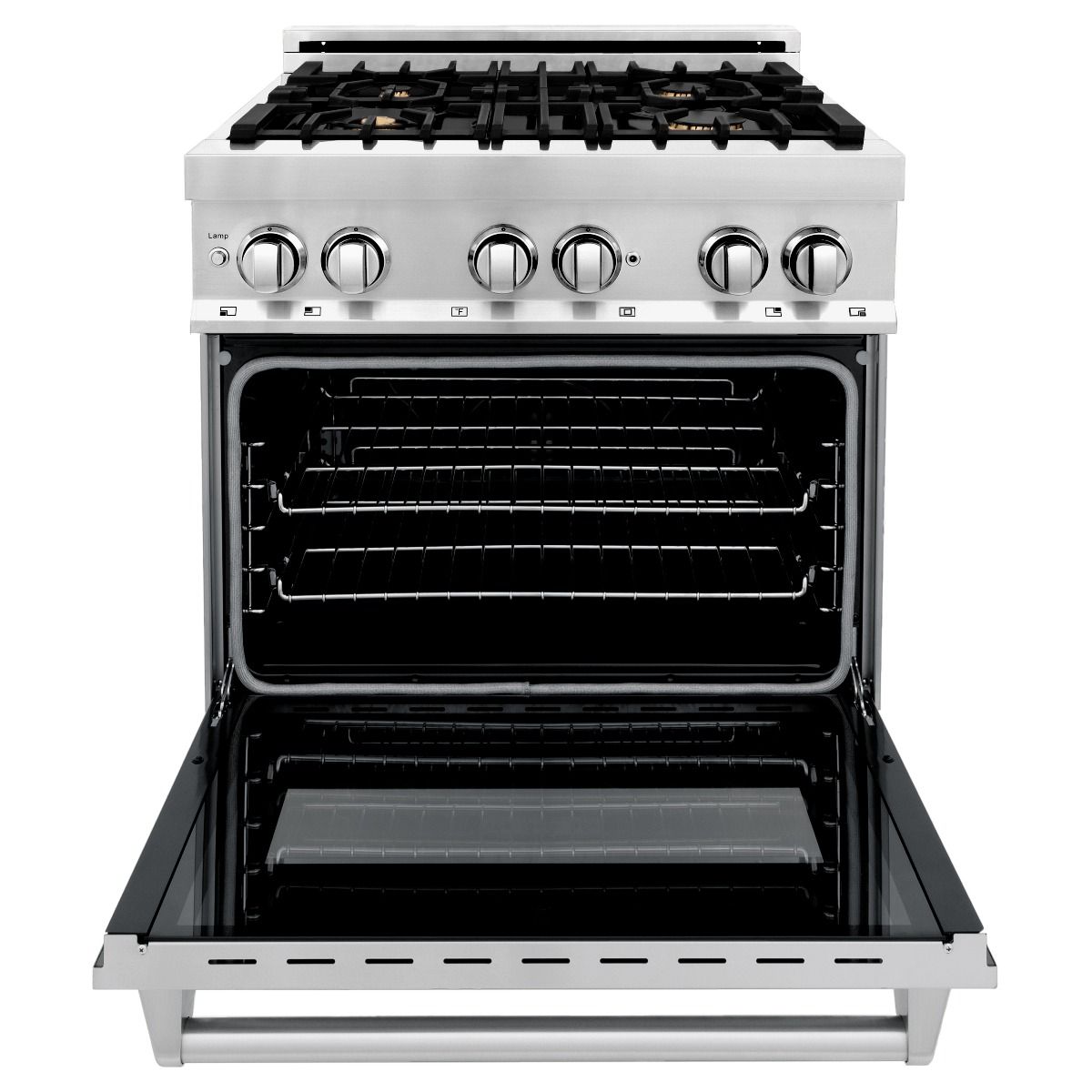

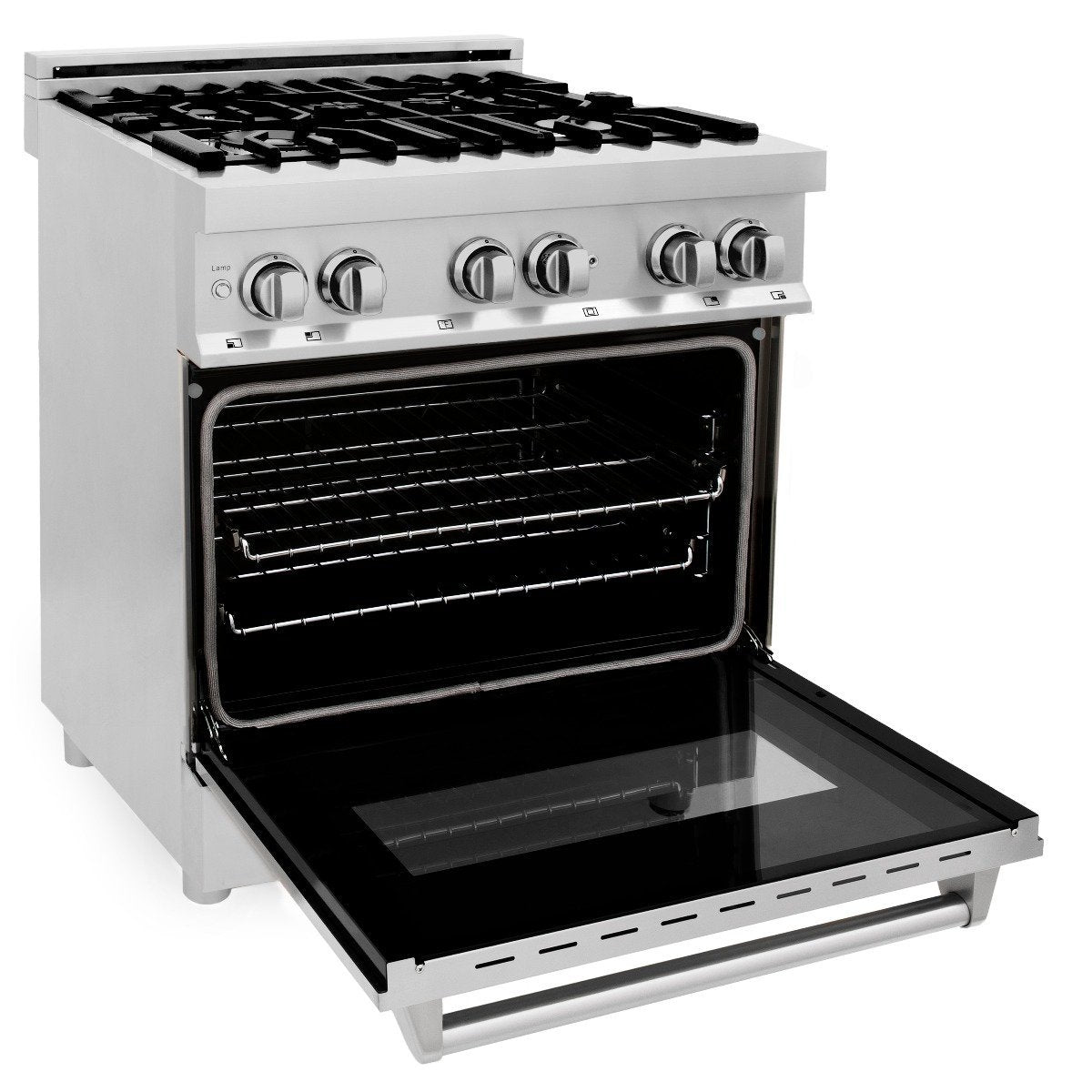

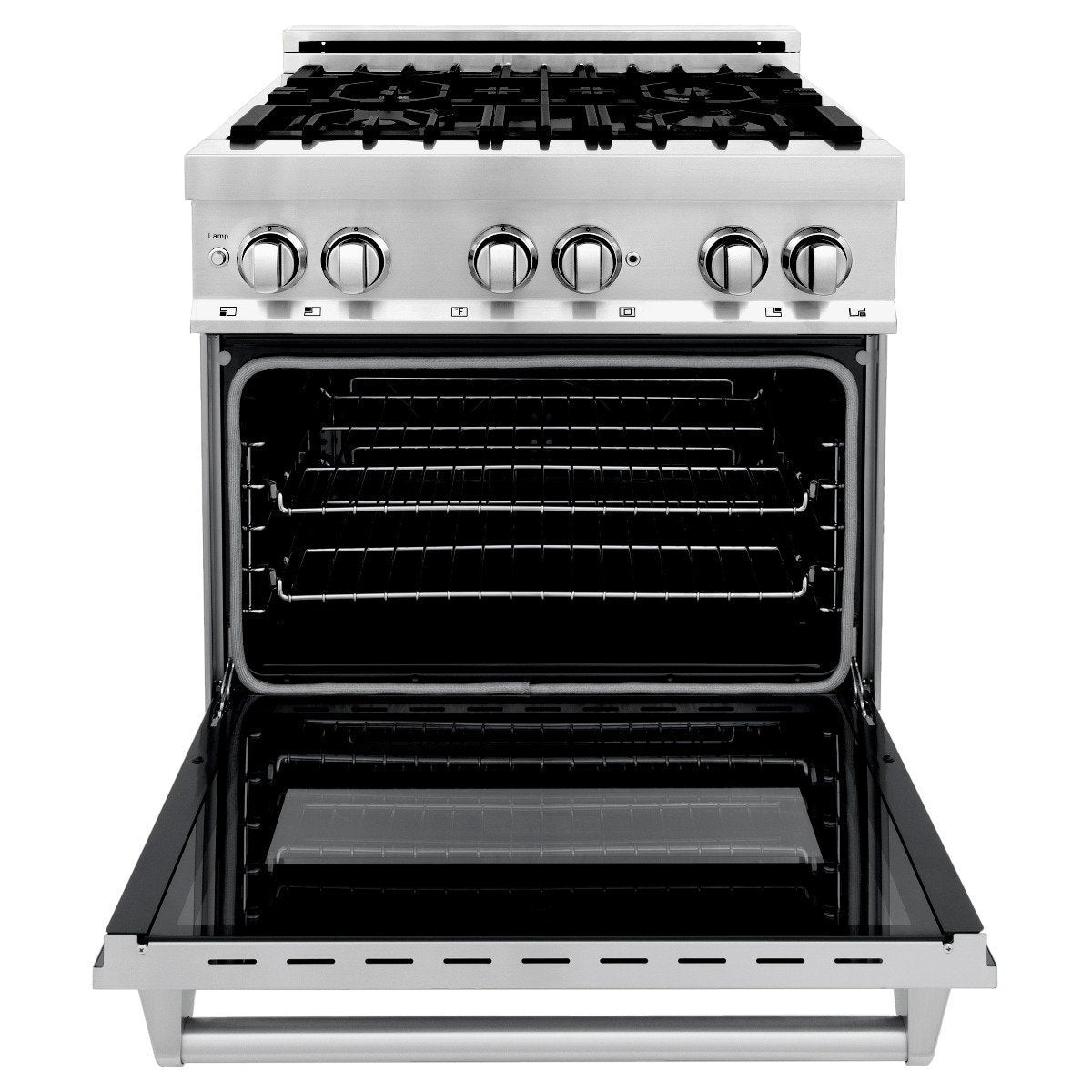

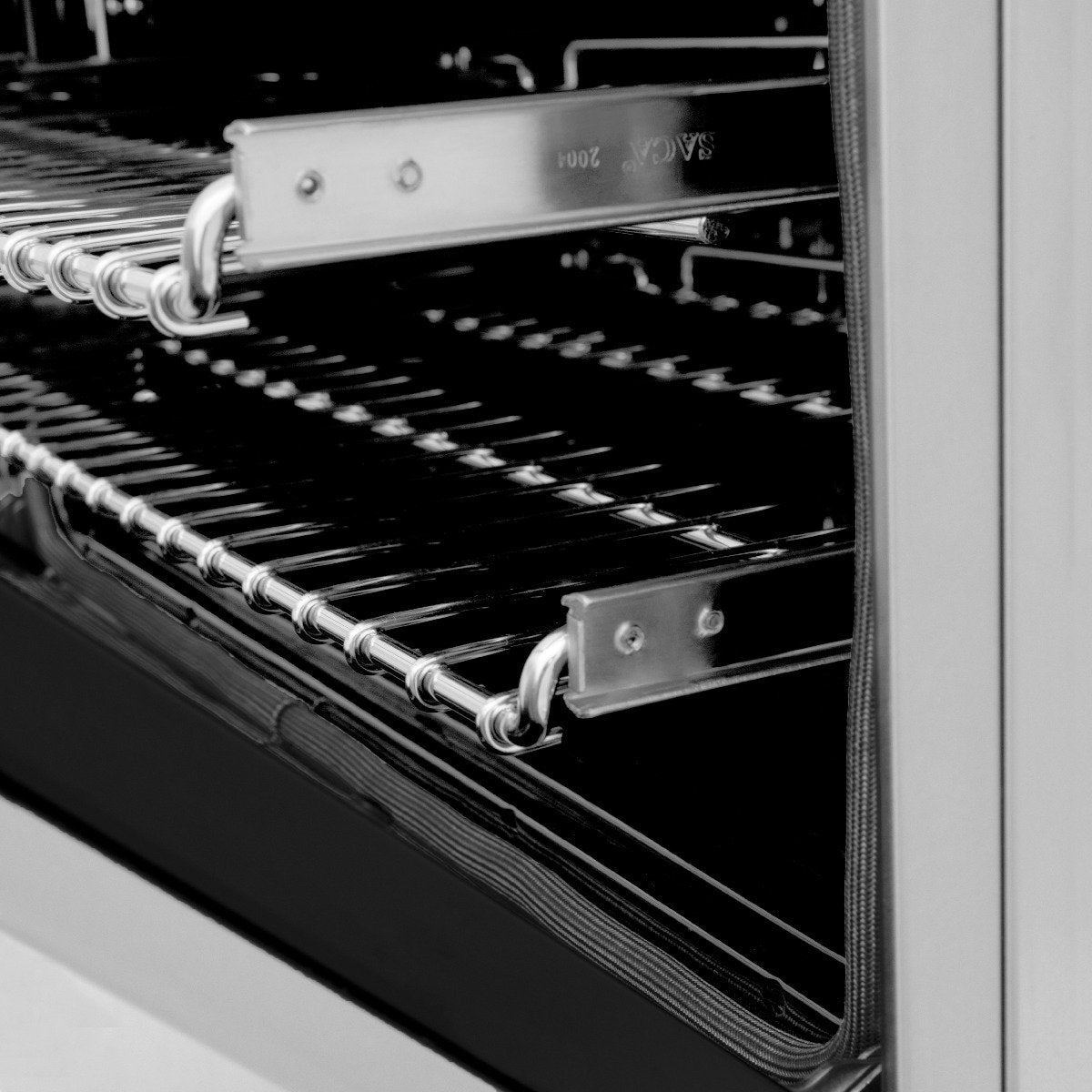

- Manual Clean - Convection Electric - 4.6 cu.ft. deep oven - Triple Glass Window - Dual Lighting - Professional Aluminum Mesh Seal
WARRANTY & CERTIFICATIONS
- Warranty
- 1 Year Warranty
