What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.
What is Satin Stainless Steel?
- Fingerprint resistant
- Non-directional finish
- Outdoor-approved 304 grade stainless steel
Want to learn more about Satin Stainless Steel? Read our deep dive into the Satin Stainless Steel difference.
ZLINE's Professional 48" Range is complete with a 7 burner gas cooktop for energy efficiency, temperature control, and even-cooking. The 6.0 cu. ft. of deep oven capacity provides a large cooking area that’s perfect for multiple dishes at once and easily handles large baking sheets, like an 18" pizza.
*This product ships in multiple boxes and will require minimal assembly upon arrival.
Features
Three-Layer Glass Oven
- An oven with three layers of glass and dual lighting.
- Professional aluminium mesh seal for optimum insulation.
- Oven light controlled by light switch located on the front control panel.
- Crystal clear visibility to see inside your oven while cooking.
Stay-Put Hinges
- ZLINE's proprietary stay-put hinges.
- Designed to support full weight of oven door and stop at any place.
-
Durable and effective, with a smooth action.
Enamel Cooktop
- Heavy Duty Italian made enamel one-piece cooktop.
- 4 burners provide the perfect range of cooking power from 4,200 to 18,000 BTU's.
- One-piece cooktop allows for an easy to clean surface - no crevices that can hold residue.
- No-scratch enamel designed to handle every cooking environment.
Cast Iron Griddle
- Solid-piece cast iron grill - heavy duty and built to last.
- Extremely durable, with an exceptional strength-to-weight ratio.
Italian Burners
- Handcrafted, high-quality Italian Burners imported directly from Italy.
- Premium alloy to ensure efficient and clean-burning flames.
- Durable and easy to clean. Italian burners easily detach for a simple clean.
- An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.
Stainless Steel Knobs
- Heavy-duty stainless steel knob controls with smooth action turn.
- 5 oven settings.
Adjustable Legs
- ZLINE ranges feature stainless steel, easy-to-install, adjustable legs.
- Twist legs to adjust total range height anywhere from 36" to 38.5".
- Dimension
- 47.75" W x 27.5" D x 36.13" H
- Dimensions with Handles
- 47.75" W x 29.63 " D x 36.13" H
- Open Door Depth
- 41.8"
- Oven Dimensions
- 24.875" W x 17.75" D x 16" H
- Product Weight
- 270lbs
- Brand
- ZLINE Kitchen and Bath
- Features
- ETL and UL Listed CSA Approved RAS Models include optional square leg covers
- fixed height: 3"
- Color
- Satin Stainless Steel
- Finish
- Satin Stainless Steel
- Voltage
- Requires a minimum of 220V-240V/60HZ/50A
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel Type
- Electric Oven
- Gas Cooktop
- Warranty
- 1 Year Warranty
- Certifications
- ETL Certified

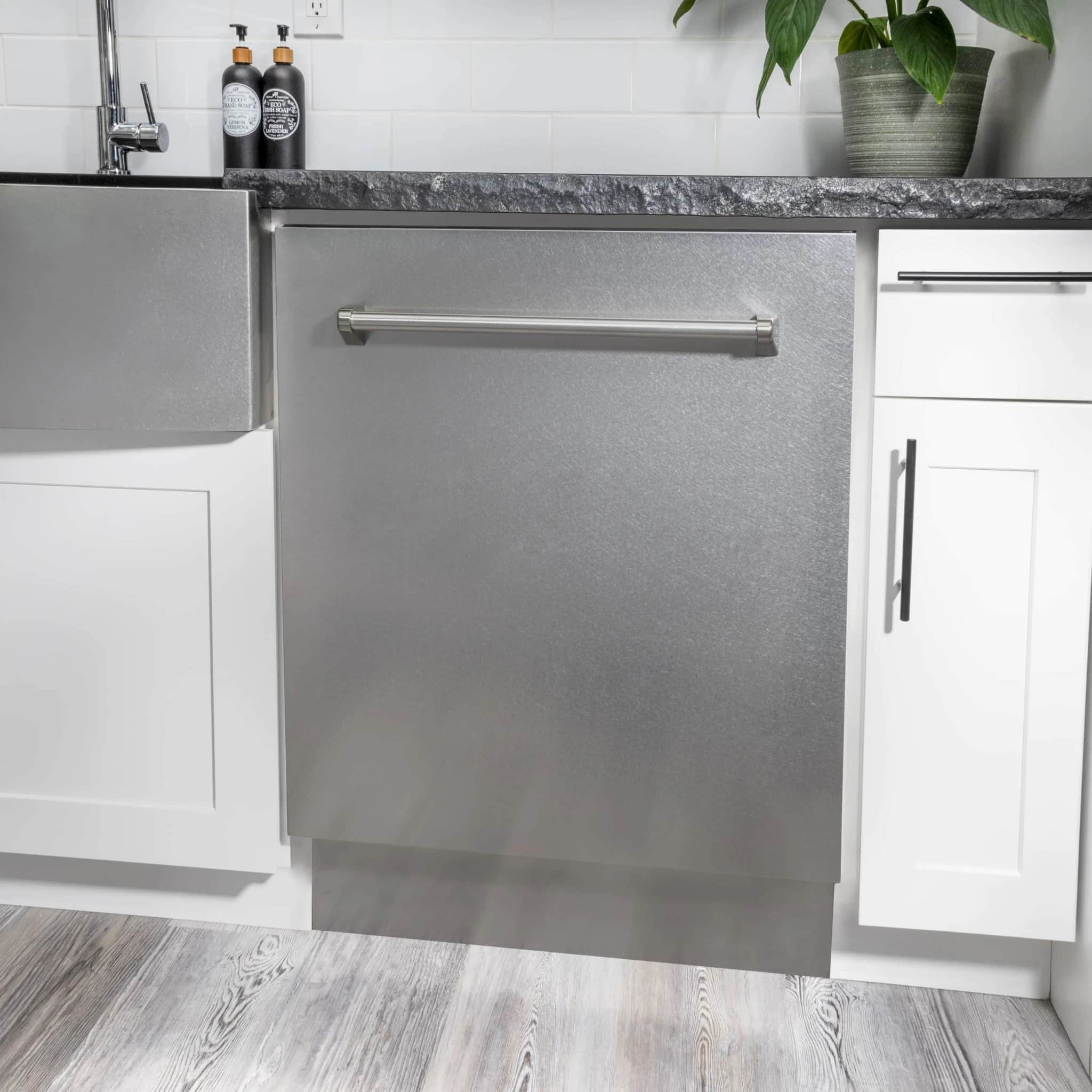

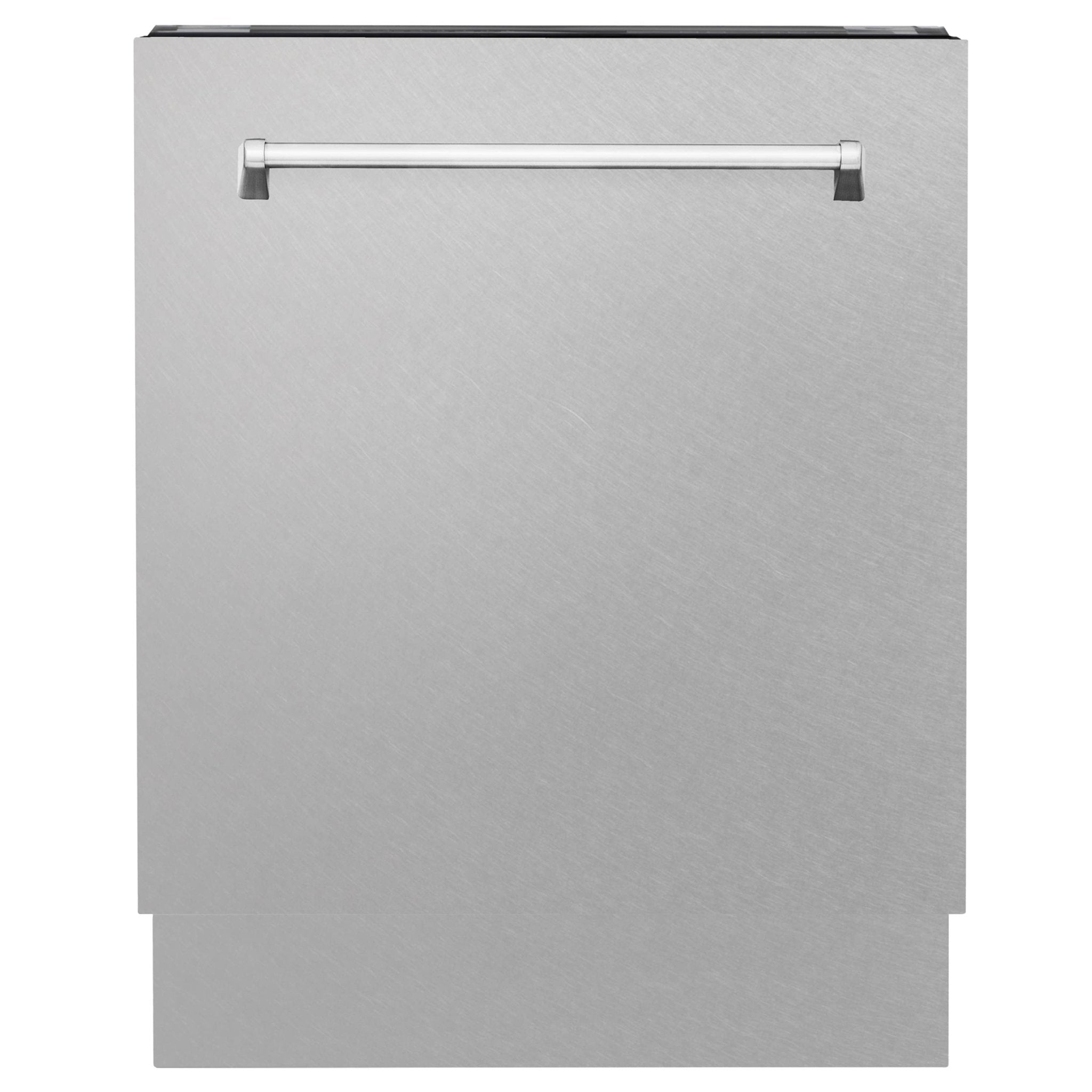

The ZLINE 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Satin Stainless Steel Panel (DWV-SN-24) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
Features
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
- Custom Panel Finish - Customize your MoTallacnument Series dishwasher with a beautiful Satin Stainless Steel door panel and stainless steel handle
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system

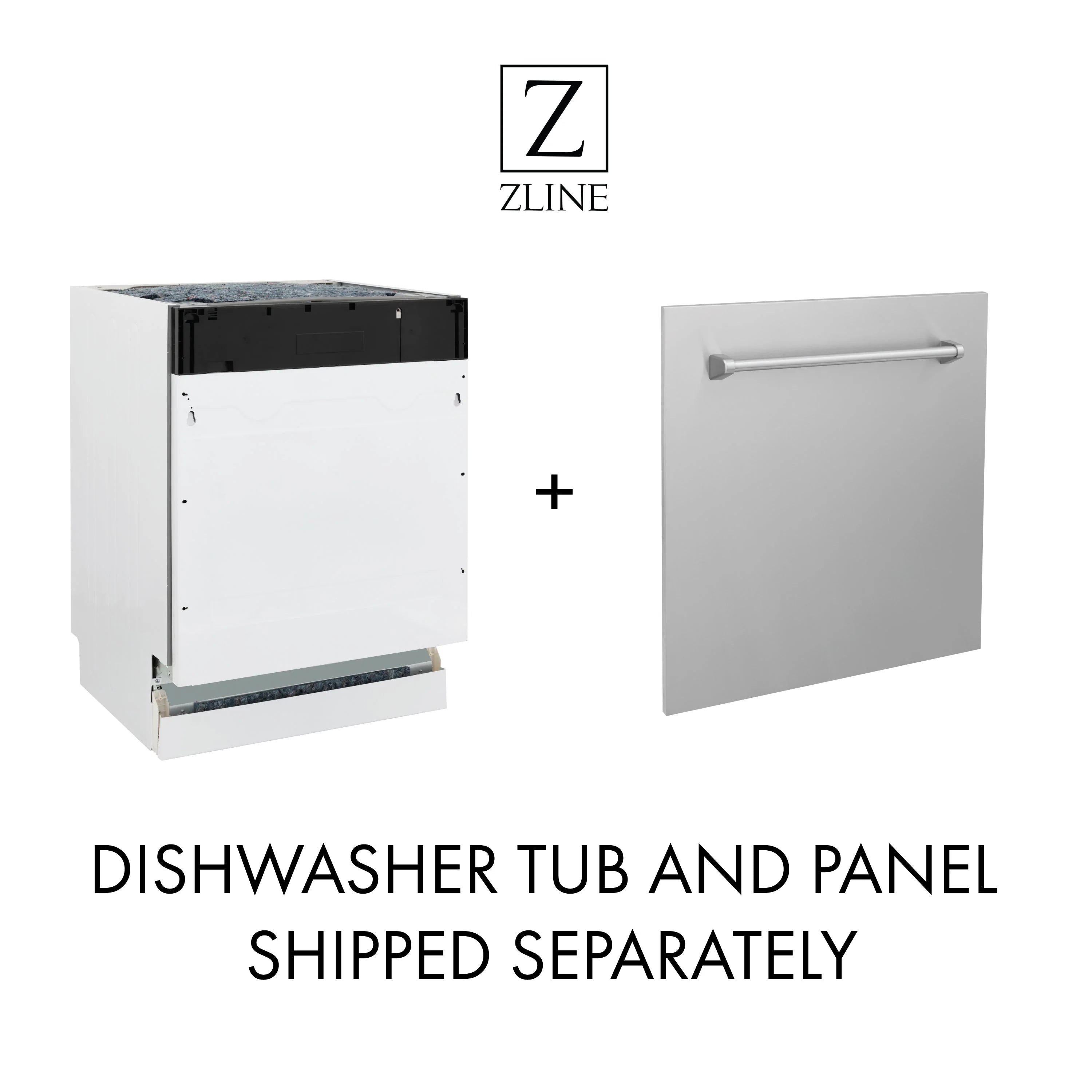

- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
- Size
- 24 in.
- Dimensions
- 23.6" W x 22.4" D x 33.9" H
- Product Weight
- 106.8 lbs
- Cut-Out Height
- 34.13 in.
- Cut-Out Width
- 24 in.
- Interior Dimensions
- 20.95" W x 20.5" D x 24.17"H
- Max Plate Height
- 13 in.
- Installation Type
- Plug In - Nema 5-15
- Panel Ready
- N
- Panel Finish
- Satin Stainless Steel
- Handle Finish
- Stainless Steel
- Handle Type
- Traditional Style
- Control Location
- Top Control
- Control Type
- Button Control
- Silverware Basket Location
- Bottom Rack Center
- Voltage
- 120vac
- Frequency
- 60Hz
- Dedicated Circuit
- 15A
- Rated Current
- 12A
- Motor Wattage
- 100W
- Heater Wattage
- 1100W
- Motor Amperage
- 0.84A
- Heater Amperage
- 10A
- Energy Consumption Per Year
- 239 kWh
- Water Consumption Per Cycle (Liters)
- 11.73 L
- Water Consumption Per Cycle (Gallons)
- 3.1 gal
- Decibels
- 51 dBa
- Extended Hose Length
- 56 in.
- Drying System
- Turbo Fan Drying + Auto Door
- Steam Function
- Without Steam
- Features
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
- Custom Panel Finish - Customize your MoTallacnument Series dishwasher with a beautiful Satin Stainless Steel door panel and stainless steel handle
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
- Certifications
- Energy Star, CEC, UL
What is Satin Stainless Steel?
- Fingerprint resistant
- Non-directional finish
- Outdoor-approved 304 grade stainless steel
Want to learn more about Satin Stainless Steel? Read our deep dive into the Satin Stainless Steel difference.
Introducing the first of its kind – ZLINE’s Limited Edition Dual Layer Colored Range Hood Collection. This collection offers vast color options that have never been offered before, and will not be offered after sell out. Let the candy apple gloss red, bold cobalt blue, or crisp matte white, in combination with our snow finished stainless steel be the centerpiece of your entire kitchen. As always, ZLINE Range Hoods offer the most effortless installation in the industry, and together with the best quality-to-price ratio on the market, we guarantee you will be satisfied with your range hood choice.
- Easy-to-use push button controls let's you easily control fan speed and lighting
- 4-speed fan control (280/420/560/700 CFM) let's you choose the appropriate air flow for your cooking situation
- 700 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
- Dishwasher-safe stainless steel baffle filters
- LED lighting illuminates the cooktop beneath the hood
- Designed to fit standard (circular) ductwork for simple installation
- 3 year parts warranty, life-time motor warranty
This hood will enhance your kitchen to a professional grade cooking experience. A lifetime warranty on the motor and a 3-year manufacturer’s part warranty prove ZLINE is a company that stands behind its product. Significantly different from any other ZLINE collection is the Dual Layer Finish. Two layers of stainless steel and powder coating enables your range hood to endure more smoke and debris cast into the air during the cooking process - ensuring a safer and cleaner home. Clean and quiet is the name of the game and this hood is rated at less than 50 decibels - meaning the ambiance of your dinner conversations will not be disturbed while your range hood is at full power.
ZLINE products are designed and built with true craftsmanship which means you are purchasing a range hood that will last you a lifetime. (8654SN-48) ships next business day when in stock.
- Dimension
- 48 in. W x 23.75 in. D x 16 in. H
- Mount Type
- Wall Mount Range Hood
- SKU
- 8654SN-48
- Brand
- Zline
- Material & Finish
- 19g #304 Snow-finished Stainless Steel
- Control Panel
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Venting Size
- 8" Outlet (Transition piece with backdraft damper to round ducting included)
- Max Air Flow (CFM)
- 280/420/560/700 (CFM)
- Motor
- High Performance 700 CFM/4-Speed Motor
- Noise Level
- 30/41/49/52 (Decibels)
- Speeds
- 280/400/580/700
- Voltage
- 110V/60HZ
- Available Sizes (in.)
- 30"/ 36"/ 42"/48"
- Lighting
- 2 Directional LED Lights (3-Watt)
- Ideal Distance From Stove
- 30"-36"
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Chimney
- 13.25" W x 11.75" D x 12.5" H
- Features
- Manufactured by ZLINE Kitchen & Bath Model No. 8654SN-48 (ETL Listed)
- Warranty
- 3 Year Parts Warranty
Customer Reviews
So far we love it! We have been using it for a month now and it has been working great!
My new Zline range looks like a piece of art in ny kitchen. It works beautifully and everyone I bring into my home loves it. It brings me such joy and happiness to own this beautiful appliance!
I couldn't be happier with my ZLINE Autograph Edition 48-Inch Paramount Dual Fuel Range. From the moment it was installed, it completely transformed my kitchen. The polished accents give it a beautiful, high-end look, and everyone who visits compliments it.
Performance-wise, this range has exceeded my expectations. The gas burners heat up quickly and give me excellent control whether I'm simmering sauces or cooking at high heat. The electric convection ovens bake evenly, and having two ovens has made meal prep and holiday cooking so much easier.
The build quality is outstanding. Everything feels sturdy and well-made, from the heavy cast iron grates to the smooth-turning knobs. It definitely feels like a professional-grade appliance designed to last.
While it's a significant investment, I truly believe it's worth every penny. If you're looking for a range that combines exceptional performance with luxury styling, I highly recommend the ZLINE Autograph Edition. It has made cooking more enjoyable and has become my favorite appliance in the house.
It looks exactly as shown in the image. We were looking for a wide duct, minimum 16 inches and this fit perfect. I got the crown that makes it looks so luxury. It was quite reasonable on Homedirect compared to stores and all the other websites. The shipping was quick and well packaged!
My Guys are still trying to put this on the wall with exhaust going into the wall exhaust flute
