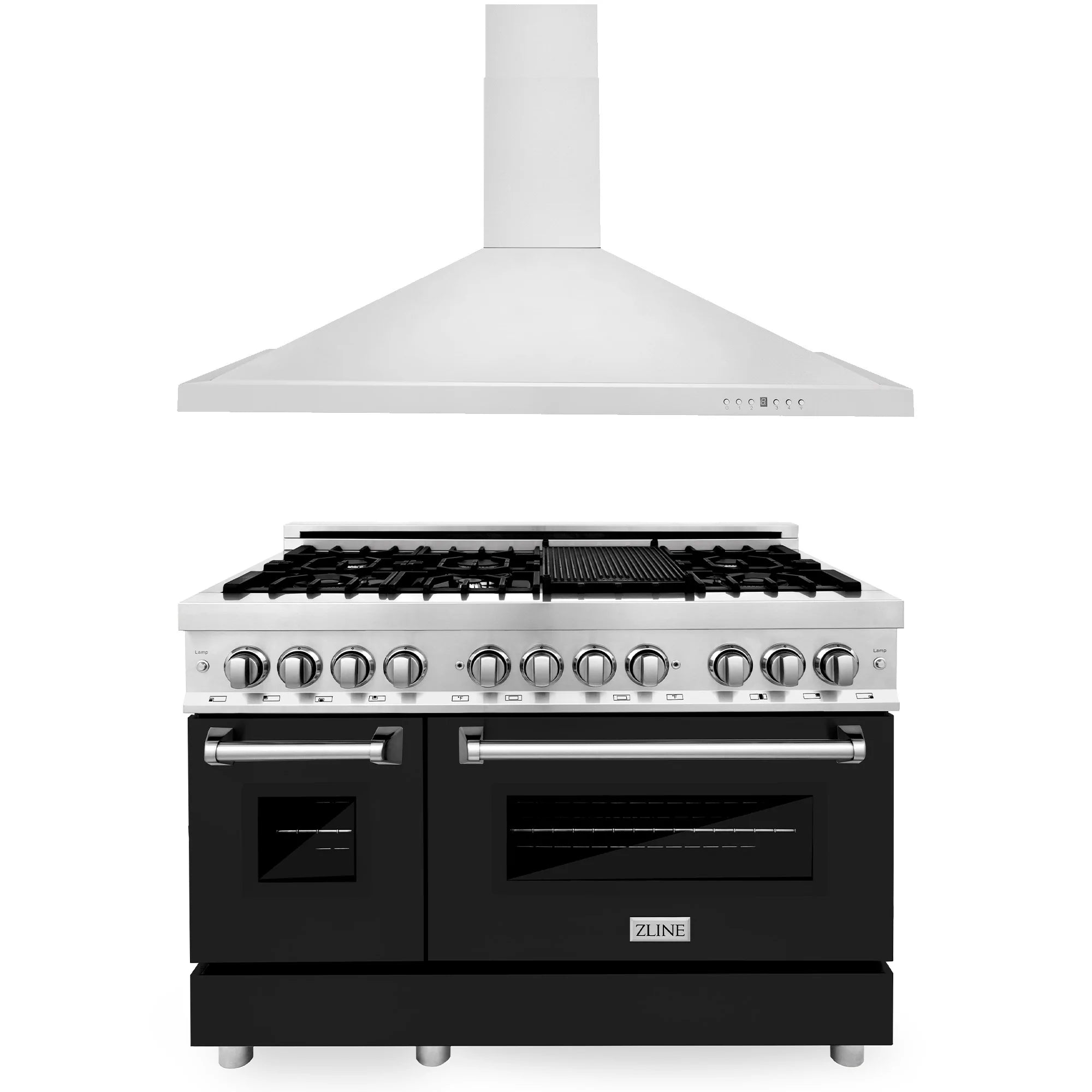

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

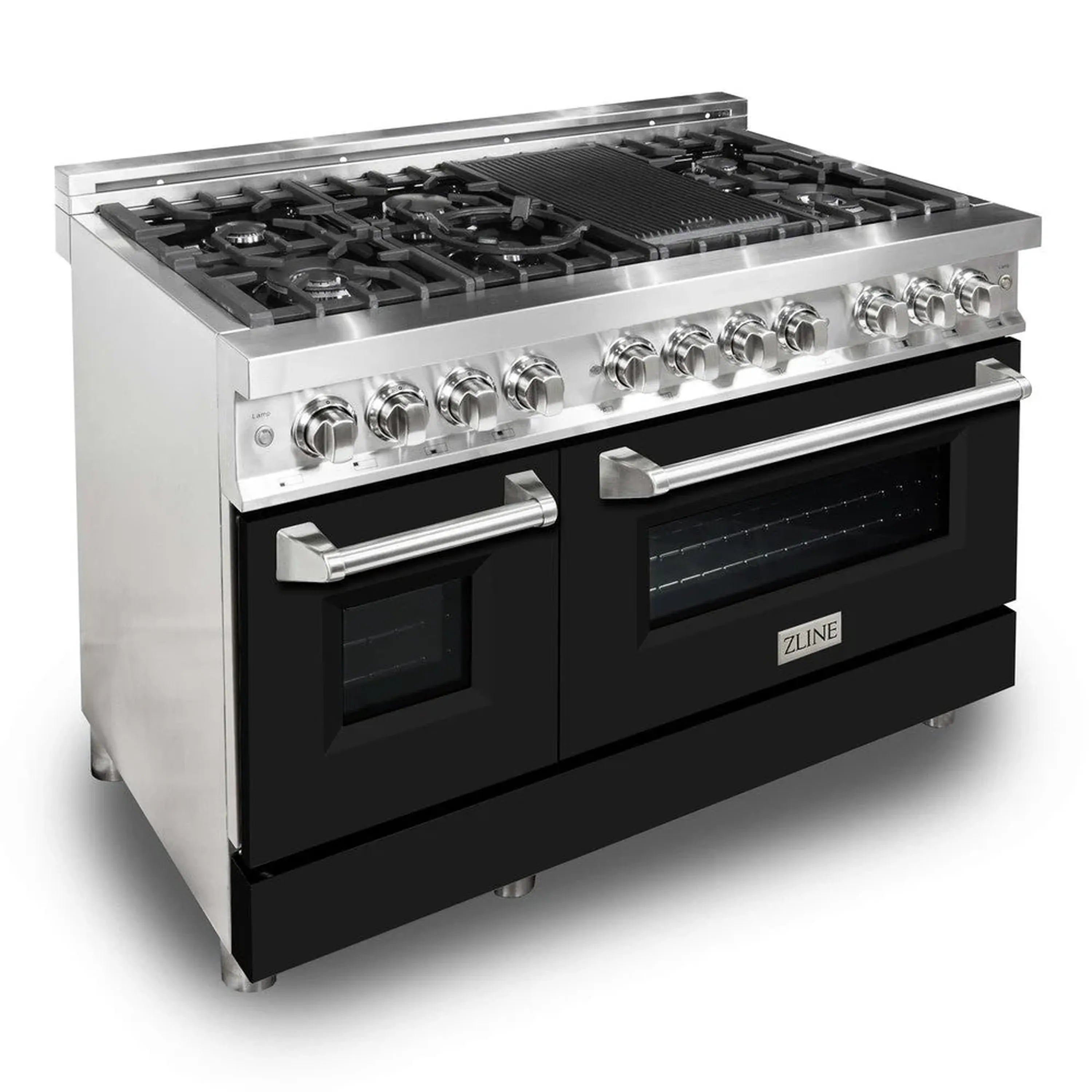

ZLINE's Professional 48" Range is complete with a 7 burner gas cooktop for energy efficiency, temperature control, and even-cooking. The 6.0 cu. ft. of deep oven capacity provides a large cooking area that’s perfect for multiple dishes at once and easily handles large baking sheets, like an 18" pizza.
*This product ships in multiple boxes and will require minimal assembly upon arrival.

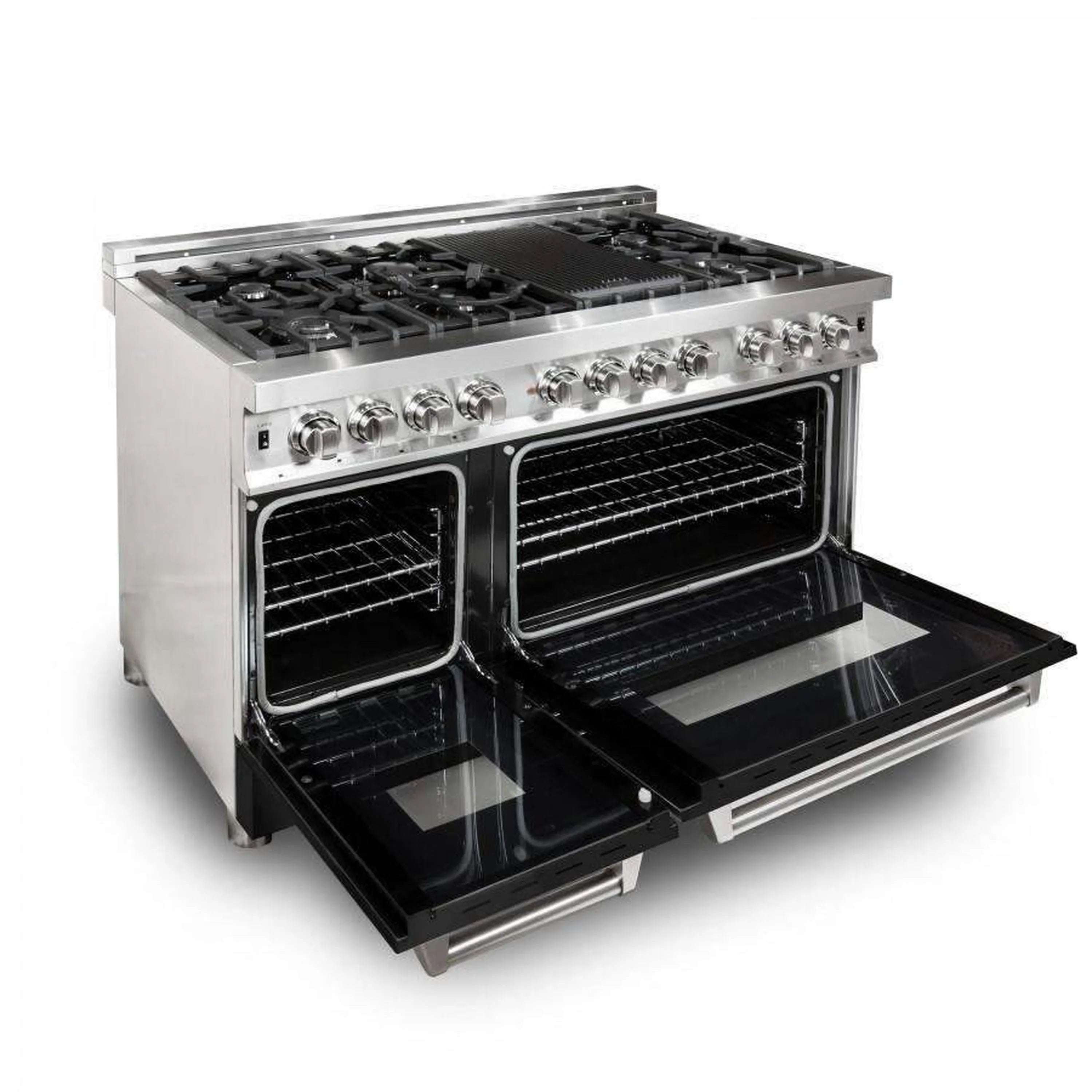

Three-Layer Glass Oven
- An oven with three layers of glass and dual lighting.
- Professional aluminium mesh seal for optimum insulation.
- Oven light controlled by light switch located on the front control panel.
- Crystal clear visibility to see inside your oven while cooking.
Stay-Put Hinges
- ZLINE's proprietary stay-put hinges.
- Designed to support full weight of oven door and stop at any place.
-
Durable and effective, with a smooth action.

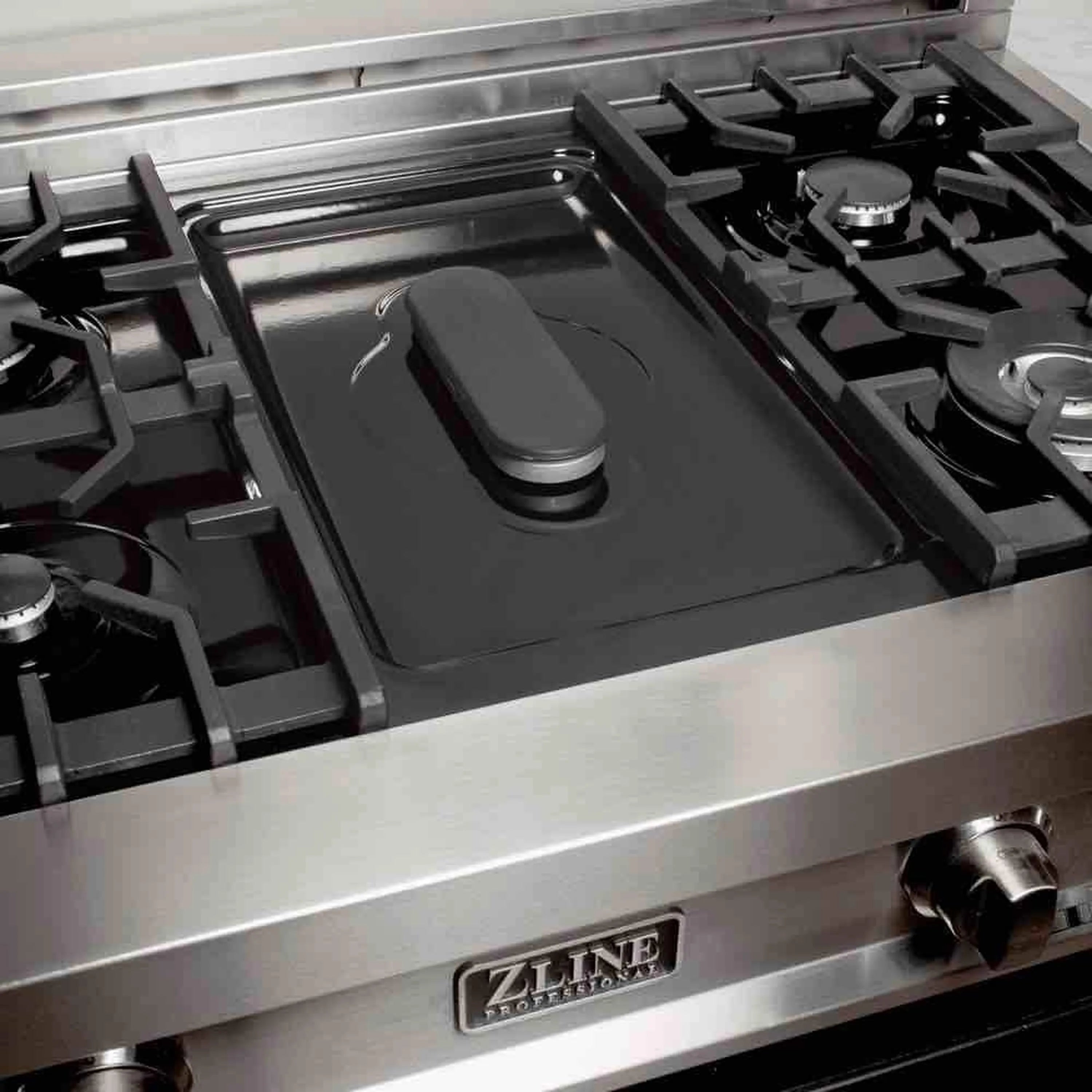

Enamel Cooktop
- Heavy Duty Italian made enamel one-piece cooktop.
- 4 burners provide the perfect range of cooking power from 4,200 to 18,000 BTU's.
- One-piece cooktop allows for an easy to clean surface - no crevices that can hold residue.
- No-scratch enamel designed to handle every cooking environment.

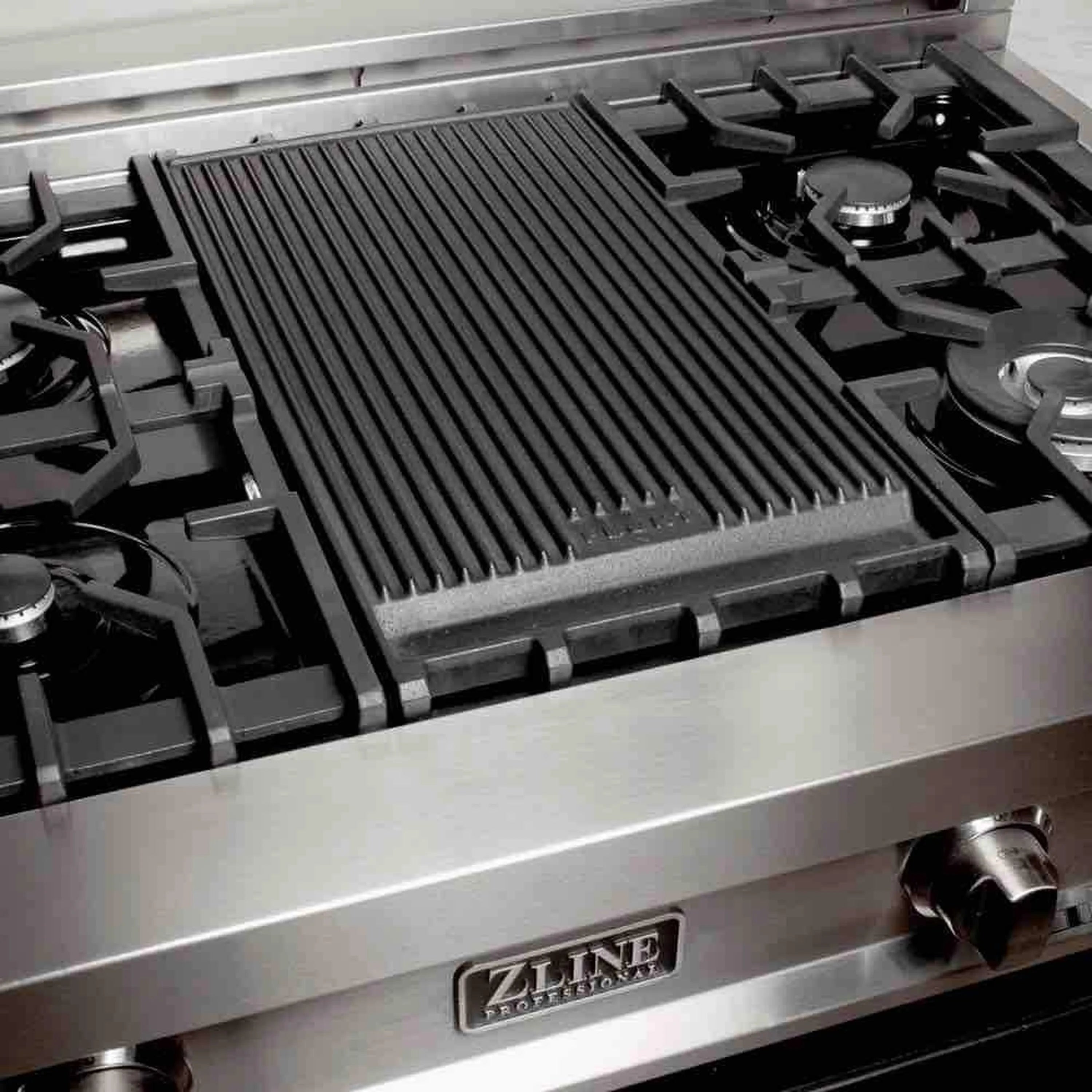

Cast Iron Grill
- Solid-piece cast iron grill - heavy duty and built to last.
- Extremely durable, with an exceptional strength-to-weight ratio.
Italian Burners
- Handcrafted, high-quality Italian Burners imported directly from Italy.
- Premium alloy to ensure efficient and clean-burning flames.
- Durable and easy to clean. Italian burners easily detach for a simple clean.
- An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.
Stainless Steel Knobs
- Heavy-duty stainless steel knob controls with smooth action turn.
- 5 oven settings.
Adjustable Legs
- ZLINE ranges feature stainless steel, easy-to-install, adjustable legs.
- Twist legs to adjust total range height anywhere from 36" to 38.5".

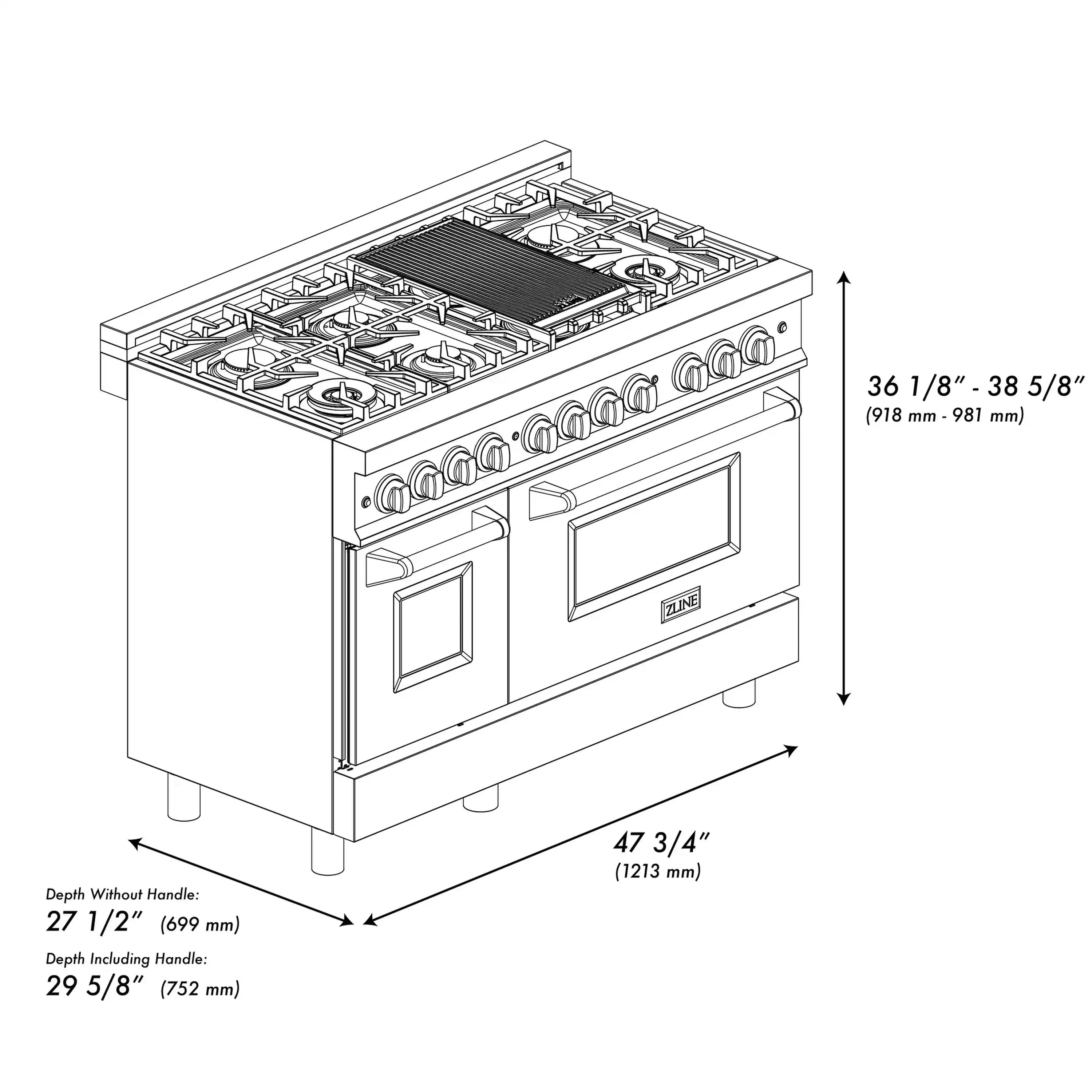

- Dimension
- 47.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 47.75" W x 29.63" D x 36.13" H
- Open Door Depth
- 41.8"
- Interior Oven Dimensions
- 24.875" W x 17.75" D x 16" H
- Product Weight
- 270 lbs
- Brand
- ZLINE Kitchen and Bath
- Features
- ETL and UL Listed CSA Approved
- Color
- Black
- Finish
- Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel
- Control Type
- Durable Front Control
- Material
- Stainless Steel frame with 1 Piece Enamel Top
- Italian made hinges and burners
- Voltage
- 240V/60Hz/40A
- Mount Type
- Free Standing
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel Type
- Convection Oven
- Gas Cooktop
- Cooktop
- (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners
- BTU Rating
- Dual Burner
- 18,000 BTU Rapid Burner - 13,000 BTU Semi-Rapid Burner - 8,500 BTU Auxiliary Burner - 4,200 BTU
- Oven
- Manual Clean
- Convection Electric
- 4.6 cu.ft. deep oven
- Triple Glass Window
- Dual Lighting
- Professional Aluminum Mesh Seal
- Warranty
- 1 Year Warranty
- Certifications
- ETL Certified

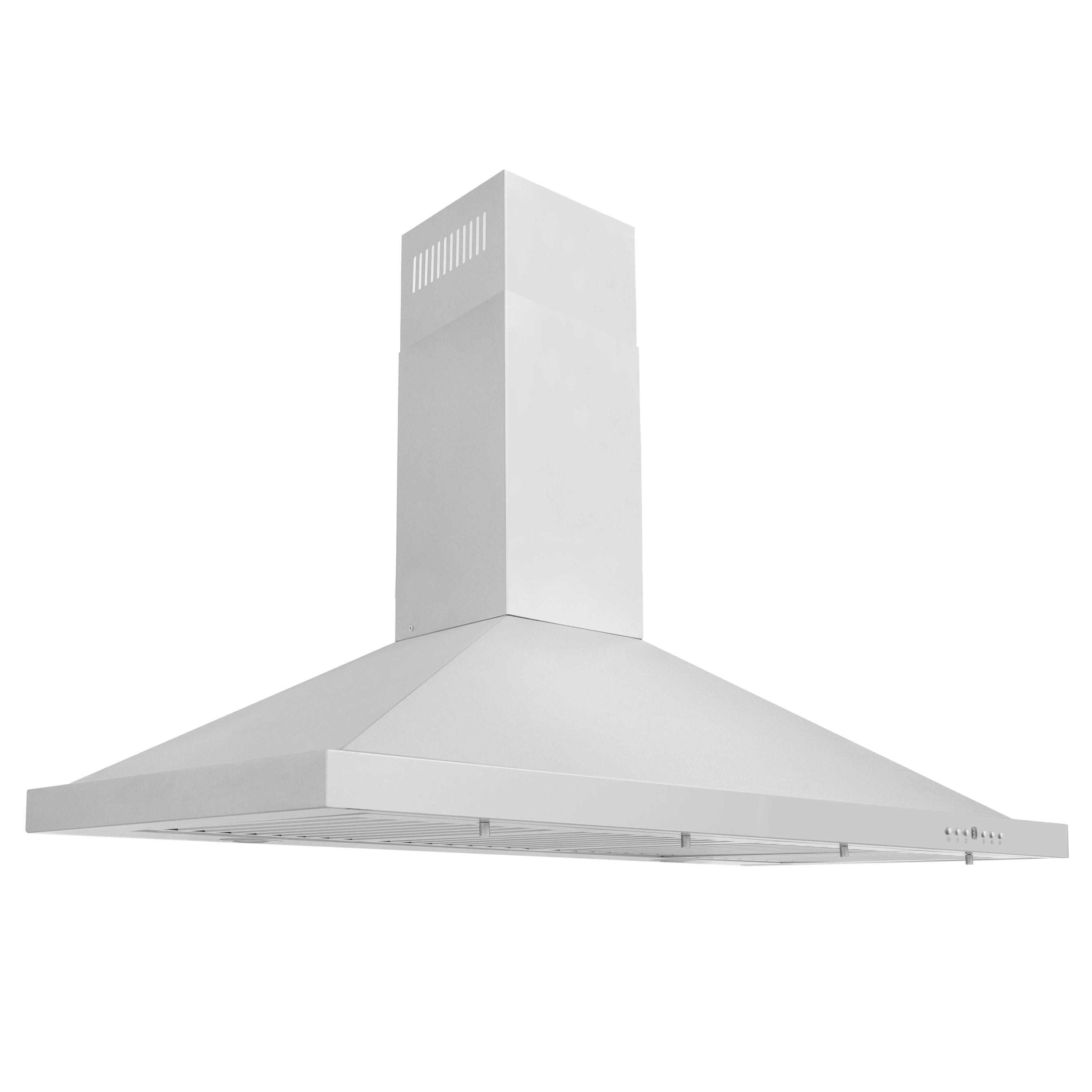

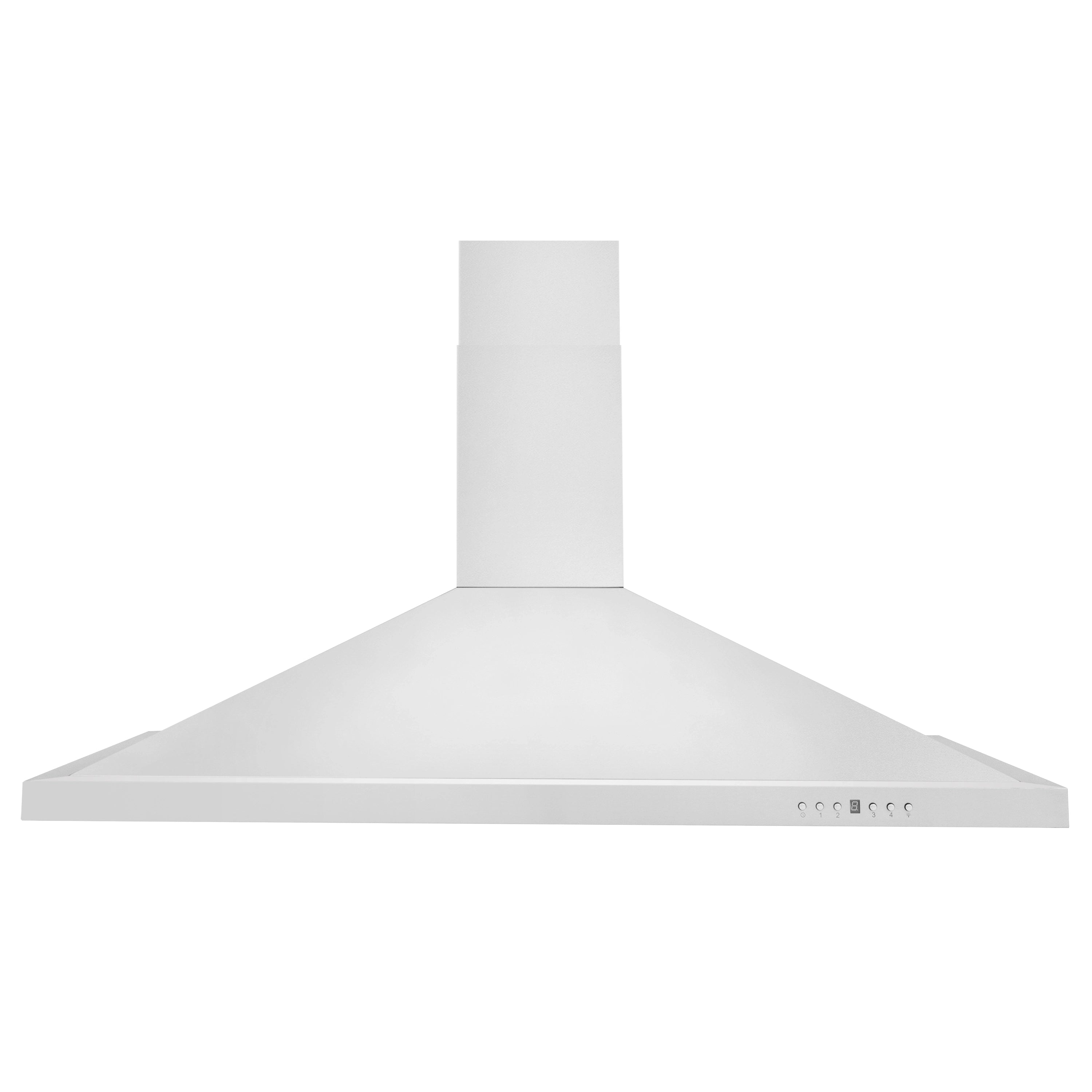

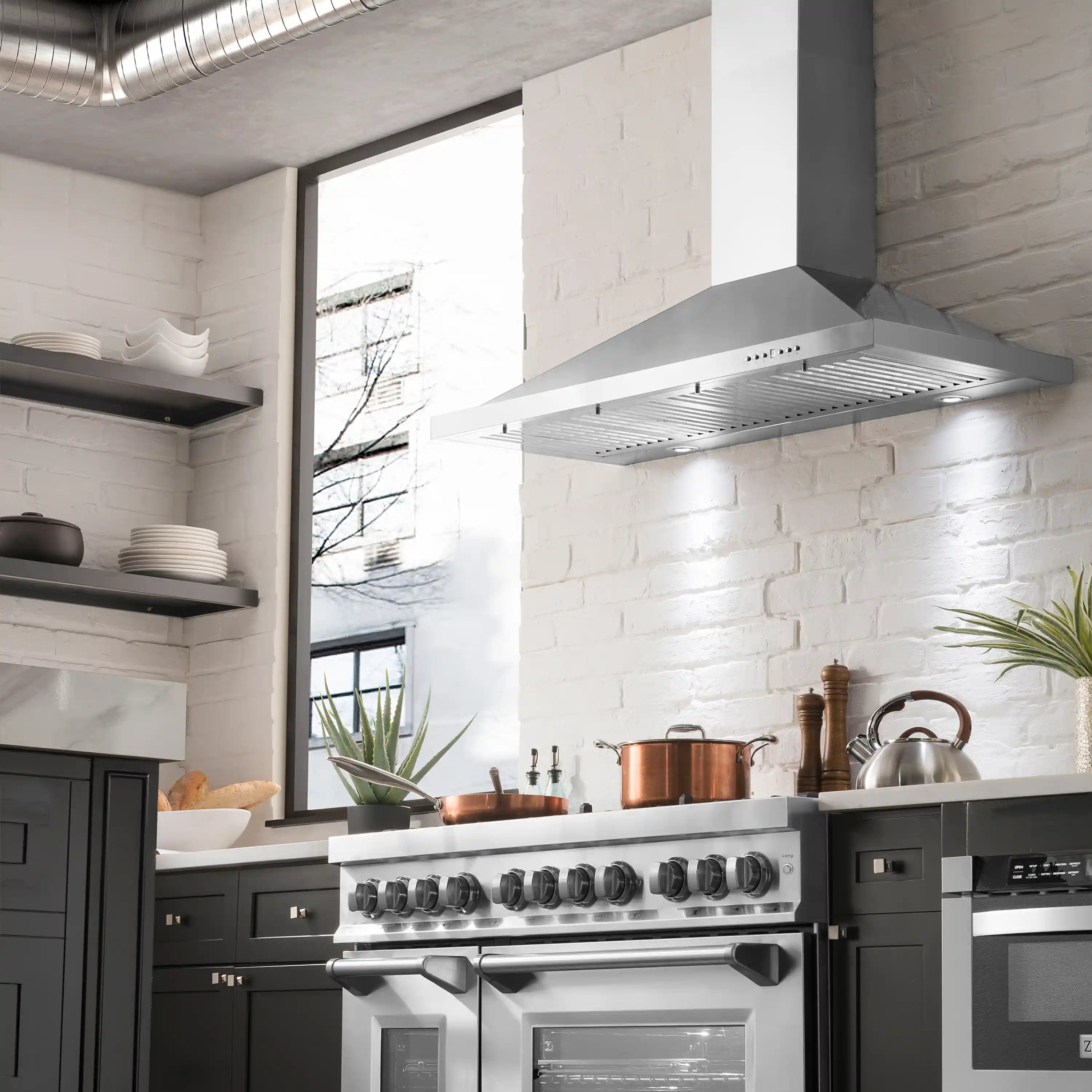

The ZLINE KB-48 is a 48-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
- Dishwasher-safe stainless steel baffle filters

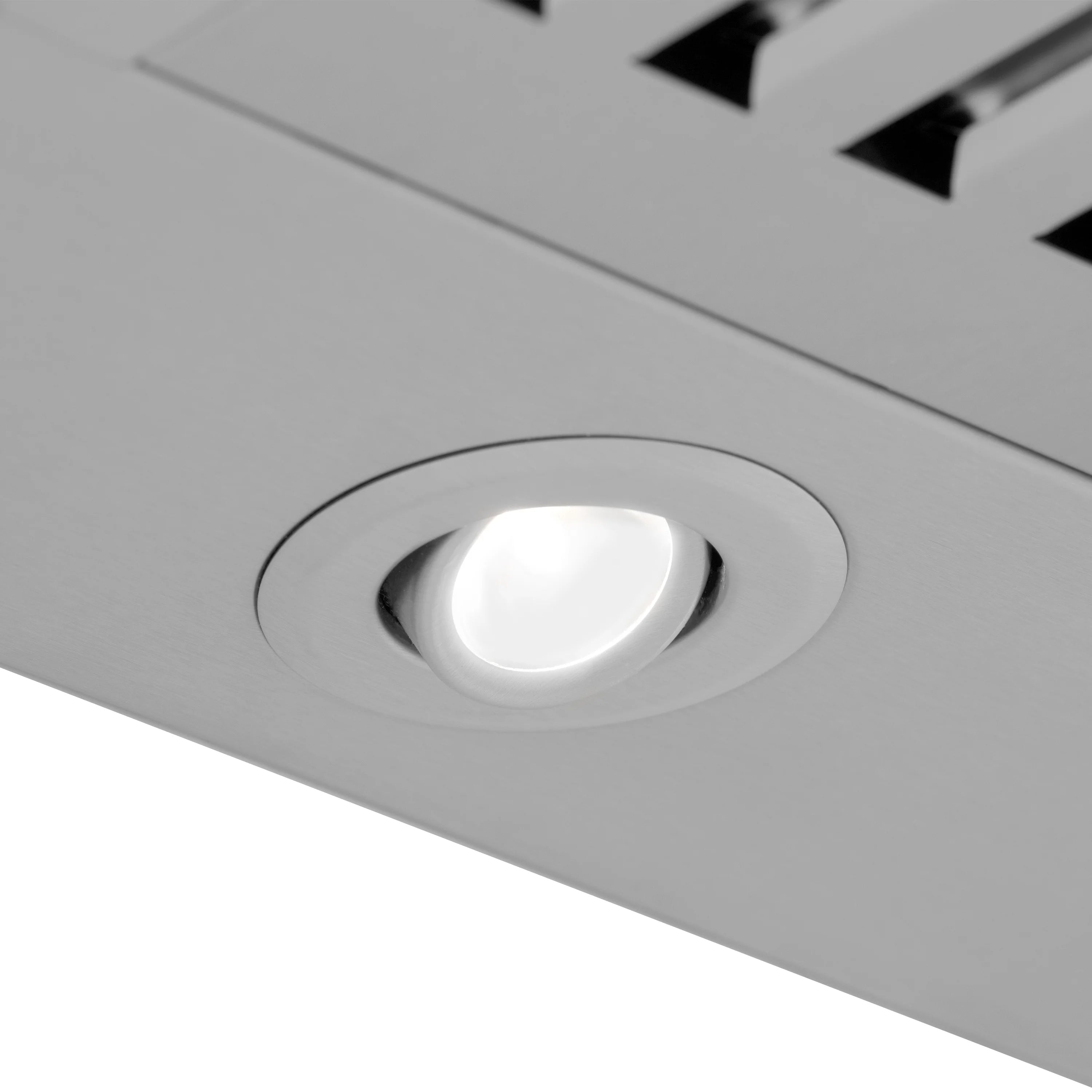

- Built-in LED lighting
- High performance 4-speed motor with speeds up to 400 CFM
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The KB-48 ships next business day when in stock.
- Dimension
- 48" W x 19.7" D x 10.5" H
- Chimney (Dimension)
- 9.2" W x 8" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings
- Mount Type
- Wall Mounted

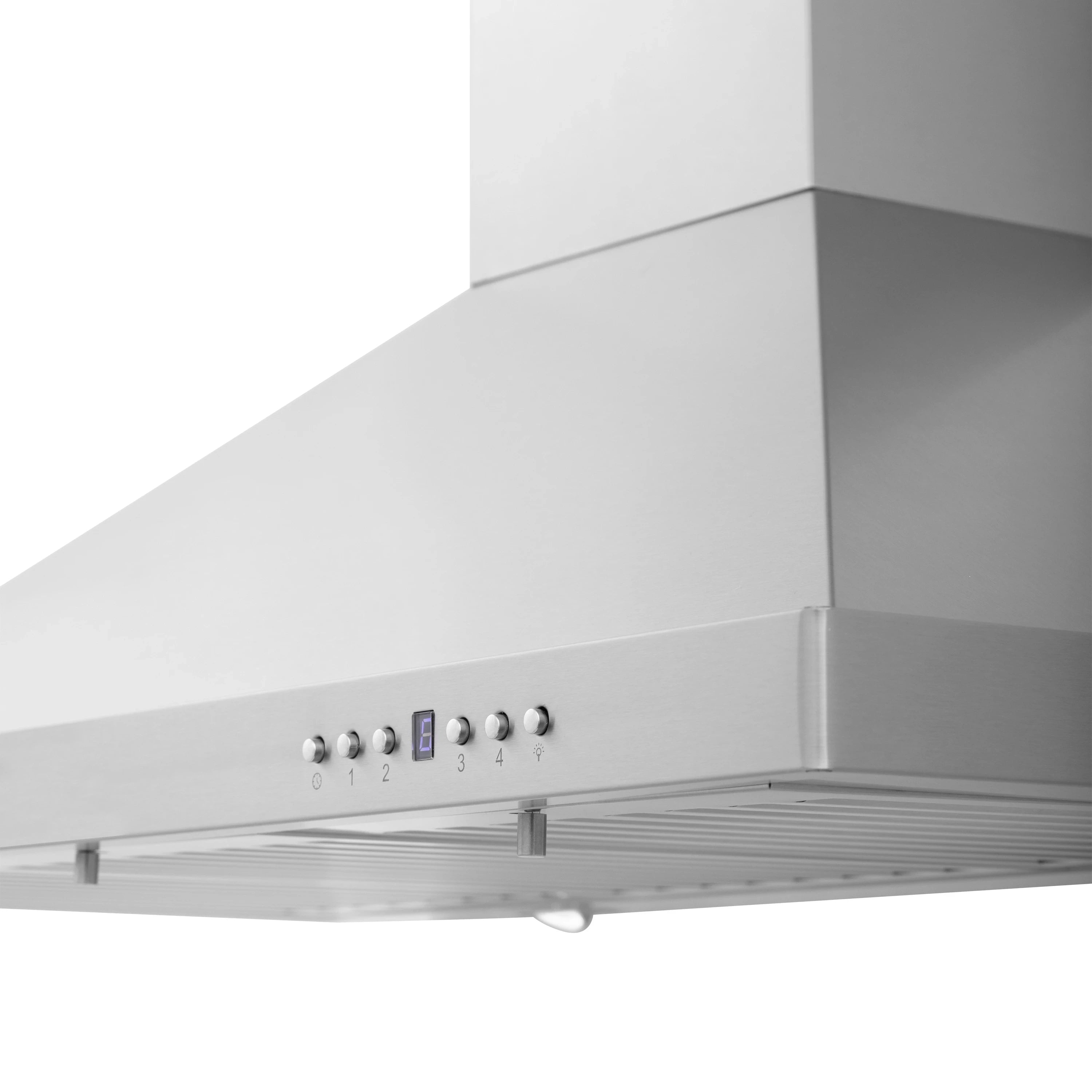

- Control Type

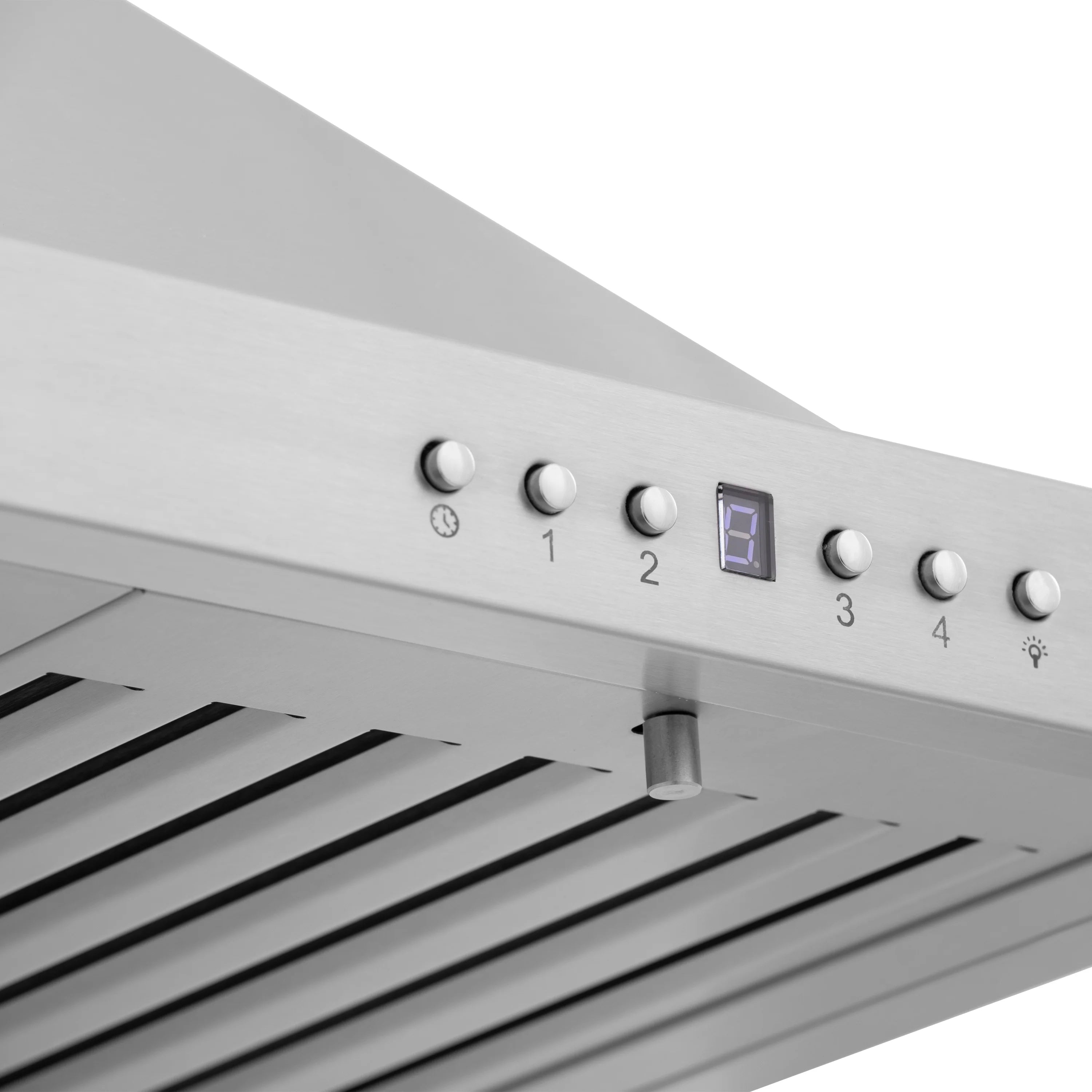

- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Material
- 21g #430 Stainless Steel
- Venting Size
- 6" Outlet (Transition piece with backdraft damper to round ducting included) Charcoal Filters (not included) available for ductless/recirculating option.
- Airflow (Q/L/M/H)
- 120/240/320/400
- Noise Level
- 20/29/34/41
- Voltage
- 110V/60HZ
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4 Speeds
- Lighting
- 2 Directional LED Lights (3-Watt)

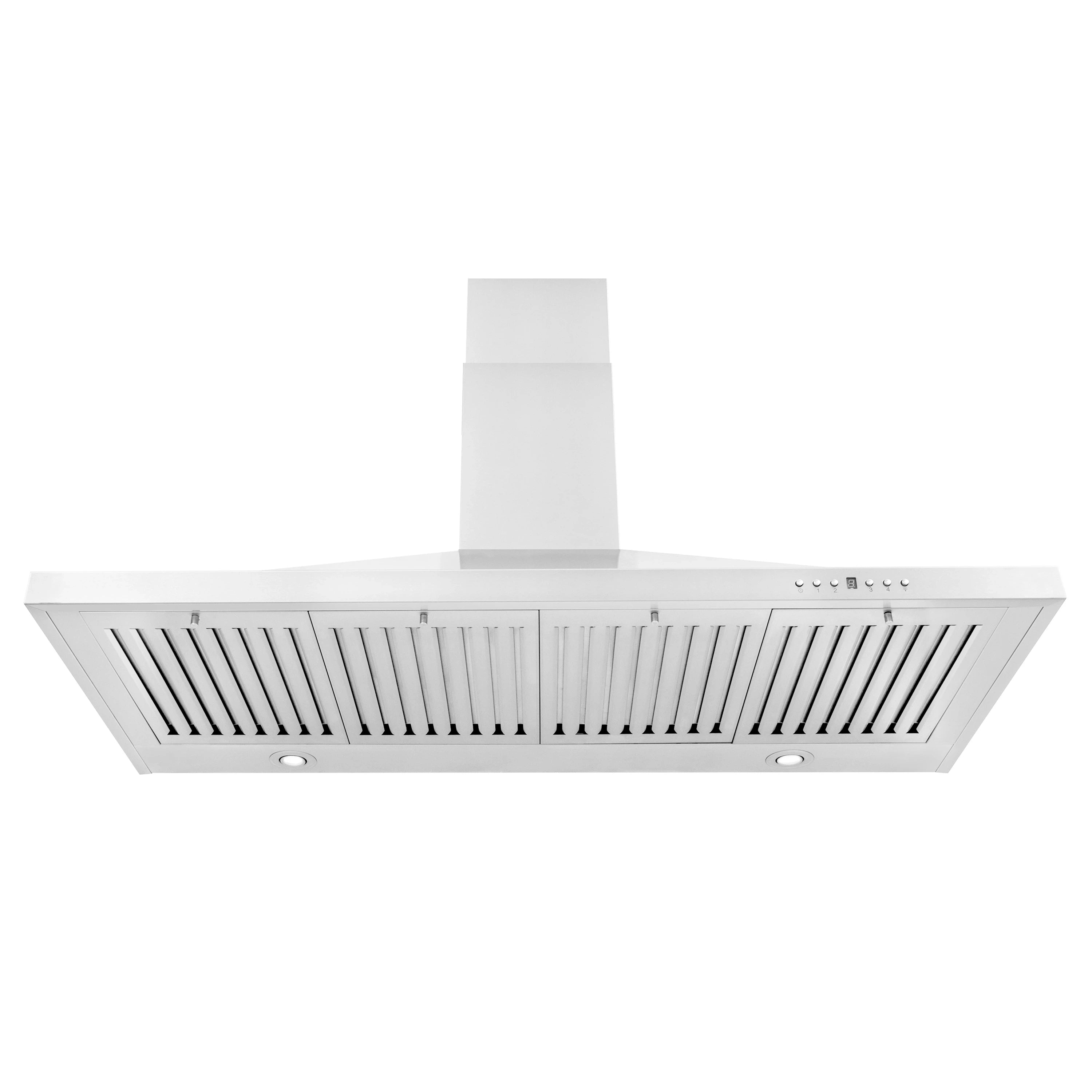

- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Features
- Model No. KB-48 (ETL Listed) ***CROWN MOLDING AVAILABLE FOR THIS MODEL***
- Warranty
- 3 Year Parts Warranty
- Certifications
- ETL Certified
