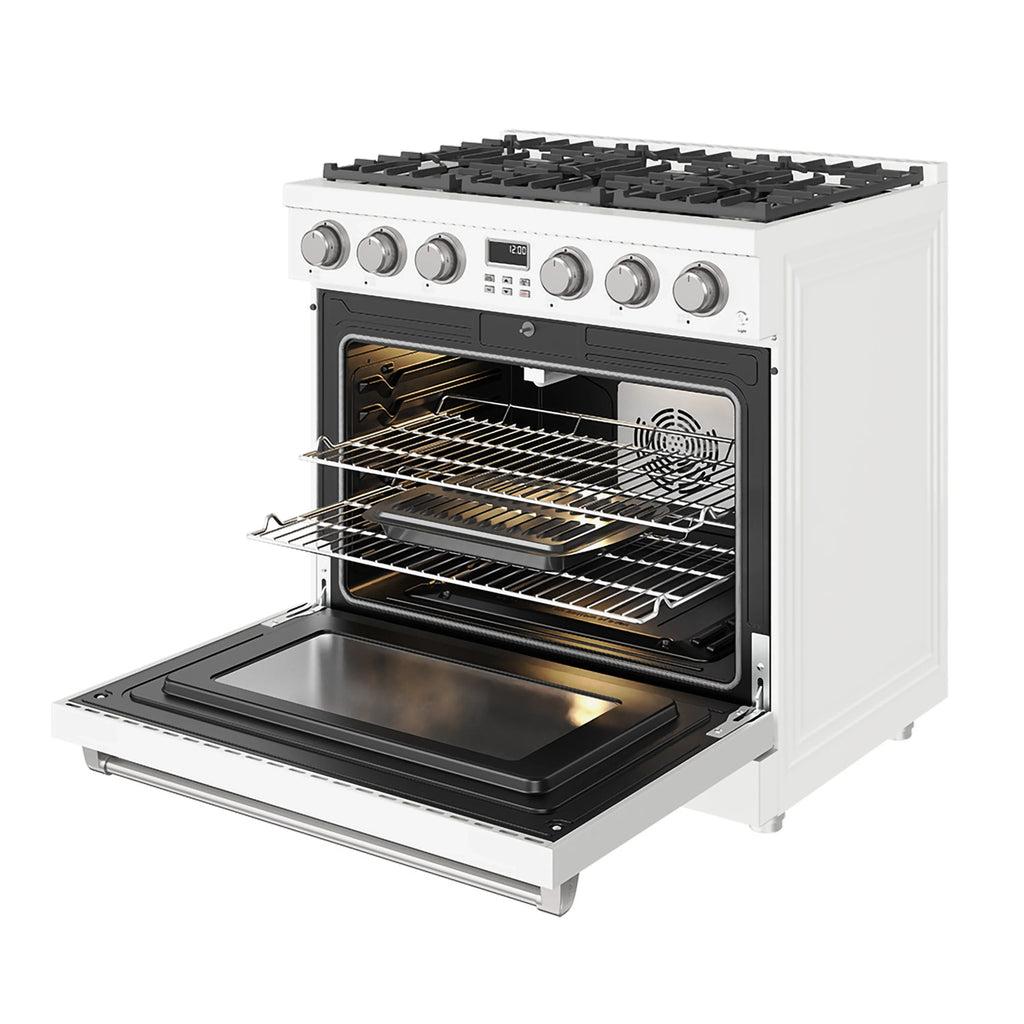

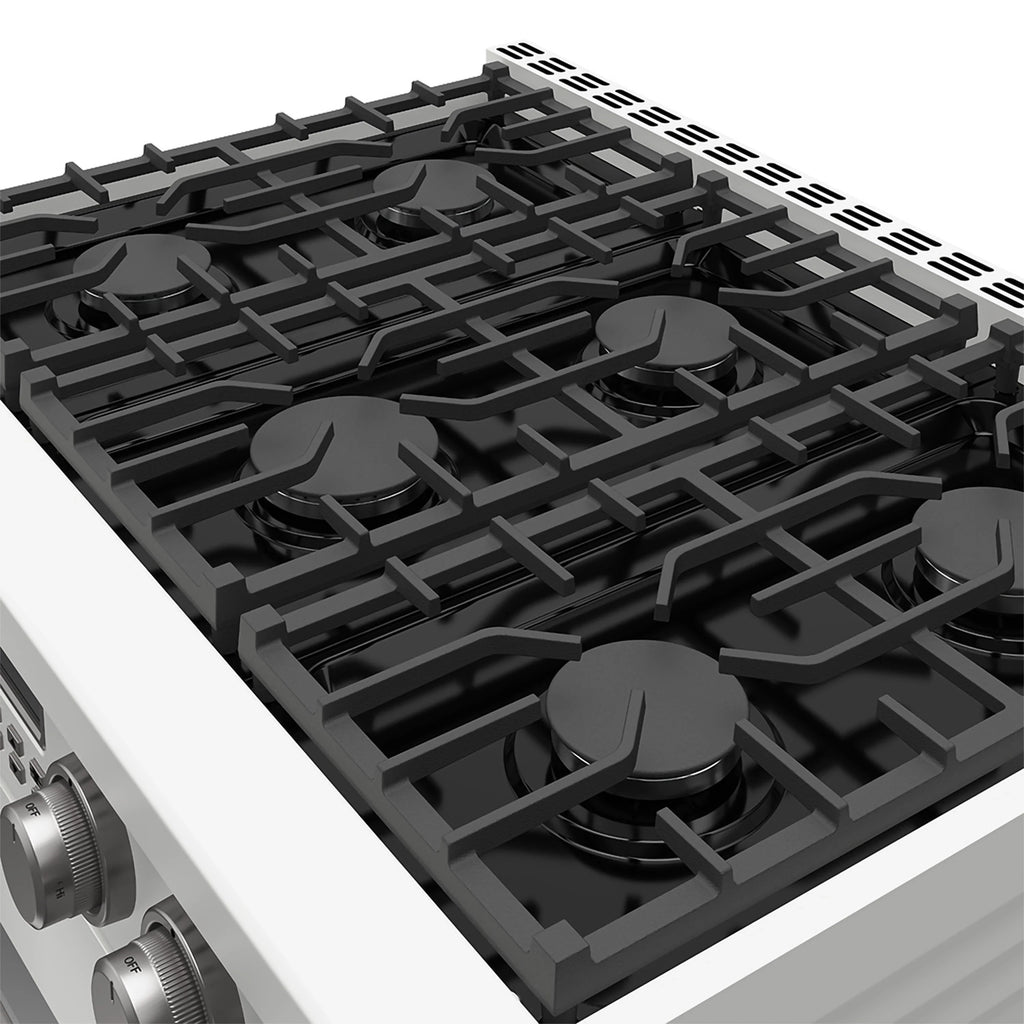

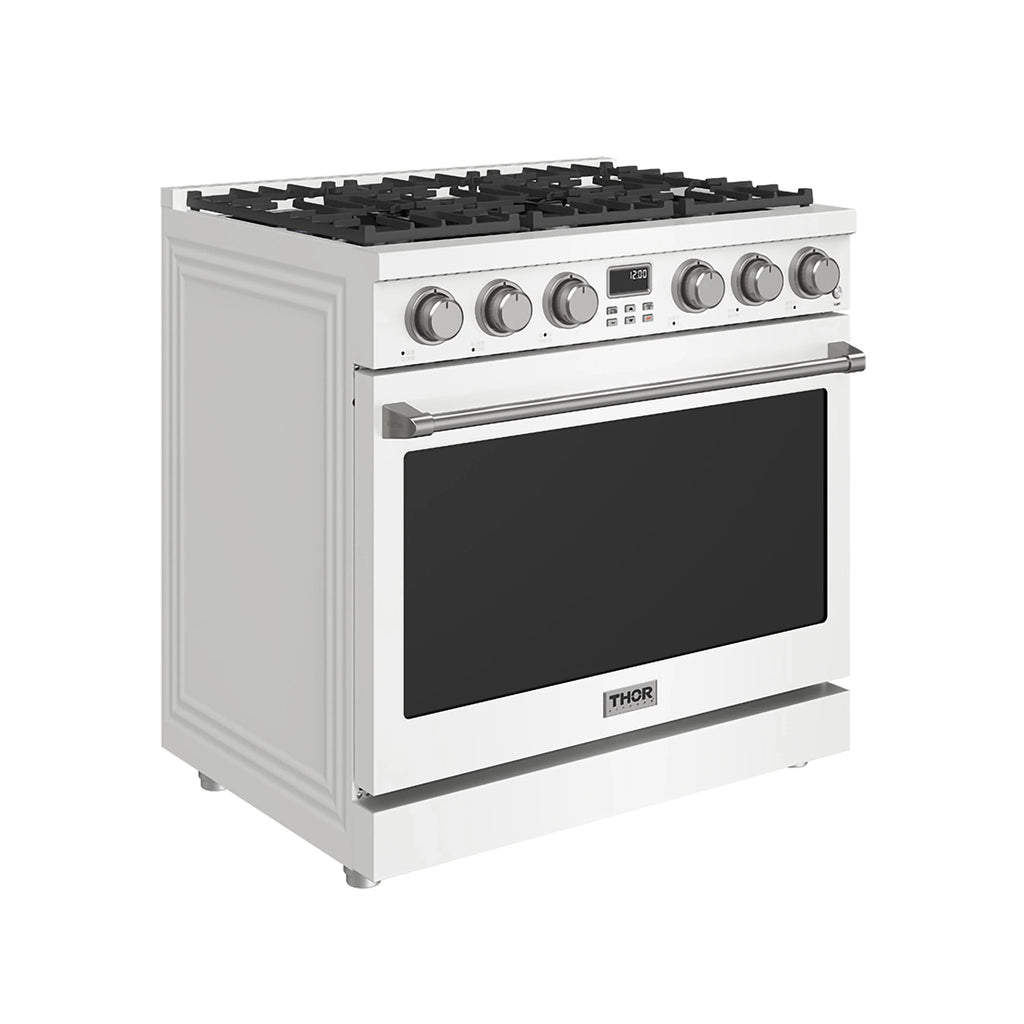

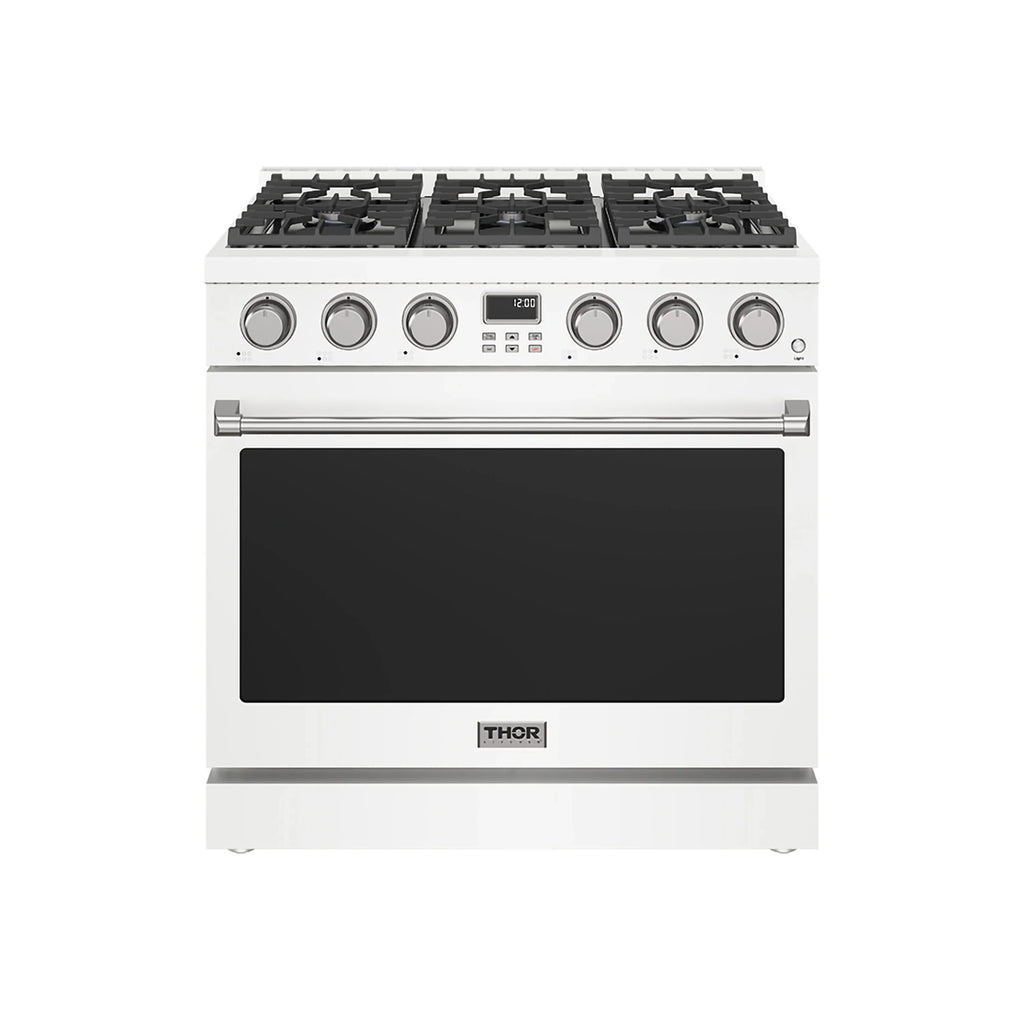

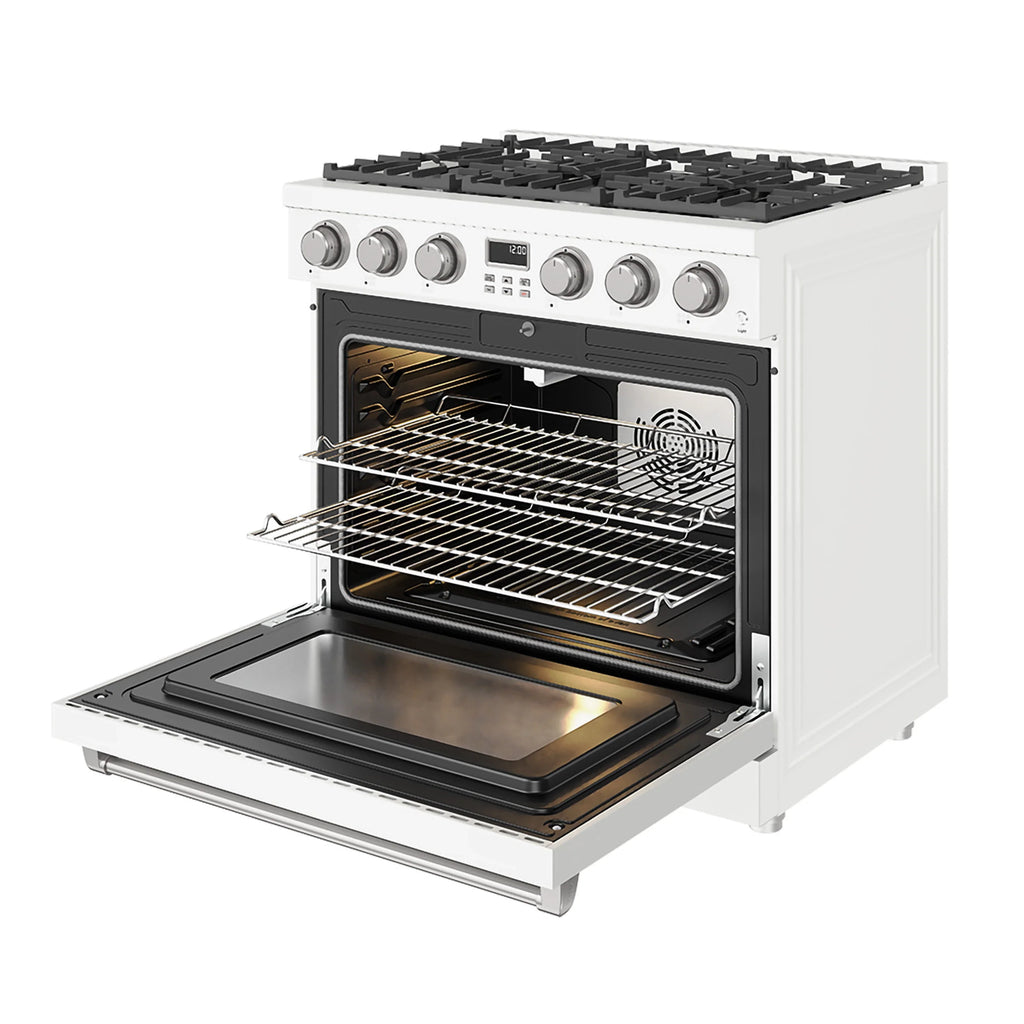

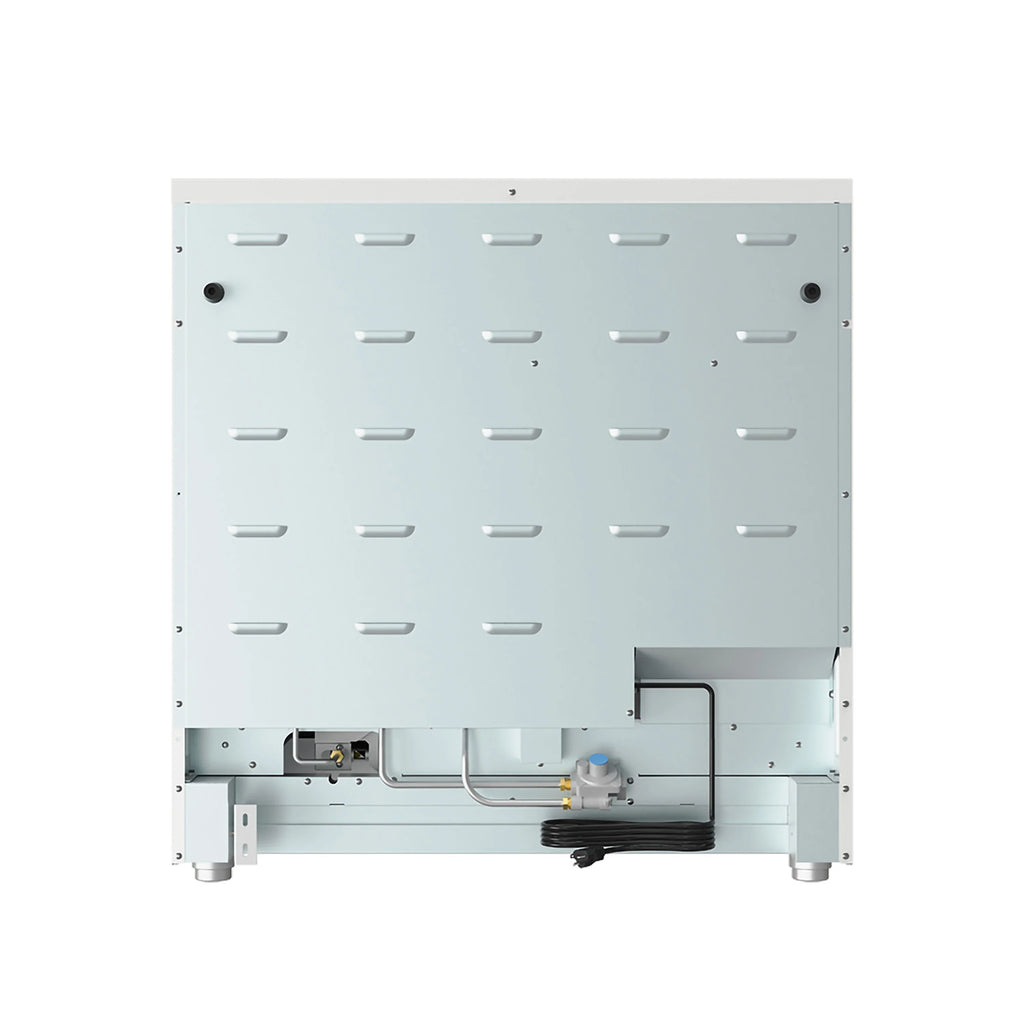

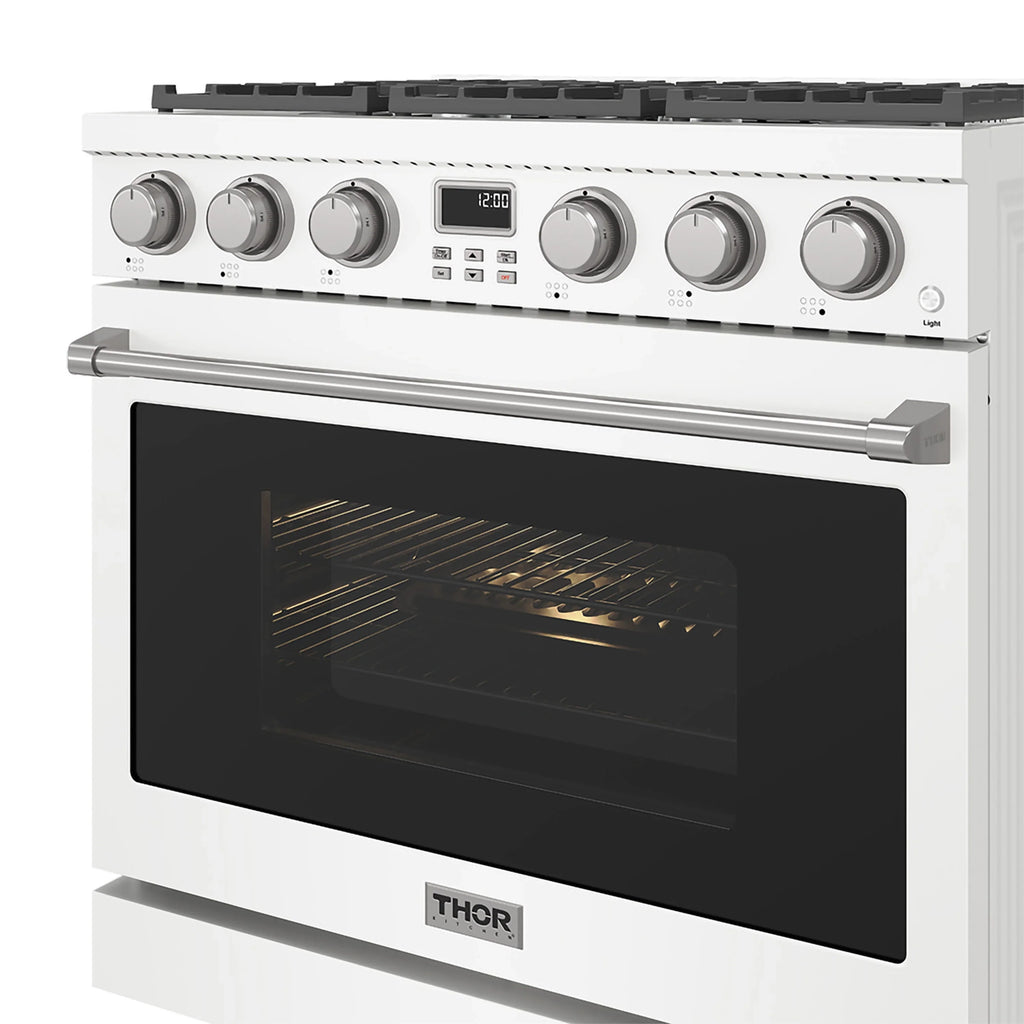

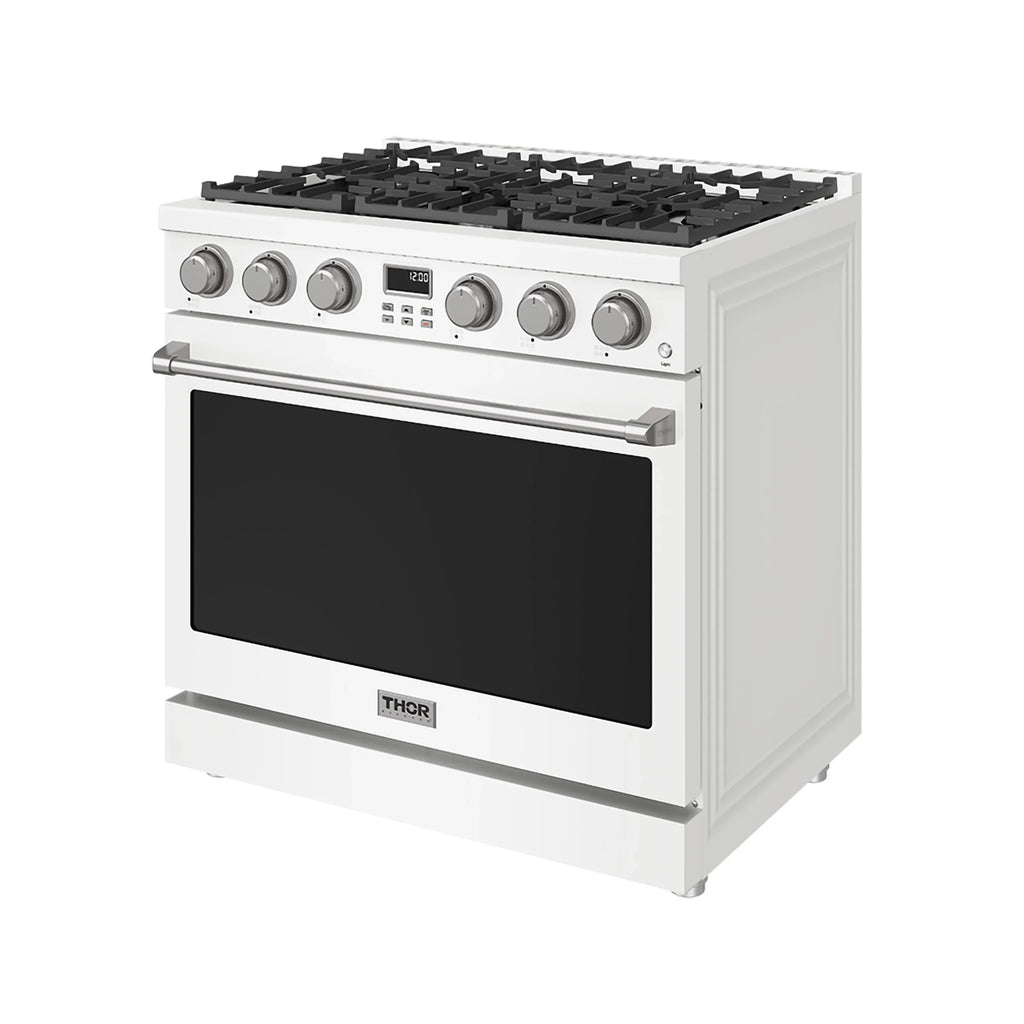

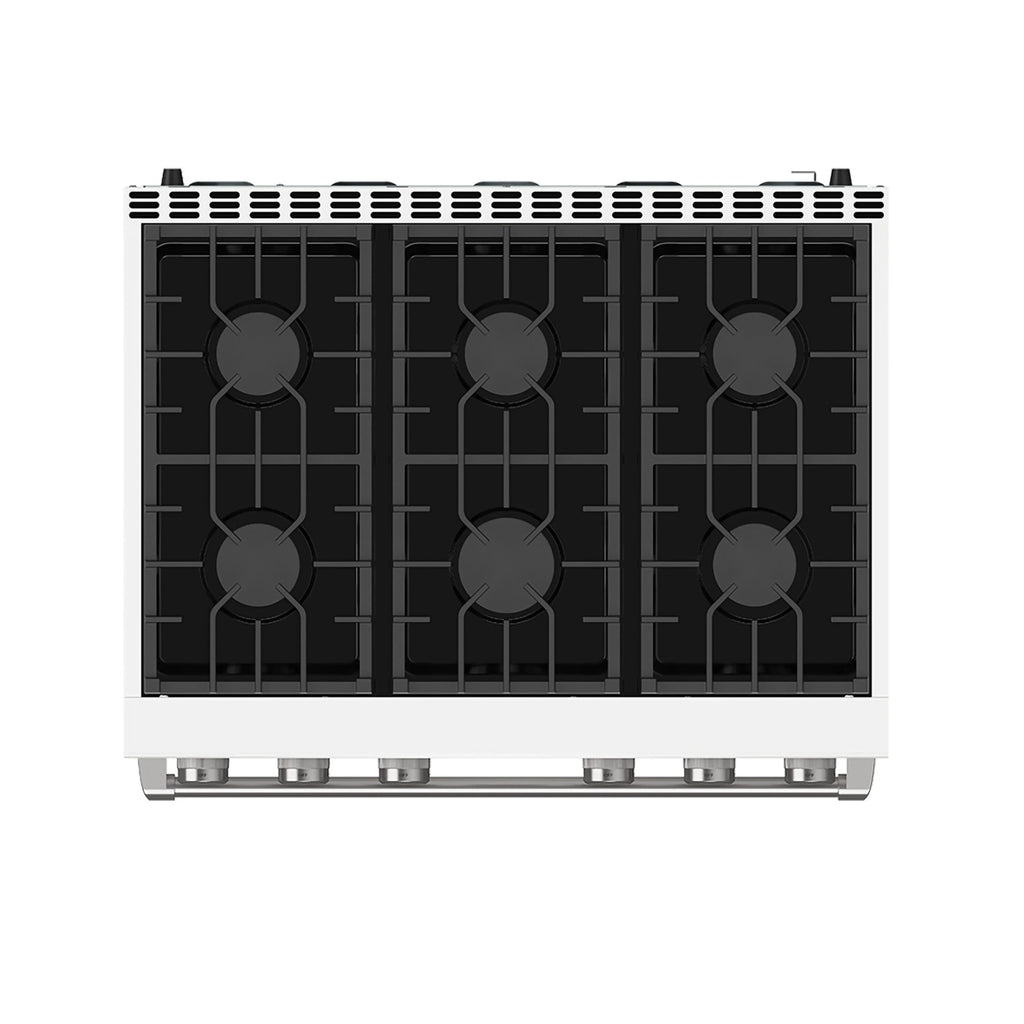

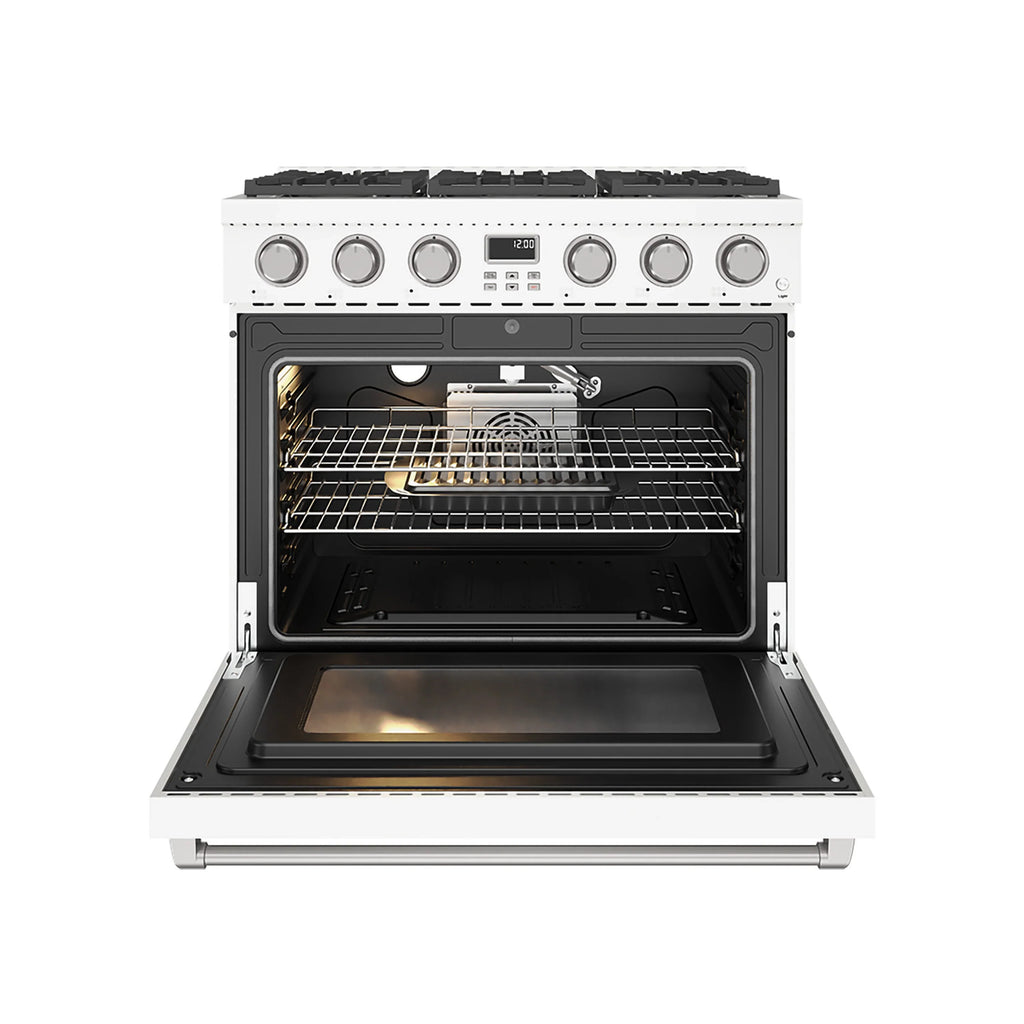

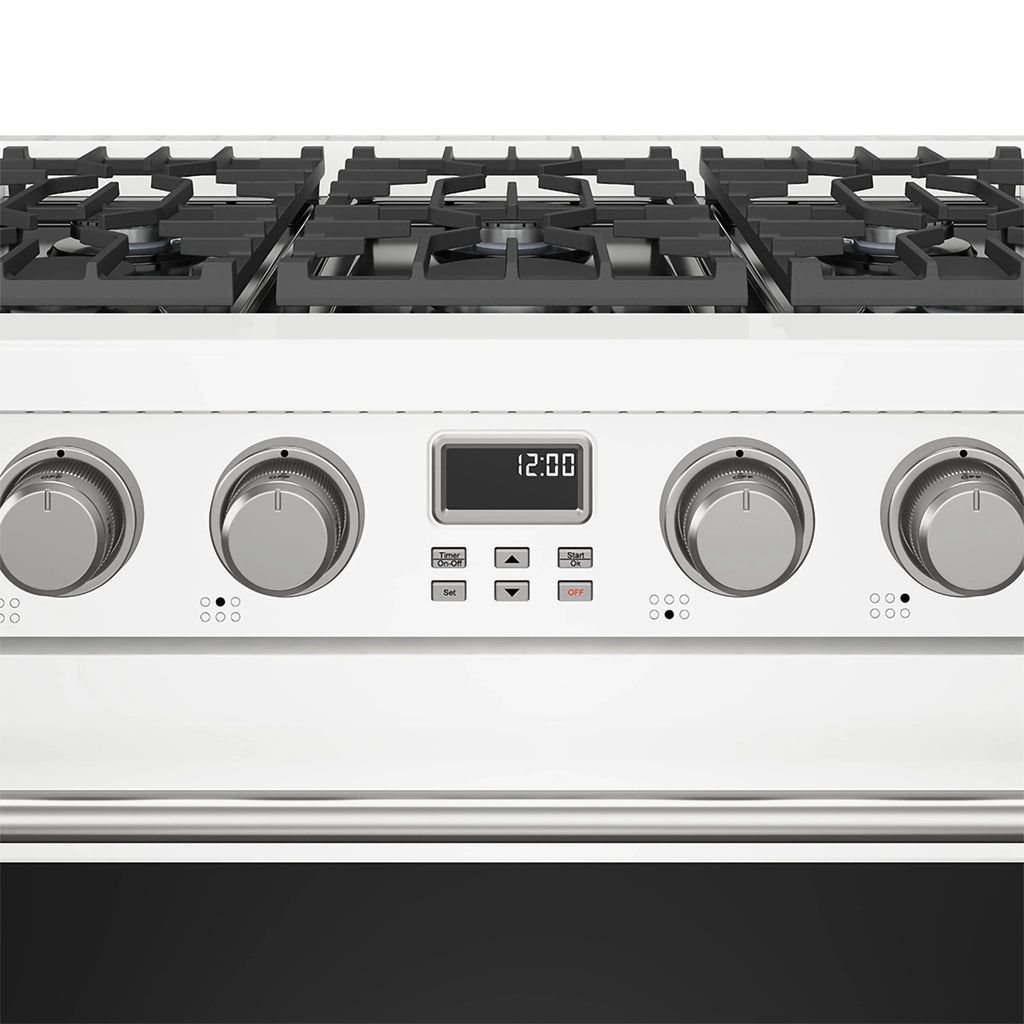

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The THOR Kitchen 36 Inch Professional Gas Range is a stainless-steel machine designed with professional features and functionality. With easily accessible controls, high-powered burners, continuous grates, and a commercial convection fan, this range takes everything from prime rib to snickerdoodles to the next level.
| DIMENSIONS | |
|---|---|
| Product Width | 35 7/8 in. |
| Product Height (from bottom to top of back splash) | 37 1/4 - 40 1/4 in. |
| Product Height (from bottom to top of side panel) | 36 - 39 in. |
| Product Depth (from back panel to bullnose) | 26 7/8 in. |
| Product Depth (from back panel to control board) | 26 1/4 in. |
| Product Depth (from back panel to side panel front) | 24 in. |
| Adjustable Leg Sizes | 3 in. Max. |
| Cut Out Dimensions | 36" W x 24" D x 36" H |
| Cord Length | 60 in. |
| Oven (W x D x H) | 29.7 in. x 19.4 in. x 18 in. |
| GENERAL INFORMATION | |
| Baking Sheet Size | Fits up to 18" x 14" Sheet |
| Accessories Included | 2 Oven Racks, 1 Broiler Pan, 1 Bake Pan |
| Accessories (Sold Separately) | LP KIT includes orifices and gas regulator caps |
| DESIGN & FINISH | |
| Color | White |
| Finish | White |
| Control Type | Oven Function Button, LED Panel Display |
| TECHNICAL DETAILS | |
| Fuel Type | Gas, LP Option Available |
| Installation Type | Freestanding |
| Voltage | 120V 15A |
| Frequency (Hz) | 60Hz |
| Gas Line Regulator | 1/2 in. |
| Plug Type | 3 Prongs included |
| COOKTOP FEATURES | |
| Hot Surface Indicator Light | Front Right Corner Of Cooktop w/Temp at 150°F |
| Bake Burner Power | 18,500 BTU |
| Broil Burner Power | 13,500 BTU |
| OVEN FEATURES | |
| Oven Capacity | 6.0 Cu. Ft. |
| Oven Color | White |
| Oven Features | Bake, Broil, Conv Bake/Roast, Pizza, Keep Warm |
| Convection | Convection Fan |
| Oven Light | 1*40W, Rear |
| Oven Racks | 2 |
| Oven Rack Material | Chrome Plated |

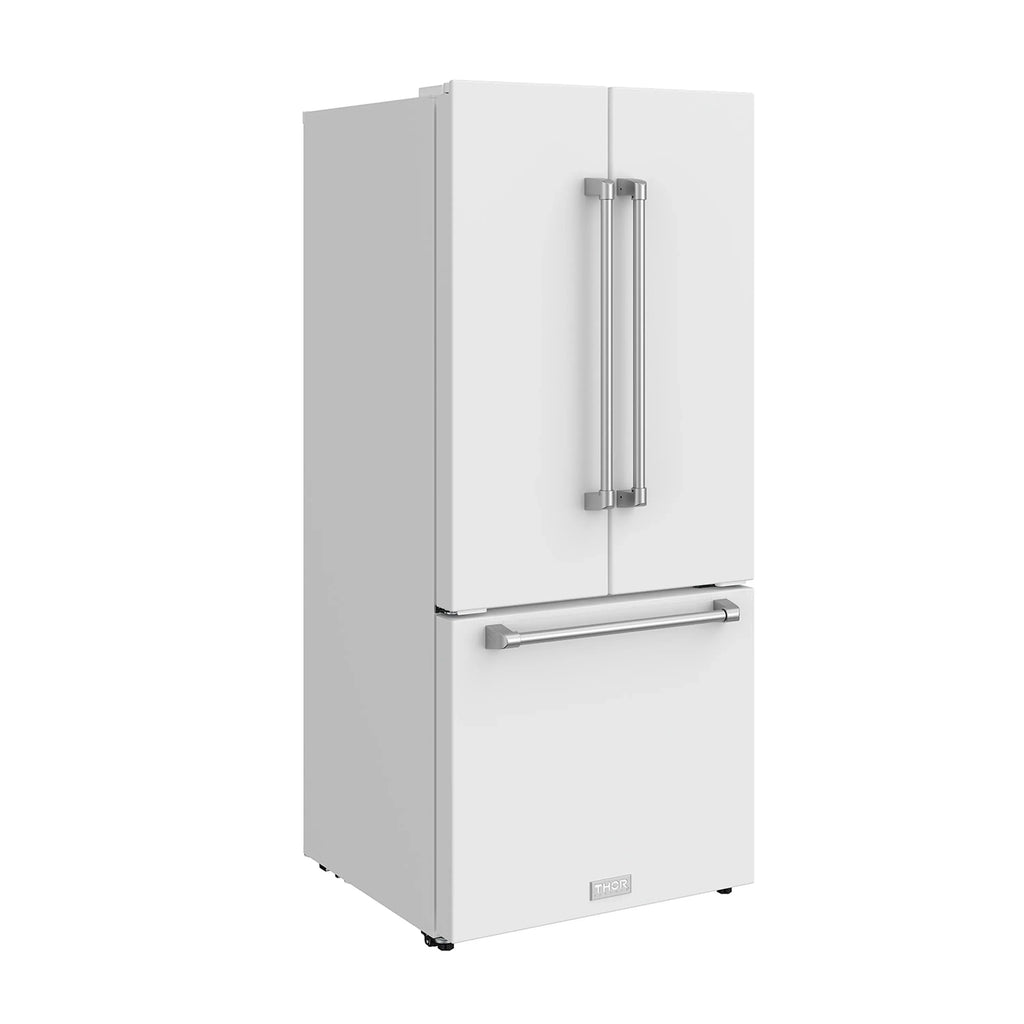

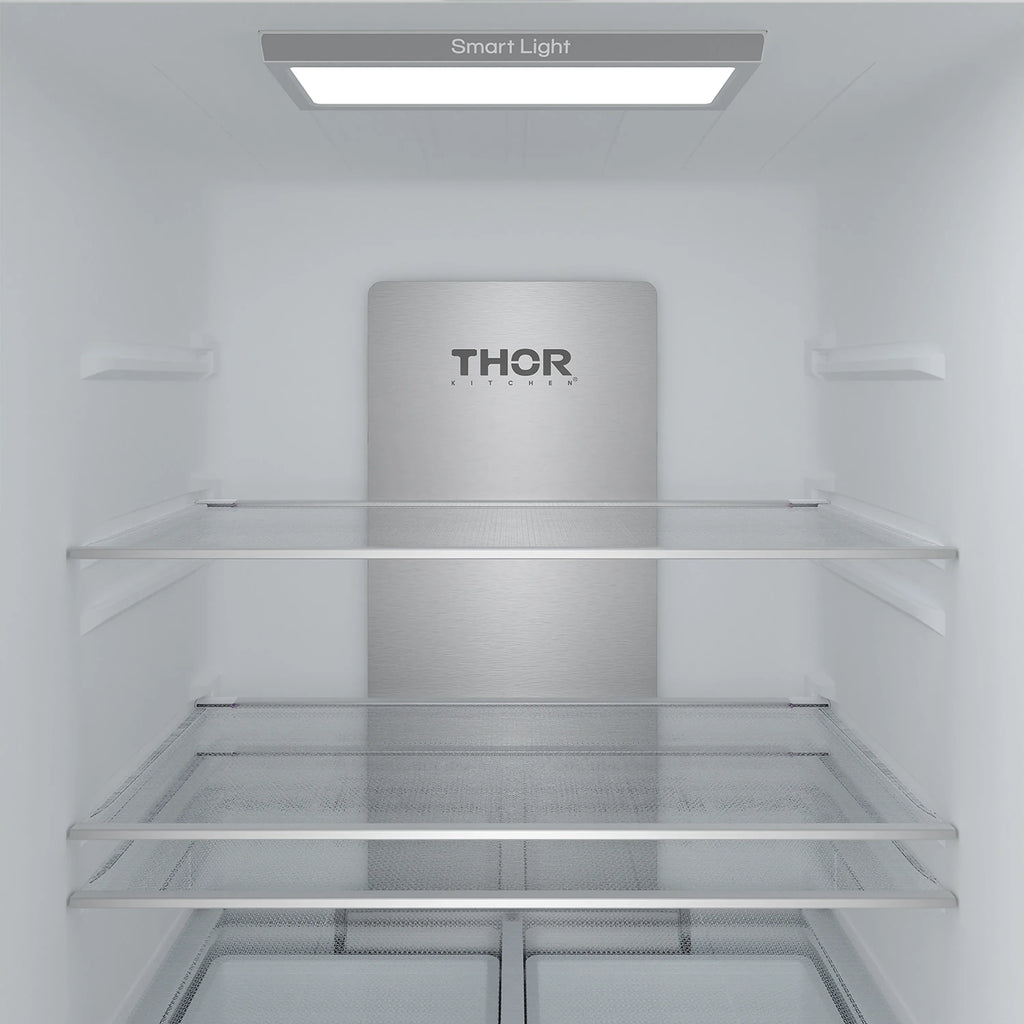

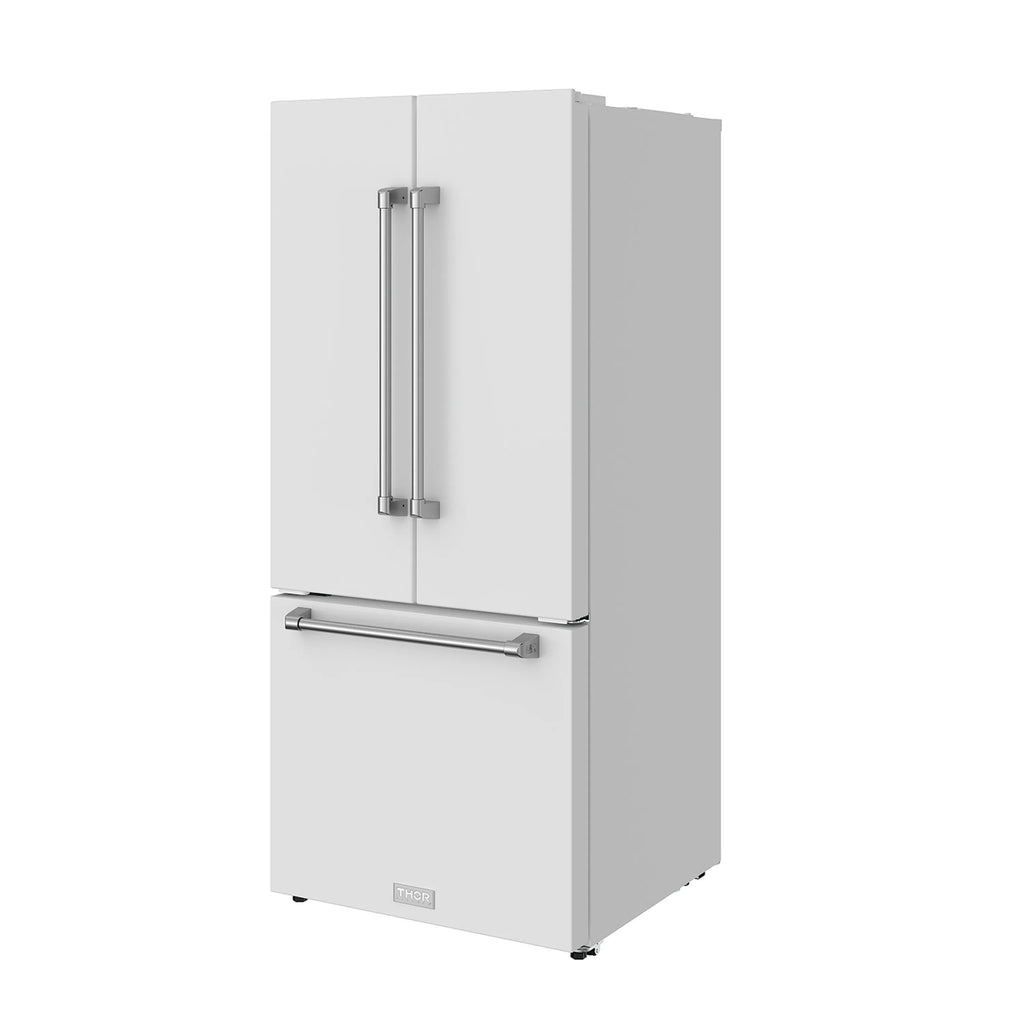

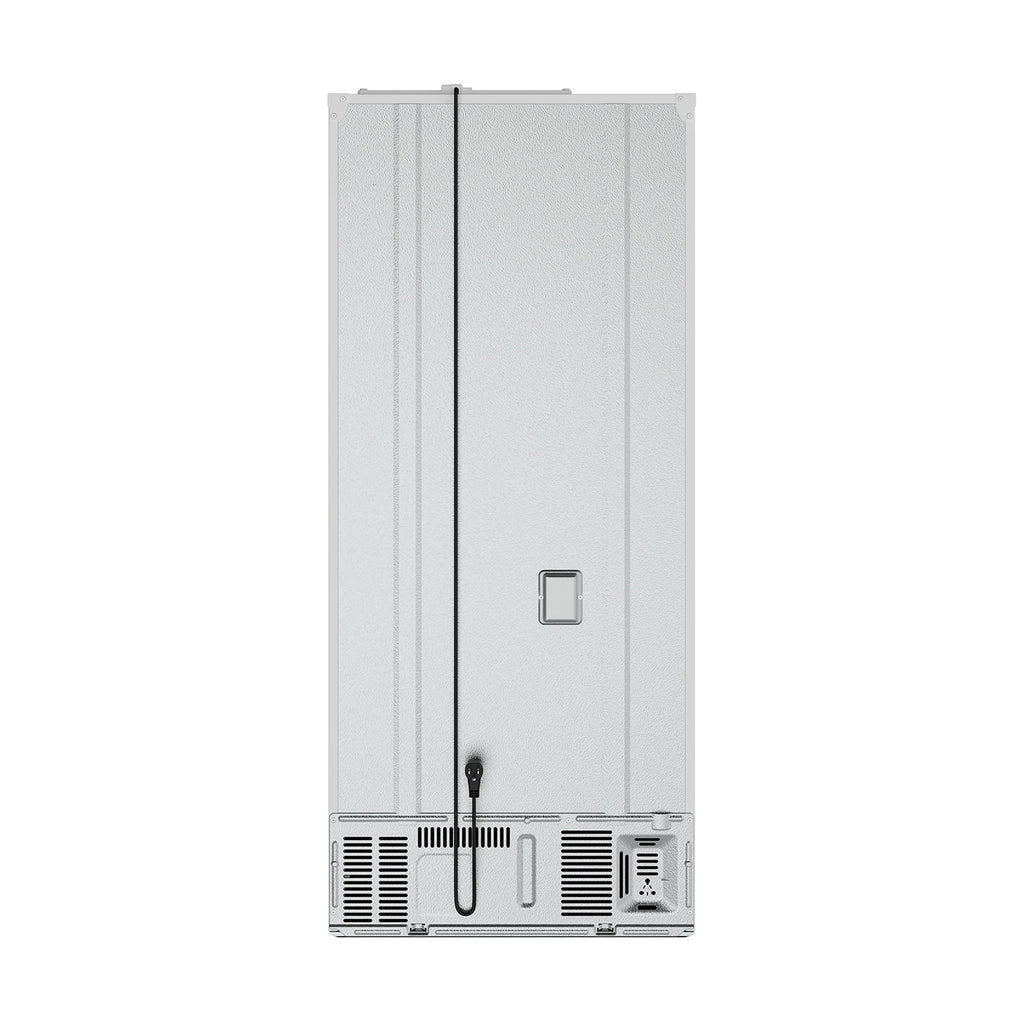

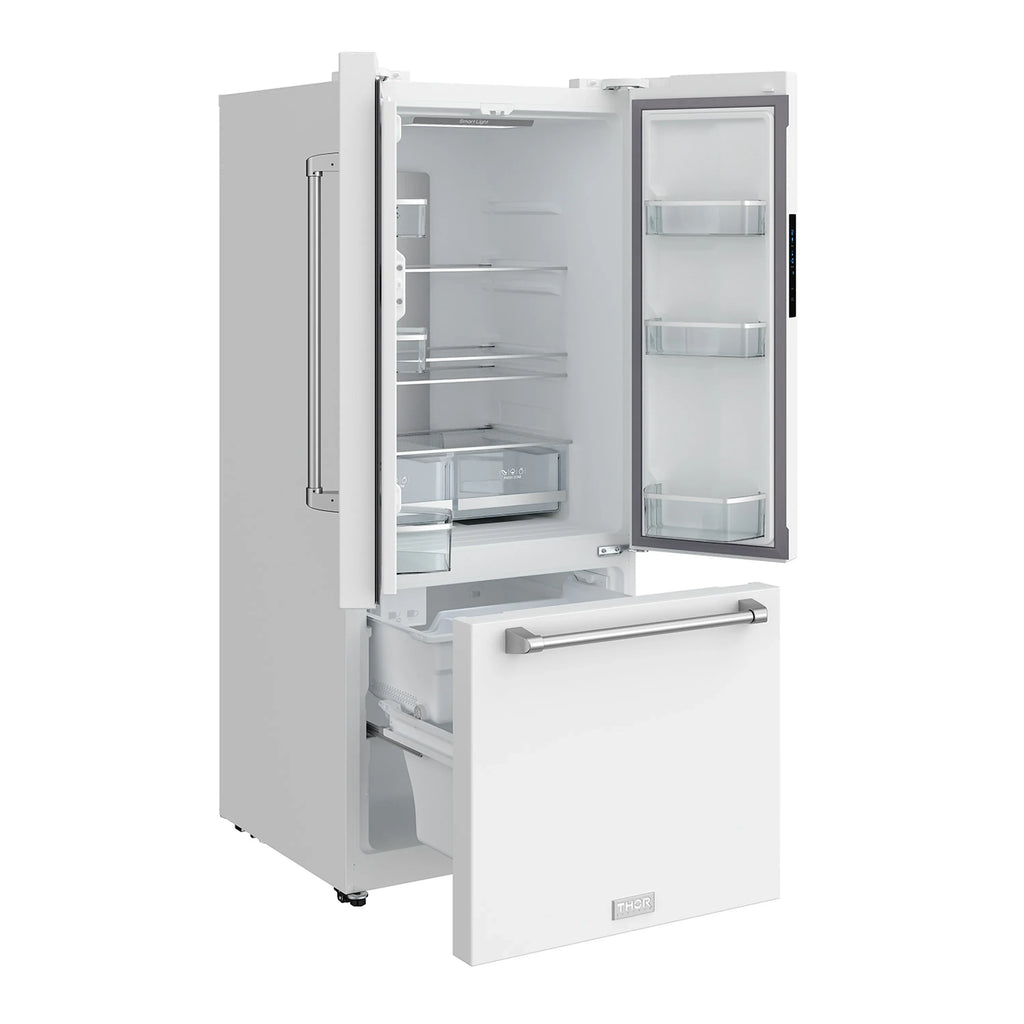

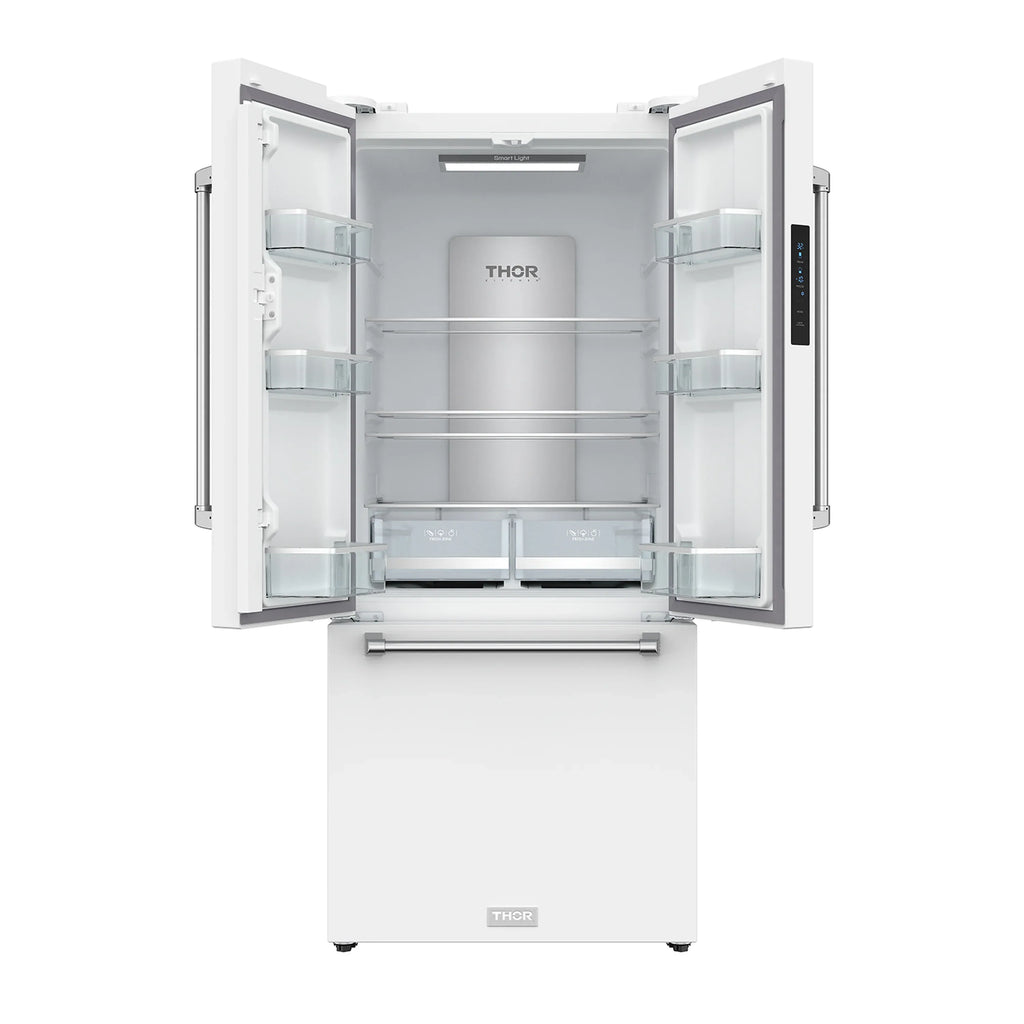

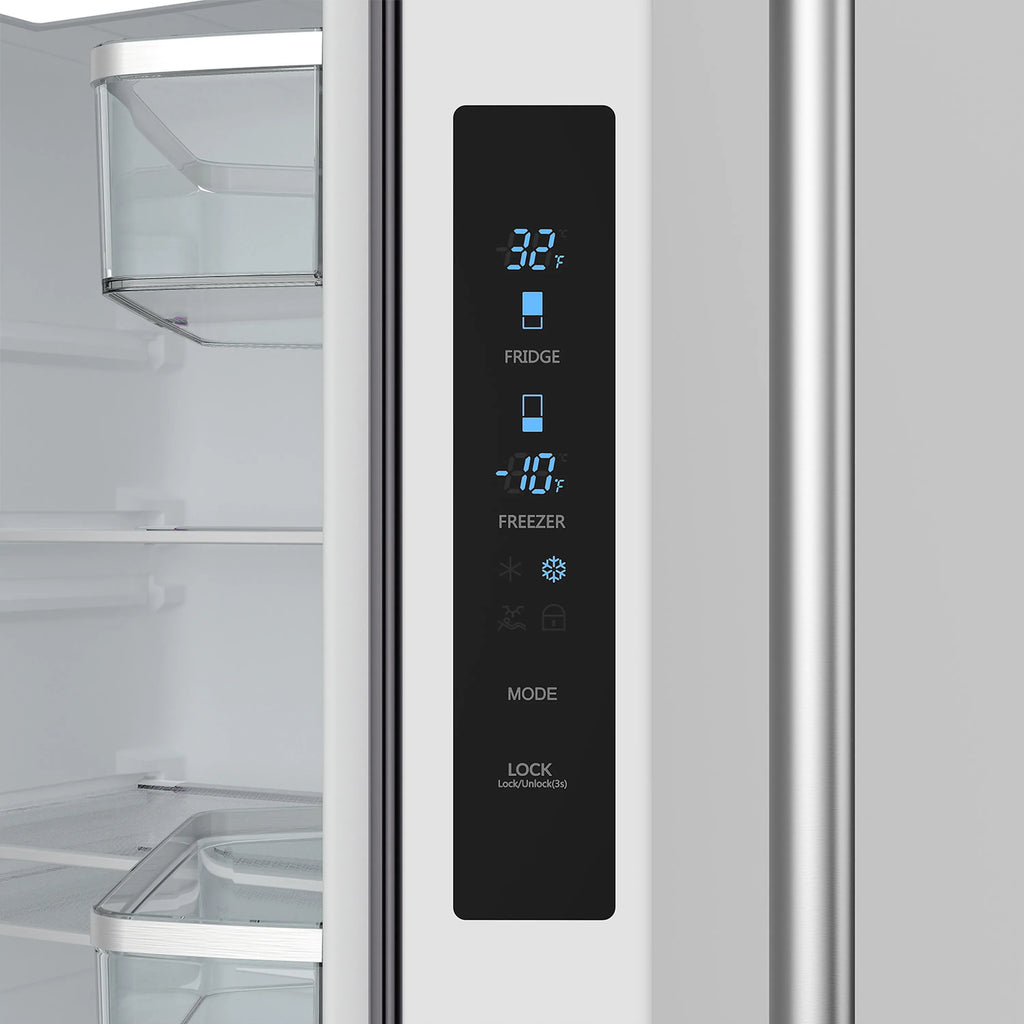

The THOR x Gordon Ramsay Collection 30” French Door Counter Depth Refrigerator with Ice Maker is where innovation meets culinary excellence. With 17.5 cu. ft. of thoughtfully designed space, full-width adjustable shelves give you the flexibility to store everything your kitchen demands. Fast Freezing and Fast Cooling technology locks in peak freshness and flavor from the moment food enters, while the Multi-Flow Air System ensures even air distribution across every shelf for lasting freshness.
A whisper-quiet inverter compressor delivers consistent, efficient performance without disruption, and electronic touch controls put effortless command right at your fingertips. This is where every meal begins. #IgniteYourCulinaryCreativity
| DIMENSIONS | |
|---|---|
| Product Dimensions (W x D x H) | 29-7/8" W x 31-5/8" D x 70" H |
| Product Depth Excluding Handles | 28-7/8" |
| Product Depth Including Handles | 31-5/8" |
| Product Depth Excluding Door | 25-5/8" |
| Product Depth with Door Open 90 Degrees | 41-3/8" |
| Product Depth with Drawer Open | 44-1/5" |
| Product Height to Top of Door Hinge | 70" |
| Product Height to Top of Refrigerator | 69" |
| Cutout Dimensions (W x D x H) | 30" W x 28" D x 72" H |
| Net Weight | 189 lbs |
| Package Dimensions (W x D x H) | 32-1/4" W x 30-1/2" D x 72-5/8" H |
| Package Weight | 211 lbs |
| Total Capacity | 17.5 cu. ft. |
| GENERAL INFORMATION | |
| Installation Type | Freestanding |
| Leveling Legs | Yes |
| Items | Water Pipe, Ice Scoop, Ice Storage Box |
| DESIGN & FINISH | |
| Color | White |
| Style | French Door Counter Depth |
| Shelf Material | Glass with Stainless Steel Trim |
| TECHNICAL DETAILS | |
| Watts | 190W |
| Volts | 115V |
| Frequency | 60Hz |
| Amperage | 15 Amps, Dedicated Circuit Required |
| Plug Type | 3-Prong Plug |
| Power Cord Length | 94" |
| REFRIGERATOR FEATURES | |
| Refrigerator Capacity | 12.4 cu. ft. |
| Fridge Temperature Range | 32-43°F (0-6°C) |
| Storage Design | Gallon Bin |
| Adjustable Shelves | 2 Glass |
| Design | No Frost |
| Modes | Child Lock / Energy Saving & Vacation Mode / Fast Cooling |
| Number of Door Bins | 6 |
| Number of Shelves | 4 |
| Lighting | LED |
| FREEZER FEATURES | |
| Freezer Capacity | 5.1 cu. ft. |
| Freezer Temperature Range | -10 to 5°F (-23 to -15°C) |

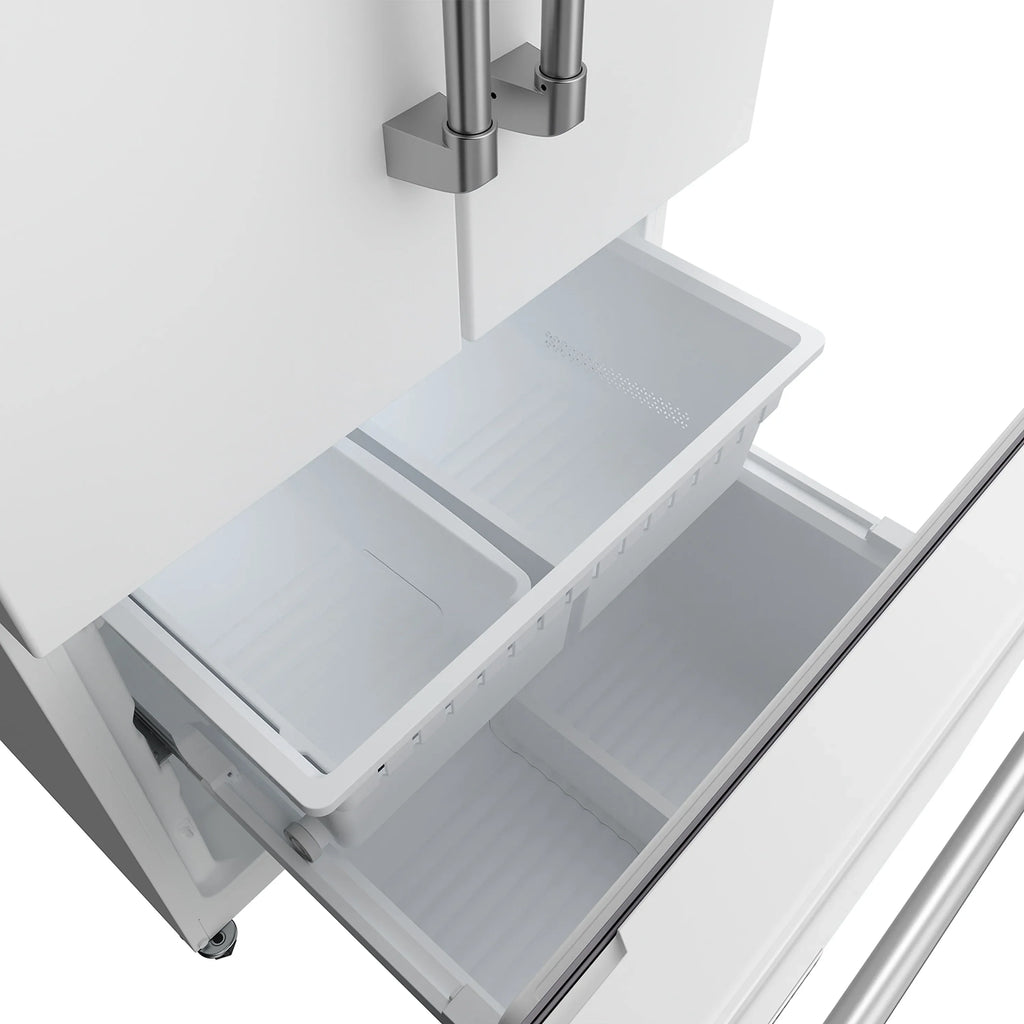

| Drawer Configuration | 1 Pull-Out Drawer with 2 Full-Width Storage Compartments |
| Automatic Ice Maker | Produces Up To 3.8 Pounds of Ice Daily |
| Fast Freezing | Yes |
| Number of Freezer Baskets | 1 |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 2 Years Parts and Labor |

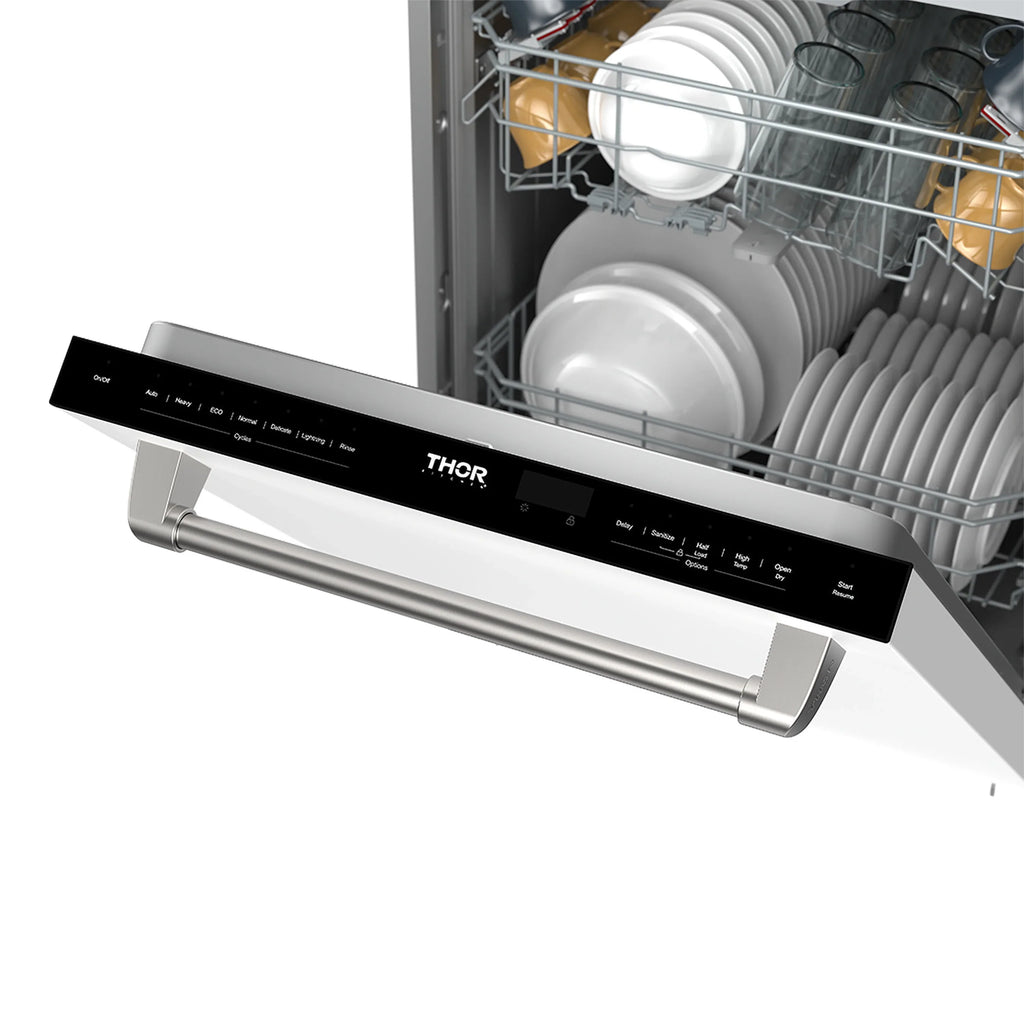

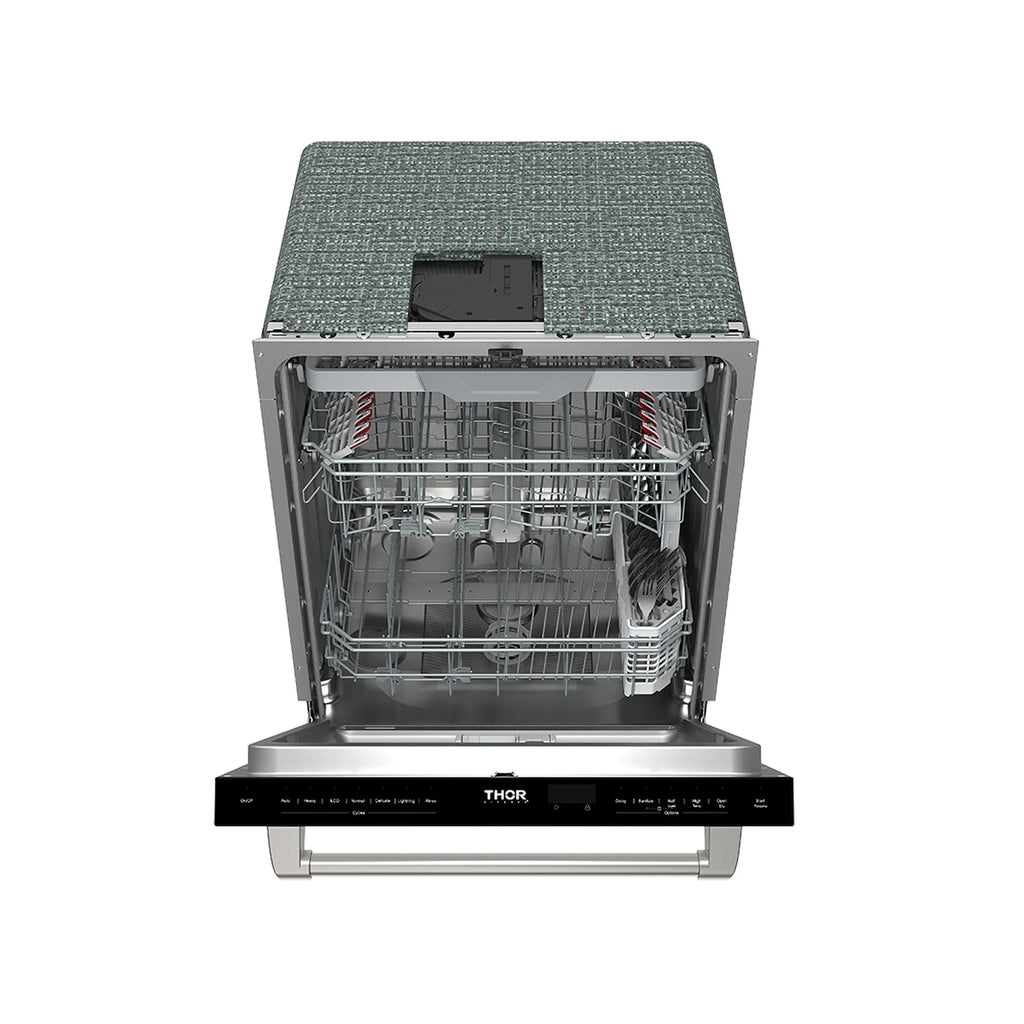

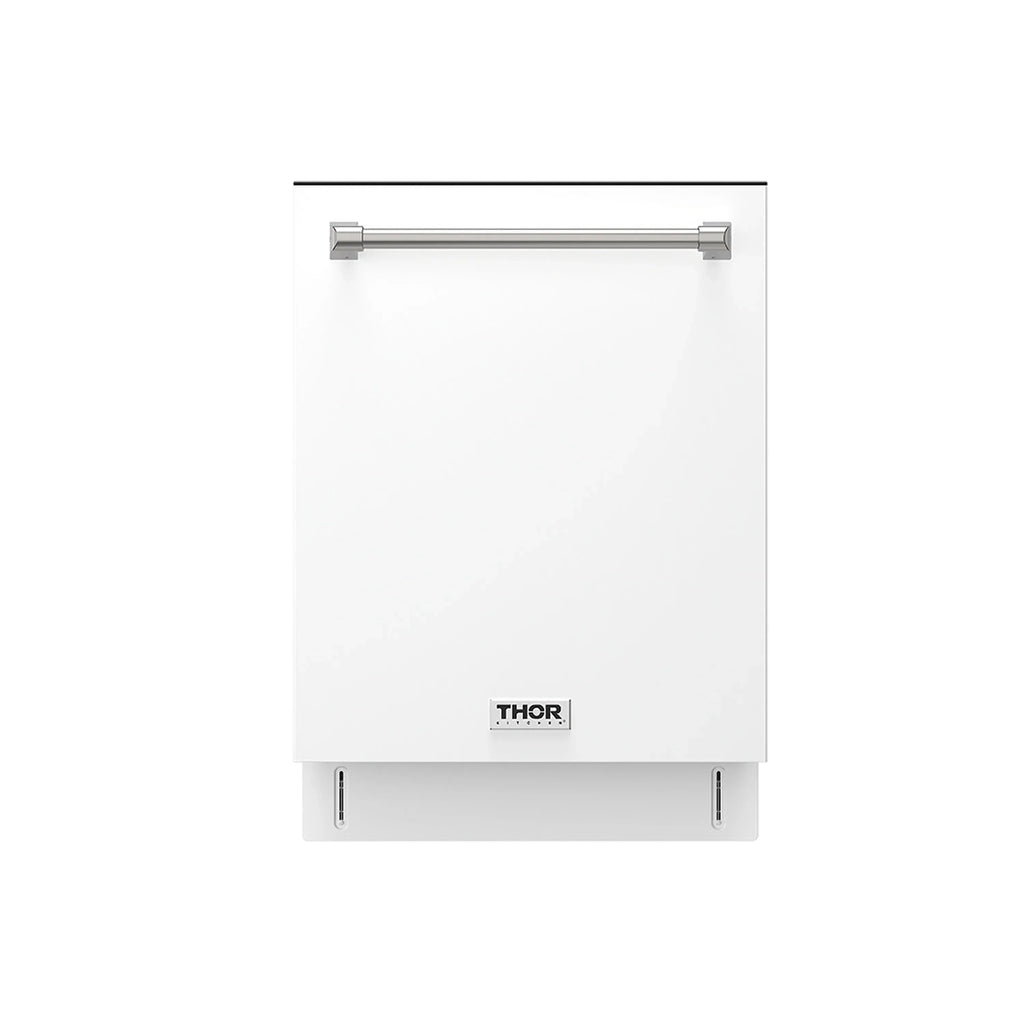

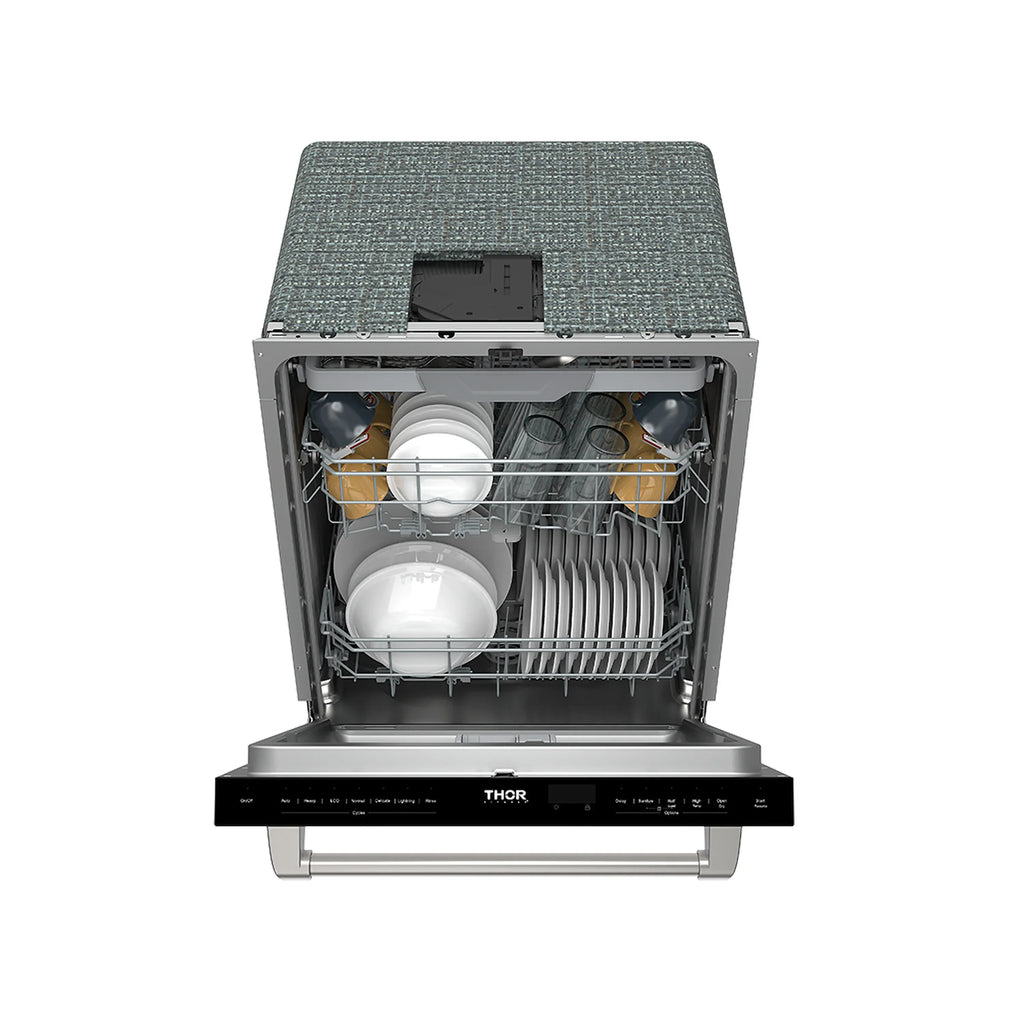

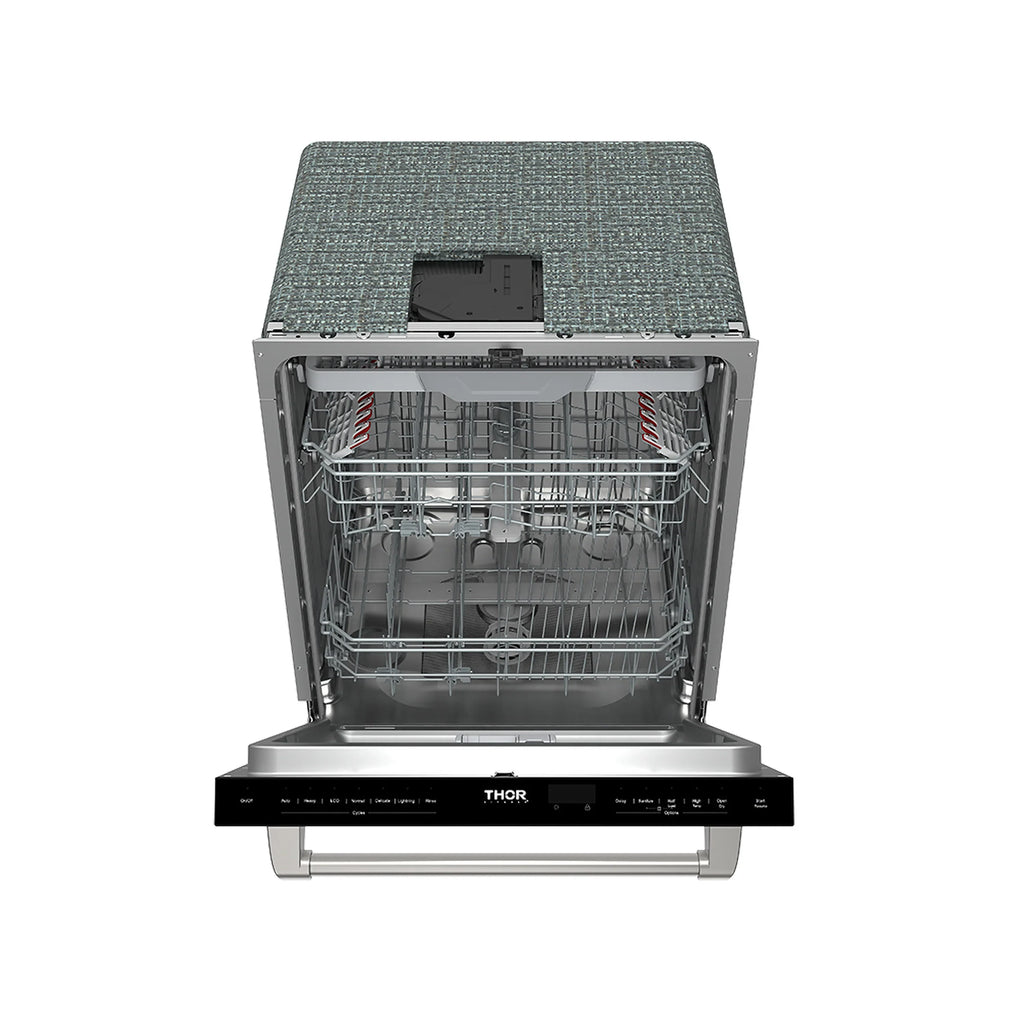

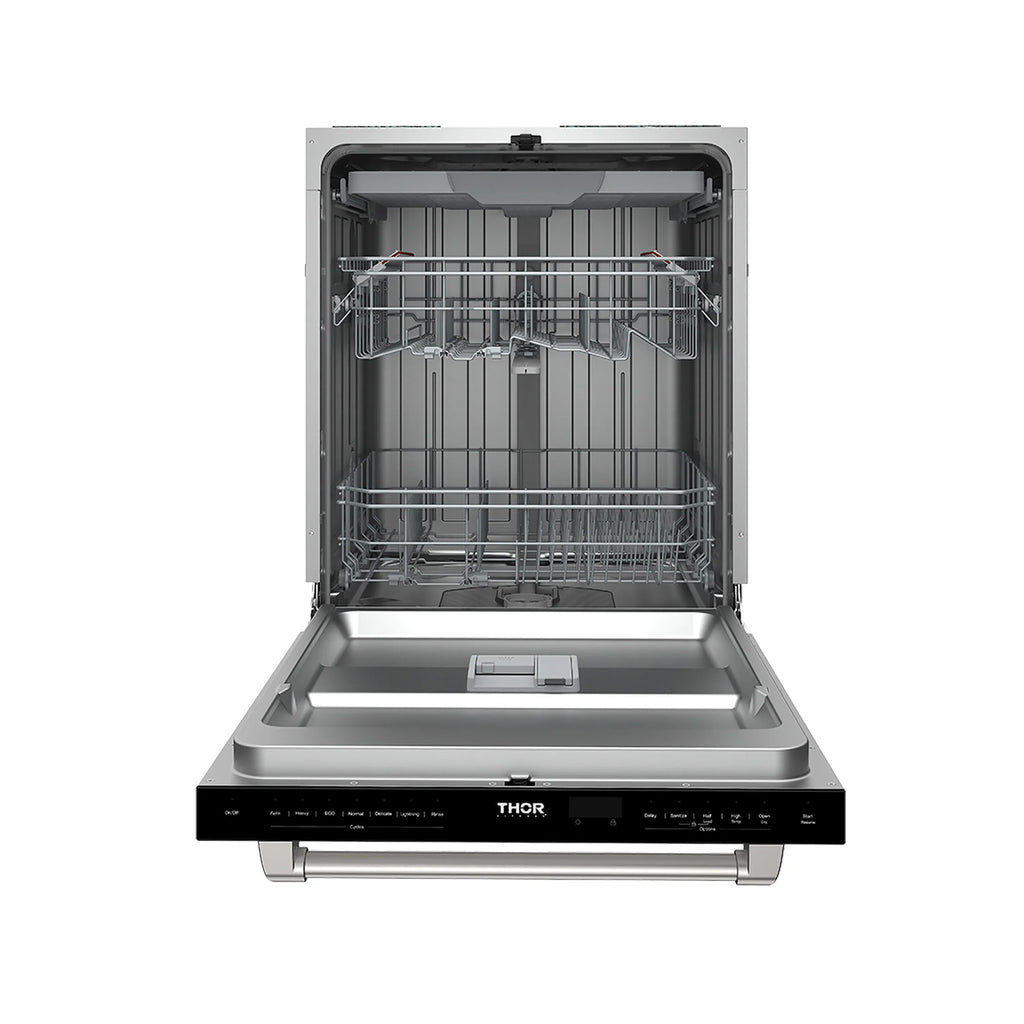

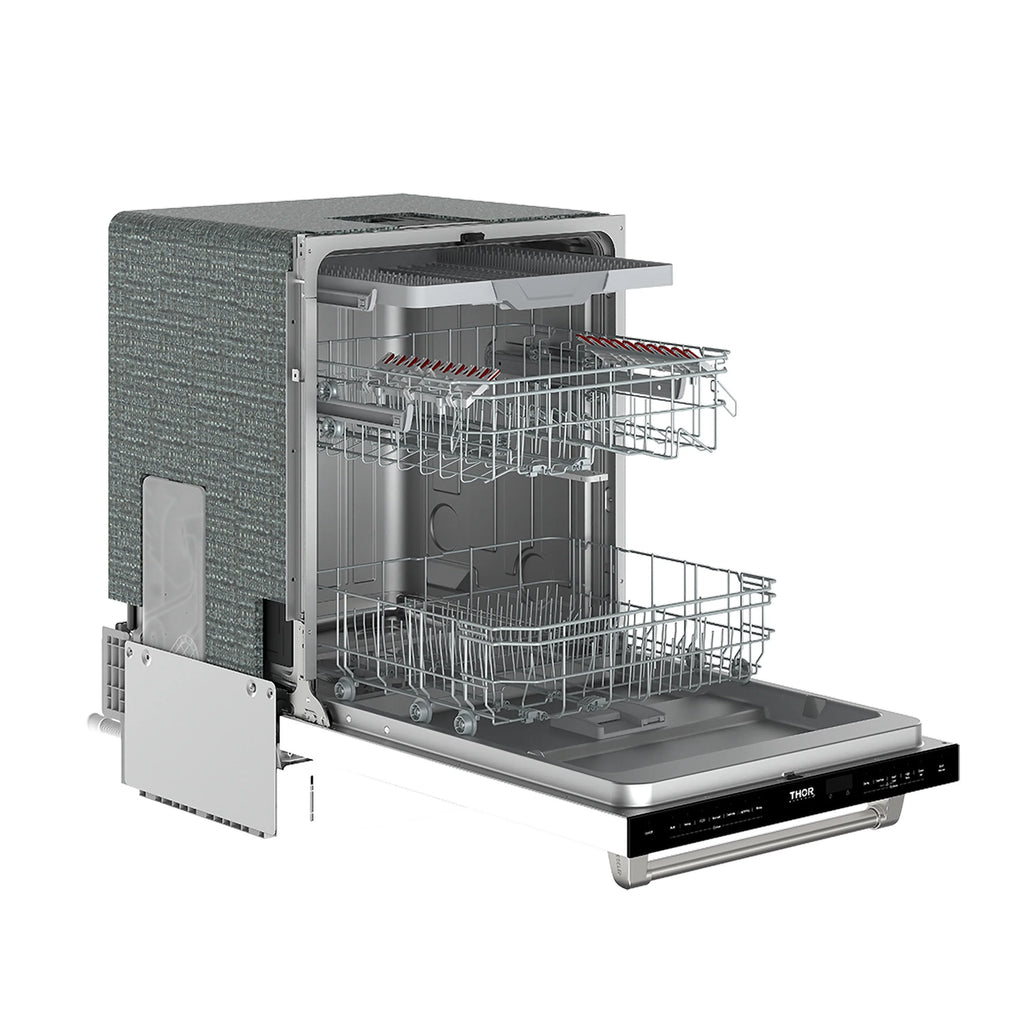

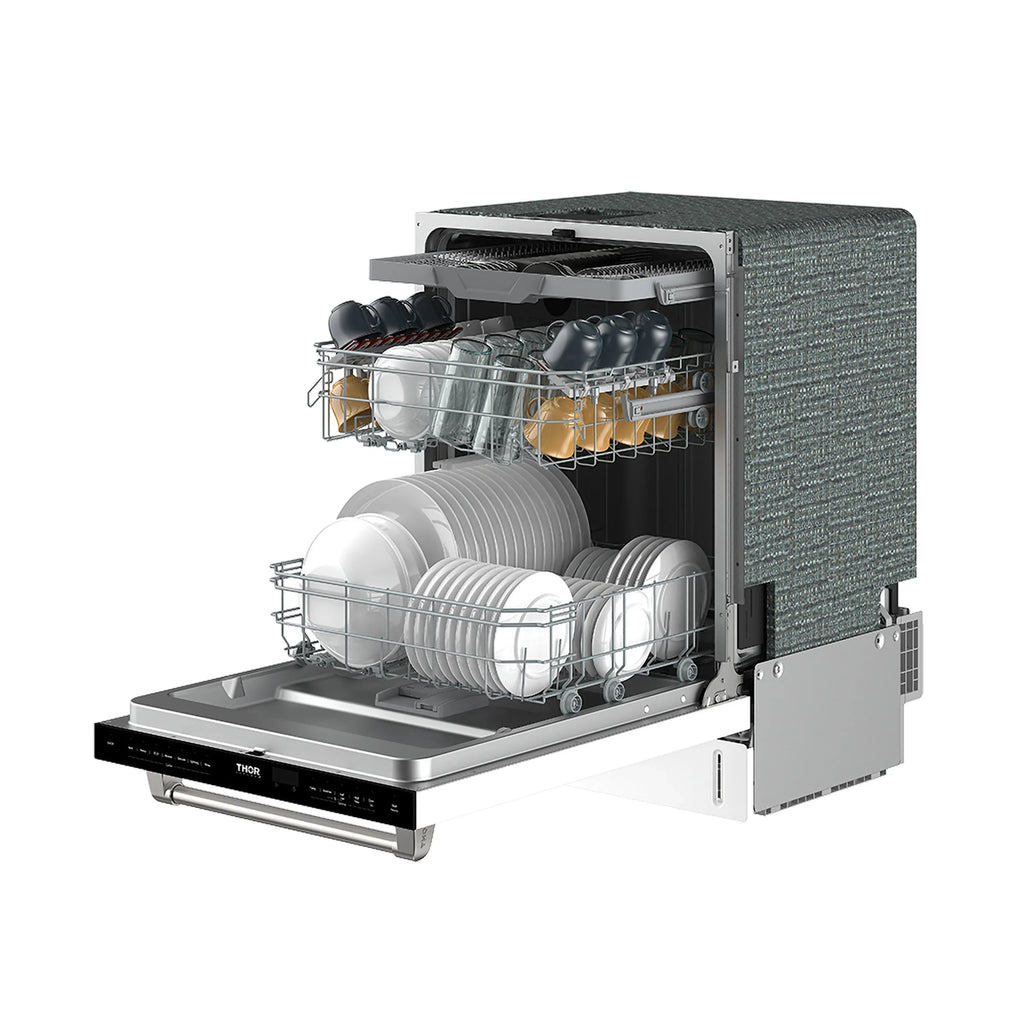

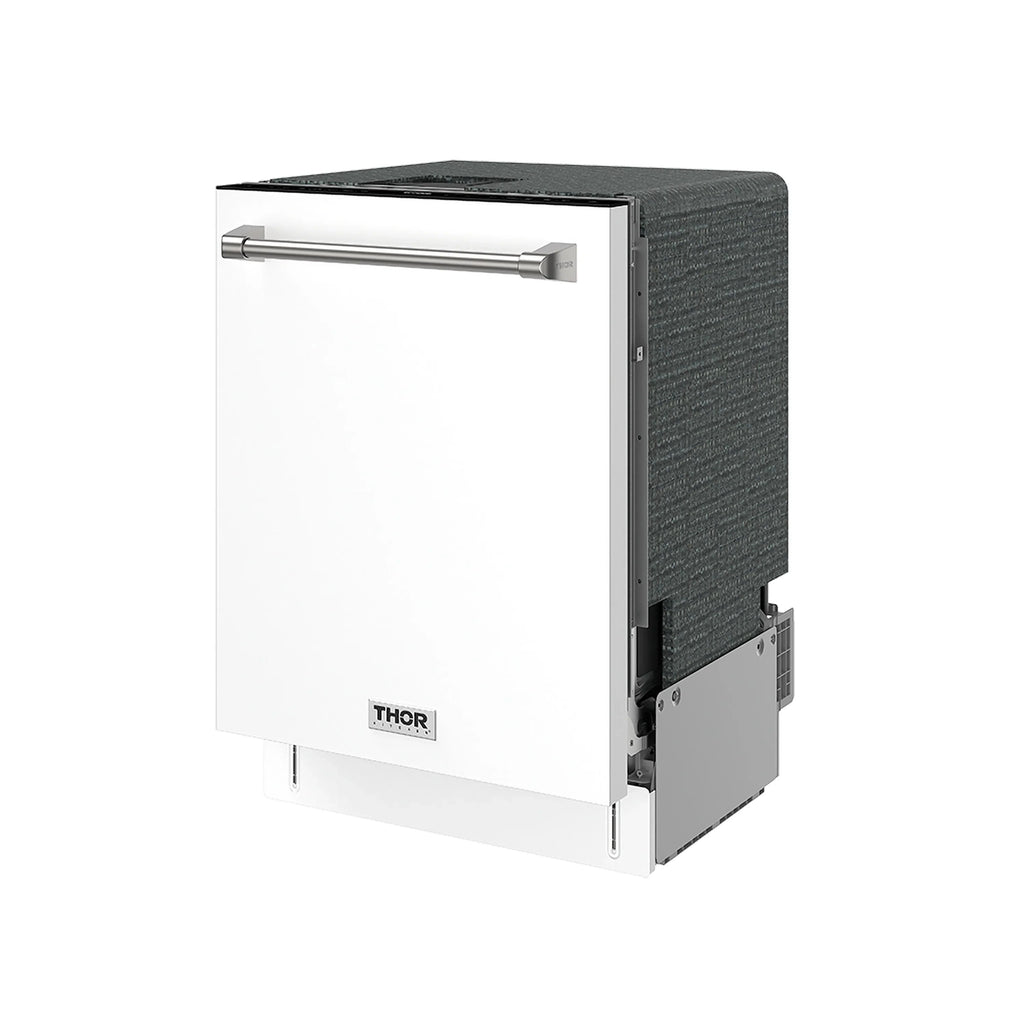

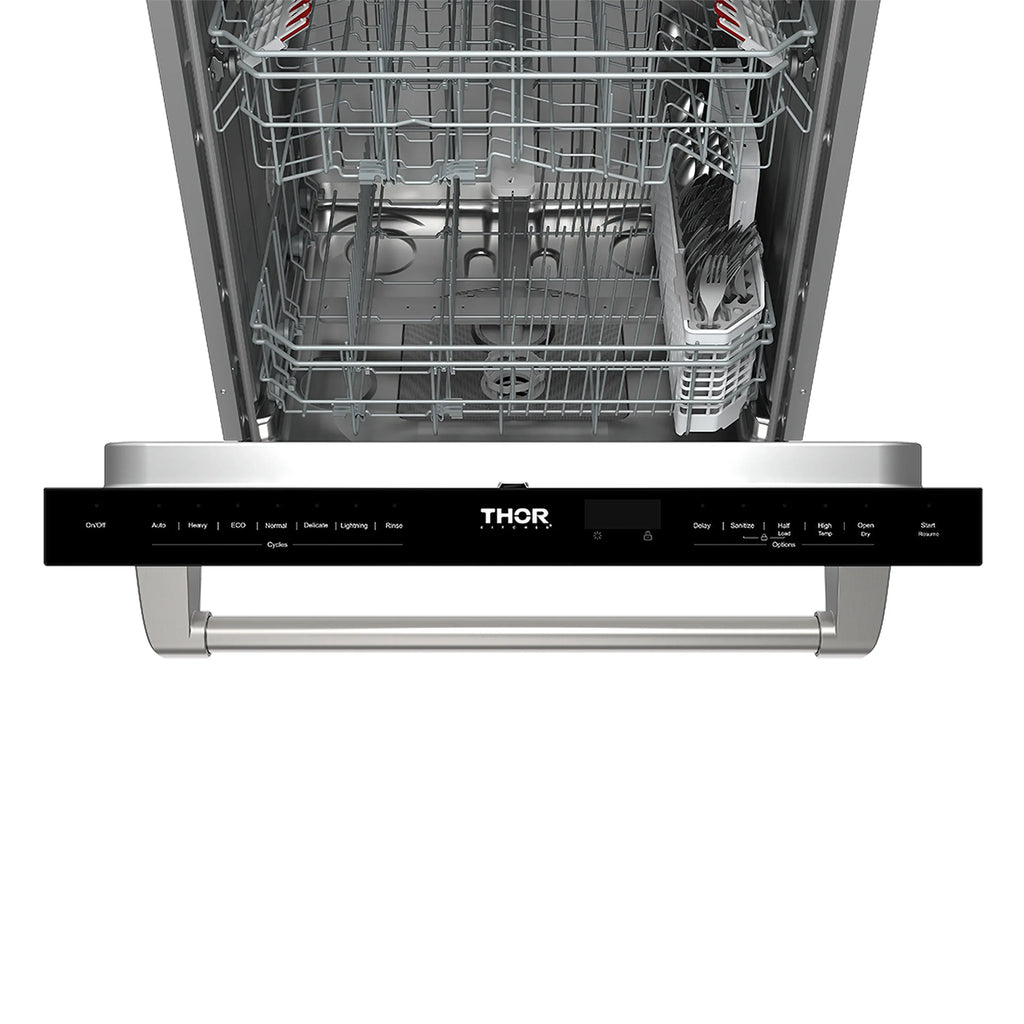

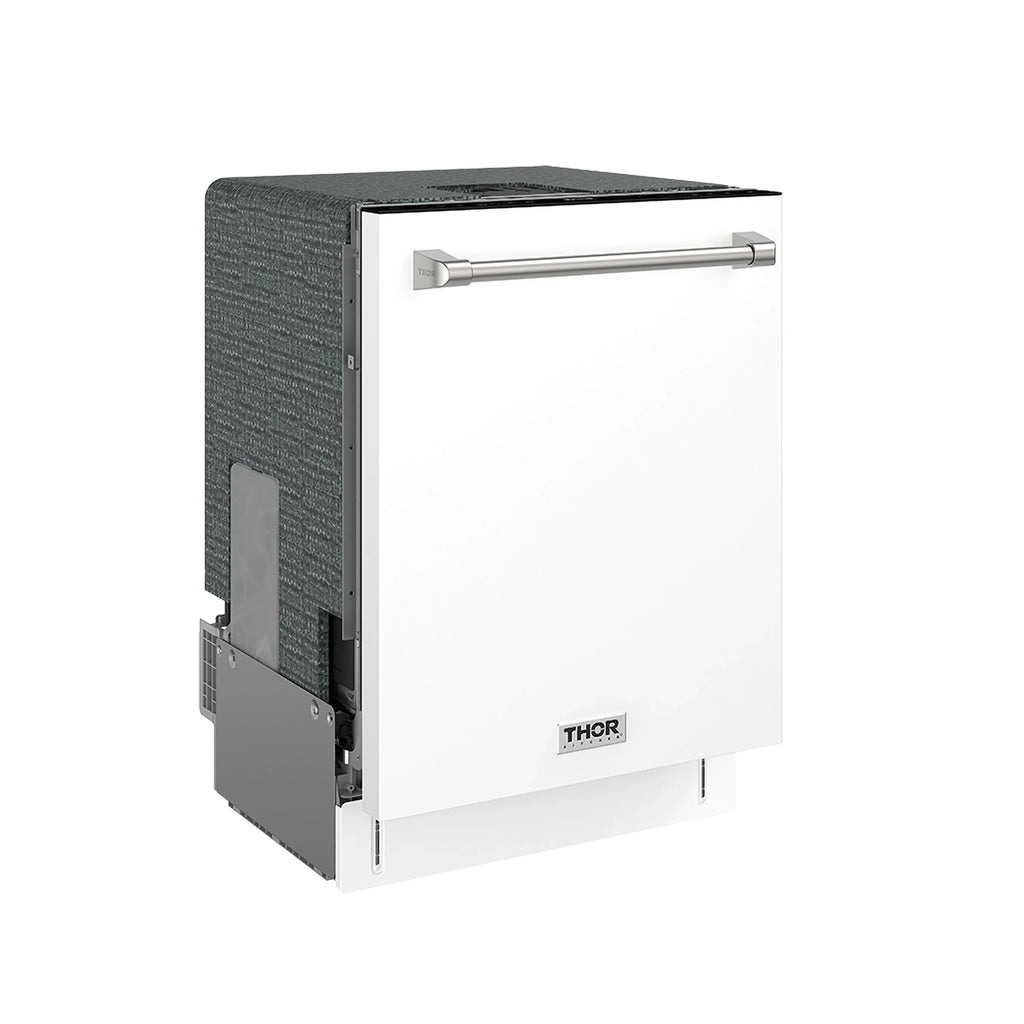

The Thor Kitchen TDW24C7B is a 24-inch top control built-in dishwasher in white, offering 7 wash cycles with 5 options to handle everything from delicate glassware to heavily soiled cookware. Featuring a quiet 47 dBA operation, a 3-rack system with a third-layer cutlery rack, height-adjustable upper basket, and a wine glass bracket, it delivers flexible, organized cleaning for up to 15 place settings. The touchscreen controls, status indicator light, and open dry system round out a feature-rich dishwasher designed for modern kitchens.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) (in.) | 23-7/8" x 22-5/8" x 33-7/8" |
| Product Depth with Handles (in.) | 25-1/8" |
| Cutout Dimensions (WxDxH) (in.) | 23-7/8" - 24" x 22-7/8" - 23-5/8" x 34" - 35-1/2" |
| Package Dimensions (WxDxH) (in.) | 28-3/4" x 28-3/4" x 35-1/16" |
| Net Weight (lbs.) | 80.5 |
| Gross Weight (lbs.) | 97.8 |
| GENERAL INFORMATION | |
| Brand | Thor Kitchen |
| Model Number | TDW24C7W |
| Product | 24 Inch Top Control Built-In Dishwasher in White |

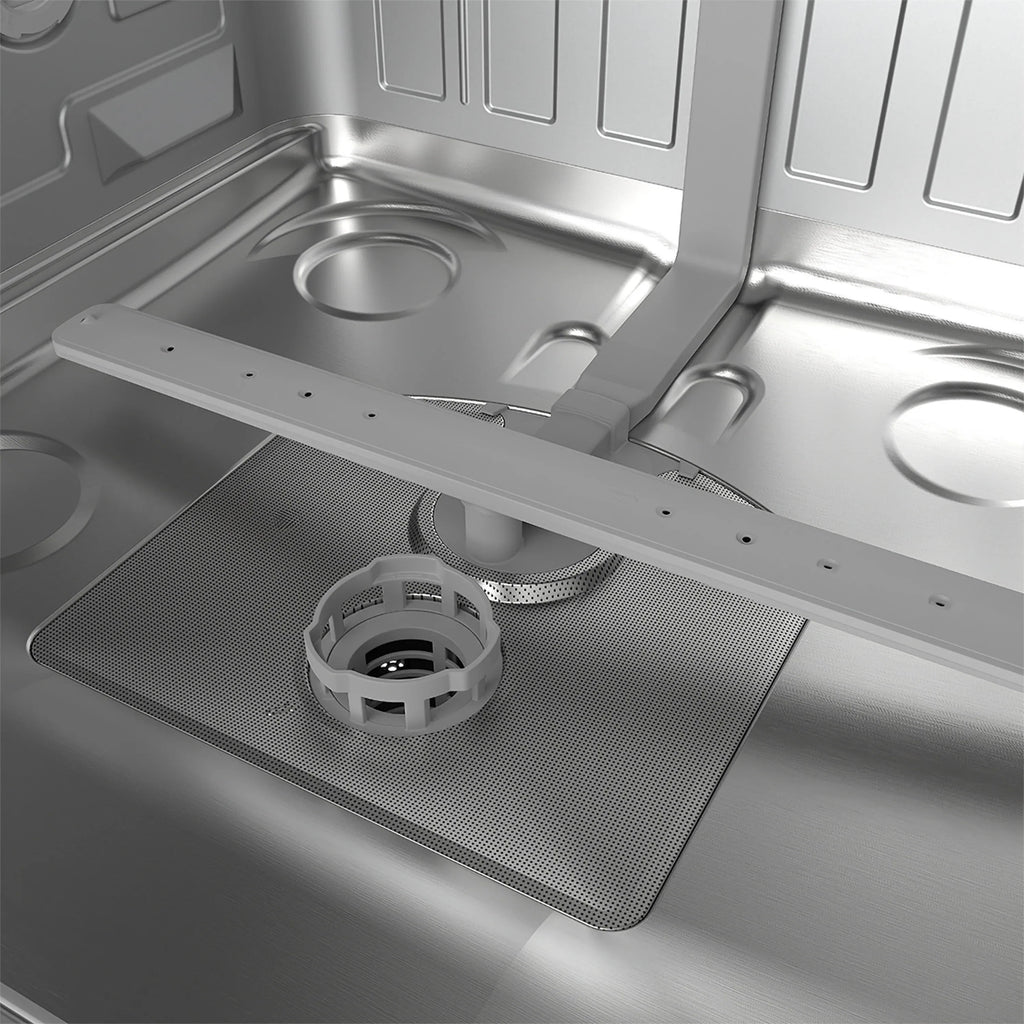

| Spray Arms | 3 (Lower, Upper, and Top) |
| DESIGN & FINISH | |
| Tub Material | Stainless Steel |
| Control Type | Touch Screen |
| TECHNICAL DETAILS | |
| Watts | 1200W |
| Amperage | 15A (Dedicated) |
| Volts | 120V |
| Frequency | 60Hz |
| Total Annual Energy Consumption | 240 kWh/per year |
| Water Consumption | 3.2 gal |
| Noise Level | 47 dBA |
| Water Feed Pressure | 20-120 psi |
| Inlet Water Temperature | Recommended 120°F (49°C) |
| Outlet Hose Length (in.) | 59" |
| Drain Hose | Yes |
| Water Supply Hose | Required |
| Power Cord | Required |
| FEATURES | |
| Load Capacity (Place Settings) | 15 |
| Number of Wash Cycles | 7 |

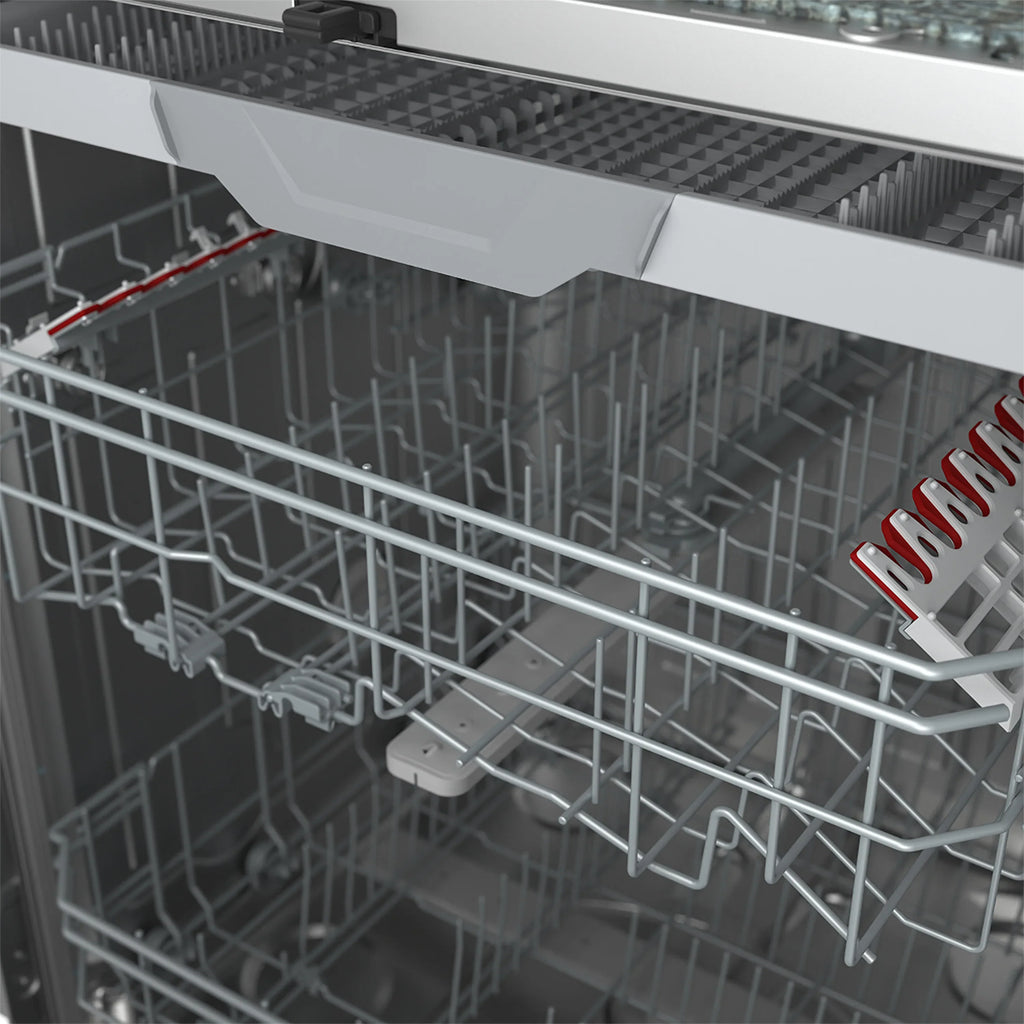

| Number of Racks | 3 |
| Adjustable Rack | Yes |
| Water Softener | No |
| Child Lock | Yes |
| Status Indicator | Yes (Red) |
| Tub Light | No |
| Wine Glass Bracket | Yes |
| Third Layer Cutlery Rack | Yes |
| Moisture Barrier | Yes |
| Mounting Hole Cover | 4 (2 Already Installed) |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 2 Years Parts and Labor |
