| DIMENSIONS | |
|---|---|
| Product Width | 35 7/8 in. |
| Product Height (from bottom to top of back splash) | 37 1/4 - 40 1/4 in. |
| Product Height (from bottom to top of side panel) | 36 - 39 in |
| Product Depth (from back panel to bullnose | 26 7/8 in. |
| Product Depth (from back panel to control board) | 26 1/4 in. |
| Product Depth (from back panel to side panel front) | 24 in. |
| Adjustable Leg Sizes | 3 in. Max. |
| Cut Out Dimensions | 36" W x 24" D x 36" H |
| Cord Length | 60 in. |
| Oven (W x D x H) | 29.7 in. x 19.4 in. x 18 in. |
| GENERAL INFORMATION | |
| Baking Sheet Size | Fits up to 18" x 14" Sheet |
| Accessories Included |
|
| Accessories (Sold Separately) | LP KIT includes orifices and gas regulator caps |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Control Type | Oven Function Button, LED Panel Display |
| TECHNICAL DETAILS | |
| Fuel Type | Gas, LP Option Available |
| Installation Type | Freestanding |
| Voltage | 120V 15A |
| Frequency(Hz) | 60Hz |
| Gas Line Regulator | 1/2 in. |
| Plug Type | 3 Prongs included |
| COOKTOP FEATURES | |
| Hot Surface Indicator Light | Front Right Corner Of Cooktop w/Temp at 150˚F |
| Bake Burner Power | 18,500 BTU |
| Broil Burner Power | 13,500 BTU |
| OVEN FEATURES | |
| Oven Capacity | 6.0 Cu. Ft. |
| Oven Color | Black |
| Oven Features |
|
| Convection | Convection Plan |
| Oven Light | 1*40W, Rear |
| Oven Racks | 2 |
| Oven Rack Material | Chrome Plated |

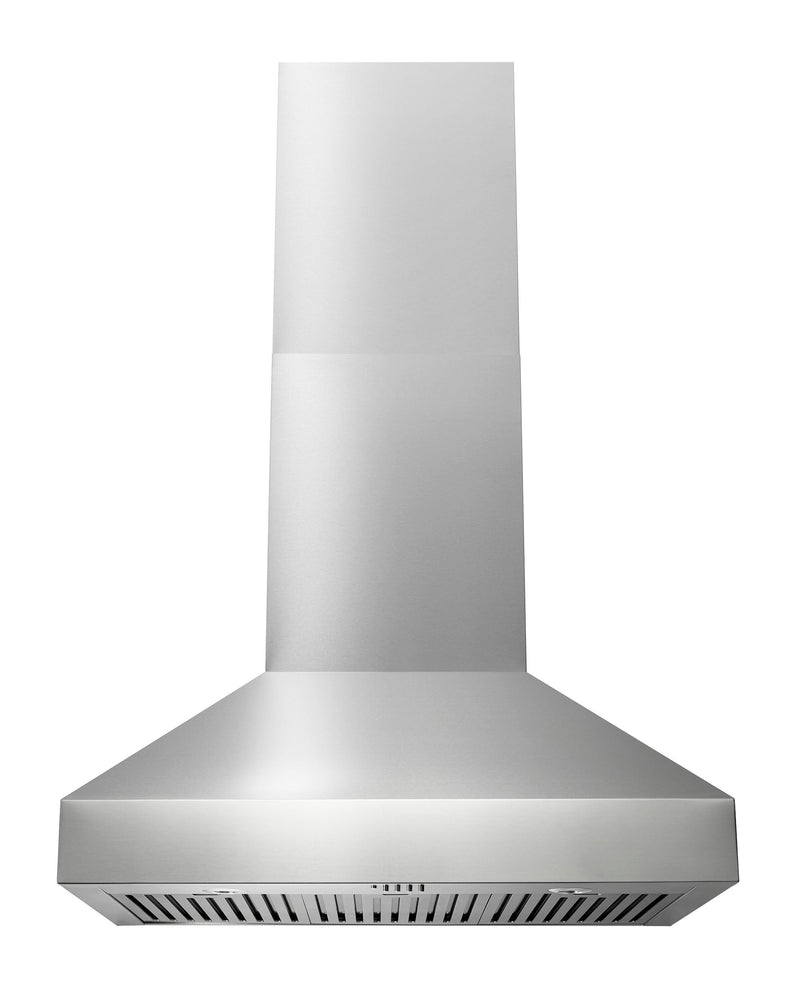

TRH36P THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The 36 Inch Professional Wall Mount Range Hood in Stainless Steel adds a sleek, modern look to your kitchen and is designed to eliminate odors, smoke and steam quietly and efficiently. Fish on the plate? Good. The lingering aroma of fish in every room? Not so good. #cooklikeagod
Options & Accessories (Sold Separately):
| DIMENSIONS | |
|---|---|

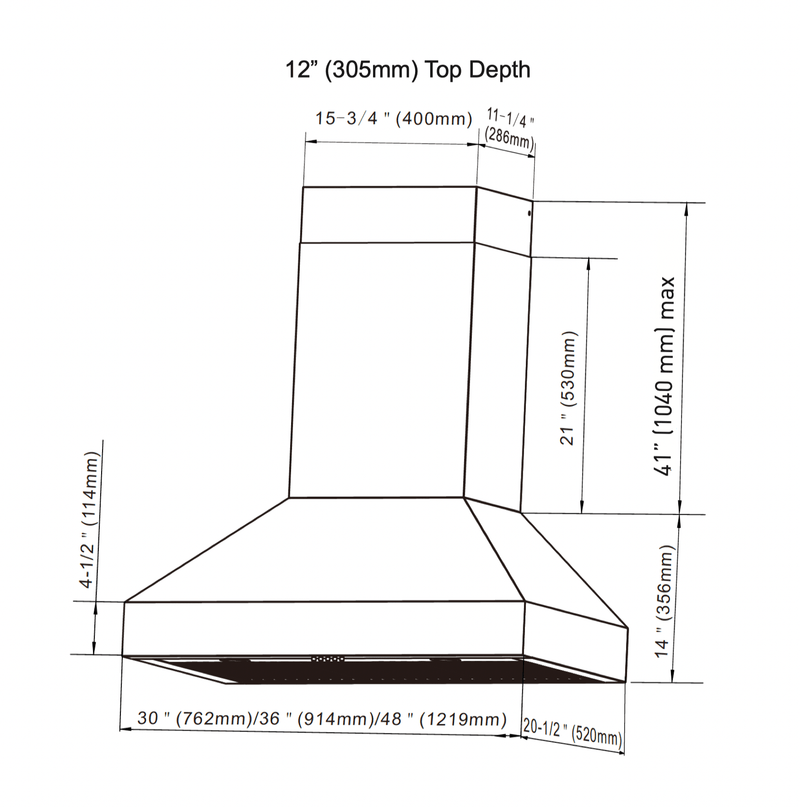

| Dimensions | 36” W x 14” H x 20 1/2” D |
| Gross Weight | 65 lb. |
| Duct Width | 8" |
| GENERAL INFORMATION | |
| Installation Type | Wall Mount |
| DESIGN & FINISH | |
| Control type | Button, no auto shut off No delayed shut off |
| Color/Finish | Stainless Steel |
| TECHNICAL DETAILS | |
| Duct Length | 55" Fully Extended |
| Duct Diameter | 7" |
| Power | 110V |
| Amperage | 3A |
| Duct Shape | Round |
| Frequency | 60 Hz |
| Blower type | Internal |
| Blower Ratings CFM |
|
| Blower Ratings dBA |
|
| FEATURES | |
| Lighting | LED light x 2 |
| Filter type | 430SS Baffle filter x 3 |
| Available Accessories | Charcoal Filter FT05 (Not included) |
