The MRCOOL® Signature Series 24k Heat Pump Condenser is a high-efficiency, all-season solution designed to keep your home comfortable year-round. With a 14.3 SEER2 and 11.7 EER2 rating, it offers dependable climate control and energy savings, making it a smart replacement or upgrade for any home. Pre-charged with R-454B refrigerant, this unit meets today’s environmental standards while delivering reliable performance. Its pre-charged design also speeds up installation and lowers labor costs. At the heart of the system is a durable single-speed scroll compressor, supported by inner-groove copper tubing for improved heat transfer and fast response.
This unit includes temperature and pressure sensors and an intelligent defrost function for reliable performance in extreme weather. It operates quietly at just 60 decibels, with a sound-dampening top ideal for use in residential settings. Built to last, it features a louvered coil guard and wire fan discharge grille for extra protection. Service-friendly features include sweat connection valves and an accessible gauge port, while its compact frame allows for flexible placement. Homeowners also benefit from a 10-year limited parts warranty and a limited lifetime compressor warranty. For comfort, efficiency, and durability, the MRCOOL® Signature Series 24k Heat Pump delivers long-term value.
| Net Dimensions (In) | 23.6 D x 25 H x 23.6 W |
| Net Weight (Lbs) | 144 |
| Works With | Signature Series Multi-Position or Stud Mount Air Handlers |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| HSPF2 | 7.5 |
| CFM | 1950 |
| Tonnage | 2 |
| Cooling Capacity (Btu) | 22000 |
| Heating Capacity (Btu) | 22000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 20 |
| Min Circuit Ampacity (A) | 15.2 |
| Color | Grey |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 91.7 |
| Decibel Rating (Dba) | 60 |
| Inverter | No |
| Min Ambient Cool (F) | 59 |
| Min Ambient Heat (F) | 5 |
| Max Lineset Length (Ft) | 100 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | PSC |
| Condenser Fan Motor Hp | 1/9 |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Gross Depth (In) | 24.8 |
| Gross Height (In) | 26.2 |
| Gross Width (In) | 24.8 |
| Gross Weight (Lbs) | 151 |

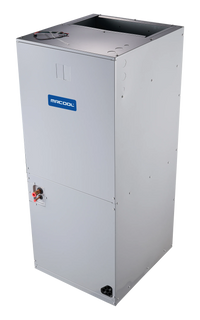

The MRCOOL® Signature Series 24k Multi-Position Air Handler is built for reliable, year-round performance and is now enhanced with R-454B refrigerant for improved energy efficiency and reduced environmental impact.
Designed for versatility, it can be installed in upflow, downflow, or horizontal configurations, making it ideal for tight spaces like closets, attics, or crawl spaces. Its slim, compact design allows for seamless integration in space-constrained areas, while still delivering full-capacity heating and cooling when paired with a compatible heat pump or condenser. The galvanized steel cabinet ensures durability. Inside, copper “A” coils with enhanced aluminum fins offer excellent heat transfer and humidity control, while thermal insulation minimizes energy loss and reduces condensation. This translates to lower utility bills and more effective indoor comfort. Installation is quick and straightforward, helping reduce labor time and costs. An air filter rack makes change-outs a breeze, and an optional electric heat kit extends heating performance in colder climates. The system is smart home compatible, working with most third-party thermostats to give homeowners flexible control without locking them into a proprietary platform.
Backed by a 10-year limited parts warranty, the MRCOOL® Signature Series 24k Multi-Position Air Handler offers peace of mind along with powerful performance. With its durable build, energy-saving features, and flexible installation options, this air handler is the ideal solution for dependable, efficient home comfort.
| Net Dimensions (In) | 22 D x 45.75 H x 19.625 W |
| Net Weight (Lbs) | 128 |
| Works With | Signature Series Top Discharge Condensers |
| CFM | 761 |
| Tonnage | 2 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 3 |
| Min Circuit Ampacity (A) | 2.4 |
| Mount Type | Multi-Position |
| Color | Grey |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 53 |
| Air Flow Direction | Multi-Position |
| Drain Connection Size | 3/4 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Blower Motor Type | PSC |
| Blower Motor Hp | 1/3 |
| Blower Motor Speeds | 3 |
| Blower Motor Rpm | 910 |
| Filter Type | Replaceable |
| Filter Size | 18 * 21 * 1 |
| Metering Device | Orifice |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kW, 7.5kW, 10kW |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Gross Depth (In) | 25.6 |
| Gross Height (In) | 47.625 |
| Gross Width (In) | 22.83 |
| Gross Weight (Lbs) | 141 |
