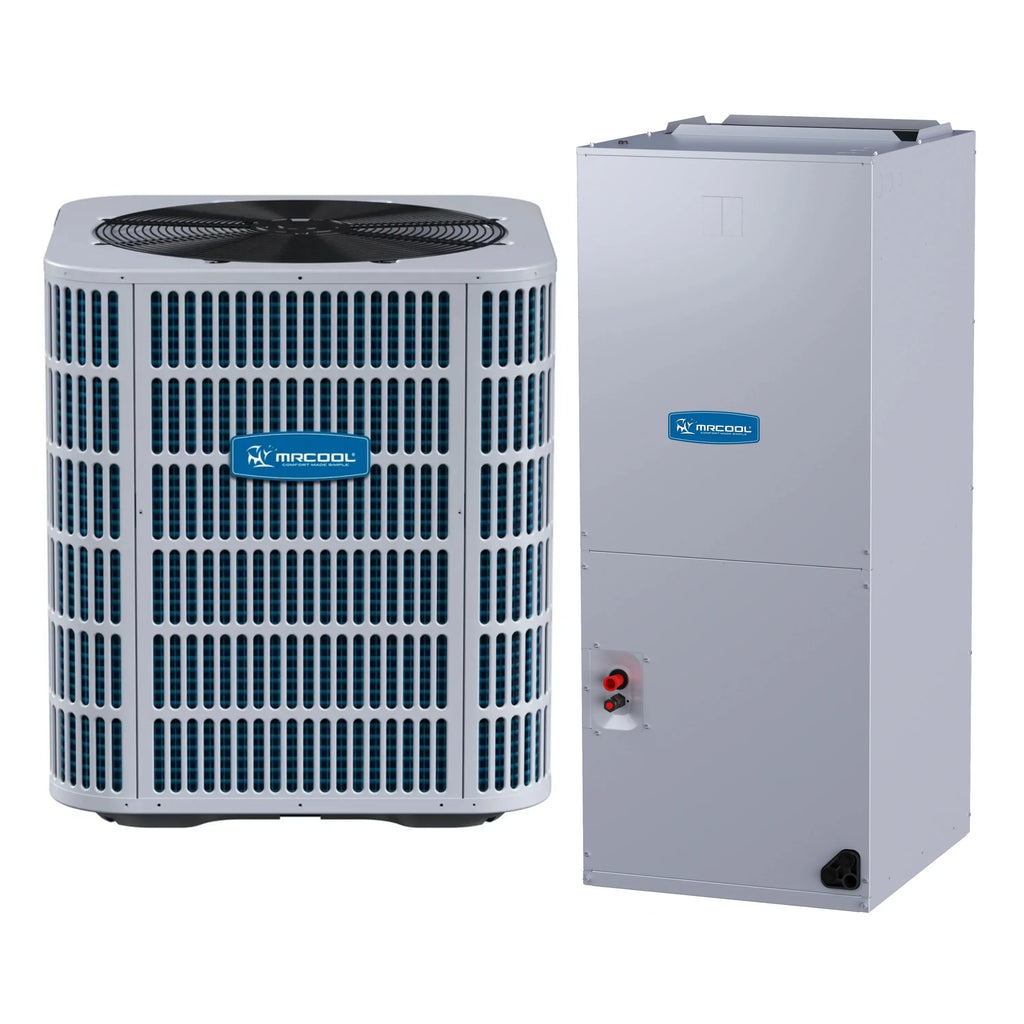

The 5 Ton PRODIRECT™ Series Heat Pump is an HVAC system designed to provide reliable heating and cooling for homeowners. With a SEER2 rating of up to 15.2, it utilizes R410A, a chlorine-free refrigerant, and an energy-efficient compressor for optimal performance. Constructed for durability, the system features a high-quality condenser made with inner-groove copper tubes and aluminum fins. It includes service valves with sweat connections and easy-access gauge ports to simplify maintenance. The 60K PRODIRECT™ heat pump is equipped with high and low-pressure switches to ensure safe operation. Its innovative sound control top design keeps noise levels at just 78 decibels, which is comparable to the sound of a washing machine, creating a tranquil environment. The compact design allows for easy installation and transportation, while the wire fan discharge grille and steel louver coil guard enhance its durability. Homeowners also have the option to include an additional dryer filter as an accessory. This unit is AHRI-certified and ETL-listed, confirming that it meets the highest industry standards. MRCOOL® supports the system with a standard 5-year warranty plus additional 5-year extended parts and compressor warranty upon registration. Overall, the 5 Ton PRODIRECT™ Series Heat Pump is a dependable choice for long-term comfort.
|
Dimensions |
29 1/8" D x 33 3/16" H x |
|
SEER2 |
15.2 |
|
Cooling Capacity (BTU) |
60000 |
|
Heating Capacity (BTU) |
60000 |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
60 |
|
Min Circuit Ampacity (A) |
34.6 |
|
Rated Load |
8 |
|
Refrigerant Type |
R410A |
|
Refrigerant Volume (OZ) |
181 |
|
Decibel Rating (DBA) |
78 |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
11/8 |
|
Compressor Motor Type |
Scroll |
|
Condenser Fan Motor Type |
ECM |
|
Condenser Fan Motor HP |
1 1/3 |
|
Net Weight (Lbs) |
218 |
The 5 Ton PRODIRECT™ Series PSC Air Handler is an excellent choice for enhancing your home's HVAC system. Designed for compatibility with cooling and heat pump systems, it adapts to your specific setup with ease. With a SEER2 rating of 15.2, this air handler delivers energy-efficient operation while its durable all-aluminum tubes and fins ensure long-lasting performance.
The 60K PRODIRECT™ Air Handler features a factory-sealed cabinet that reduces air leakage to 2% or less at 1.0-inch water column pressure, maintaining optimal performance. Its flexible design supports multi-positional installation, fitting seamlessly into a variety of spaces, and includes horizontal and vertical condensate drain pans for added convenience. Maintenance is simplified with an easy-to-access slide-out blower and coil components, making routine upkeep hassle-free. Optional heat kits, available in 5 to 20 kW capacities, allow you to customize the heating capabilities to meet your home’s requirements. Certified by AHRI and ETL-listed, this air handler meets high standards for safety and efficiency. Backed by MRCOOL® with a standard 5-year warranty and an additional 5-year parts and compressor warranty upon registration, the 5 Ton PRODIRECT™ Series PSC Air Handler provides reliable comfort for years to come. Let the PRODIRECT™ Series provide the ideal blend of comfort and efficiency for your home.
| Dimensions | 24" D x 54 1/2" H x 22" W |
|
Cooling Capacity (BTU) |
60000 |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
5.7 |
|
Color |
Silver |
|
Full Load |
4.5 |
|
Refrigerant Type |
R410a |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
7/8 |
|
Blower Motor Type |
PSC |
|
Blower Motor HP |
3/4 |
|
Blower Motor RPM |
990 |
|
Auxilliary Heater Included |
N |
|
Auxiliary Heater Available |
Y |
|
Auxiliary Heater Sizes |
5,7.5,10,15,20 |
