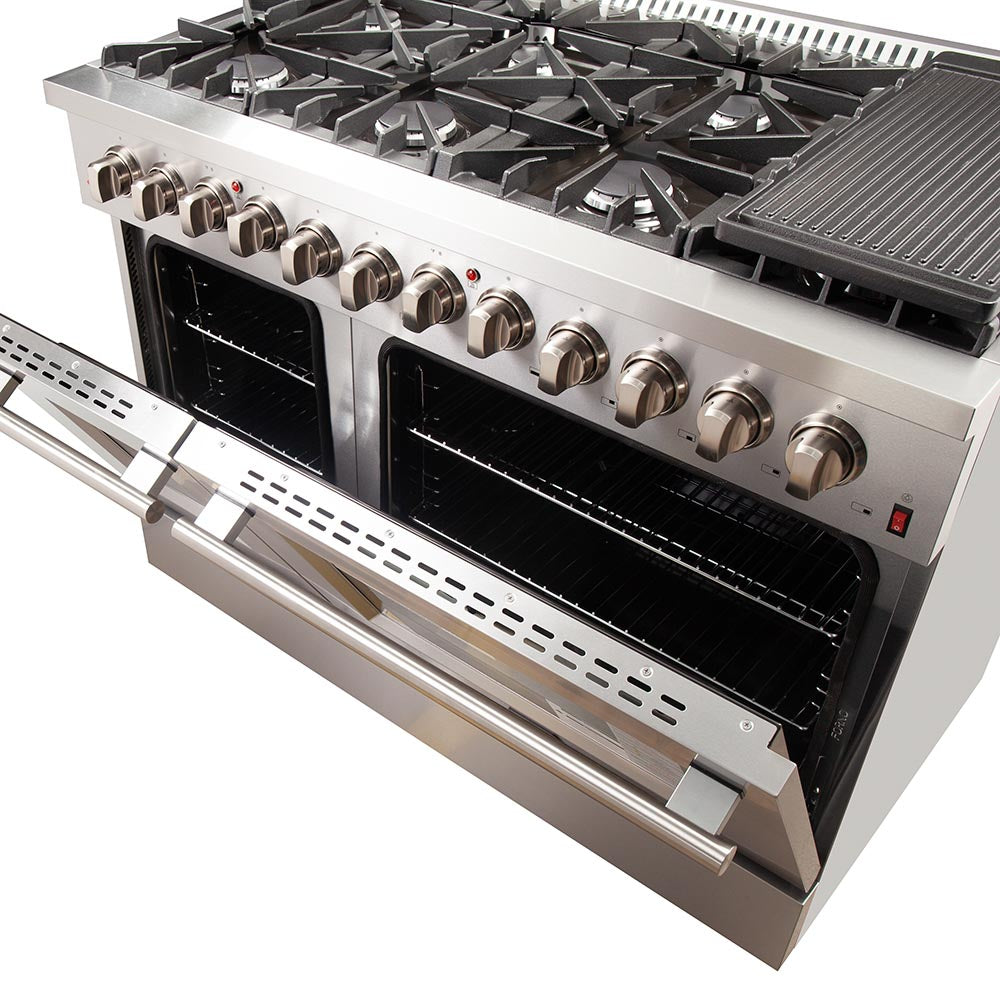

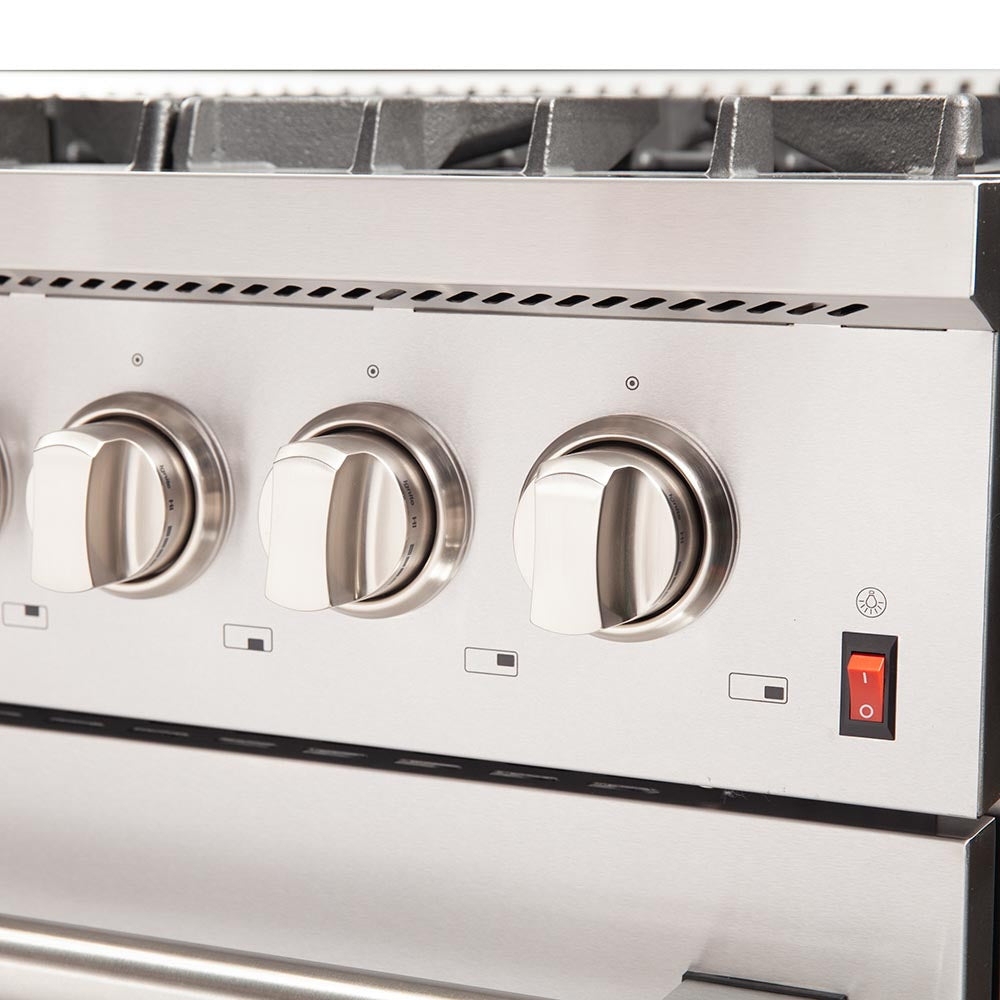

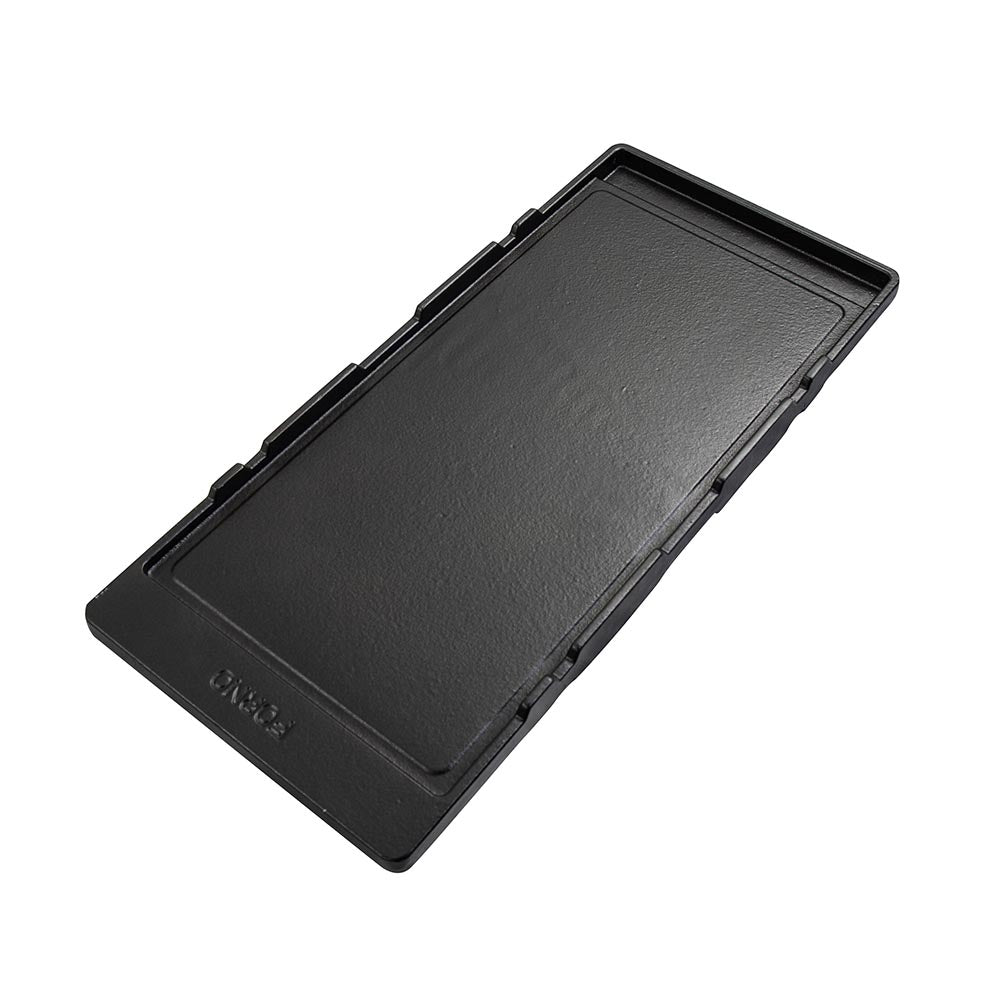

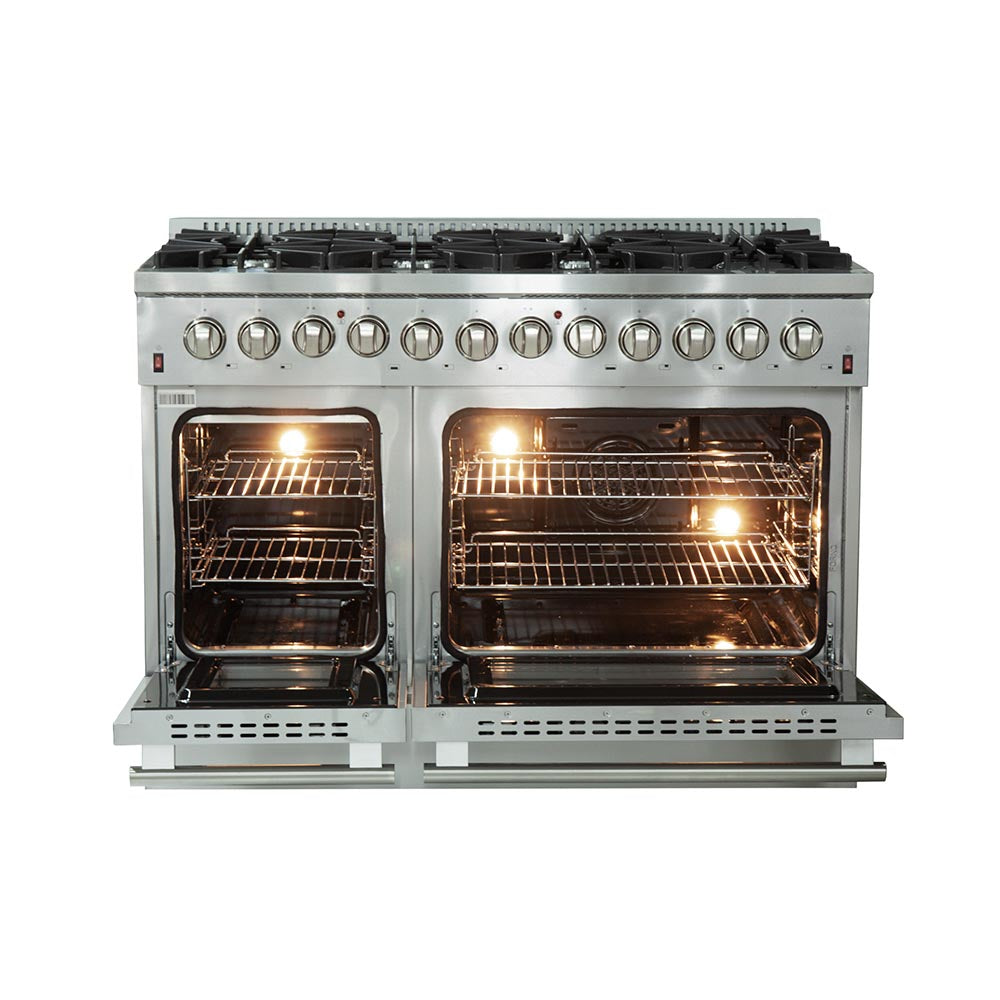

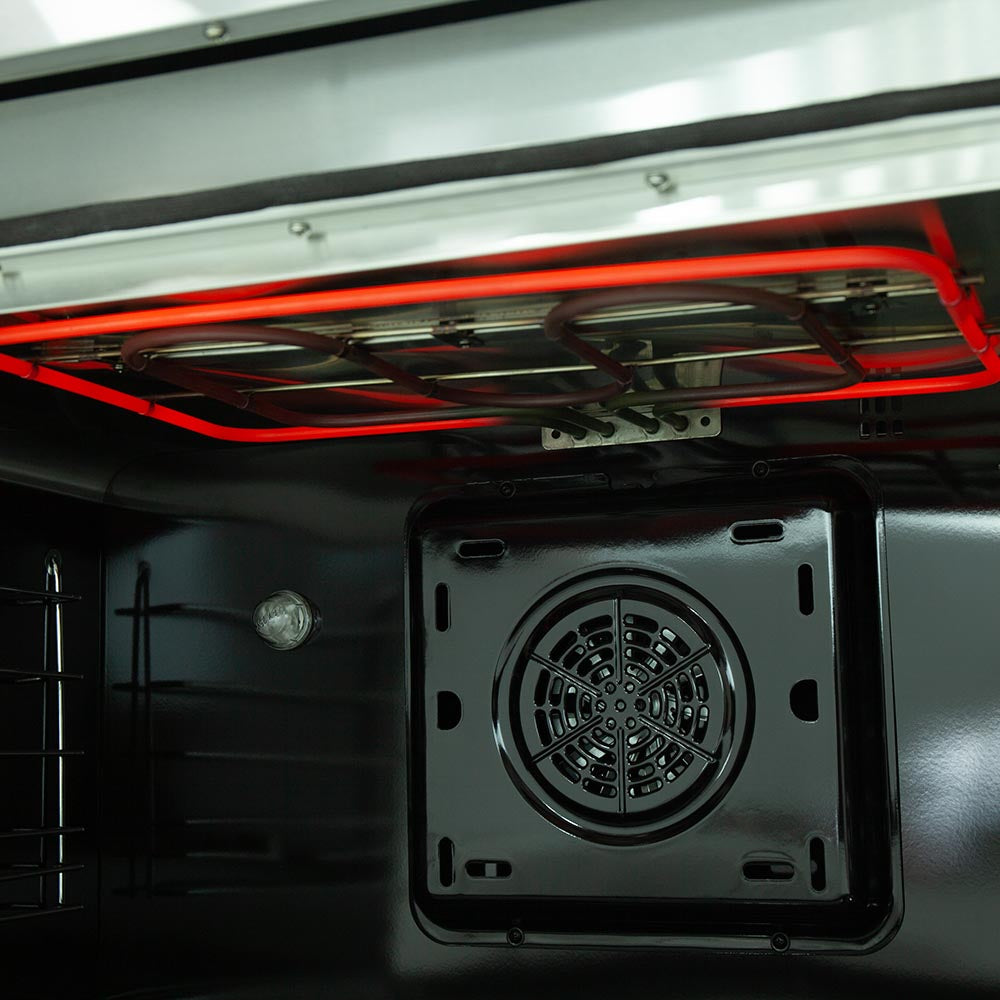

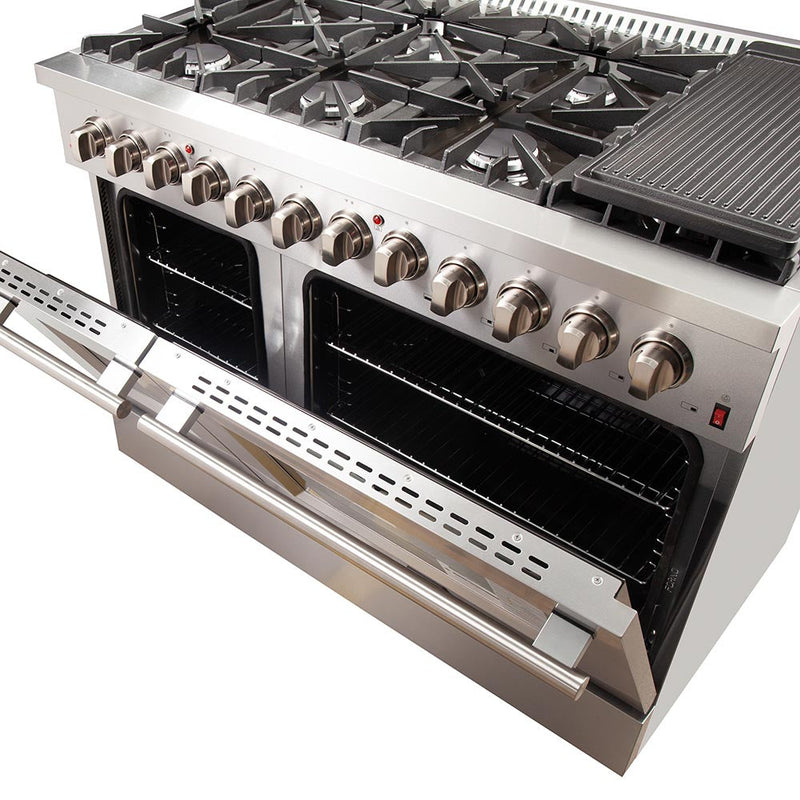

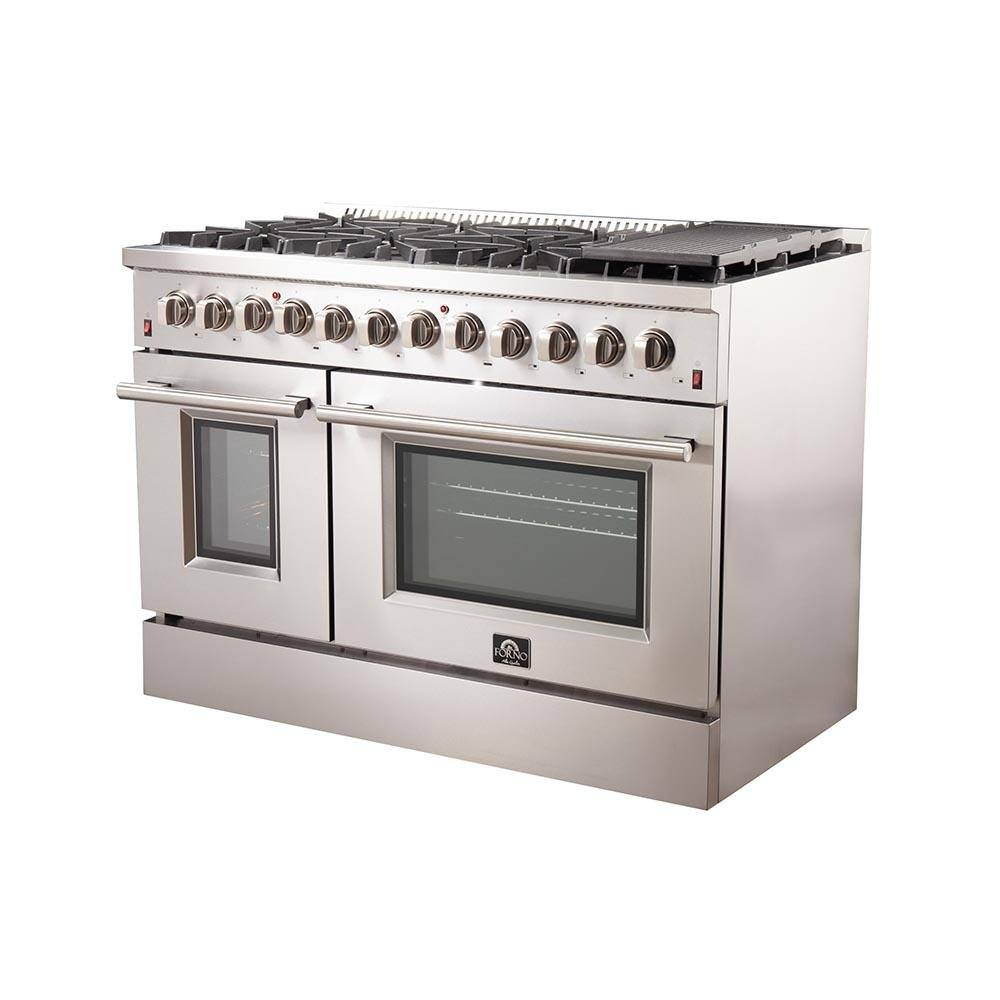

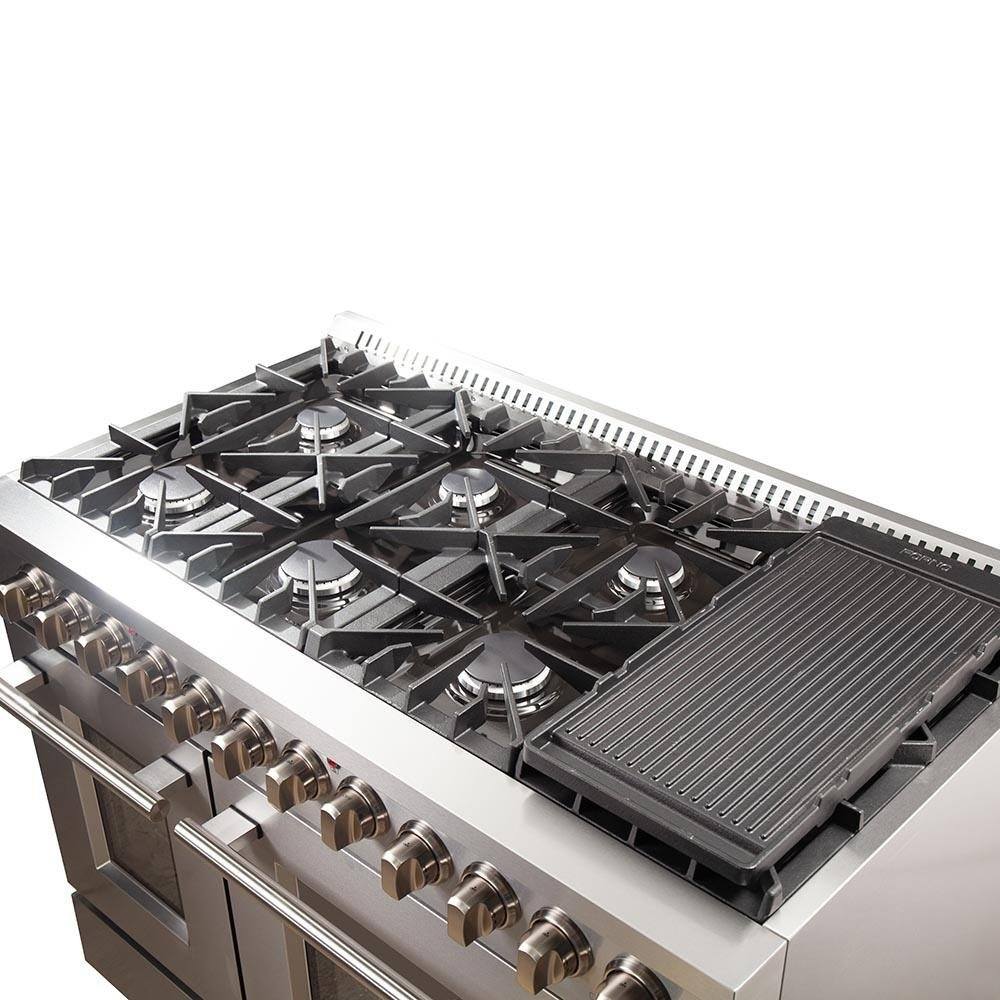

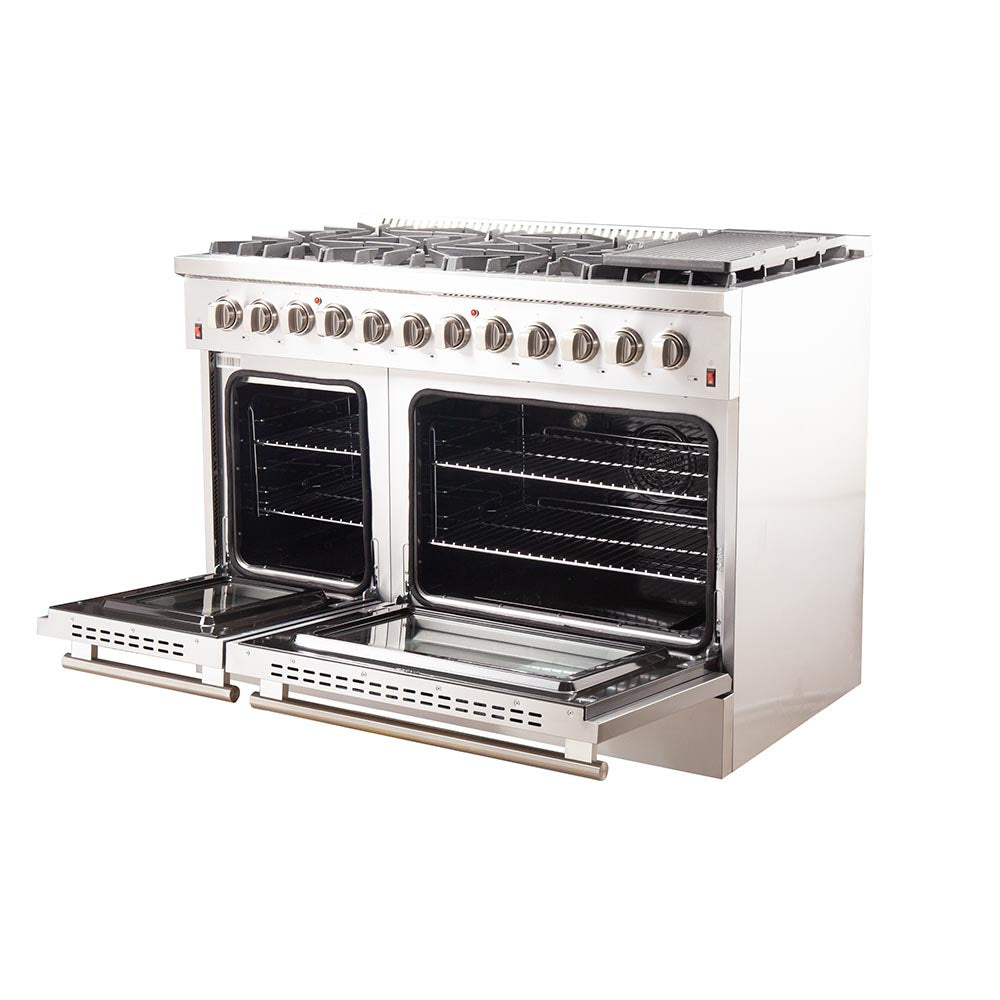

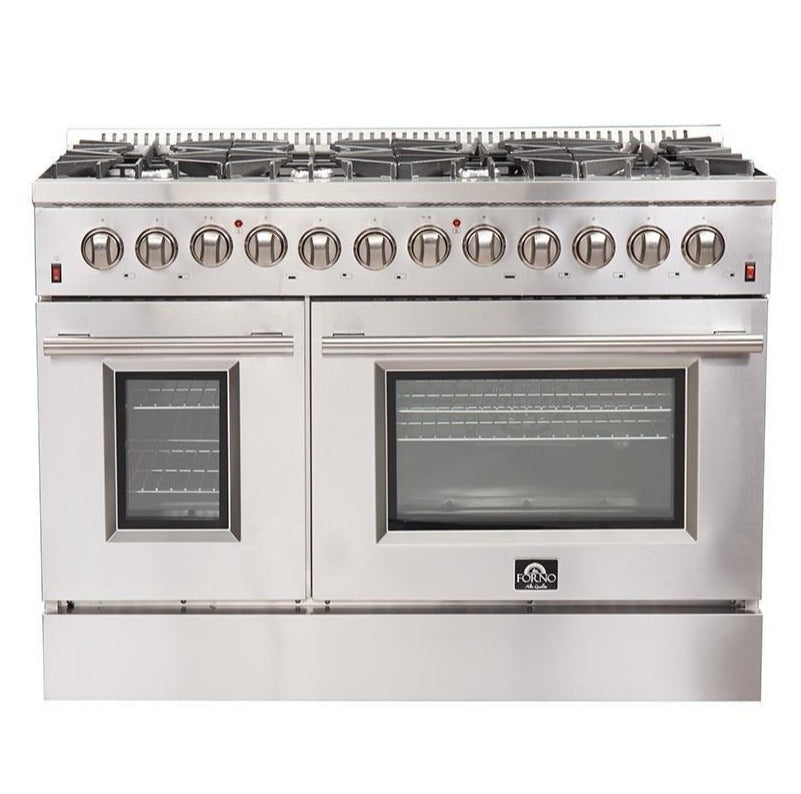

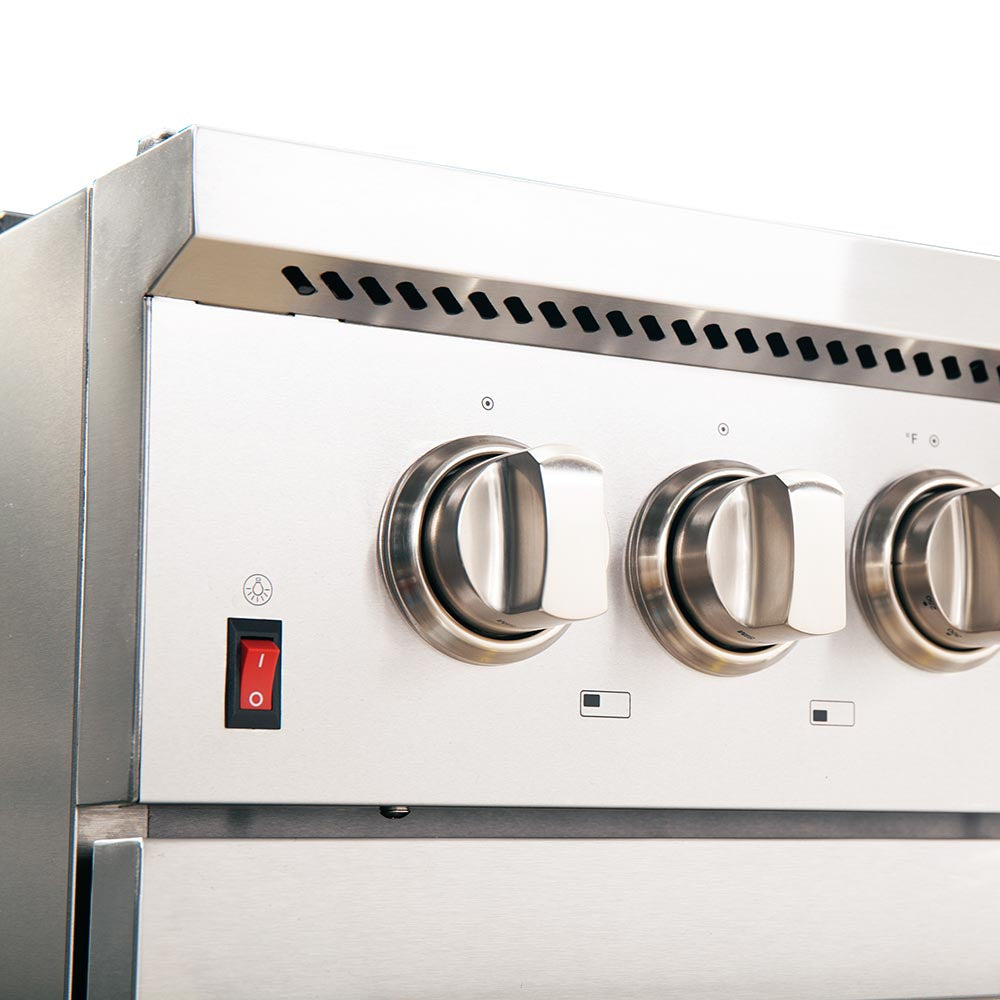

The 48” Galiano Dual Fuel Range brings professional styling and quality into your home kitchen with its durable stainless-steel design. Cooktop has 8 sealed burners with a total stove top output of 107,000 BTU. This unit is ready to handle all your pots and pans with ease over it’s continuous cast-iron grate design. The cumulative capacity 6.58 cu. ft. double ovens with a total output of 9,800 Watts are encased in a black enameled interiors. Right oven is fitted with a true convection fan. Thermostat and regulator ensures to achieve fast, precision and consistent oven cooking along for easy viewing are 3-layer glass oven door windows on both ovens, Included are 4 electroplated oven racks, reversible griddle, and LP conversion kit. Housed in a high-grade stainless steel body and zinc coated metal knobs and bezels, this unit sports a stylish look that is built to last. All Forno products are backed by an iron clad 2-year warranty for your satisfaction. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
Weight and Dimensions |
|

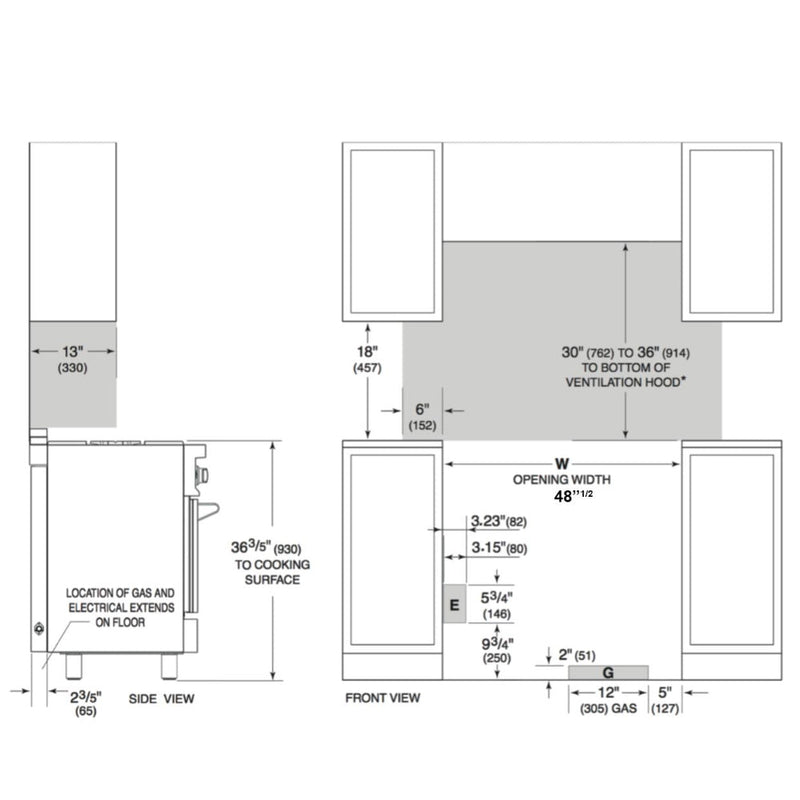

Overall Dimensions
|
48” W x 28” D x 38” H |
Oven Door Open 90º
|
|
Right Oven Interior Dimensions
|
24.92'' W x 18.7" D x16'' H |
Left Oven Interior Dimensions
|
13.03” W x 18.7” D x 16” H |
Overall Weight
|
388 lbs |
Depth with Oven Door Open 90º
|
44.25" |
Electrical |
|
Amperage
|
30 A |
Volts
|
240 V |
Wattage
|
9700 W |
Oven 1 inside Broil Wattage
|
1,000 W |
Oven 1 Outside Broil Wattage
|
1800 W |
Oven 1 Bake Wattage
|
2000 W |
Oven 1 True Convection Wattage
|
1500 W |
Oven 2 Outside Broil Wattage | 1700 W |
Oven 2 Bake Wattage | 1700 W |
Power Cord Length
|
5' |

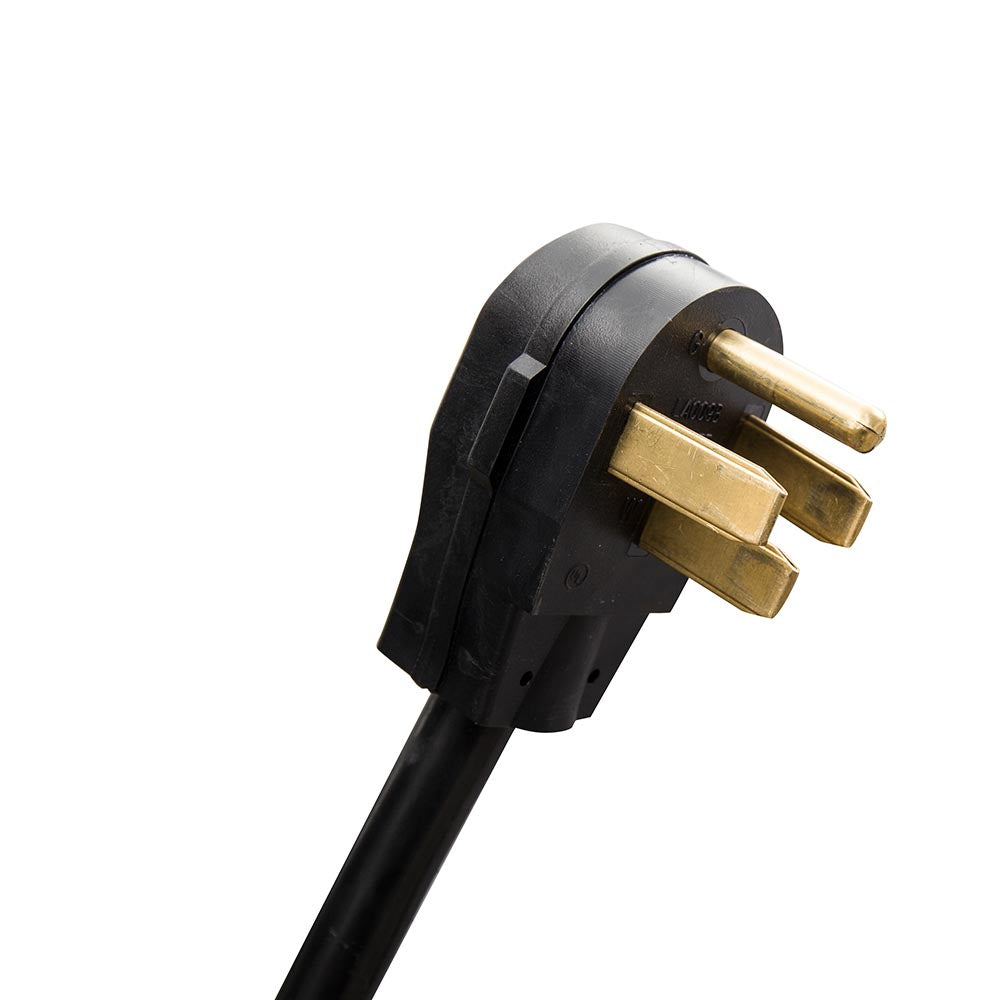

Receptacle Type
|
4-Prong Grounded |

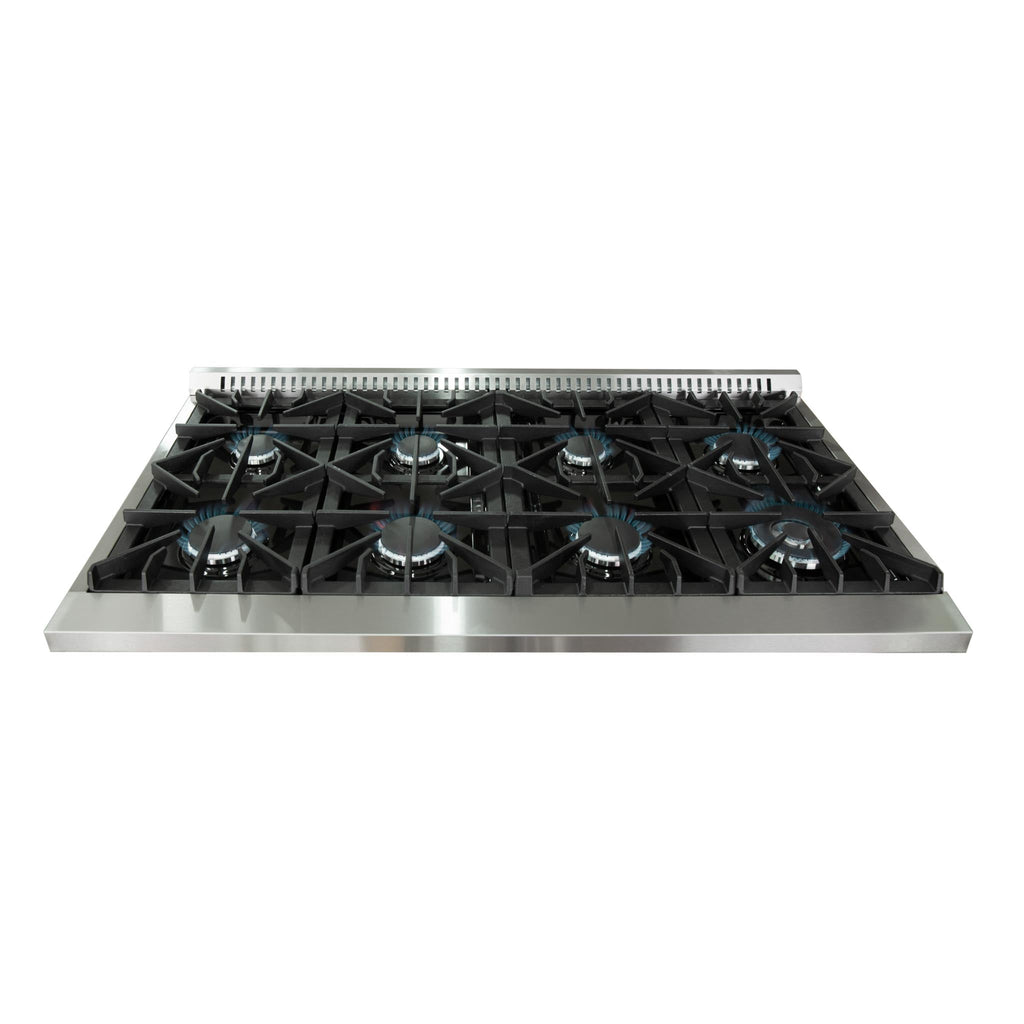

Cooktop |
|
Overall Burners BTU | 107,000 |
Front Right Burner BTU | 1000 to 20,000 |
Front Right Center Burner BTU | 15,000 |
Front Left Center BTU | 15,000 |
Front Left Burner BTU | 15,000 |
Rear Right Burner BTU | 15,000 |
Rear Right Center Burner BTU | 9,000 |
Rear Left Center Burner BTU | 9,000 |
Rear Left Burner BTU | 9,000 |
Number of Knob |
12 |
Switches |
1 + 1 |
Oven |
|
Overall Oven Capacity | 6.58 Cubic Feet |
Right Oven Capacity |
4.32 Cubic Feet |
Left Oven Capacity | Left Oven Capacity |
Convection Fan | Yes |
Certifications |
|
ETL Listed | Yes |
Details |
|
Product Type | Freestanding |
Color/Finish | Stainless Steel |
Fuel Type | Gas & Electric |
Gas Type | Natural Gas |
Gas Heat Configuration | Sealed Burner |
Number of Burners | 8 |

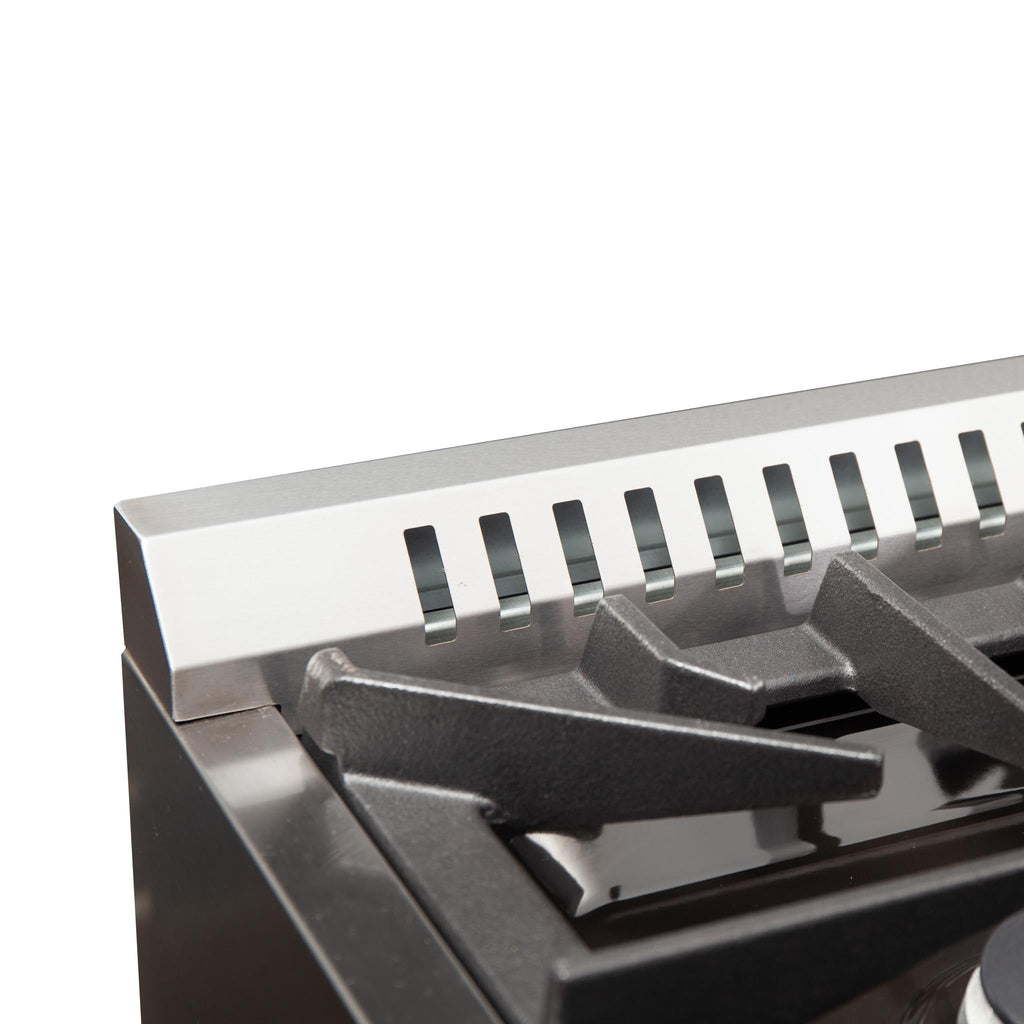

Cooktop Surface | Continuous Cast Iron Grates |
Cooktop Cavity |
Recessed Enamel |
Number of Ovens | 2 |
Number of Racks | 2 |
Number of Rack Positions |
2 x 6 |
Broiler | Electric |
Bake Element | Electric |
Cleaning Type | Manual |
Cooking Process | True Convection |
Interior Light | 2 |
Control Type | Knob |
Control Location | Front |
LP Gas Convertible | Yes |
Black Enamel Oven Interior | Yes |
LP Conversion Kit Included | |
Temperature Gauge | No |
Timer | No |
Clock | No |
Primary Material | Metal |
Door Panel Material | Stainless Steel |
Control Panel Material |
Stainless Steel |
Kick Plate Material | Stainless Steel |
Side Panel Material | Stainless Steel |
Supplier Intended and Approved Use | Residential Use |
Country of Origin | China |
Warranty Type |
2 Years |
Warranty Length |
2 Years |
Warranty on Parts |
2 Years |
Warranty on Labor |
2 Years |

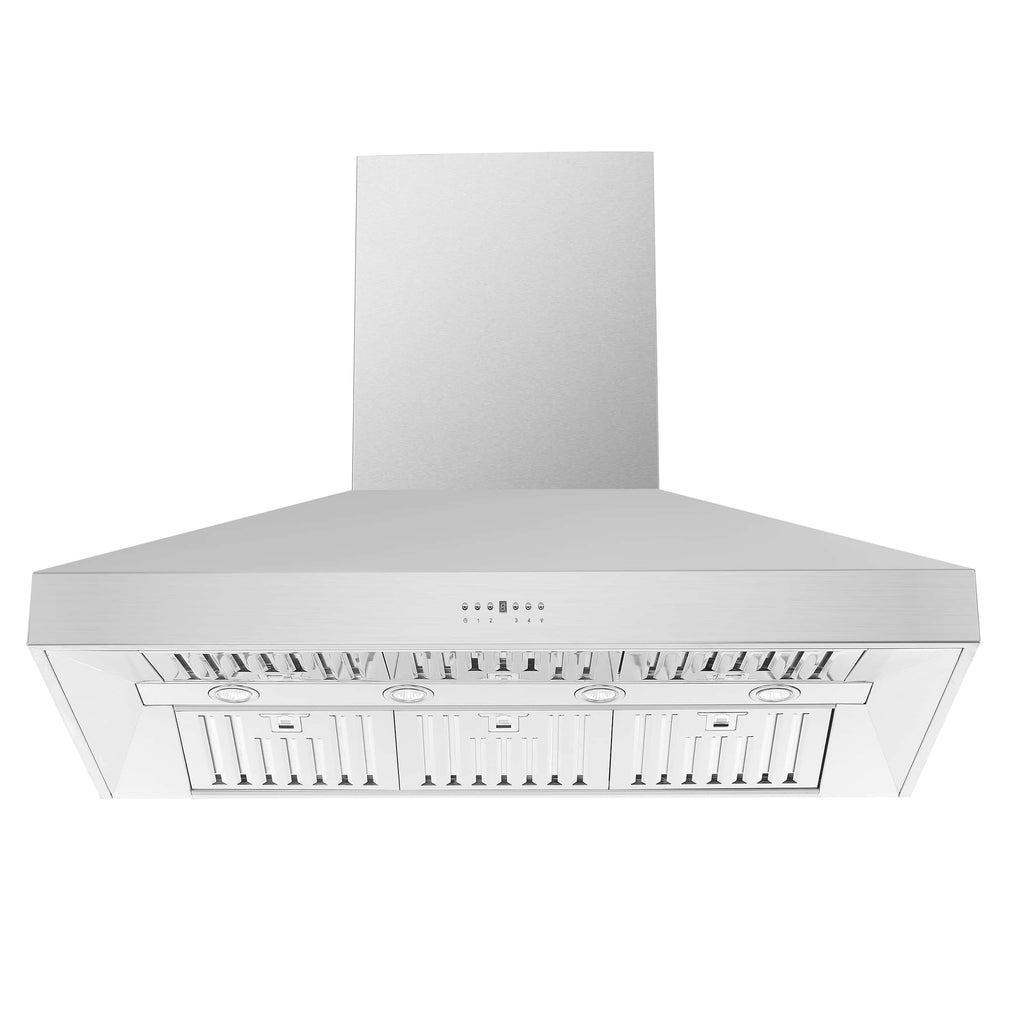

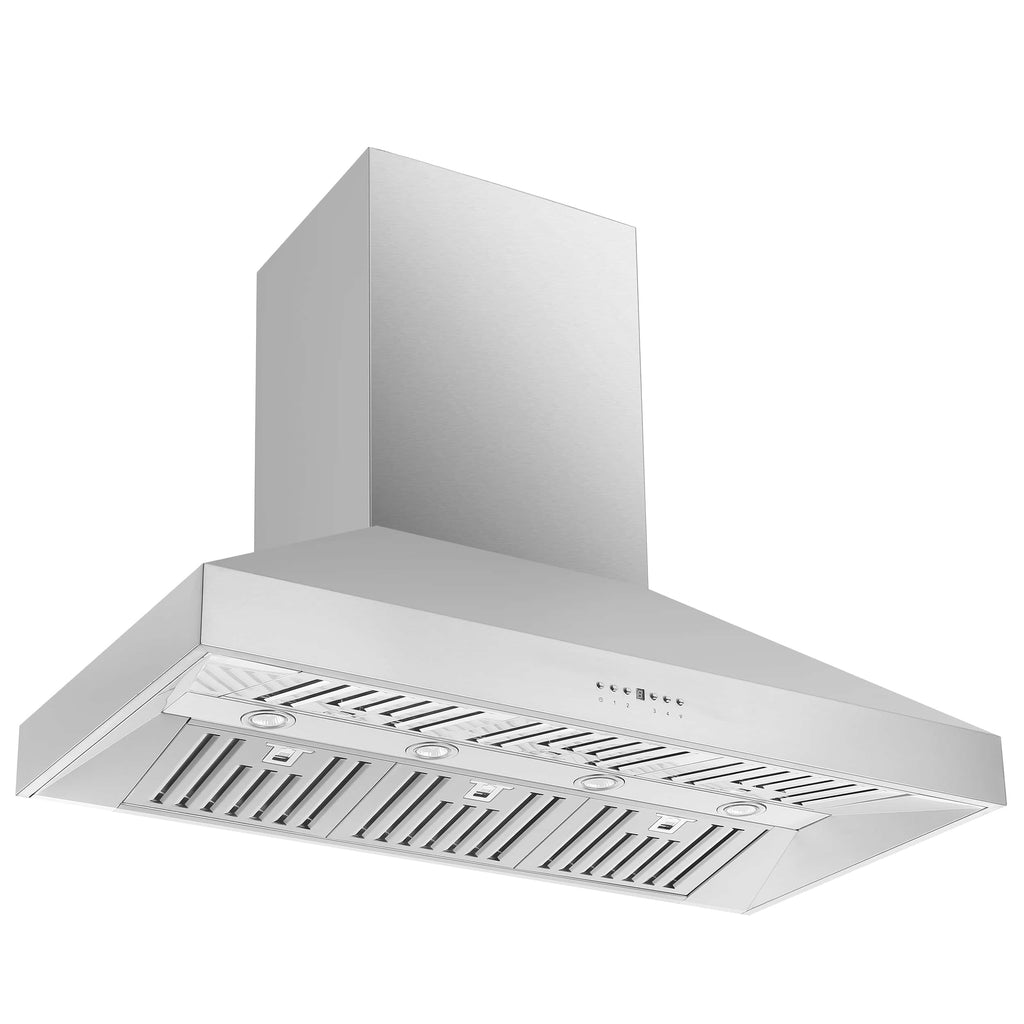

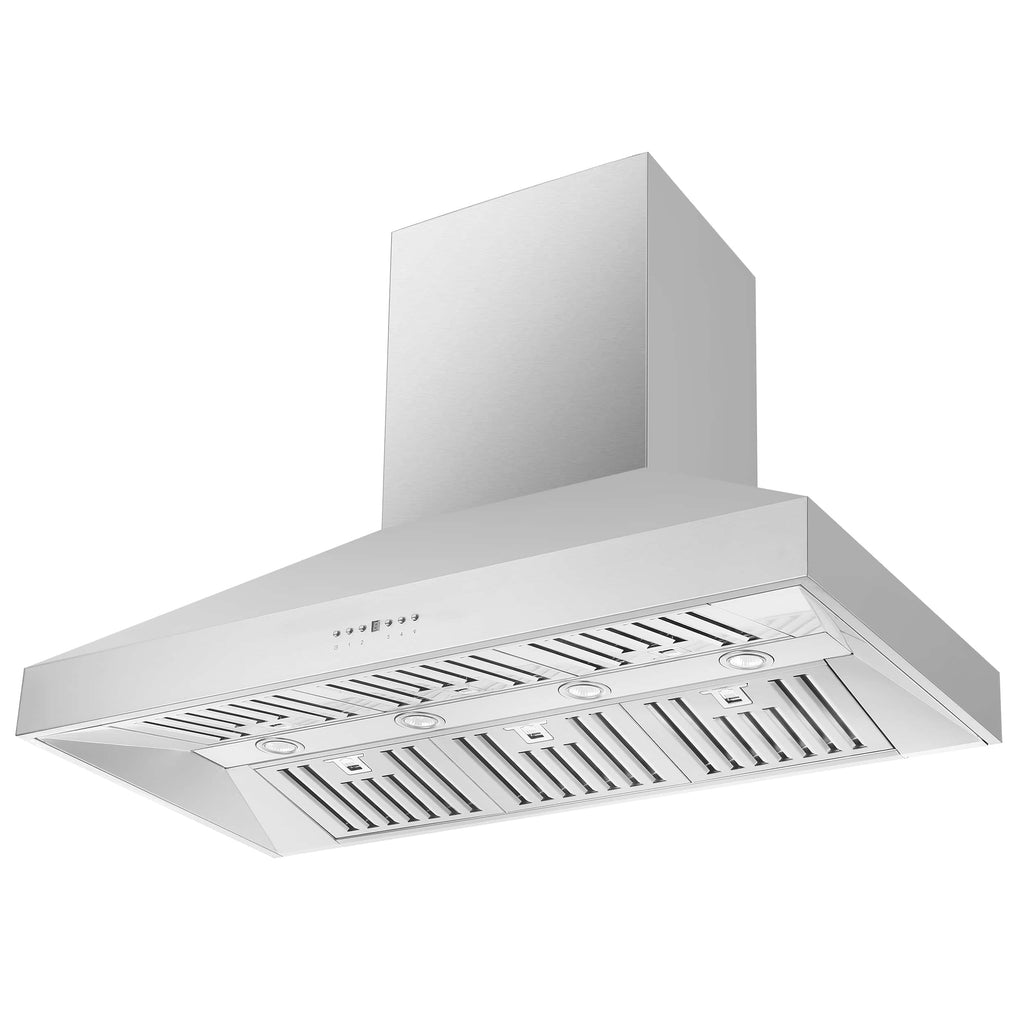

The Orvieto 48" STAINLESS STEEL Wall Mount RANGE HOOD helps create superior air quality with its powerful 1200 CFM motor and four-speed touch control. The decorative stainless-steel crown molding adds an attractive finish to your kitchen design. The hood is made from high-grade stainless steel for durability, and boasts noise reduction technology for a quieter sound while in use. The included surface lights provide superior illumination and energy efficiency. Baffle filters capture heat, odors, gases and are dishwasher-safe making cleanup a breeze. This range hood is sure to be an asset in any kitchen.
This wall mount rangehood is equipped with a powerful energy-efficient 1200 CFM, designed to capture smoke, gases, steam and grease to keep your cooking area free of unwanted odors.
Filters are made of washable Stainless-Steel with a baffle design and designed to capture grease, smoke, odors and grease from the air.

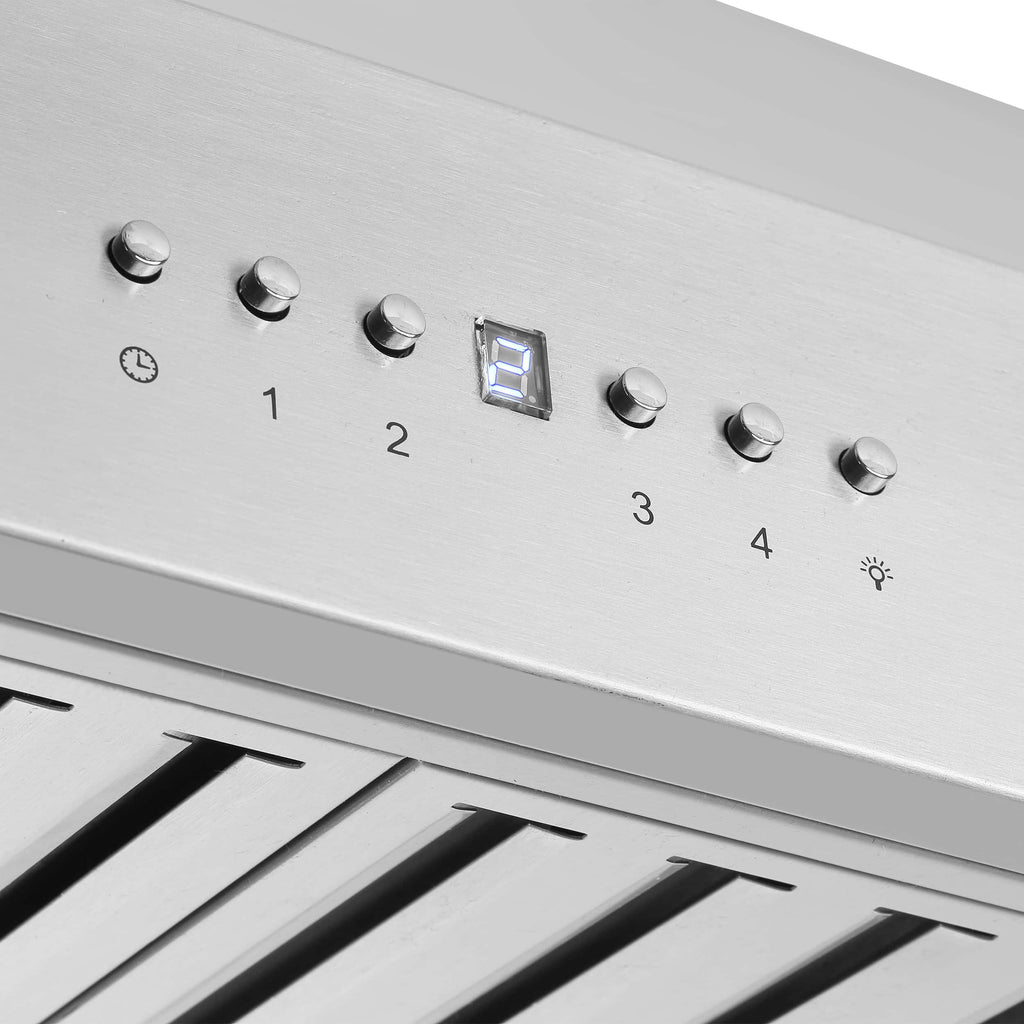

4 speed touch control for easy operation makes it simple to adjust the fan speed settings for air flow and ventilation levels according to your needs.

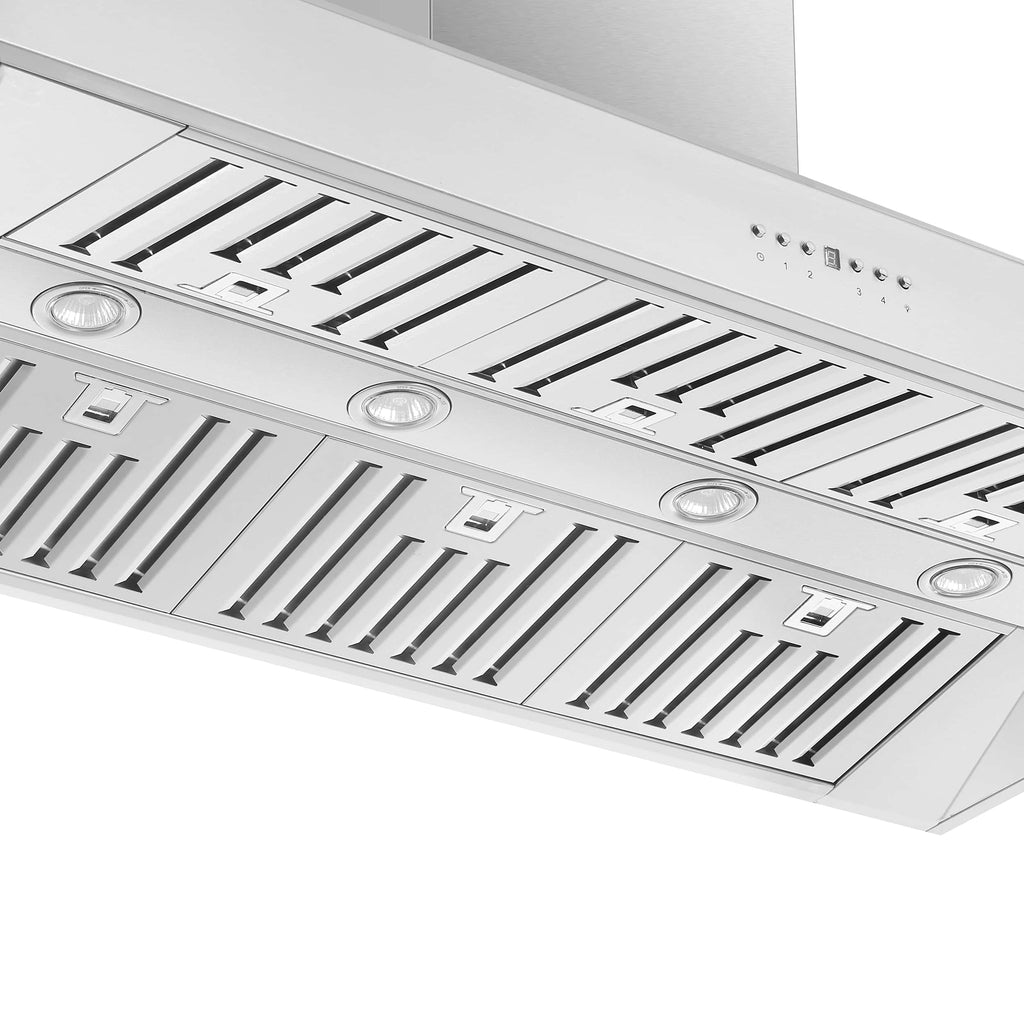

Four Surface lights offer bright illumination for cooktop surface.
The chimney includes a stainless steel decorative molding trim which adds an elegant, modern feel and a beautiful finishing touch.
Maximum power ventilation at a low noise level of 68dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 25dB.
Dimensions
|
|
Overall Dimensions
|
47.24" W X 23.62" D X 29.14" to 44.29" H |
Minimum Height from Cooktop
|
25" for Electric Range 30" for Gas Range |
Maximum Height from Cooktop
|
30" |
Adjustable Height
|
29.14" H to 44.29" H |
Air
|
|
Maximum CFM
|
1200 CFM
|
Maximum Sones
|
16 sones
|
Minimum Sones
|
2
|
Noise Level
|
68dB(A)
|
Electrical
|
|
Amperage | 3.7A |
Volts | 120 |
Wattage | 440 |
Power Source | AC |
Lighting Type | Halogen |
Bulb Type | GU10 |
Warranty & Certification |
|
ETL Listed | Yes |
Details |
|
Mount Type
|
Wall Mount
|
Color/Finish:
|
Stainless Steel
|
Duct Shape
|
10" Round
|
Blower Type |
Metal |
Air Discharge Direction | Vertically Upward |
Exhaust Vent Location | Roof / Wall |
Filter Type | Baffle |
Filter Material | Stainless Steel |
Washable Filter | Yes |
Damper | Yes |
Speed Control | 4 speed |
Speed Control Type | Touch Control |
Hardware Finish | Stainless Steel |
Primary Material | Stainless Steel |
Rangehood Chimney | Yes |
Chimney Short Kit | No |
Glass Component | No |
Crown Molding | Yes |
Reversible Blower | No |
Smudge Resistant | No |
Heat Sensors | No |
Delay Shut Off | 3 Minutes |
Remote Control | No |
Timer | No |
Clean Filter Alert | No |
Supplier Intended and Approved Use | Residential Use |
Country of Origin | China |
Warranty Type | Limited |
Warranty Length | 2 Years |
Warranty on Parts | 2 Years |
Warranty on Labor | 2 Years |

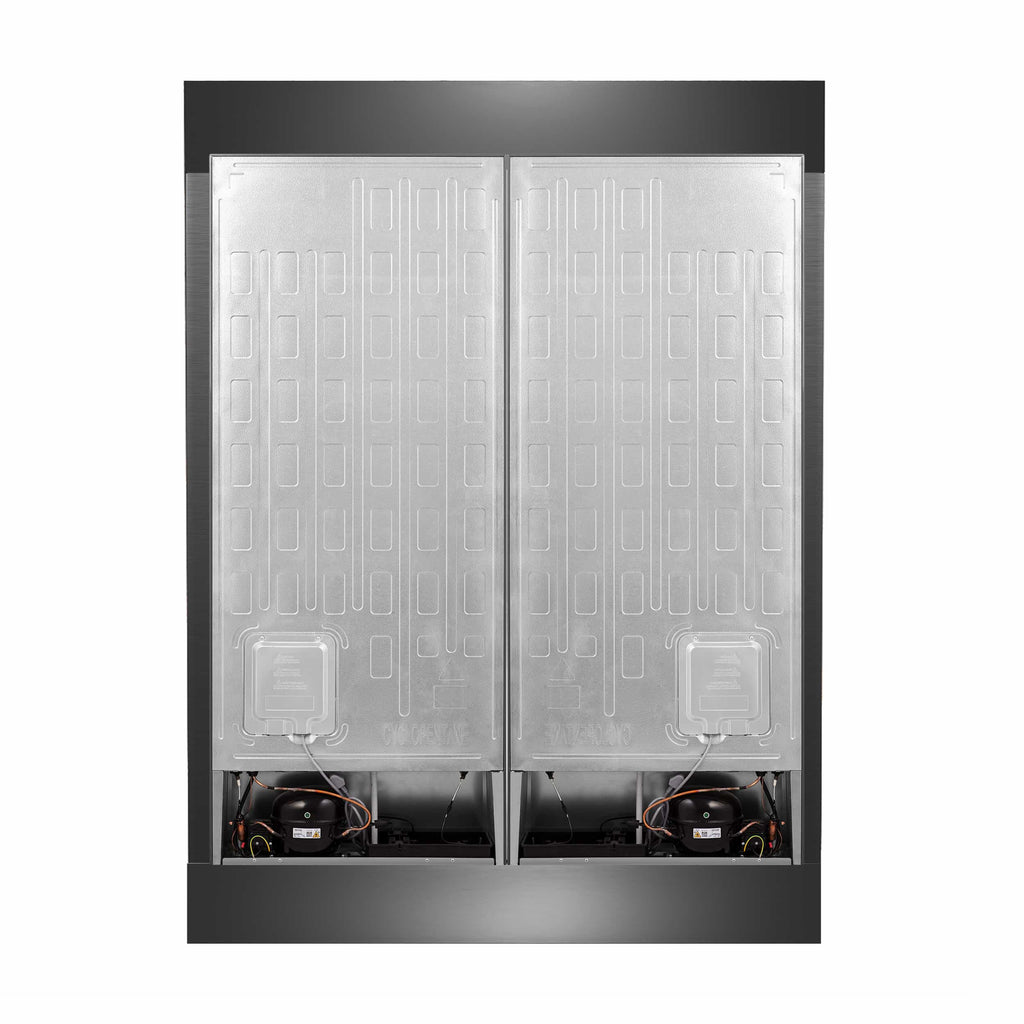

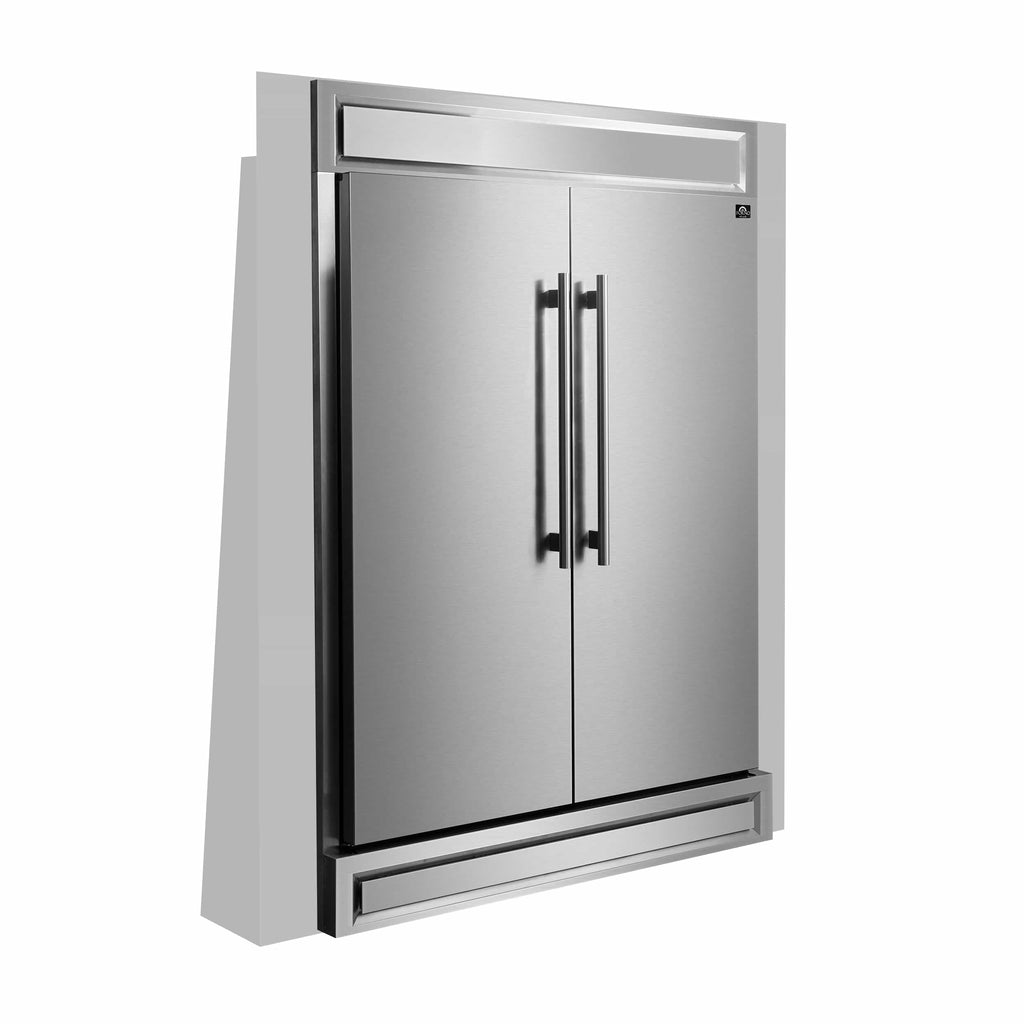

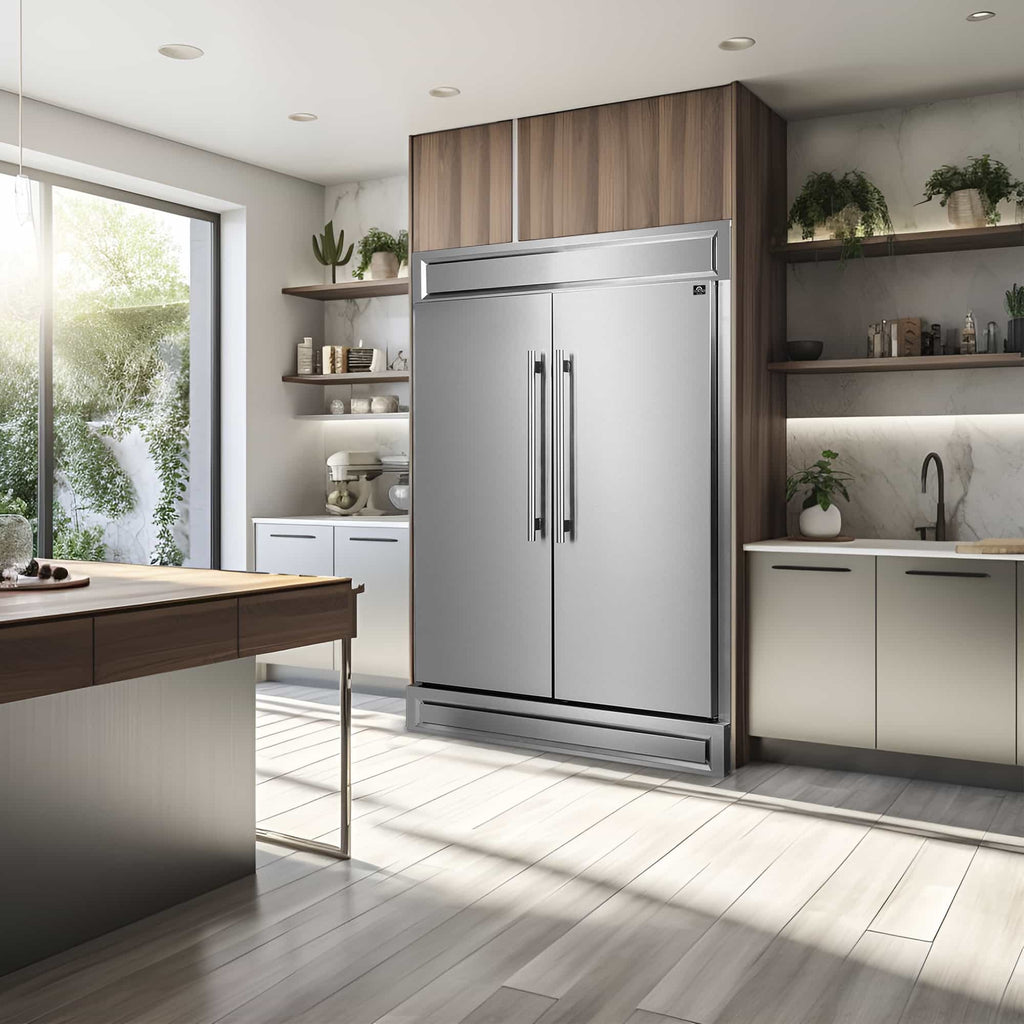

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grill, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting.

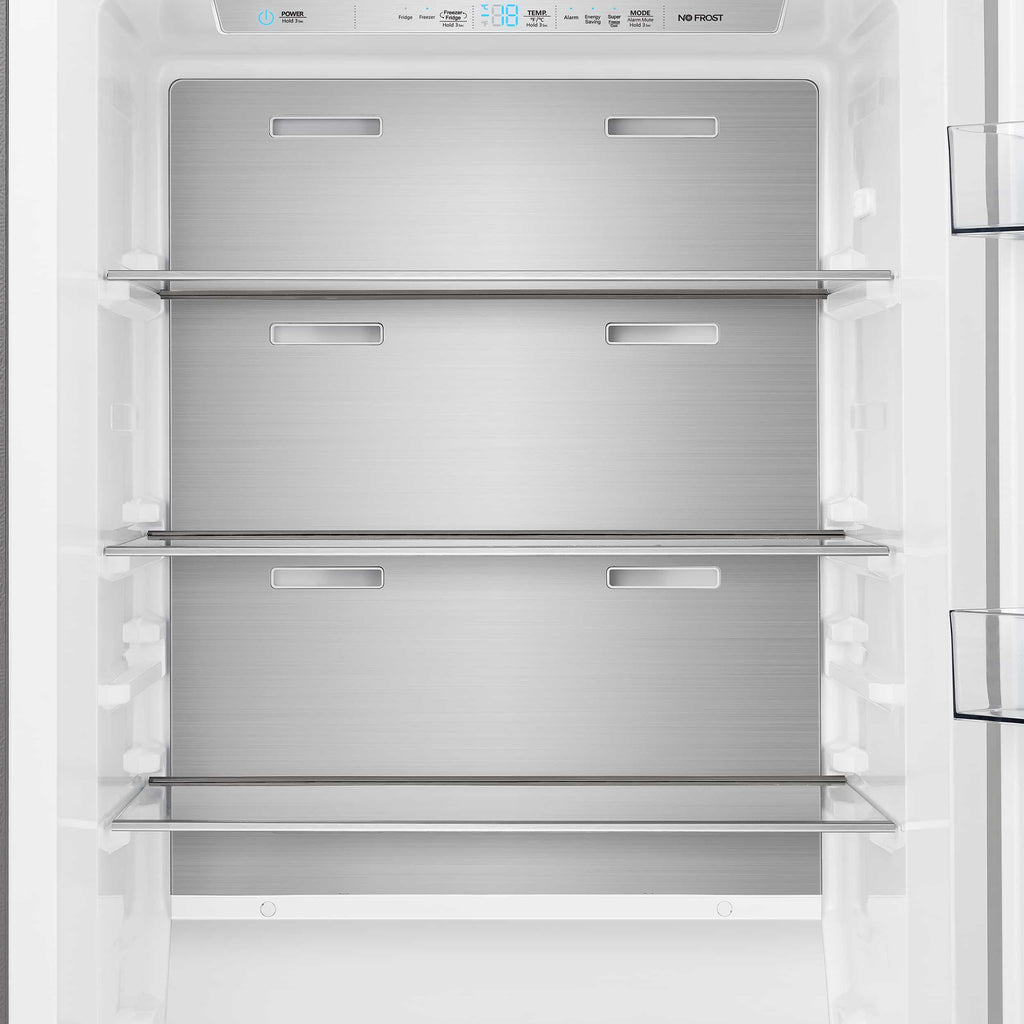

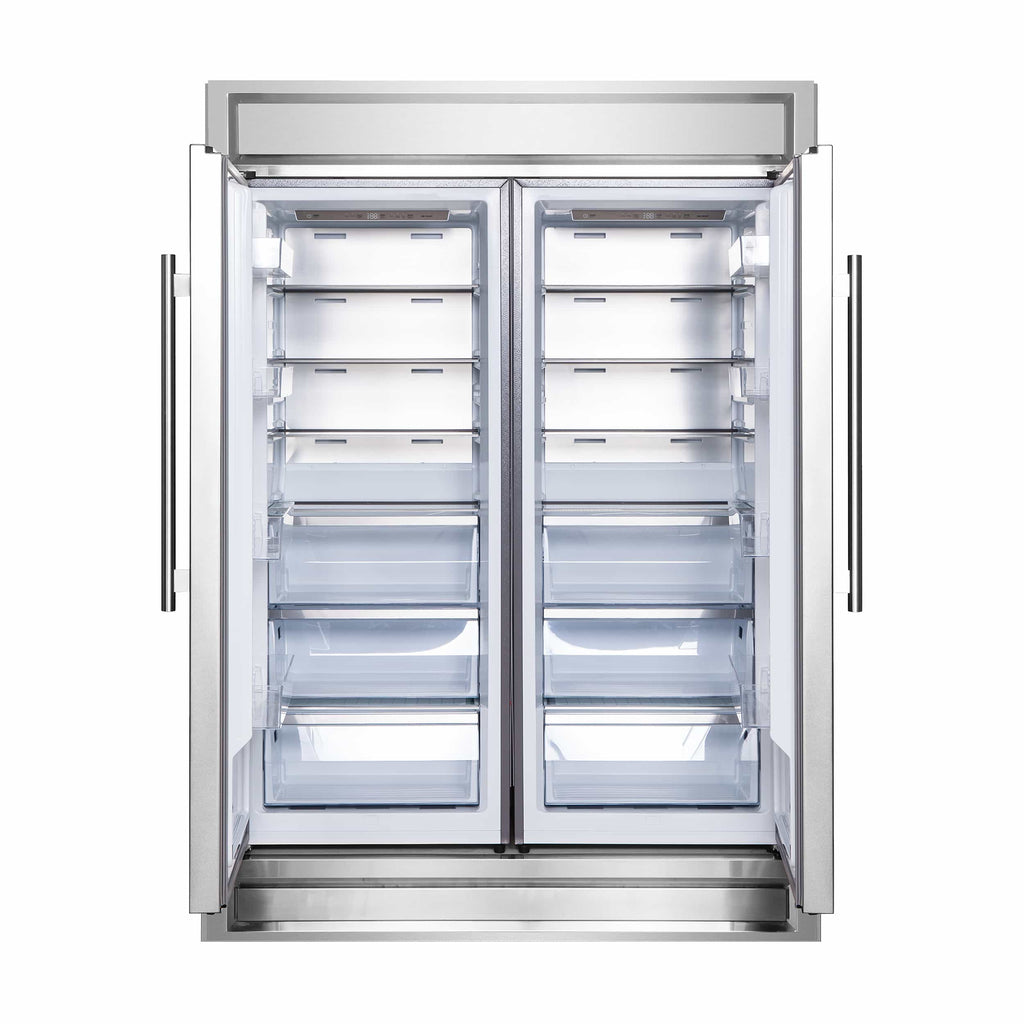

The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
This refrigerator comes in three pieces:

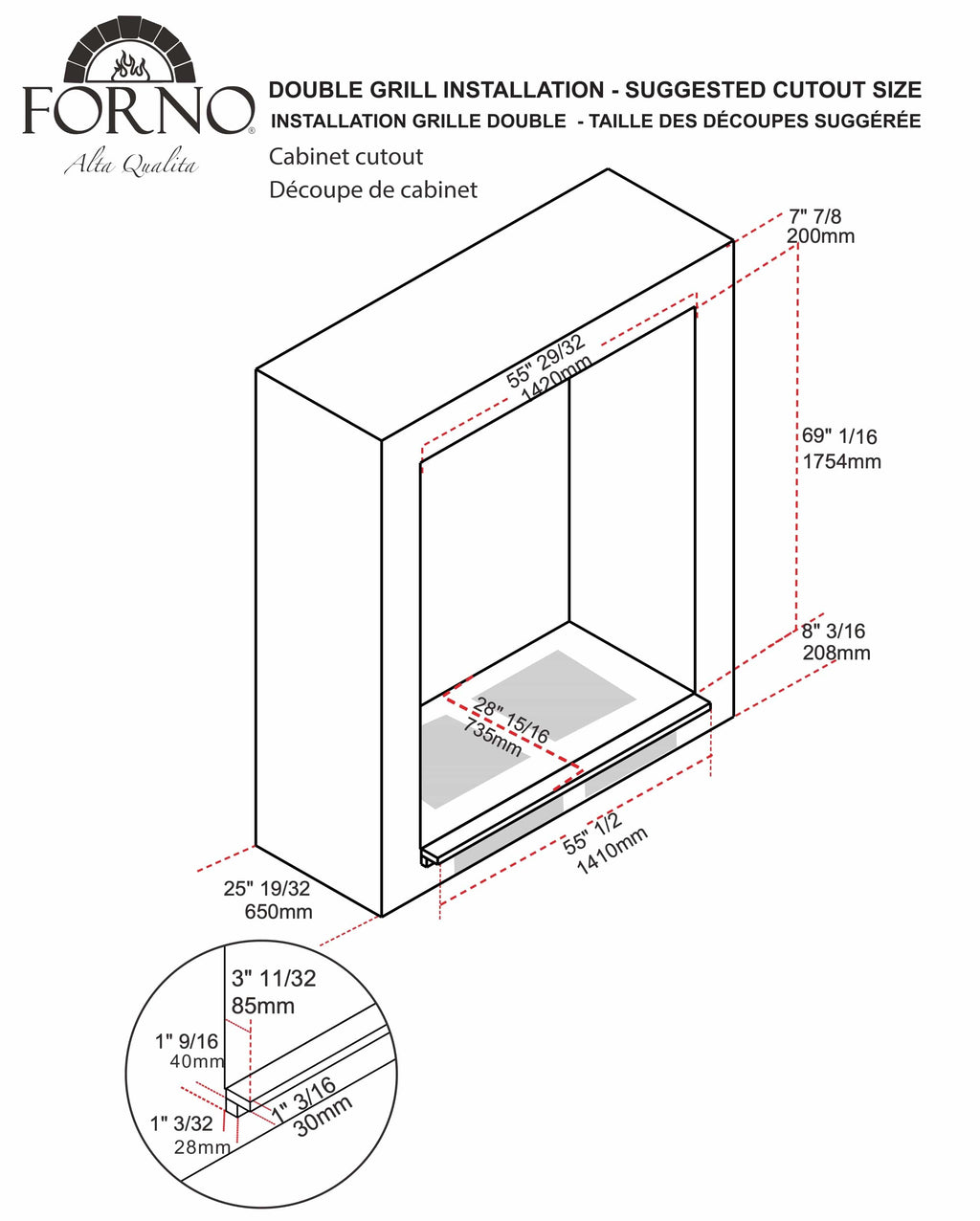

*Installation requires a base to be built for the refrigerator - please see cut-out sheet for more details

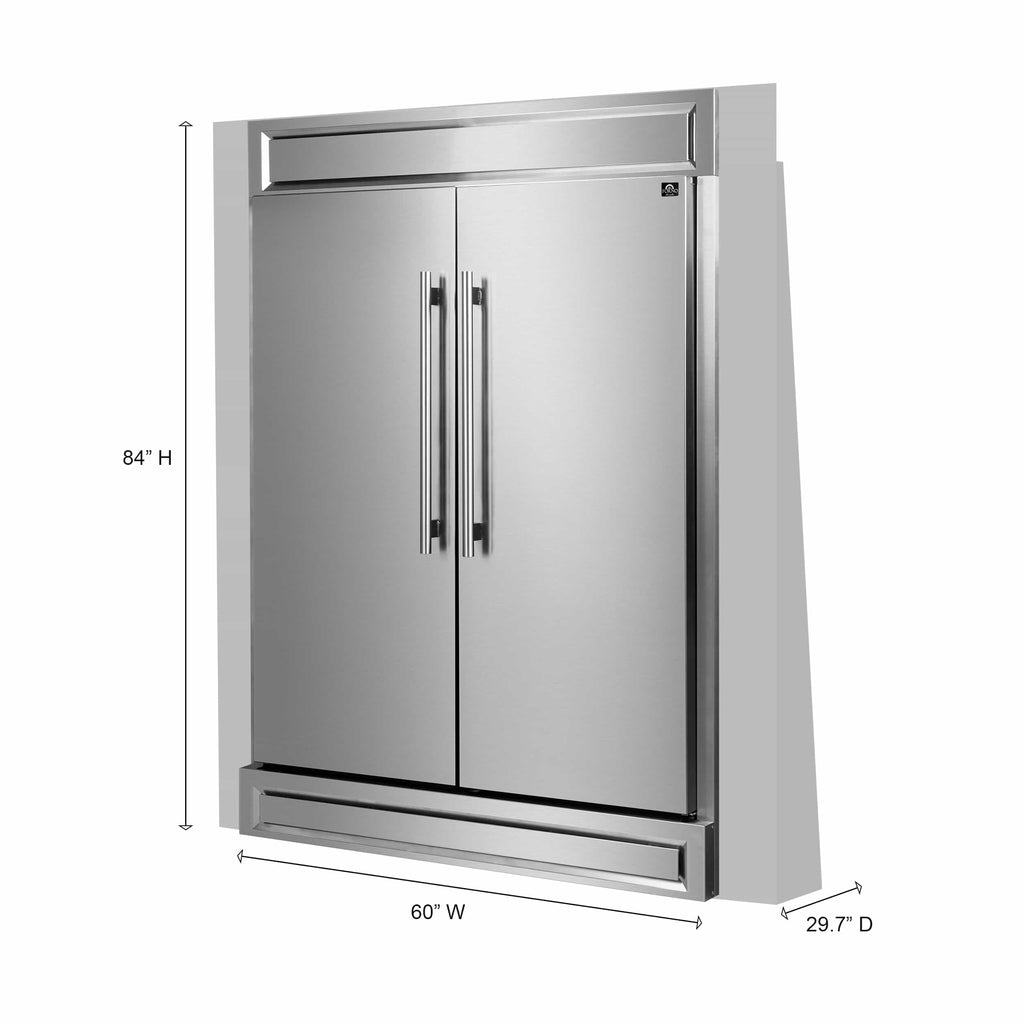

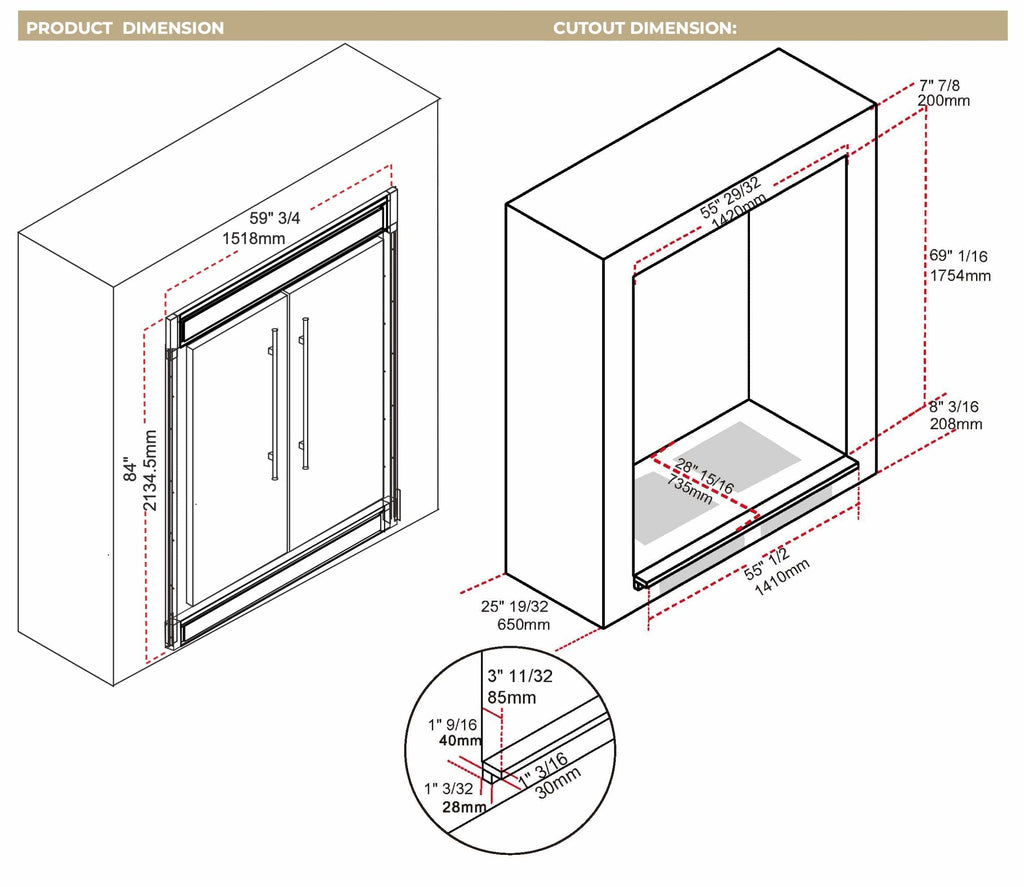

Overall Dimensions |
59.76" W X 29.7" D X 84" H |
Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
Product Overall Weight (lbs) |
330.00
|
Advertised Unit Width |
60” |
Unit Style |
Side-By-Side |
Counter-Depth |
Yes |
Converting Fridge/Freezer |
Yes |
Build Type |
Built-In |
Door Color |
Stainless-Steel |
Door Material |
VCM Door Panel |
Finger Print Resistant |
Yes |
Reversible Doors |
No |
Handle Color |
Stainless steel |
Case Material |
Metal |
Case Color |
Light Gray |
Primary Material |
White HIPS |
Control Type |
Internal Touch Control |
Air Flow |
Multi Air Flow |
Defrost Type |
Automatic |
Sabbath Mode |
No |
Vacation Mode / E-Saver |
Yes |
Super Cool |
Yes |
Super Freeze |
Yes |
Door Alarm |
No |
Leak Proof Shelves |
No |
Lighting Type |
LED |
Shelf Material |
Glass with Silver Trim |
Drawers Material |
Plastic with Silver Trim |
Door Bins Material |
Plastic |
Door Bins Color |
Clear |
Leveling Legs |
Yes |
Ice Maker |
No |

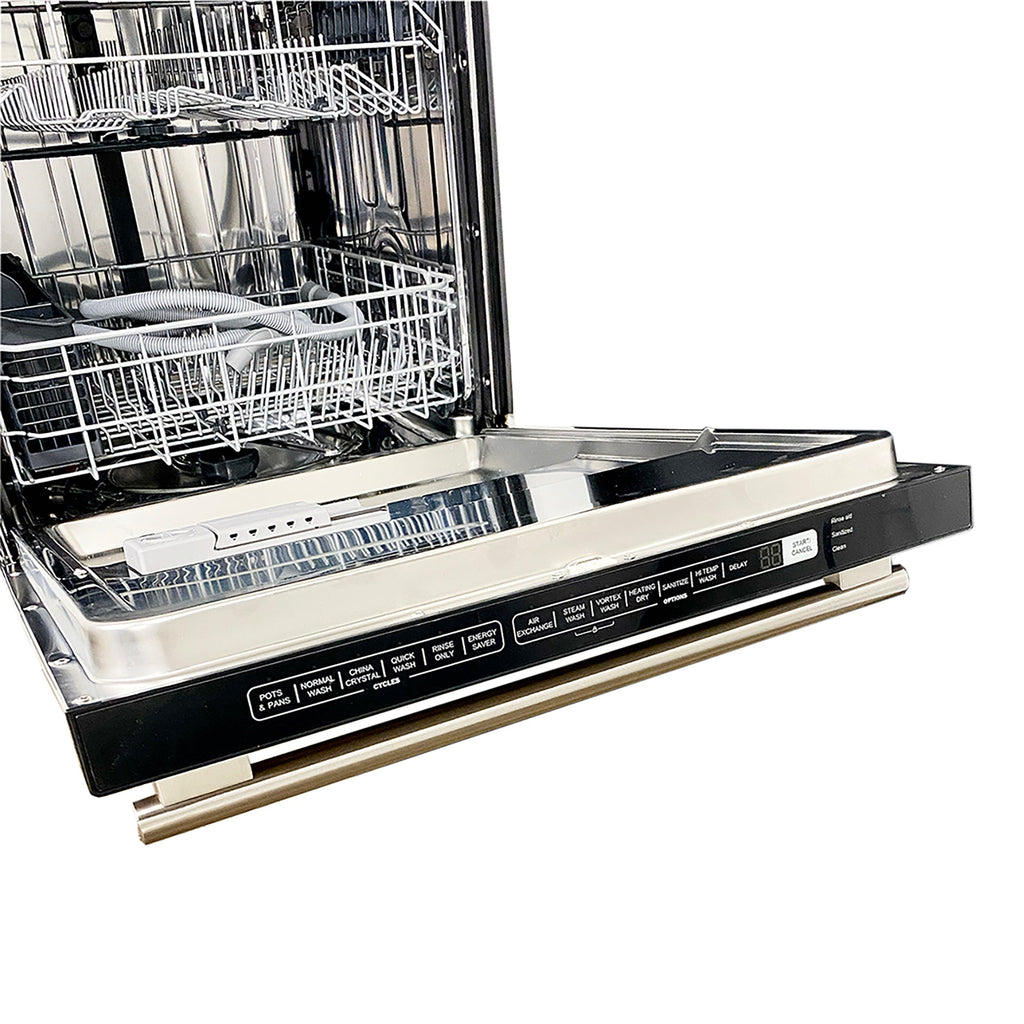

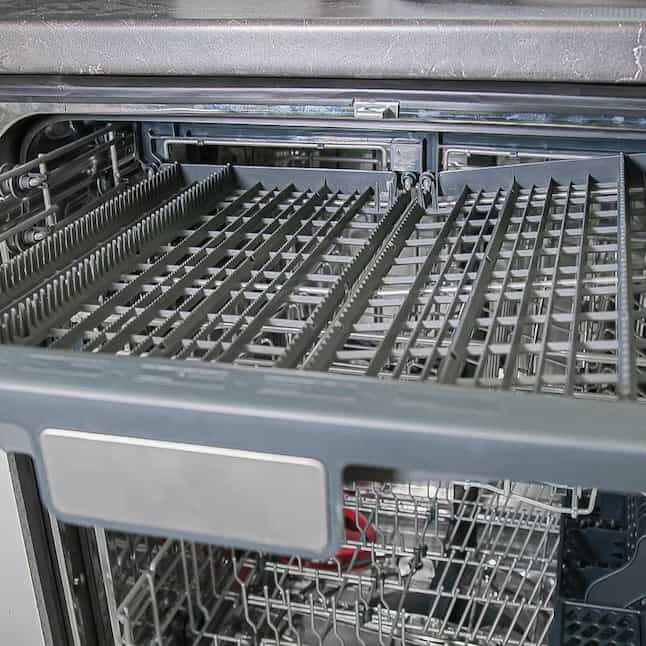

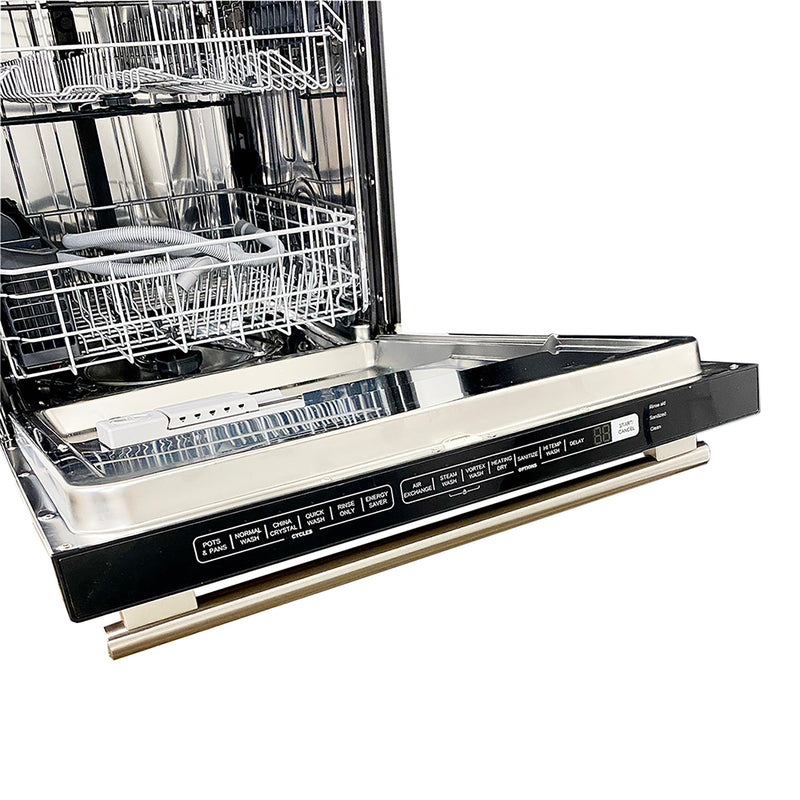

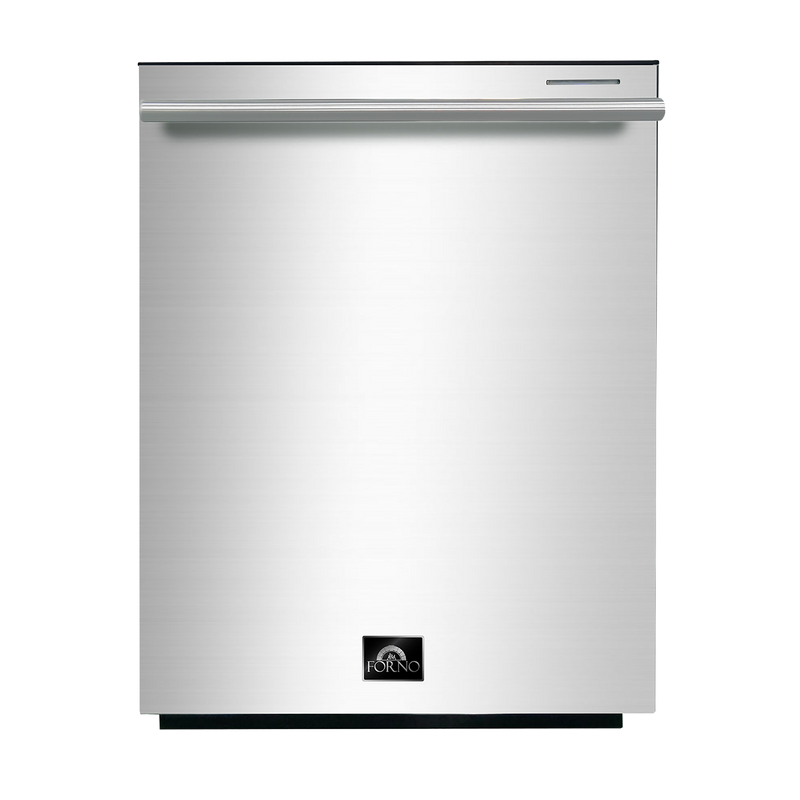

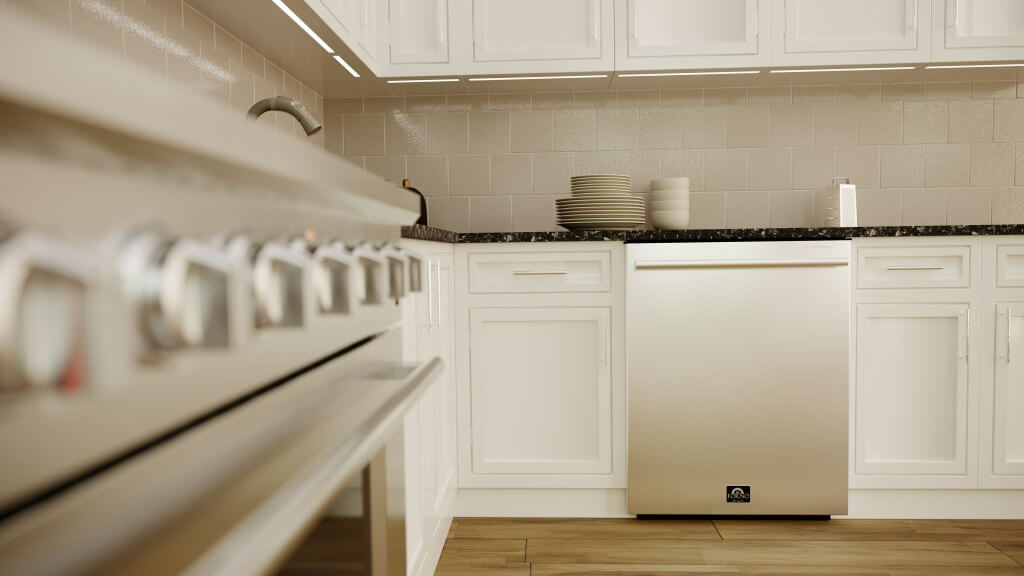

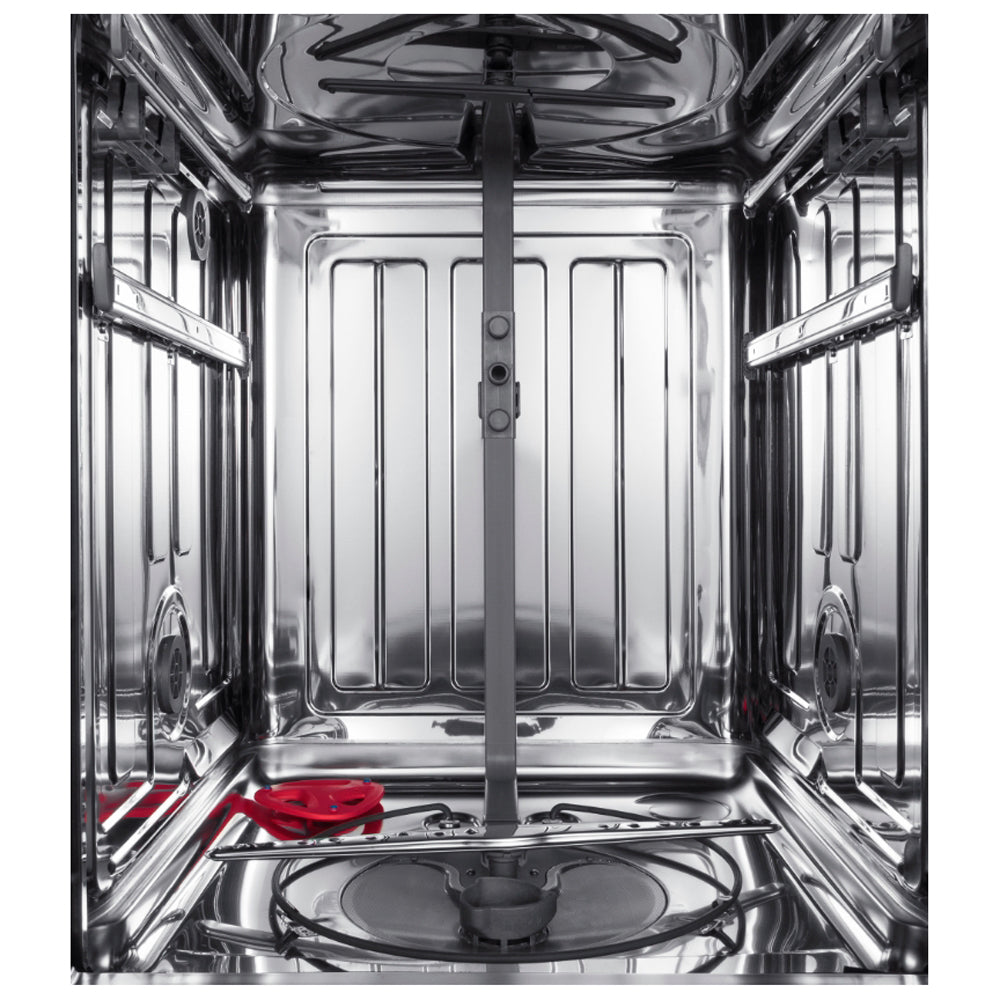

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its stainless-steel front and pro-style handle offer durability and style. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additionnal silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
Product Dimensions W x D x H (inches) | 23.85x26.54x33.74 |
Cutout dimensions W x D x H (inch) | 24 x 24 x 34 |
Product Overall Weight (lbs) | 93.20 |
Color/Finish | Stainless Steel |
Number of Racks | 3 |
Racks Material | Nylon Coated Steel |
Interior Light | No |
Control Location | Top |
Primary Material | Steel |
Plug-in | No |
CEE Tier Qualified | Not Rated |
Energy Star Most Efficient | No |
Estimated Annual Operating Cost (USD) | 24 |
Filter Material | Stainless Steel |
Minimum Product Height (IN) | 33.74 |
Fingerprint-Resistant | No |
Commercial Warranty | No |
Warranty Type | Limited |
Warranty on Parts | 2 Years |
Warranty on Labor | 2 Years |

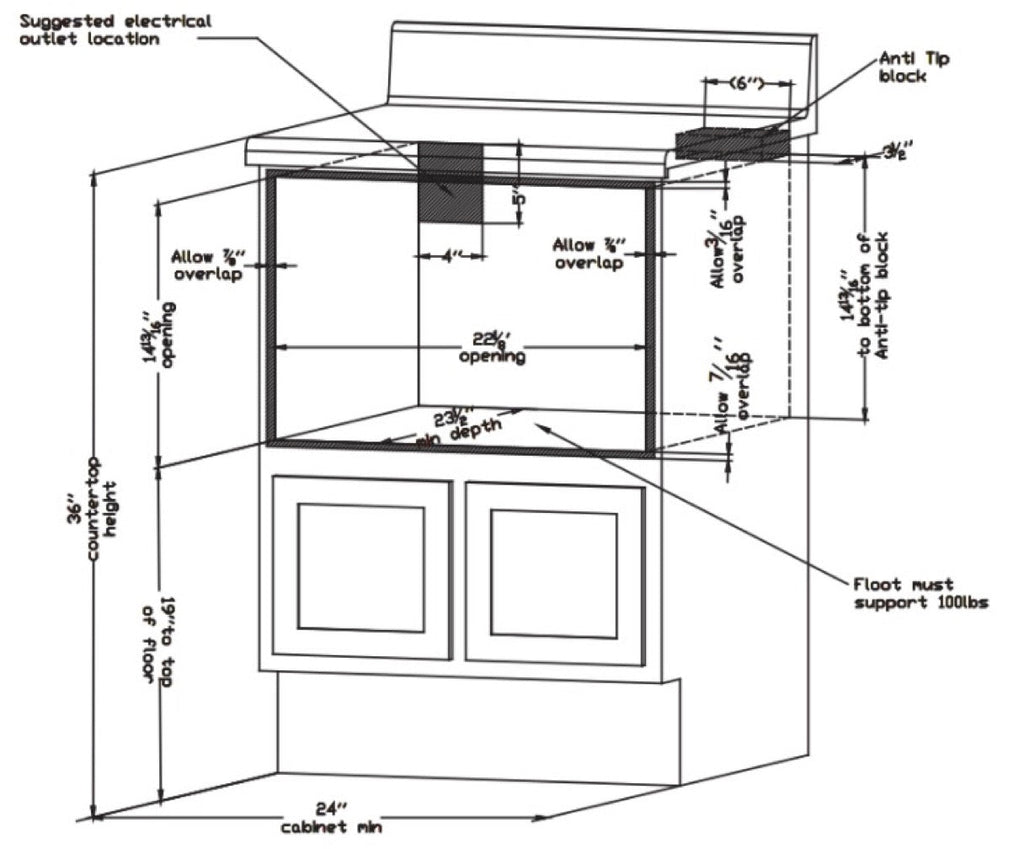

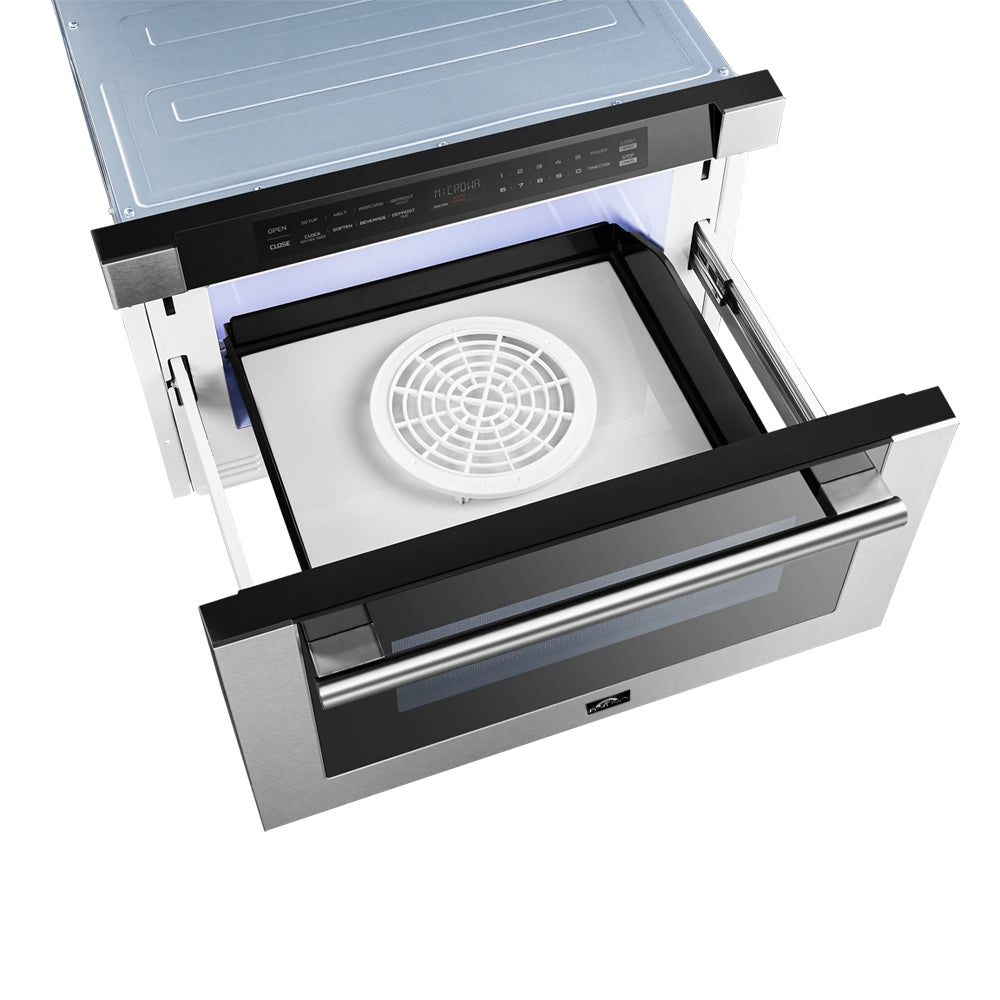

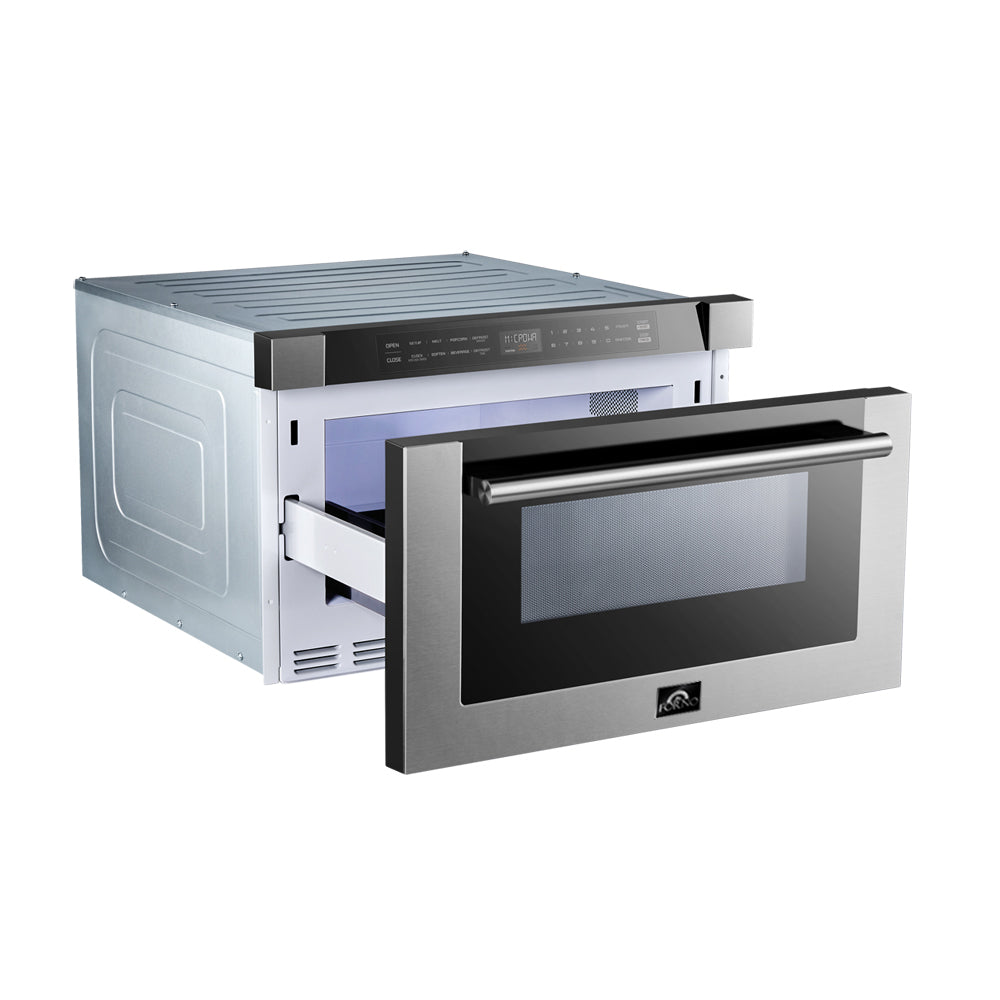

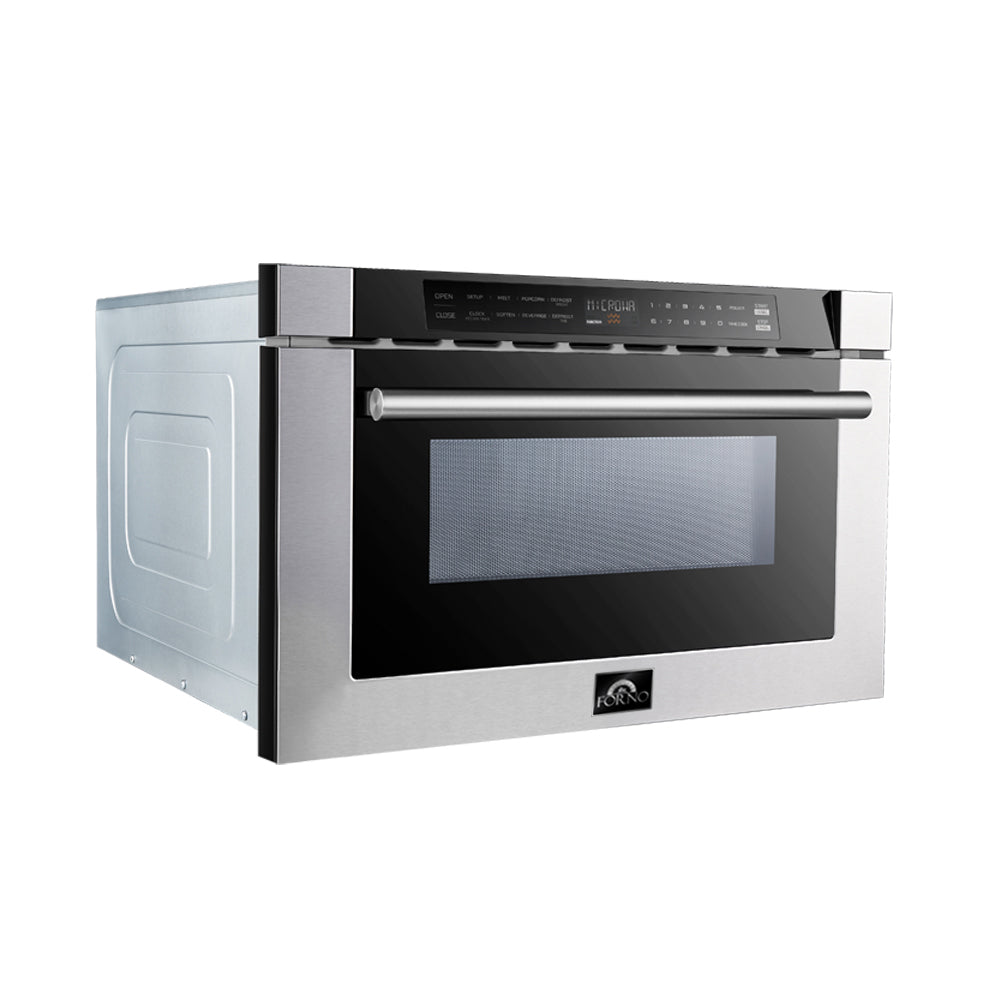

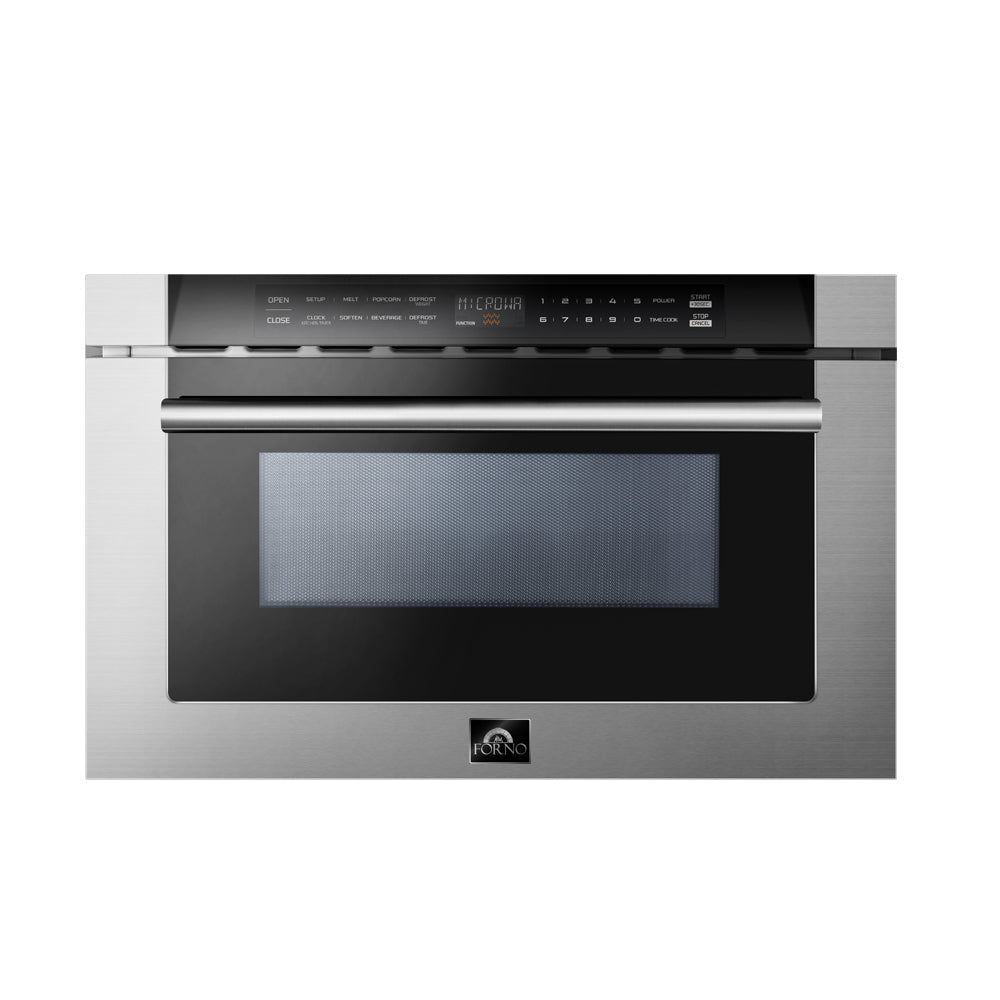

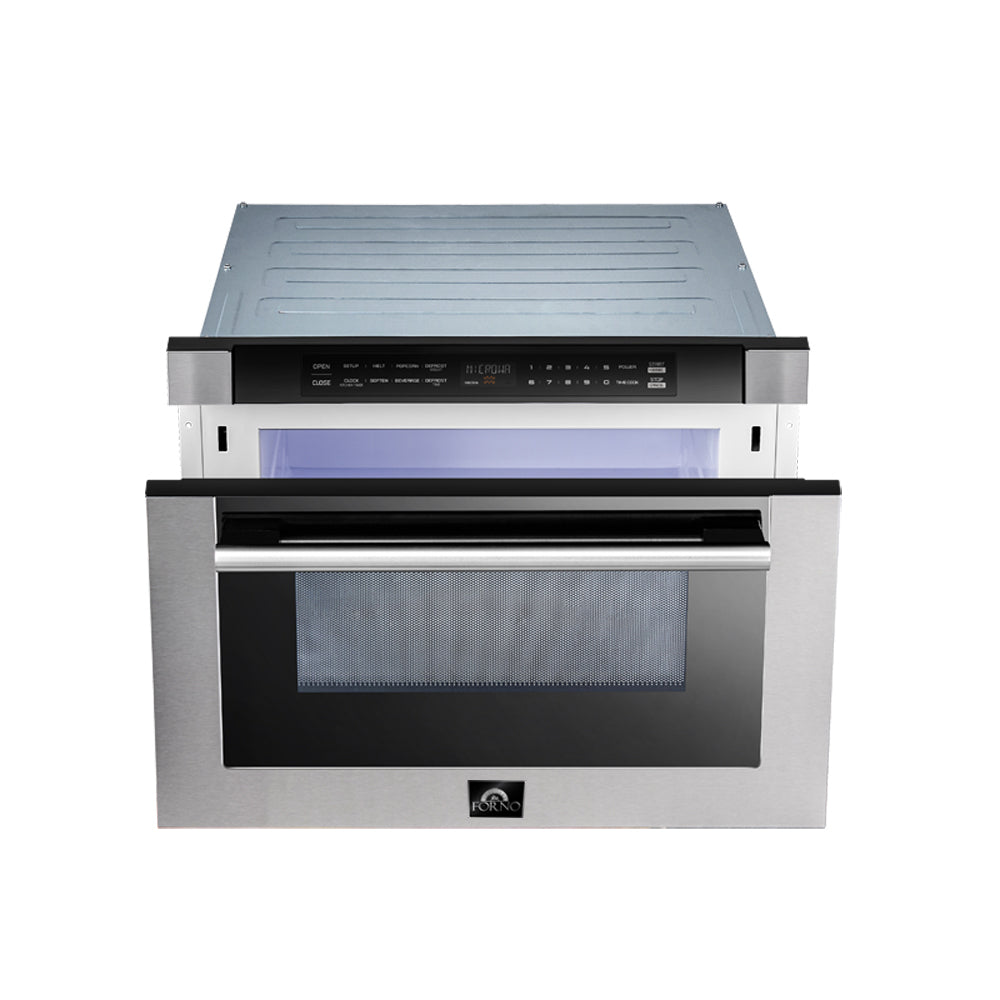

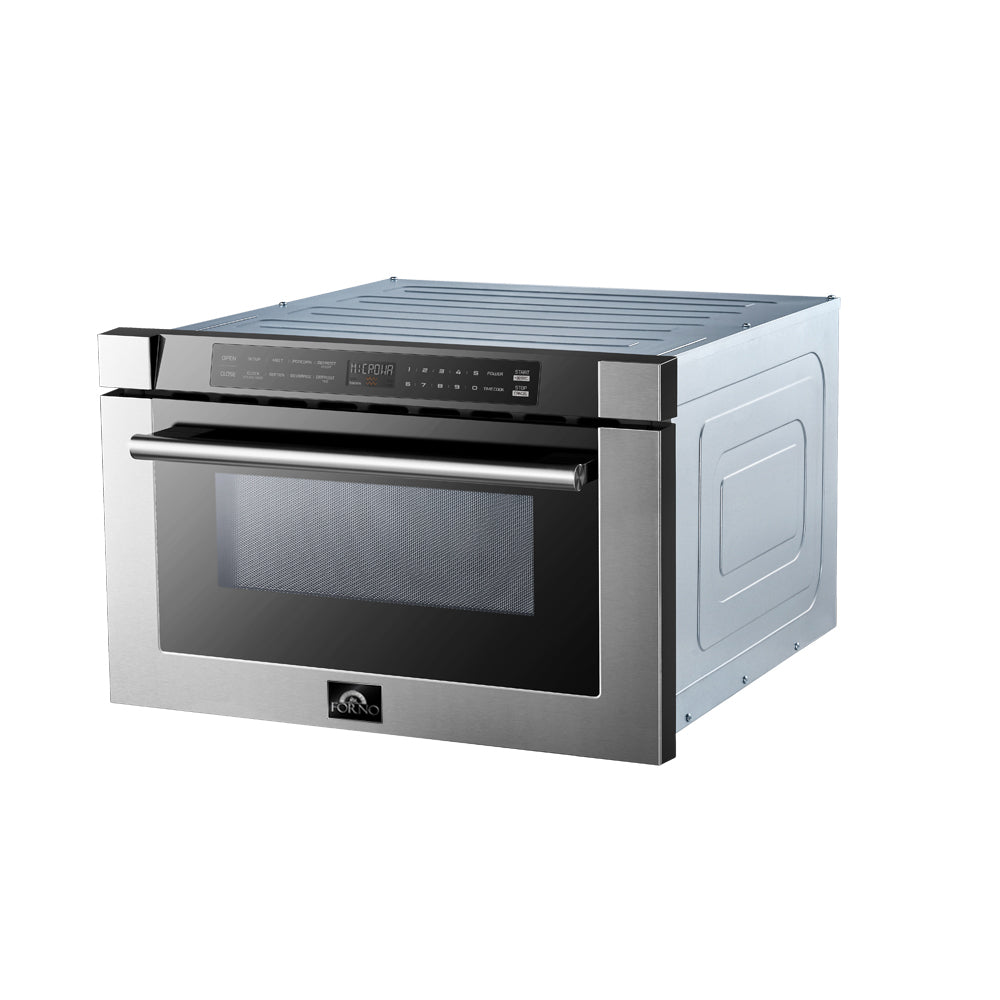

Experience premium cooking performance with the Forno 24-Inch Microwave Drawer. Its 1.2 cu. ft. capacity lets you cook large meals with ease, while its stainless steel finish adds modern style to any kitchen. Boasting precise temperature control, you can enjoy perfectly cooked meals, making it an ideal choice for your kitchen.
Dimension | 23.62" W x 25.2" D x 14.96" H |
Capacity | 1.2 cu. ft. |
Voltage | 120V/60HZ/15A |
Motor | 1,000W |
Mount Type | Drawer |
Control Type | 8 Power Levels |
Product Weight | 81.8 lbs |
