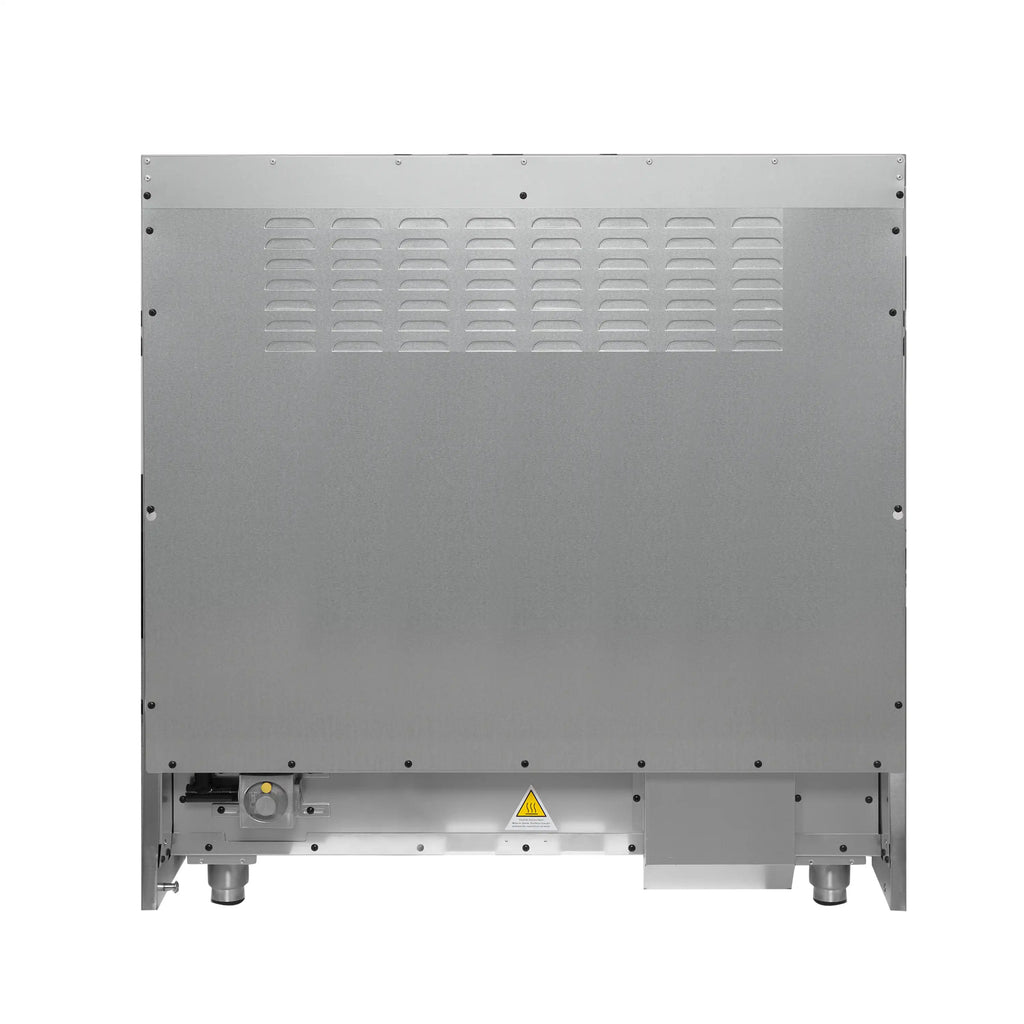

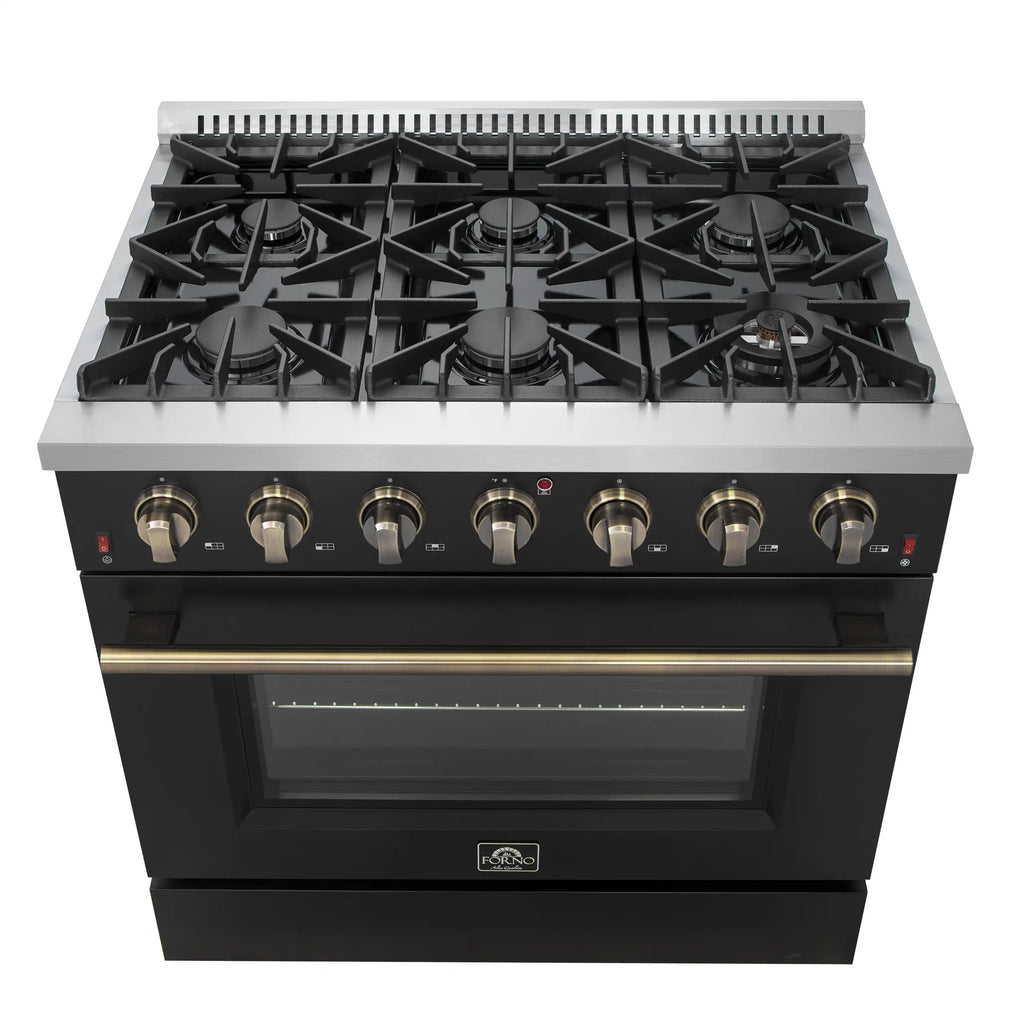

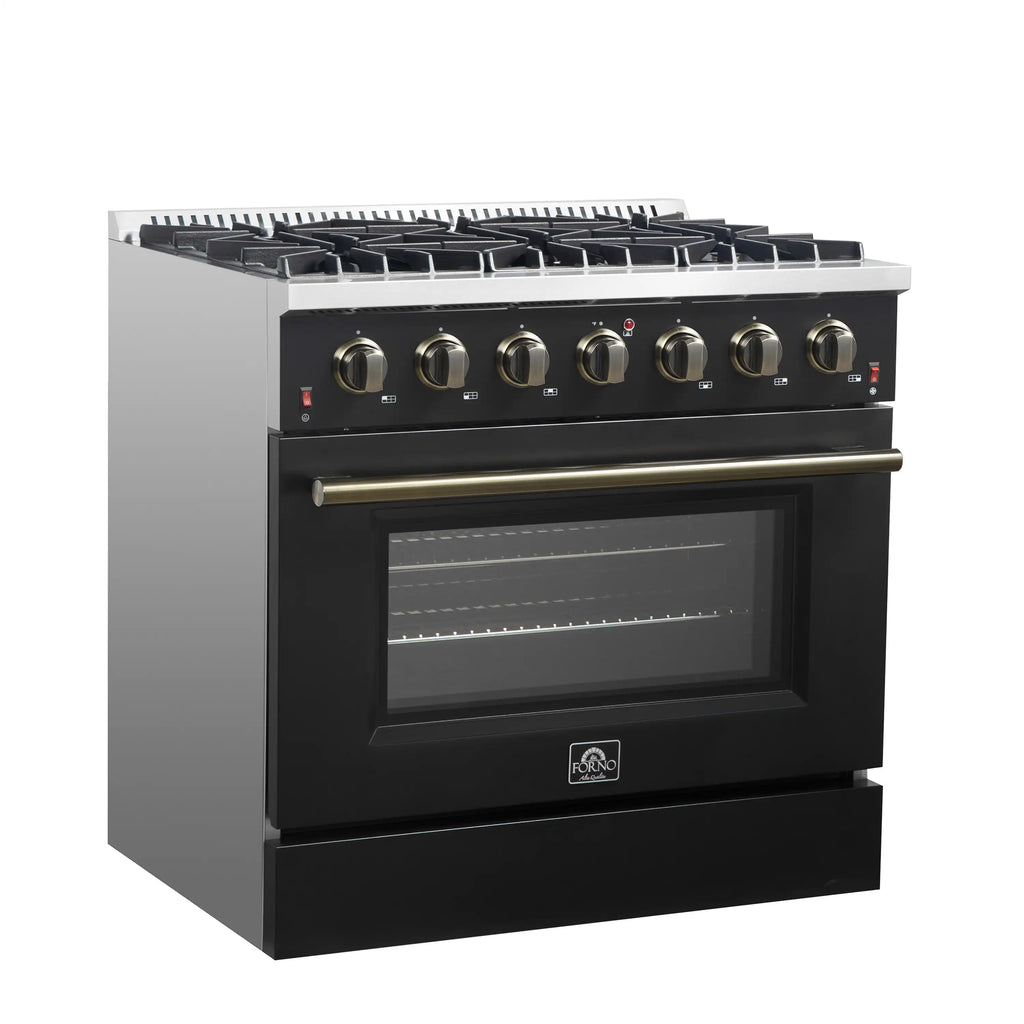

The Forno Galiano 36-Inch Gas Range in sleek black with antique brass hardware elevates your kitchen with a balance of elegance and high performance. The contrasting white front, antique brass knobs and handles, and stainless steel surroundings offer a striking yet refined aesthetic that complements any kitchen design. It boasts 6 sealed burners with a total output of 83,000 BTU, including a 20,000 BTU dual-ring burner for precise simmering at 1,000 BTU. Continuous cast iron grates ensure cookware stability and seamless movement between burners. The spacious 5.26 cu.ft. convection oven offers 30,000 BTU total broil and bake output, a black enamel interior for easy maintenance, and a three-layer tempered glass oven door for optimal heat retention and a clear view inside. Features include two oven racks, a LP conversion kit, and antique brass knobs, blending style with superior functionality. Backed by Forno’s 2-year warranty, this range offers lasting durability and peace of mind. Forno, Lower the cost of living.
| Product Dimensions W x D x H (inches) | 36 x 28.94 x 37.7 |
| Cutout dimensions W x D x H (inch) | 36 x 25 x 36 |
| Product Overall Weight (lbs) | 244.70 |
| Color/Finish | Black |
| Burner Fuel | Gas |
| LP gas convertible | Yes |
| Total Cooktop BTU Output | 83,000 |
| Cooking Surface Control Type | Push & Turn/Knobs |
|
|
Yes |
| Oval Burner | No |
| Cooktop Surface Structure | Grate; Deep Recessed |
| Number of Ovens | 1 |
| Overall Oven BTU | 30000 |
| Auto Re-Ignition | Yes |
| Number of Knobs | 7 |
| Glide/Rollout Racks | No |
| Racks Material | Electroplated |
| Oven Ignition Type | Automatic Ignition |
| Broiler Location | Oven |
| Overall Bake Element BTU | 20000 |
| Interior Light | Yes |
| Oven Preheating Indicator | Yes |
| Storage Drawer | No |
| Temperature Gauge | No |
| Clock | No |
| Oven Fuel | Gas |
| Interior Light(s) Type | Halogen |
| Hidden Bake Element | Yes |

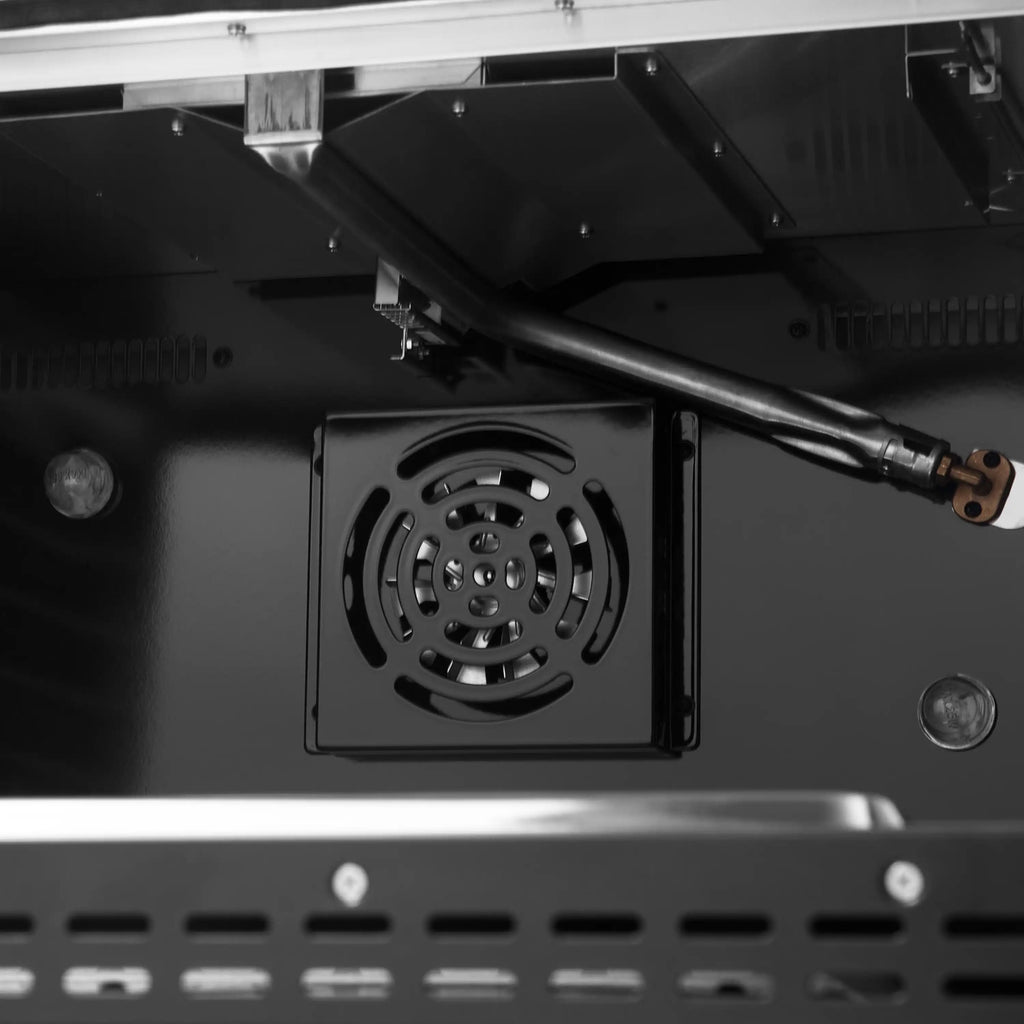

| Convection Type | Single Fan |
| Delay Start | No |
| Knobs Color/Finish | Antique Brass |
| Cabinet Color | Stainless Steel |
| Overall Capacity Cu. Ft. | 5.36 |
| Bulb Type | G9 |
| Number of Lights | 2 |
| Fingerprint-Resistant | No |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
| Gas Heat Configuration (cooktop) | Sealed Burner |
| Number of Burners/Cooking Zones | 6 |
| Cooking Surface Ignition Type | Electronic |
|
|
1 |
| Diswasher-Safe Grates | No |
| Overall Oven Capacity (Cubic Feet) | 5.36 |
| Oven Control Type | Manual/Knob |
| Automatic Shut-Off | No |
| Number of Racks | 2 |
| Number of Rack Positions | 6 |
| Broiler | Gas |
| Overall Broil BTU | 10000 |
| Automatic Convection Conversion | No |
| Control Location | Front |
| Cooktop Hot Surface Indicator | No |
| Warmer Drawer | No |
| Timer | No |
| Primary Material | Metal |
| Dual-Ring Burner | Yes |
| Oven Racks Type | Standard |
| Convection Oven | Yes |
| Cook time Option | No |
| Illuminated knob | No |
| Power Cord Location | Back |
|
|
Stainless Steel |
|
Handle Color/Finish
|
Antique Brass |
| Specs Sheet |

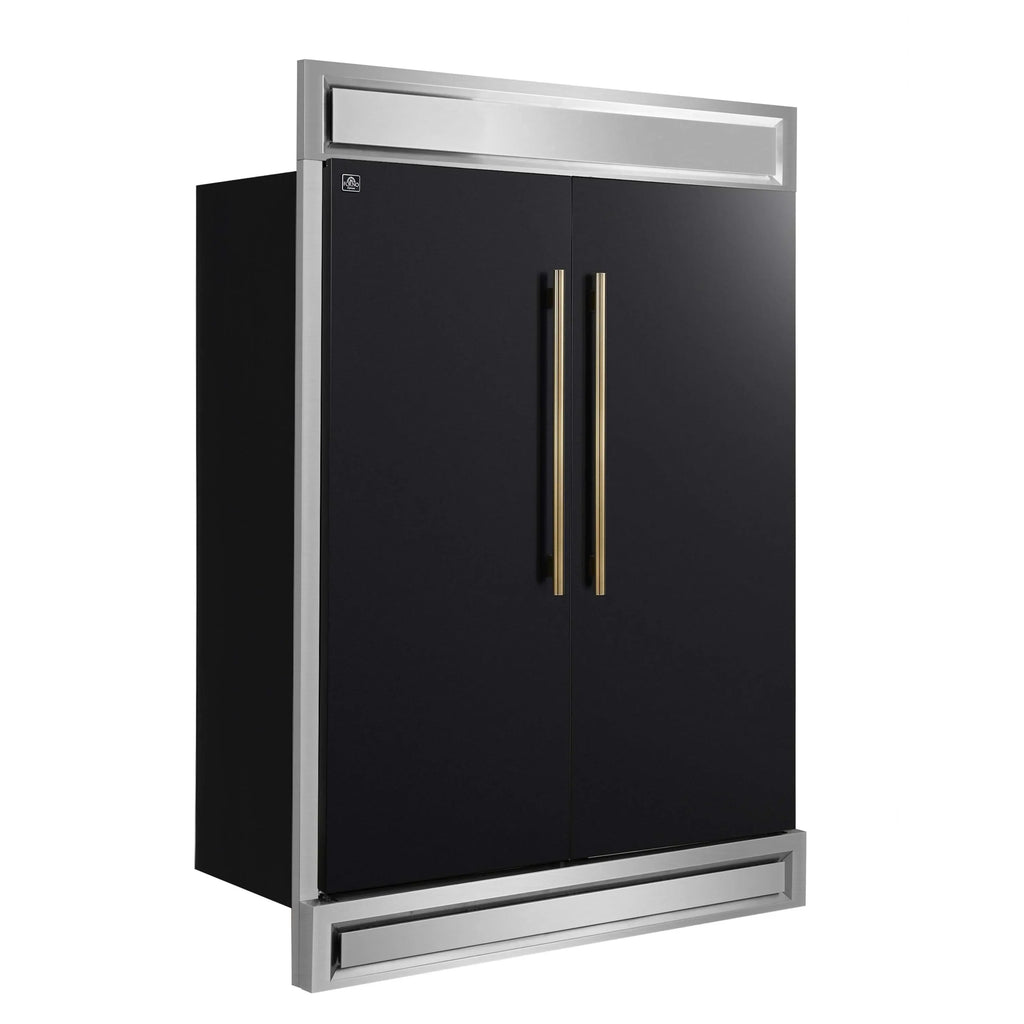

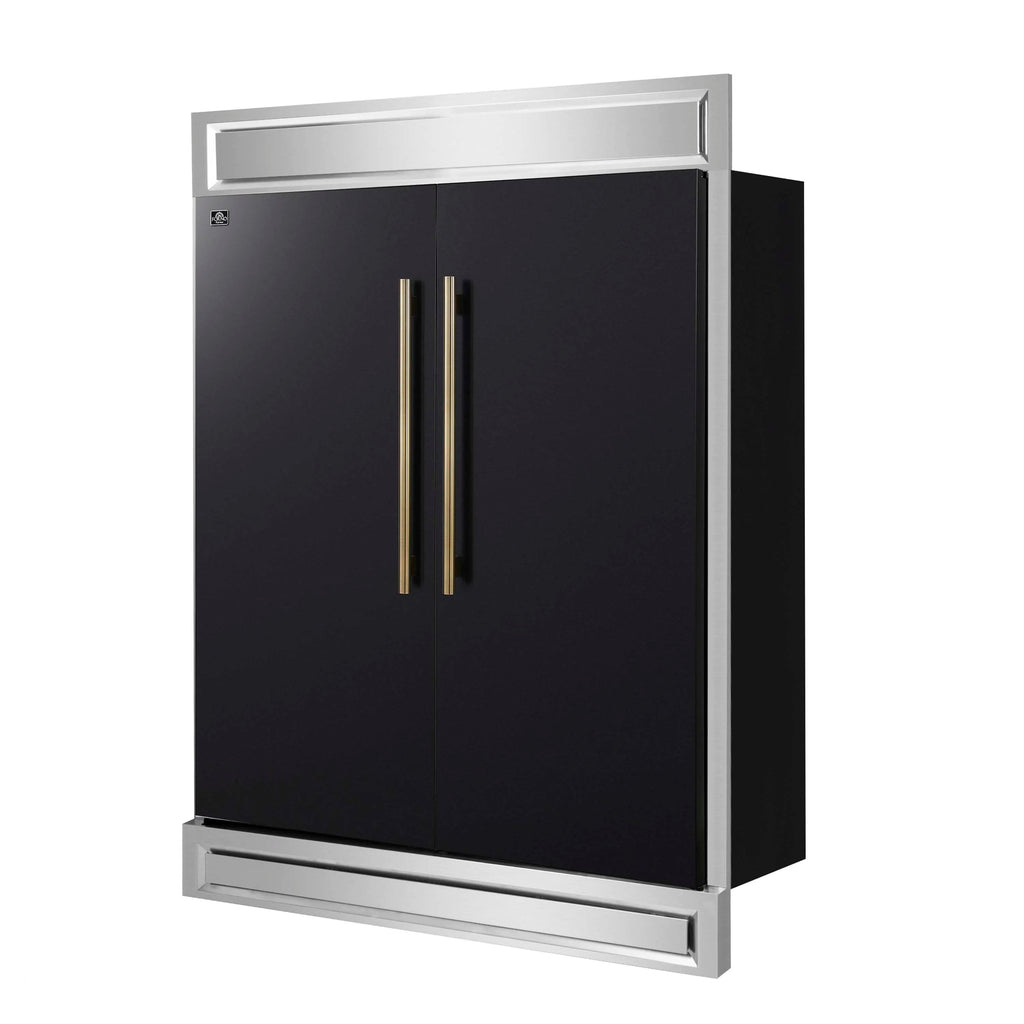

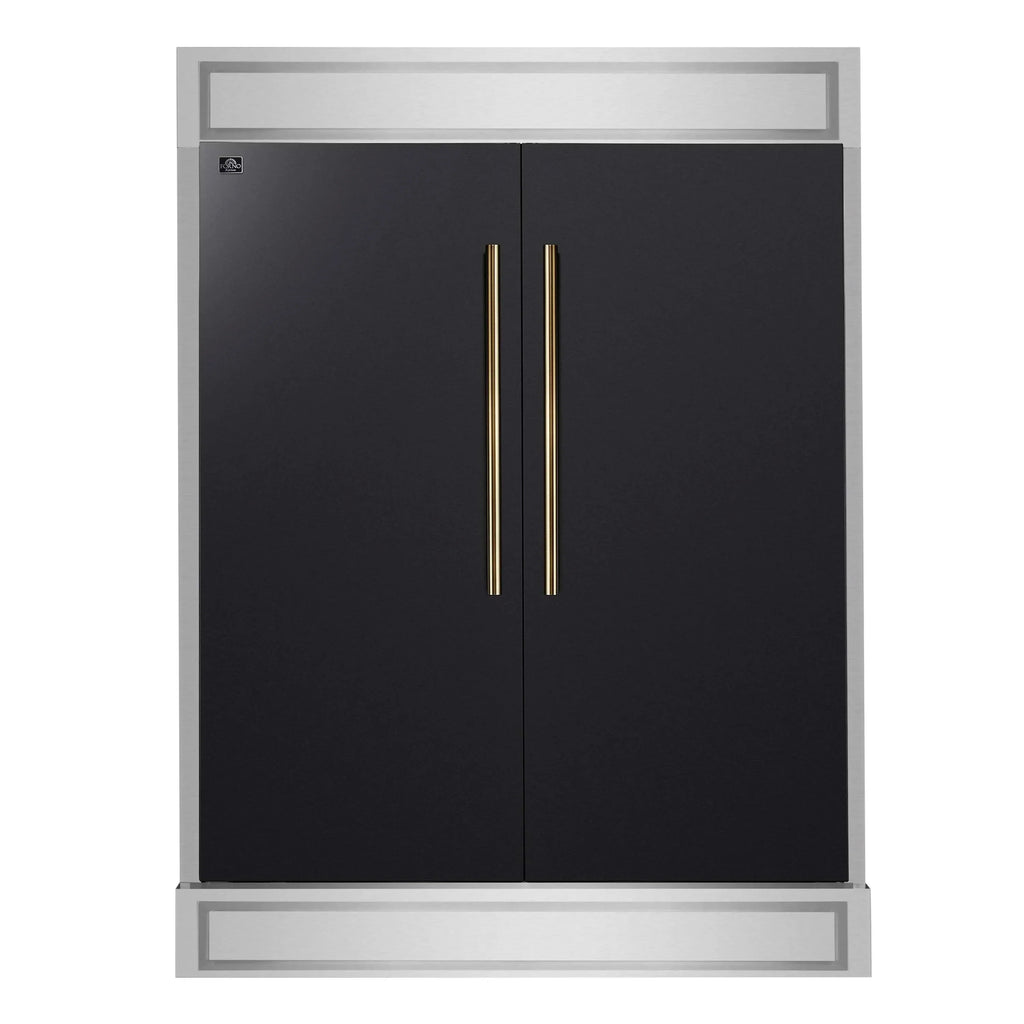

The Forno Maderno provides a premium 60 inch built-in refrigerator look by combining two 28 inch units with a trim kit for seamless side-by-side installation. This fridge freezer combo comes in a black finish with antique brass handles as part of our Espresso line, adding a boldness to any modern kitchen. With a total capacity of 27.2 cu.ft., it's ideal for large households or serious entertainers. Inside, you’ll find Convertible Cooling Zones that let you switch between refrigerator and freezer mode, Total No-Frost technology to prevent icy build-up, and a sleek digital control panel for easy adjustments. The Maderno includes six tempered glass shelves with silver trim, six storage drawers, and bright LED lighting to help keep everything organized and easy to find. VCM-coated doors and a durable metal back panel add strength and a fingerprint-resistant finish. Energy Star certification ensures this side-by-side built-in refrigerator is energy efficient.
| Weight & Dimensions | |
| Overall Weight (Lbs) | 330 |
| Product Dimensions W x D x H (inches) |
55.2 x 26.9 x 67.1 |
| Cutout dimensions W x D x H (inch) |
55.9 x 28.94 x 69.06 |
| Interior Freezer Dimensions W x D x H (in) |
21.58 X 19.96 X 59.84 |
| Technical Information | |
| Color/Finish |
Black |
| Interior Light |
Yes |
| Control Location |
Internal |
| Primary Material |
Steel |
| Interior Light(s) Type |
LED |
| CEE Tier Qualified |
Not Rated |
| Energy Star Most Efficient |
No |
| Minimum Back Clearance (IN) |
2.00 |
| Minimum Top Clearance (IN) |
4.00 |
| Height Top of the Cabinet/Case (inches) |
75.30 |
| Height Top of the Door (inches) |
75.90 |
| Sides Clearance - On Each Sides (IN) |
4.00 |
| Power Cord Location |
Lower Back |
| Height Top of Door Hinge (inches) |
75.90 |
| Energy Consumption (kWh/yr) |
647 |
| Number of Power Cord |
2 |
| Temperature Range Freezer (°F) |
- 11°F to 7°F |
| Estimated Annual Operating Cost (USD) |
110 |
| Freezer door storage |
Yes |
| Temperature Range Freezer (°C) |
-23°C to -13°C |
| Number of Freezer Adjustable Shelves |
3 |
| Number of Freezer Door Bins |
4 |
| Freezer Section Layout |
Adjustable Racks,In-Door Storage,Freezer Drawers,Full Width |
| Freezer Shelf Material |
Glass With Silver Trim |
| Adjustable Freezer Shelves |
Yes |
| Interior Freezer Dimensions Height |
59.84 |
| Number of Freezer Shelves |
4 |
| Interior Freezer Dimensions Width |
21.58 |

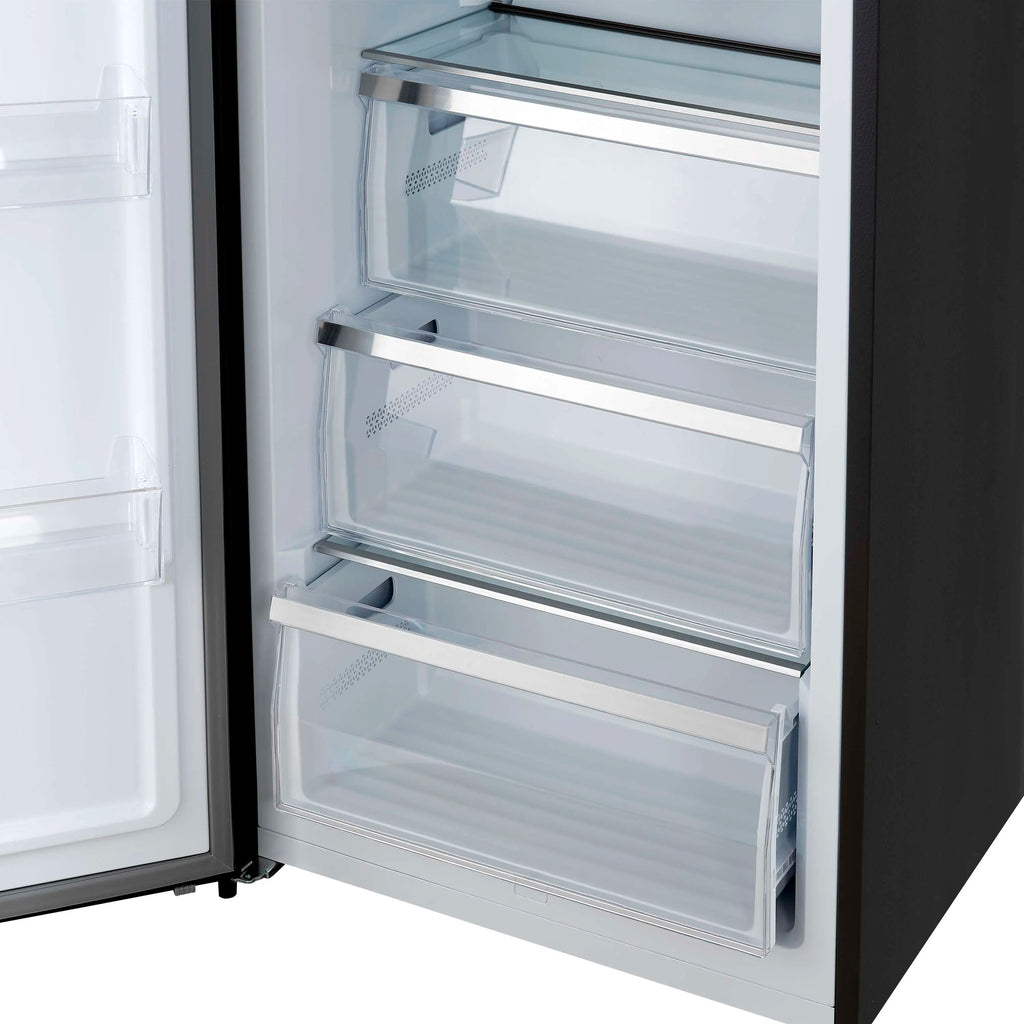

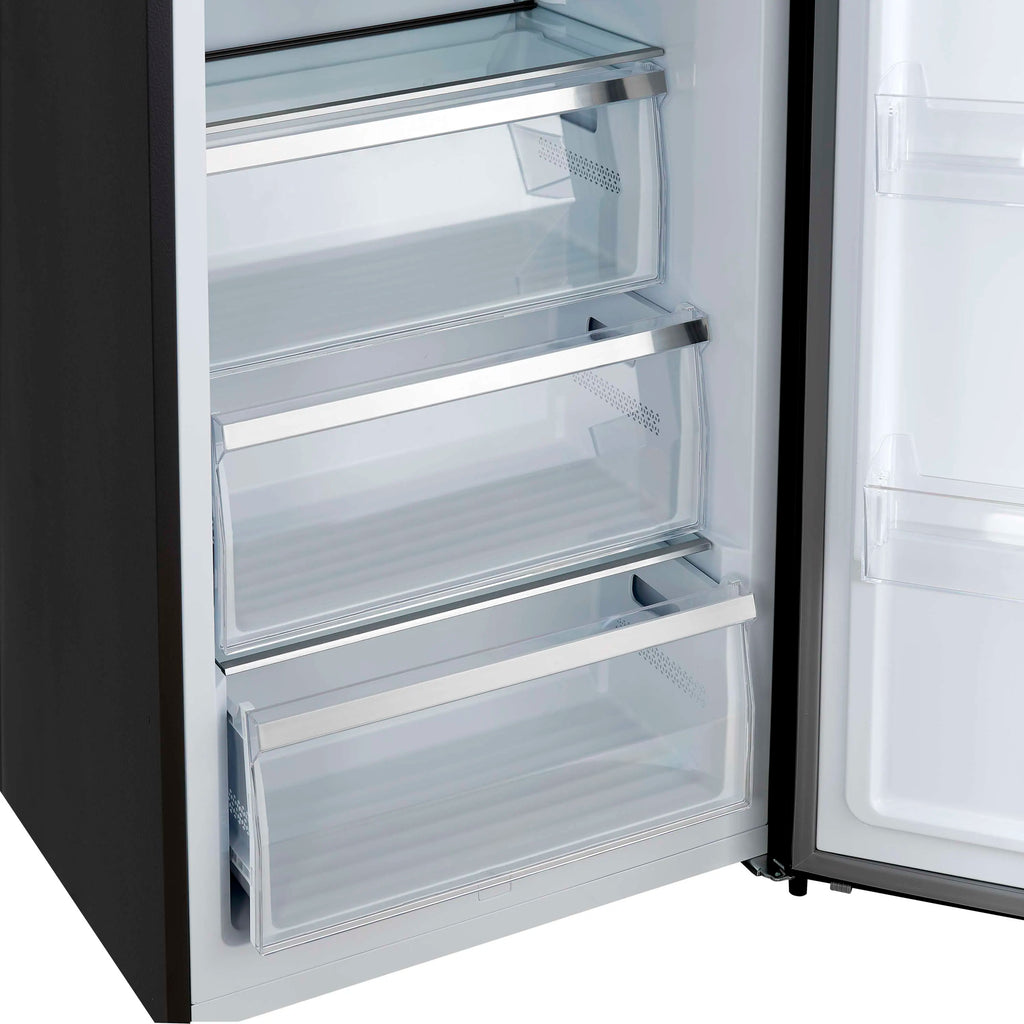

| Number of Freezer Drawers |
3 |
| Freezer Light |
Yes |
| Interior Freezer Dimensions Depth |
19.96 |
| Freezer Capacity |
13.60 |
| Interior Freezer Dimensions W x D x H (in) | 21.58X19.96X59.84 |
| Temperature Range Refrigerator (°F) |
36°F to 46°F |
| Freezer Door Style |
Swing Door |
| Door Bins Color |
Transparent |
| Temperature Range Refrigerator (°C) |
2°C to 8°C |
| Number of Standard Door Bins |
4 |
| Door Bins Material |
Plastic |
| Door Storage |
Yes |
| Adjustable Door Storage |
No |
| Adjustable Fresh Food Shelves |
Yes |
| Fresh Food Door Type |
Swing Door |

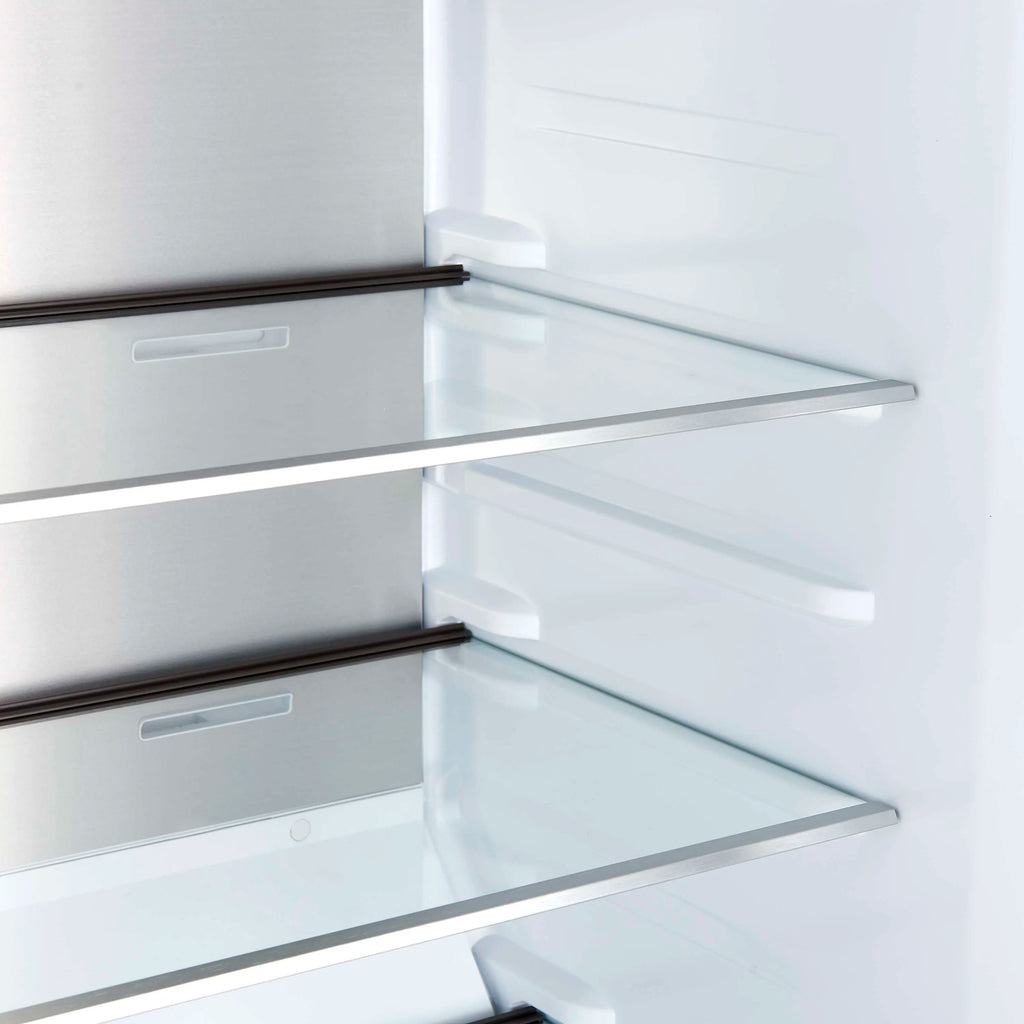

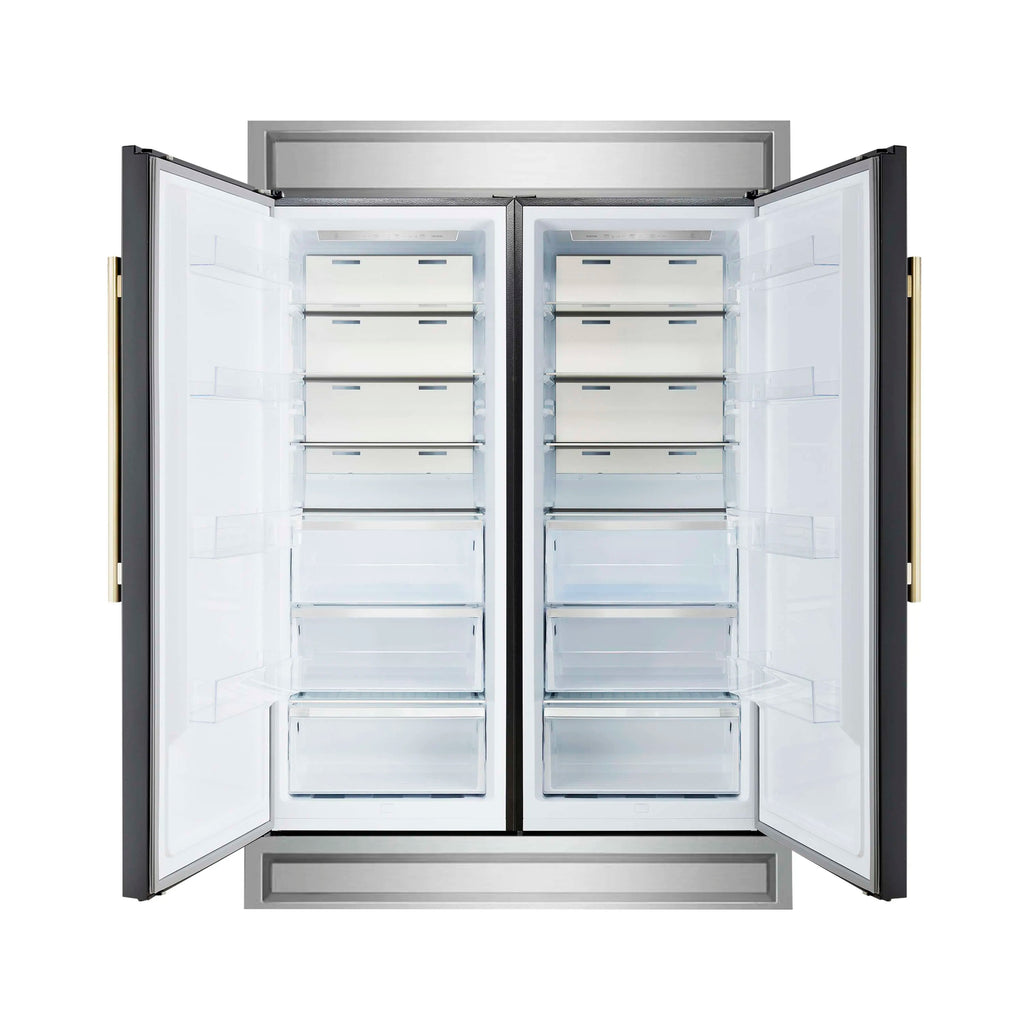

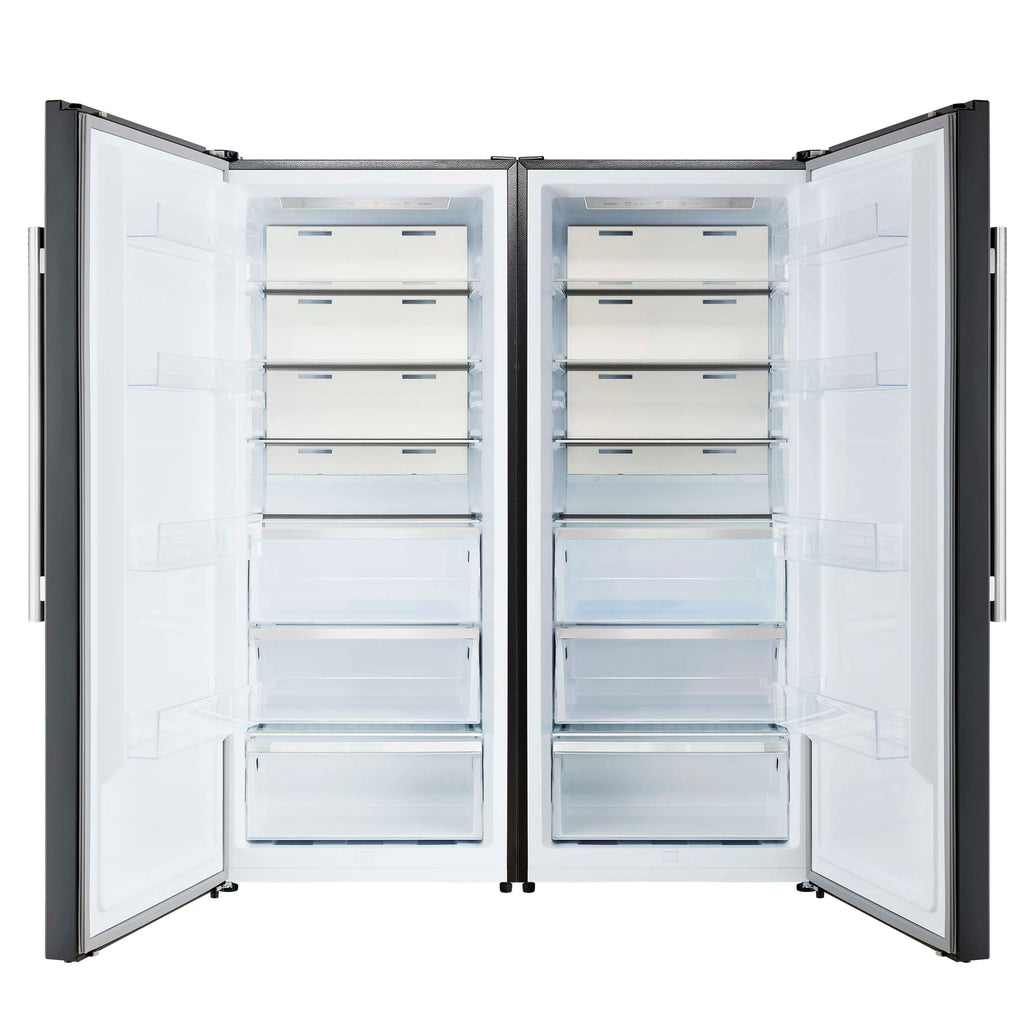

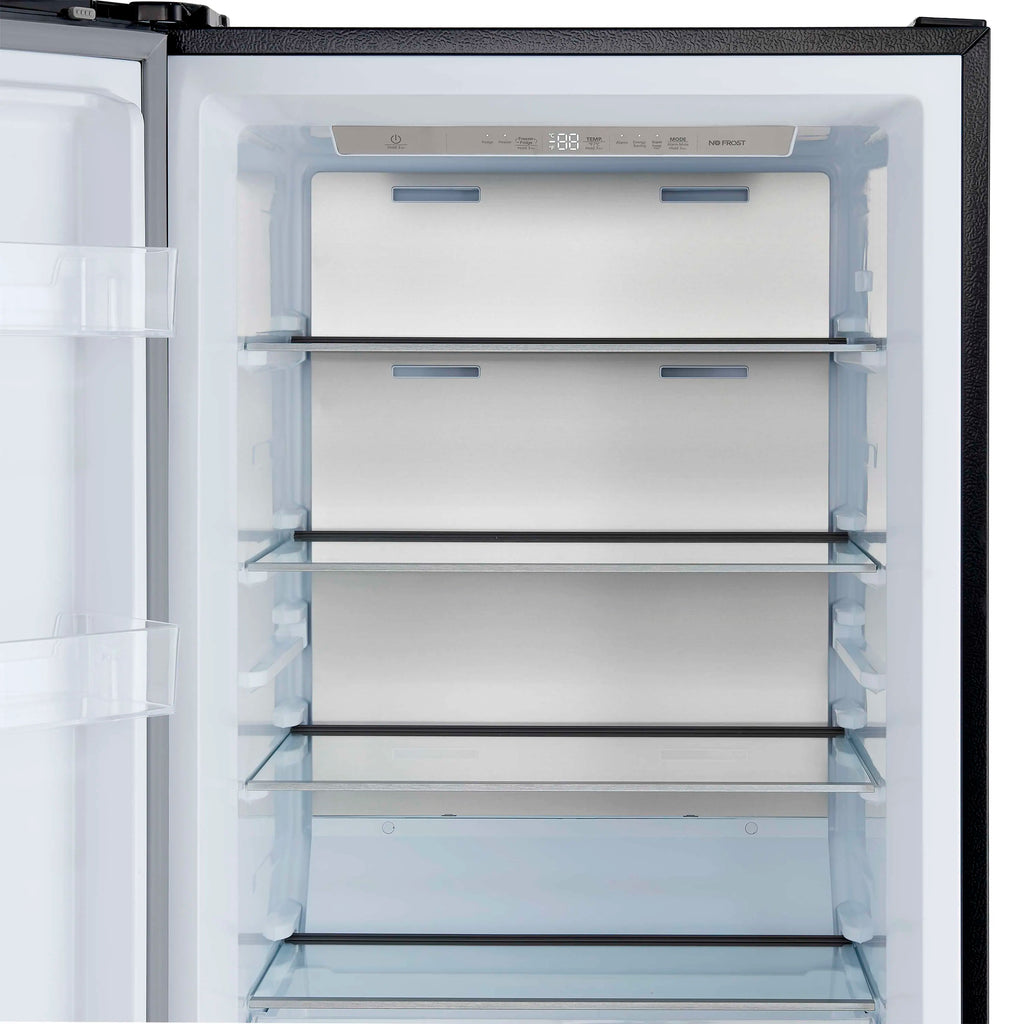

| Number of Fresh Food Shelves |
4 |
| Number of Adjustable Shelves |
3 |
| Humidity Controleld Drawer(s) |
Yes |

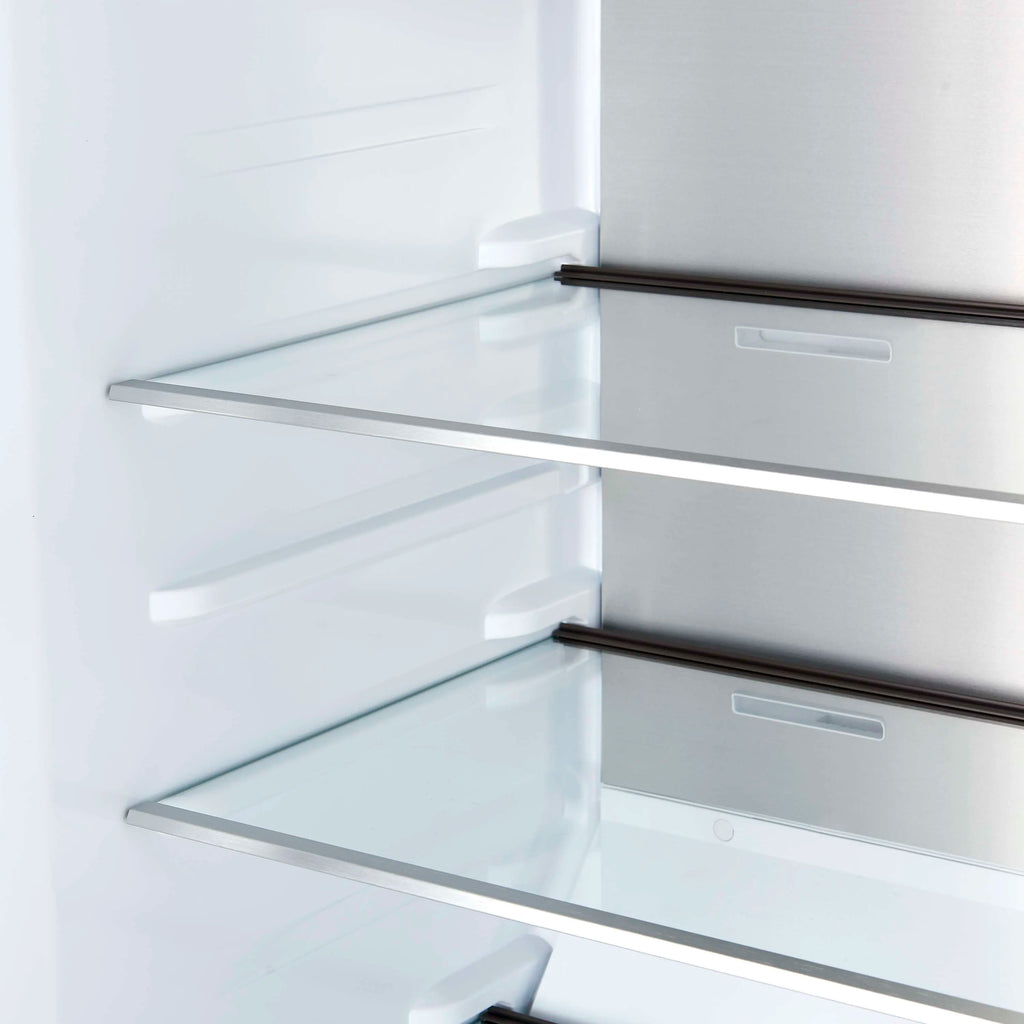

| Fresh Food Shelves Material |
Glass With Silver Trim |
| Number of Fresh Food drawers |
3 |
| Temperature Controlled Drawer(s) |
No |
|
|
21.58 x 19.96 x 59.84 |
|
Fresh Food Capacity Cu. Ft.
|
13.60 |
|
Dual Evaporator Cooling System
|
Yes |
|
Fresh Food Capacity Cu. Ft.
|
13.60 |
|
Toe Grille Color
|
Stainless Steel |
|
Cooling Type
|
Multi Air Flow |
|
Water Pipe Included
|
No |
|
Extra Water Filter
|
No |
|
See-Thru Door
|
No |
|
Fast Cool Function
|
Yes |
|
Fast Freeze Function
|
Yes |
|
Energy Saver Mode
|
Yes |
|
Air Filtration
|
No |
|
Cabinet Color
|
White |
|
Cabinet Material
|
Embossed Galvanized Steel |
|
Door Liner Color
|
White |
|
Door Liner Material
|
High Impact Polystyrene |
|
Door Texture
|
Smooth |
|
Door Style
|
Contoured |
|
Pantry Drawer
|
No |
|
Spill-Proof Shelves
|
No |
|

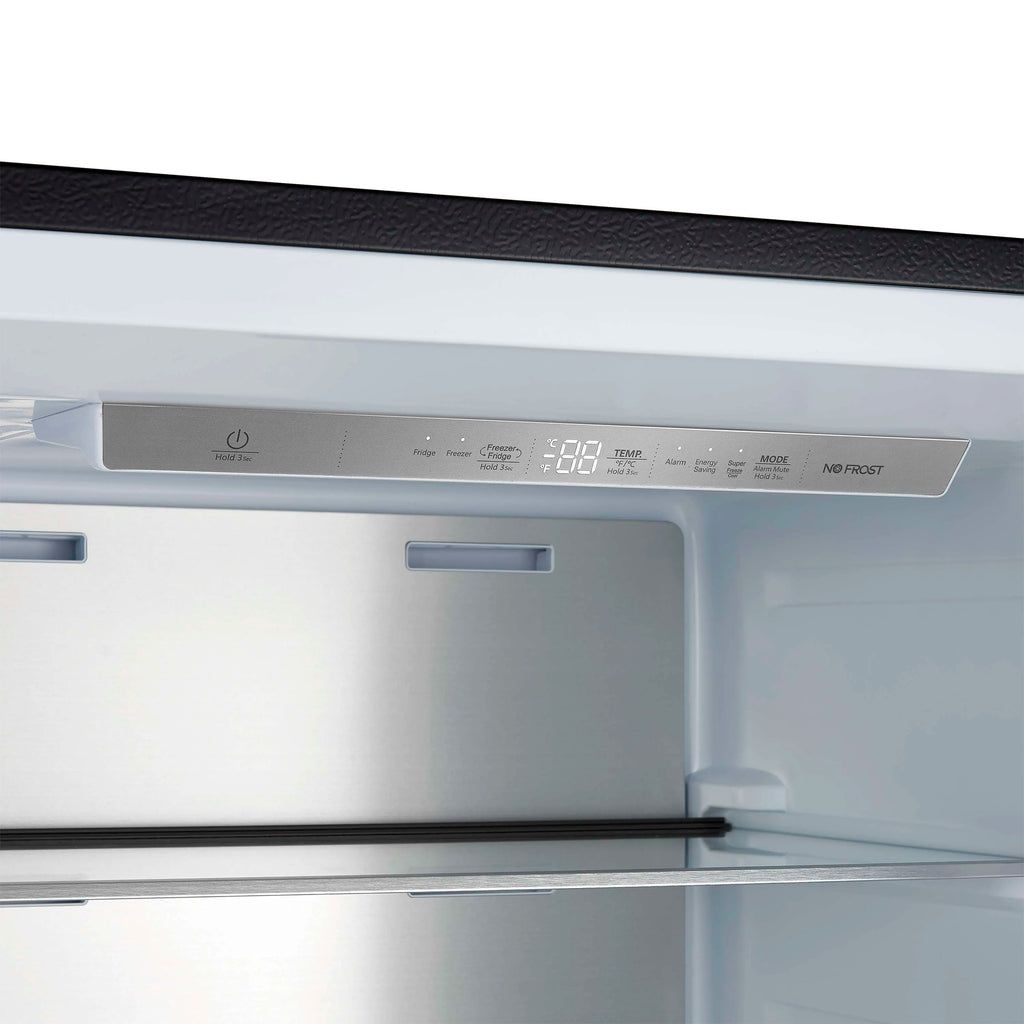

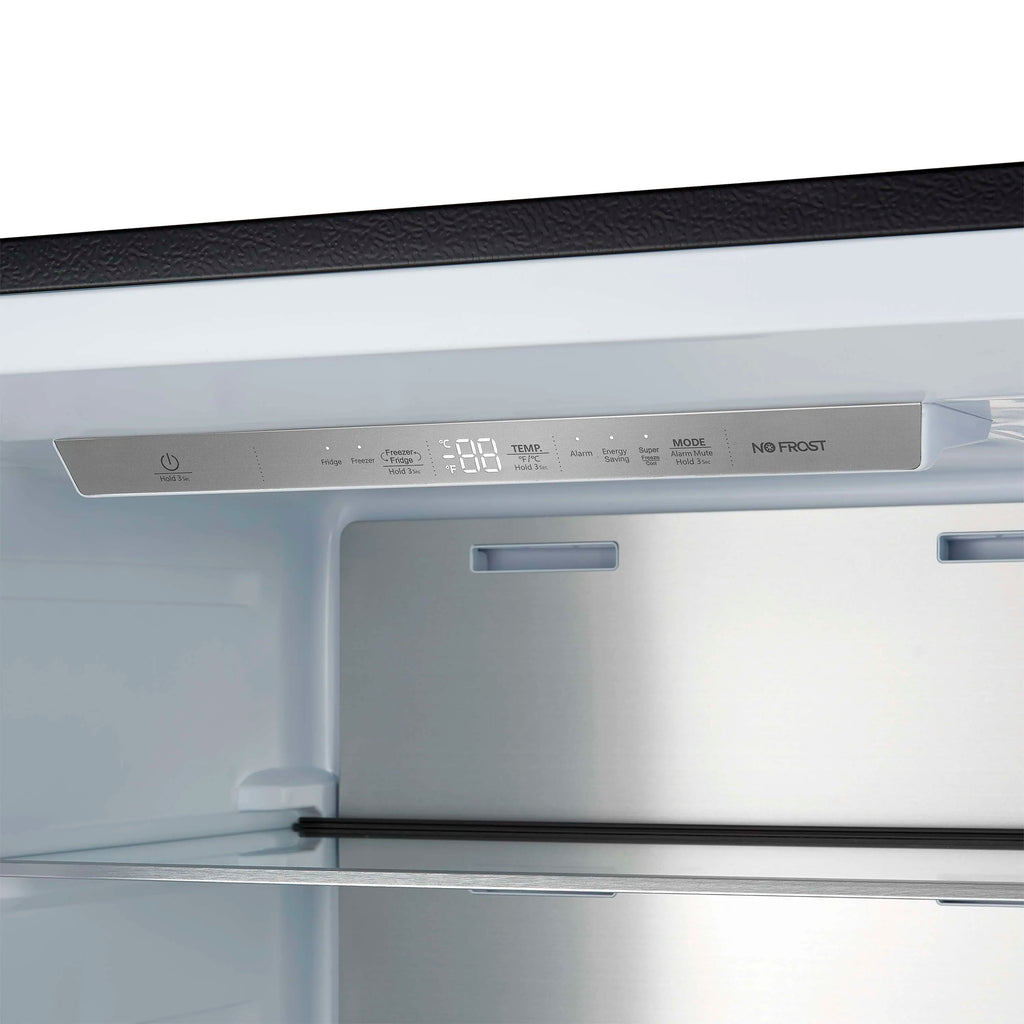

Electronic Temperature Control
|
Yes |
|
Temperature Memory Function
|
Yes |
|
External Dispenser
|
No |
|
Water Dispenser
|
No |
|
Overall Capacity Cu. Ft.
|
27.20 |
|
Number of Lights
|
2 |
|
Handle Color/Finish
|
Stainless Steel,Antique Brass |
|
Fingerprint-Resistant
|
No |
|
Certification
|
|
|
Safety Listing
|
cULus safety listing |
|
Enegy Star Certified
|
Yes |
|
Energy Policy Act 1992 Compliant
|
Yes |
|
ISTA 6A
|
Yes |
|
|
Yes |
|
Warranty
|
|
|
Commercial Warranty
|
No |
|
Warranty on Parts
|
2 Years |
|
Warranty Type
|
Limited |
|
Warranty on Labor
|
2 Years |
|
Warranty Length (Years)
|
2 Years |

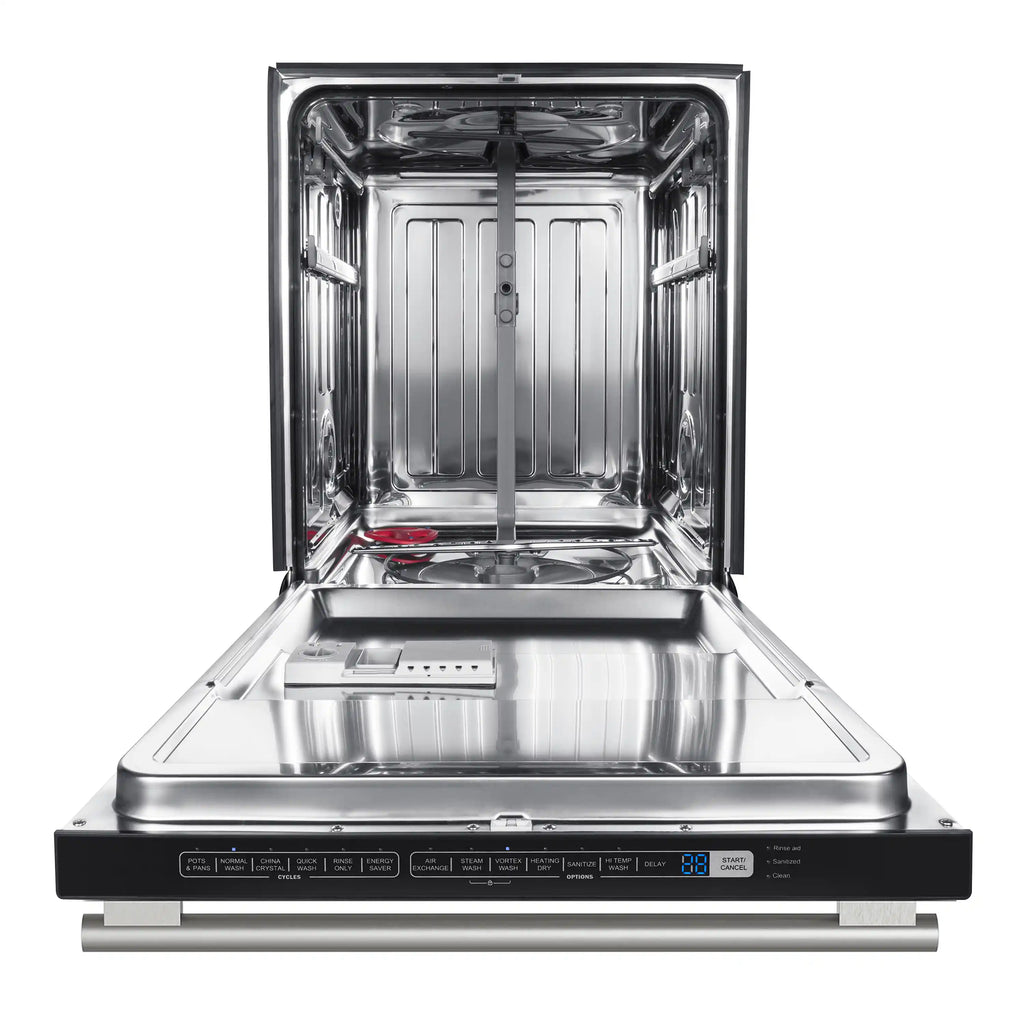

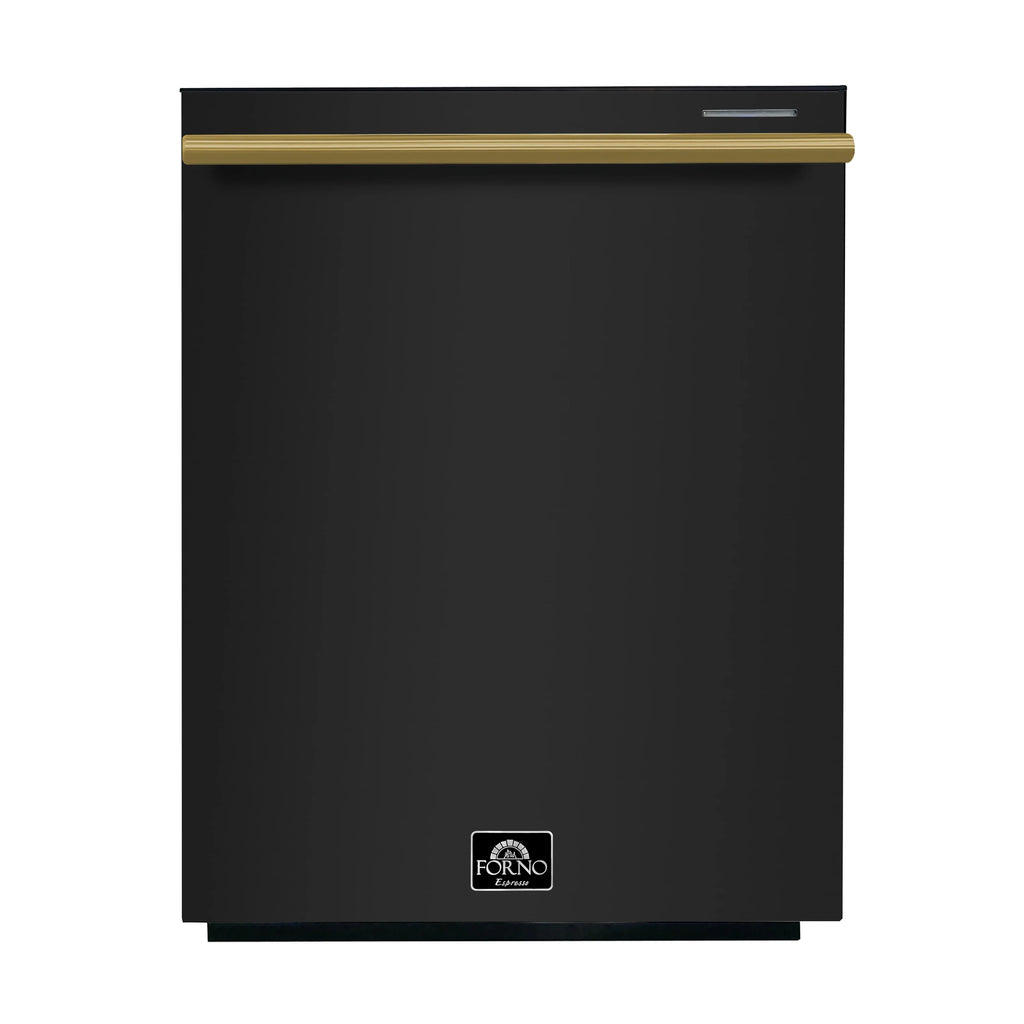

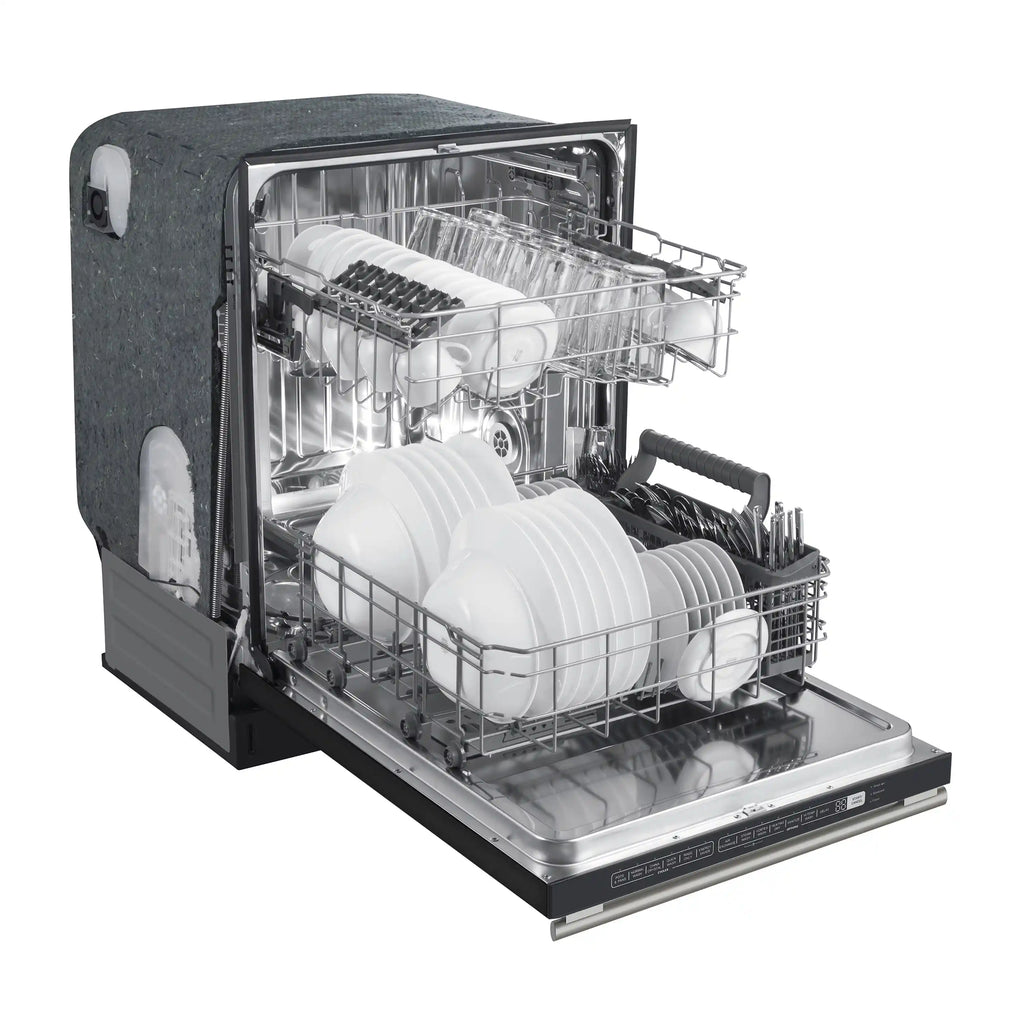

Pozzo 24 in. Built-In Tall Tub, Top Control, Dishwasher, 49 dBA, Soil-Sensing Capable, ENERGY STAR Certified
The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its black front and pro-style handle offer durability and style. Customize your look effortlessly with two sets of interchangeable handles, switching between antique brass for a traditional touch or stainless steel for modern flair. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additional silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| Weight and Dimensions | |
| Product Dimensions |
23.85" W x 26" D x 33.74" H |
| Depth Excluding Handle (in) | 24" |
| Depth Including Handle (in) |
26" |
| Product Height Maximum |
35" |
| Depth Door Open 90º (back to front door open) |
50" |
| Cutout W x D X H |
24''W x 24''D x 34''H to 35''H |
| Overall Weight | 93.2 lbs |
| Certifications & Safety | |
| Safety Listing | cULus |
| File/Control Number Number |
E219644 |
| Energy Star Certified |
Yes |
| ENERGY STAR Unique ID |
2485657 |
| Energy Policy Act 1992 Compliant |
Yes |
| ADA Compliant |
No |
| ISTA 1A Certified |
Yes |
| ISTA 6A Certified |
Yes |
| Details | |
|
Sound Rating (dB) |
49 |
|
Water Inlet Location |
Left Bottom Front |
|
Water Inlet Connection Size (inches) |
8-Mar |
|
Water use (gallons/cycle) |
3.2 |
|
Water Pressure (PSI) |
20 - 120 |
|
Estimated Yearly Electricity Use (kWh) |
240 |
|
Estimated Yearly Operating Cost (USD) |
USD 24.00 |
|
Dedicated Circuit Breaker |
15 |
|
Power Supply Connection Location |
Right Bottom Front |
|
Total AMPS Usage |
8.4 |
|
Volts |
120 |
|
Frequency (Hz) |
60 |
|
Total Power Consumption (Wattage) |
1008 |
|
Motor Power Consumption (Wattage) |
120 |
|
Heater Power consumption (wattage) |
888 |
|
Standby Power (wattage) |
0.39 |
|
Power cord Included |
No |
| Product Type | Built-In |
| Panel Ready | No |
| Color/Finish | Black |
| Handle Type | Bar Handle |
| Handle Color/Finish | Brass |
| Primary Material | Steel |
| Leveling Legs | Yes |
| Number of Leveling legs | 4 |

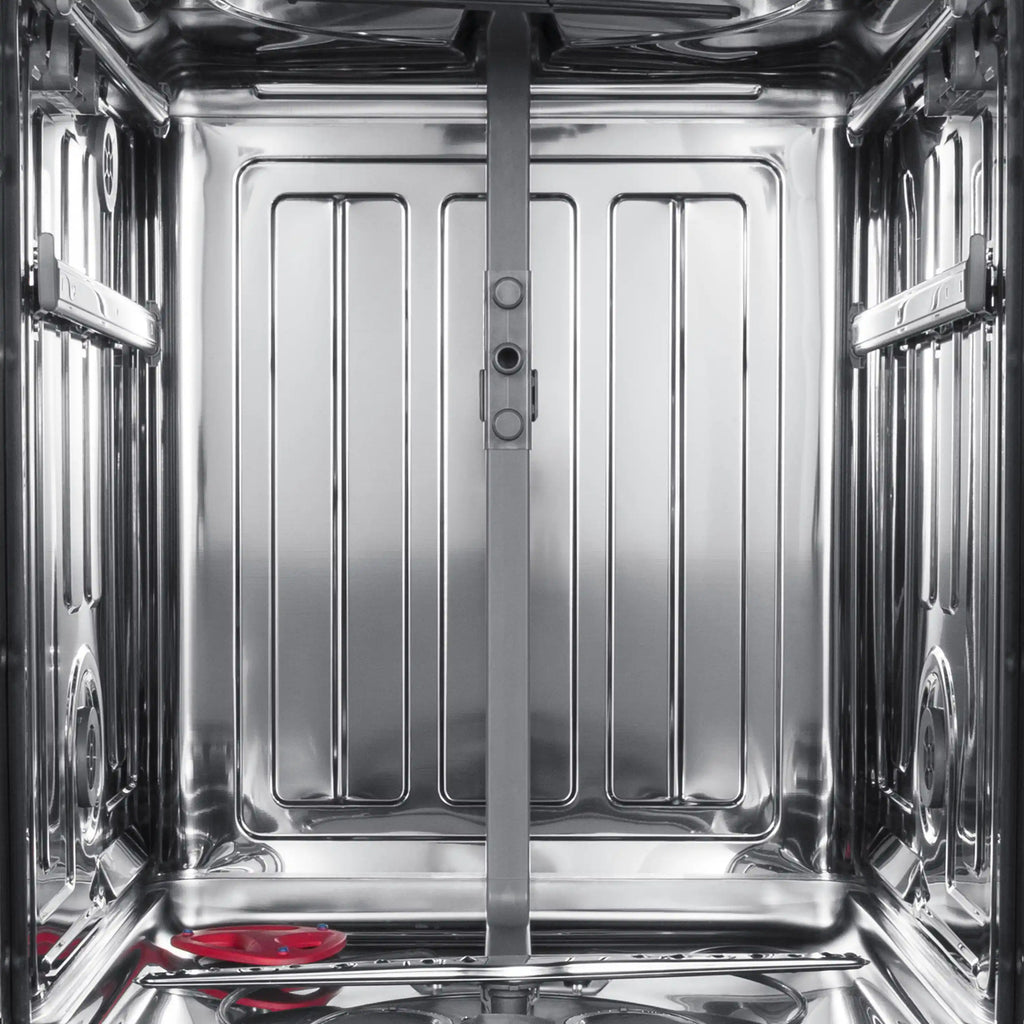

| Tub Material | Stainless Steel |
| Tub Height | Tub Height |
| Number of Cycles | 6 |
| Type of Cycles |
Pots & Pans; China & Crystal; Quick Wash; Energy Saver; Normal Wash; Rinse Only |
| Types of Options | Air Exchnage; Steam Wash: Vortex Wash; Heating Dry; Sanitize; High Temp Wash; Delay |
| Number of Wash Level(s) | 3 |
| Number of Drying Cycles | 2 |
| Fan Assisted Dry | Yes |
| Heated Dry Option | Yes |
| Concealed heating element | No |
| 1/2-Rack Wash Option | No |
| Delay Wash | Yes |
| Delay Start Information | 1-24 Hours |
| Steam Wash | Yes |
| Sensor Wash Cycle | No |
| Pre-Soak Cycle | No |
|
Quick Rinse Cycle |
Yes |
|
Rinse & Hold Cycle |
No |
| NSF Certified Sanitization Option |
Yes |
|
Mineral Assisted Dry |
No |
| Soil-Sensing Capability |
Yes |
|
Cycle Status Indicator Light |
Yes |
| Low Rinse Aid Indicator |
Yes |
| Number of Place Settings |
14 |

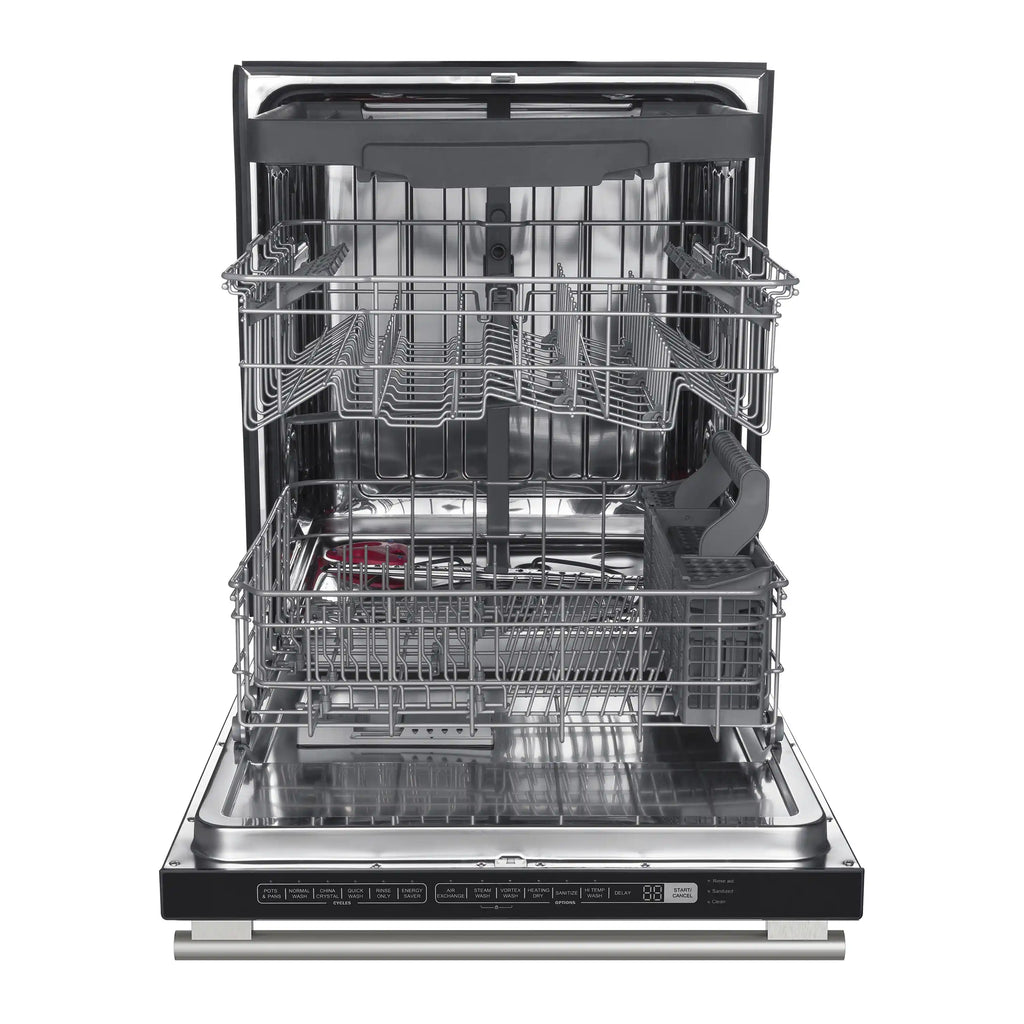

| Number of Racks | 3 |
| Folded-Down Tines | Upper & Lower Racks |
| Rack Material |
Nylon Coated Steel |
|
Adjustable Rack |
Yes |
|
Silverware Basket |
Yes |
| Splittable Silverware Basket |
3 Piece Splittable |
|
Silverware Basket Location |
Bottom |
|
Removable Silverware Basket |
Yes |
|
Stemware Glass Holder |
Yes |
|
Third Rack |
Yes |
|
Number of Wash Arms |
3 |
|
Child Control Safety Lock |
Yes |
|
Filter Material |
Stainless-Steel |
|
Filter Trap |
Removable |
|
Self-Cleaning Filter |
Yes |
|
Hard Food Dispenser |
No |
|
Water Filtration |
No |
|
Wash System |
Smart Wash System |
|
Wash System Type |
Direct Feed |
|
Automatic Temperature Control |
No |
|
Plug-in |
No |
|
Custom Door Panel Included |
No |
|
Supplier Intended and Approved Use |
Residential Use |
| Warranty | |
| Commercial Warranty |
No |
| Warranty Type |
Limited |
|
Warranty Length |
2 Years |
| Warranty on Parts | 2 Years |
|
Warranty on Labor |
2 Years |

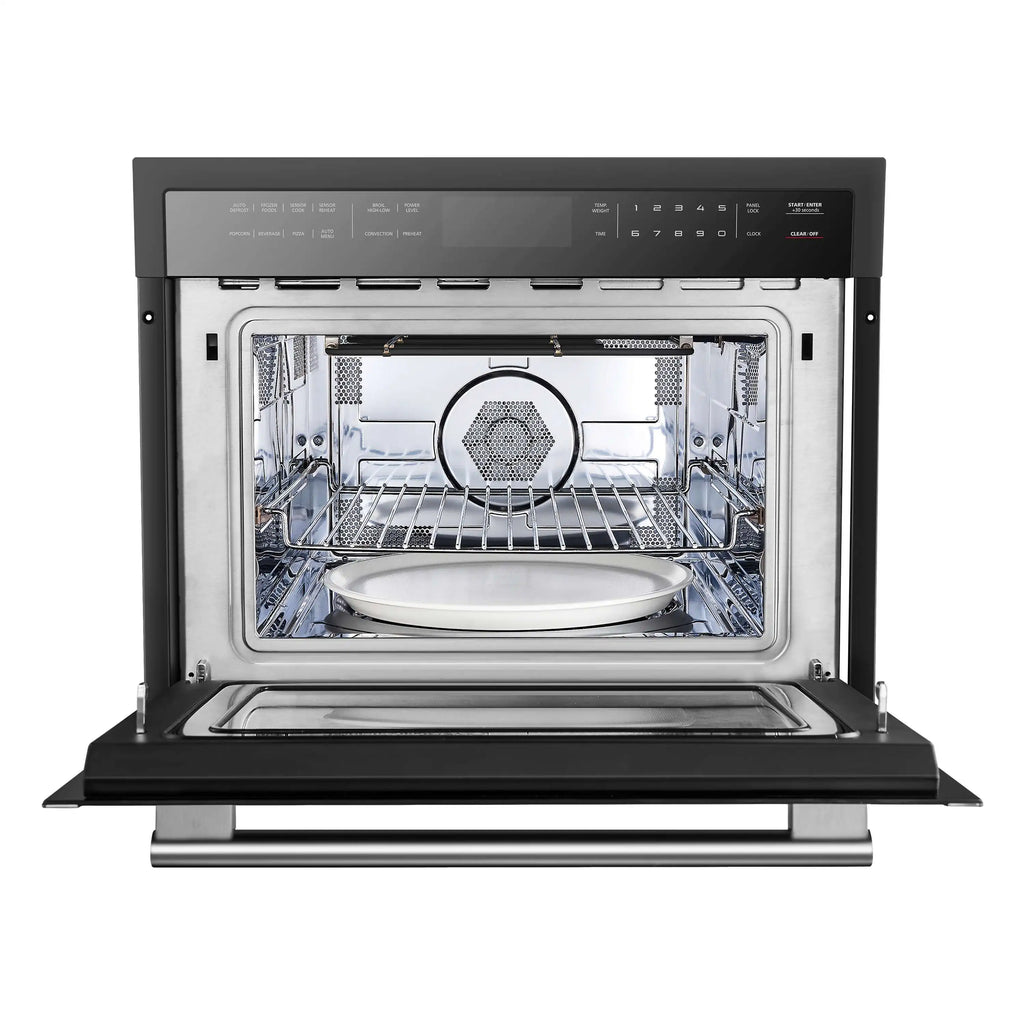

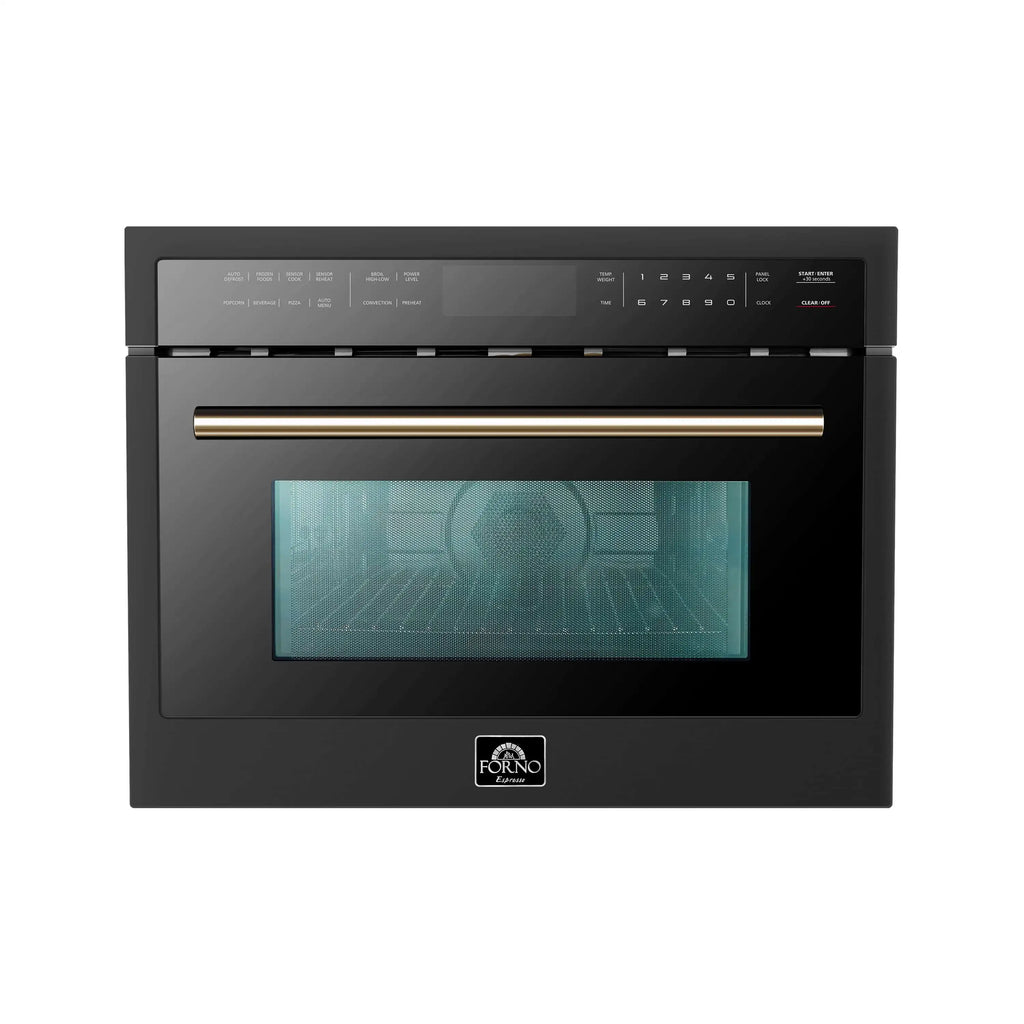

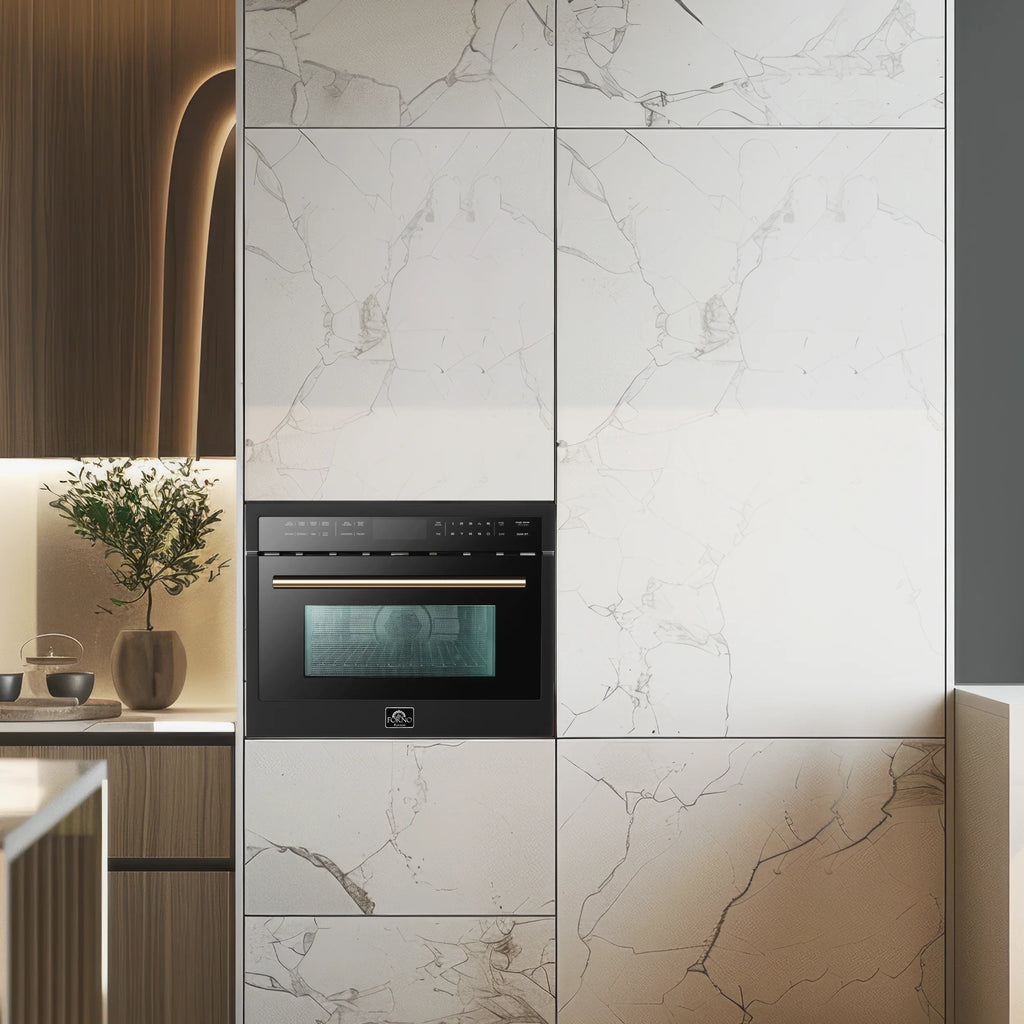

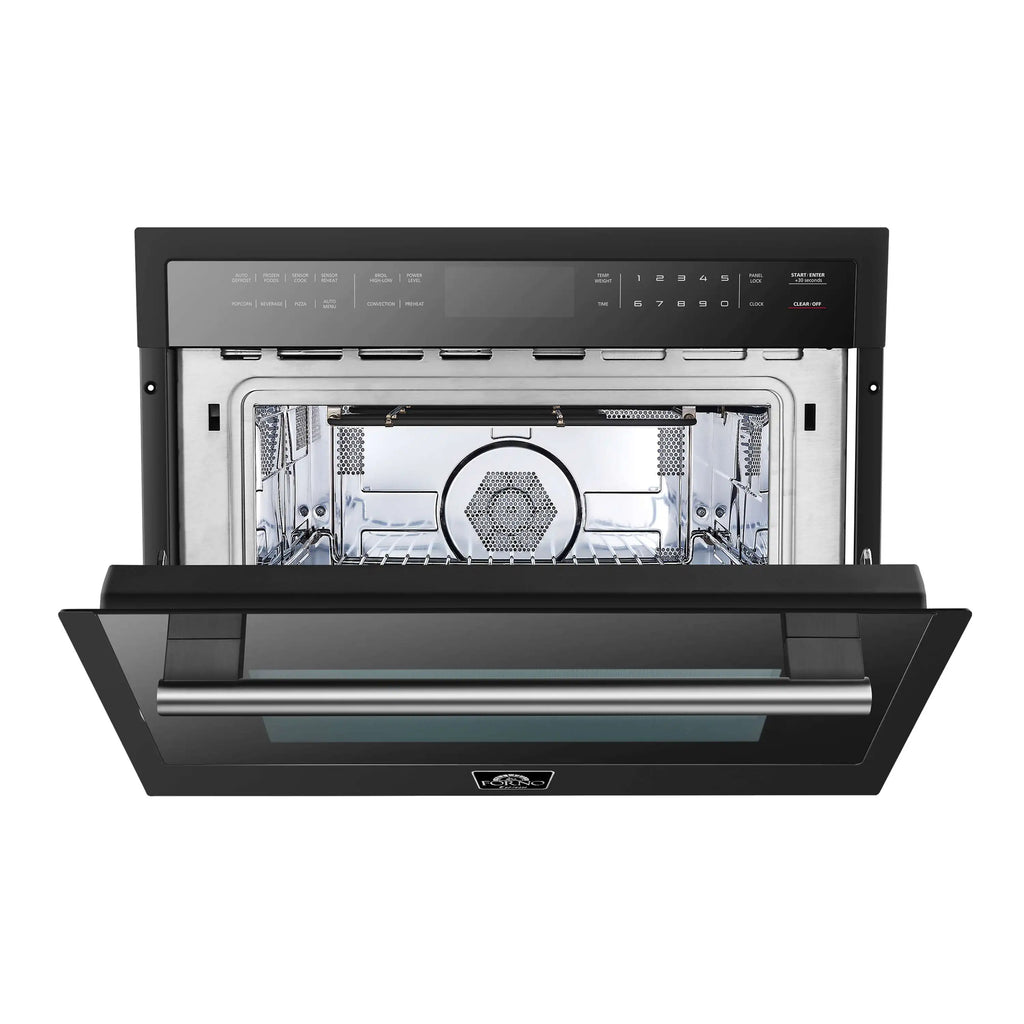

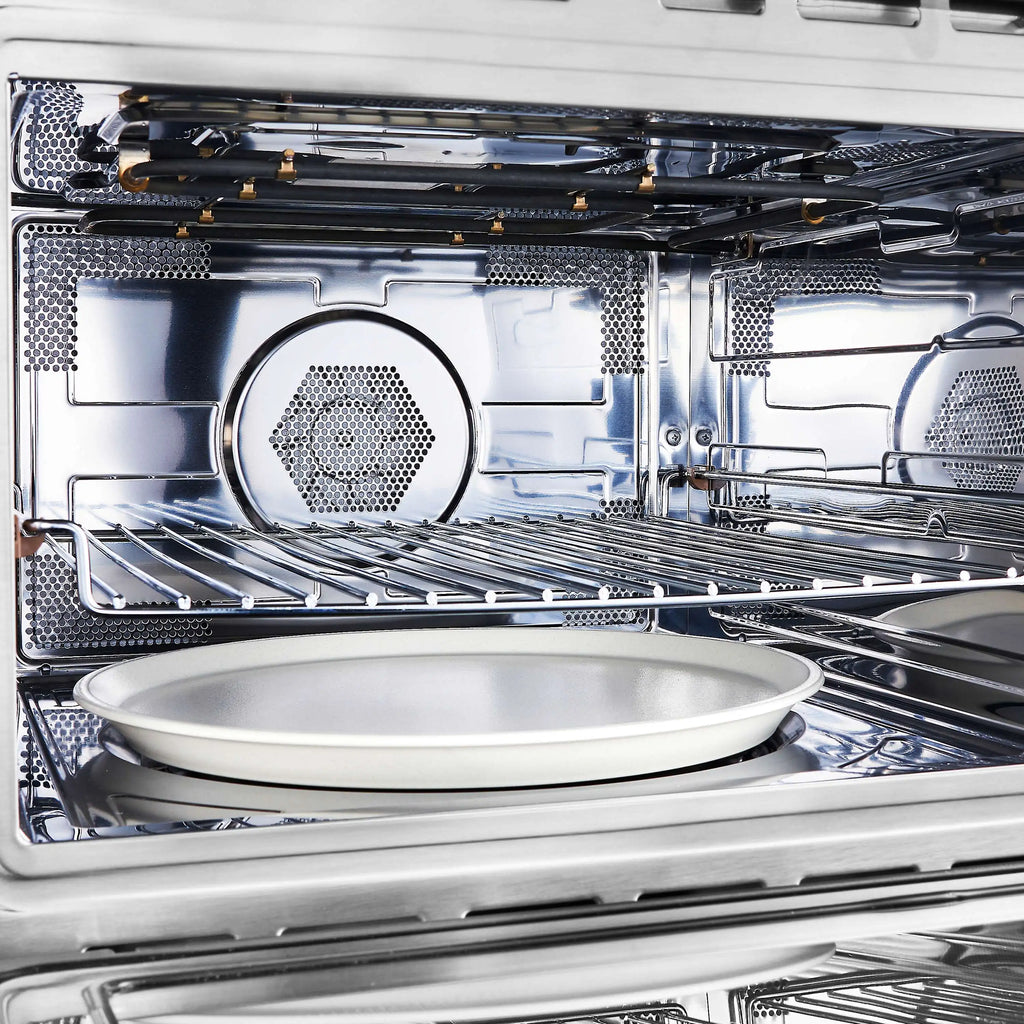

The Forno Oliena 24-Inch 1.6 cu.ft. Microwave & Convection Oven combines style and practicality for any modern kitchen. Its stainless-steel interior ensures easy cleaning, while intuitive controls allow seamless switching between microwave and oven functions. With 1,000 watts of cooking power, you can boil water in just 1 minute and 50 seconds using standard microwave settings. The glass touch controls and LCD display simplify navigation through various microwave modes such as defrost, popcorn, beverage, sensor cooking, and auto menu. In oven mode, enjoy the versatility of true convection at 1,700 watts, along with a broil function of 1,750 watts and a bake element of 600 watts, perfect for cooking individual dishes without needing the main oven. Rapid Preheat mode reduces waiting times, ensuring your meals are ready faster.
This unit features a sophisticated black finish and comes with two handle options—stainless steel and antique brass—allowing you to customize the look to match your kitchen decor. Experience convenience and efficiency with our multi-functional microwave and convection oven combo.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| Dimensions | |
| Overall Dimensions | 23.4" W x 24.2" D x 17.9" H |
| Cutout Dimensions | 22.32" W x 23.25" D x 17.75" H |
| Overall Product Weight (lbs) | 81.8 lbs |
| General | |
| Collection | Espresso |
| Series Name | Oliena |
| Color/Finish | Black |
| Number of Racks | 1 |
| Bake Element | Yes |
|
|
Yes |
| Control Location |
Top |
| Temperature Gauge |
No |
| Timer | Yes |
| Clock | Yes |
|
|
Steel |
|
|
LED |
|
|
1750 |
|
|
600 |
|
|
Yes |
|
|
1700 |
|
|
No |
| CEE Tier Qualified | Not Rated |
| Overall Capacity Cu. Ft. | 1.60 |
| Power Cord Location | Back |
| Bulb Type | LED |
| Bulb Wattage | 1.50 |
| Number of Lights | 1 |
| LTL or Parcel | Parcel |
| Handle Color/Finish | Stainless-Steel,Antique Brass |
| Vent Type | Does not apply |
| Fingerprint-Resistant | Yes |
| Certification | |
| Safety Listing | cULus safety listing |
|
|
E214180 |
|
|
▯ CAN/CSA C22.2 No. 61 - Household Cooking Ranges ▯ UL 858 - Household Electric Ranges ▯ CAN/CSA C22.2 No. 150 - Microwave Ovens ▯ UL 923 - Microwave Cooking Appliances ▯ UL 507 - Electric Fans ▯ CAN/CSA C22.2 No. 113 - Fans and Ventilators ▯ CSA C22.2 No. 64 - Household Cooking and LiquidHeating Appliances ▯ UL 1026 |
|
|
Yes |
|
|
Yes |
| Star-K Certified | Not Rated |
|
|
Yes |
|
|
No |
|
|
Yes |
|
|
Not Rated
|
|
|
No
|
|
Warranty
|
|
|
Commercial Warranty
|
No
|
|
Warranty on Parts
|
2 Years
|
|
Warranty Type
|
Limited
|
| Warranty on Labor |
2 Years
|
| Warranty Length (Years) |
2 Years
|
