SKU: 4KAPR-SGRBRHDWV48-CB
$15,849.80 $26,799.80
Save 41%

Size
Fuel Type
Finish: Black Stainless Steel
Trim: Champagne Bronze
Refrigerator Option
Estimated delivery:
Free Gift: Field Co.Cast Iron 2-Piece Set with Purchase
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

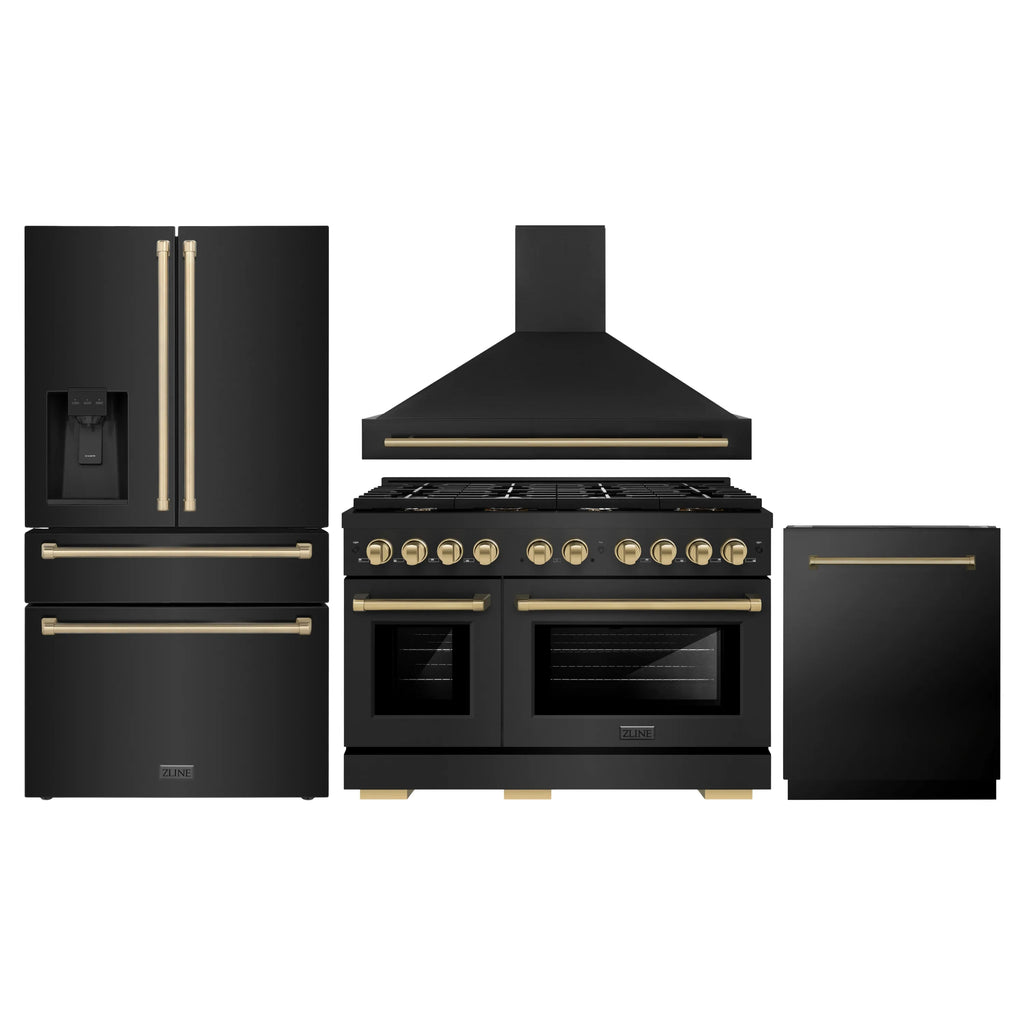

Package Overview

Home Outlet Direct brings together the most popular ZLINE kitchen appliances in one perfectly matched package.

Package Includes:

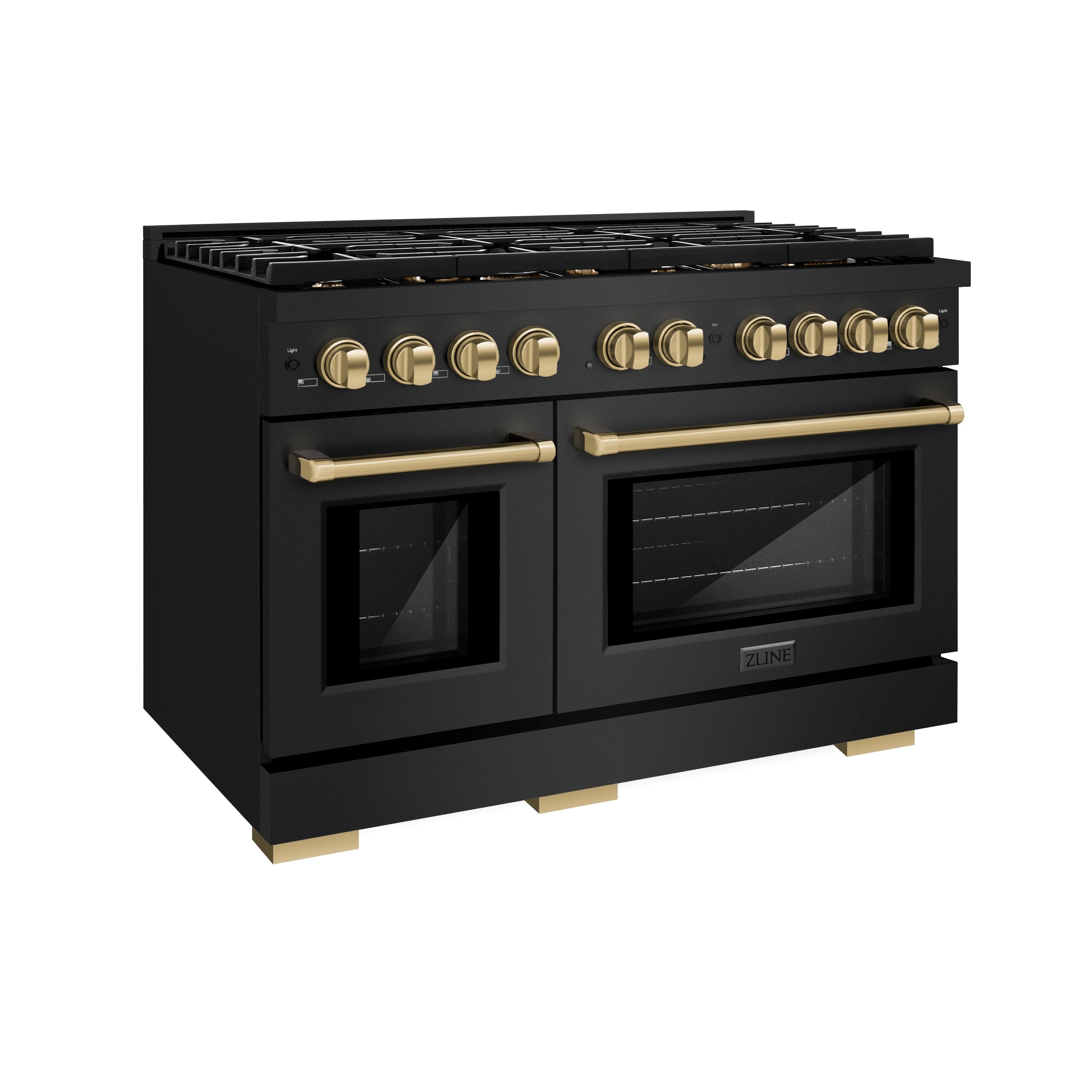

ZLINE Autograph Edition 48-Inch Paramount Gas Range with 8 Gas Burners and 6.7 cu. ft. Double Gas Oven in Black Stainless Steel and Champagne Bronze Accents (SGRBZ-48-CB)
ZLINE Autograph Edition 48-Inch Paramount Gas Range with 8 Gas Burners and 6.7 cu. ft. Double Gas Oven in Black Stainless Steel and Champagne Bronze Accents (SGRBZ-48-CB) View Product
Description
Product Specs
Manuals & Guides

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 48 in. 6.7 cu. ft. 8 Burner Double Oven Gas Range in Black Stainless Steel and Champagne Bronze Accents (SGRBZ-48-CB) features a versatile gas cooktop with 8 Italian-made burners, a large high-performing gas convection oven, and a small baking oven with elegant champagne bronze knobs and handles allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Professional Gas Ranges are masterfully crafted to deliver an elevated culinary experience.

Features:

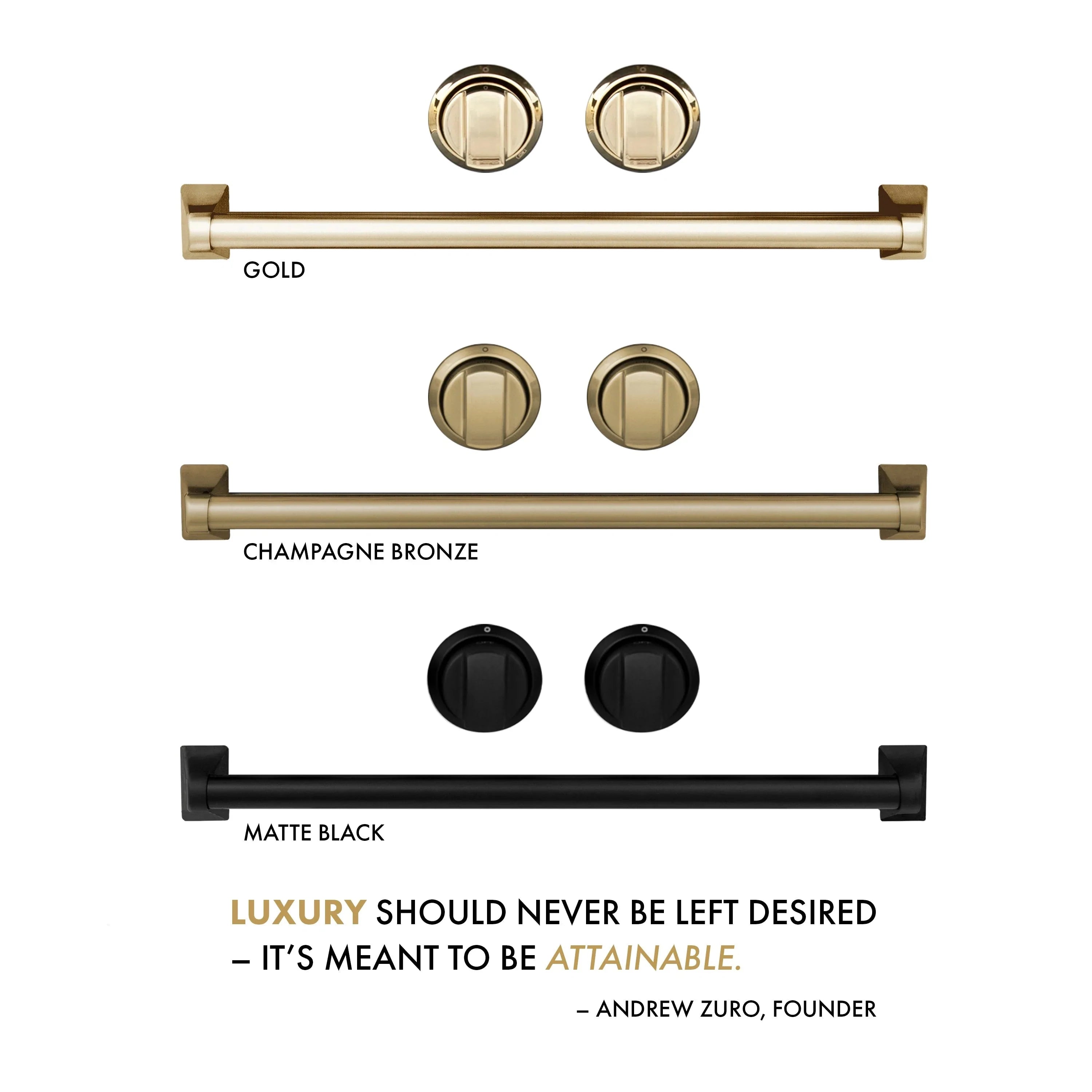

  • Custom Knobs and Handles - Outfit your ZLINE Autograph Edition Gas Range with elegant Champagne Bronze knobs and handle accents
  • Black Stainless Finish - Featuring stunning black stainless steel and durable cast iron grates that exceed standards for a true professional experience

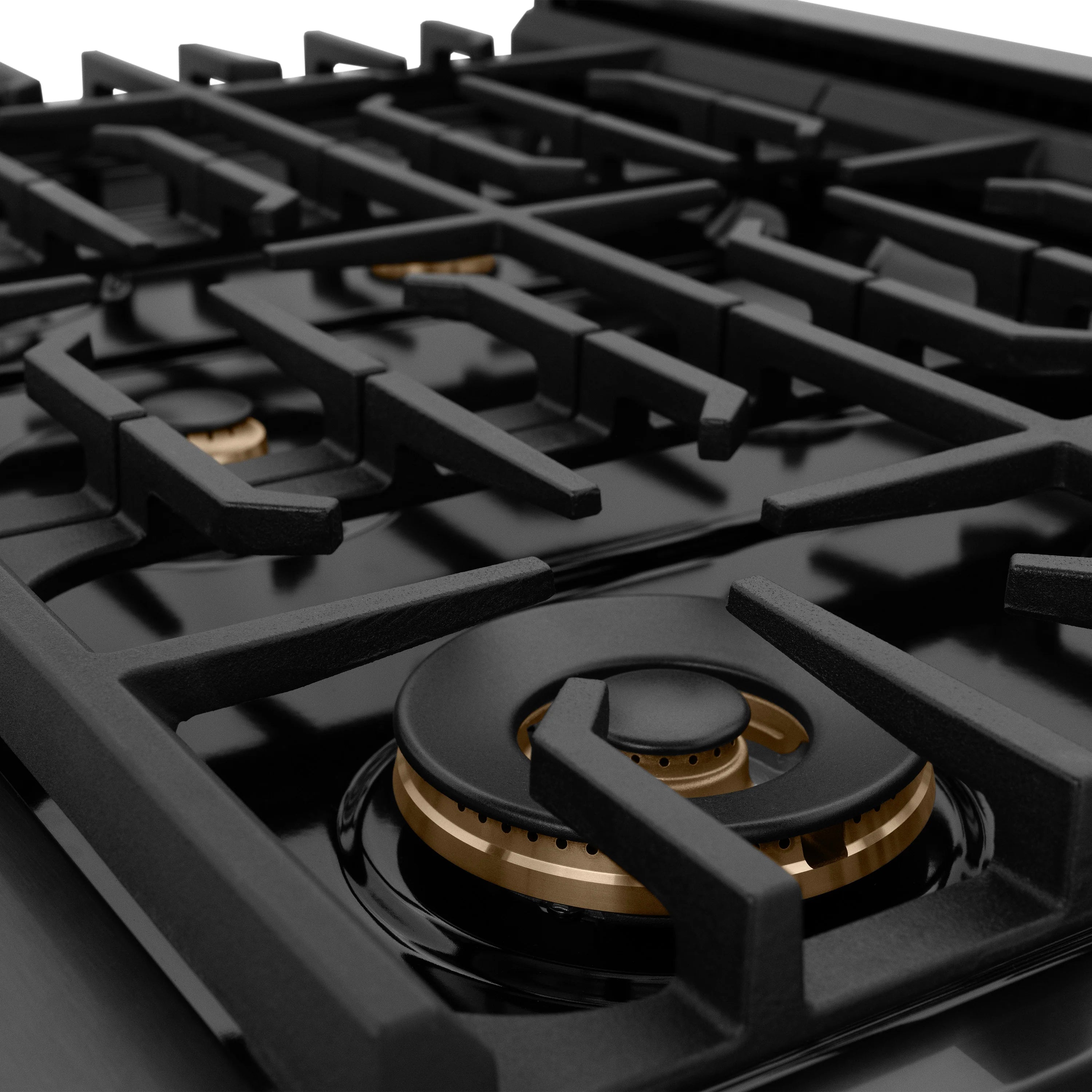

  • Italian-Made Auto-Reignition Burners - 8 Italian-made gas burners that easily ignite and automatically reignite for improved temperature control and safety
  • Dual Function Burners - Expand your cooking capabilities with 2 Dual Function Burners that allow you to simmer at 1,000 BTUs or perfectly sear at 20,000 BTUs

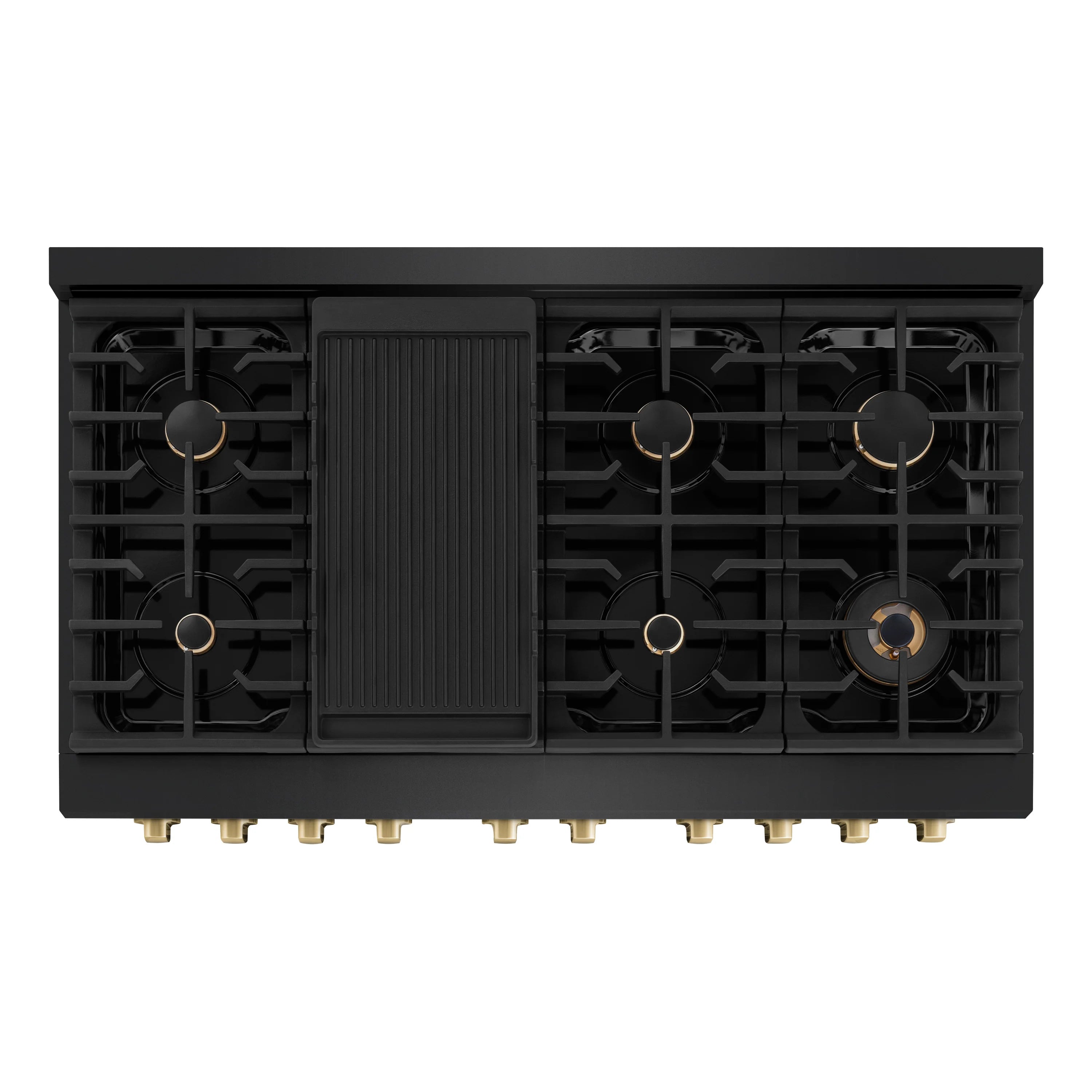

  • Reversible Cast-Iron Griddle - A high-quality nonstick reversible cast iron griddle features a grill side for perfect sears on steaks and vegetables and a flat side for sandwiches and hearty breakfasts

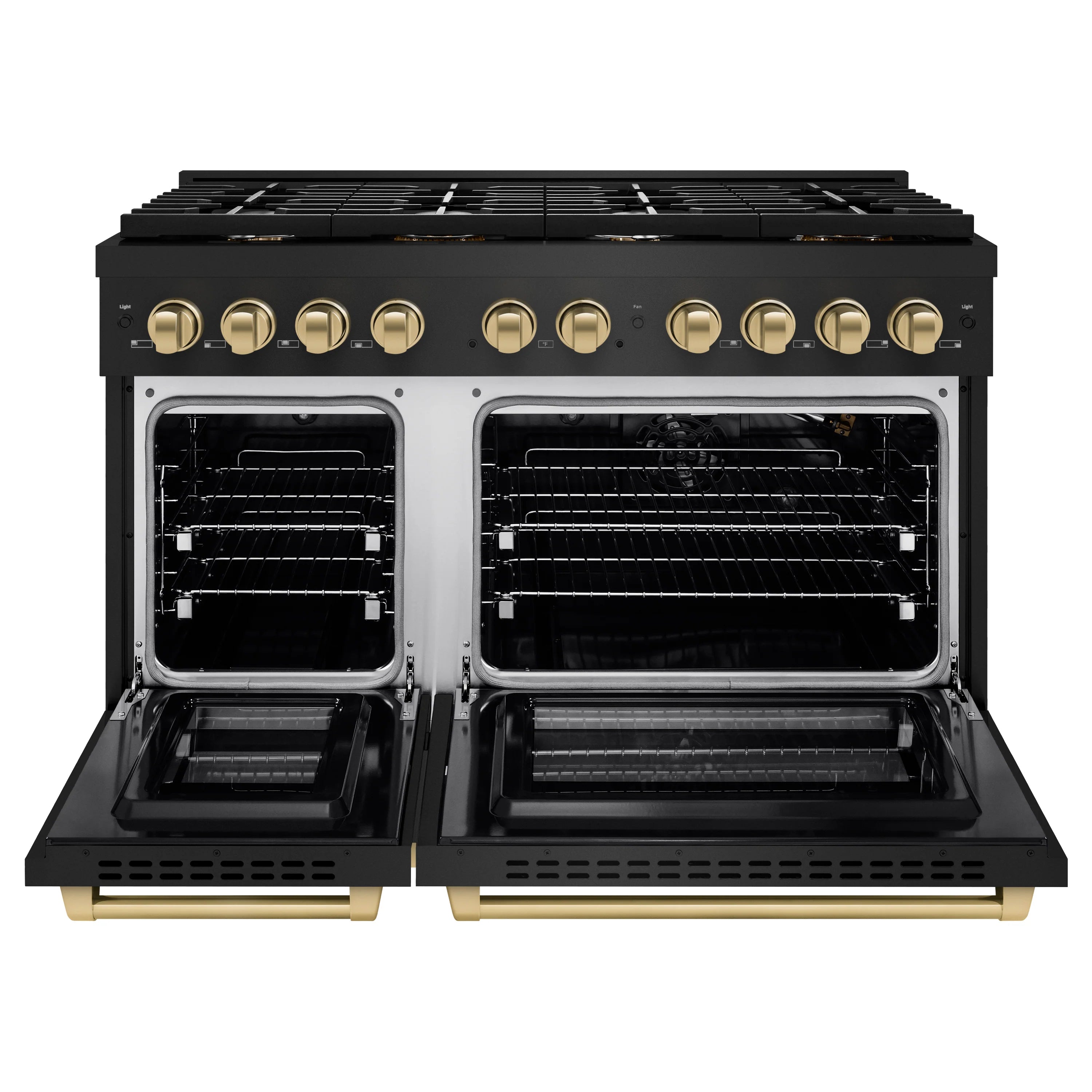

  • Convection Gas Oven - The larger oven features bake, broil, and convection modes with a BTU output of 22,000, while the smaller oven has a baking BTU output of 14,002
  • Stainless Steel Oven Burners - Tubular bake and broil burners are manufactured for optimal gas combustion with more even heat distribution for a perfect baking experience
  • Large Oven Capacity - 6.7 cu. ft. oven capacity that fits pans up to 20 in. wide in the larger oven and 10 in. wide in the smaller oven for maximum space and convenience with everyday cooking
  • Halogen Oven Lights - Illuminate both oven spaces with 3 halogen lights, controlled by a switch conveniently located on the front control panel
  • Premium Oven Insulation - 3-layered glass and aluminum mesh seal on both doors offers superior heat retention and a consistent temperature, creating perfect dishes every time

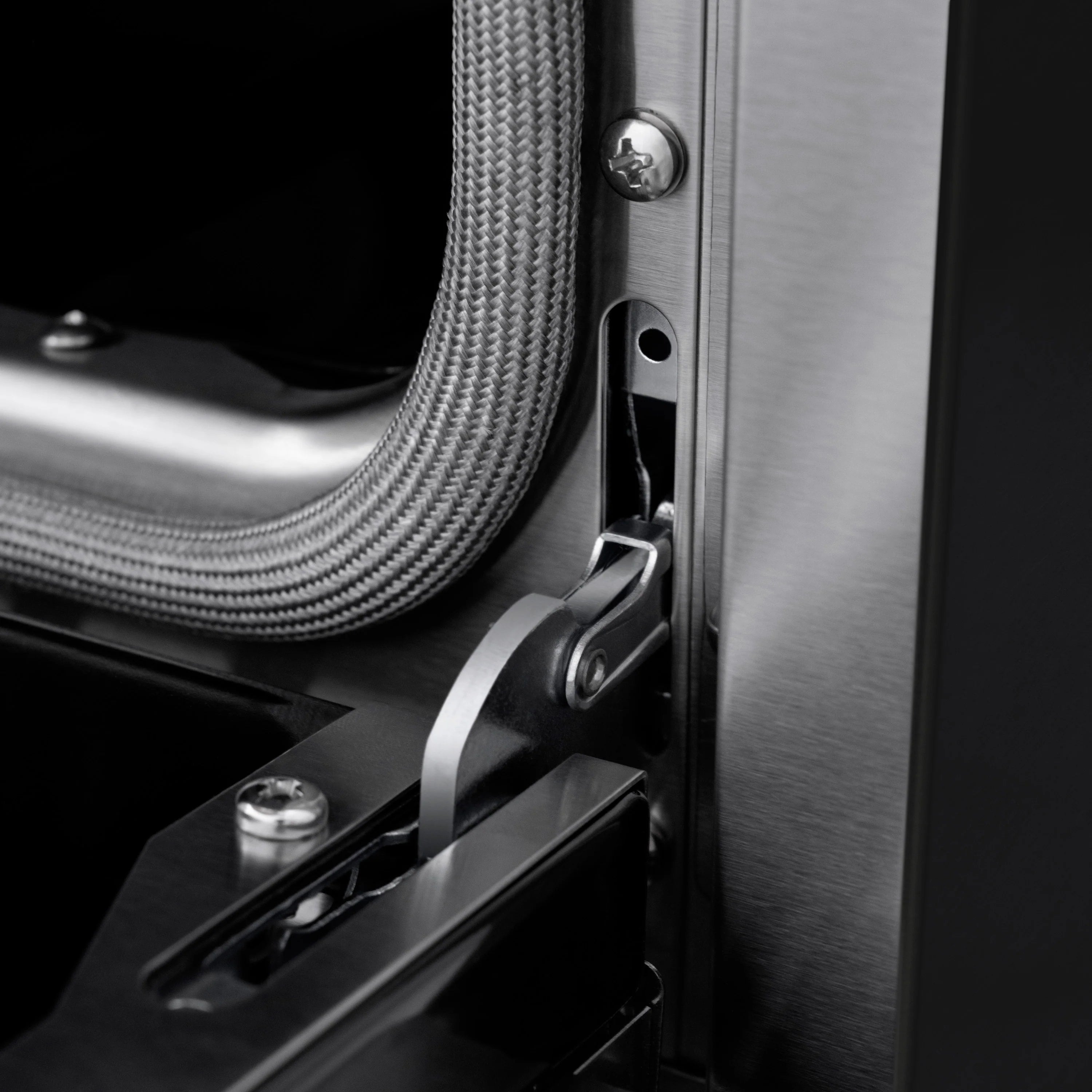

  • StayPut Oven Door Hinges - Designed to support the full weight of the oven doors, offering additional convenience and safety

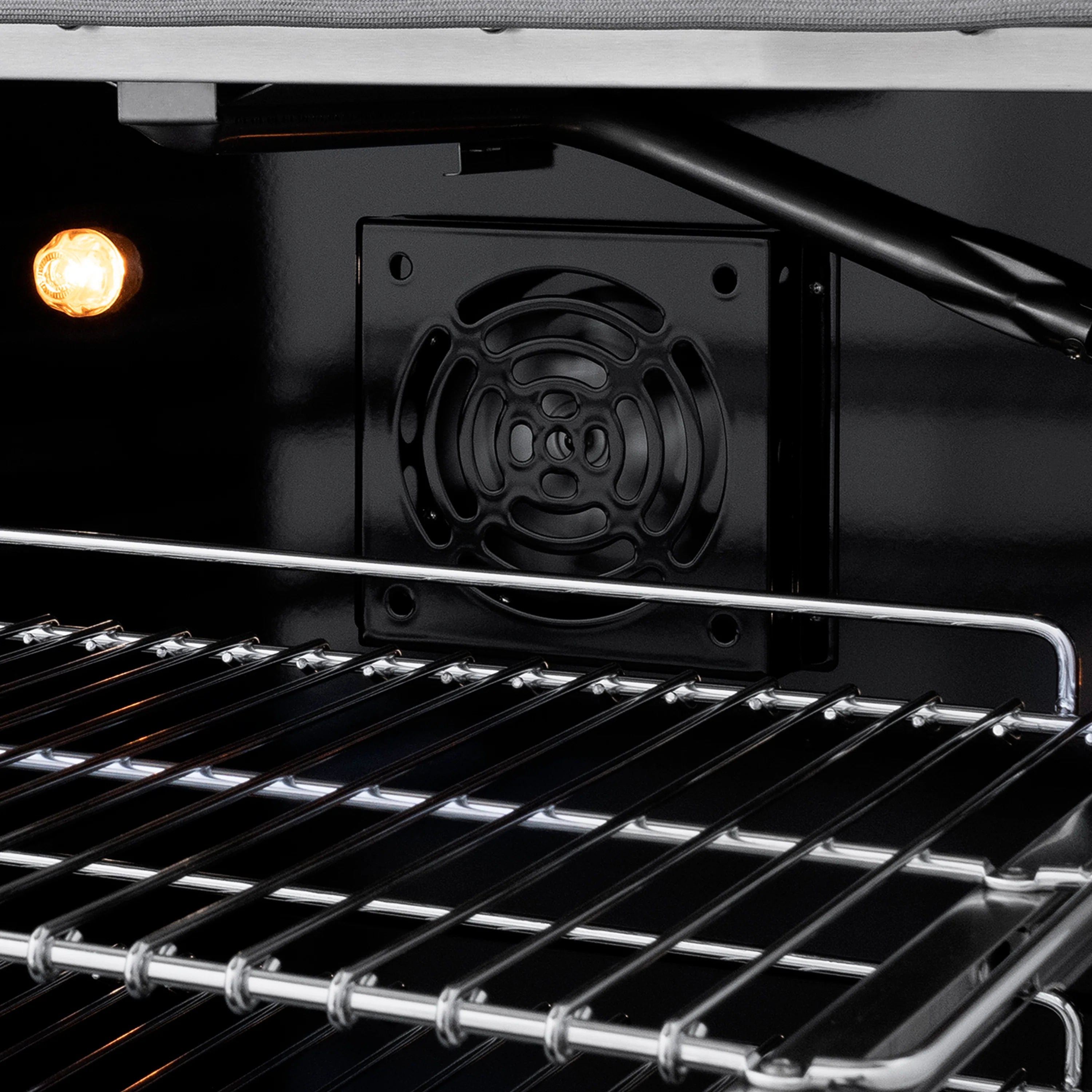

  • Smooth Glide Ball-Bearing Oven Racks - Durable ball-bearing racks inside both ovens provide extra convenience and ease when working with larger dishes
  • Minimal Cleaning - Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
  • LP Conversion Kit - Comes equipped with an LP conversion kit to convert from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference

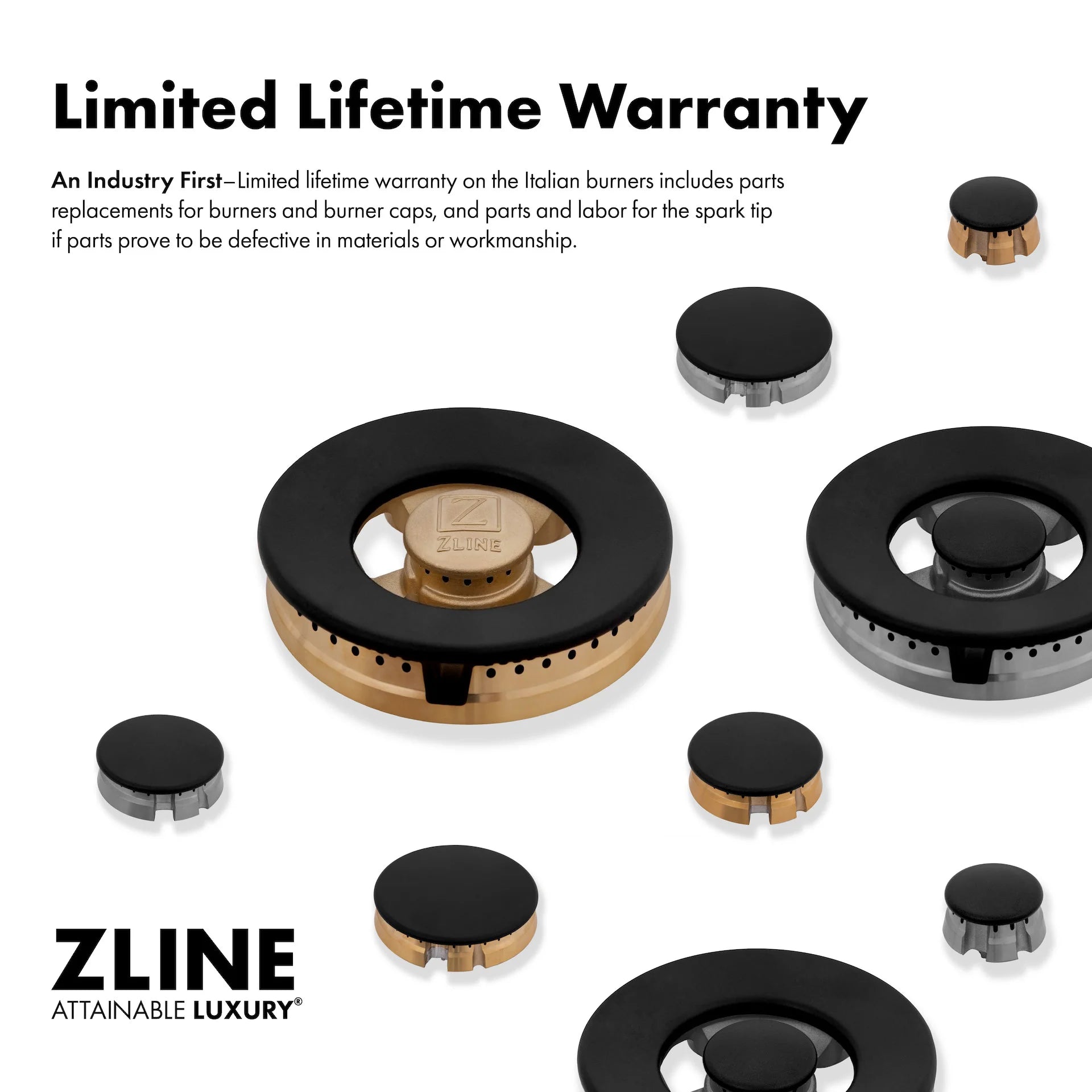

  • Industry First Lifetime Burner Warranty - Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
  • Manufacturer Warranty - 1-year parts and service warranty
Dimensions

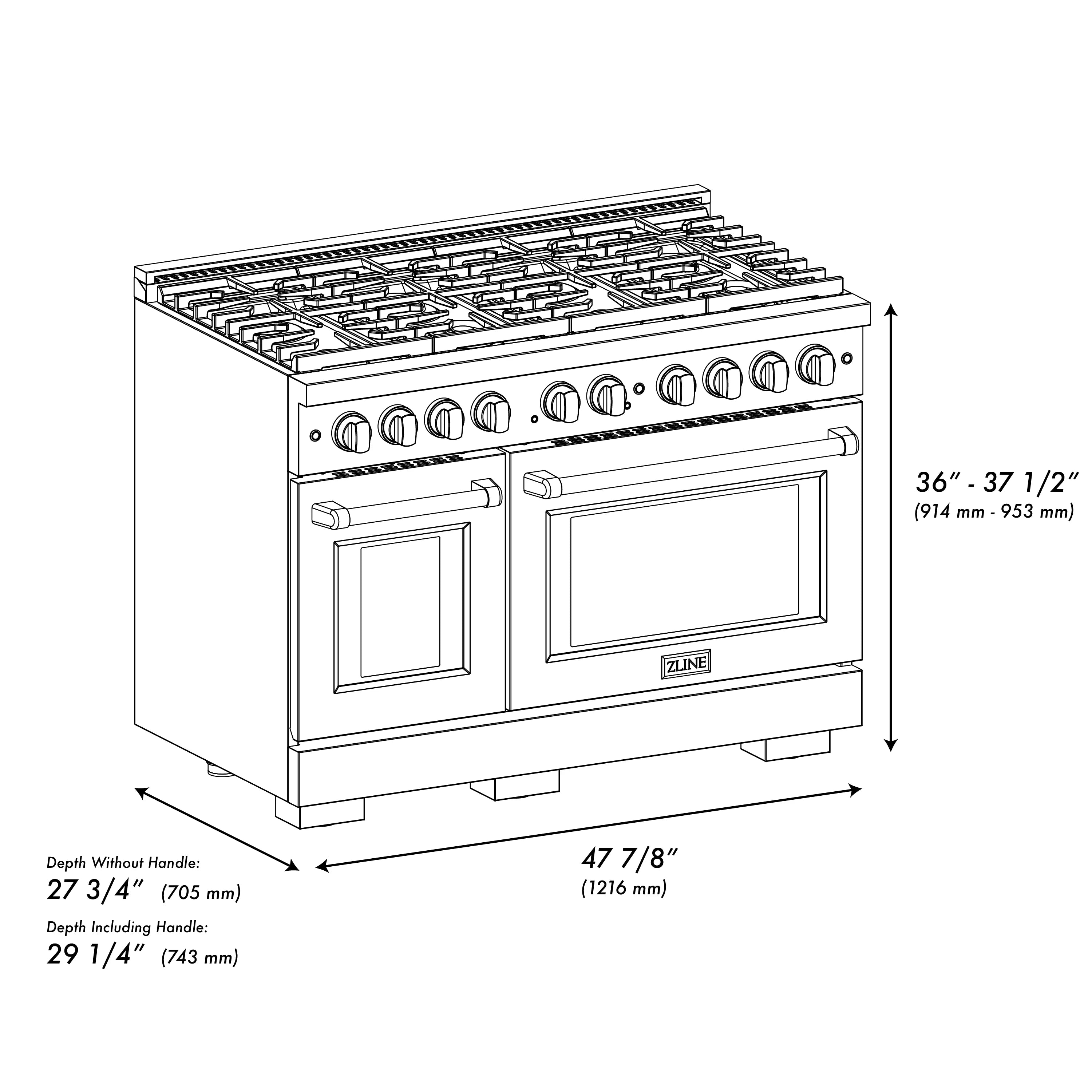

Product Dimensions 47.88 in. W x 27.75 in. D (29.25 with handle) x 36 in. H
Cut-Out Dimensions 48.13 in. W x 24.75 in. D x 36 in. H
Adjustable Height 36 in. - 37.5 in. H
Product Depth with Handle 29.25 in. D
Open Door Depth 45.1 in. D
Details
Burner Fuel Natural Gas and Liquid Propane Convertible
Oven Fuel: Natural Gas and Liquid Propane Convertible
Electrical Requirements

 		 120V/60 Hz/15A Dedicated Circuit
Oven Capacity (cu.ft) 6.7 cu. ft. (4.2 cu. ft. + 2.5 cu. ft>)
Number of Burners 8
Cooktop BTUs

Electronic Ignition and Auto-Reignition

Back Left: Semi-Rapid 9,000 BTU
Front Left: Auxiliary 6,000 BTU
Back Right: Rapid 12,000 BTU
Front Right: Dual 20,000 BTU
Back Left Middle: Rapid 12,000 BTU
Front Left Middle: Dual 20,000
Back Right Middle: Semi-Rapid 9,000 BTU
Front Right Middle: Auxiliary 6,000 BTU
Oven BTUs

Large Oven Broil BTU Output: 10,000 BTU
Large Oven Bake BTU Output: 22,000 BTU
Small Oven Bake BTU Output: 14,000 BTU
Oven Features Bake, Broil, Convection Bake
Material Black Stainless Steel
Accent Finish Champagne Bronze
Control Type Manual Front Control
Convection Fan Yes
Certifications ETL Listed
Self Clean (Y/N) No
Timer (Y/N) No
Lighting 3 Halogen Lights
Number of Racks 2
Additional Features Italian Burners: Lifetime Burner Warranty
Electronic Ignition and Auto-Reignition
Stay-Put Hinges
Full Extension Telescoping Glide Racks
LED Accent Lighting
3-Layered Glass on Oven Door
Warranty 1-Year Parts and Service
Lifetime Burner Warranty
Weight 256 lbs
User Manual
Installation Manual

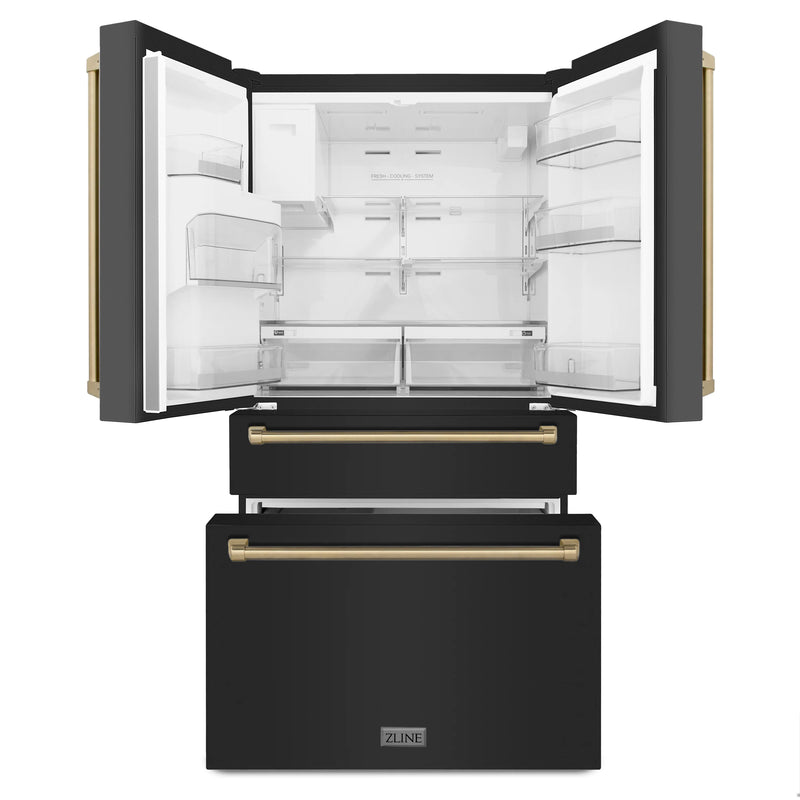

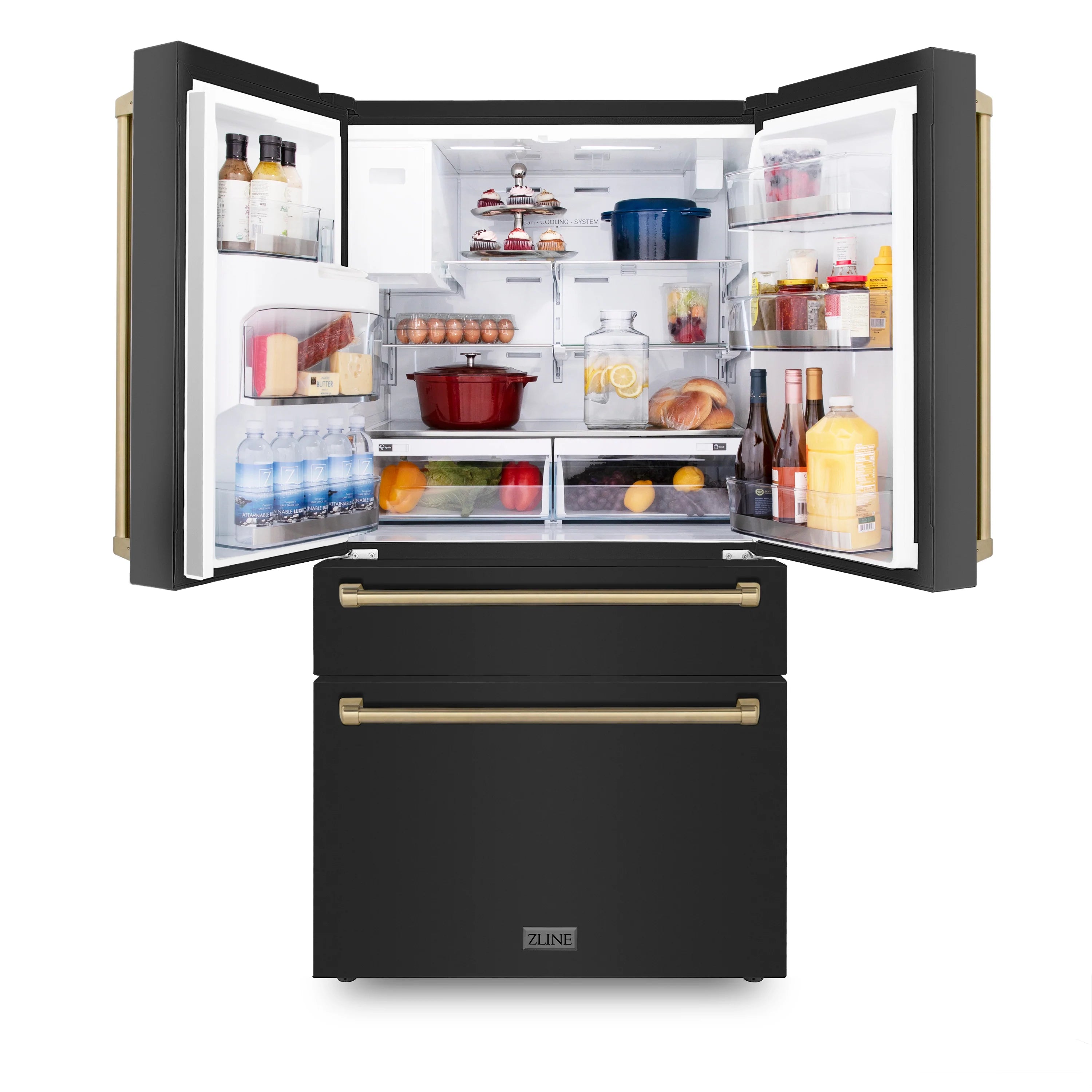

ZLINE 36-Inch Autograph Edition 21.6 cu. ft Freestanding French Door Refrigerator with Water and Ice Dispenser in Fingerprint Resistant Black Stainless Steel with Champagne Bronze Handles (RFMZ-W-36-BS-CB)
ZLINE 36-Inch Autograph Edition 21.6 cu. ft Freestanding French Door Refrigerator with Water and Ice Dispenser in Fingerprint Resistant Black Stainless Steel with Champagne Bronze Handles (RFMZ-W-36-BS-CB) View Product
Description
Product Specs
Manuals & Guides

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 21.6 cu. ft Counter-Depth French Door Refrigerator with Water and Ice Dispenser in Fingerprint-Resistant Black Stainless Steel with Champagne Bronze Traditional Handles (RFMZ-W-36-BS-CB) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and an external water dispenser and ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.

Features

  • Autograph Edition Series - Enjoy a timeless look in your kitchen with 4 luxurious Champagne Bronze traditional handles, giving your counter-depth refrigerator an elegant, unmatched style
  • Counter-Depth Design - Create a modern look in your kitchen with a professional counter-depth refrigerator designed to be flush with your countertops
  • Large Capacity - Easily organize items with a 15.0 cu. ft. refrigeration compartment, a 4.0 cu. ft. freezer compartment and a 2.6 cu. ft. flex drawer — totaling 21.6 cu. ft. of storage capability
  • Flex Drawer - A specialty full-width flex drawer features 4 set temperature options between 30°F and 41°F, perfect for chilling wines, specialty meats, and other items for any occasion
  • Adjustable Temperatures - Create the perfect cooling environment with fridge temperatures ranging from 34°F to 44°F and freezer temperatures ranging from -7°F to 7°F
  • Super Cool and Super Freeze Modes - Save time and quickly chill food with unique functions that automatically set the fridge temperature to 34°F and freezer to -7°F
  • Bright White Interior - Achieve ZLINE Attainable Luxury® excellence by pairing best-in-class freshness with Bright White interior standard-depth units
  • Fingerprint-Resistant Black Stainless Finish - Minimize cleaning with ZLINE’s sleek and stunning fingerprint-resistant black stainless steel finish
  • Digital LED Display - Set temperatures and navigate menu options to change the appliance to vacation, sabbath, or eco modes with an ADA-accessible LED control panel on the fridge door
  • Spill-Resistant Glass Shelves - Effortlessly store items in the refrigerator on 4 spill-resistant adjustable glass shelves, 1 of which is foldable to allow more flexibility
  • Dual Crisper Drawers - Enjoy best-in-class freshness for fruits and vegetables with a pair of half-width humidity-controlled crisper drawers
  • Full-Width Pantry Drawer - A full-width pantry drawer provides substantial storage for produce, meats, and other food items you want to keep fresher longer
  • 8 LED Lights - Fully illuminate your appliance with 5 bright built-in LED lights in the refrigerator, 1 in the freezer, and 2 more in the water and ice dispenser
  • Full-Extension Freezer - Enjoy expansive storage capacity with a spacious freezer featuring 2 full-extension bins, including an ice tray that can store up to 4 pounds of ice
  • 6 LED Lights - Fully illuminate your appliance with 4 bright built-in LED lights in the fridge compartment, 1 in the freezer, and 1 in the water and ice dispenser
  • Spill-Resistant Glass Shelves - Comfortably organize items in the fridge on 4 spill-resistant adjustable glass shelves, 1 of which is foldable for more flexibility
  • Quiet Noise Level - Enjoy peace of mind day or night with an ultra-low average noise rating of 43 decibels
  • ENERGY STAR® Rated - Enjoy energy savings while maintaining professional power with superior insulation and an energy-reducing cooling system
  • Assembly Required - This refrigerator and its door handles will ship in multiple boxes and requires assembly upon installation

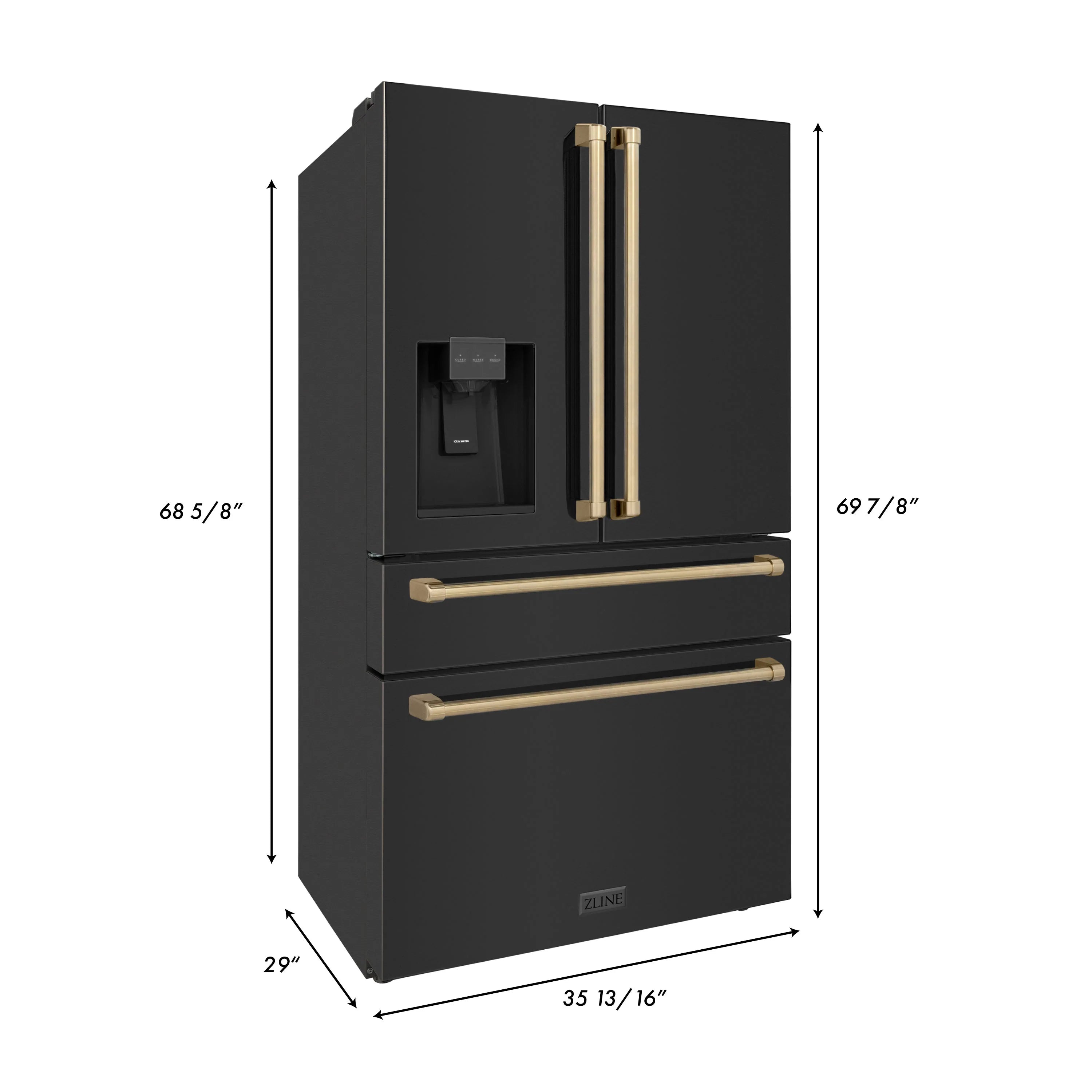

Dimensions: 35.75 in. W x 29.13 in. D x 69.69 in. H
Total Capacity:  21.6 cu. ft
Fridge Capacity: 15 cu. ft
Freezer Capacity:  6.6 cu. ft
Flex Drawer Capacity: 2.6
Flex Drawer Temp Controls: Meat (30 degrees), Beverage (34 degrees), Deli (37 degrees), and Wine (41 degrees)
Installation Depth: 29 in. D
Depth with Door Open: 43 in.
Ice Maker:  Yes
Ice Maker Types: Single Ice Maker
Ice Amount Per Day: 4.85 lbs
Ice Tray Storage: N/A
Water Dispenser: Yes
Flow rate for Water Dispenser: .5 GPM
Fridge Lights: 4
Energy Star: Yes
Energy Consumption (kWh/year) 658
Voltage: 120V/60Hz
Amps: 3
Noise Level:  43 Decibels
Humidity-Controlled Crispers: 2
Freezer Drawer Bins: 2- Pull Out Drawers
Door Shelves: 4
Number of Fridge Shelves: 4
Mount Type: Freestanding
Certifications: ETL Listed, ENERGY STAR certified
Material: Black Stainless Steel with Champagne Bronze Accents
Warranty 1-Year Parts and Labor Warranty

5-year parts-only for Sealed System
Weight 284.4 lbs
Certifications UL Listed, ENERGY STAR Certified



Installation Guide and User Manual

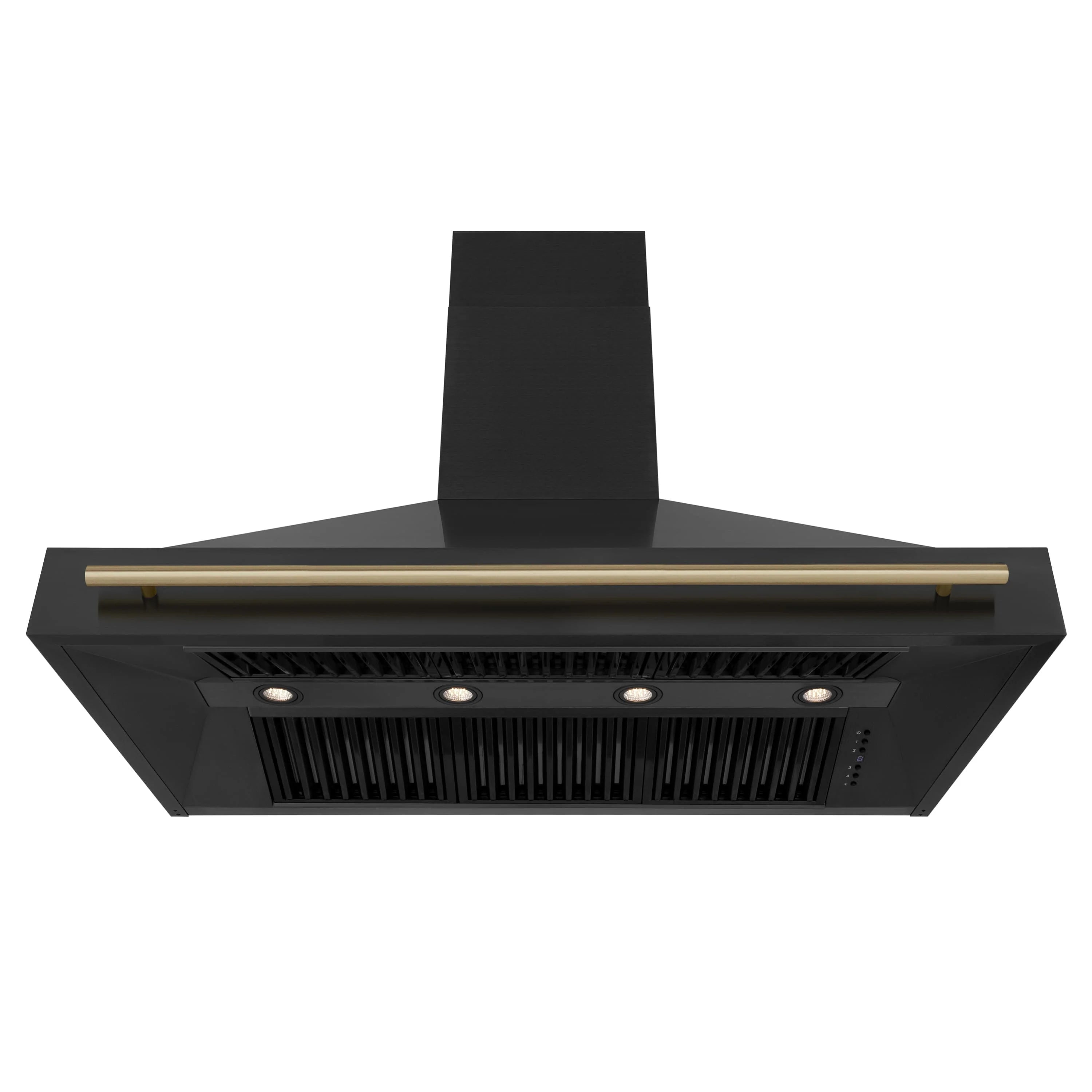

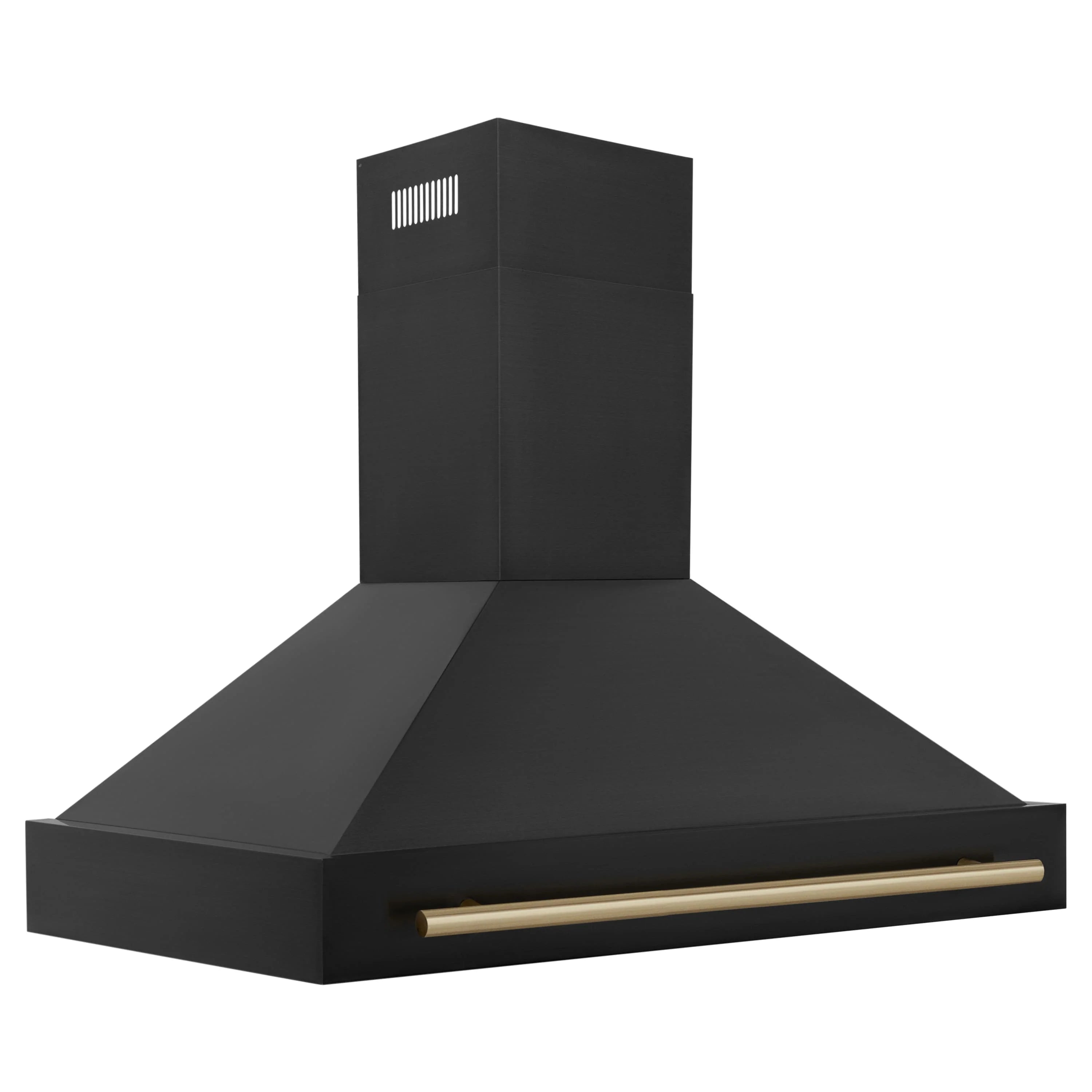

ZLINE 48" Autograph Edition Wall Mount Range Hood in Black Stainless Steel with Champagne Bronze Handle (BS655Z-48-CB) Range Hoods ZLINE
ZLINE 48-Inch Autograph Edition Wall Mount Range Hood in Black Stainless Steel with Champagne Bronze Handle (BS655Z-48-CB) View Product
Description
Product Specs
Manuals & Guides

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes.

Combining the professional power and functionality of a ZLINE range hood with stunning accents, this sophisticated line of professional appliances brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with a black stainless steel hood and a beautiful accent handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze or Gold.

The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes.

From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.


Features:

  • Champagne Bronze handle matches ZLINE Autograph Edition Range or Rangetop with Champagne Bronze Accents
  • Easy-to-use push button controls let's you easily control fan speed and lighting
  • 4-speed fan control (280/420/580/700 CFM) let's you choose the appropriate air flow for your cooking situation
  • 700 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
  • ZLINE's black stainless steel is achieved through a technique called PVD (Physical Vapor Deposition) Coating which utilizes a vaporization process to create an atom-bonded, strong ceramic layer in order to achieve its stunning black stainless shine and built-to-last quality
  • Ductwork easily connects to the top of the range hood for external venting
  • Dishwasher-safe stainless steel baffle filters
  • LED lighting illuminates the cooktop beneath the hood
  • Handle is for cosmetic purposes only and should not be used for hanging items
  • 3 year parts warranty, life-time motor warranty




Brand: ZLINE Kitchen and Bath
Dimensions 48 in. W x 23.75 in. D x 16.5 in. H
Chimney Dimensions 13.5" W x 11.75" D x 16" H (x2) (Telescoping)
Duct size 8"
Handle Dimensions 40.8" W x 0.8" D x 2.4" H
Material Black Stainless Steel
Handle Finish Champagne Bronze
Min Ceiling Height 7.37 Feet
Max Ceiling Height 10.37 Feet
Voltage 110
Watts 550
Amps 3.5
Motor High Performance 700 CFM/4-Speed Motor
Airflow (Q/L/M/H) 280/420/560/700
Decibels 30/41/49/52
Sones 1.1/2.5/4.3/5.3
Weight 90
Outdoor Use Yes
Recirculating No
Max CFM 700
# of Speeds 4
Button Panel Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
Number of lights 2
Filters Stainless Steel Baffle Filters (Dishwasher-safe)
Recirculating / Ductless No




Installation and User Manual

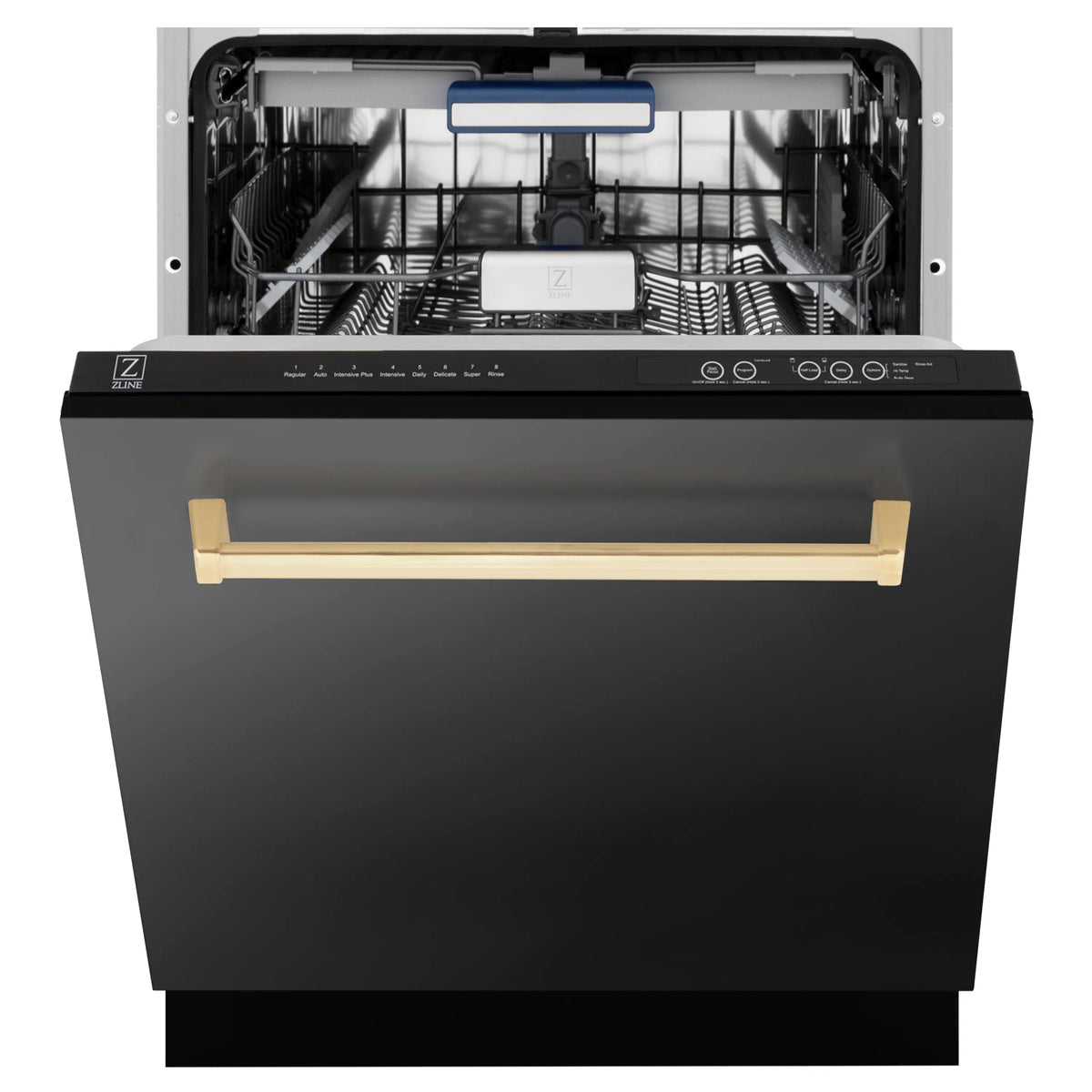

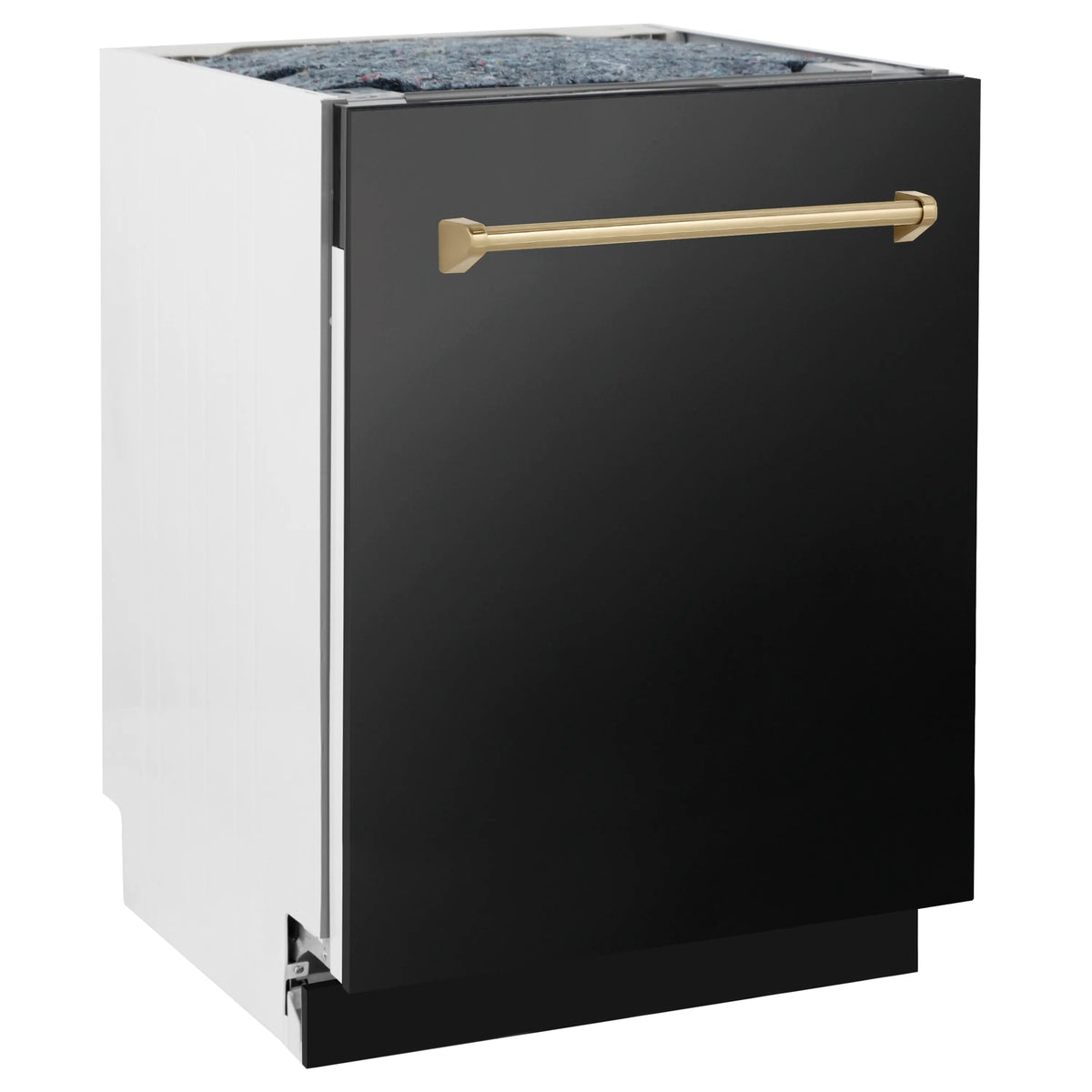

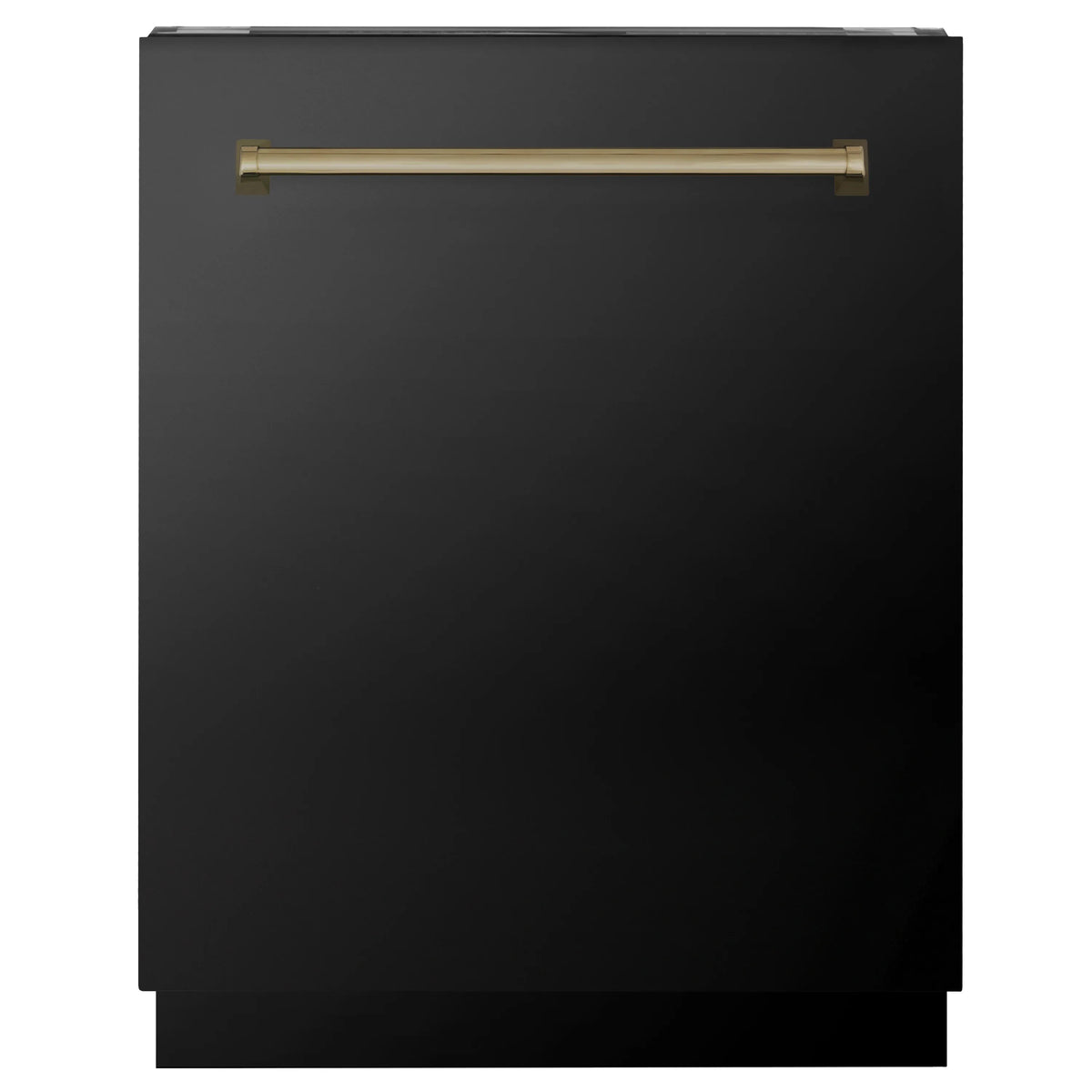

ZLINE Autograph Edition 24-Inch Tall Tub Dishwasher in Black Stainless Steel with Champagne Bronze Handle (DWVZ-BS-24-CB)
ZLINE Autograph Edition 24-Inch Tall Tub Dishwasher in Black Stainless Steel with Champagne Bronze Handle (DWVZ-BS-24-CB) View Product
Description
Product Specs
Manuals & Guides



Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE Autograph Edition 24" 3rd Rack Top Control Tall Tub Dishwasher in Black Stainless Steel with Champagne Bronze Handle, 51dBa (DWVZ-BS-24-CB) provides a professional culinary experience by pairing unmatched performance with personalized touches.

Encompassing limitless beauty, precision, and quality, the Autograph Edition Series creates a luxury look that will transform your space.

Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.

Features

  • 8 different wash cycles to give the best cleaning effect specific to your needs
  • Champagne Bronze handle matches ZLINE Autograph Edition Range or Rangetop with Champagne Bronze Accents
  • Auto cycle automatically detects the right water temperature and pressure needed for your load
  • Intensive and Intensive Plus cycles take care of heavily soiled items by adding extra time to the wash cycle
  • Enjoy a speed wash cycle for every day washing at just 50 minutes
  • Sanitize, high temperature, and extra dry settings for added flexibility
  • With just 51 dBA, you can enjoy a peaceful kitchen with spotless dishes

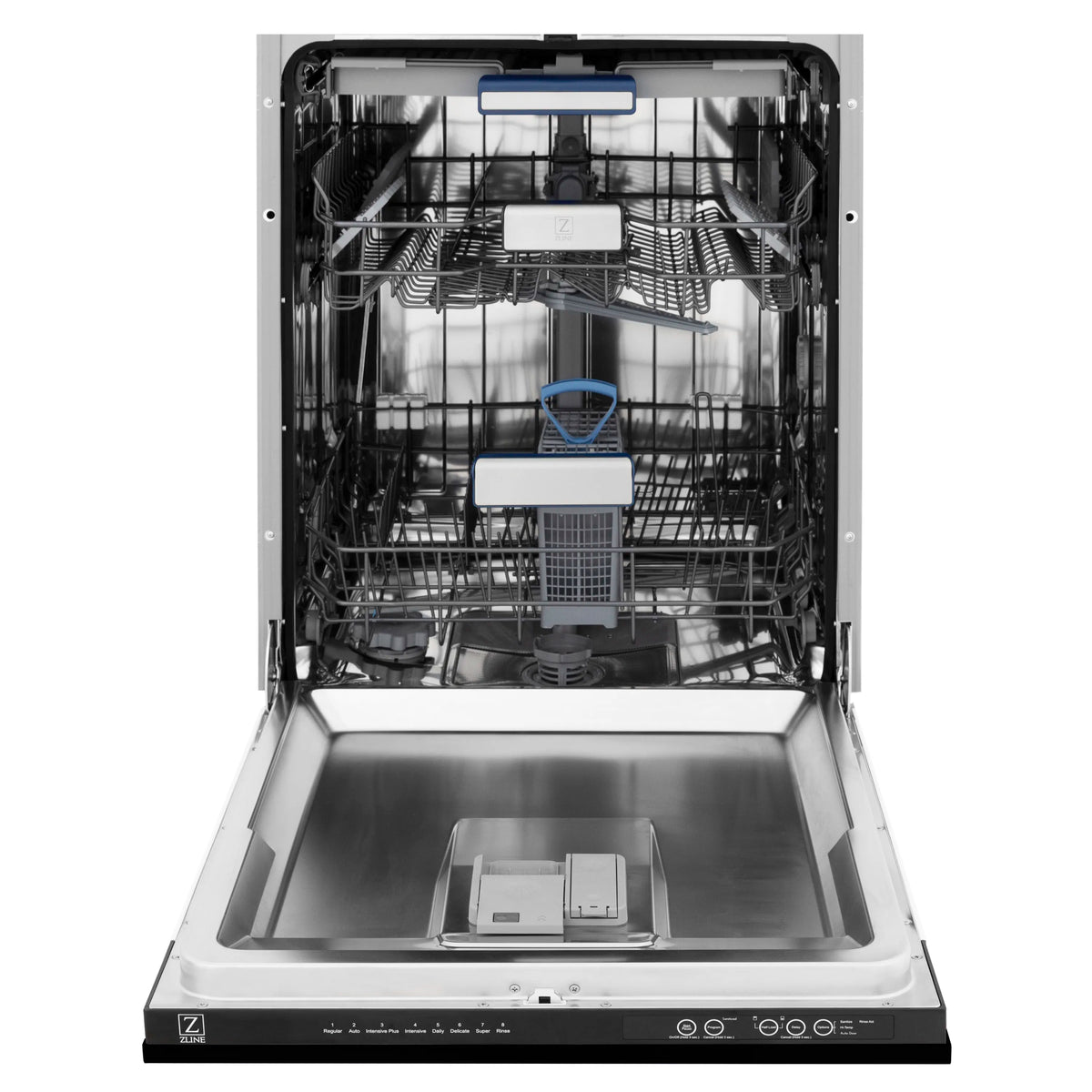

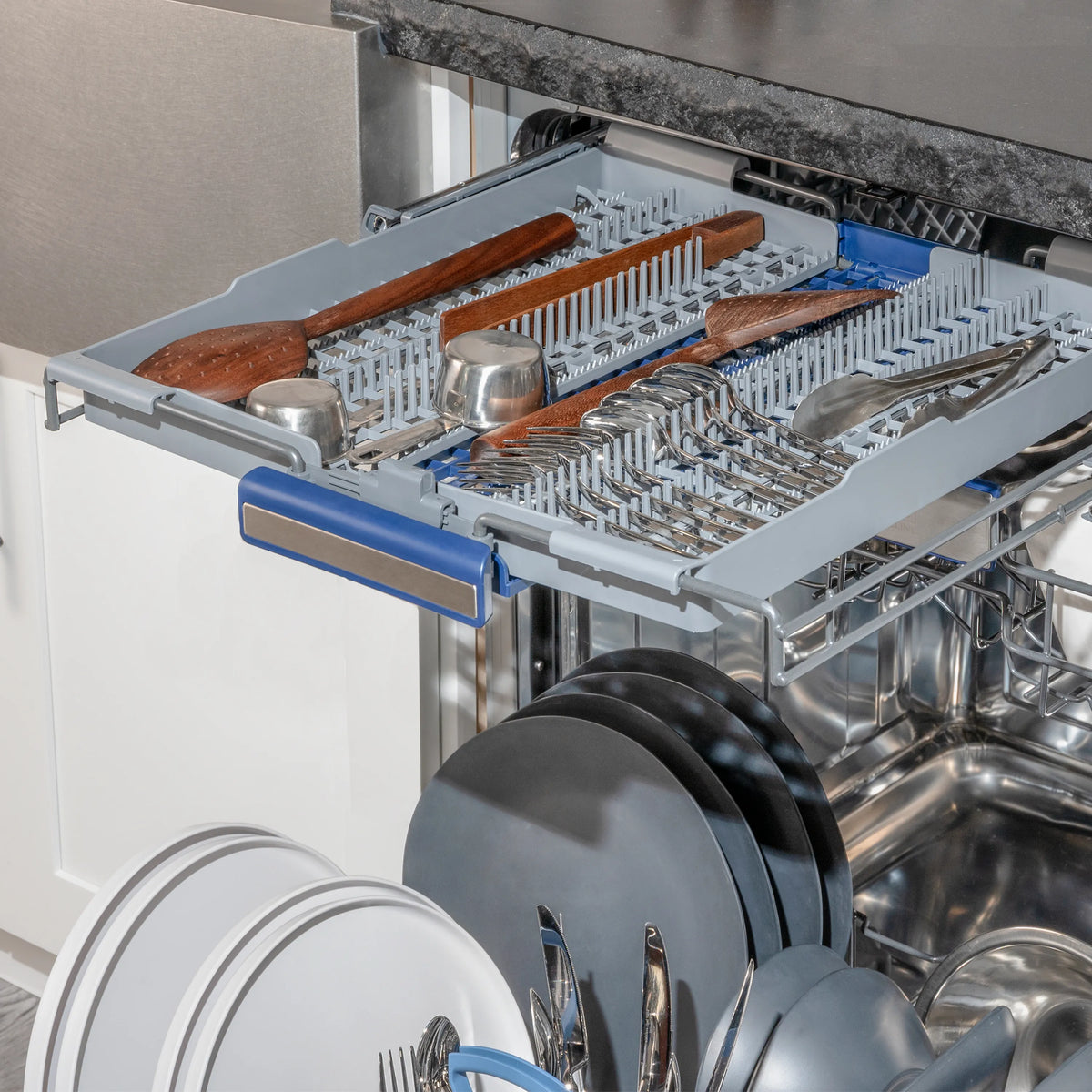

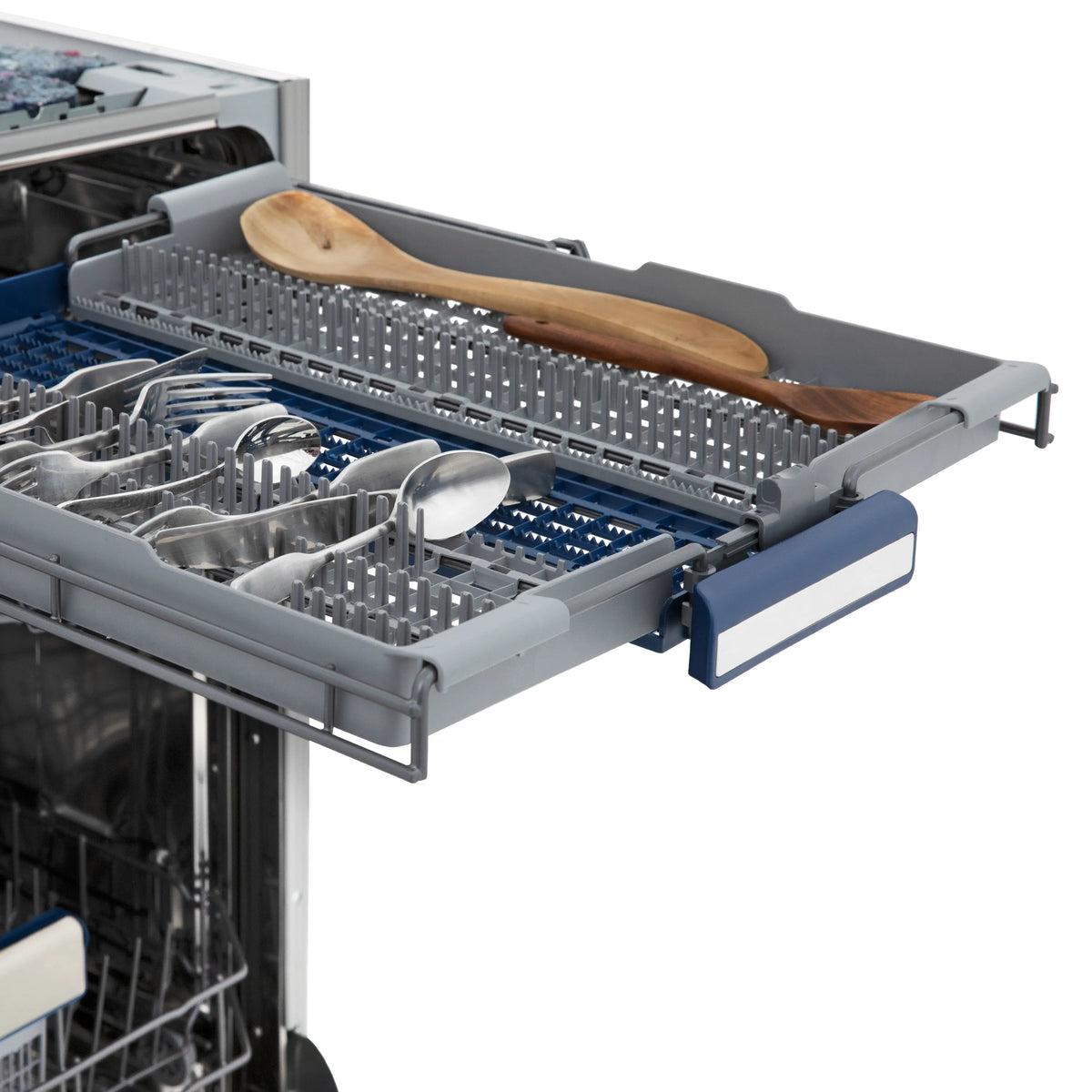

  • Accommodates 15 place settings with a 3rd rack for utensils

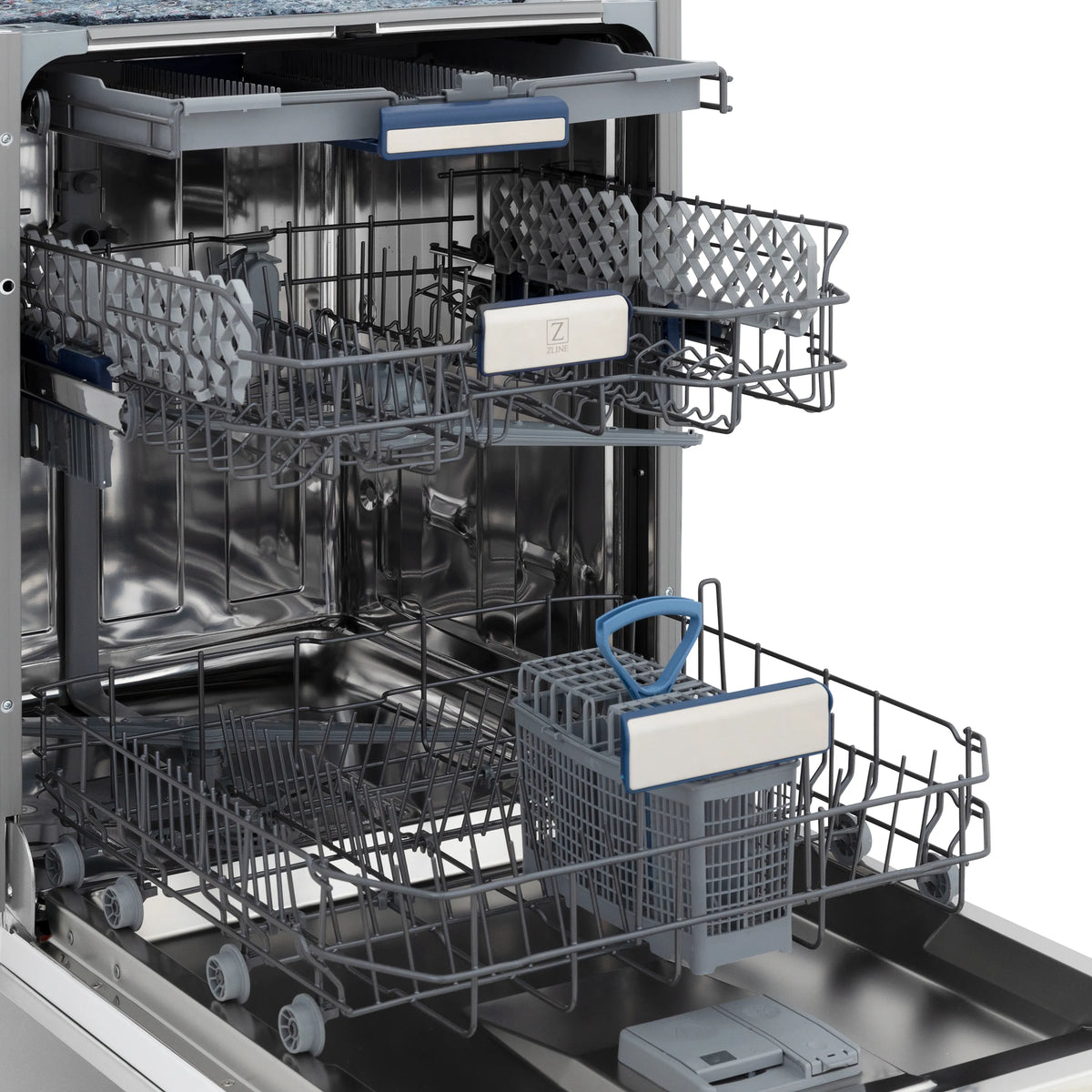

  • Adjustable racks provide flexibility for you to load large dishes up to 12 inches in height
  • Hidden top controls for a modern and sleek look
  • Precision and durability you can feel with a professional 304 grade stainless steel tub
  • ENERGY STAR certified with CEE Tier 1 rating, surpassing industry guidelines for water and energy efficiency by using advanced eco-wash technology
  • Professional installation by a plumber is required

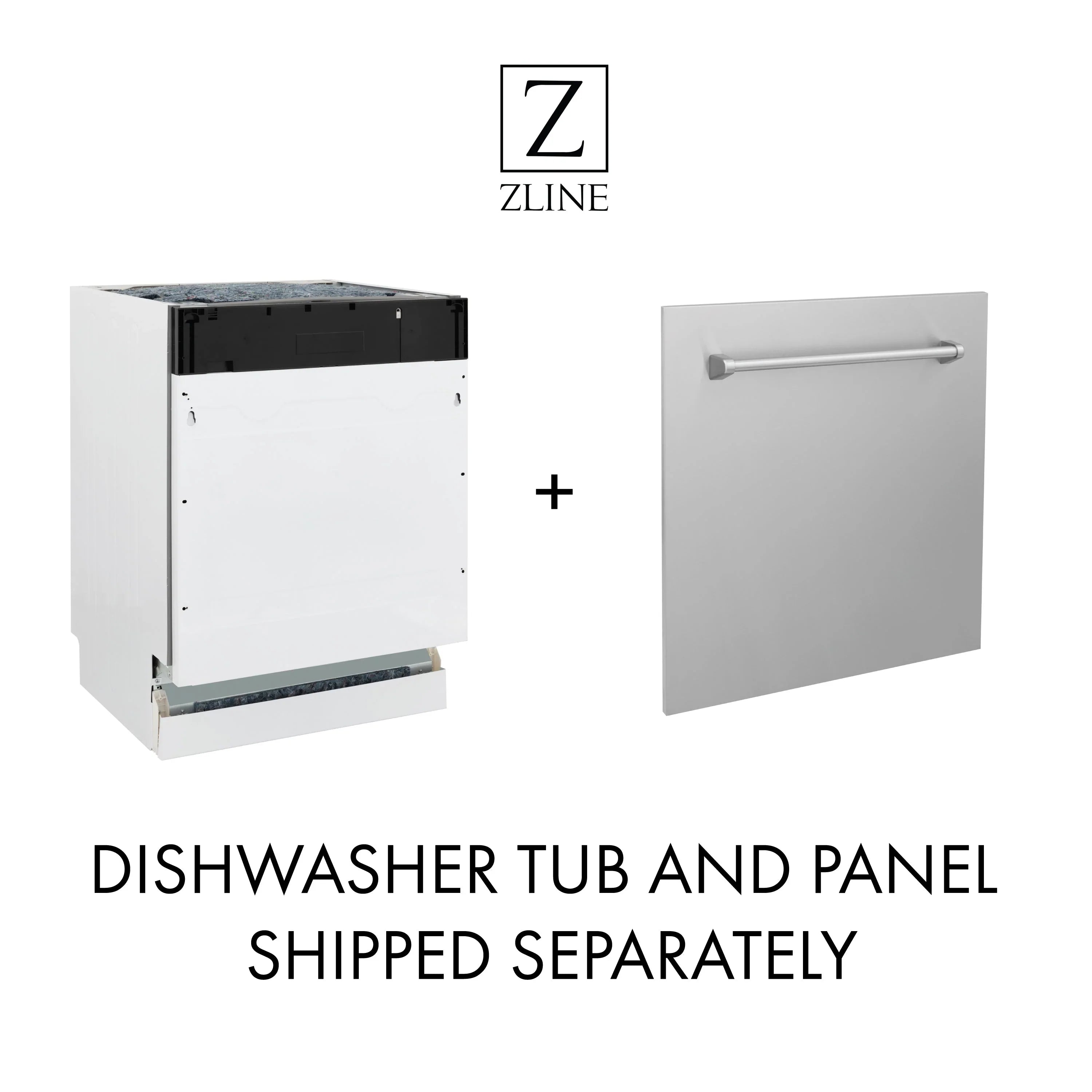

  • The dishwasher panel is shipped in a separate box. Dishwasher may arrive in two parcels.



    Brand
    ZLINE Kitchen and Bath
    Product Dimensions Minimum Height
    		 23.5 in. W x 24.25 in. D x 33.75 in. H
    Product Dimensions Maximum Height

    23.5 in. W x 24.25 in. D x 35.75 in. H
    Cut Out Dimensions
    23.63 in. W x 24 in. D x 34 in. H
    Weight 116.4 lbs
    Voltage
    120vac
    Frequency (Hz) 60Hz
    Dedicated Circuit 15A
    Rated Current (Amps) 12A
    Motor Wattage
    108
    Heater Wattage
    1200
    Motor Amperage
    0.9A
    Heater Amperage
    10A
    Energy Consumption Per Year (kWh)
    260
    Water Consumption Per Cycle (Liters/Cycle)
    12.9
    Water Consumption Per Cycle (Gallons)
    3.4
    Hose Length (in.)
    56
    Panel Ready? Y/N N
    Panel Finish Black Stainless Steel
    Handle Finish Champagne Bronze
    Drying System Turbo Fan Drying
    Control Location Top Control
    Control Type Button Control
    Decibels 51
    Power Cord Power Cord Included
    Installation Type Plug In - 3 Prong - Nema5-15
    Handle Type Bar Handle- Traditional Style
    Number of Cycles 8
    Number of Place Settings 10
    Max Plate Height (in.) 12
    Rack Material Nylon
    Silverware Basket Location Bottom Rack Center
    Steam Function Without Steam
    Tub Material Stainless Steel Tub
    Certifications Energy Star, CEC, UL



    Installation and Users Manual

    Build your Custom Bundle Build your Custom Bundle
    Click Here

    Accessories

    ZLINE Autograph Edition Badge Sample in Matte BlackZLINE Autograph Edition Badge Sample in Matte Black
    ZLINE ZLINE Autograph Edition Badge Sample in Matte Black
    $9.95 $19.95
    ZLINE Autograph Edition Badge Sample in Champagne BronzeZLINE Autograph Edition Badge Sample in Champagne Bronze
    ZLINE ZLINE Autograph Edition Badge Sample in Champagne Bronze
    $9.95 $19.95
    ZLINE Autograph Edition Badge Sample in GoldZLINE Autograph Edition Badge Sample in Gold
    ZLINE ZLINE Autograph Edition Badge Sample in Gold
    $9.95 $19.95

    ZLINE Shipping & Returns

    *Shipping Policy

    • Shipping is Free
    • Large appliances ship via Freight Curbside shipment. Meaning the carrier will drop off your item on your property not inside your home. The courier company will call ahead of time to schedule a drop off date
    • For more details, visit our Shipping Page

    ⁺Return/Refund Policy
    • 30-Day Returns*
    • If your order arrives damaged, we will exchange you for a new one. Damage must be reported within 24 hours.
    • *ZLINE Accessories are final sale and non-returnable (such as griddles/grills, handles, extension kits, short kits, crown moldings, brass burners, charcoal filters, etc.)
    • For more details, visit our Return Policy Page



    Email Quote
    Browse ZLINE Products

    Customer Reviews

    Based on 271 reviews
    89%
    (240)
    6%
    (16)
    3%
    (8)
    0%
    (1)
    2%
    (6)
    D
    Doug R. (Los Angeles, CA)
    Beautiful Rangetop and Hood

    Finished our new kitchen. All stainless, quartz counters. Looks perfect with our ZLINE rangetop and hood. Thanks HOD for quick delivery and great service

    User picture
    T
    Traci S. (Los Angeles, CA)
    New Kitchen 😃

    Loving ours in our new kitchen ❤️

    User picture User picture
    M
    Matt T. (Los Angeles, CA)
    High quality, looks great!

    I love my 36" champagne bronze model with matching hood. Works and looks great. Very impressed with the quality for this price point, I am glad I went with Home Outlet Direct.

    User picture
    K
    Kat S. (Los Angeles, CA)
    Beautiful

    They are beautiful. Big fan!

    User picture
    B
    Bob F. (Alma, MI)
    I love my ZLINE kitchen

    I couldn’t be happier with the quality and looks of all the appliances in my kitchen. Well done ZLINE

    User picture User picture
    123

    Why buy a ZLINE from Home Outlet Direct?

    - We are an authorized ZLINE dealer

    - Industry leading sales and customer service

    - Thousands of happy customers

    Real Customers. Real Results.

    Recently viewed

    You may also like
