Description

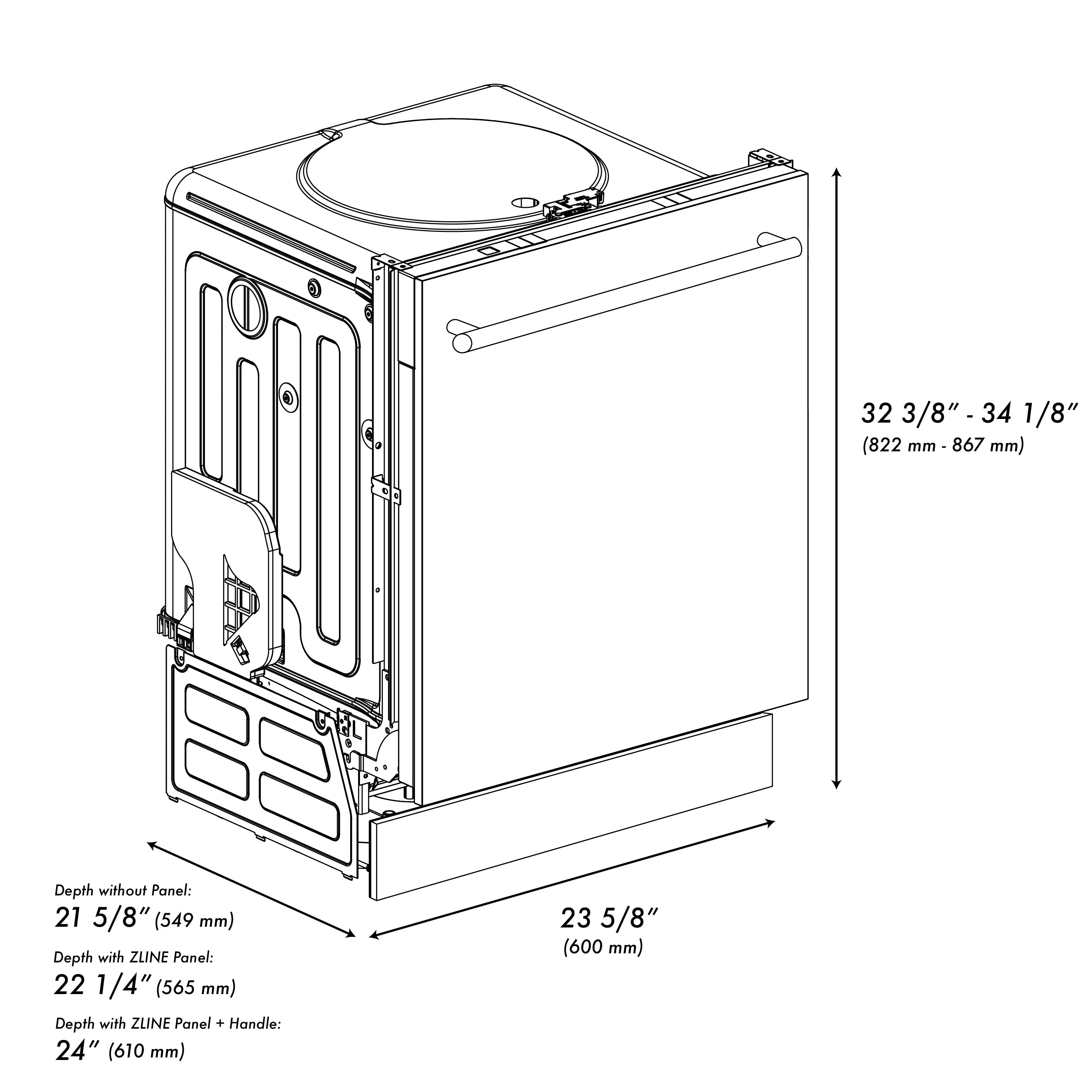

DIMENSIONS
- Product Dimensions Minimum Height
- 23.625 in. W x24.25 in. D x 32.375 in. H
- Product Dimensions Maximum Height
- 23.625 in. W x24.25 in. D x 34.125 in. H
- Cut Out Dimensions
- 23.75 in. W x 24 in. D x 32.5 in. H
- Weight (lbs)
- 88.7 lbs
- Max Plate Height (in.)
- 12
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Product Type
- Euro Style Dishwasher
- Ship Type
- LTL
- Panel Ready? Y/N
- N
- Installation Type
- Direct Wired
DESIGN & FINISH
- Finish
- Black Stainless Steel
- Panel Finish
- Black Stainless Steel
- Handle Finish
- Black Stainless Steel
- Control Location
- Top Control
- Control Type
- Touch Control
- Handle Type
- Bar Handle- Traditional Style
- Rack Material
- Nylon
- Tub Material
- Stainless Steel Tub
TECHNICAL DETAILS
- Voltage
- 120vac
- Frequency (Hz)
- 60Hz
- Dedicated Circuit
- 15A
- Rated Current (Amps)
- 6.67A
- Motor Wattage
- 100.8
- Heater Wattage
- 699.6
- Motor Amperage
- 0.84A
- Heater Amperage
- 5.83A
- Energy Consumption Per Year (kWh)
- 237
- Water Consumption Per Cycle (Liters/Cycle)
- 13.2
- Water Consumption Per Cycle (Gallons)
- 3.5
- Hose Length (in.)
- 56
- Decibels
- 52
- Power Cord
- Hardwired - Junction Box Included
FEATURES
- Drying System
- Residual Heat Dry
- Number of Cycles
- 6
- Programs
- Normal/Eco/Glass/Rapid/Rinse/Heavy
- Number of Place Settings
- 10
- Silverware Basket Location
- Bottom Rack Center
- Steam Function
- Without Steam
WARRANTY & CERTIFICATIONS
- Certifications
- Energy Star (CEE Tier 1), CEC, UL, NRCan
- Energy Efficient Tier Rating
- Tier 1
- Warranty
- 1 Year Parts
