What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.
What is Satin Stainless Steel?
- Fingerprint resistant
- Non-directional finish
- Outdoor-approved 304 grade stainless steel

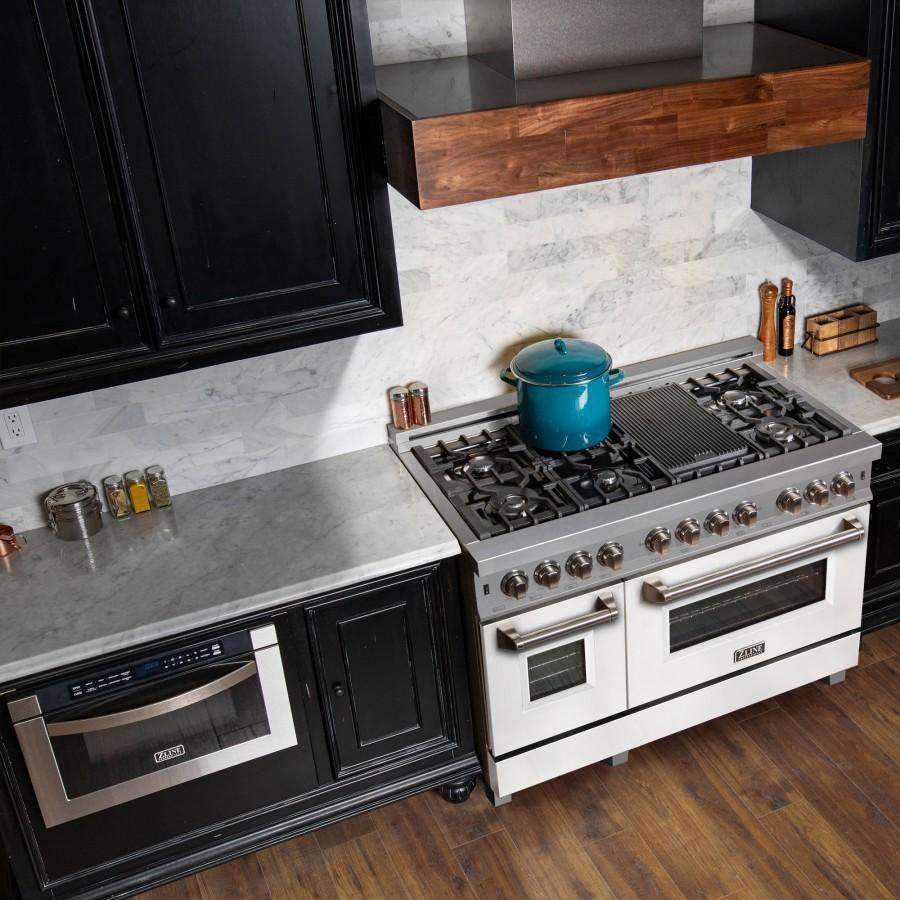

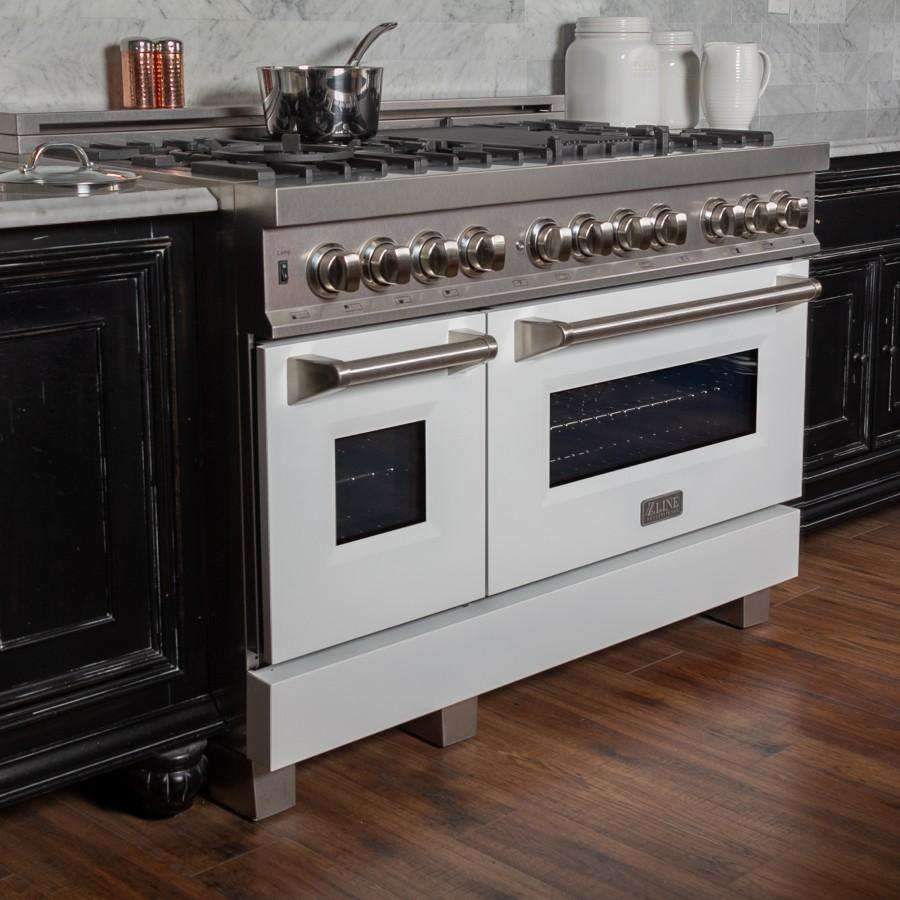

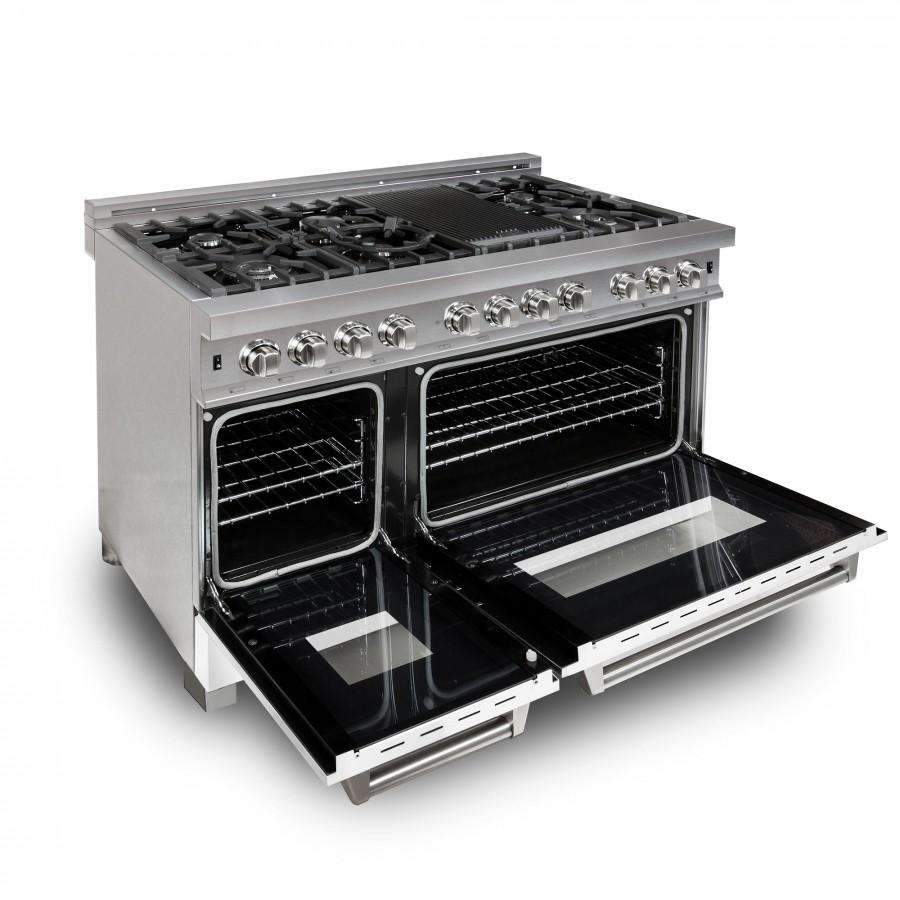

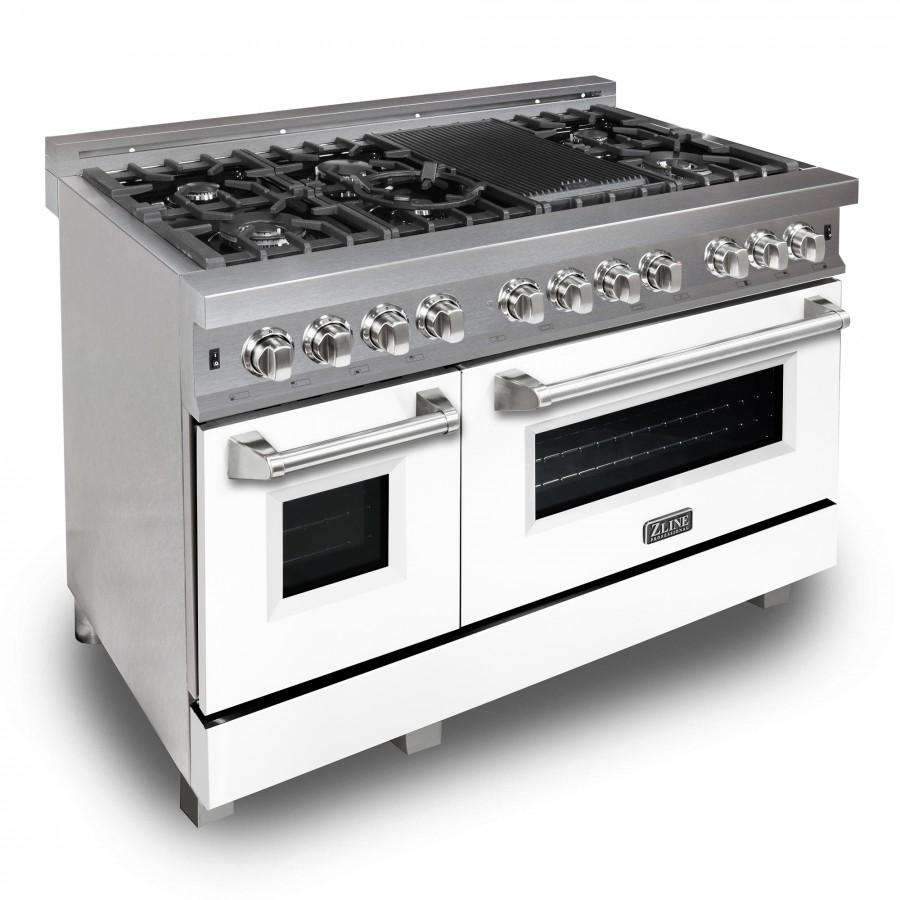

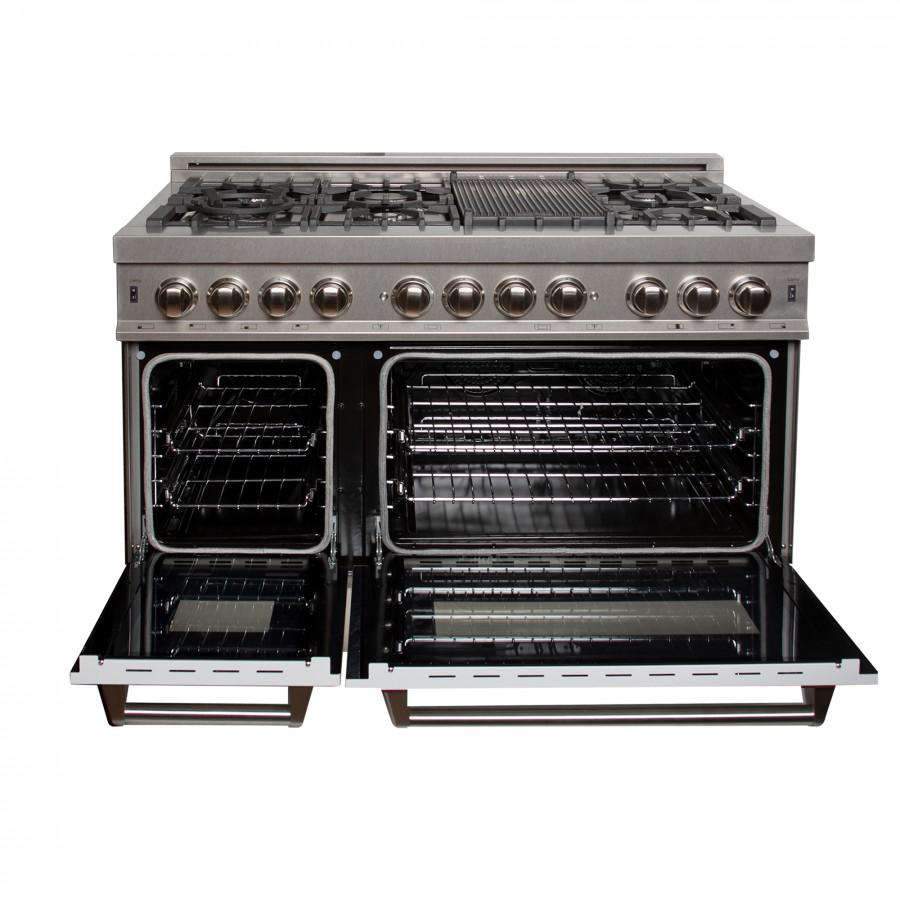

ZLINE's Professional 48" Range is complete with a 7 burner gas cooktop for energy efficiency, temperature control, and even-cooking. The 6.0 cu. ft. of deep oven capacity provides a large cooking area that’s perfect for multiple dishes at once and easily handles large baking sheets, like an 18" pizza.
*This product ships in multiple boxes and will require minimal assembly upon arrival.
Features
Three-Layer Glass Oven
- An oven with three layers of glass and dual lighting.
- Professional aluminium mesh seal for optimum insulation.
- Oven light controlled by light switch located on the front control panel.
- Crystal clear visibility to see inside your oven while cooking.
Stay-Put Hinges
- ZLINE's proprietary stay-put hinges.
- Designed to support full weight of oven door and stop at any place.
-
Durable and effective, with a smooth action.

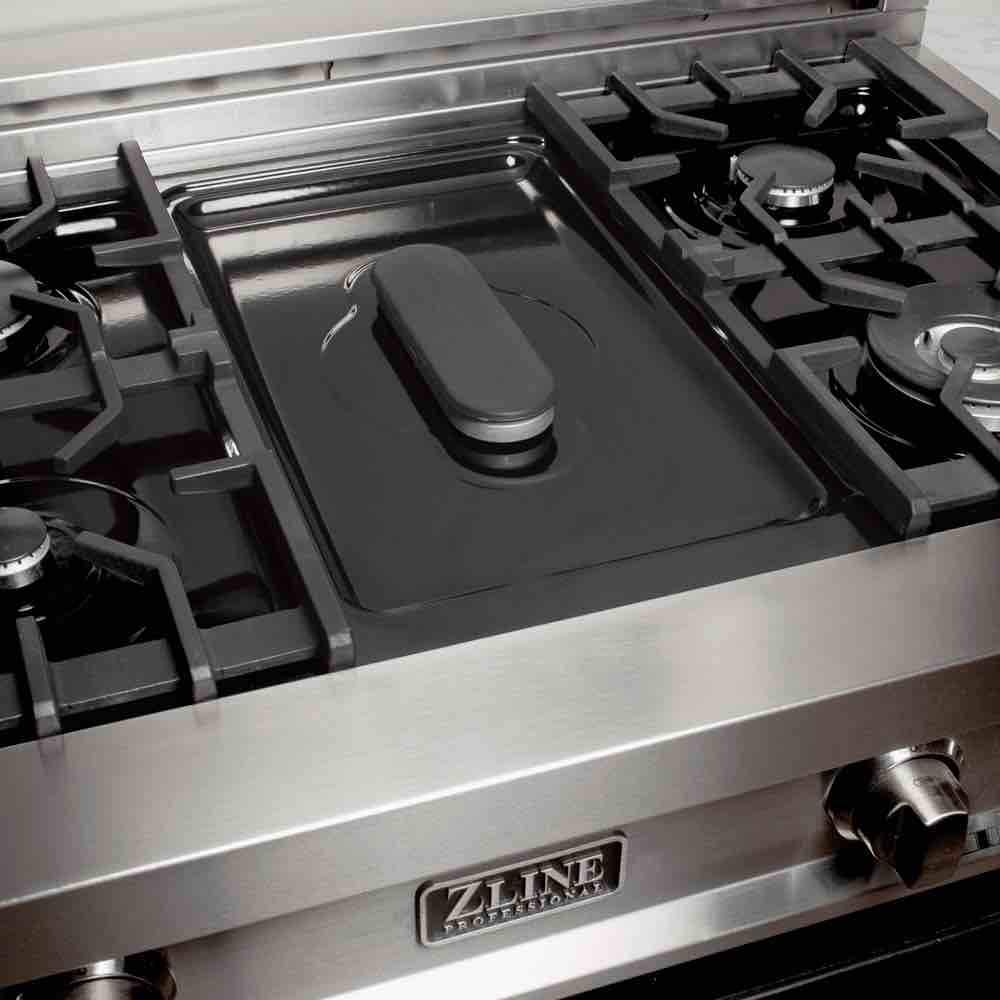

Enamel Cooktop
- Heavy Duty enamel one-piece cooktop.
- 4 burners provide the perfect range of cooking power from 4,200 to 18,000 BTU's.
- One-piece cooktop allows for an easy to clean surface - no crevices that can hold residue.
- No-scratch enamel designed to handle every cooking environment.

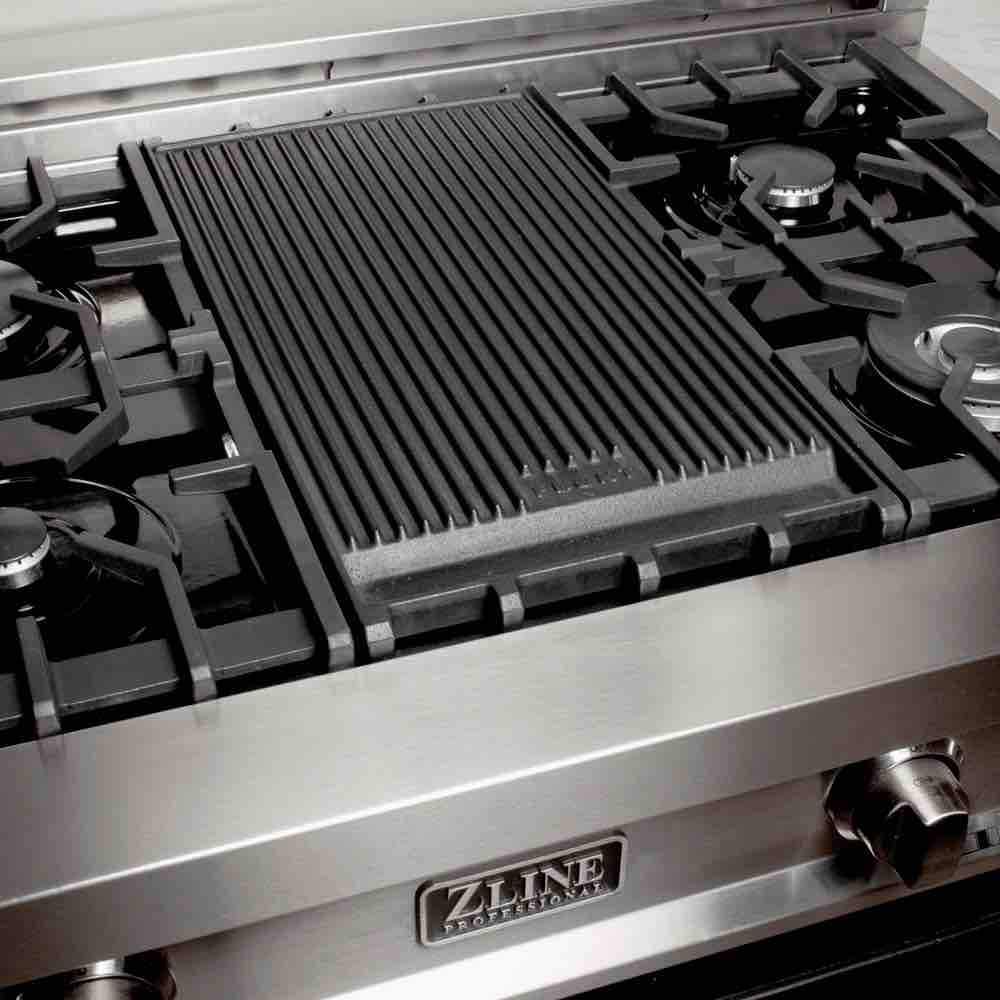

Cast Iron Grill
- Solid-piece cast iron grill - heavy duty and built to last.
- Extremely durable, with an exceptional strength-to-weight ratio.
Italian Burners
- Handcrafted, high-quality Italian Burners imported directly from Italy.
- Premium alloy to ensure efficient and clean-burning flames.
- Durable and easy to clean. Italian burners easily detach for a simple clean.
- An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.
Stainless Steel Knobs
- Heavy-duty stainless steel knob controls with smooth action turn.
- 5 oven settings.
Adjustable Legs
- ZLINE ranges feature stainless steel, easy-to-install, adjustable legs.
- Twist legs to adjust total range height anywhere from 36" to 38.5".

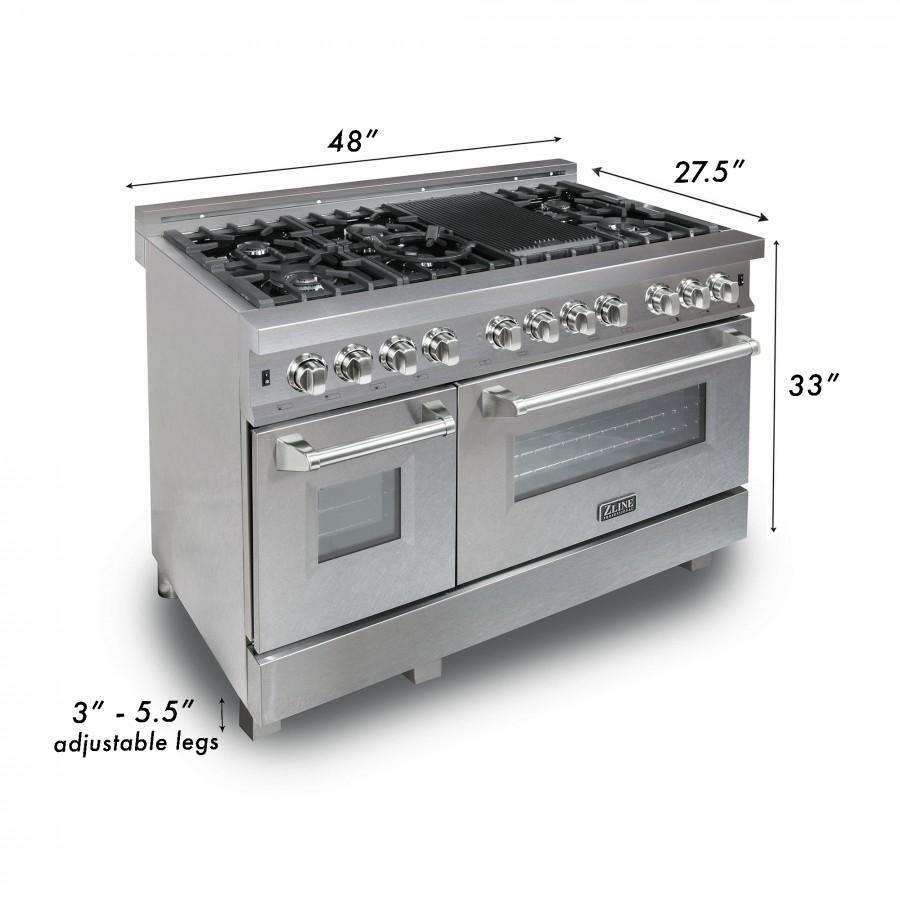

- Dimensions
- 47.75 in. W x 27.50 in. D x 36.13 in. H
- Cut-Out Dimensions
- 48 in. W x 24 in. D x 36 in. H
- Adjustable Height
- 36.13 - 38.63 in. H
- Product Depth with Handle
- 29.63 in. D
- Open Door Depth
- 41.8 in. D
- Interior Oven Dimensions
- 24.88 in. W x 17.75 in. D x 16 in. H
- Weight
- 256 lbs
- Brand
- ZLINE Kitchen and Bath
- Number of Burners
- 7
- Number of Racks
- 4
- Material
- Satin Stainless Steel with White Matte Doors
- Lighting
- Halogen Lights
- Burner Fuel
- Natural Gas and Liquid Propane Convertible
- Oven Fuel
- Electric
- Electrical Requirements
- 30A/240 VAC/NEMA 14-50P (50 AMP Plug)
- Cooktop BTUs
- Back Left Burner: 10,000 BTU, Front Left Burner: 18,000 BTU, Back Right Burner: 10,000 BTU, Front Right Burner: 18,000 BTU, Back Middle Burner: 12,500 BTU, Front Middle Burner: 4,500 BTU, Griddle Burner: 12,500 BTU
- Oven BTUs
- Total BTUs: 85,500 BTU
- Oven Capacity (cu.ft)
- Larger Oven: 4 cu. ft., Smaller Oven: 2 cu. ft.
- Oven Features
- Bake, Broil, Convection Bake
- Convection Fan
- Yes
- Self Clean (Y/N)
- No
- Timer (Y/N)
- No
- Additional Features
- Italian Burners: Lifetime Burner Warranty, Stay-Put Hinges, Full Extension Telescoping Glide Racks, LED Accent Lighting, 3-Layered Glass on Oven Door
- Certifications
- CSA Listed
- Warranty
- 1-Year Parts and Service, Lifetime Burner Warranty
What is Satin Stainless Steel?
- Fingerprint resistant
- Non-directional finish
- Outdoor-approved 304 grade stainless steel

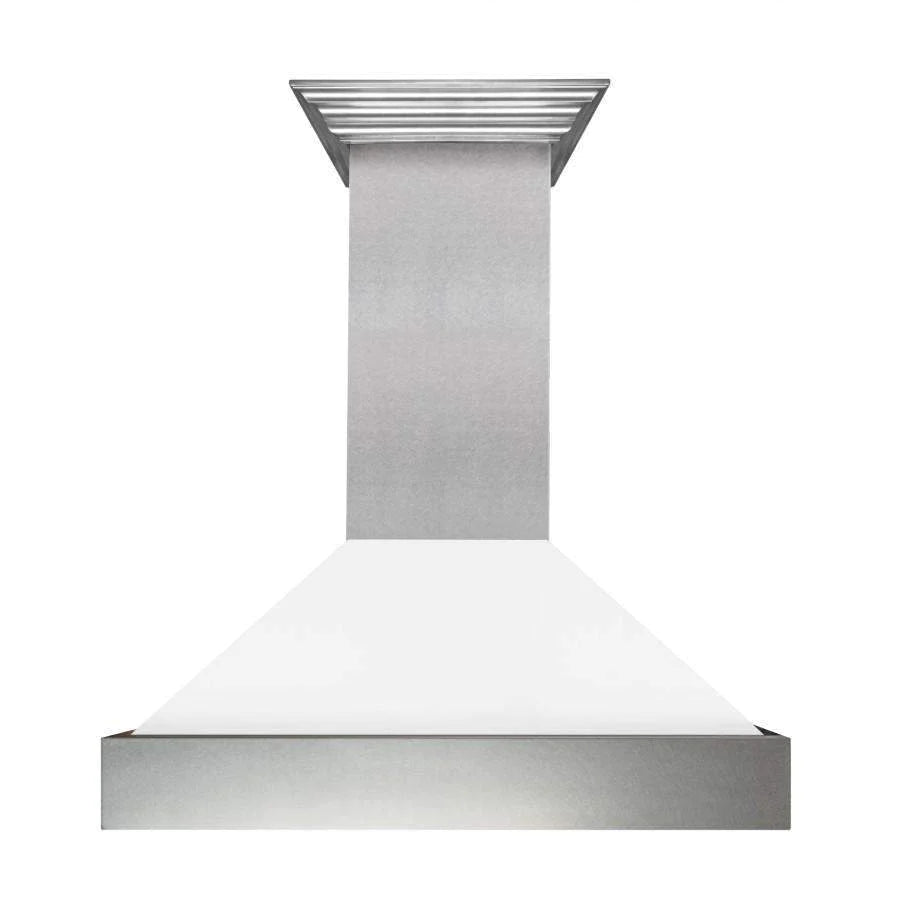

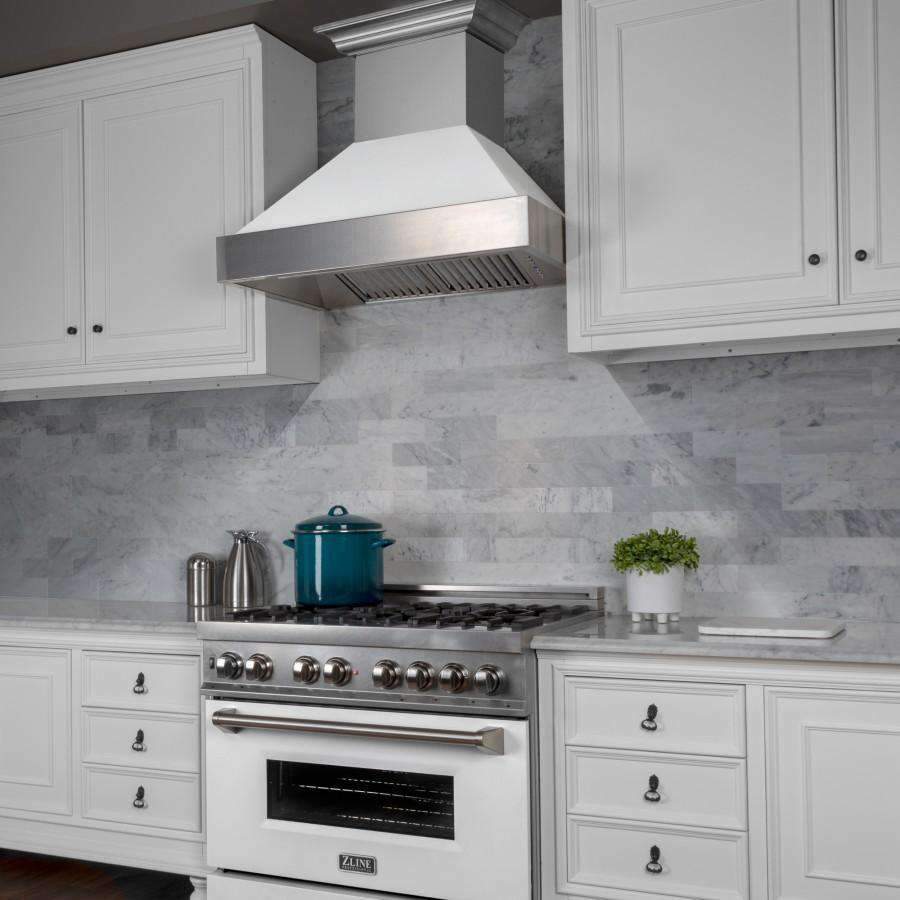

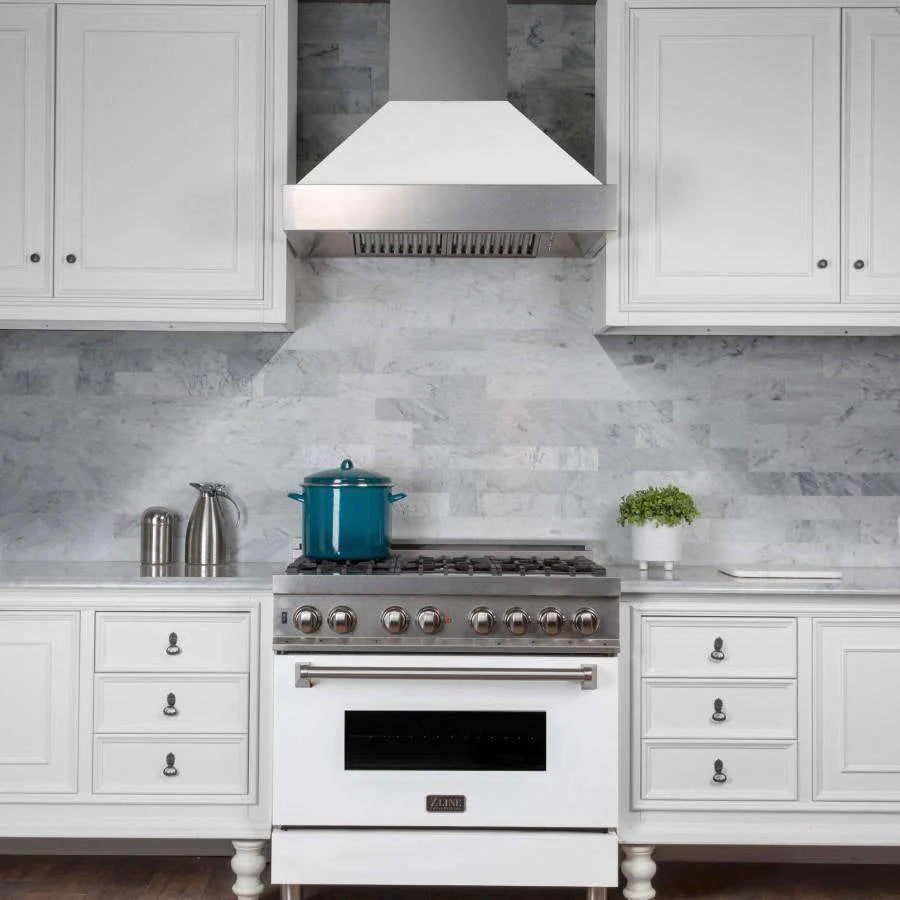

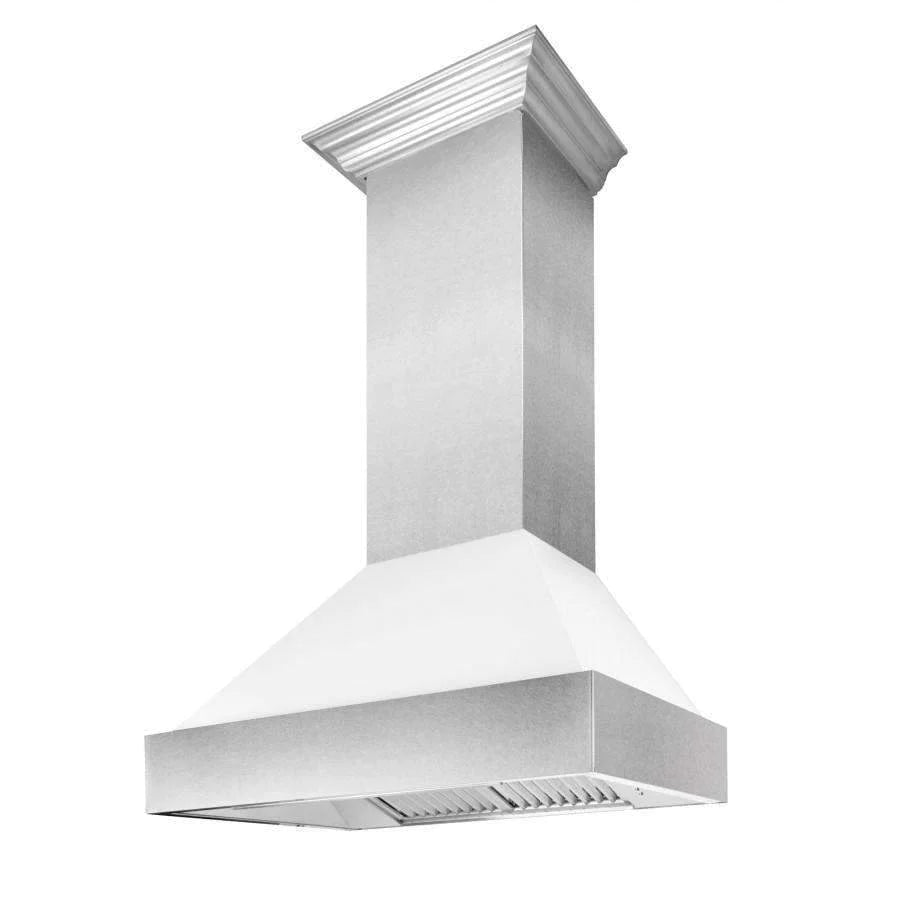

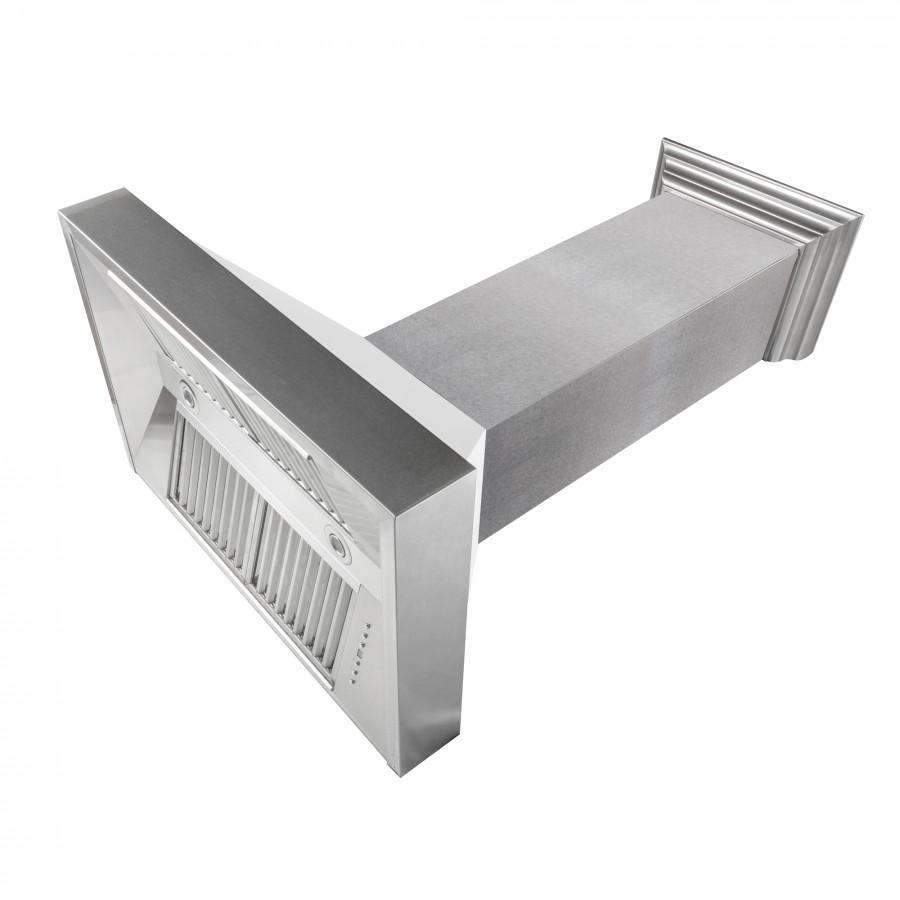

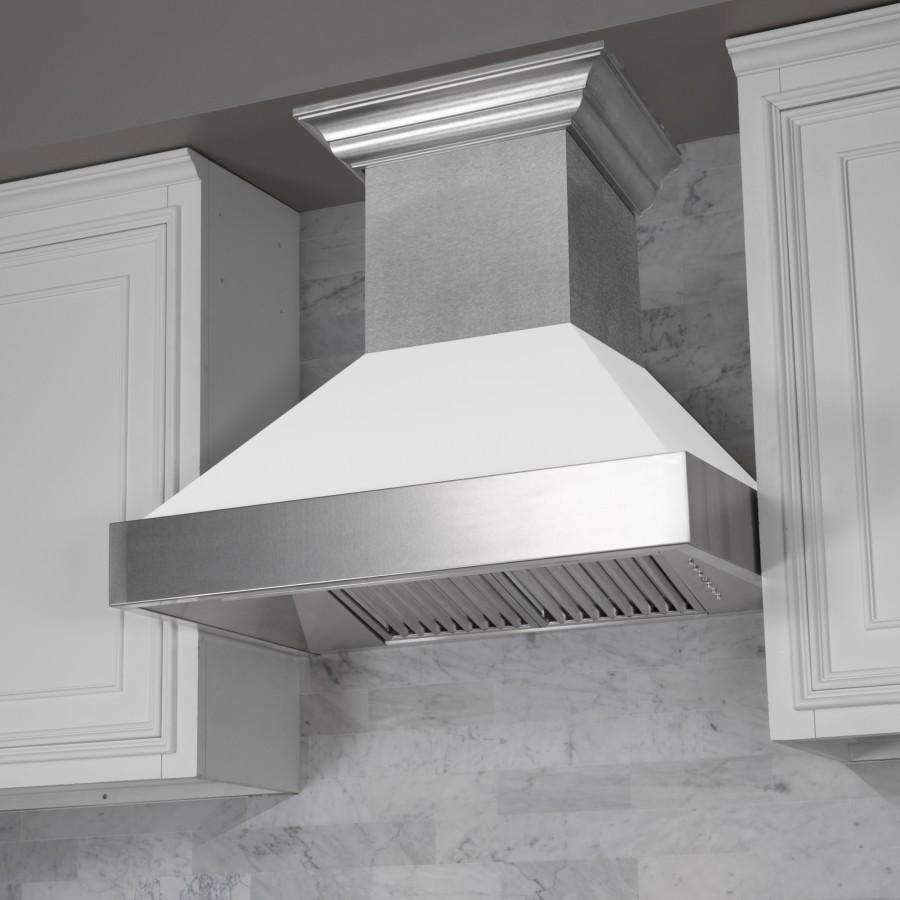

Introducing the first of its kind, ZLINE's Limited Edition Dual Layer Colored Range Hood Collection. This collection offers vast color options that have never been offered before, and will not be offered after sell out. Let the candy apple gloss red, bold cobalt blue, or crisp matte white, in combination with our snow finished stainless steel be the centerpiece of your entire kitchen. As always, ZLINE Range Hoods offer the most effortless installation in the industry, and together with the best quality-to-price ratio on the market, we guarantee you will be satisfied with your range hood choice.
- Four-speed settings available
- Stovetop LED illumination
- Dishwasher safe stainless steel baffle filters.
- High performance 4-speed motor with speeds up to 700 CFM
This hood will enhance your kitchen to a professional-grade cooking experience. A lifetime warranty on the motor and a 3-year manufacturer's part warranty prove ZLINE is a company that stands behind its product. Significantly different from any other ZLINE collection is the Dual Layer Finish. Two layers of stainless steel and powder coating enable your range hood to endure more smoke and debris cast into the air during the cooking process - ensuring a safer and cleaner home. Clean and quiet is the name of the game and this hood is rated at less than 50 decibels - meaning the ambiance of your dinner conversations will not be disturbed while your range hood is at full power.
ZLINE products are designed and built with true craftsmanship which means you are purchasing a range hood that will last you a lifetime. (8654WM-48) ships next business day when in stock.

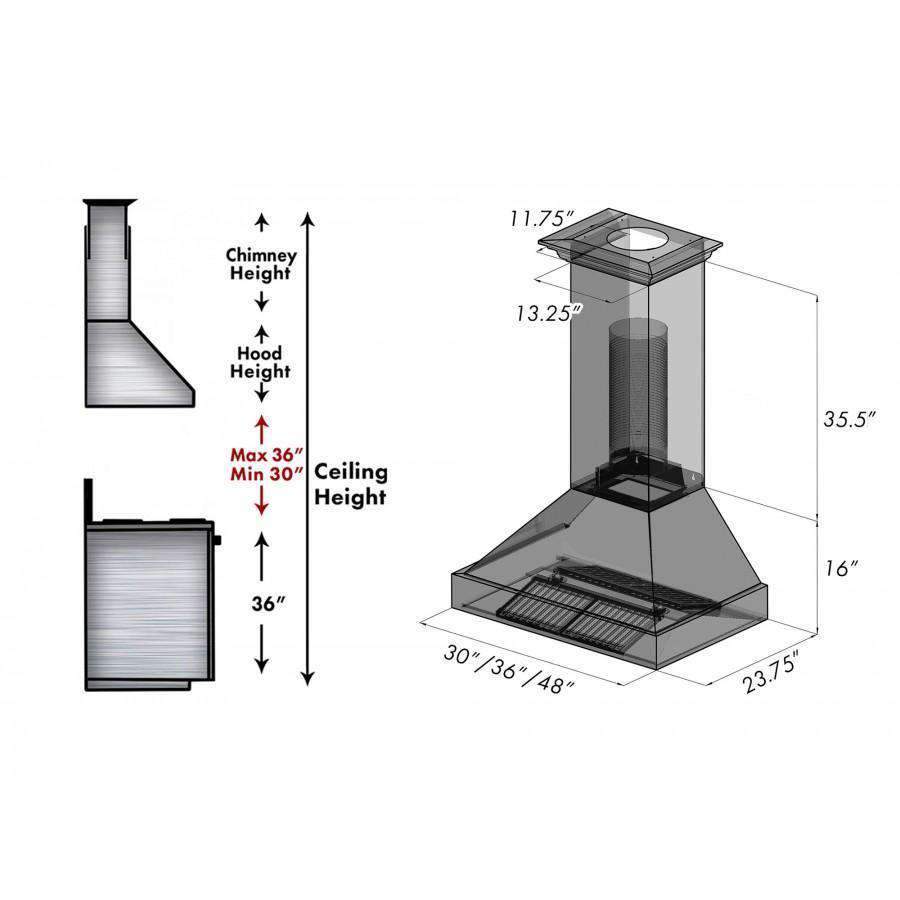

- Dimensions (W x D x H)
- 48 in. W x 23.75 in. D x 16 in. H
- Chimney Dimensions
- 13.25 in. W x 11.75 in. D x 35.5 in. H
- Product Weight
- 90 lb.
- Brand
- ZLINE
- Model No.
- 8654WM-48
- Appliance Category
- Wall Mount Range Hood
- Mount Type
- Wall Mount
- Color/Finish
- Satin Stainless Steel with White Matte Shell
- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Button Panel
- Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
- Venting
- Ducted
- Duct Size
- 8 in.
- Airflow (Q/L/M/H)
- 280/420/560/700
- Motor
- High Performance 700 CFM/4-Speed Motor
- Number of Speeds
- 4
- Decibels
- 30/41/49/52
- Voltage
- 110V
- Amps
- 5A
- Number of Lights
- 2
- Filters
- Stainless Steel Baffle Filters (Dishwasher-safe)
- Certifications
- ETL Listed
- Warranty
- 3 Year Parts, Lifetime Motor Warranty
Get Inspired by ZLINEShop this look
