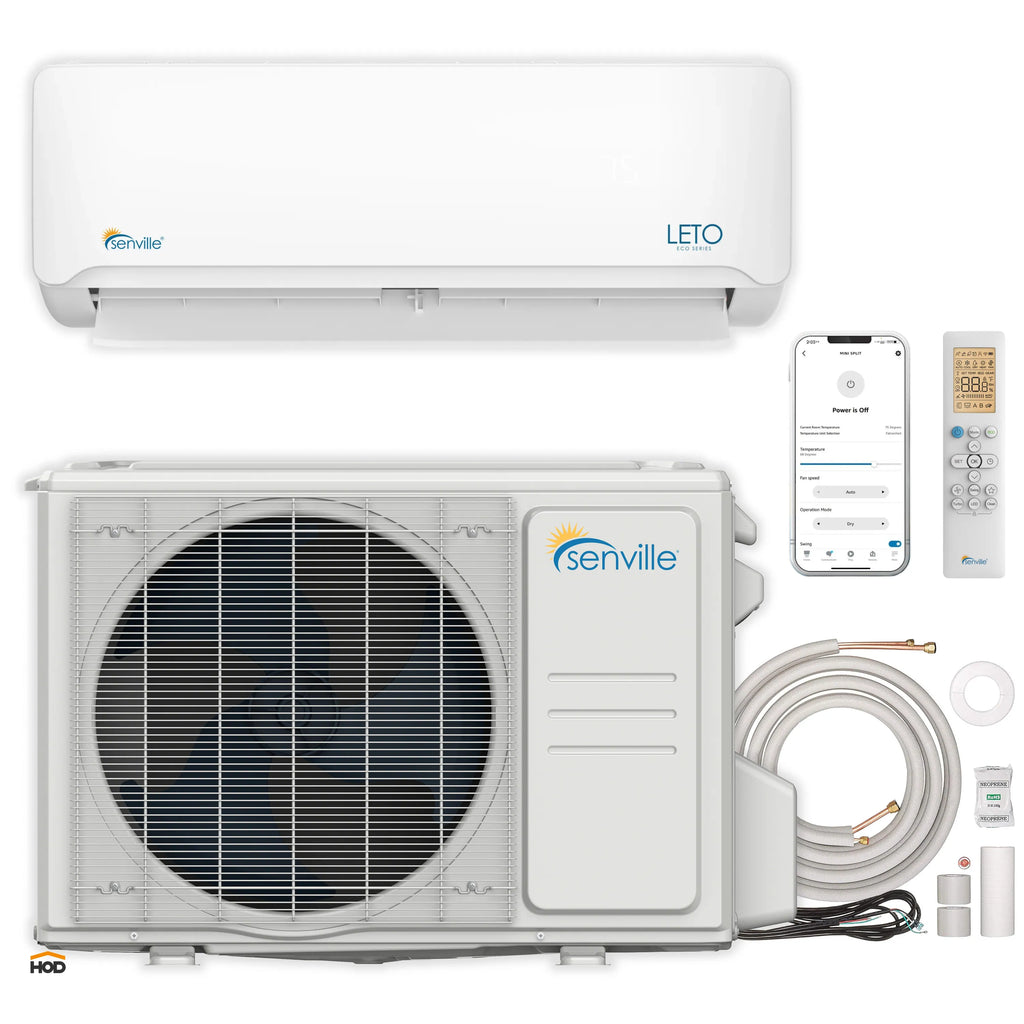

Senville SENL-09CD is a high-efficiency 9000 BTU mini split air conditioner and heat pump designed to deliver affordable, year-round comfort for small rooms and spaces. Enjoy whisper-quiet operation, reliable cooling, and heating—even in colder climates.

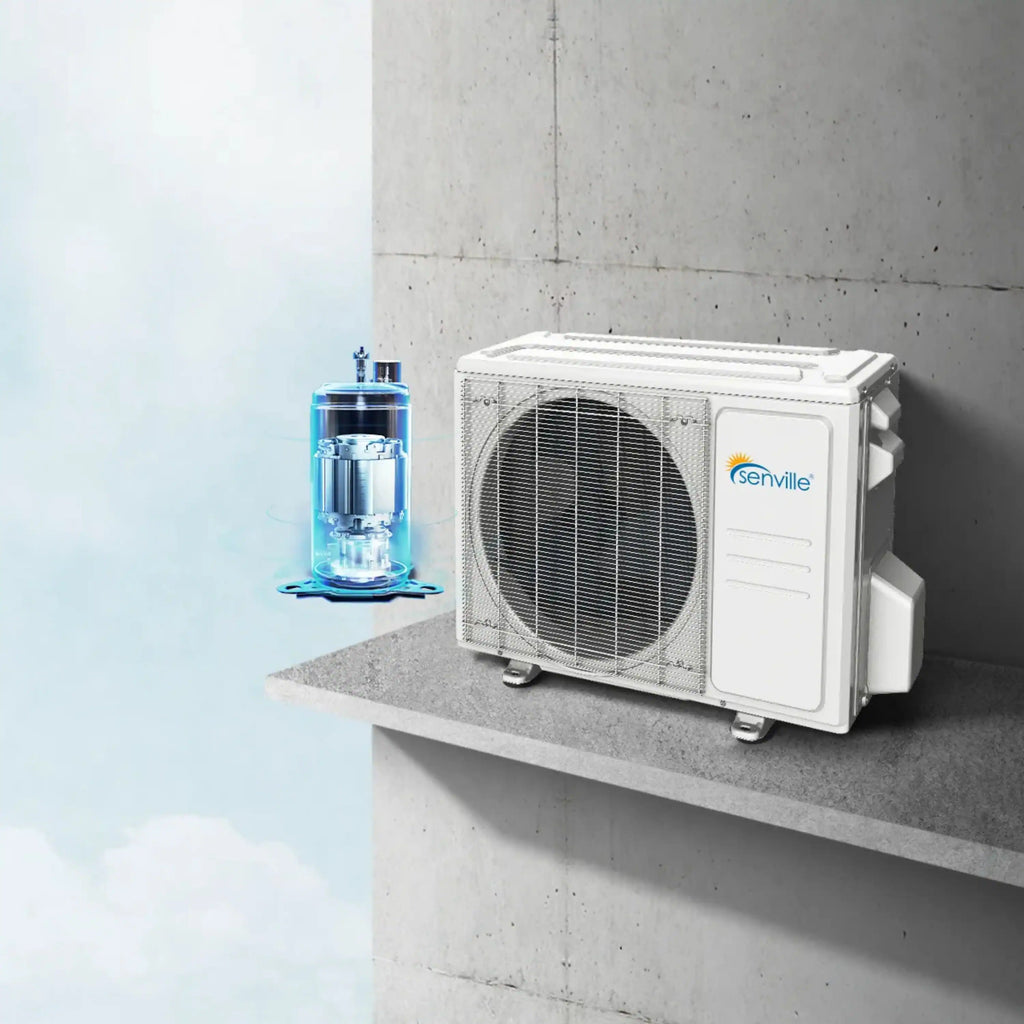

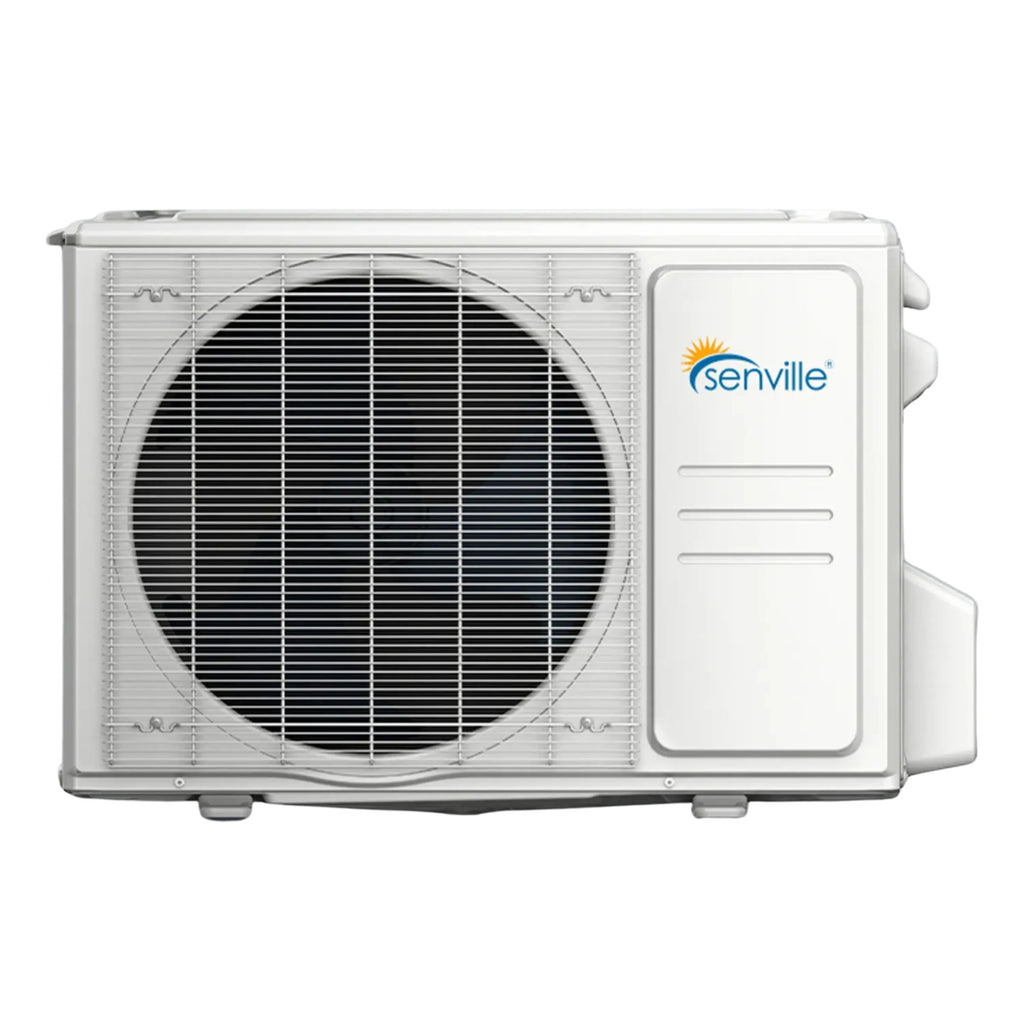

| Condenser | |
| Dimensions (WxDxH) (in.) | 30.12 x 11.93 x 21.85 |
| Outdoor Noise Level dB | 55 |
| Outdoor Air Flow (Max) CFM | 1235.29 |

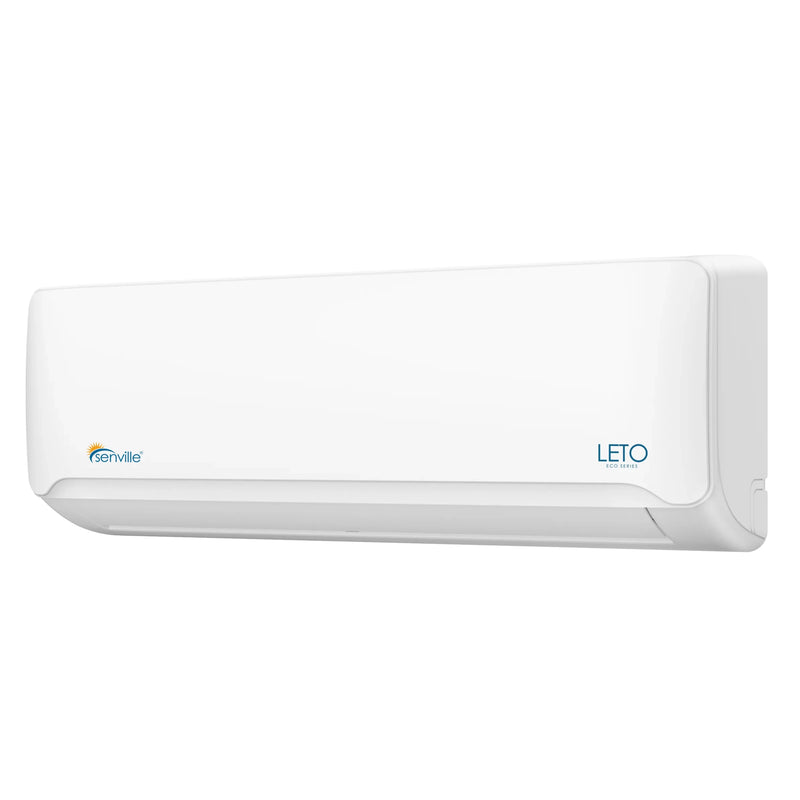

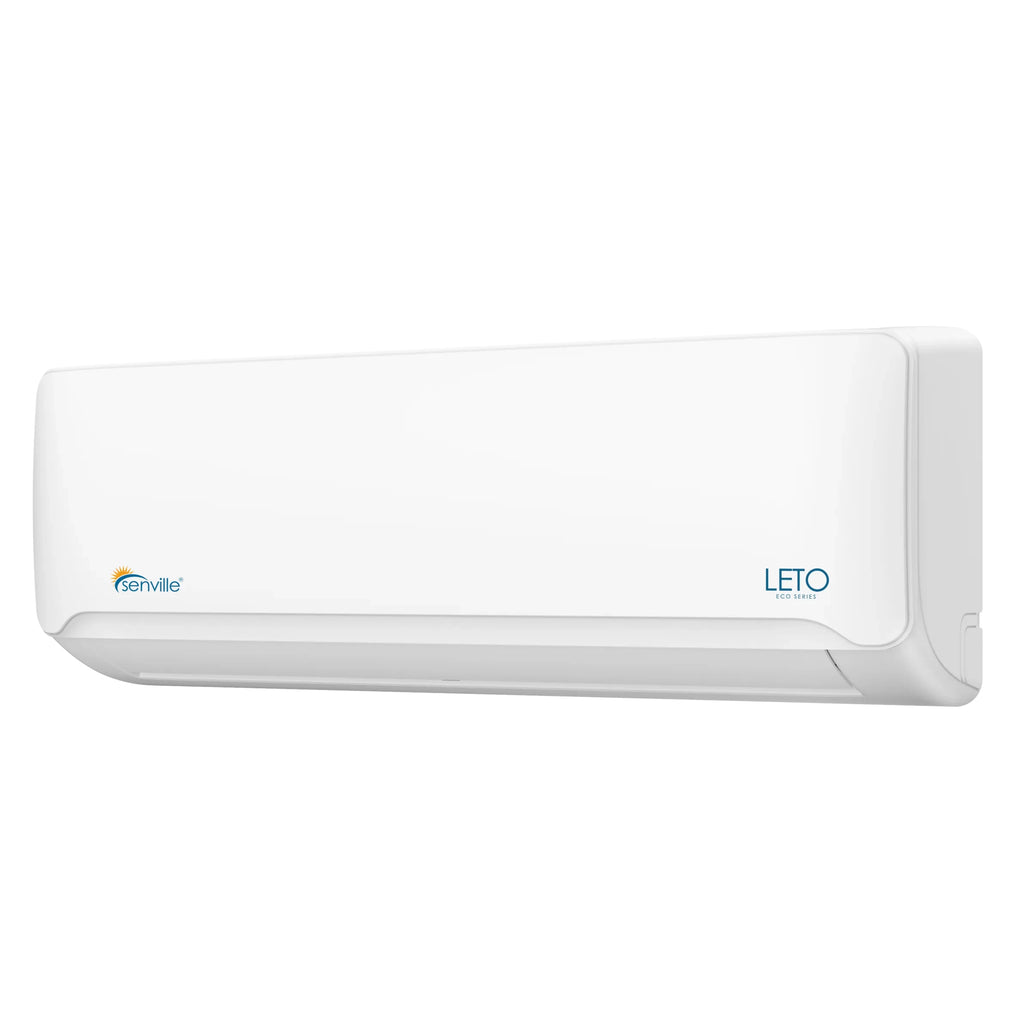

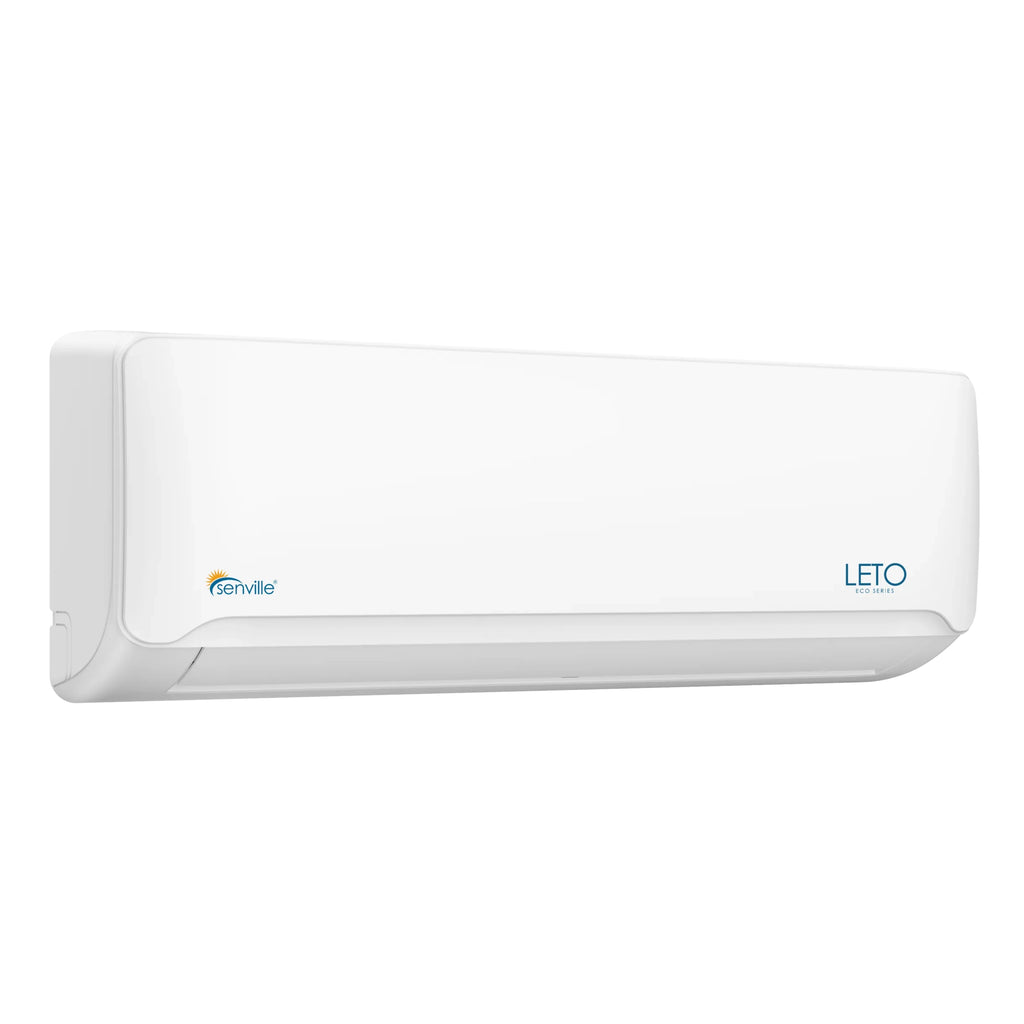

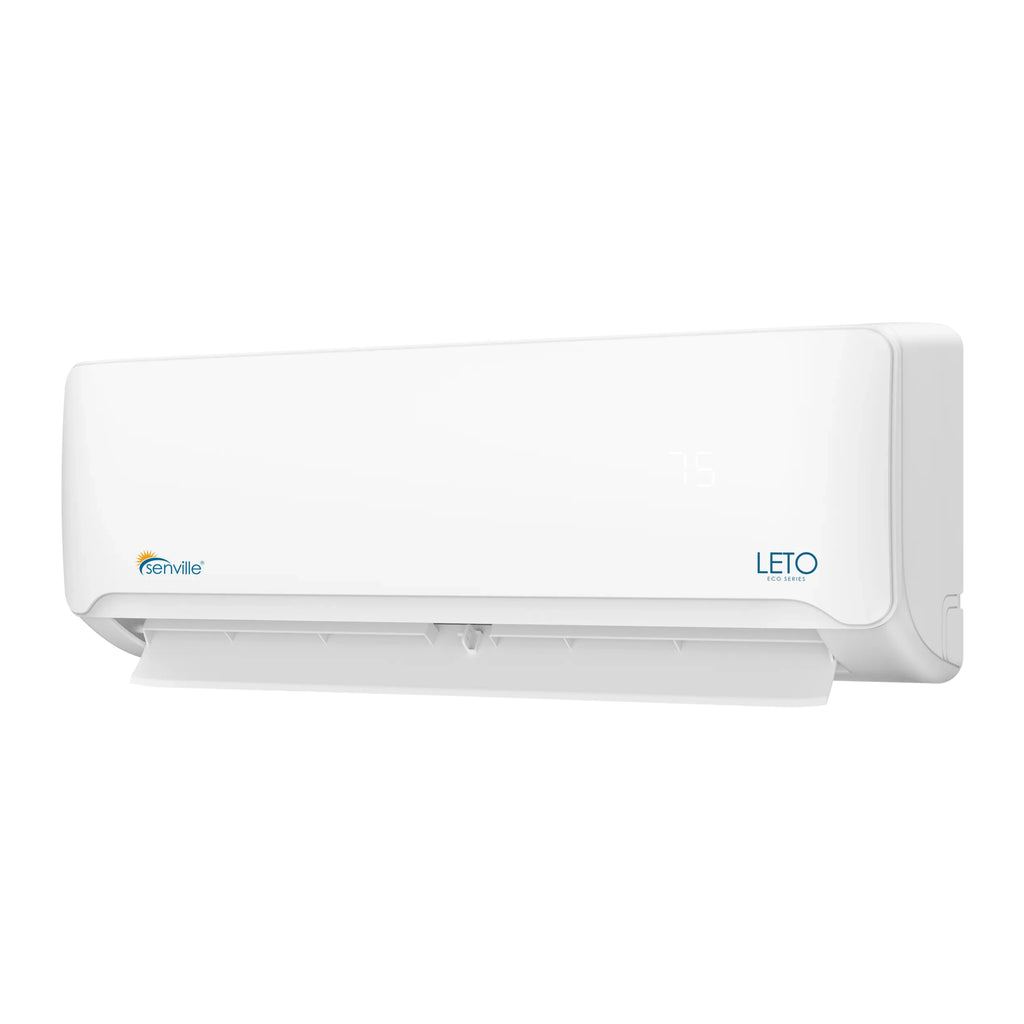

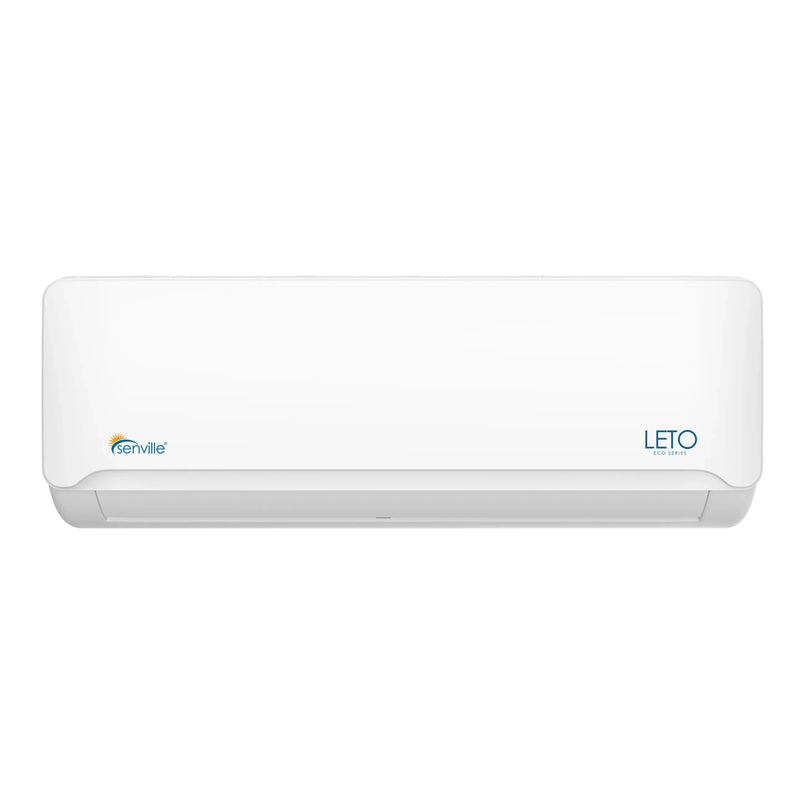

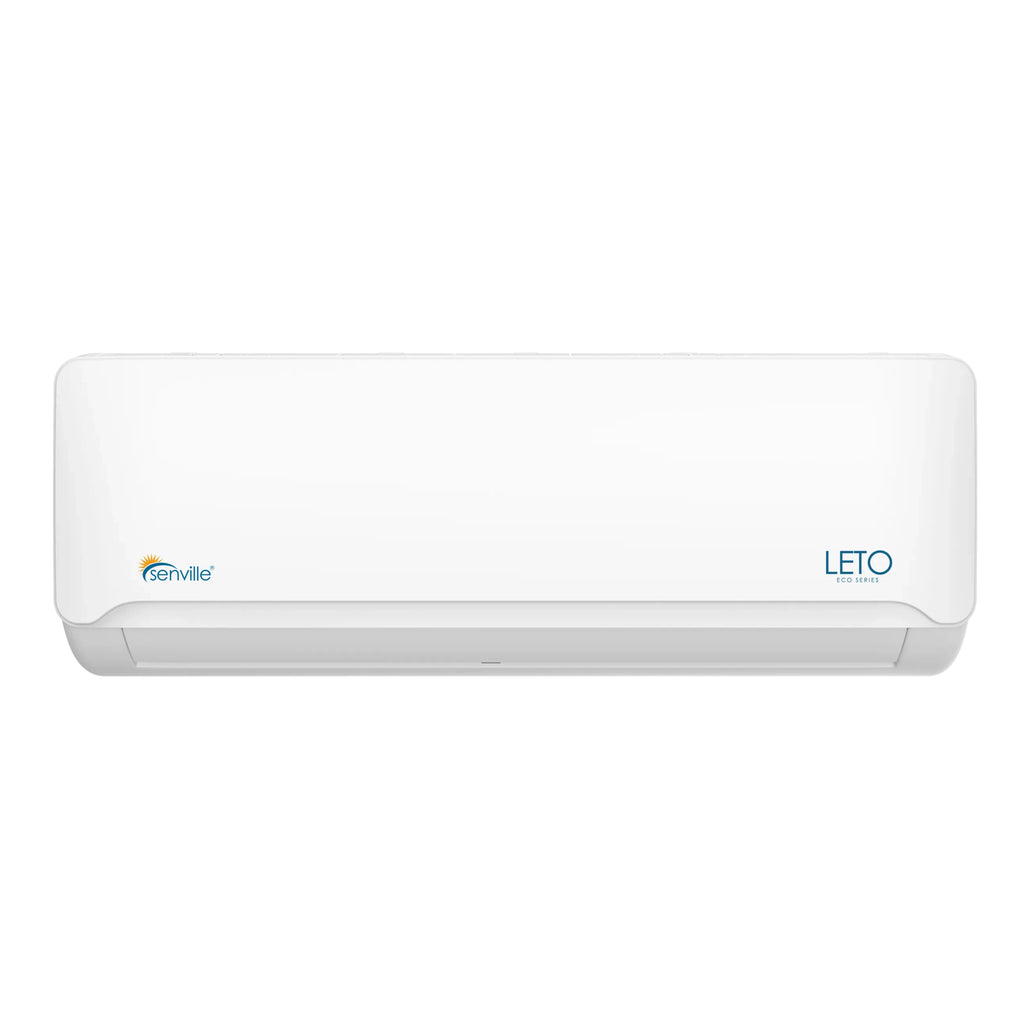

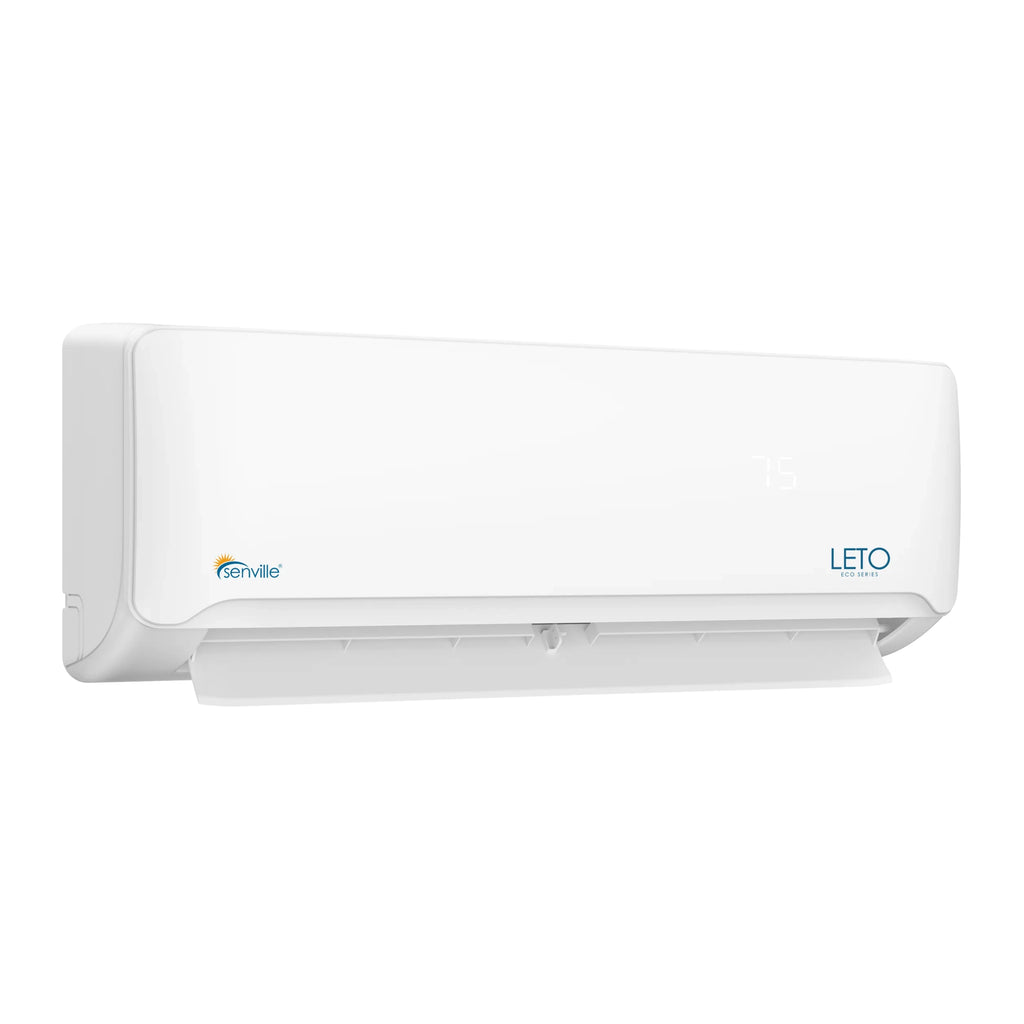

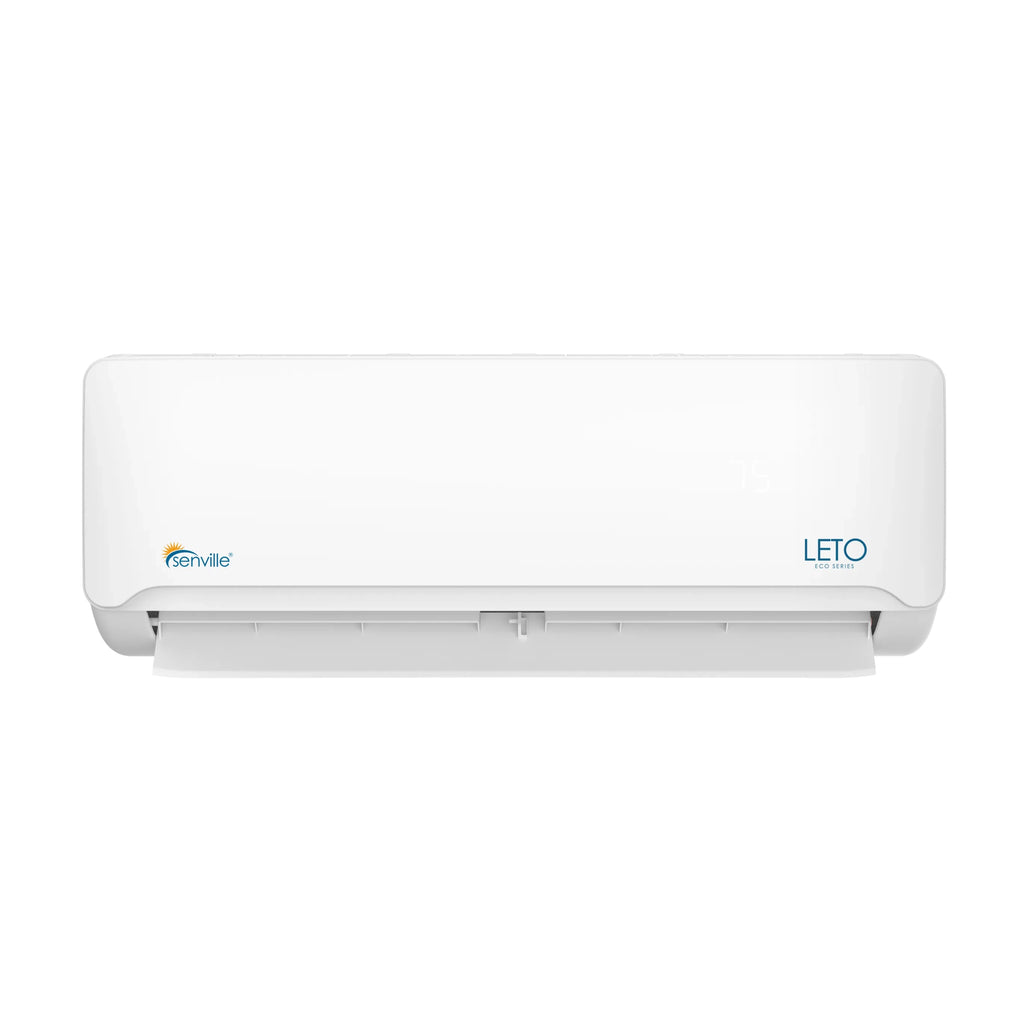

| Air Handler | |
| Dimensions (WxDxH) (in.) | 28.43 x 7.36 x 11.42 |
| Indoor Air Flow (H/M/L) CFM | 247.06 / 182.35 / 129.41 |
| Indoor Noise Level (H/M/L) dB | 36.5 / 31.0 / 22.0 |
| Technical Specifications | |
| SEER2 | 21.5 |
| EER2 | 12.5 |
| Style | Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 115V, 1Ph, 60Hz |
| Voltage Range | 103.5-126.5 |
| Cooling Capacity (Range) BTU | 2650~10300 |
| Cooling Input (W) | 720 |
| Cooling Rated Current (A) | 6.26 |
| Heating Capacity (Range) BTU | 2700~10500 |
| Heating Input (W) | 1000 |
| Heating Rated Current (A) | 8.7 |
| HSPF4 | 10 |
| HSPF5 | 7.8 |
| COP W/W | 2.93 |
| Minimum Circuit Ampacity (A) | 20 |
| Max. Fuse (A) | 30 |
| Refrigerant Type / Charge oz | R454B / 25.4 |
| Refrigerant Pre-charge | 25 ft |
| Connection Wiring | 14*4 AWG |

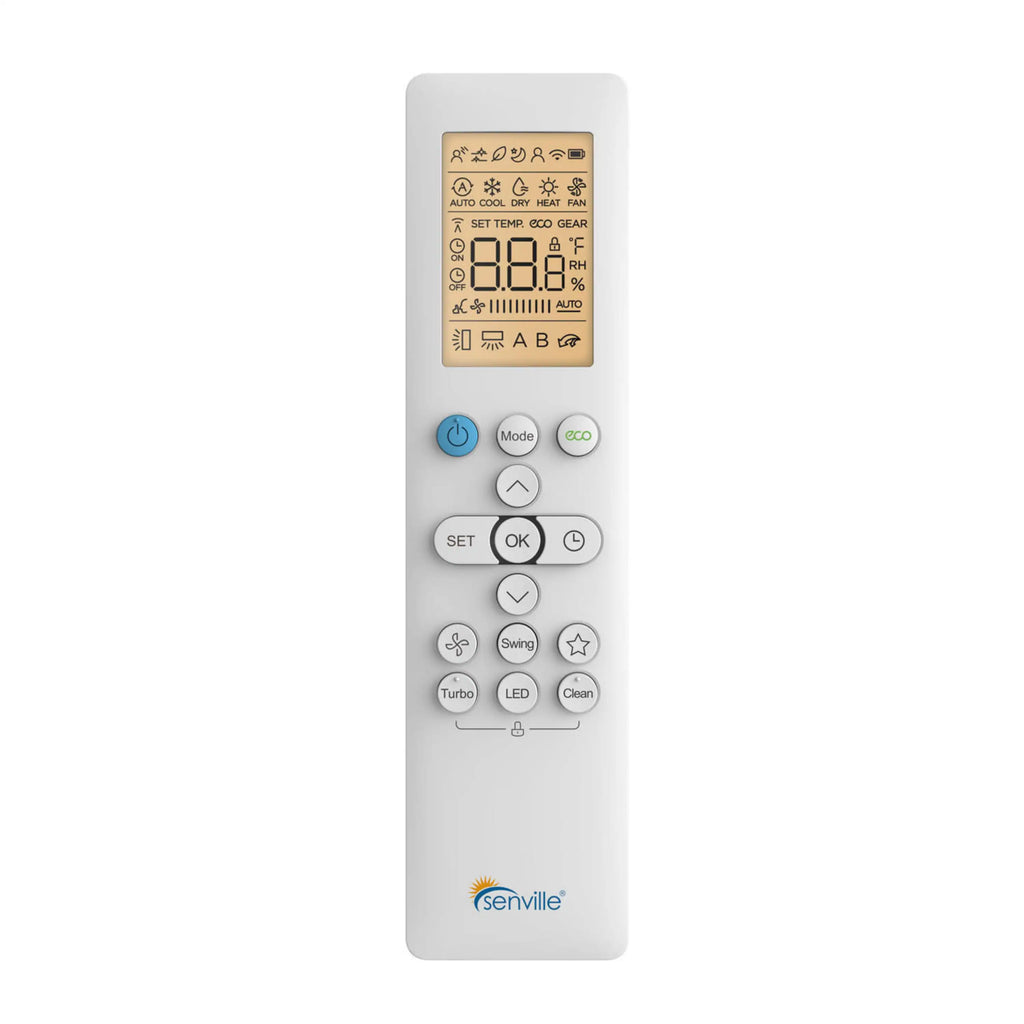

| Thermostat Type | Remote Control |
| Works with Alexa | Alexa Enabled |
| Warranty | 5 Years Compressor / 5 Years Parts |
| Application Area (8 ft Ceilings) | 450 sq. ft. |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
