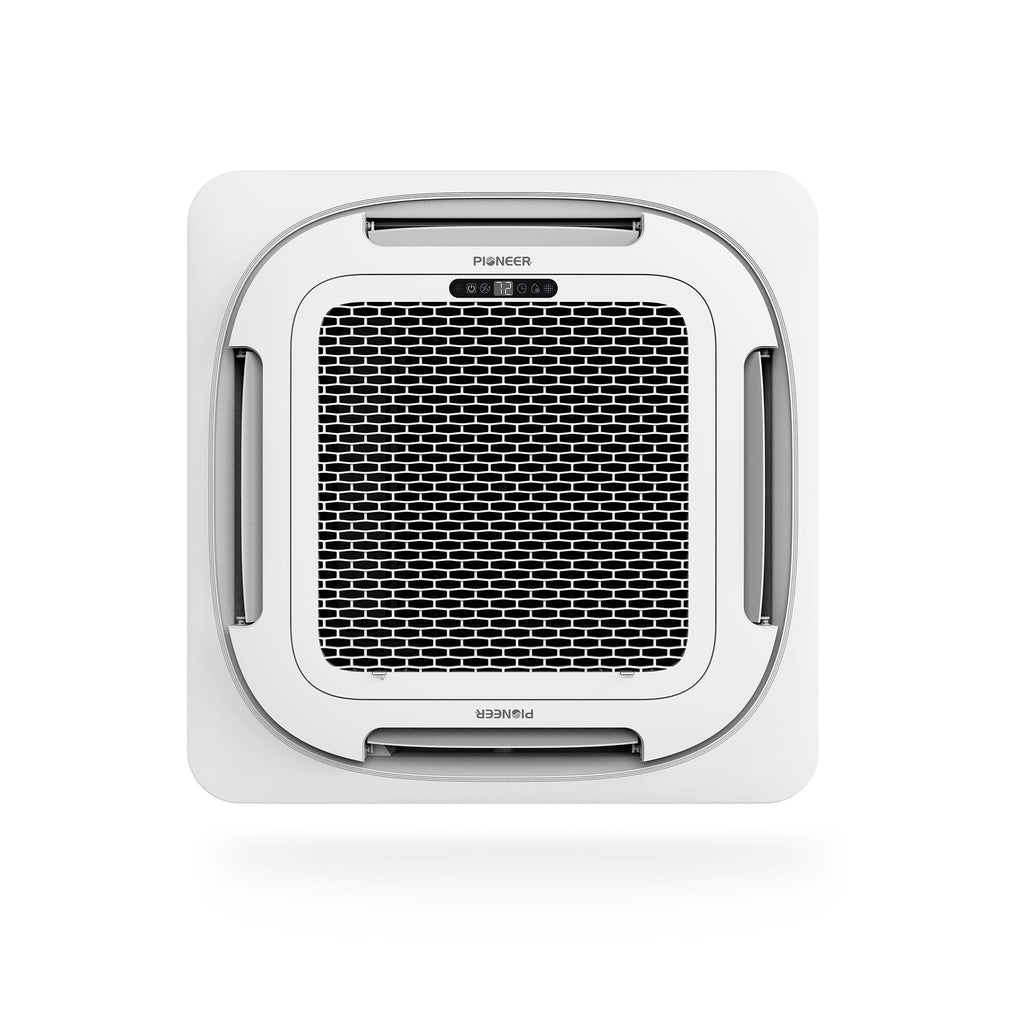

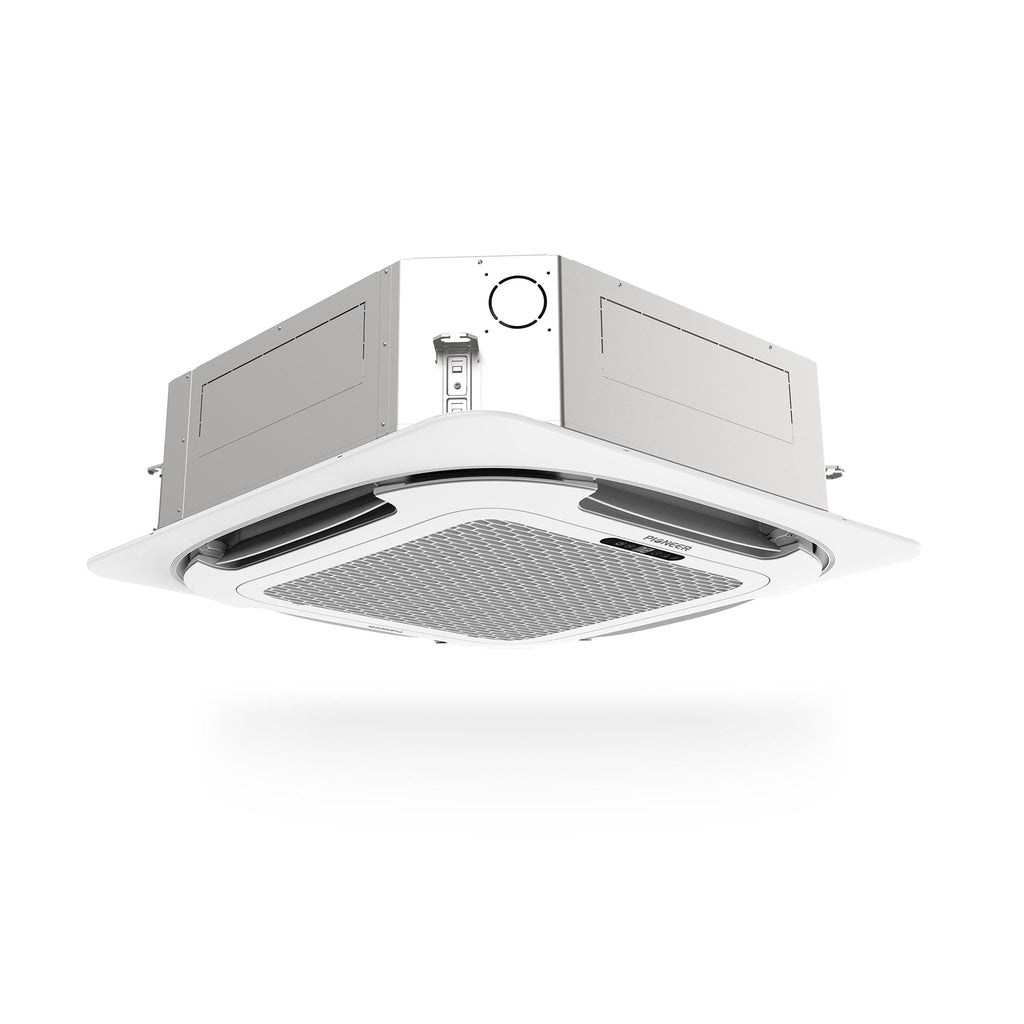

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options.

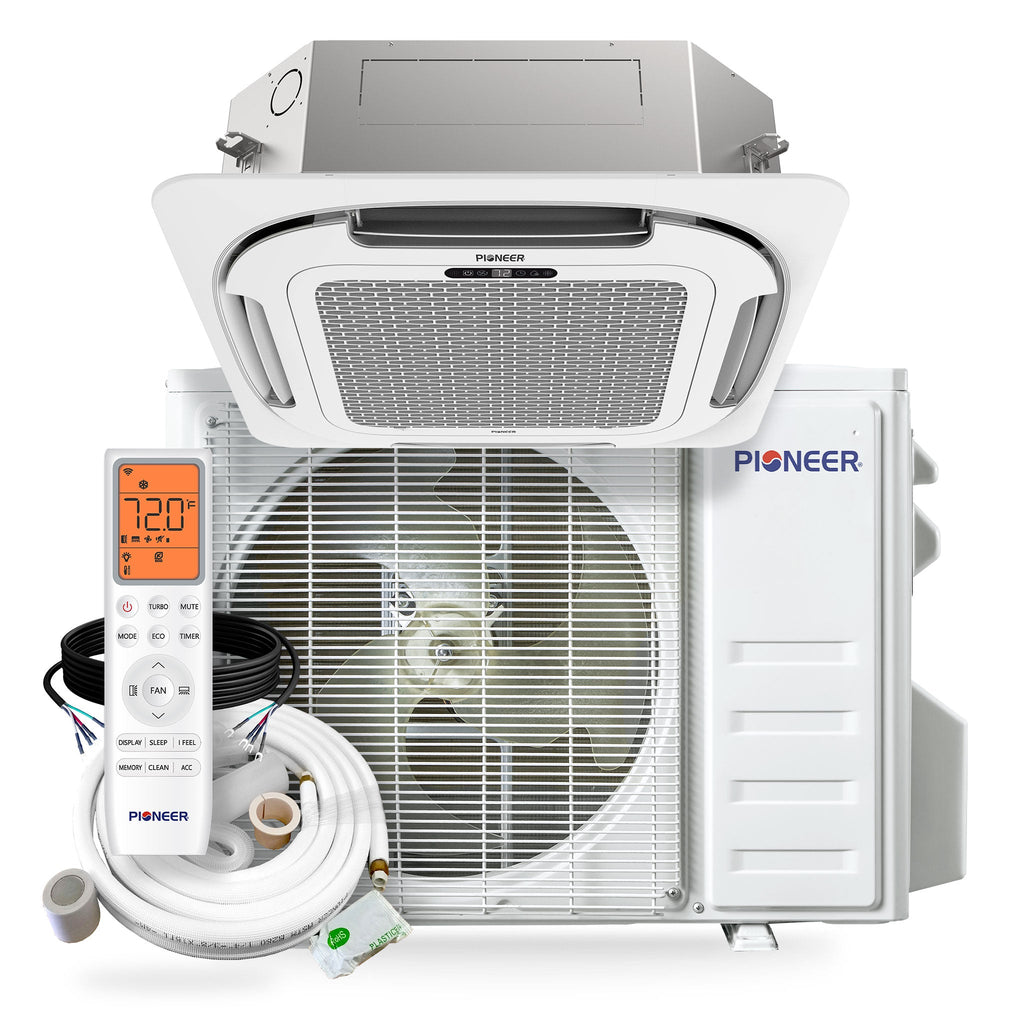

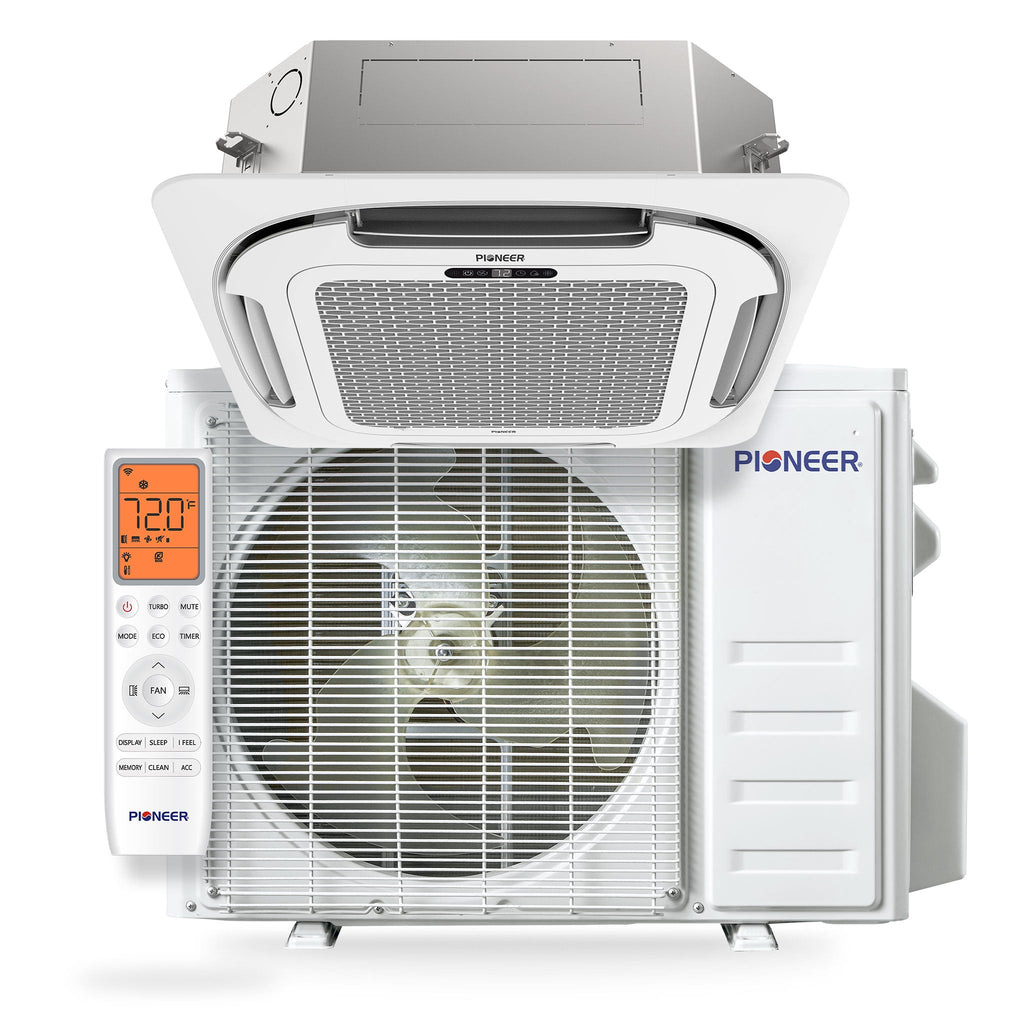

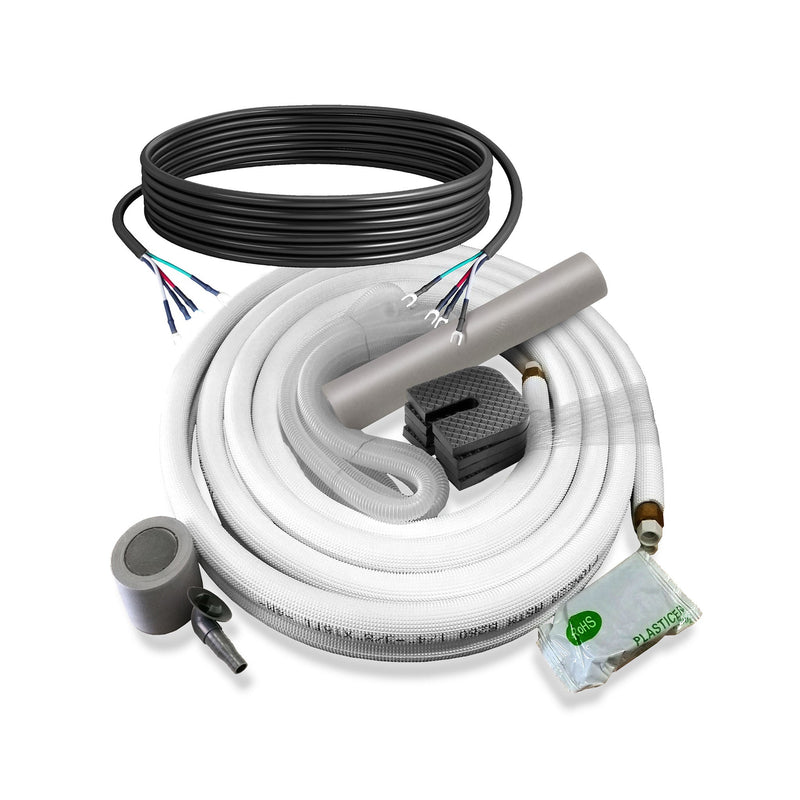

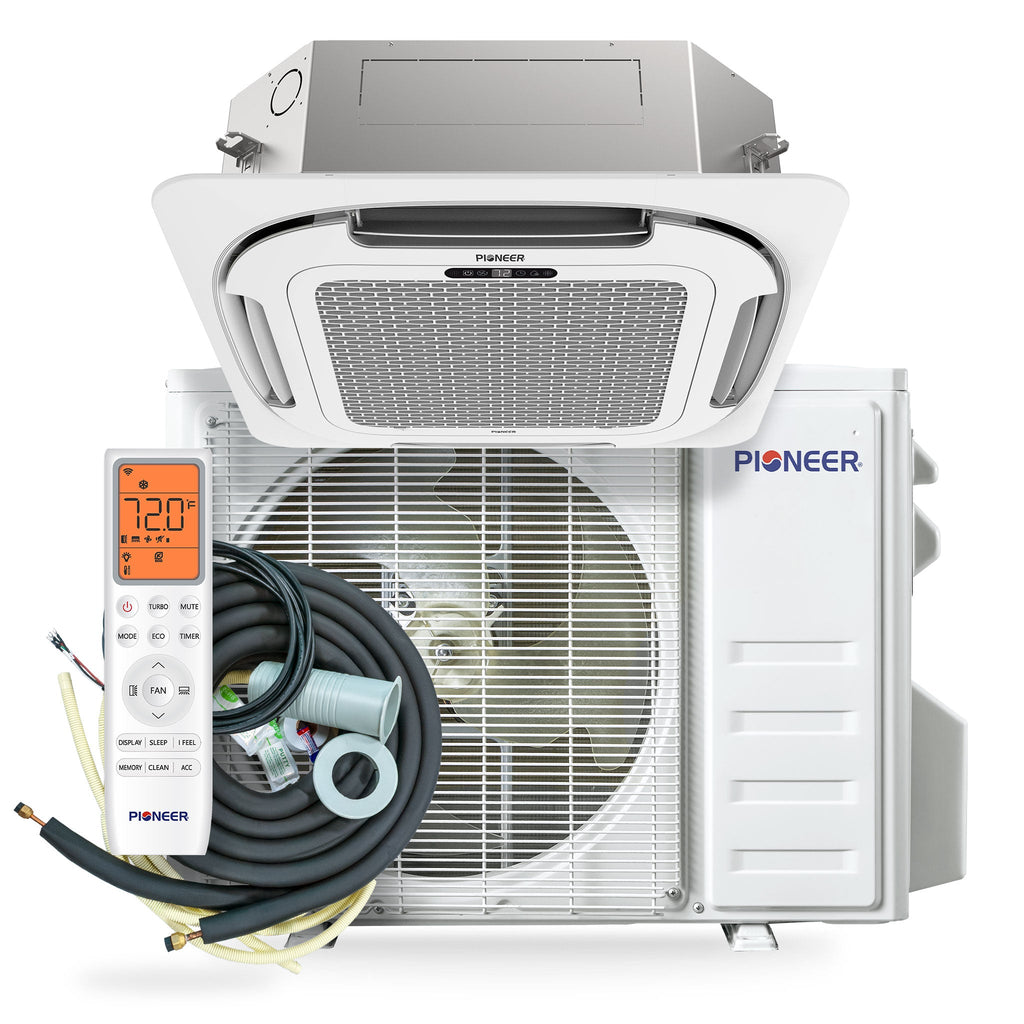

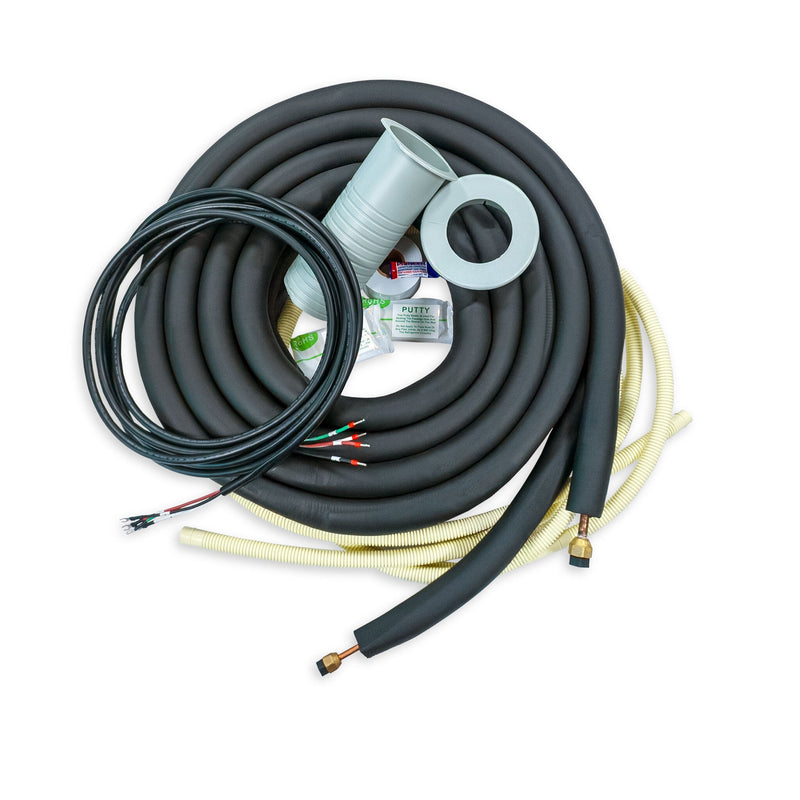

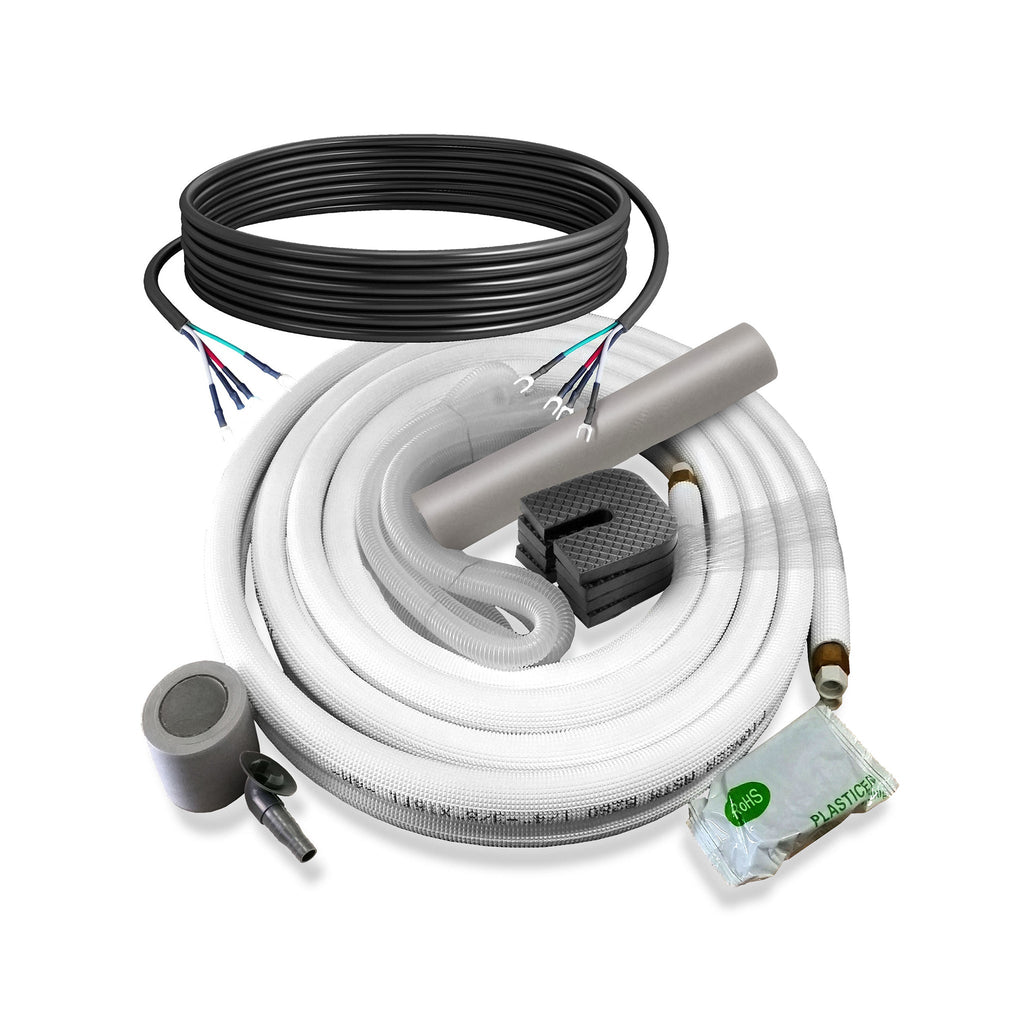

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.
Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy
System Kit |
|
| Power Supply: | 208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity: | 23,000 BTU/h |
| Cooling Capacity Range: | 7,550~25,200 BTU/h |
| Cooling SEER2: | 22.5 BTU/W.h |
| Cooling EER2: | 11.7 BTU/W.h |
| Heating Rated Capacity: | 25,000 BTU/h |
| Heating Capacity Range: | 8,700~28,300 BTU/h |
| Heating HSPF2 (Region IV): | 10.4 / 8.4 BTU/W.h |
| Heating C.O.P.2 (47°F/5°F): | 3.6 / 2.0 W/W |
| Refrigerant Type: | R454b |
| Suitable Area: | 750~1,000 Sq.F |
| AHRI Reference: | 217048761 |
Indoor Unit |
|
| Part Number: | CT024GLSILSFHG |
| Air Flow (Turbo/Hi/Med/Lo/Mute): | 735/676/529/423/394 CFM |
| Sound Level (Turbo/Hi/Med/Lo/Mute): | 50/47/43/38/34 dB(A) |
| Product Dimensions (WDH): | 33"-1/8 x 33"-3/4 x 10"-3/4 Inches |
| Carton Dimensions (WDH): | 36"-7/8 x 36"-7/8 x 11"-1/2 Inches |
| Net / Gross Weight: | 51.8 / 59.5 lbs |
Decorative Panel |
|
| Part Number: | CT2460DPNL |
| Product Dimensions (WDH): | 37-3/8" x 37-3/8" x 2-7/8" |
| Carton Dimensions (WDH): | 41-1/2" x 41-1/2" x 3"-1/2 |
| Net / Gross Weight: | 13.2 / 19.8 lbs |

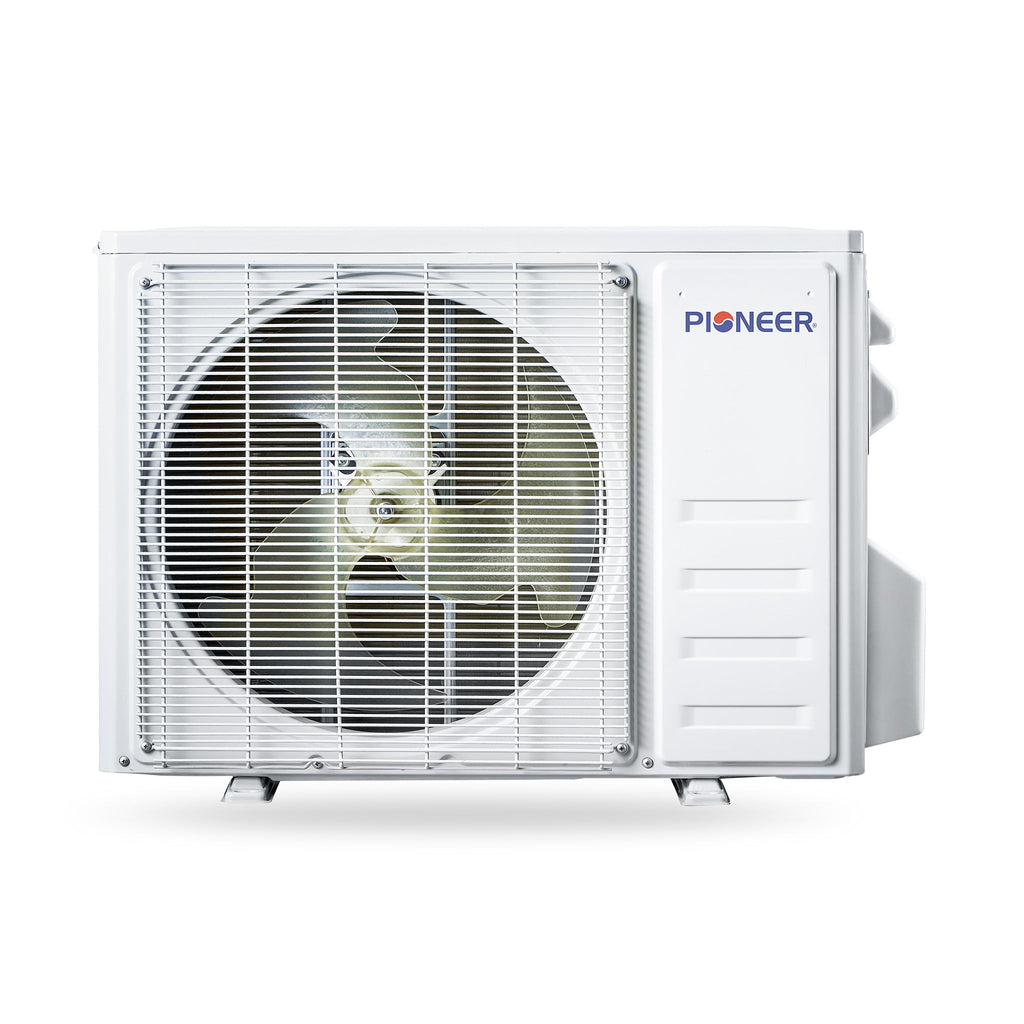

Outdoor Unit |
|
| Part Number: | YN024GLSI24RPG |
| Breaker Needed: | 20A (double-pole) |
| Sound Level: | 54 dB(A) |
| Net Dimensions (WDH): | 38"-1/2 x 16"-5/8 x 31"-5/8 Inches |
| Carton Dimensions (WDH): | 40"-1/4 x 18"-7/8 x 31"-7/8 Inches |
| Net / Gross Weight: | 104.7 / 119.0 lbs. |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
