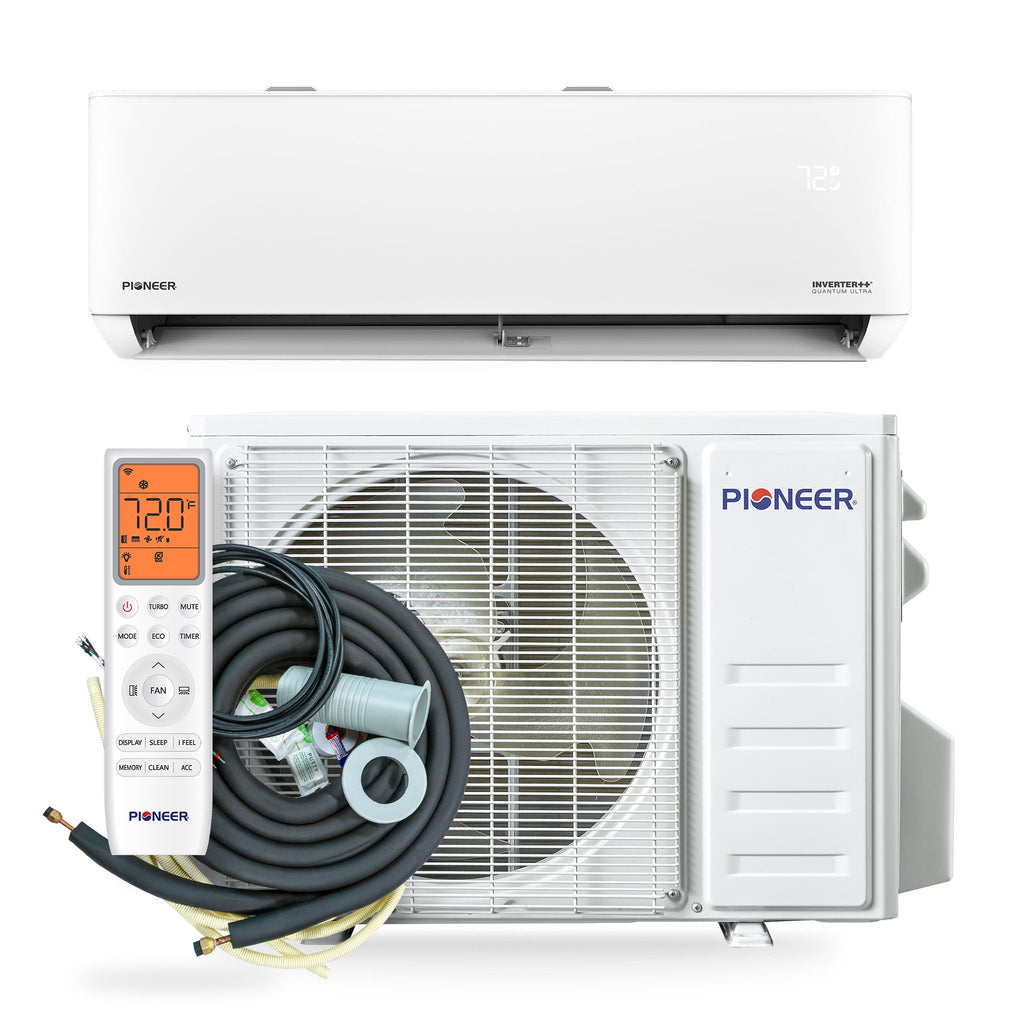

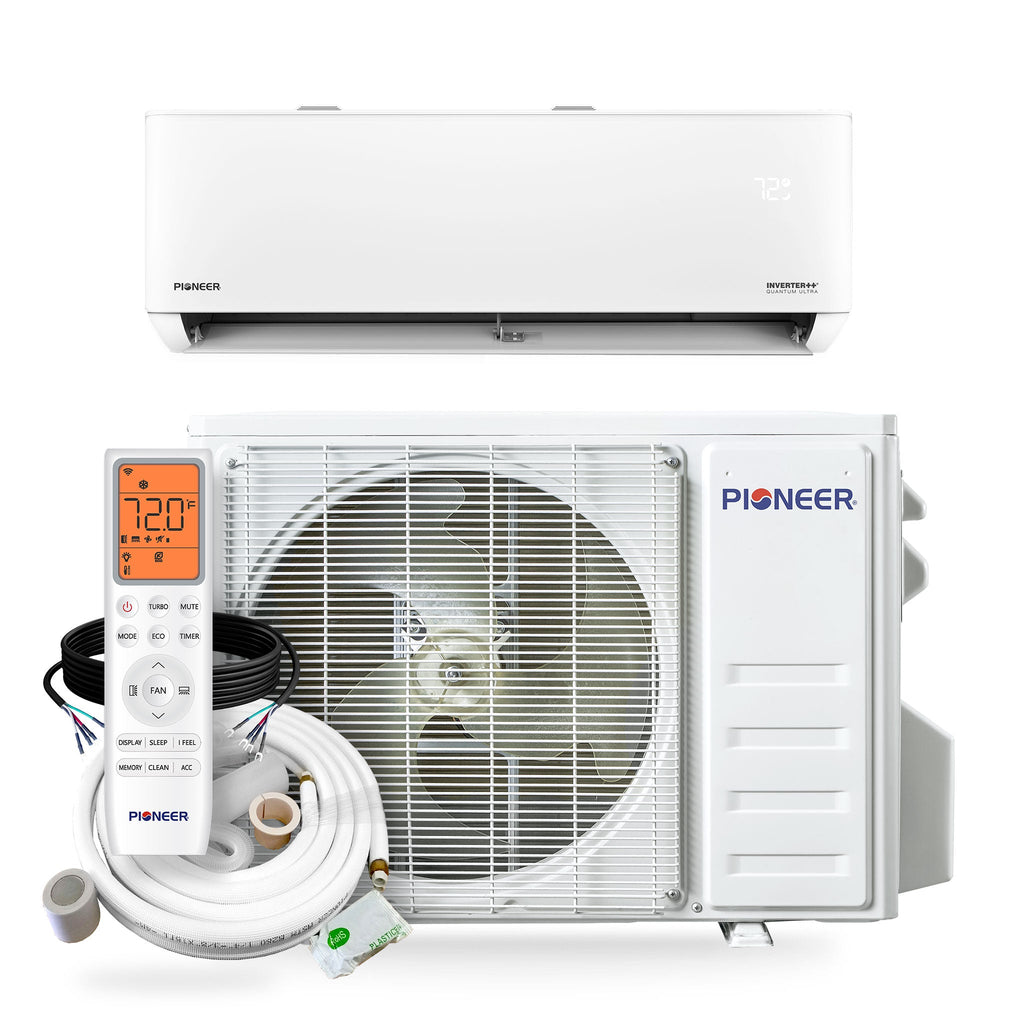

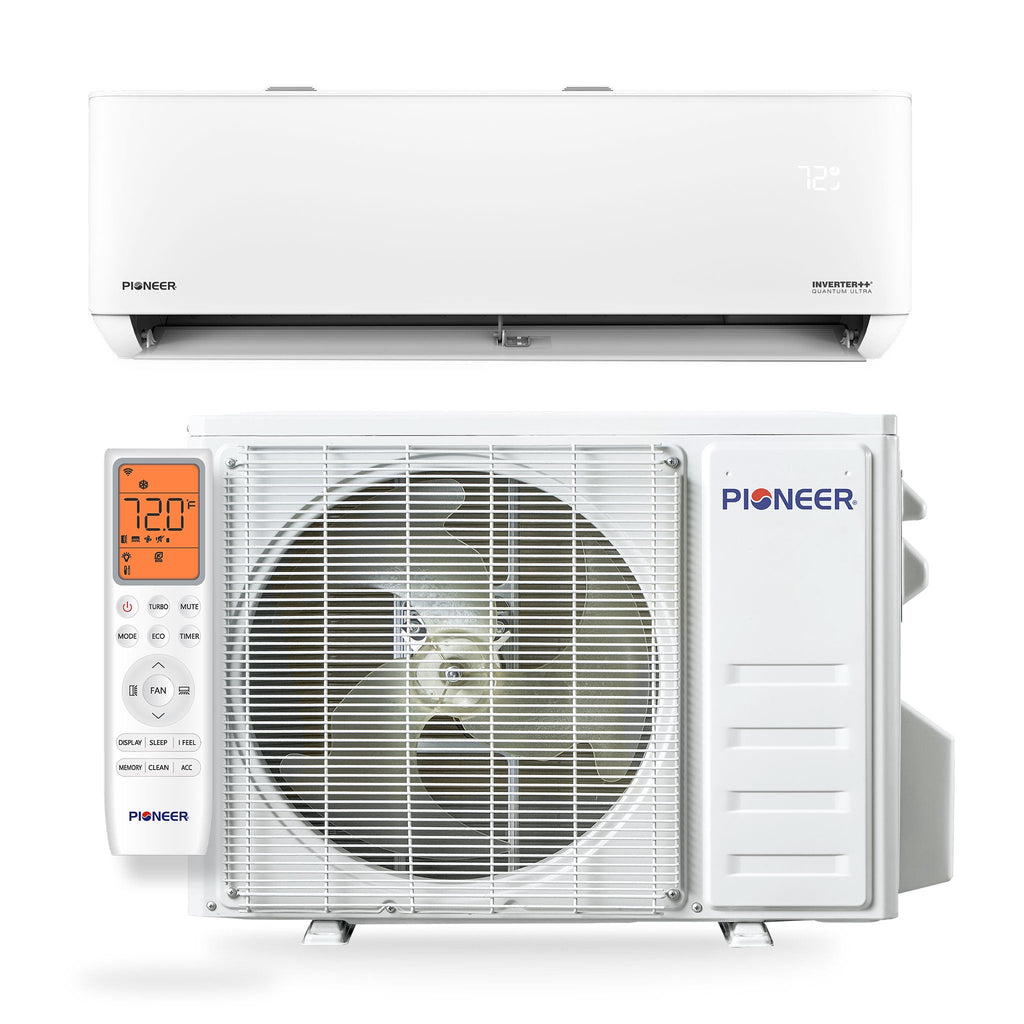

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

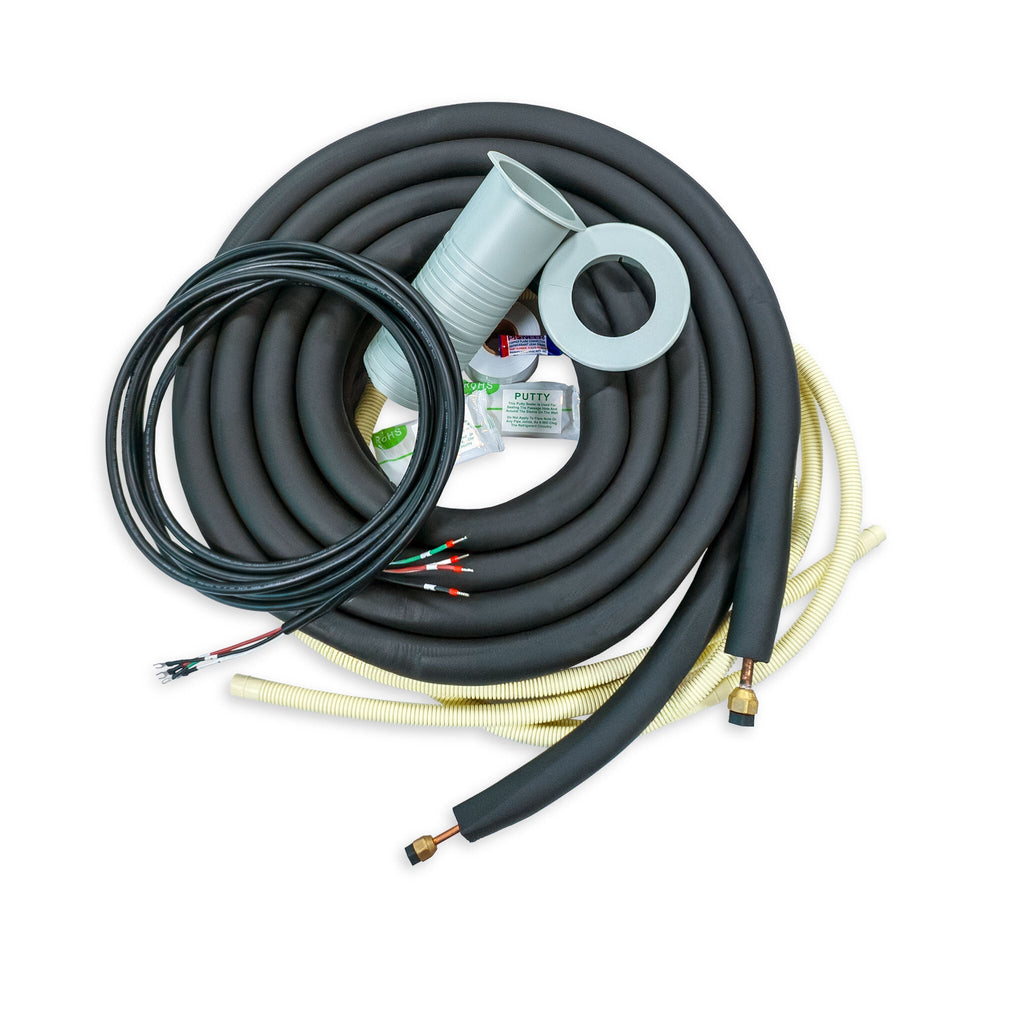

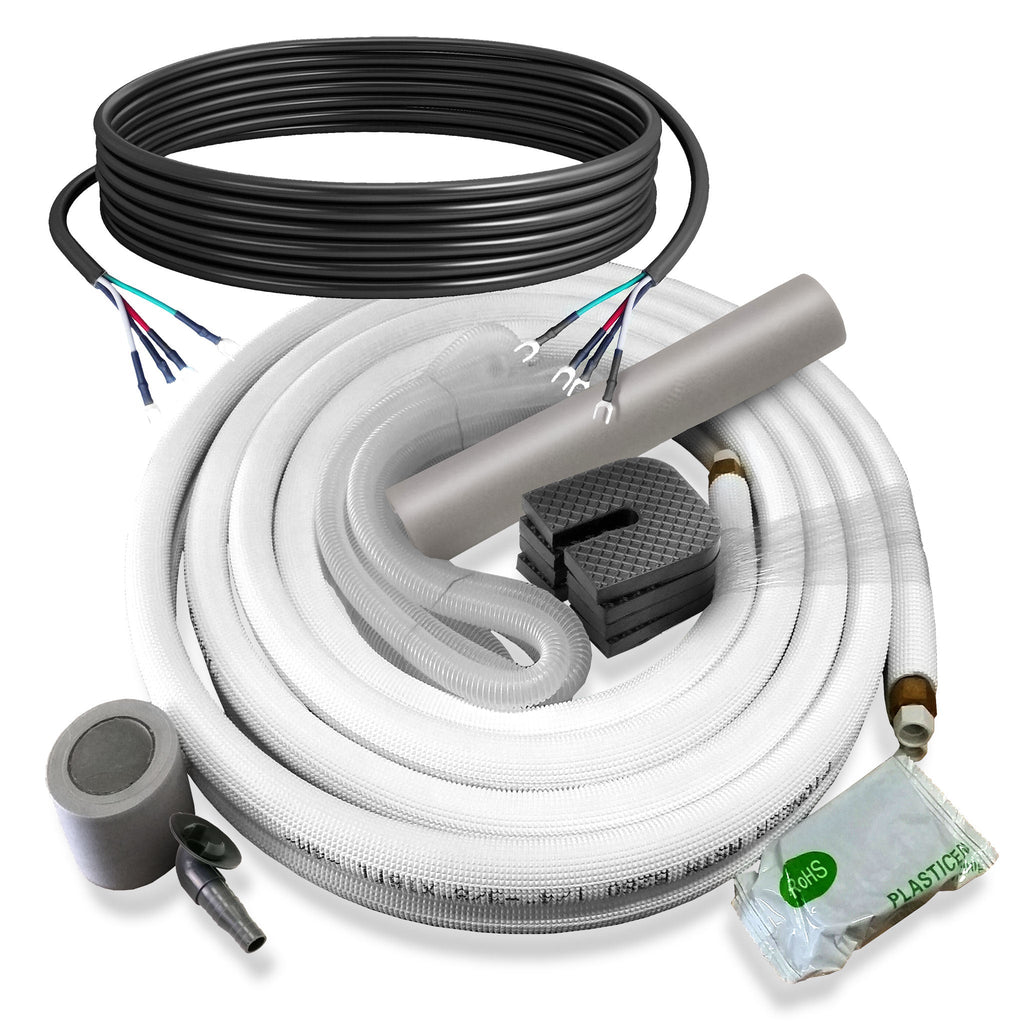

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.
Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy
System Kit |
|
| Power Supply | 208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity | 12,000 BTU/h |
| Cooling Capacity Range | 2,500~12,500 BTU/h |
| Cooling SEER2 | 24.0 BTU/W.h |
| Cooling EER2 | 13.0 BTU/W.h |
| Heating Rated Capacity | 12,600 BTU/h |
| Heating Capacity Range | 2,500~15,000 BTU/h |
| Heating HSPF2 (Region IV) | 10.0 / 8.6 BTU/W.h |
| Heating C.O.P.2 (47°F/5°F) | 3.81 / 2.1 W/W |
| Refrigerant Type | R454b |
| Recommended Room Size | 250~500 Sq.F |
| Minimum Room Size | 40 sq ft |
| Minimum Installation Height | 6 ft |
| Piping Diameter | 1/4 x 3/8" |
| AHRI Reference | 217048751 |

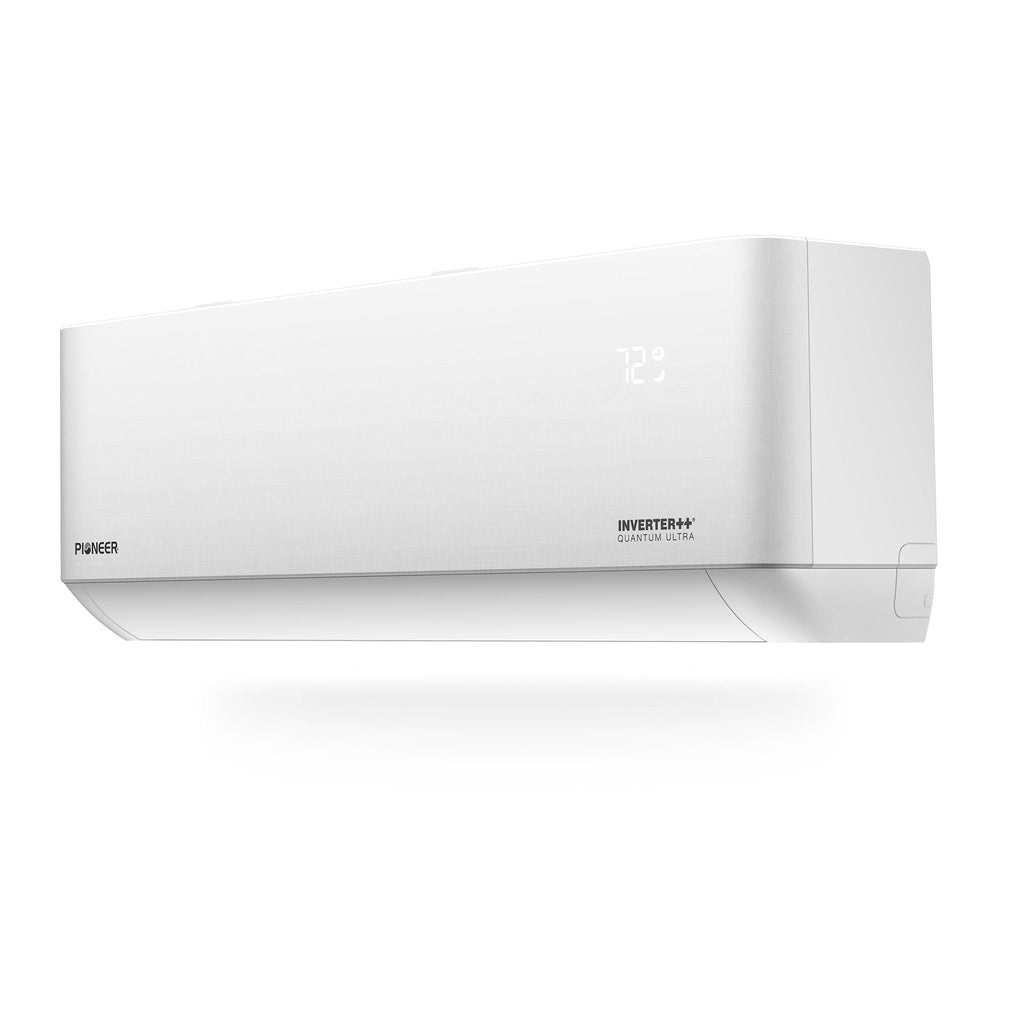

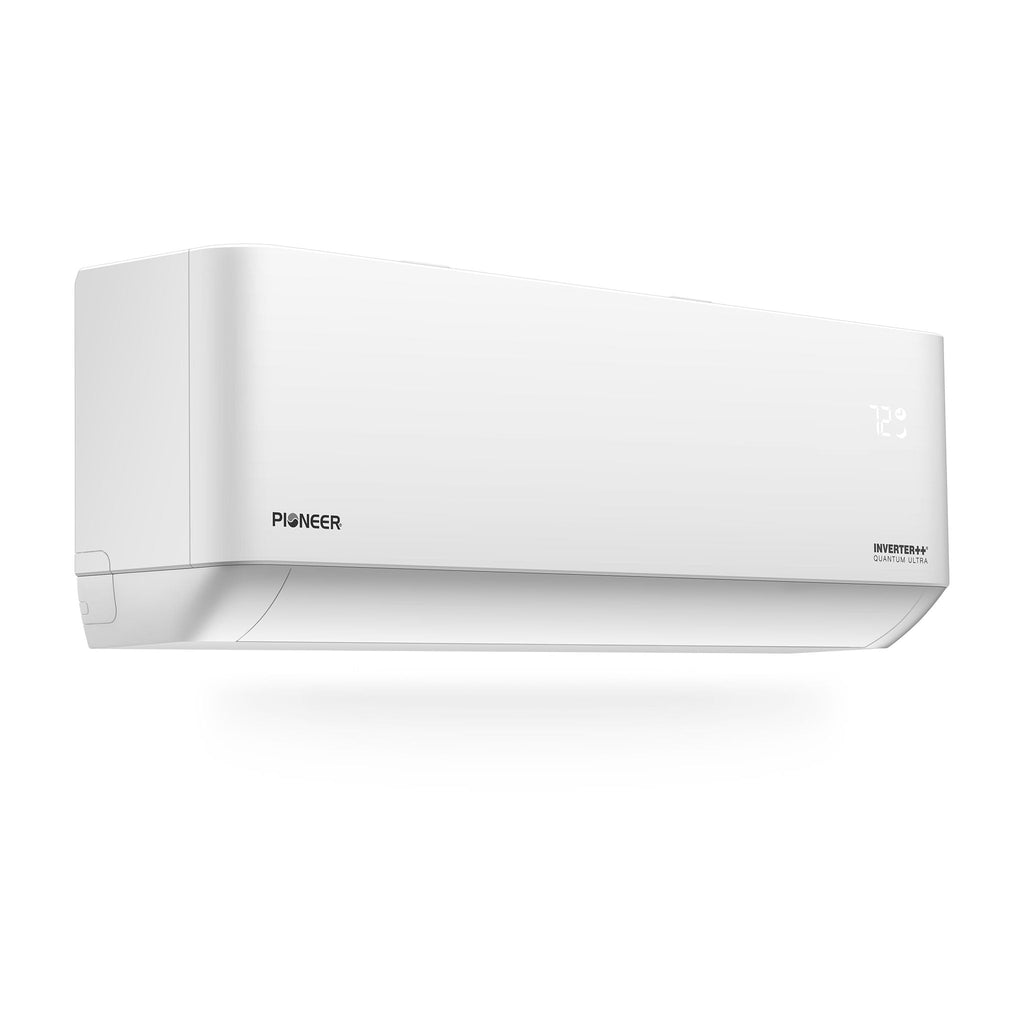

Indoor Unit |
|
| Part Number | WT012GLSI24HLG |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 500/470/411/323/205 CFM |
| Sound Level (Turbo/Hi/Med/Lo/Mute) | 46/44/36/32/30 dB(A) |
| Product Dimensions (WDH) | 36"-1/2 x 7"-5/8 x 12" Inches |
| Carton Dimensions (WDH) | 39" x 10"-1/2 x 15" Inches |
| Net / Gross Weight | 23.1 / 30.9 lbs. |

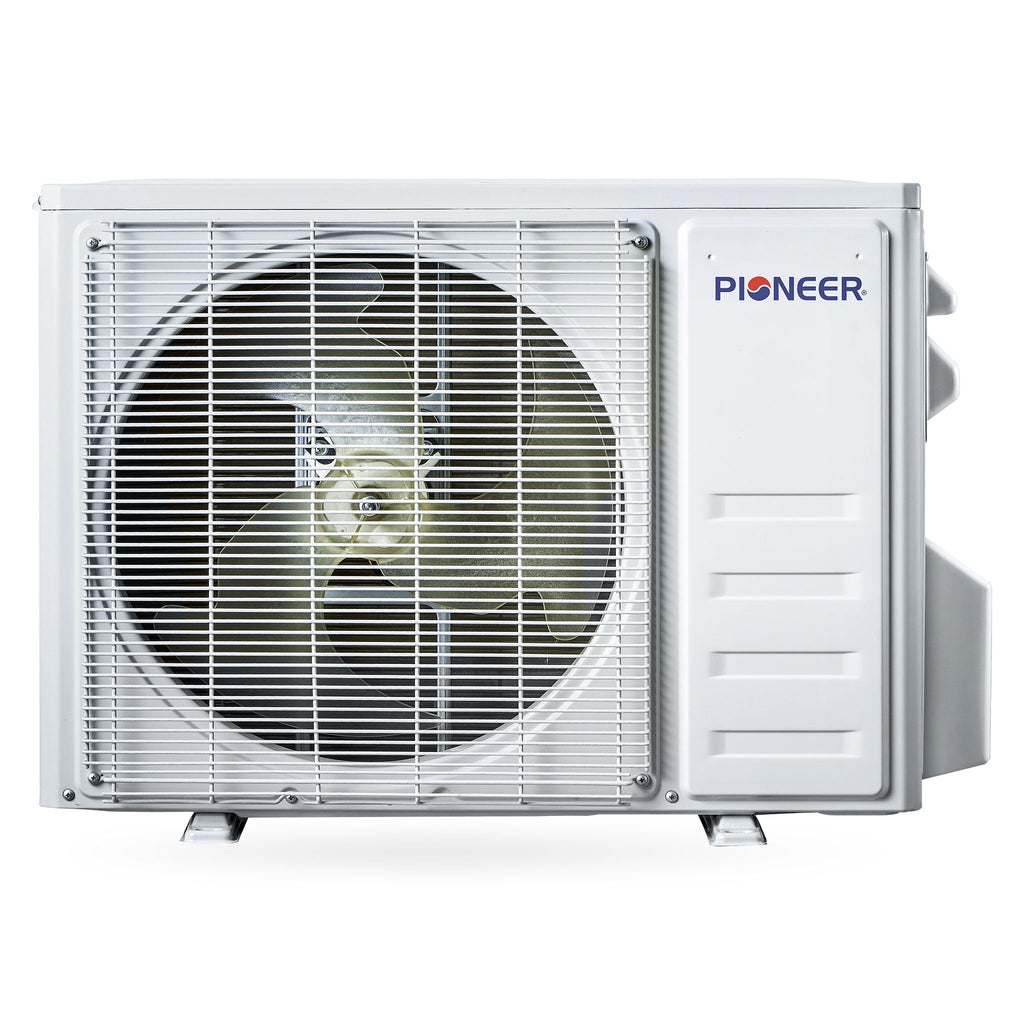

Outdoor Unit |
|
| Part Number | YN012GLSI24RPG |
| Breaker Needed | 15A (double-pole) |
| Sound Level | 52 dB(A) |
| Net Dimensions (WDH) | 31"-7/8 x 12" x 21"-5/8 Inches |
| Carton Dimensions (WDH) | 32"-7/8 x 13" x 22"-5/8 Inches |
| Net / Gross Weight | 58.4 / 65.0 lbs. |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
