MRCOOL Universal Series - Central Air Conditioner & Gas Furnace Split System - 4-to-5 Ton, 17-to-18 SEER, 48-to-60K BTU, 80% AFUE - 14.5-Inch Cabinet - Downflow

MRCOOL Universal Series - Central Air Conditioner & Gas Furnace Split System - 4-to-5 Ton, 17-to-18 SEER, 48-to-60K BTU, 80% AFUE - 14.5-Inch Cabinet - Downflow

SKU: CSS-MD60-8045D

Sale price$4,547.00 Regular price$5,799.00
Save 22%



Discontinued
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

MRCOOL Universal Series - Central Air Conditioner & Gas Furnace Split System - 4-to-5 Ton, 17-to-18 SEER, 48-to-60K BTU, 80% AFUE - 14.5" Cabinet - Downflow

The MRCOOL Central Air Conditioner & Gas Furnace Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.

Bundle Includes:

  1. MRCOOL Universal Series 48K-60K BTU, 4-to-5 Ton, 17-to-18 SEER, DC Inverter Cooling-Only Condenser (MDUCO18048060)

  2. MRCOOL Universal 48K BTU, 4-5 Ton, 18 SEER, R410A A-Coil - 24.5" Cabinet (MDUCC15048060)

  3. MRCOOL Signature 80% AFUE, 45K BTU, 3 Ton, Downflow Multi-Speed Gas Furnace - 14.5" Cabinet (MGD80SE045A3A)



MRCOOL Universal Series 48K-60K BTU, 4-to-5 Ton, 17-to-18 SEER, DC Inverter Cooling-Only Condenser (MDUCO18048060)

  • 4 Ton 18 SEER, 5 Ton 17 SEER
  • Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
  • Low Ambient Cooling Down to 39.2 Degrees F
  • Condensers Can Be Field Converted to smaller size using Dip Switch Setting
  • AHRI Certified & ETL listed
  • Slim Design
  • Quiet 55-58dB(a) Operation
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
  • 10 Year Registered Limited Warranty

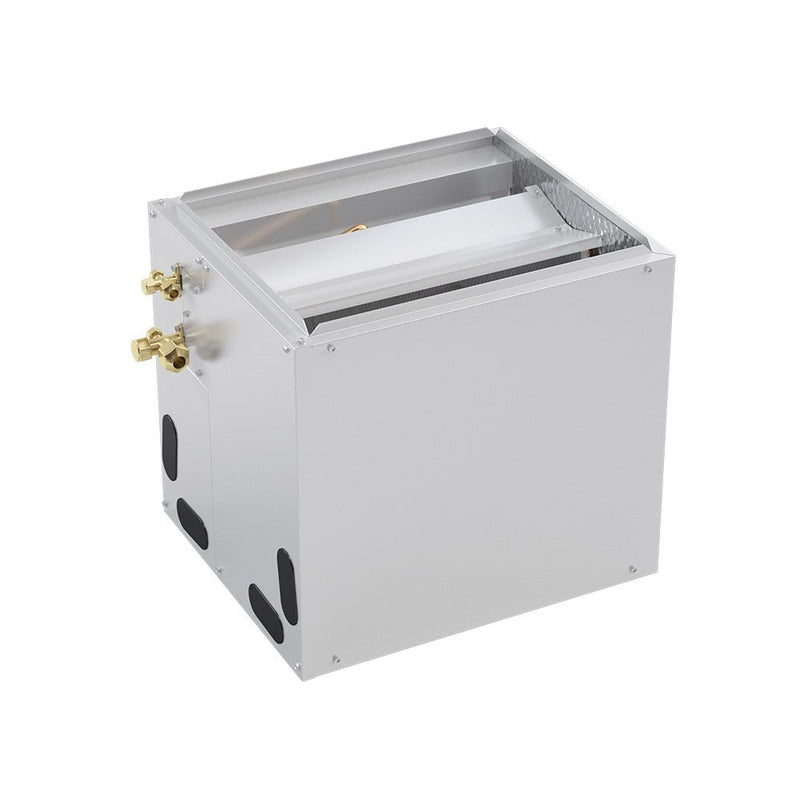

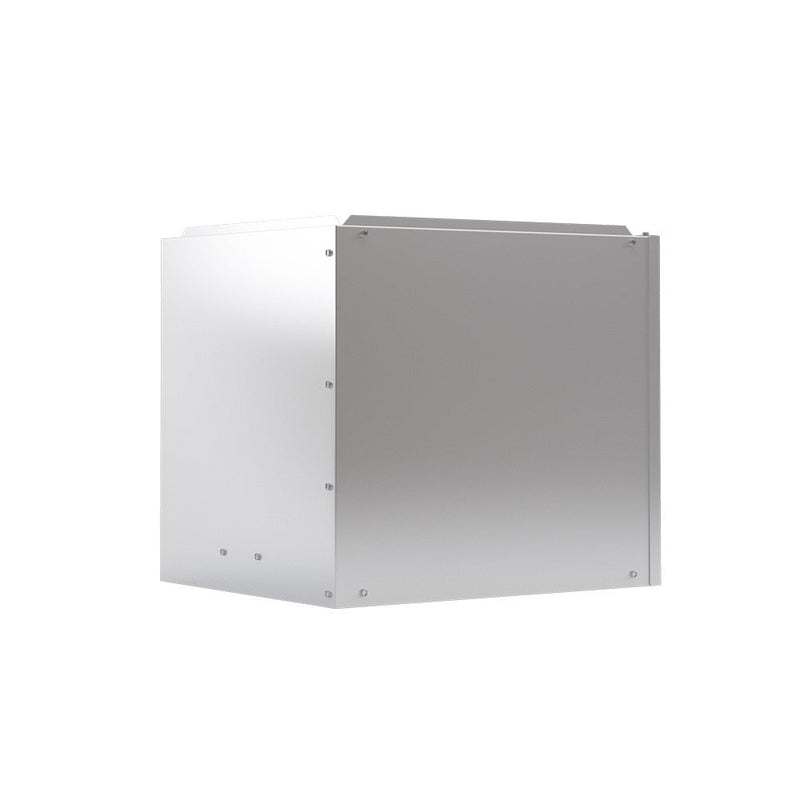

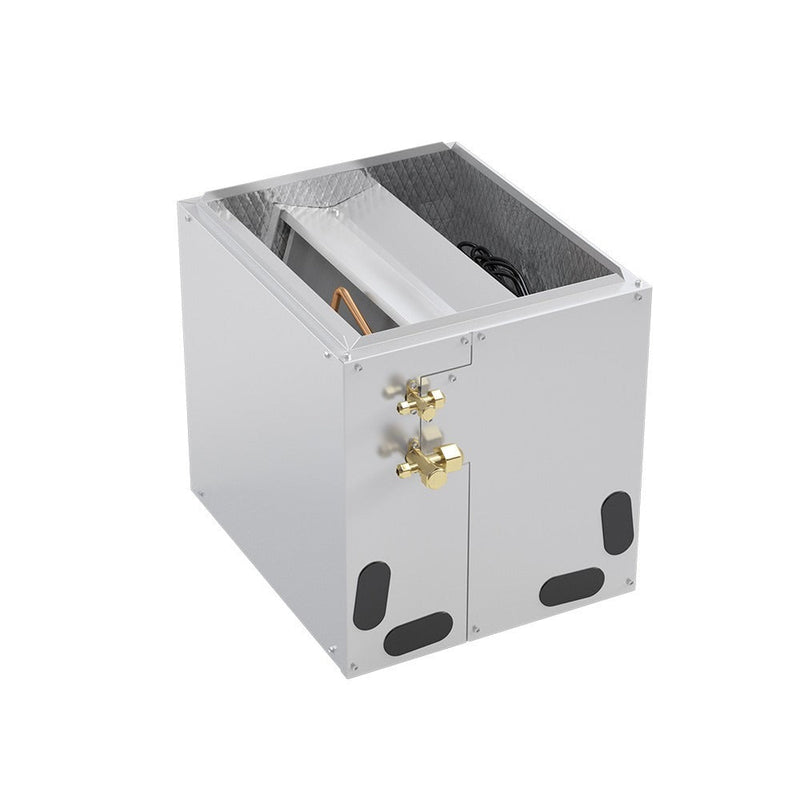

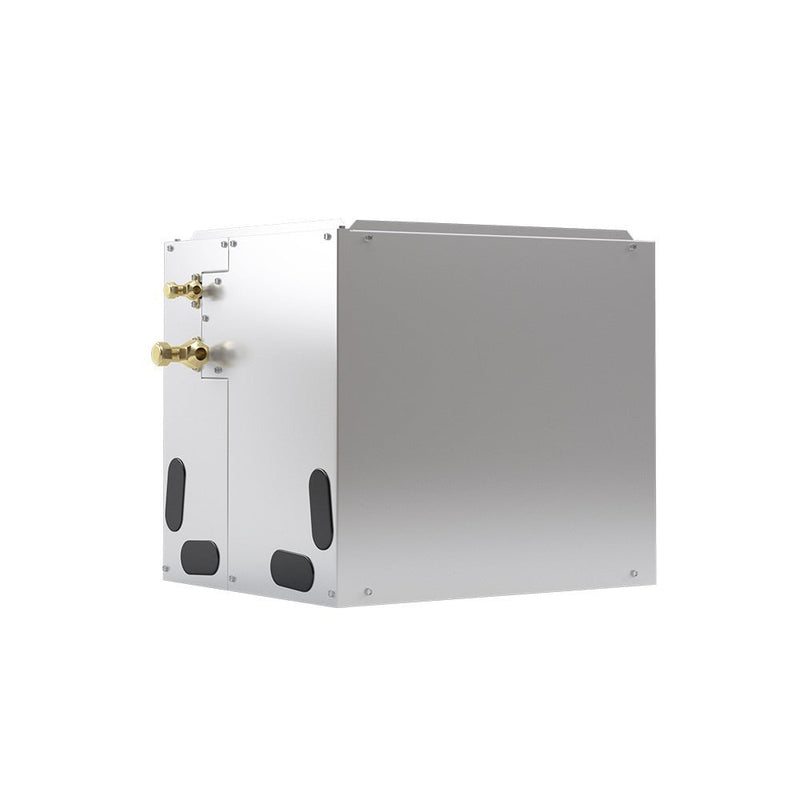

        MRCOOL Universal 48K BTU, 4-5 Ton, 18 SEER, R410A A-Coil - 24.5" Cabinet (MDUCC15048060)

        • Offers quieter operation and quick installation than many competitor models.
        • It also features a liquid pipe designed to guard against excessive condensation.
        • It is equipped with multiple safeguards including protection against, high-pressure, high-discharge temperature, overload, IPM, and PFC in order to ensure effective and efficient operation for the life of the unit.

              MRCOOL Signature 80% AFUE, 45K BTU, 3 Ton, Downflow Multi-Speed Gas Furnace - 14.5" Cabinet (MGD80SE045A3A)

              • Removable floor base for bottom return air
              • Easily removable slide out blower design Left or right utility connections
              • Zero step horizontal conversion
              • Aluminized steel inshot burners for smooth ignition
              • Multi-speed high efficiency (constant torque) blower motor
              • AHRI Certified
              • Aluminized steel tapered crimped non-welded clam shell heat exchanger design
              • Heating efficiency of 80% AFUE
              • Registered 10-year parts warranty
              • Compact 33" height
              • Rotatable draft inducer for venting flexibility

                                                  Condenser


                                                  Dimensions

                                                  37" L x 12.625" W x 56.375" H

                                                  Voltage

                                                  240 V

                                                  Refrigerant Type

                                                  R-410A


                                                  Coil


                                                  Dimensions

                                                  21 1/4" D x 28 1/2" H x 24 1/2" W

                                                  Cooling Capacity

                                                  48000 BTU

                                                  Refrigerant Type

                                                  R-410A


                                                  Furnace


                                                  Dimensions

                                                  28 3/8" D x 33" H x 14 1/2" W

                                                  Voltage

                                                  120 V

                                                  Heating Capacity

                                                  44,000 BTU

                                                  AFUE

                                                  80%






                                                  Mini Split FAQ

                                                  What BTU rating should I choose for my air handler?

                                                  • This depends on the coverage area/room size you are trying to heat/cool
                                                  • An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area
                                                  Air Handler BTU Coverage Area/Room Size (Sq Ft.)*
                                                  9K BTU
                                                  Up to 375 Sq. ft
                                                  12K BTU Up to 500 Sq. ft
                                                  18K BTU Up to 750 Sq. ft
                                                  24k BTU Up to 1000 Sq. ft
                                                  36k BTU  Up to 1500 Sq. ft

                                                  *Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
