SKU: CSS-MD36-8090D
$4,311.00 $4,999.00
Save 14%

Discontinued
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

MRCOOL Universal Series - Central Air Conditioner & Gas Furnace Split System - 2-to-3 Ton, 18-to-20 SEER, 36K BTU, 80% AFUE - 17.5" Cabinet - Downflow

The MRCOOL Central Air Conditioner & Gas Furnace Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.

Bundle Includes:

  1. MRCOOL Universal Series 36K BTU, 2-to-3 Ton, 18-to-20 SEER R410A DC Cooling-Only A/C Inverter Condenser (MDUCO18024036)

  2. MRCOOL Universal 24K BTU, 2 Ton, 19.5 SEER, R410A A-Coil - 17.5" Cabinet (MDUCC15024036)

  3. MRCOOL Signature 80% AFUE, 90K BTU, 4 Ton, Downflow Multi-Speed Gas Furnace - 17.5" Cabinet (MGD80SE090B4A)



MRCOOL Universal Series 36K BTU, 2-to-3 Ton, 18-to-20 SEER R410A DC Cooling-Only A/C Inverter Condenser (MDUCO18024036)

  • Up to 20 SEER in 2 Ton Mode, Up to 18 SEER in 3 Ton Mode
  • Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
  • Low Ambient Cooling Down to 39.2 Degrees F
  • Condensers Can Be Field Converted to smaller size using Dip Switch Setting
  • AHRI Certified & ETL listed
  • Slim Design
  • Quiet 55-58dB(a) Operation
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
  • 10 Year Registered Limited Warranty

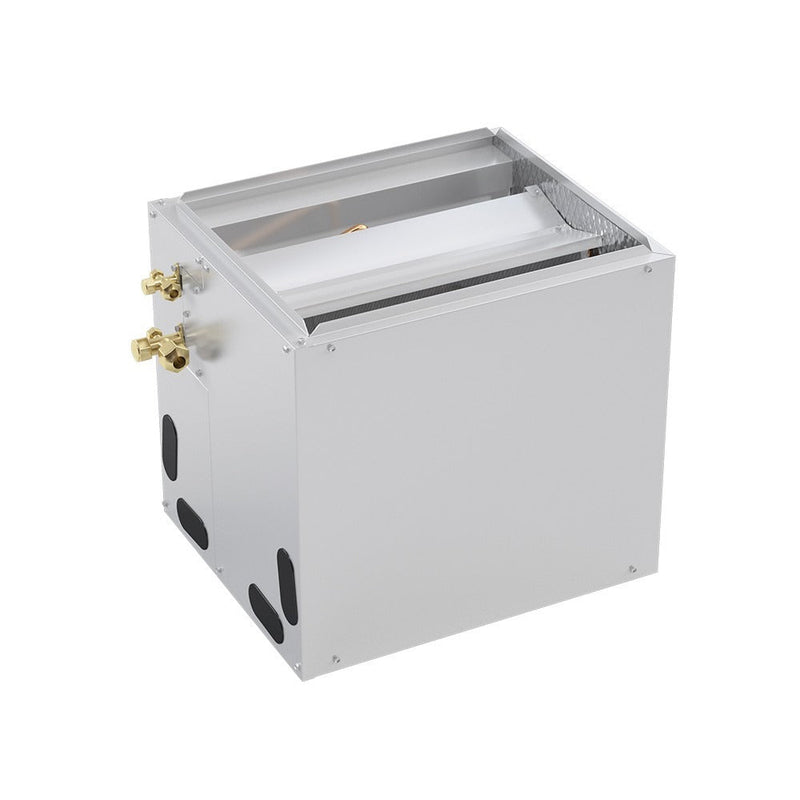

      MRCOOL Universal 24K BTU, 2 Ton, 19.5 SEER, R410A A-Coil - 17.5" Cabinet (MDUCC15024036)

      • Offers quieter operation and quick installation than many competitor models.
      • It also features a liquid pipe designed to guard against excessive condensation.
      • It is equipped with multiple safeguards including protection against, high-pressure, high-discharge temperature, overload, IPM, and PFC in order to ensure effective and efficient operation for the life of the unit.

          MRCOOL Signature 80% AFUE, 90K BTU, 4 Ton, Downflow Multi-Speed Gas Furnace - 17.5" Cabinet (MGD80SE090B4A)

          • Easily removable slide out blower design
          • Registered 10-year parts warranty
          • Rotatable draft inducer for venting flexibility
          • Downflow furnace
          • Heating efficiency of 80% AFUE
          • AHRI Certified
          • LP kit not included
          • Aluminized steel tapered crimped non-welded clam shell heat exchanger design
          • Compact 33" height
          • Left or right utility connections
          • Multi-speed high efficiency (constant torque) blower motor
          • Zero step horizontal conversion



                                        Condenser

                                        Dimensions

                                        14.25" H x 11.1" L x 49.57" W

                                        Voltage

                                        240 V

                                        Cooling Capacity

                                        36000 BTU

                                        Refrigerant Type

                                        R-410A


                                        Coil

                                        Dimensions

                                        21 1/4" D x 23" H x 17 1/2" W

                                        Cooling Capacity

                                        24000 BTU

                                        Refrigerant Type

                                        R-410A


                                        Furnace

                                        Dimensions

                                        28 3/8" D x 33" H x 17 1/2" W

                                        Voltage

                                        120 V

                                        Heating Capacity

                                        88,000 BTU

                                        AFUE

                                        80%












                                        Mini Split FAQ

                                        What BTU rating should I choose for my air handler?

                                        • This depends on the coverage area/room size you are trying to heat/cool
                                        • An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area
                                        Air Handler BTU Coverage Area/Room Size (Sq Ft.)*
                                        9K BTU
                                        Up to 375 Sq. ft
                                        12K BTU Up to 500 Sq. ft
                                        18K BTU Up to 750 Sq. ft
                                        24k BTU Up to 1000 Sq. ft
                                        36k BTU  Up to 1500 Sq. ft

                                        *Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
