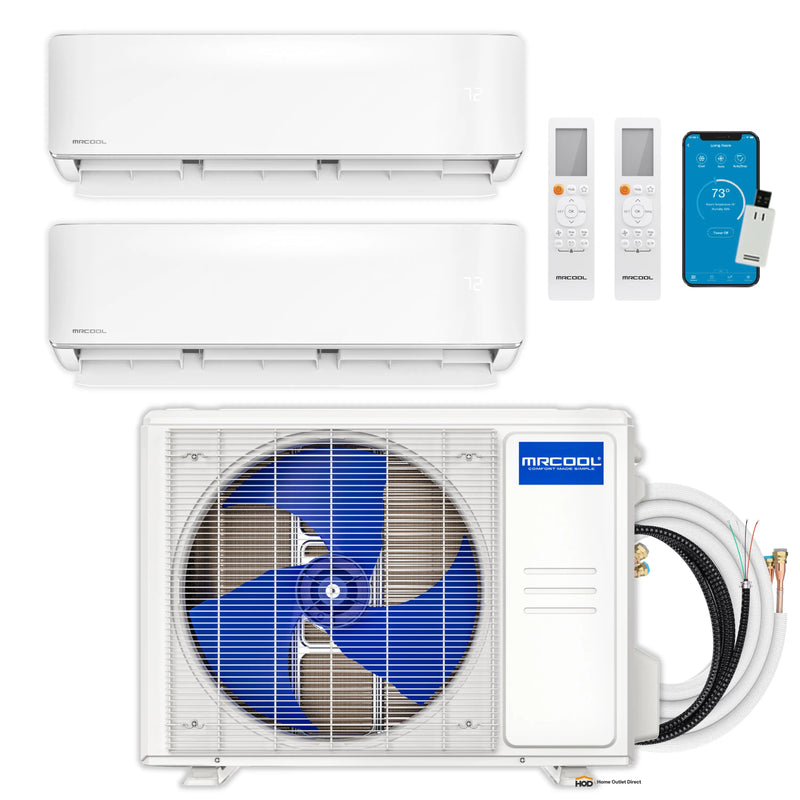

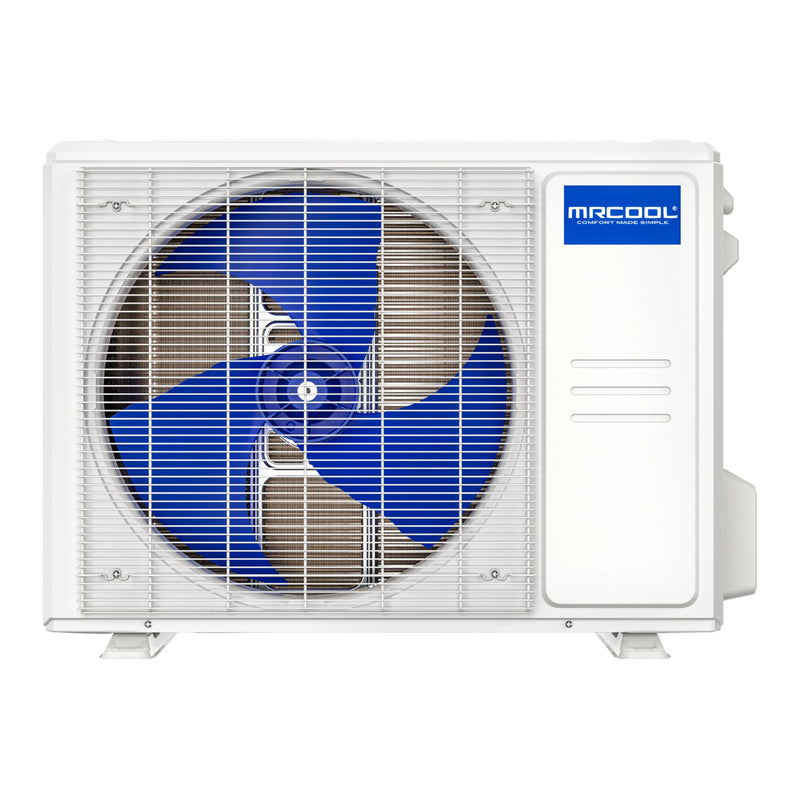

If you’re in need of comfort, our new 5th Generation MRCOOL® DIY® 27k BTU Multi-Zone Ductless Mini Split Condenser is the perfect solution! The acronym in the name is true - you can install this system on your own, without the assistance of an HVAC professional! You’ll save money in more ways than one, too, due to the incredible efficiency of this system, which attains a SEER2 rating of 23 and a HSPF2-4 rating of 9.5.
This condenser in particular is able to support up to 4 air handlers, meaning it can provide heat and air conditioning to four separate spaces equalling a total of 1,000 to 1,200 square feet. This system is unique because it utilizes special, patented Quick Connect® line sets that are pre-charged with R-454B, which is a newer refrigerant that allows the system to be even more sustainable and efficient than its previous generation. These line sets essentially link to the fittings of the condenser and the air handler, making the installation process a breeze.
Once installed, this condenser will be able to do more than you expect! Our SmartHVAC app gives you the opportunity to integrate the system with your phone and Amazon Alexa or Google Home, which will let you control your comfort using just your voice. The app also gives you the ability to customize your comfort with a range of features, from setting schedules to monitoring the system’s energy use. You deserve to have your comfort meet your standards, and this unit can do that for you. Should something happen to the system, we’ve got your back. The DIY® series boasts one of the foremost warranties in the HVAC industry - a 5 year parts warranty, a 7 year compressor warranty, and a Limited Lifetime Replacement warranty if you enroll in the MRCOOL® Care Program. Get the best for your home and install a DIY®!
| Dimensions | 16.14" D x 31.89" H x 37.24" W |
|
SEER2 |
23 |
|
EER2 |
12 |
|
HSPF2-4 |
9.5 |
|
HSPF2-5 |
7 |
|
Tonnage |
2.25 |
|
Cooling Capacity (BTU) |
26000 |
|
Heating Capacity (BTU) |
26000 |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
25 |
|
Min Circuit Ampacity (A) |
23 |
|
Color |
White |
|
Zone Capacity |
4 |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (OZ) |
84.66 |
|
Decibel Rating (DBA) |
61 |
|
Inverter |
DC |
|
Line Set Length |
25 |
|
Max Lineset Length (FT) |
221.4 |
|
Liquid LIne Size |
1/4 |
|
Suctio Line Size |
3/8 |
|
Compressor Motor Type |
Rotary |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contans Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |

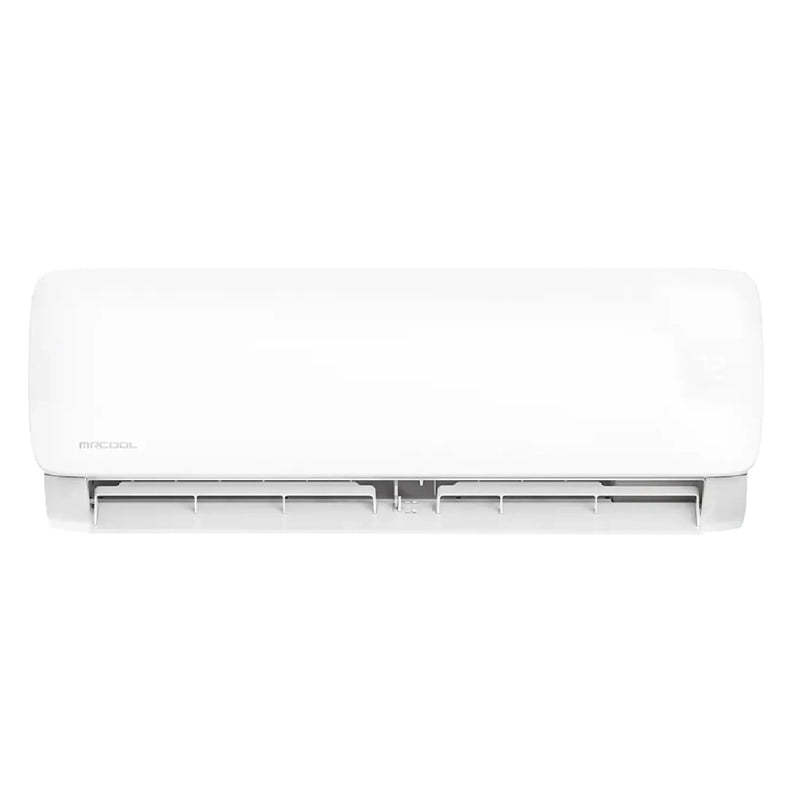

The 5th Generation MRCOOL® DIY® 12K BTU Ductless Mini-Split Heat Pump is an efficient and versatile climate control solution for spaces up to 550 sq. ft. Designed with homeowners in mind, this system offers a true DIY installation process, eliminating the need for specialized tools or professional assistance. This makes setup quick, straightforward, and cost-effective. One of its standout features is the pre-charged 25-foot DIY® QuickConnect® line set, pre-filled with R-454B refrigerant. T
his eliminates the need for vacuuming, significantly reducing installation time and expenses. The included DIYPRO® cable further streamlines installation by removing the need for electrical conduit while also offering enhanced durability and protection against the elements. Operating the system is simple and convenient, with multiple control options available. Adjust temperature settings with the wireless remote, the SmartHVAC app for iOS and Android devices, or hands-free voice commands via Amazon Alexa and Google Assistant. For personalized comfort, the Follow Me function ensures consistent temperature regulation by adjusting airflow based on the remote’s location, while Dry Mode helps control excess humidity.
Built for longevity, the Gold Fin® Condenser provides superior corrosion resistance, making it ideal for coastal environments. Supported by industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—this MRCOOL® DIY® system delivers reliable, year-round comfort with smart features and effortless installation.
| Dimensions | 7.44" D x 11.63" H x 31.57" W |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Mount Type |
Wall |
|
Color |
White |
|
Max Coverage Area |
550 sqft |
|
Oscillation |
Yes |
|
Filter Type |
Reusable |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
Remote Control Included |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |

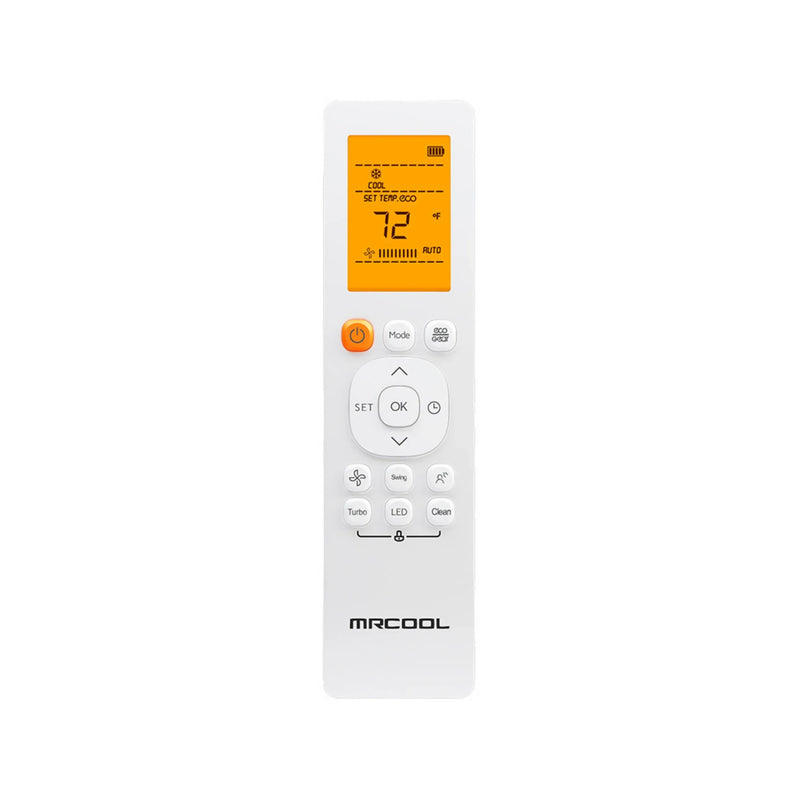

This remote is included with each air handler in MRCOOL's 5th Generation DIY or Advantage Mini Split Systems.
| Dimensions | 2" W x 6" L x 1" H |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States | GU;PR;VI |
| Color | White |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
