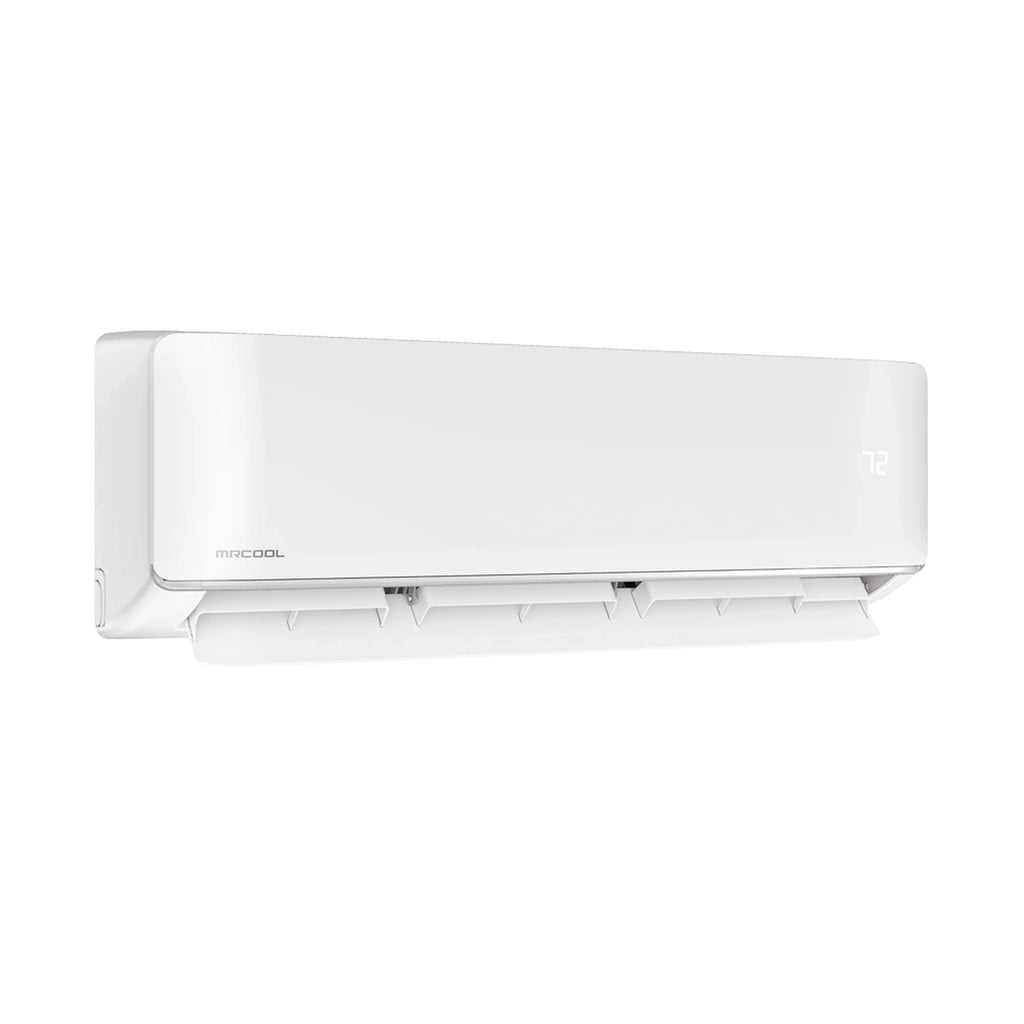

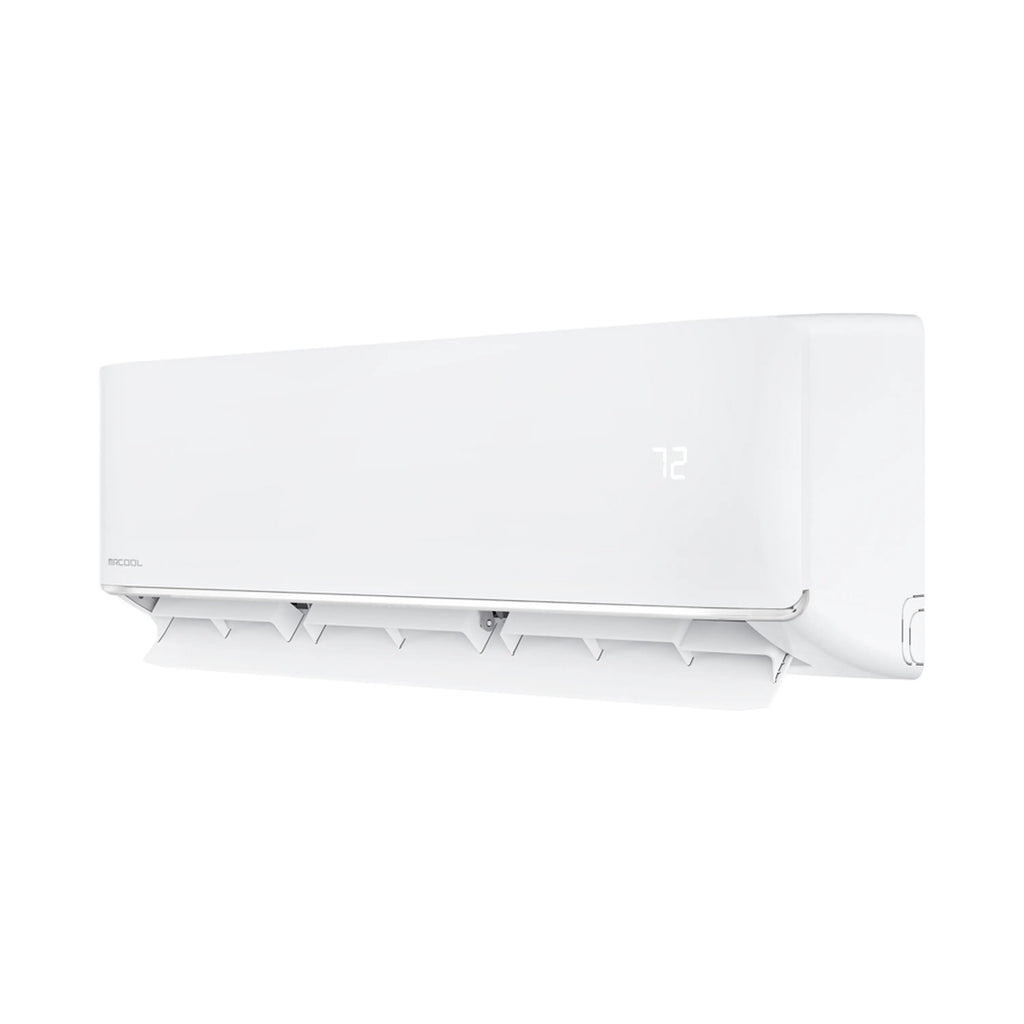

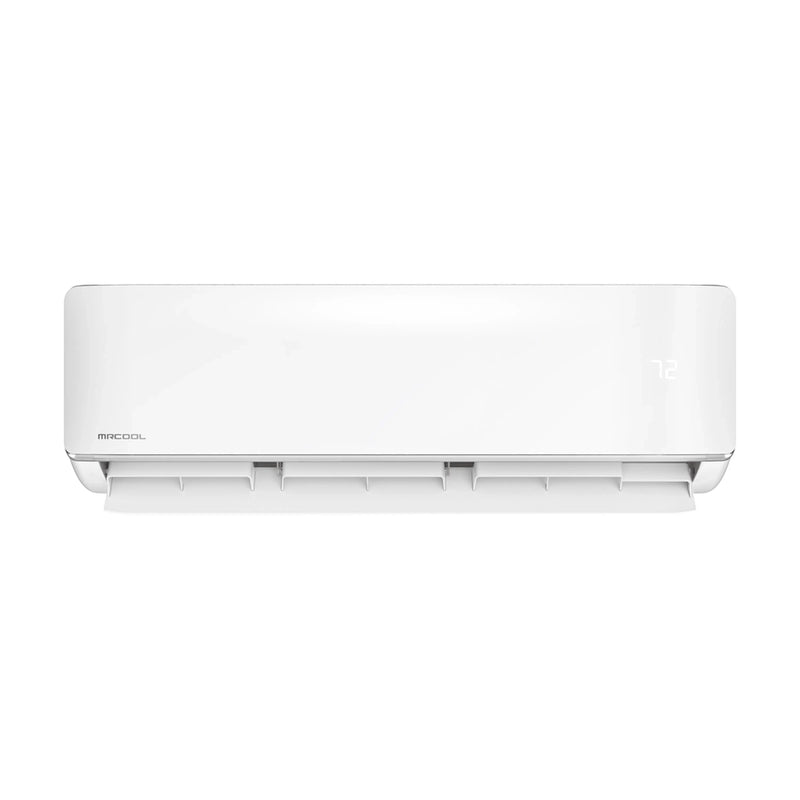

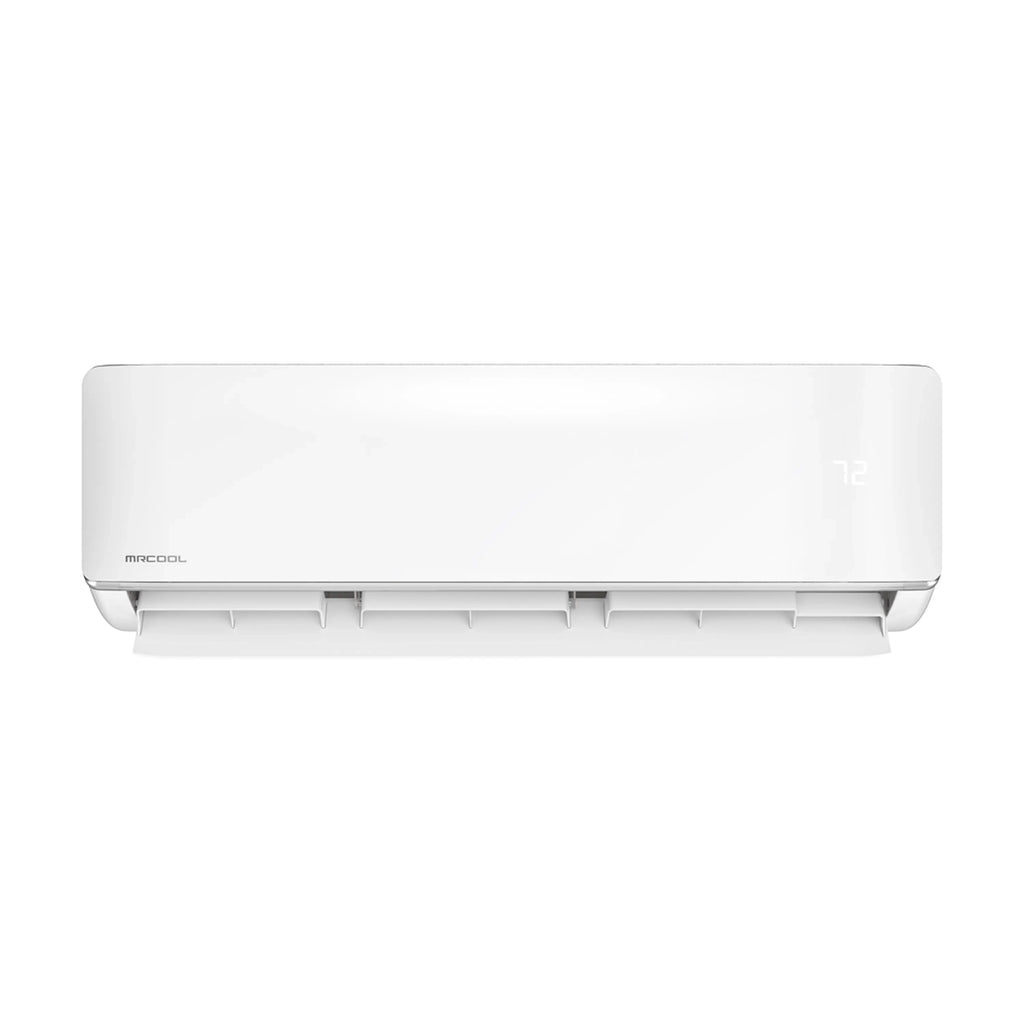

The 5th Generation MRCOOL® DIY® 12K BTU Ductless Mini-Split Heat Pump is an efficient and versatile climate control solution for spaces up to 550 sq. ft. Designed with homeowners in mind, this system offers a true DIY installation process, eliminating the need for specialized tools or professional assistance. This makes setup quick, straightforward, and cost-effective. One of its standout features is the pre-charged 25-foot DIY® QuickConnect® line set, pre-filled with R-454B refrigerant. T
his eliminates the need for vacuuming, significantly reducing installation time and expenses. The included DIYPRO® cable further streamlines installation by removing the need for electrical conduit while also offering enhanced durability and protection against the elements. Operating the system is simple and convenient, with multiple control options available. Adjust temperature settings with the wireless remote, the SmartHVAC app for iOS and Android devices, or hands-free voice commands via Amazon Alexa and Google Assistant. For personalized comfort, the Follow Me function ensures consistent temperature regulation by adjusting airflow based on the remote’s location, while Dry Mode helps control excess humidity.
Built for longevity, the Gold Fin® Condenser provides superior corrosion resistance, making it ideal for coastal environments. Supported by industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—this MRCOOL® DIY® system delivers reliable, year-round comfort with smart features and effortless installation.
| Dimensions | 7.44" D x 11.63" H x 31.57" W |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Mount Type |
Wall |
|
Color |
White |
|
Max Coverage Area |
550 sqft |
|
Oscillation |
Yes |
|
Filter Type |
Reusable |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
Remote Control Included |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
*Shipping Policy
I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Very good customer service will be buying from them again
Was easy to install. Directions were easy to follow and unit is working great
