The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to four rooms. The easy installation, Do-It-Yourself
MRCOOL DIY 4th Gen 48K BTU, 5-Zone, 20.5 SEER, Ductless Heat Pump Condenser (DIY-MULTI5-48HP230C)

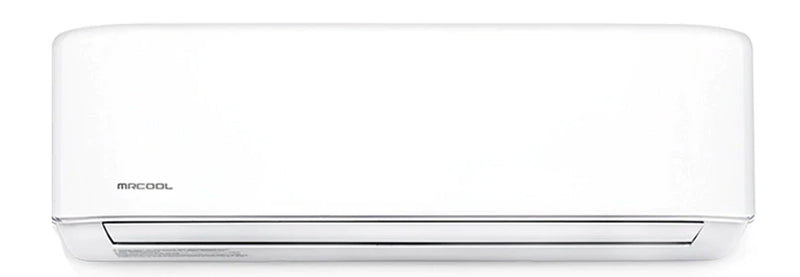

MRCOOL DIY 4th Gen 18K BTU, 22 SEER, Ductless Mini-Split Wall Mounted Air Handler (DIY-18-HP-WMAH-230C25) (x3)
MRCOOL DIY 4th Gen 9K BTU, 22 SEER, Ductless Mini-Split Wall Mounted Air Handler (DIY-09-HP-WMAH-230C25) (x1)
Condenser |
|
|
Dimensions |
16.34" D x 52.48" H x 37.48" W |
|
Voltage |
208-230 V |
|
SEER |
20.5 |
|
Cooling Capacity |
48K BTU |
|
Heating Capacity |
48K BTU |
|
Min-Max Ambient Cool |
5F ~ 122F |
|
Min-Max Ambient Heat |
5F ~ 75.2F |
|
Refrigerant Type |
R-410A |
|
Max Lineset Length |
246.06 ft TOTAL |
18K Air Handler |
|
|
Product Dimensions |
8.90" D x 13.19" H x 42.52" W |
|
Voltage |
208-230 V |
|
Cooling Capacity |
18K BTU |
|
Heating Capacity |
18K BTU |
|
Modes |
|
9K Air Handler |
|
|
Product Dimensions |
7.44" D x 11.69" H x 31.57" W |
|
Voltage |
208V-240V |
|
Cooling Capacity |
9K BTU |
|
Heating Capacity |
9K BTU |
|
Modes |
|
|
Condenser |
|
Air Handler |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
| 9K BTU | Up to 375 Sq. ft |
| 12K BTU | Up to 500 Sq. ft |
| 18K BTU | Up to 750 Sq. ft |
| 24k BTU | Up to 1000 Sq. ft |
| 36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
*Shipping Policy
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Overall Great Unit and working with HOD was simple. Unit arrived on time and in good shape.
Install was as stated and works good but struggles at heating house when temperatures are below freezing. I am concerned what will happen once we get to 20 and lower. Over all I like the product but they should be more honest about heating at low temperatures.
Received my 4 Ton VersaPro as it was stated, no bends or scratches and the trucking company placed it in my garage. It will be replacing my existing 3.5 ton Rheem heat pump so all the infrastructure already exists like the duct work, electric but will be replacing the existing line set with the pre-charged lineset so an HVAC tech won't be required assuming all goes as planned. Myself and a friend plan to install towards the end of October, waiting for cooler days here in Florida since it's an attic air handler install. Should have it completed in one or two days since I have done some of the preliminaries. Will update
